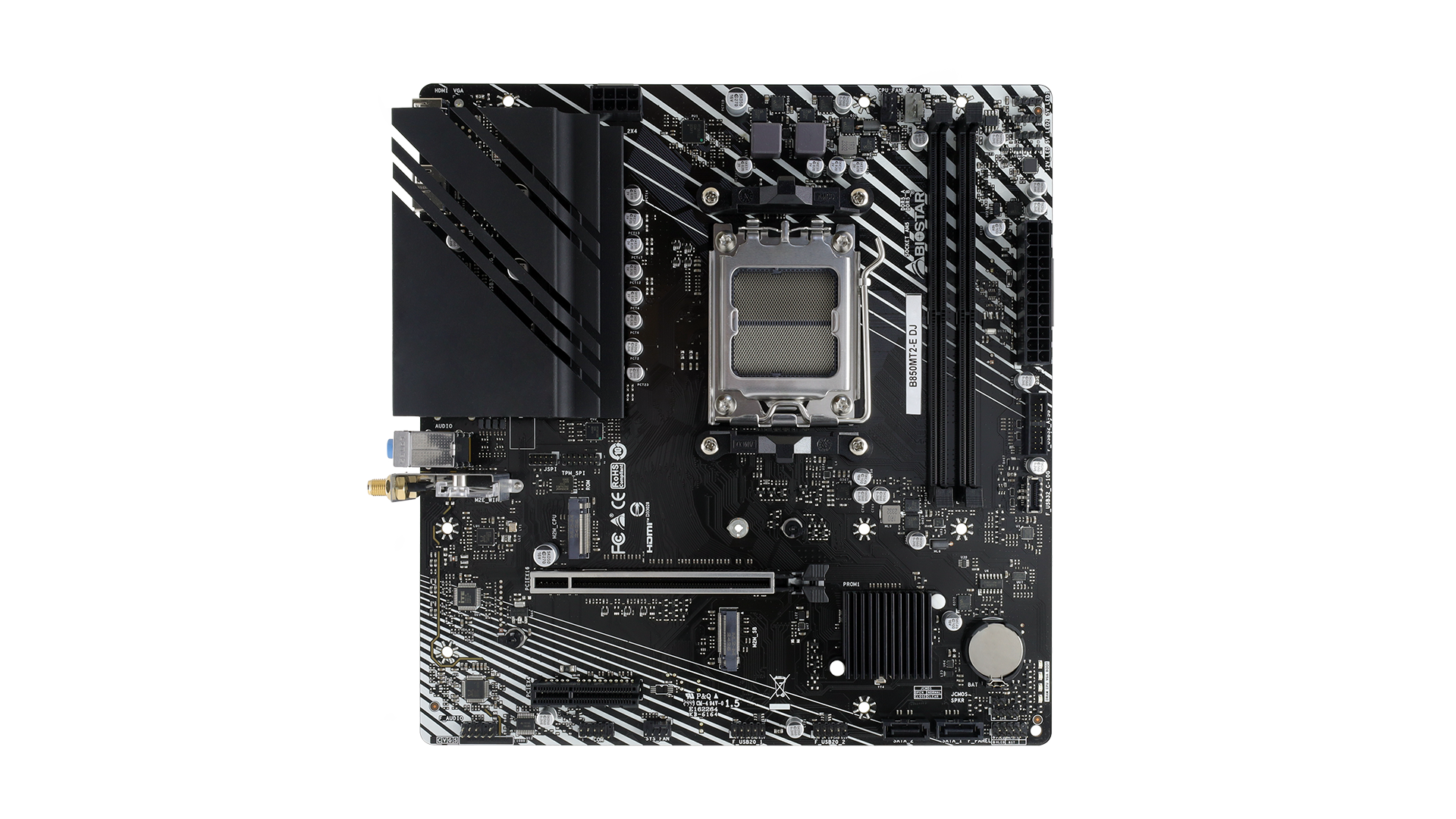

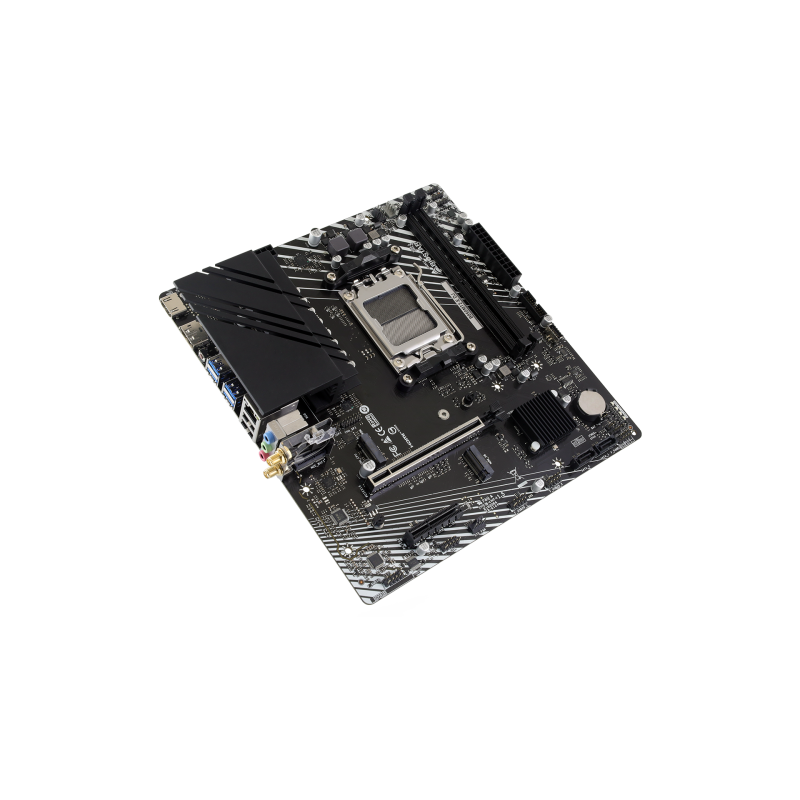

Biostar B850MT2-E DJ - AM5 Micro-ATX Motherboard, DDR5, 128GB Support, RGB, 2.5Gb LAN
AM5 micro-ATX motherboard for Ryzen 7000 series, DDR5 up to 128GB (4 slots), PCIe 4.0, 1x M.2, 2.5Gb LAN, HDMI/DP, rear USB-C and RGB lighting.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | AM5 |
|---|---|
| Motherboards - Chipset | AMD B650 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | Rear Type-C |
| unterstützte Prozessormodelle | AMD Ryzen 7000 Series |
| Sockel | Sockel AM5 |
| Chipsatz | AMD B650 |
| BIOS | UEFI |
| Formfaktor | micro ATX |
| geeignet für freien Multiplikator | ja |
| Speicher max. | 128 GB |
| Memory slots | 4 |
| Speicher je Speicherplatz | 32GB |
| Storage type | DDR5-SDRAM |
| RAM Takt | 1866,2133,2400,2666,2933,3200 MHz |
| Speicher Kanäle | Zweikanalig |
| Speichertyp | non-ECC;un-buffered |
| Controller in CPU | ja |
| LAN (RJ45) | 2.5 Gigabit Ethernet |
| PS/2 (Tastatur/Maus) | 1 |
| USB 3.1 | 1 |
| USB 3.0 | 2 |
| USB 2.0 | 2 |
| USB C | 1 |
| VGA | 1 |
| HDMI | 1 |
| DisplayPort | 1 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 4 |
| S/PDIF-Out (optisch) | 1 |
| PCIe 4.0 | 1 |
| PCIe 3.0 | 1 |
| Mainbord Strom | 24pin |
| CPU Strom | 8pin |
| SATA 3 | 4 |
| M.2 | 1 |
| M.2 Länge max. | 110mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 4 |
| USB-Header USB 3.0 | 2 |
| USB-Header USB C | 1 |
| Lüfter 4-polig PWM | 2 |
| Sound-Chip | Realtek ALC897 |
| LAN | Intel WGI219V |
| Multi-GPU | ja |
| Multi-GPU Modus | Nicht unterstützt |
| RAID SATA | 0, 1, 10 |
| RAID M.2 | 0;1 |
| Beleuchtungsfarbe | RGB |
| Farbe | schwarz |
| Gewicht (g) | 1950 |
| Breite (cm) | 30.50 |
| Tiefe (cm) | 24.40 |
| Internal graphic | yes |
| verfügbare Slots | 6 |
