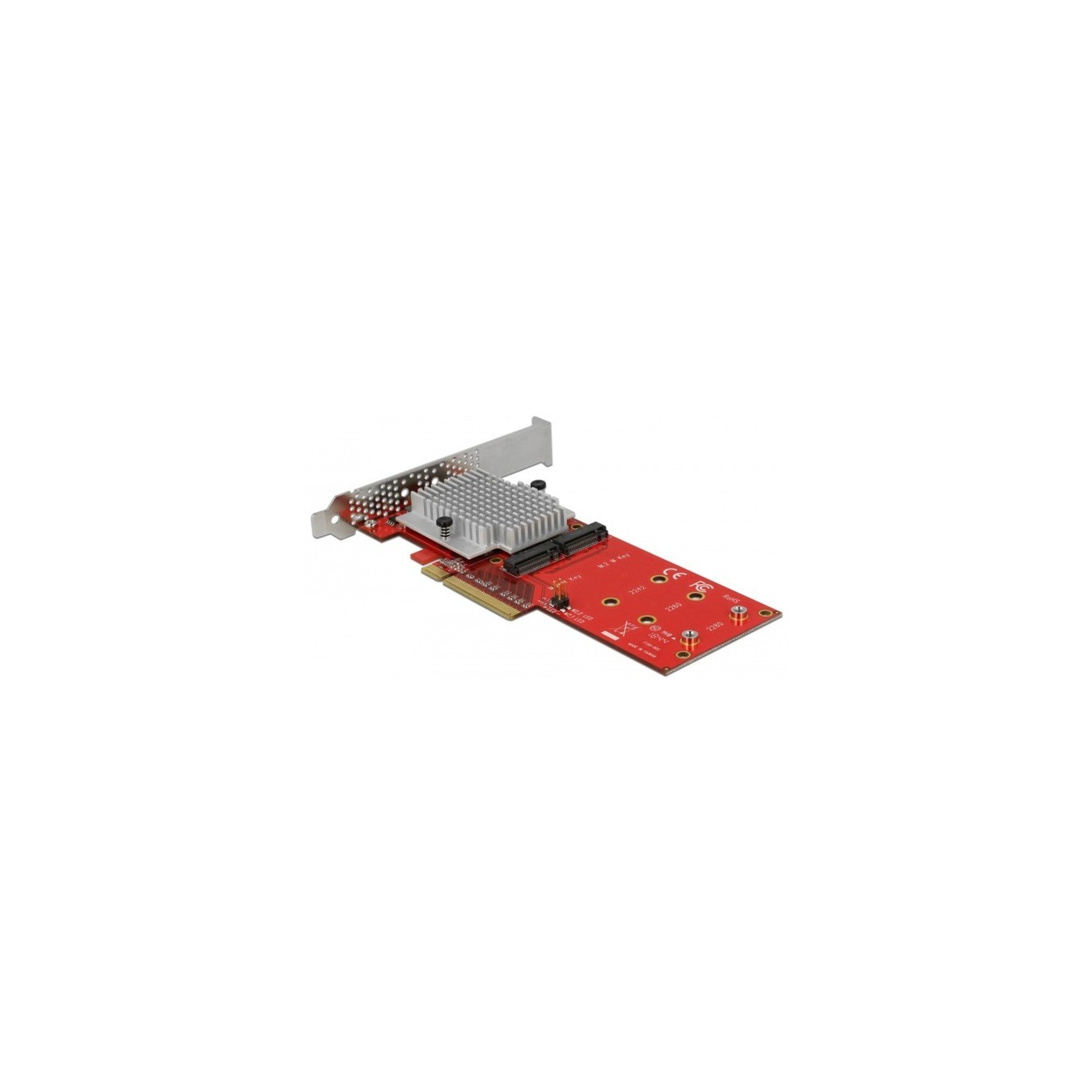

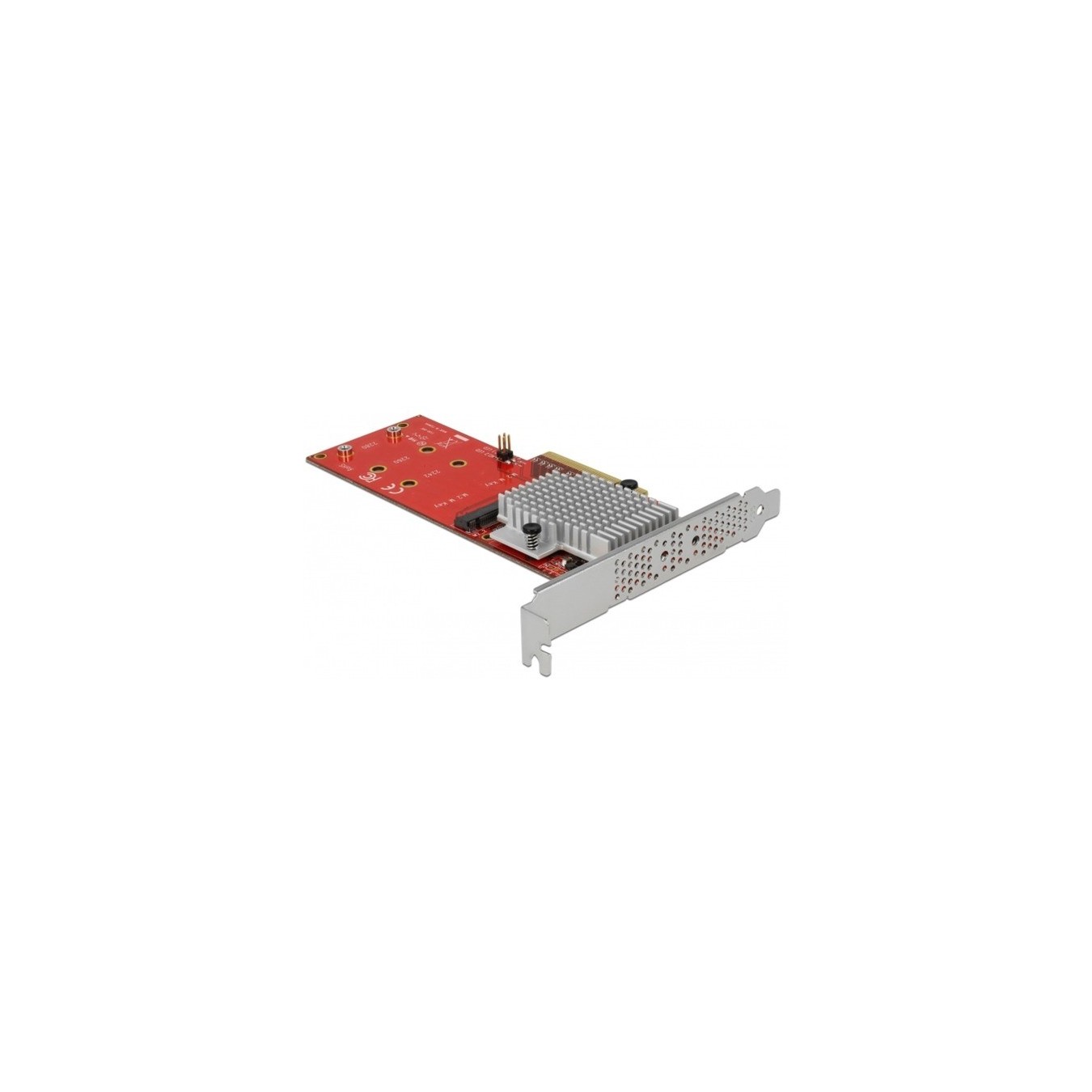

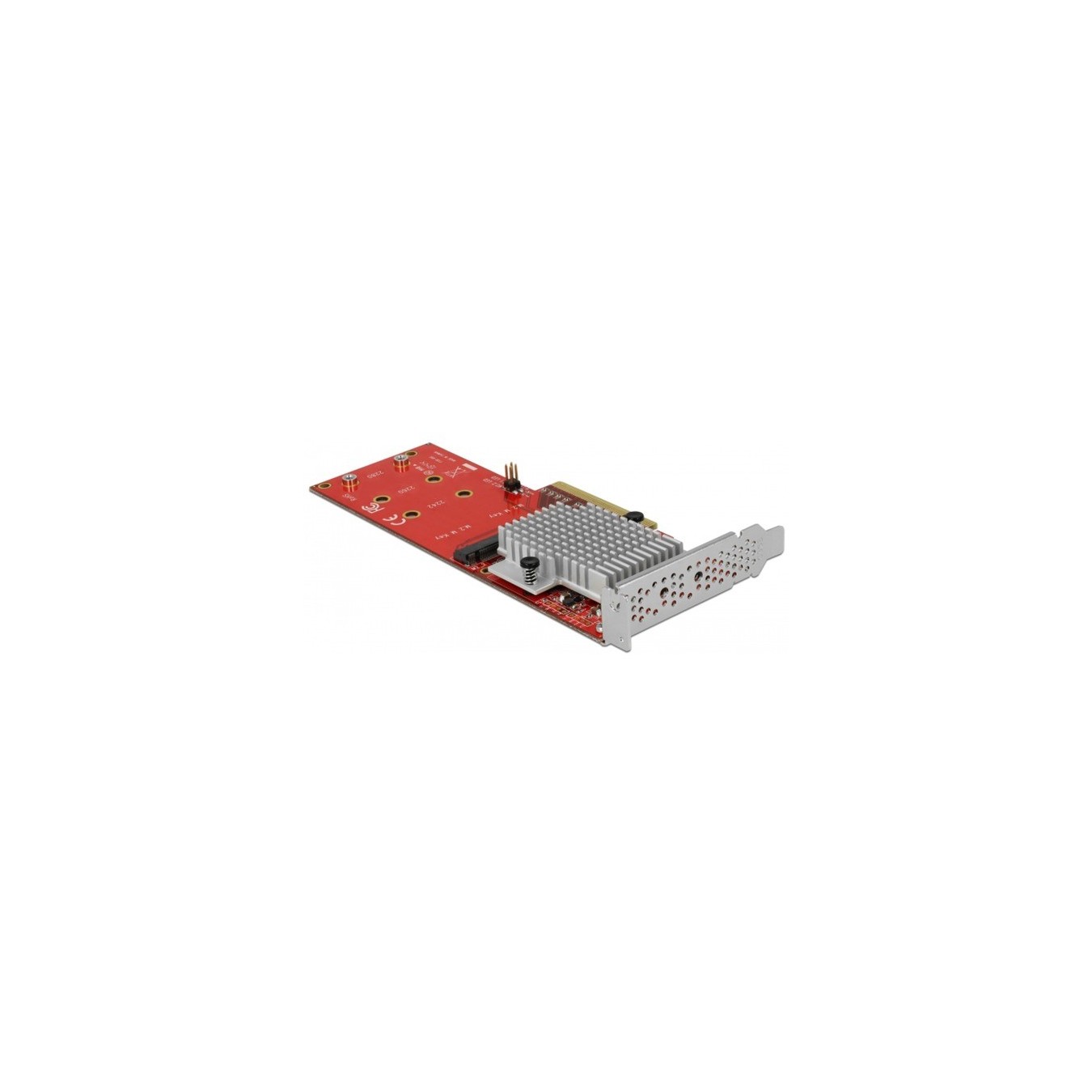

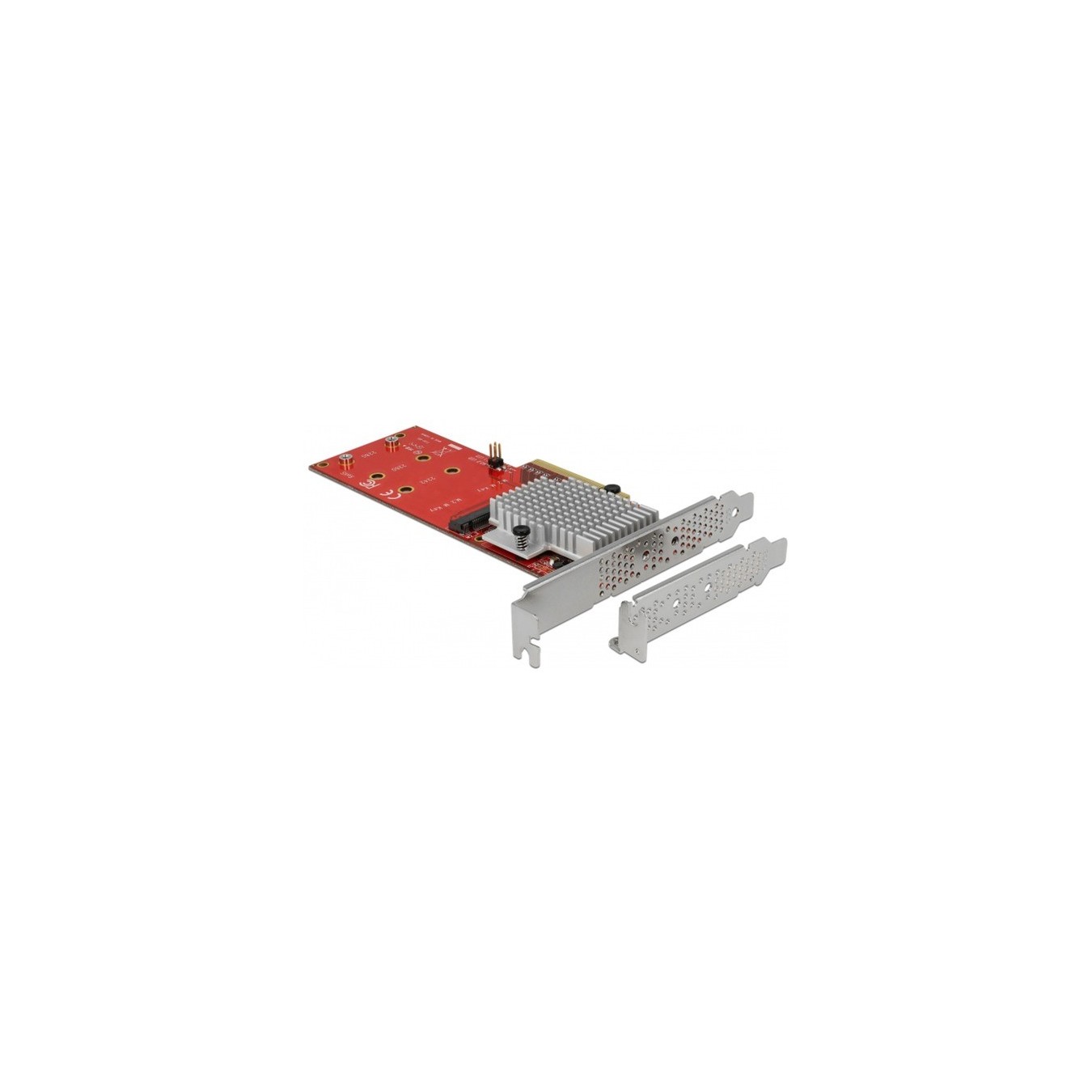

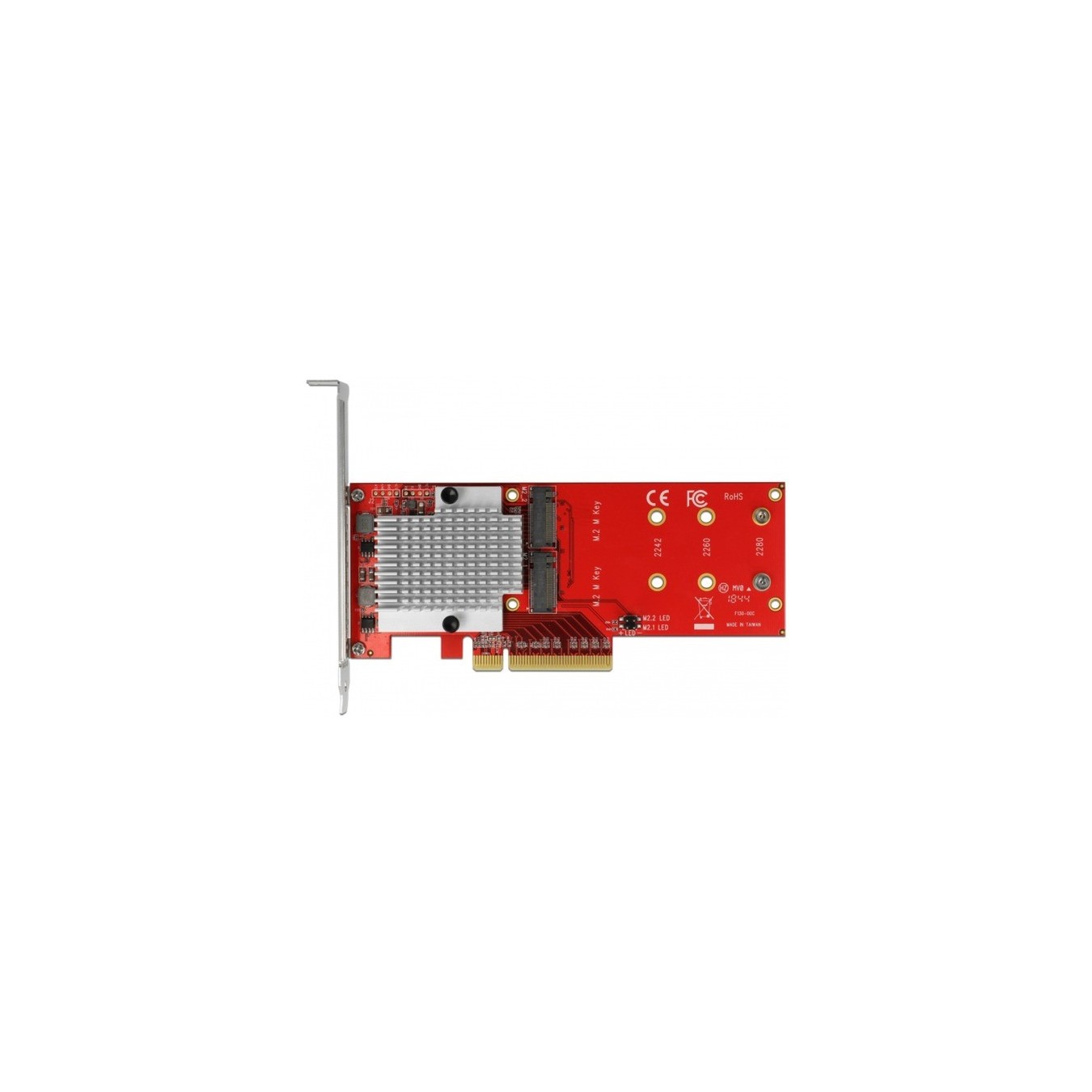

PCIe x8 to 2x internal NVMe M.2 Key M LP Adapter - PCIe x8 to 2x internal NVMe M.2 Key M LP, Adapter
Delock PCIe x8 adapter with two internal M.2 (Key M) slots supporting 2280/2260/2242/2230; bootable; low-profile bezel optional.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
This PCI Express card from Delock expands the PC with two M.2 slots. Up to two M.2 SSDs in 2280, 2260, 2242 and 2230 format can be connected to these. Especially in the gaming and server sectors, this card is ideal for expanding the existing system with two fast M.2 NVMe slots. Both slots can be used at the same time.
| Typ | Adapter |
| EAN | 4043619903054 |
| Manufacturer no. | 90305 |
| Controller Art | M.2 |
| slot | PCIe x8 Version 3.0 |
| Chip | Asmedia ASM2824 |
| Protocol | PCIe x8 |
| Data throughput | 32 GBit/s |
| Connections - internal | 2x M.2 |
| Operating System - Supported | Windows 7, Windows 8, Windows 10 |
| Low Profile | optional |
| Feature | Maximum height of the components on the module: 1.5 mm, use of double-sided modules possible, bootable |
| More information | Supports M.2 modules in 2280, 2260, 2242 and 2230 format with Key M |
| Accessories - available | Low profile bezel, M.2 mounting material, instruction manual |
| Weight | 186 Gramm |
