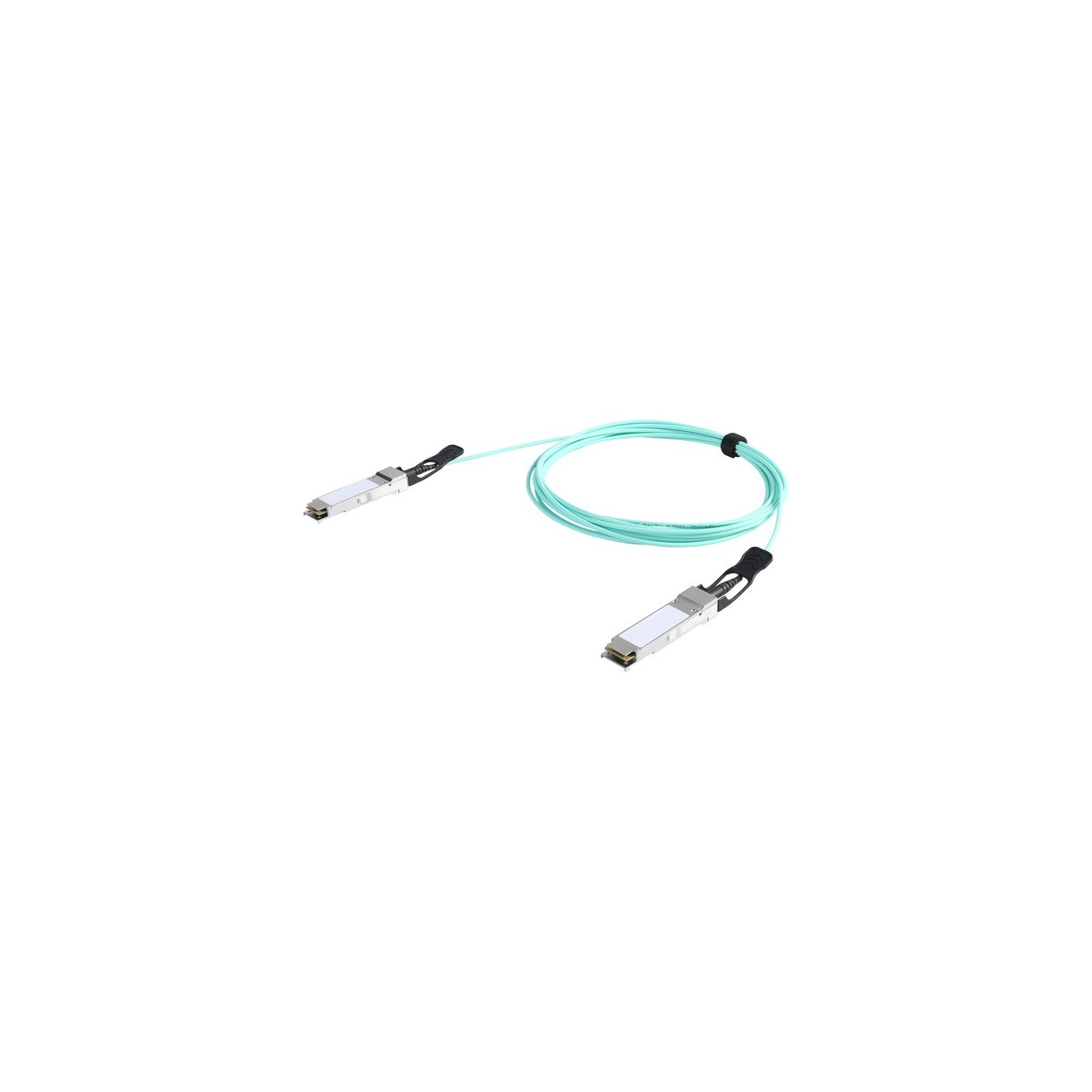

QSFP+ 40G Active Optical Cable - 30 Meter
DIGITUS 40G QSFP+ AOC cable, 30 m, high-performance, low-power, short-range connectivity; supports InfiniBand QDR/DDR/SDR and 12.5G/10G/8G/4G/2G speeds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The DIGITUS 40G QSFP+ AOC active cables are a high-performance, low-power, short-range connectivity solution that supports InfiniBand QDR/ DDR/ SDR, 12.5G/ 10G/ 8G/ 8G/ 4G/ 4G/ 2G fiber channel, PCIe and SAS. They are compliant with the QSFP MSA and IEEE P802.3ba. Four full-duplex channels are used, with each channel capable of transmitting data at speeds of up to 11.3Gb/s, giving an aggregate rate of 45.2Gb/s. The active DIGITUS 40G QSFP+ AOC cables offer increased port density and cost savings in the overall system. AOC (active optical cable) is a cabling technology that accepts the same electrical inputs and outputs as a traditional copper cable, but uses optical fiber "between the connectors."
| Typ | Cable |
| Color | light blue |
| EAN | 4016032460169 |
| Manufacturer no. | DN-81314 |
| Manufactured in | China |
| Application example | Connections up to 30 meters away |
| Area | network |
| Connection - from | 1x QSFP+ (Stecker) |
| taps | 2 |
| Characteristics | extern |
| Feature | Supported Applications: 12.5G Fiber Channel, 10G Fiber Channel, 8G Fiber Channel, 4G Fiber Channel and 2G Fiber Channel, DDM/DOM support |
| More information | 30 meters maximum distance, data rate 2.125 - 41.2Gbps, temperature range 0 - 70°C, power + 3.3V supply voltage, power consumption < 1.5W, multimode fiber with 850nm wavelength |
| Notice | Compatible brands: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL |
| Accessories - available | Quick Start Guide |
| Cable length | 30 Meter |
