PCIe x4 Card - 1x external USB-C 10 Gbit/s + 1x external USB-C DP Alt Mode, USB Controller
Delock PCIe x4 USB controller card adds two external USB-C ports with up to 10 Gbit/s.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

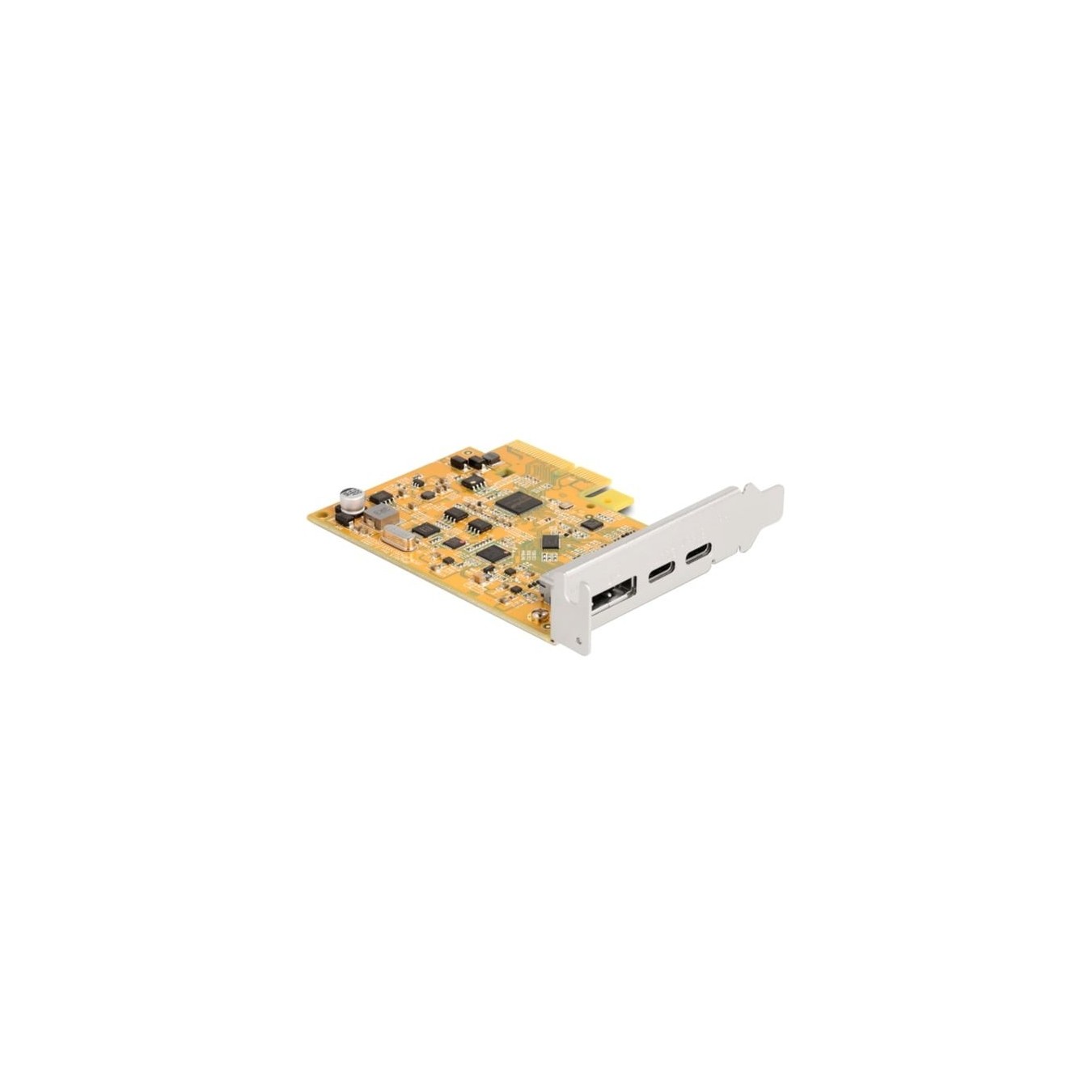

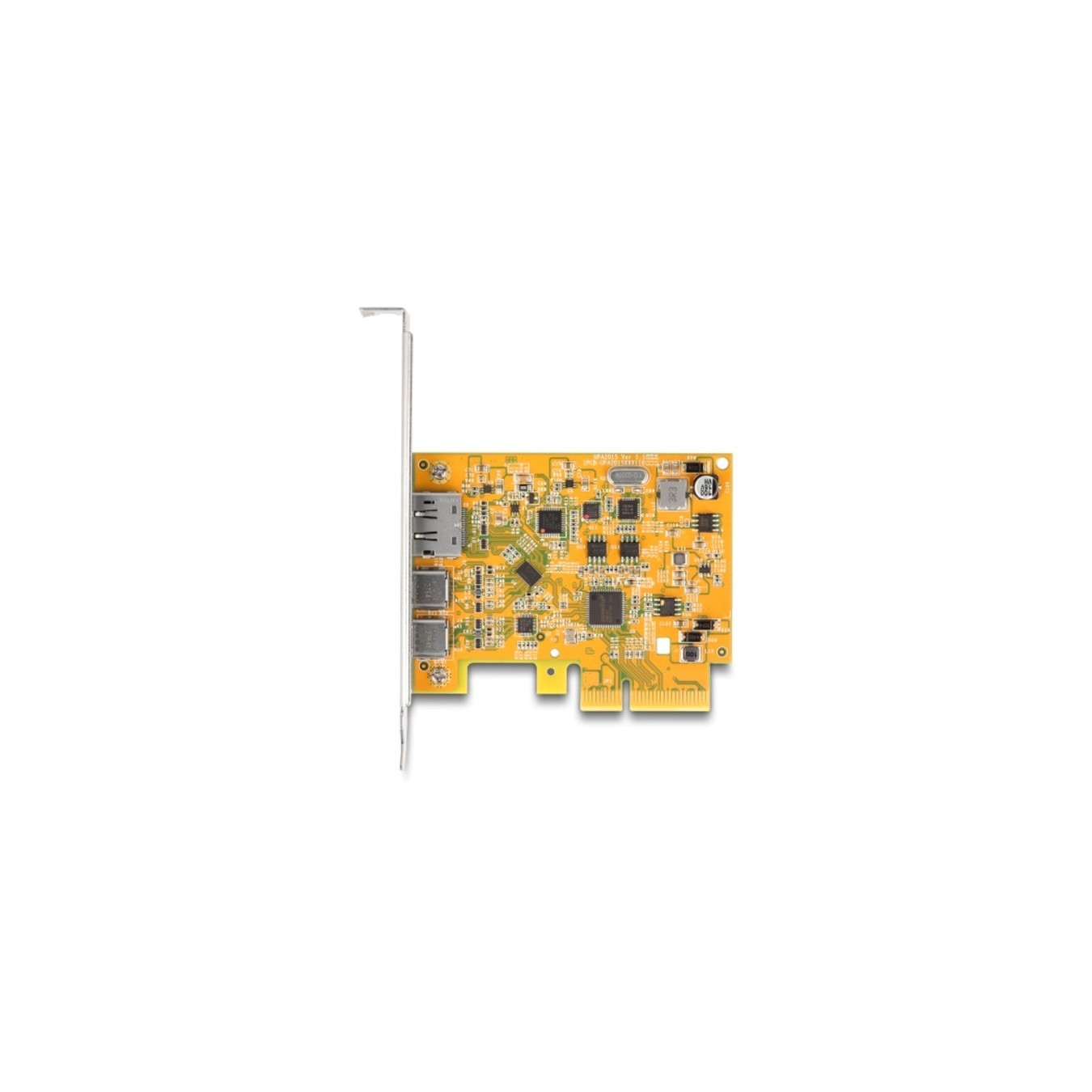

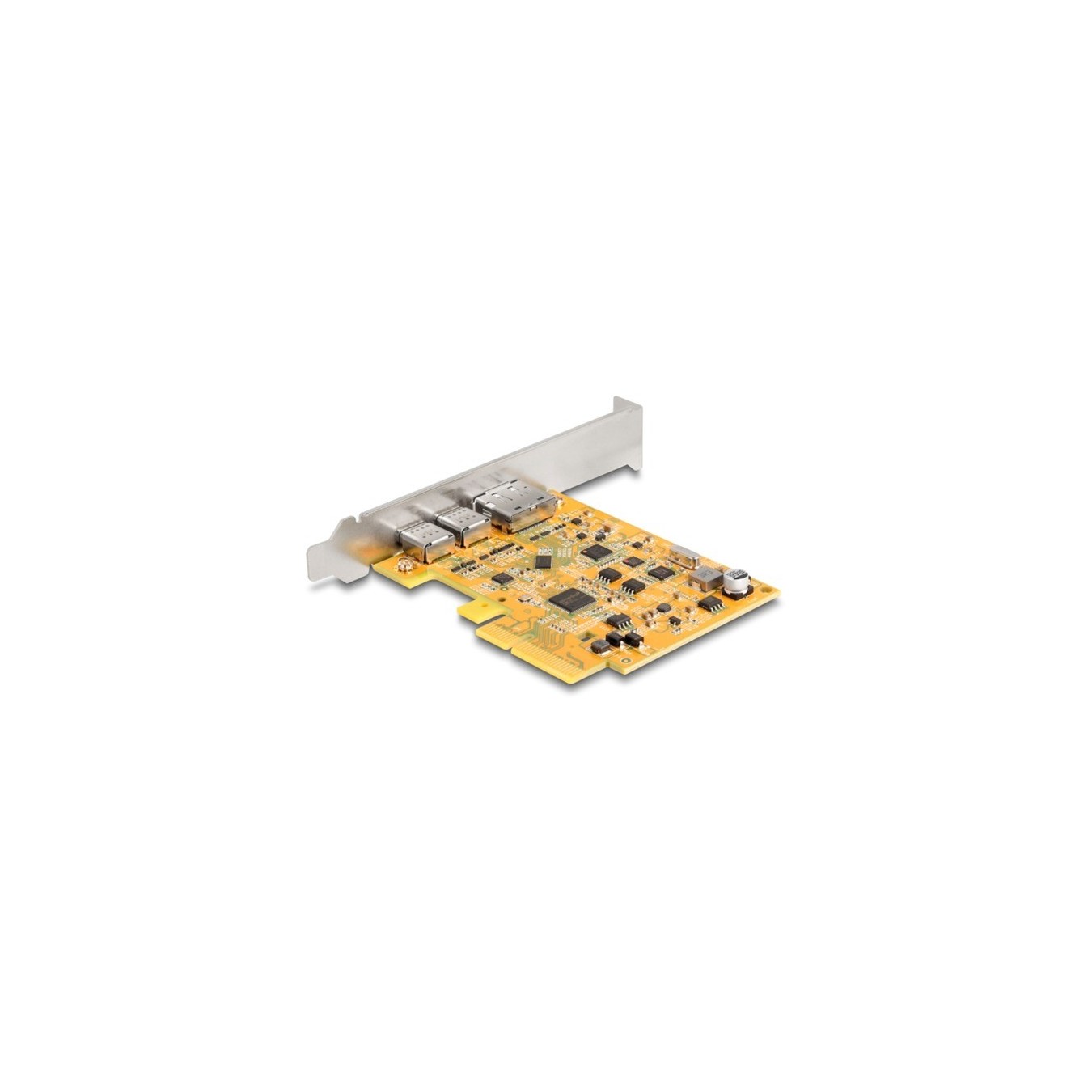

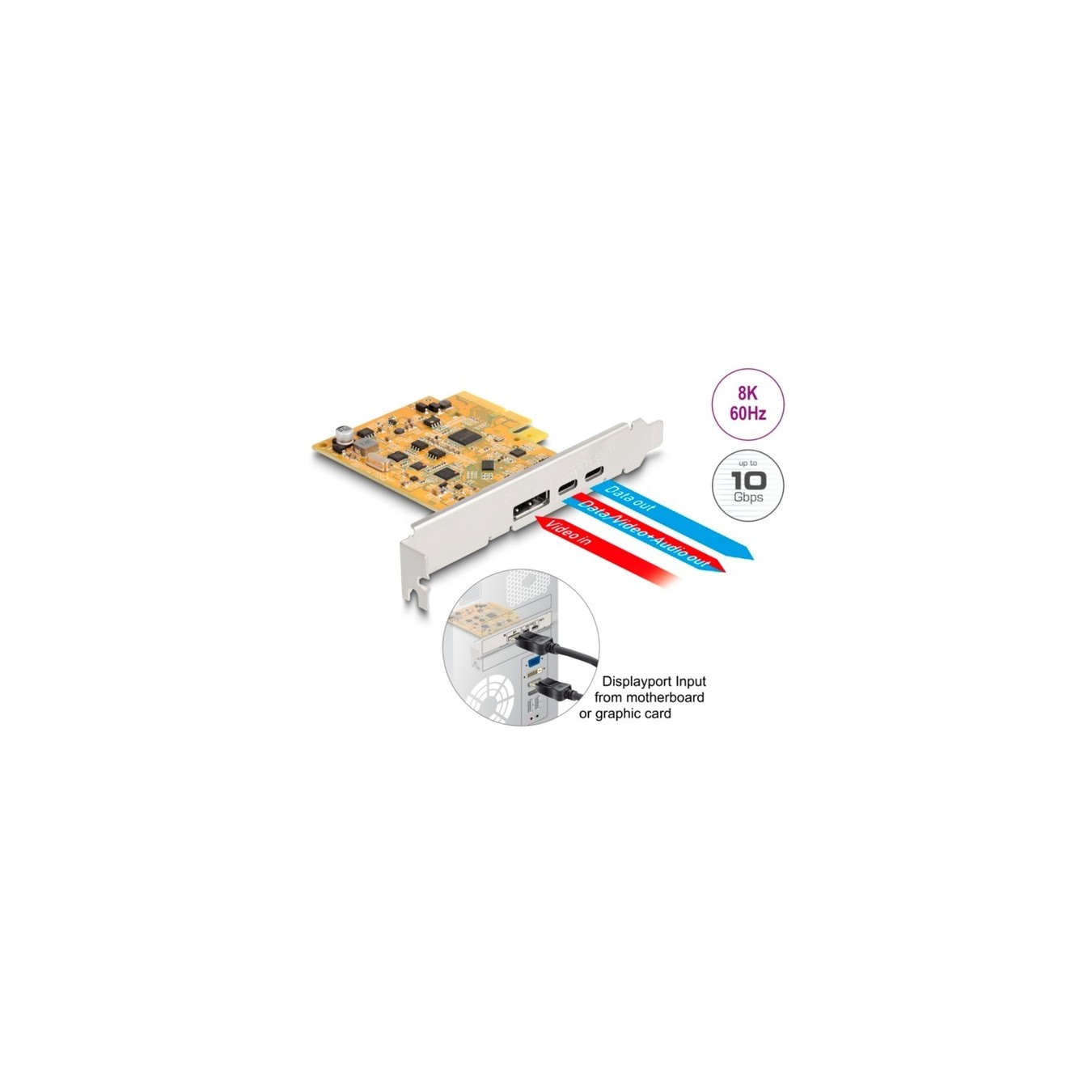

This PCI Express x4 card from Delock expands the PC with two external USB-C ports with a transfer rate of up to 10 Gbit/s. Various USB devices, such as docking stations, card readers and external housings, can be connected to the card. All you need is a free PCIe x4 slot - the card is powered via PCIe. Thanks to the included low profile bezel, the card can also be used in PC systems with a small form factor. A DisplayPort input is installed as an additional connection: If there is a CPU graphics unit in the PC, the DisplayPort input can be connected to a DisplayPort connection on the mainboard using the included cable. This means that one of the two USB-C ports can be used with DP Alt Mode and a monitor can be connected.
| Typ | USB-Controller |
| EAN | 4043619901616 |
| Manufacturer no. | 90161 |
| Controller Art | USB 3.2 (5 Gbit/s) |
| slot | PCIe x4 Version 3.0 |
| Chip | Asmedia ASM3142 |
| Protocol | USB 3.2 Gen 2 (10 Gbit/s) |
| Connections - external | 2x USB C, 1x DisplayPort-In |
| Operating System - Supported | Linux, Windows 10, Windows 11 |

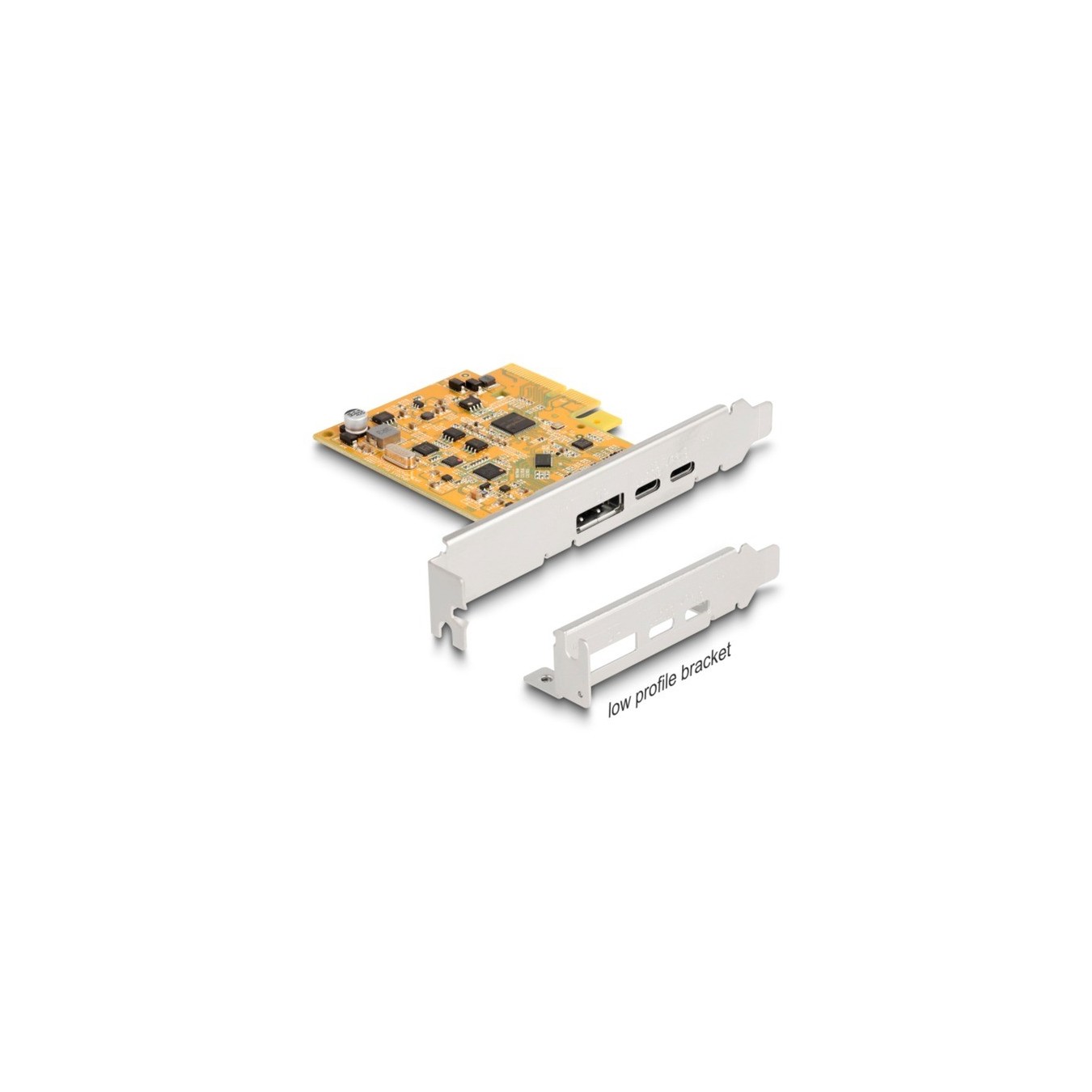

| Low Profile | optional |
| More information | supports Linux with kernel 5.15 or higher | Supported DisplayPort resolution up to 7680 x 4320 @ 60 Hz (depending on the system and connected hardware) |

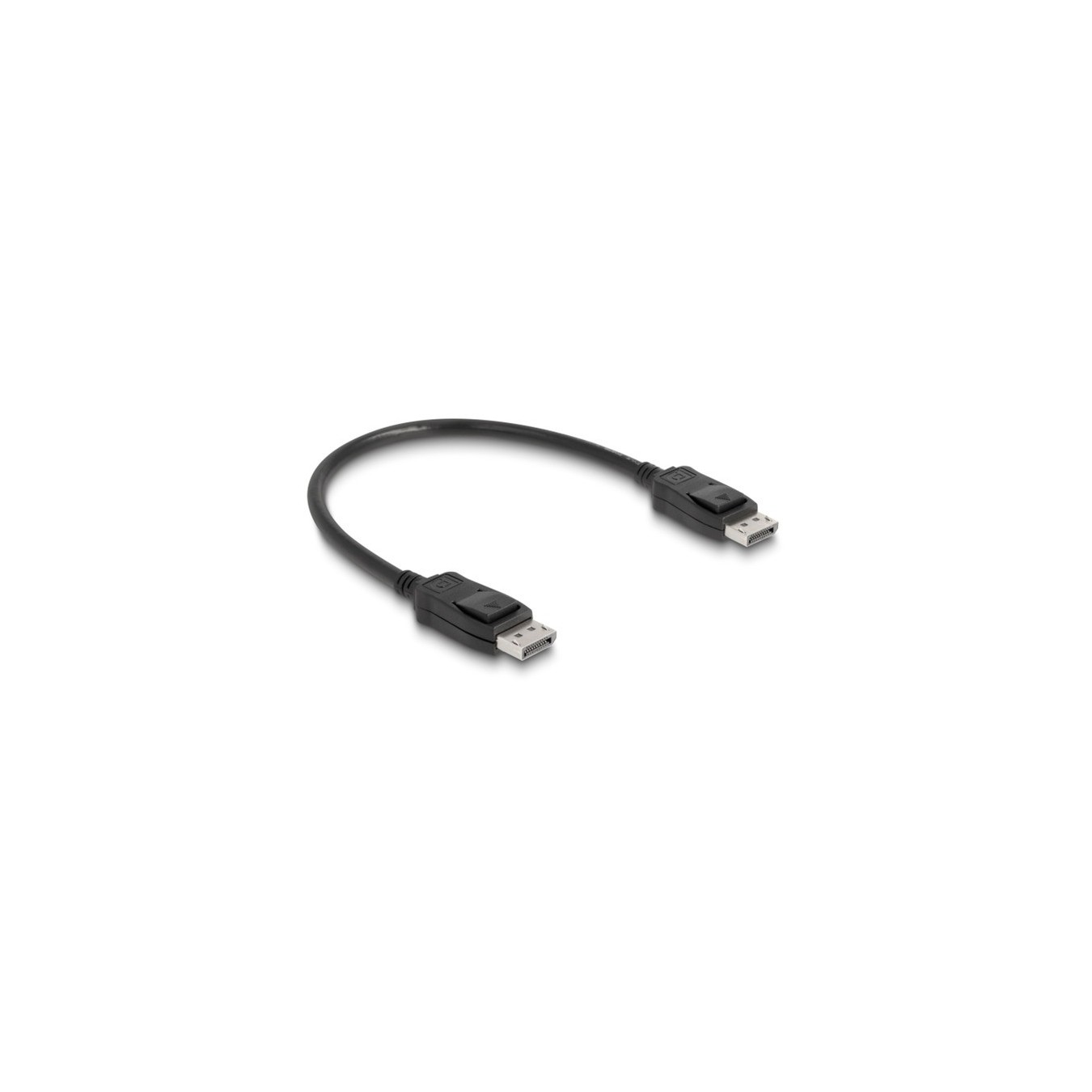

| Accessories - available | Low profile bezel, instructions, DisplayPort cable (35 cm) |
