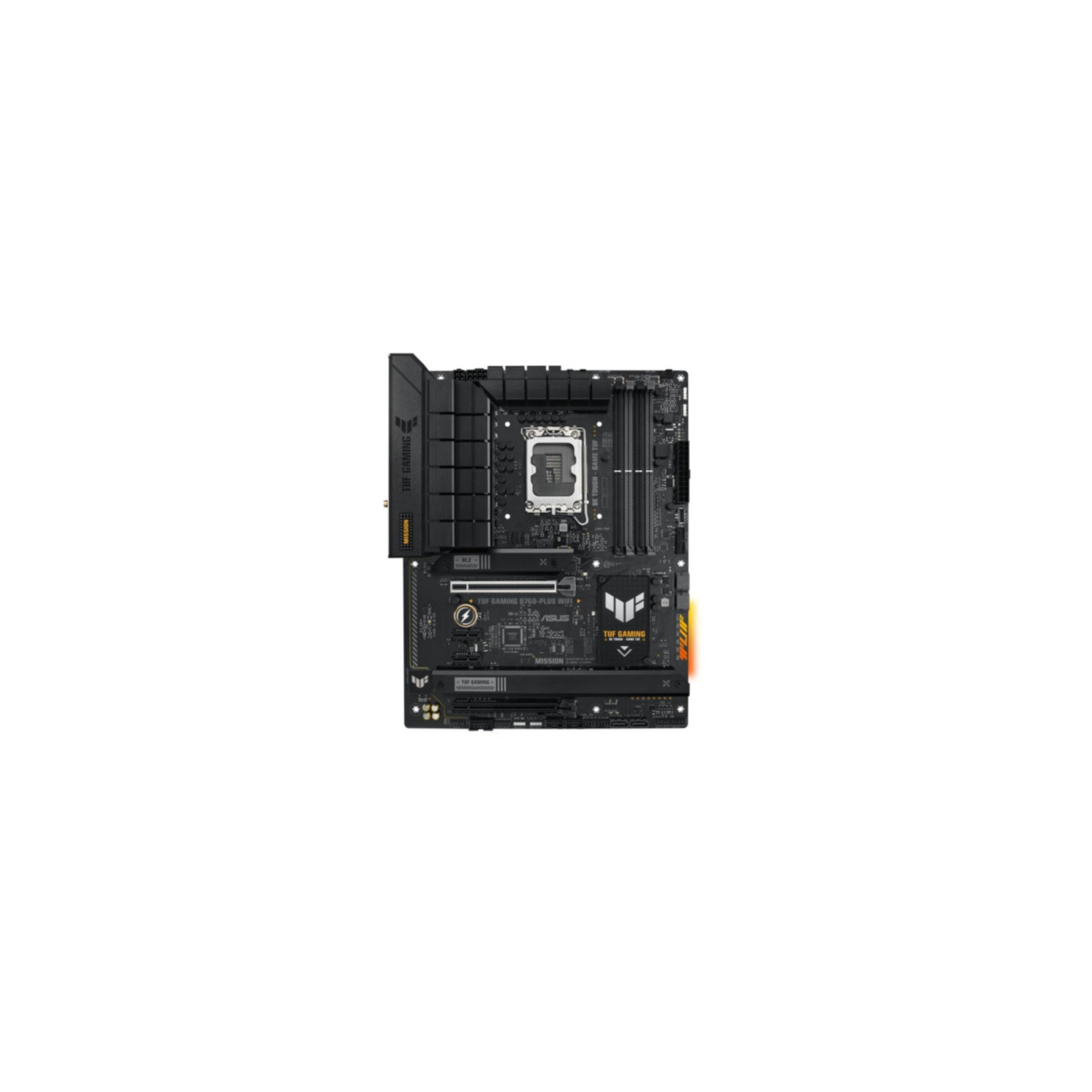

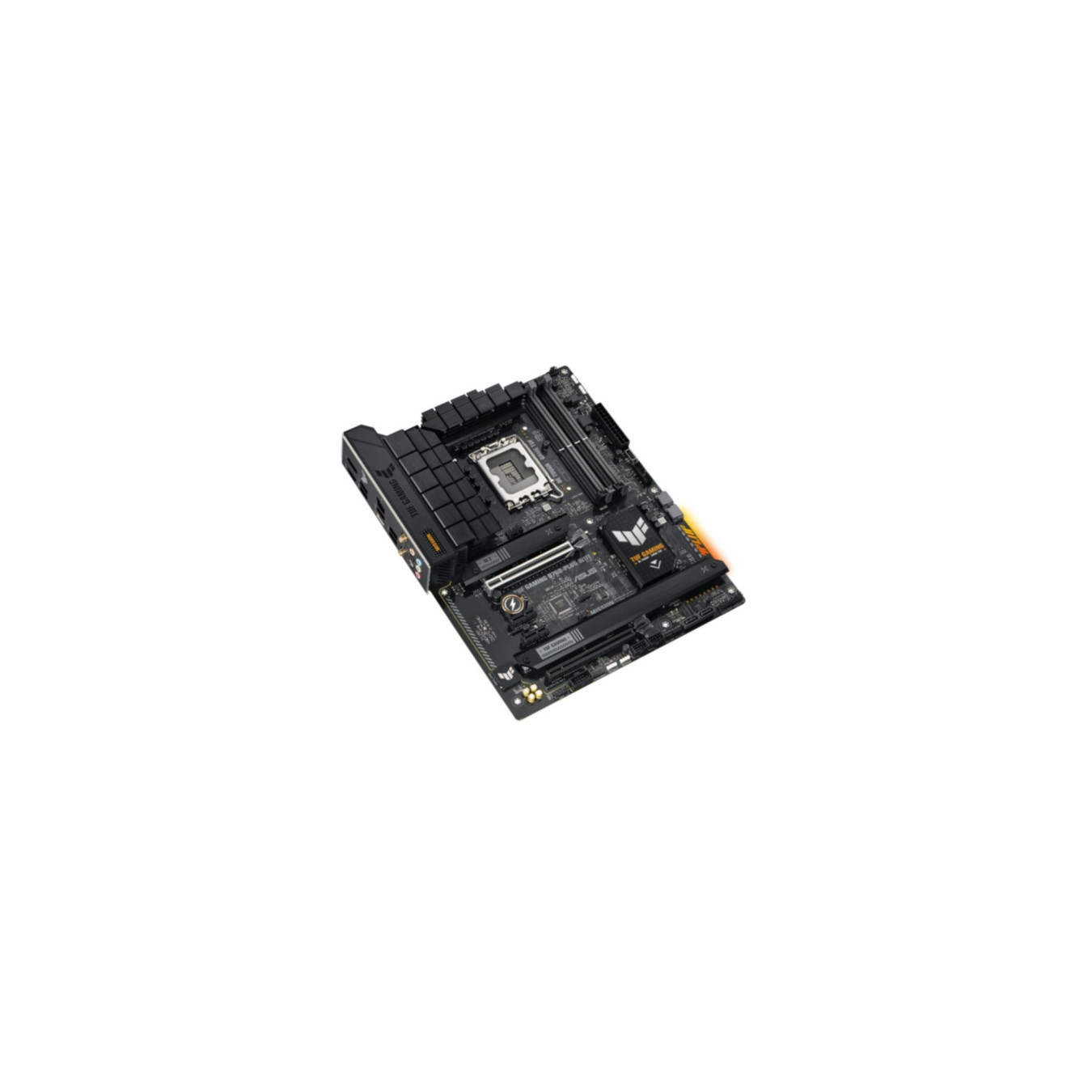

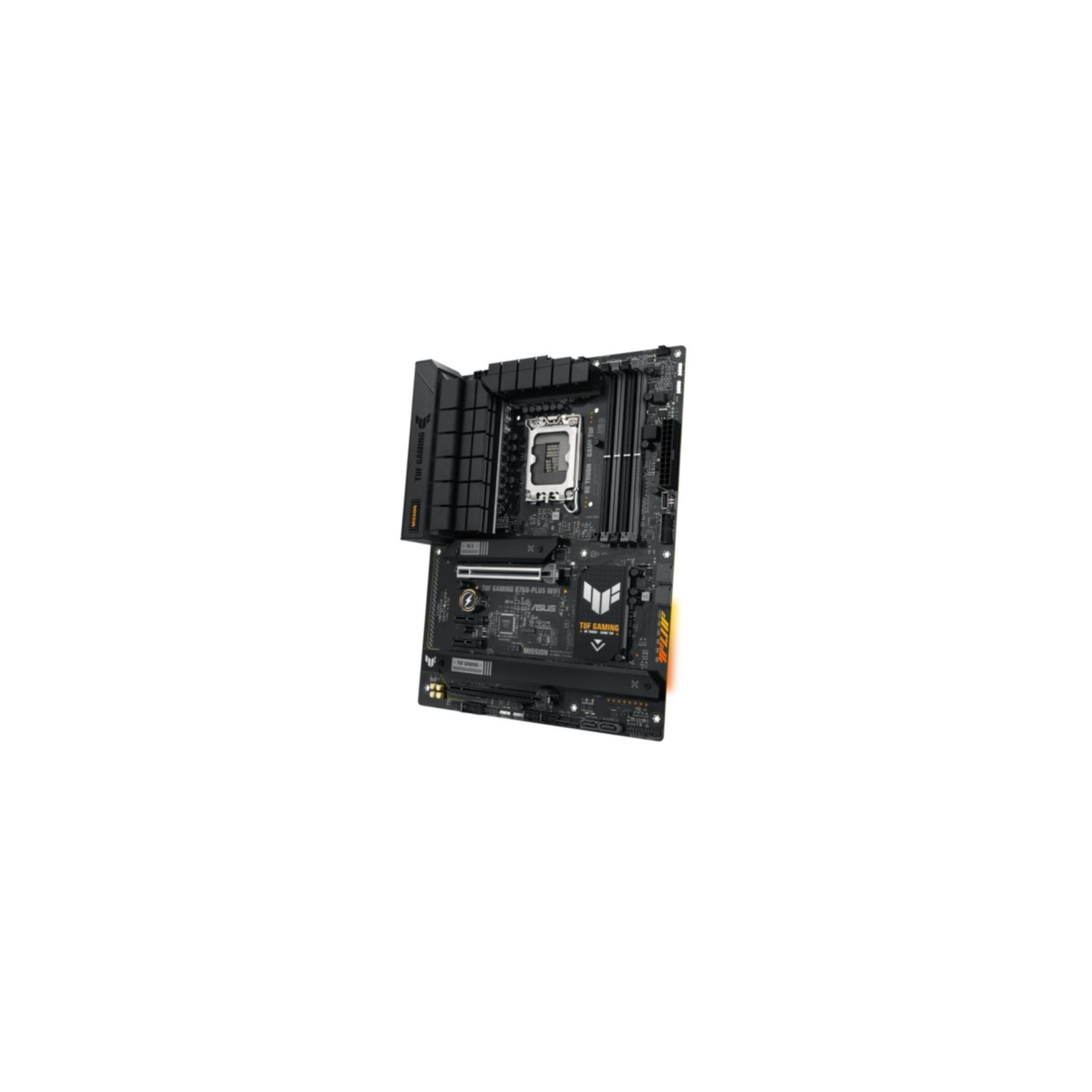

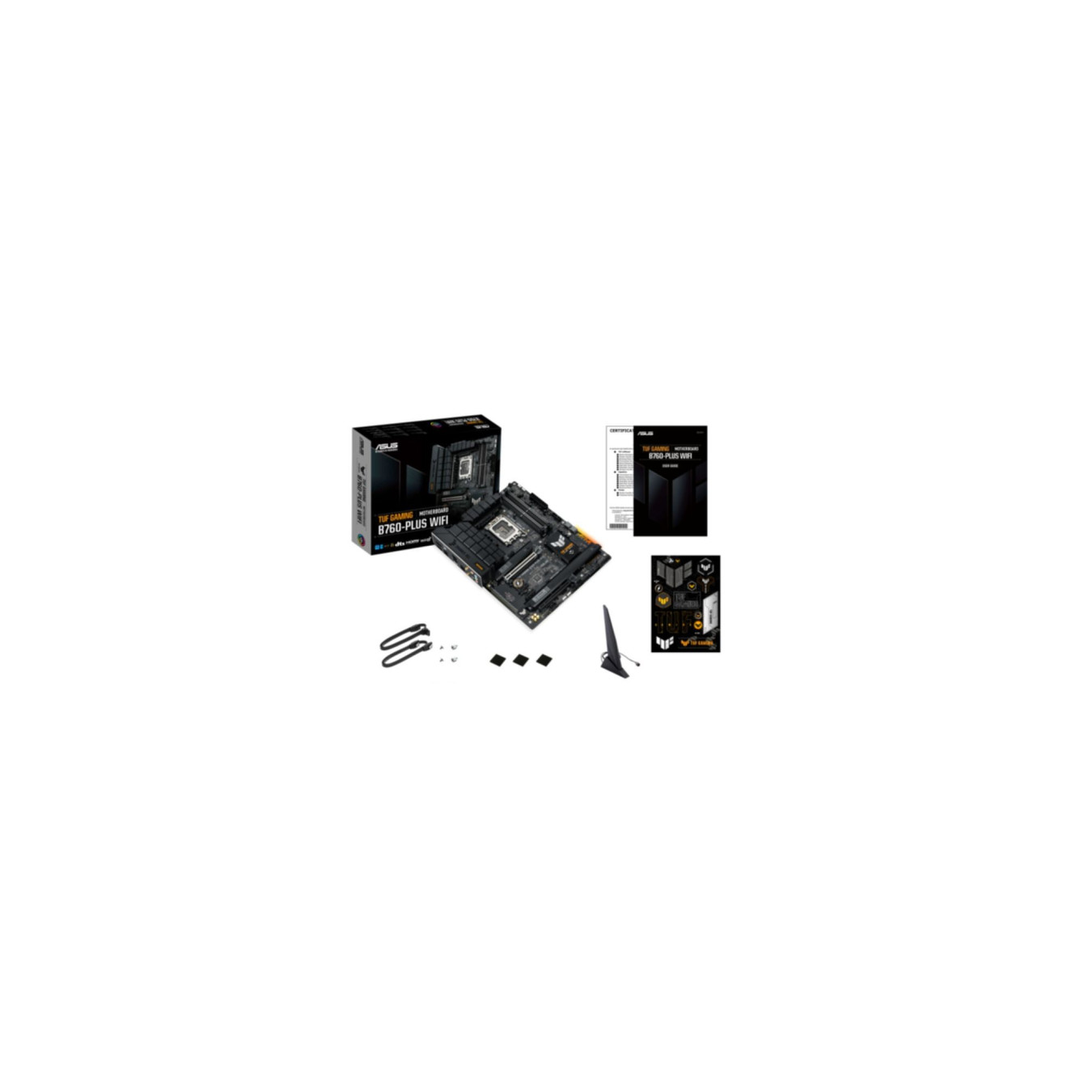

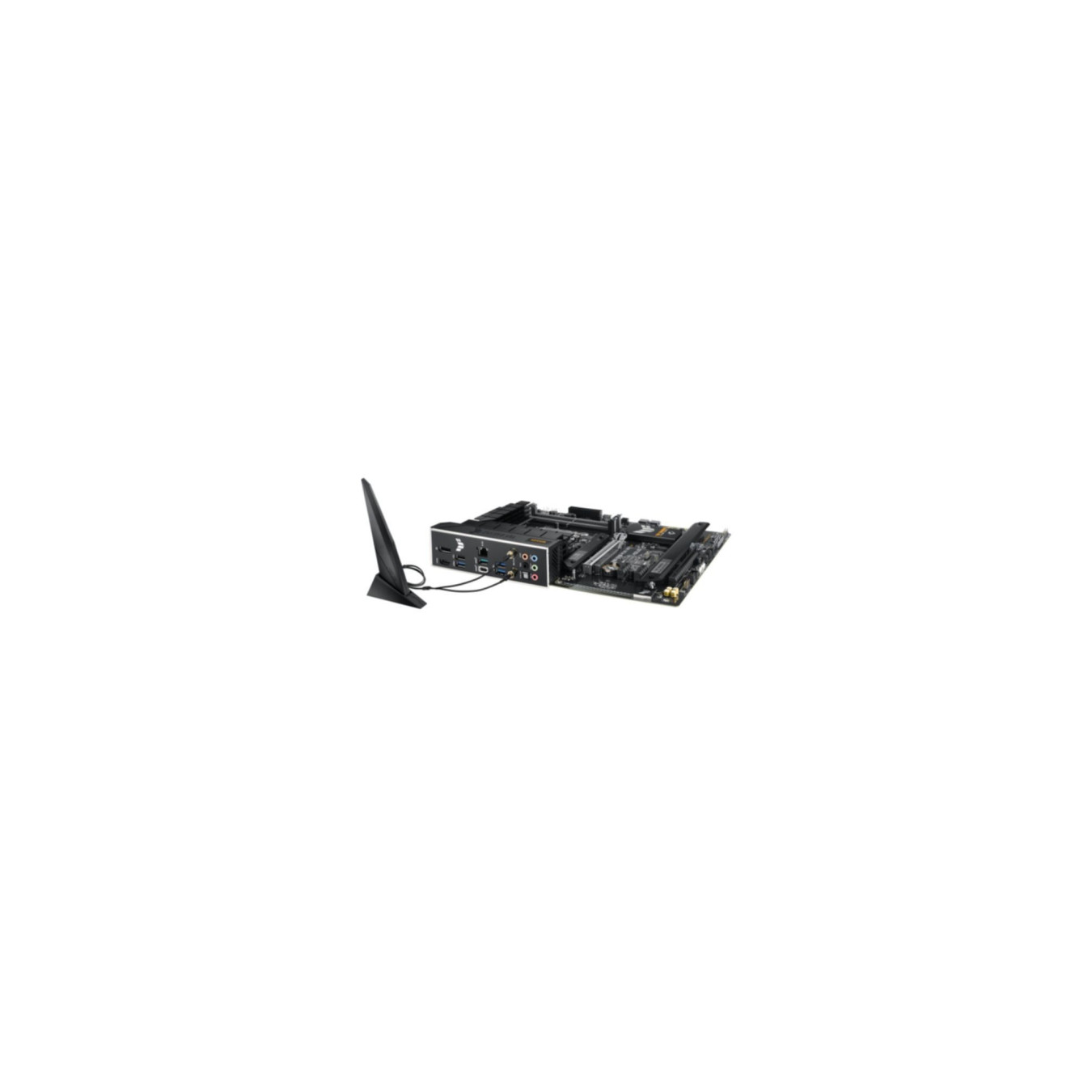

ASUS TUF B760-Plus Gaming WiFi LGA1700 ATX MB DDR5 128GB WiFi6E 2.5G LAN (Boxed)
LGA1700 ATX motherboard w/ Intel B760, DDR5 to 128GB (4xDIMM), Wi-Fi 6E, 2.5Gb LAN, PCIe5.0 GPU slot, 3x M.2 (1x PCIe5/2x PCIe4), 4x SATA, HDMI 2.1, USB-C, 12+1 DrMOS VRM.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The ASUS TUF Gaming B760-Plus WiFi is a robust ATX motherboard built for 13th/14th Gen Intel Core processors on LGA1700 socket. Featuring the Intel B760 chipset, it supports DDR5 memory up to 128GB across 4 DIMM slots with speeds up to 7200+ MHz (OC). Military-grade components and 12+1 DrMOS power stages with enlarged VRM heatsinks ensure stability for high-end CPUs like i9-13900K.
Connectivity shines with Wi-Fi 6E (Intel AX211), Bluetooth 5.3, 2.5Gb Realtek Ethernet, rear USB 3.2 Gen2x2 Type-C, multiple USB 3.2 Gen2/Gen1 ports, HDMI 2.1, DisplayPort 1.4, and VGA. Storage options include 3x M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4), 4x SATA III with RAID 0/1/5/10 support. Expansion features PCIe 5.0 x16 GPU slot, PCIe 4.0 x16 (x4), 2x PCIe 3.0 x1, plus Aura Sync RGB headers (3-pin ARGB, 4-pin RGB).
- Key Features: PCIe 5.0 ready, comprehensive cooling (VRM/M.2/Chipset heatsinks), Q-Release PCIe latch, Q-DIMM slots, Thunderbolt 4 header, Realtek 7.1 ALC897 audio.
- OS Support: Windows 10/11.
- Form Factor: ATX (30.5 x 24.4 cm).
| MPN | 90MB1JW0-MB0J00 |
| Processor Socket | LGA 1700 |
| Chipset | Intel B760 |
| Form Factor | ATX |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 4 x DIMM |
| Max Memory | 128 GB |
| Max Memory Speed | 7200+ MHz (OC) |
| VRM | 12+1 DrMOS |
| M.2 Slots | 3 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) |
| SATA Ports | 4 x SATA III |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe 3.0 x1 |
| LAN | Realtek 2.5Gb Ethernet |
| Wi-Fi | Wi-Fi 6E 802.11ax |
| Bluetooth | 5.3 |
| Audio | Realtek ALC897 7.1 |

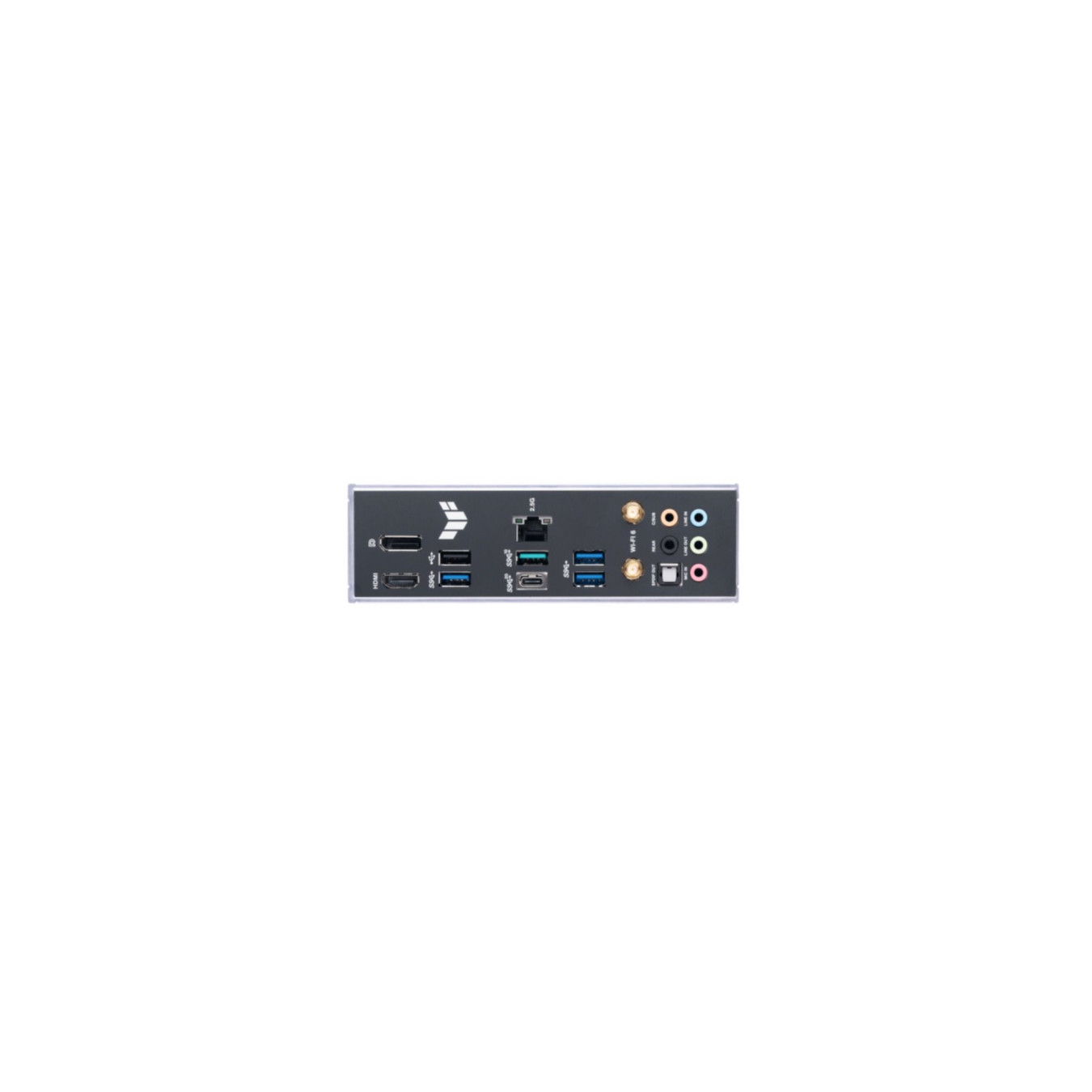

| USB Rear | 1x USB 3.2 Gen2x2 Type-C, 2x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen1 Type-A, 2x USB 2.0 |
| RGB Headers | 1x 3-pin ARGB, 2x 4-pin RGB |
| Fan Headers | 1x CPU, 1x CPU OPT, 3x Chassis |
| Board Size | 305 x 244 mm |
