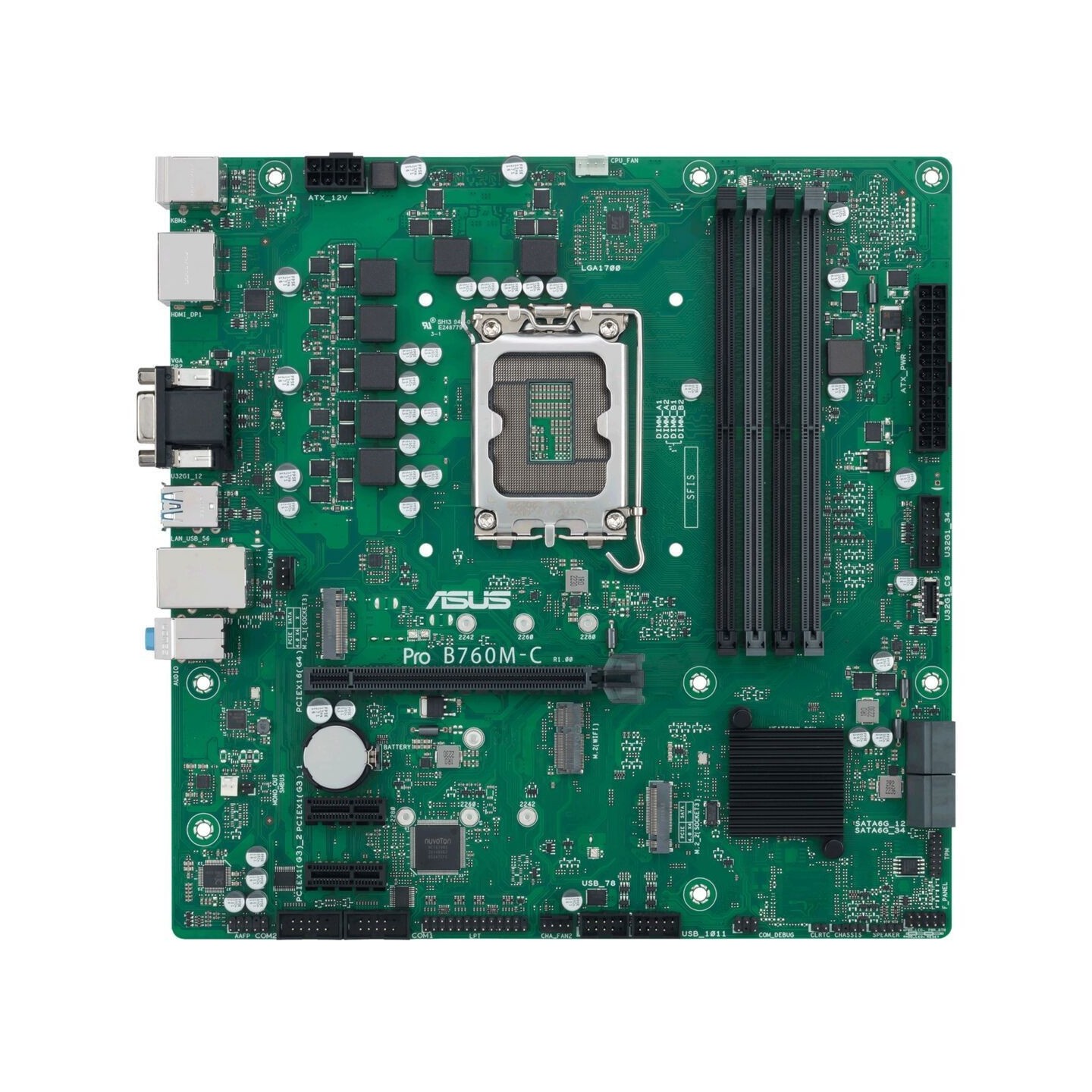

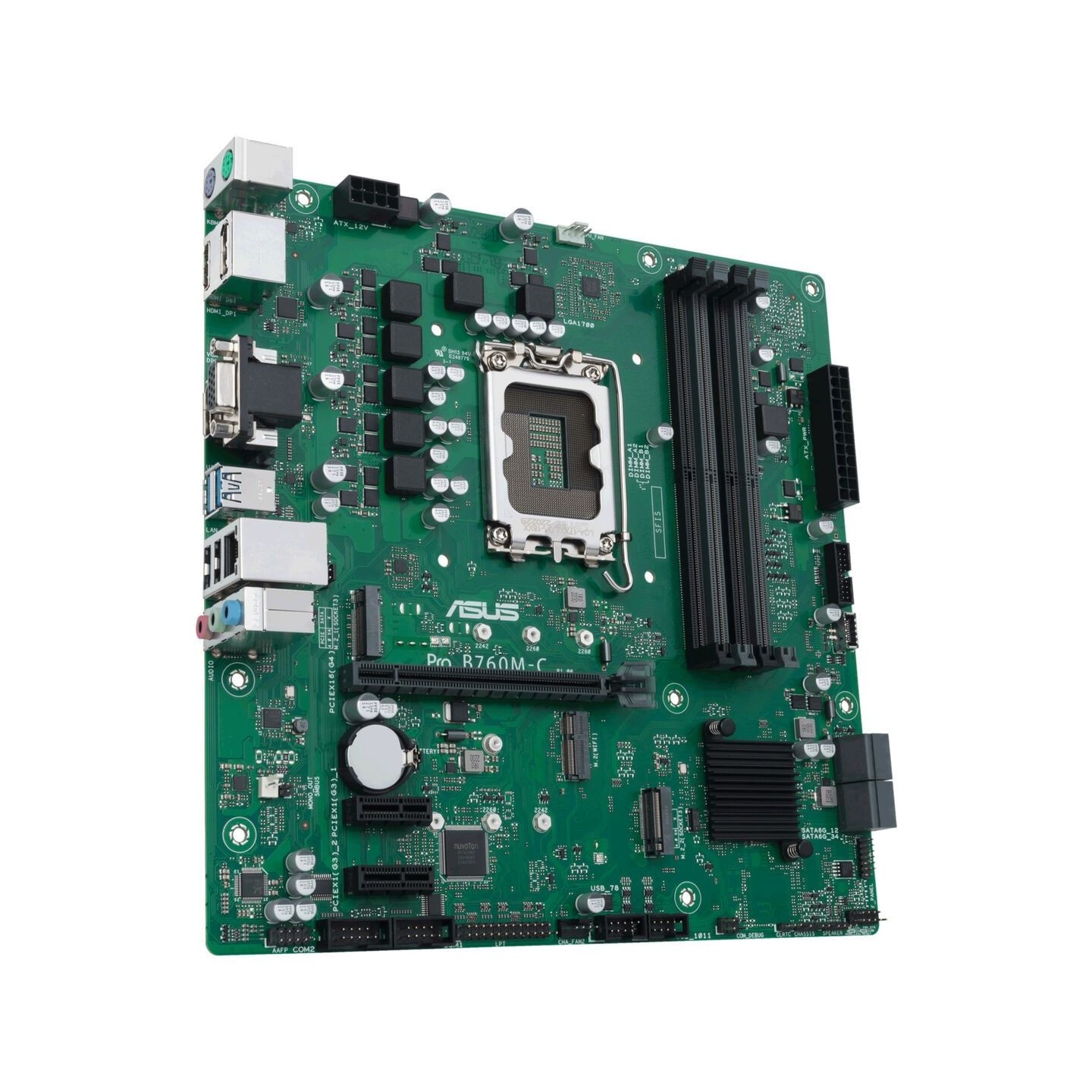

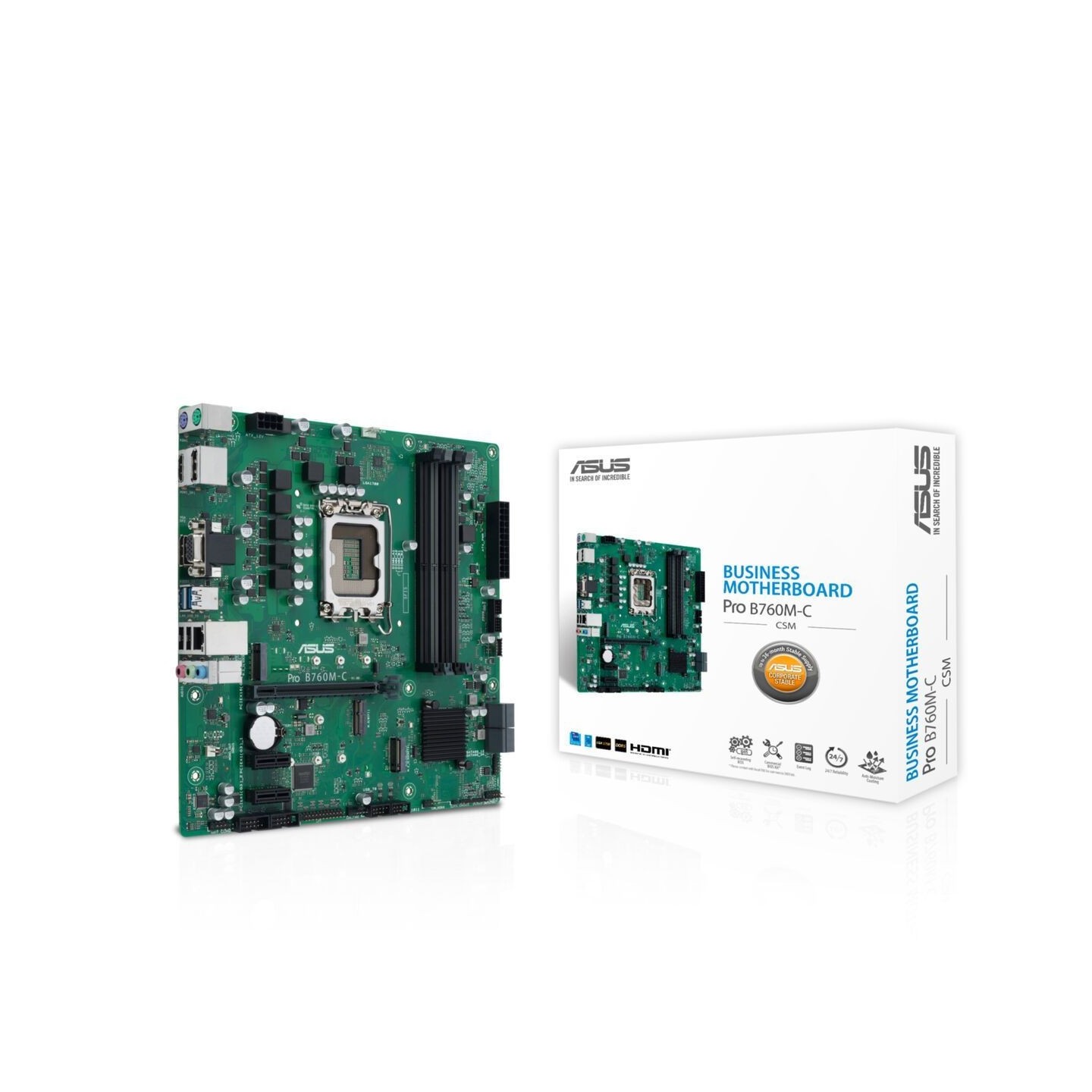

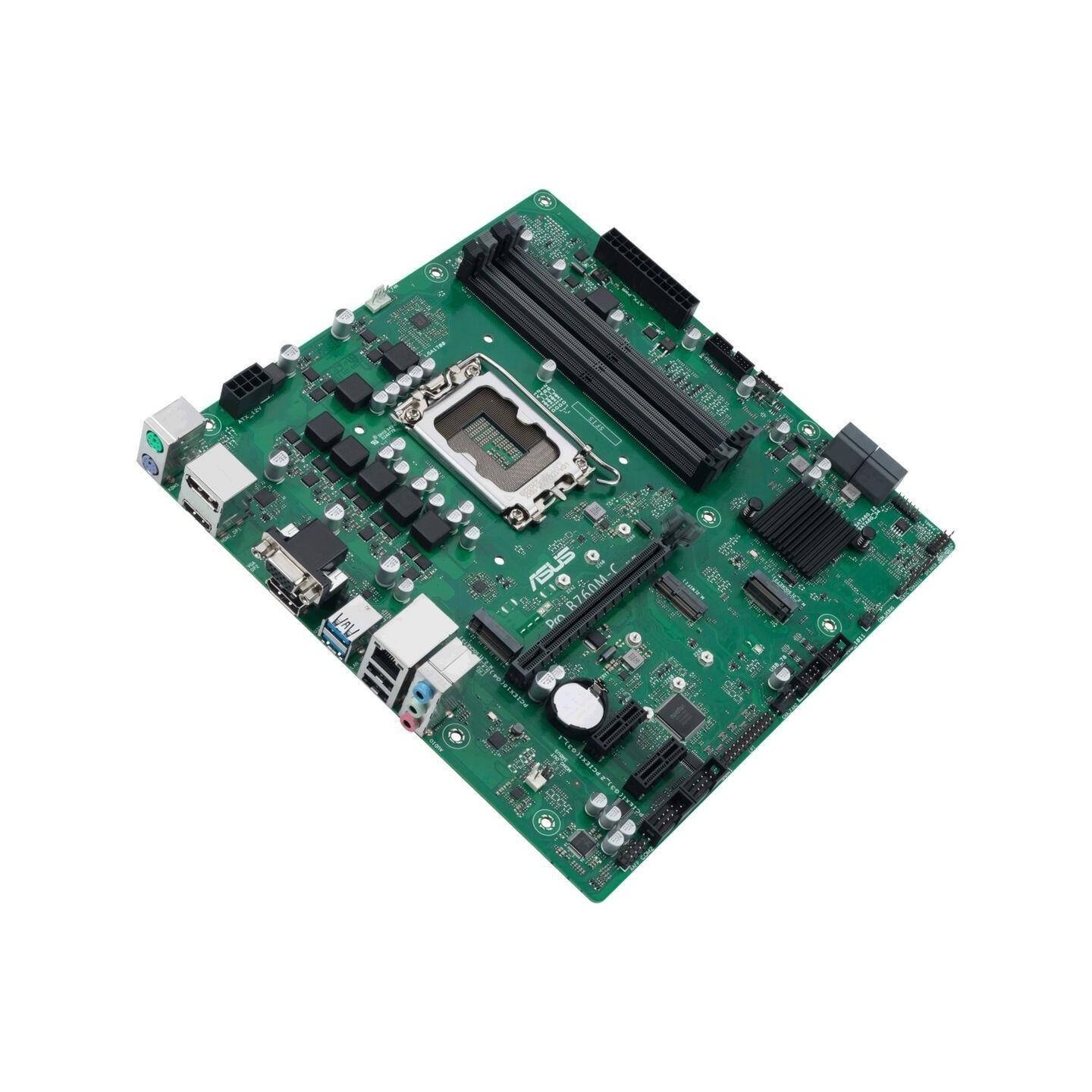

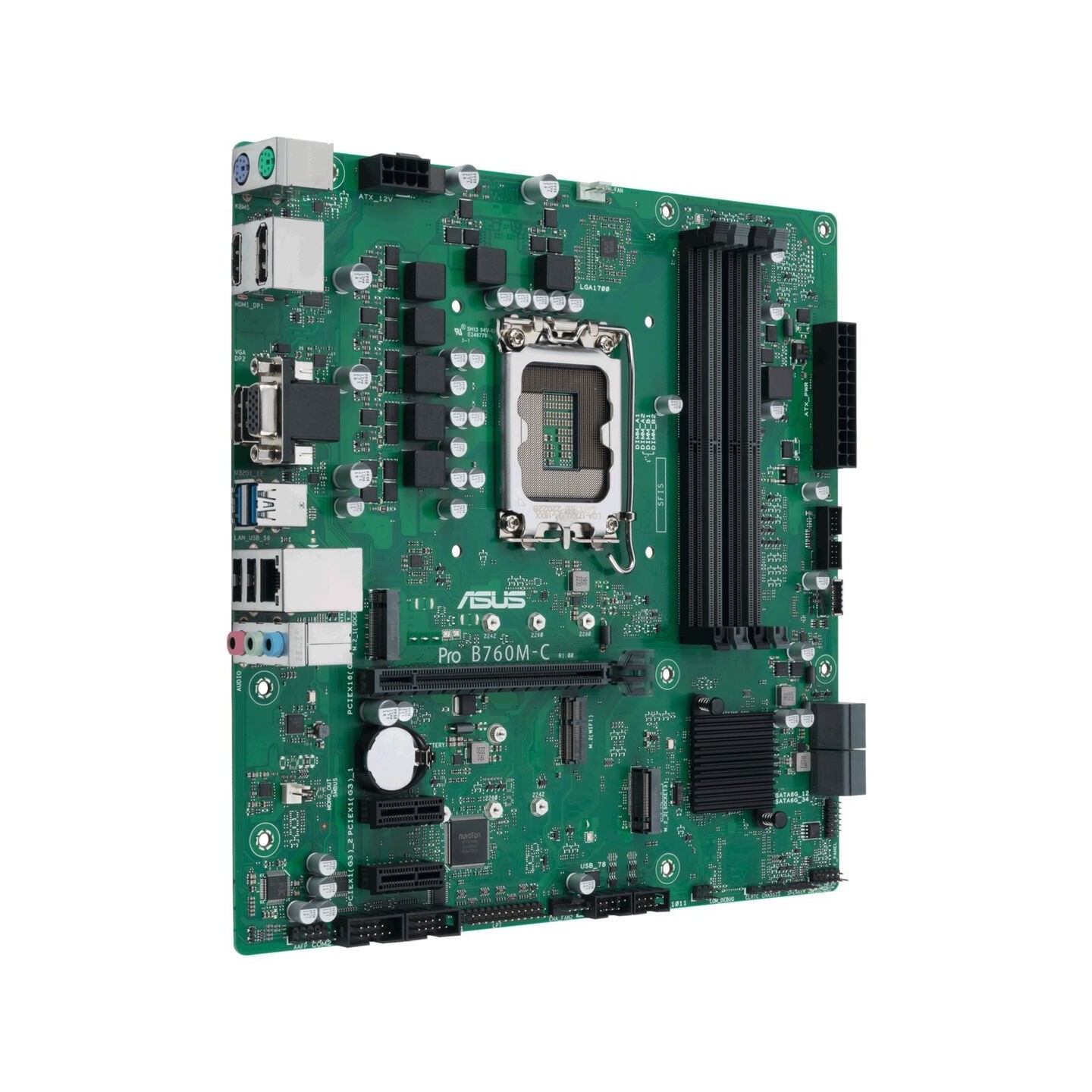

ASUS Pro B760M-C-CSM LGA1700 Micro-ATX DDR5 Motherboard Intel B760 (Boxed)
Micro-ATX Intel B760 LGA1700 motherboard for business PCs. Supports DDR5 up to 128GB (4xDIMM, XMP), PCIe4.0 x16, 2x M.2 PCIe4.0, 4x SATA RAID, VGA/HDMI/2xDP, GbE LAN, TPM, 7.1 audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
The ASUS Pro B760M-C-CSM is a reliable Micro-ATX motherboard designed for business and professional environments, featuring Intel B760 chipset and LGA1700 socket for 12th/13th/14th Gen Intel Core processors, Pentium Gold, and Celeron.
It supports dual-channel DDR5 memory up to 128GB across 4 DIMM slots with XMP profiles and speeds up to 6200MHz (OC). Storage options include 2x M.2 slots (PCIe 4.0 x4, 2242/2260/2280) and 4x SATA 6Gb/s ports with RAID 0/1/5/10. Expansion features PCIe 4.0 x16 graphics slot and 2x PCIe 3.0 x1 slots. Connectivity comprises Intel Gigabit Ethernet, Realtek ALC897 7.1 audio, and rear I/O with VGA, HDMI 2.1, 2x DisplayPort 1.4, 2x USB 3.2 Gen1 Type-A, 2x USB 2.0.
Business-oriented features enhance security and manageability: onboard TPM, self-recovering BIOS, COM debug header, Q-LED diagnostics, ASUS Management Suite, and anti-moisture/ESD protection for durability.
- CPU: LGA1700 (12th-14th Gen Intel)
- Memory: 4x DDR5, max 128GB
- Storage: 2x M.2 PCIe4.0, 4x SATA
- Video: VGA + HDMI 2.1 + 2x DP 1.4
- LAN: 1x Gigabit Ethernet
- Form Factor: Micro-ATX
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium®. Intel® Pentium® Gold |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Maximum internal memory | 128 GB |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| Number of SATA III connectors | 4 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10, Windows 11 |
| Width | 244 mm |
| Depth | 244 mm |
| BIOS memory size | 128 Mbit |
| Cables included | SATA |
