PCI Express x8 - 2x USB 3.2 Gen 2x2 Type C + 2x USB 3.2 Gen 1 Type A, USB Controller
Delock PCIe USB expansion card adds four external USB 3.2 ports: 2x USB-C and 2x USB-A via PCIe x8 slot.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

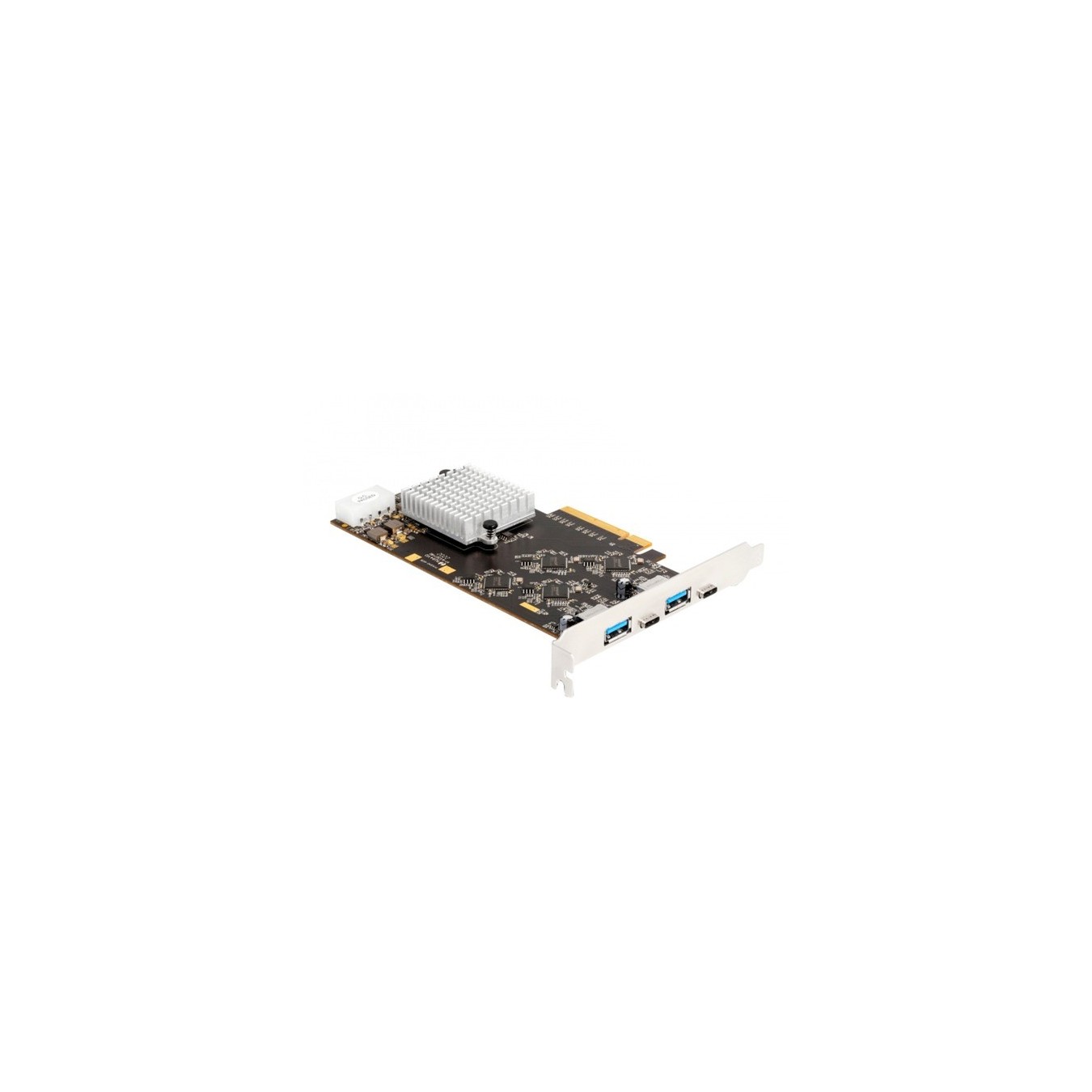

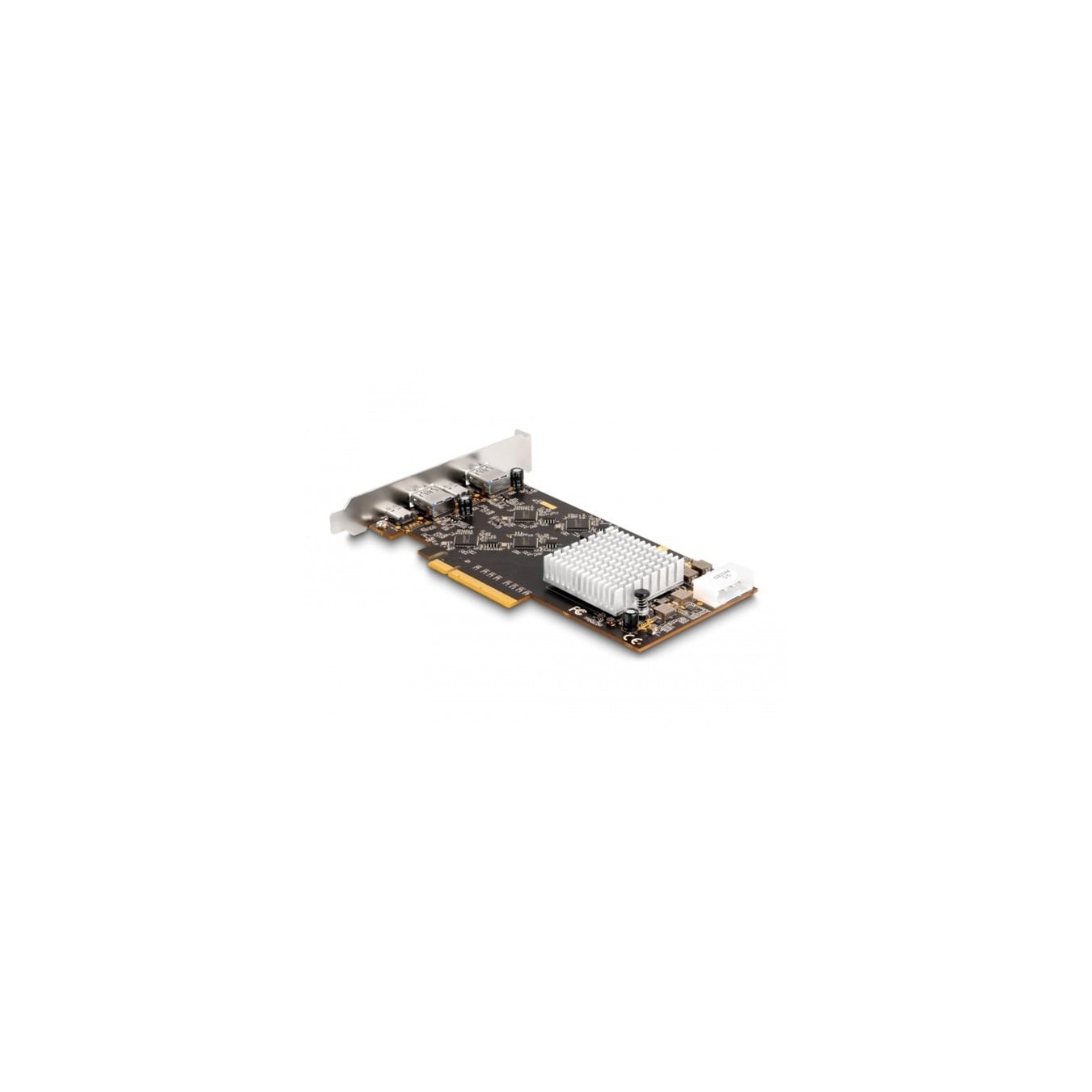

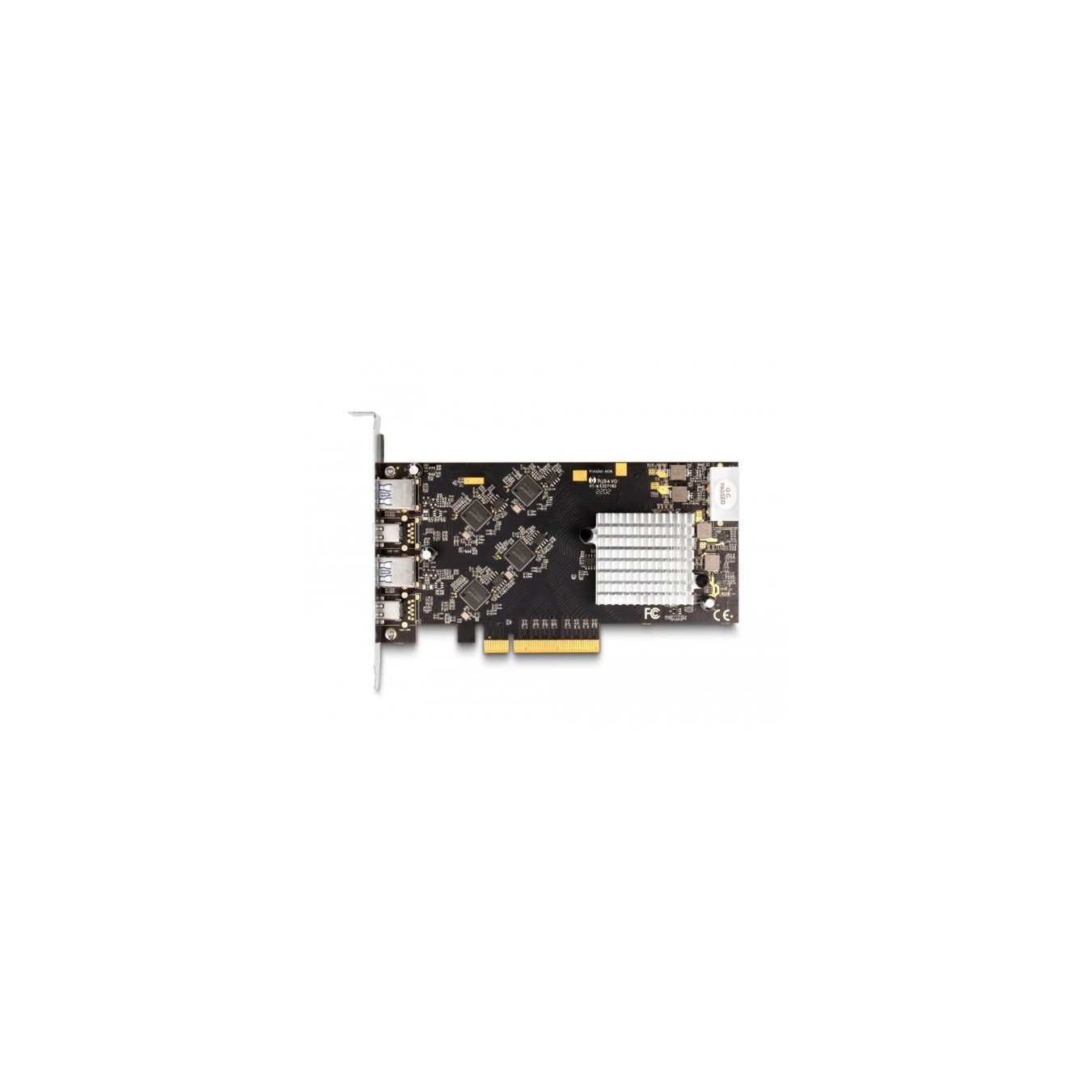

The PCI Express card from Delock expands the PC with four external USB 3.2 ports, two USB-C™ and two USB Type-A ports. Various USB devices can be connected to the card, such as: B. docking stations, card readers, external housings, etc., can be connected. The card has four ASM3242 chipsets, a separate chipset for each USB port. This ensures the high data transfer rate of 20 Gbps on the USB Type-C™ ports and 10 Gbps on the USB Type-A ports when used simultaneously. The PCIe card can be powered via the PCIe port. If this is not enough, the card has a 4-pin power connector. A maximum of 5 V / 3 A is output on the USB Type-C™ ports and 5 V / 0.9 A on the Type-A ports, a maximum of 7.8 A on all ports together.
| Typ | USB-Controller |
| EAN | 4043619900978 |
| Manufacturer no. | 90097 |
| Controller Art | USB 3.2 (5 Gbit/s), USB 3.2 (10 Gbit/s), USB 3.2 (20 Gbit/s) |
| slot | PCIe x8 Version 3.0 |
| Chip | Asmedia ASM3242, Pericom PI7C9X3G816GP |
| Connections - external | 2x USB A, 2x USB C |
| directly usable devices | 4 |
| Operating System - Supported | Linux, Windows 8, Windows 10, Windows 11 |
| Feature | 2x USB 3.2 Gen 2x2 Type C | 2x USB 3.2 Gen 1 Type A | Bootable | Supports UASP | Supports eXtensible Host Controller Interface (xHCI) specification 1.1 | Supports multiple INs |
| Accessories - available | Instruction manual |
