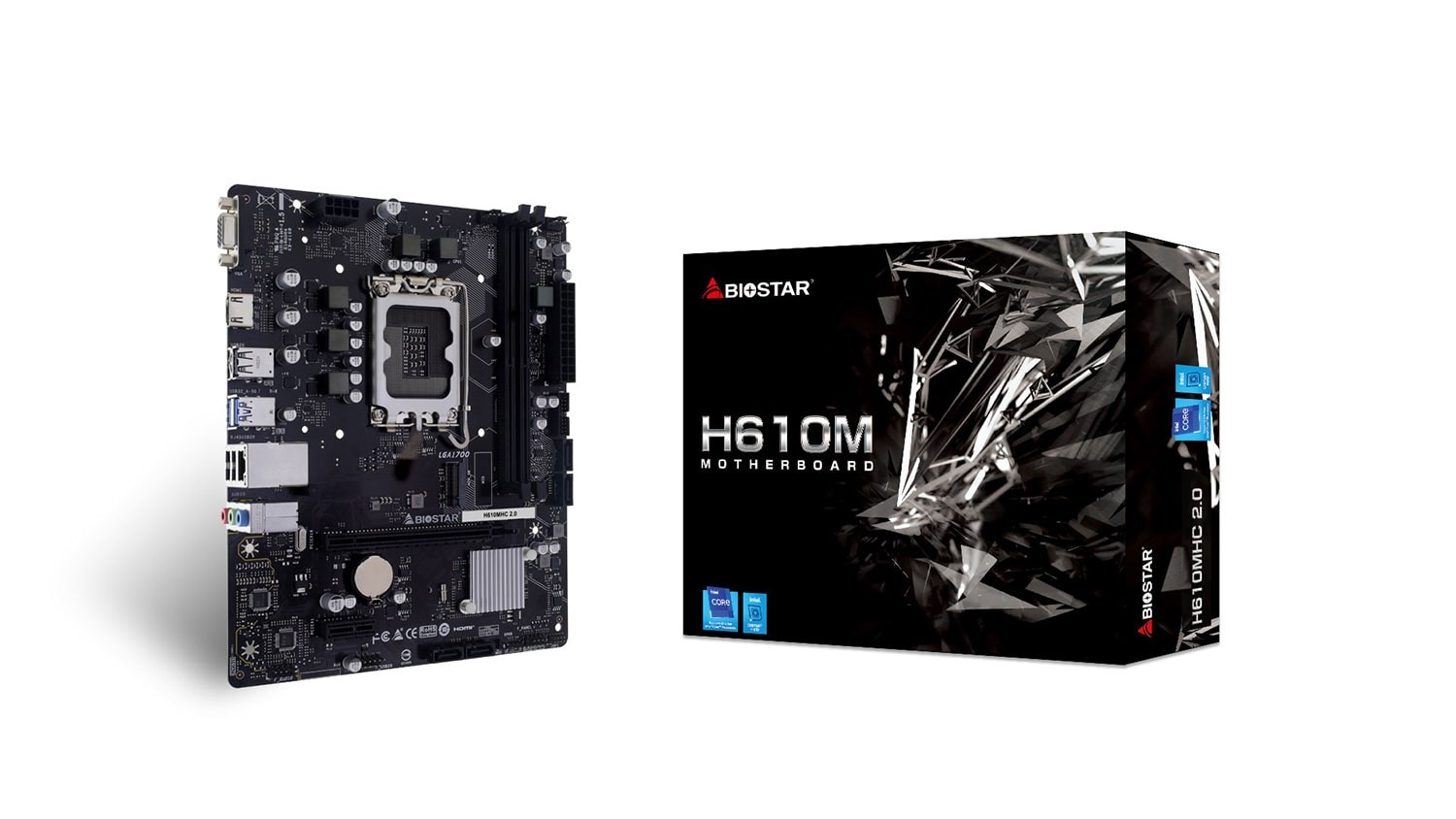

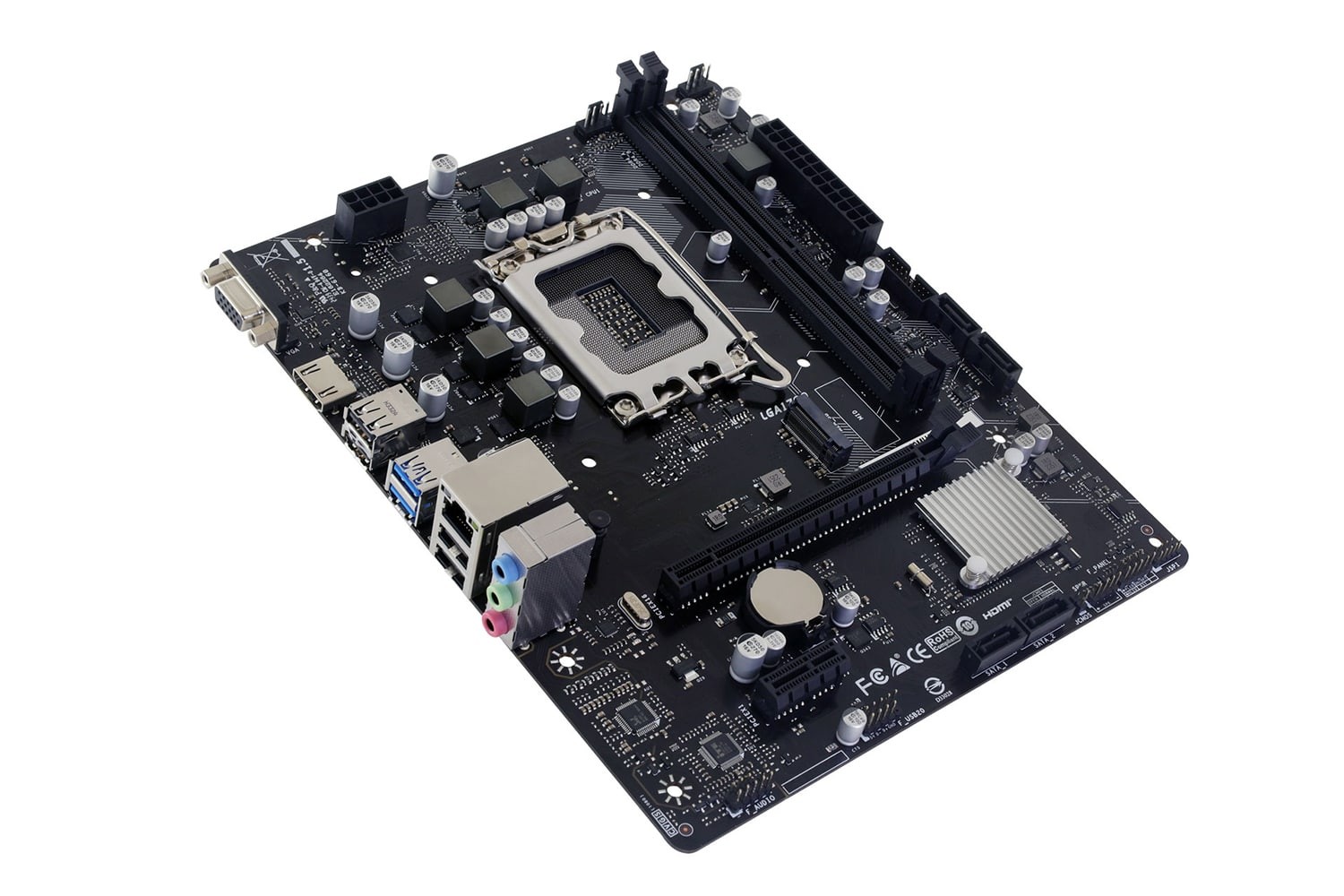

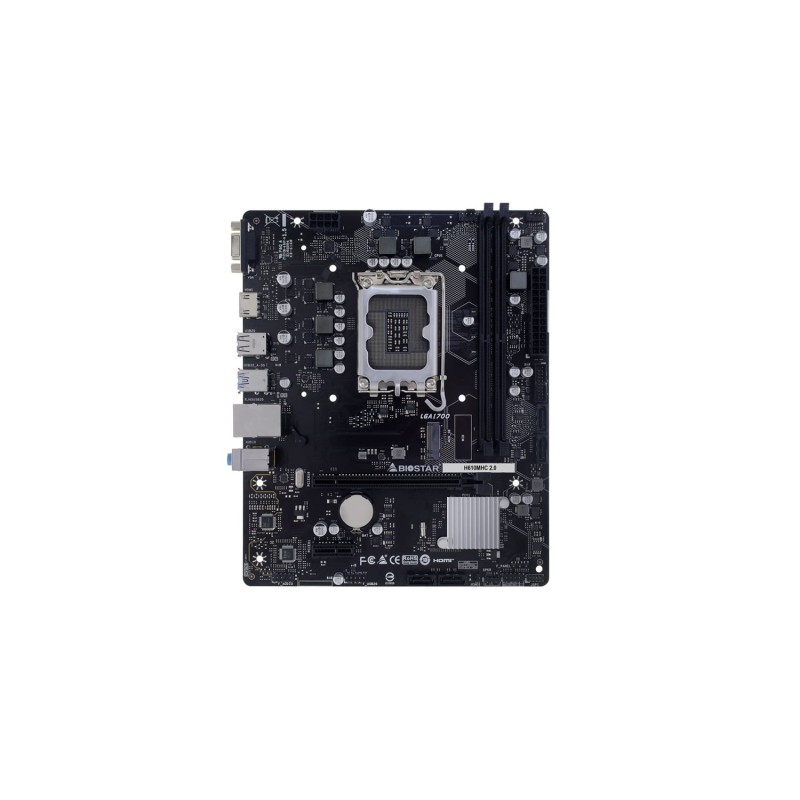

Biostar H610MHC 2.0 - LGA1700 Micro-ATX Motherboard, H610 Chipset, DDR4 up to 64GB, HDMI 1.4, Gigabit LAN (Black)
Biostar H610MHC 2.0 micro-ATX for LGA1700 (12th-14th Gen Intel). Dual-channel DDR4 (2 DIMM) up to 64GB, 1x M.2 + 4x SATA III, HDMI 1.4, VGA, Realtek Gigabit LAN, 7.1 audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | LGA1700 |
|---|---|
| Motherboards - Chipset | Intel H610 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
Biostar H610MHC 2.0. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Celeron®. Intel Core i3 12th Gen. Intel Core i3 13th Gen. Intel Core i3 14th Gen. Intel.... Supported memory types: DDR4-SDRAM. Maximum internal memory: 64 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet. LAN controller: Realtek RTL8111H. Component for: PC. Motherboard form factor: micro ATX. Motherboard chipset family: Intel
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1866.2133.2400.2666.2933.3200 MHz |
| Maximum internal memory | 64 GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Feature | Drivers included |
| DirectX version | 12.0 |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |

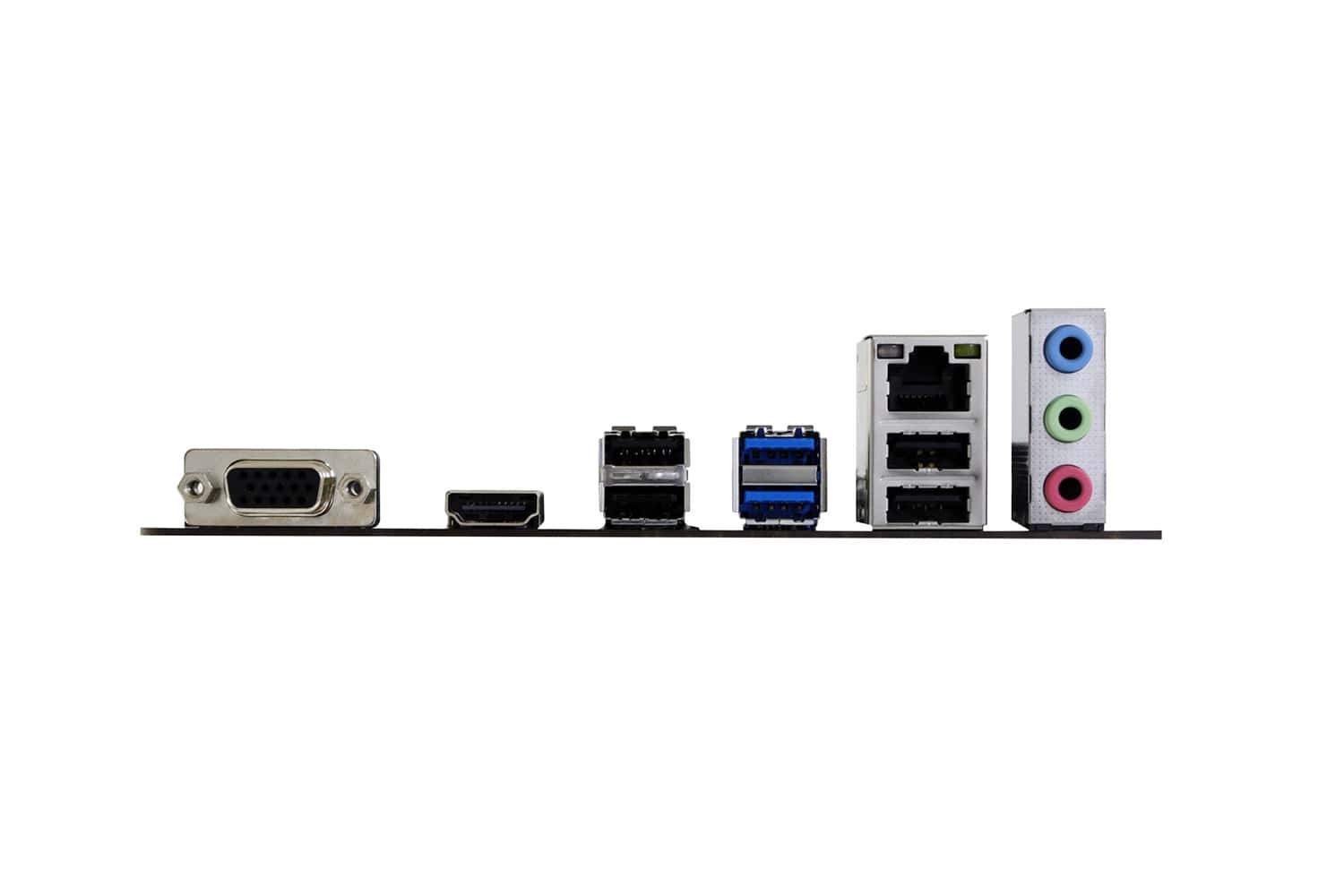

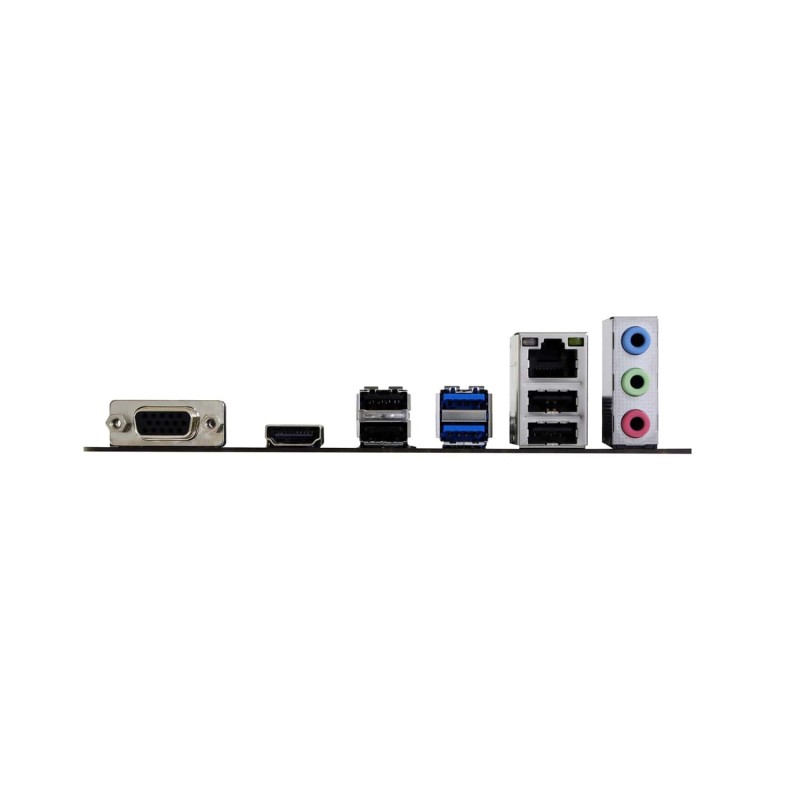

| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Motherboard chipset | Intel H610 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan. Temperature. Voltage |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| Width | 185 mm |
| Depth | 226 mm |
| Cables included | SATA |
