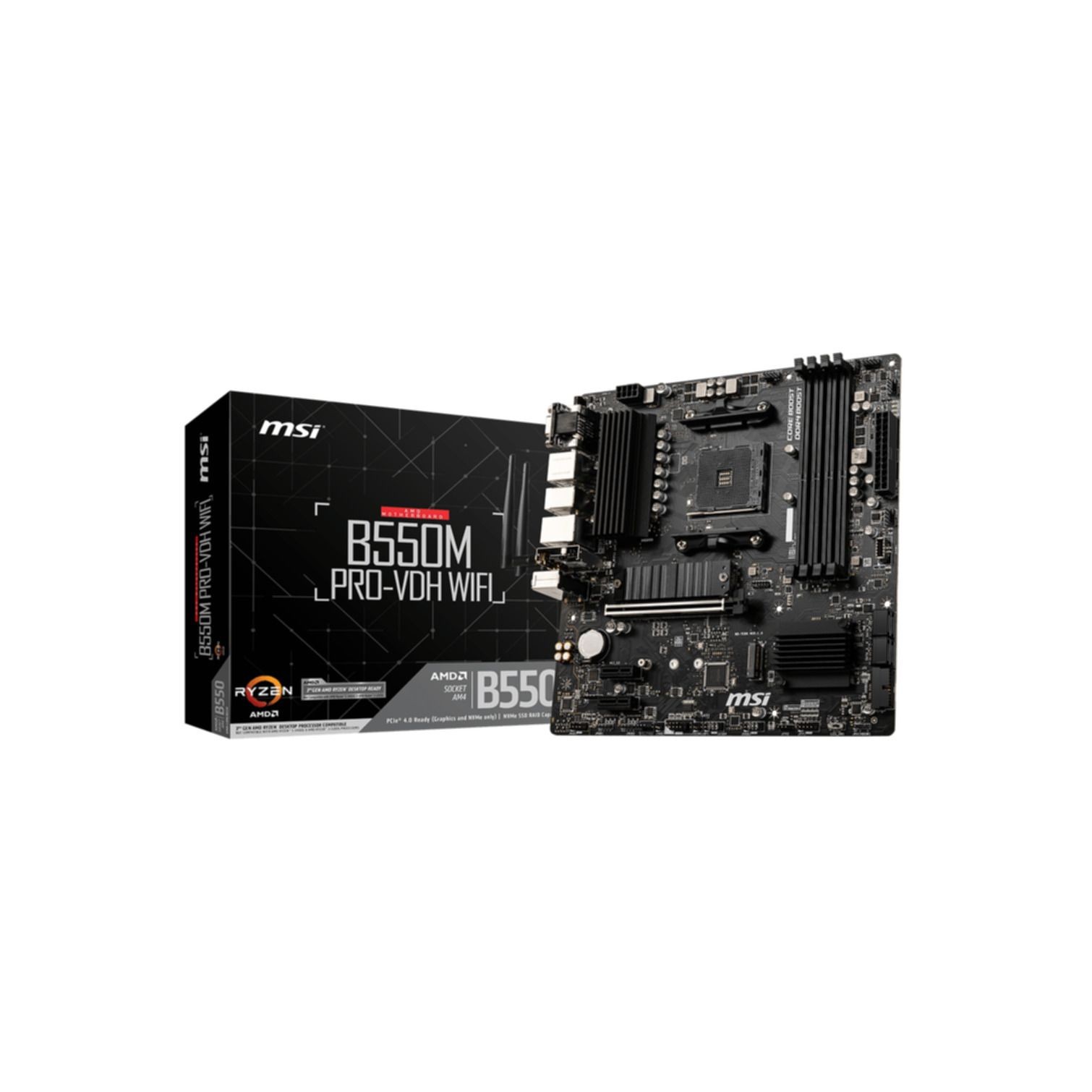

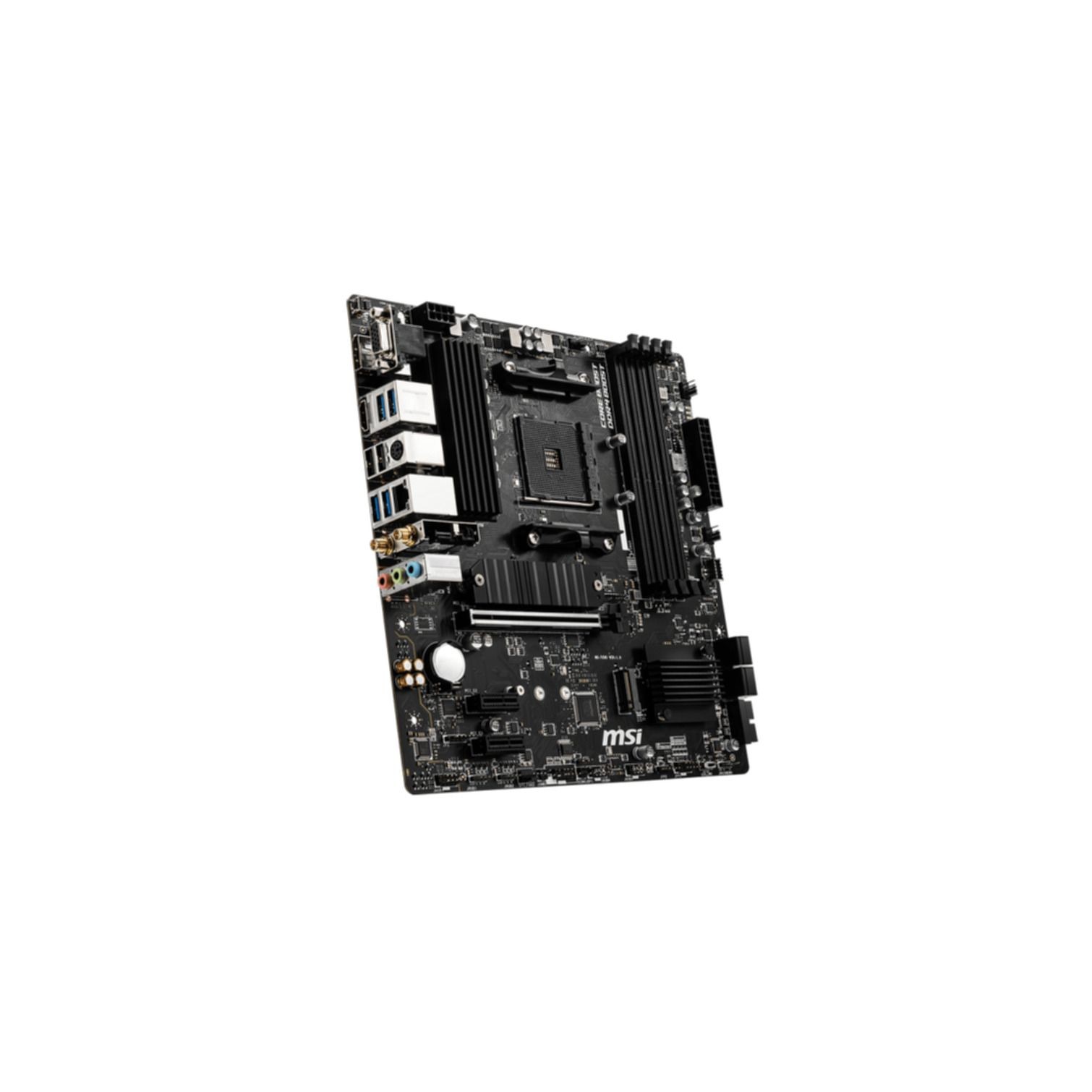

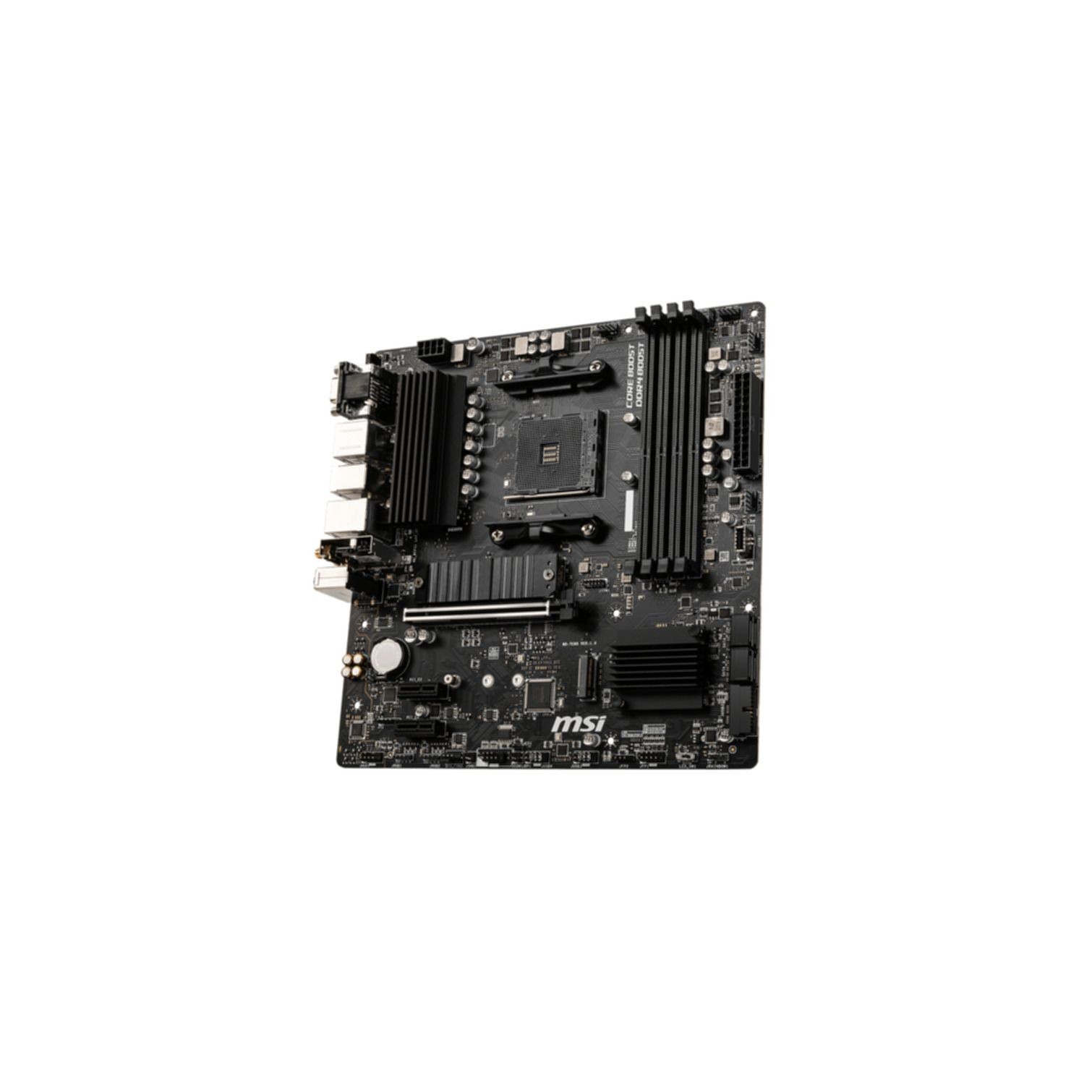

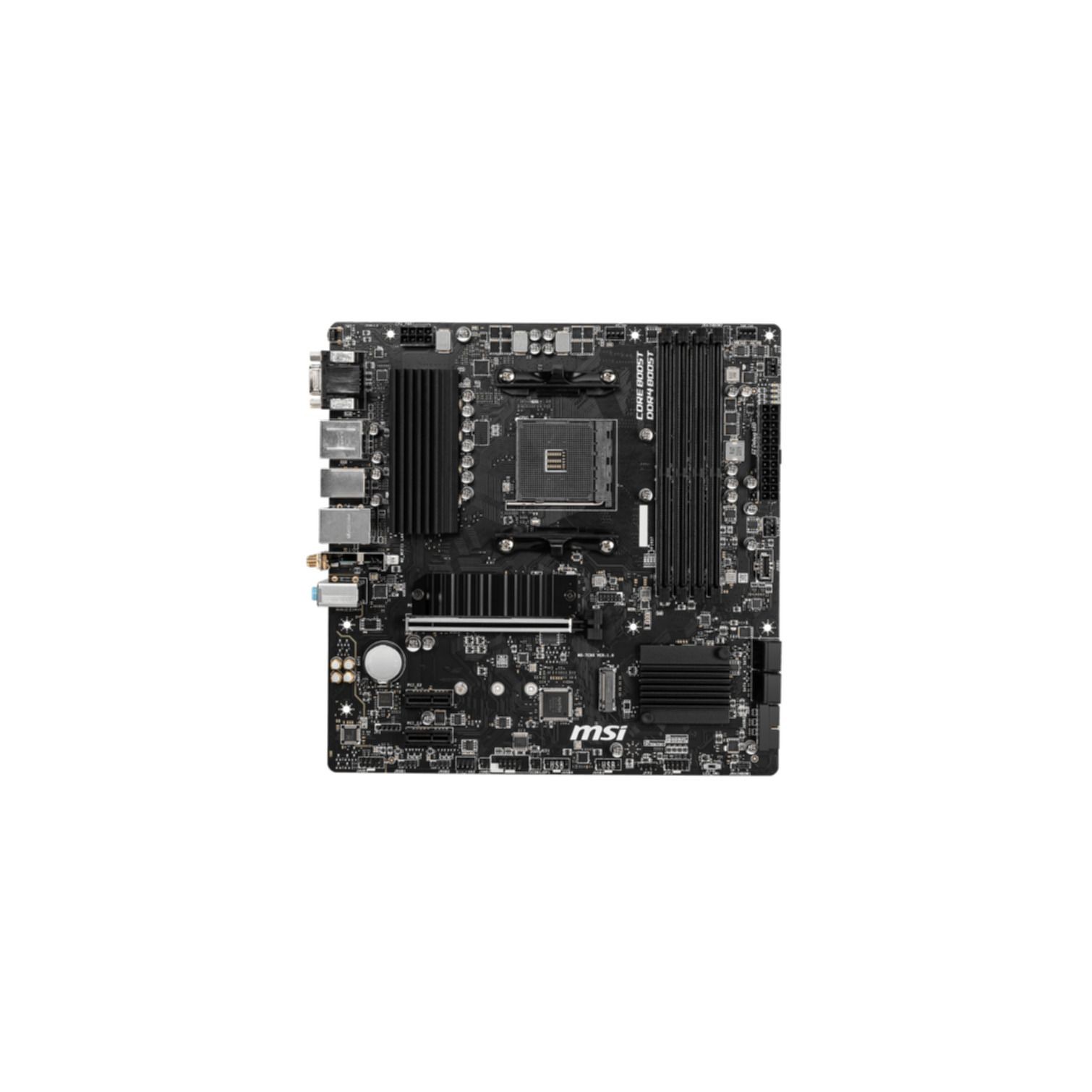

MSI B550M PRO-VDH WIFI - B550M PRO-VDH - Micro-ATX AM4 DDR4 Motherboard, 128GB Max, Wi‑Fi 5, Gigabit LAN, 7.1 Audio, Black
Micro-ATX AMD B550 motherboard for Socket AM4. Supports Ryzen 3000, DDR4 up to 128GB (4 DIMM), PCIe 4.0 x16, 2x M.2, 4x SATA III, Wi‑Fi 5 and Bluetooth 4.2.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Out of Stock
| Motherboards - Socket | AM4 |
|---|---|
| Motherboards - Chipset | AMD B550 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
MSI B550M PRO-VDH WIFI. Processor manufacturer: AMD. Processor socket: Socket AM4. Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 10. Maximum graphics card memory: 16000 MB. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet. LAN controller: Realtek 8111HN. Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1866.2133.2400.2667.2800.2933.3000.3066.3200.3466.3600.3733.3866.4000.4133.4266.4400 MHz |
| Maximum internal memory | 128 GB |
| Feature | Drivers included |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA III |
| RAID levels | 0. 1. 10 |
| Maximum graphics card memory | 16000 MB |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Serial port headers | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |

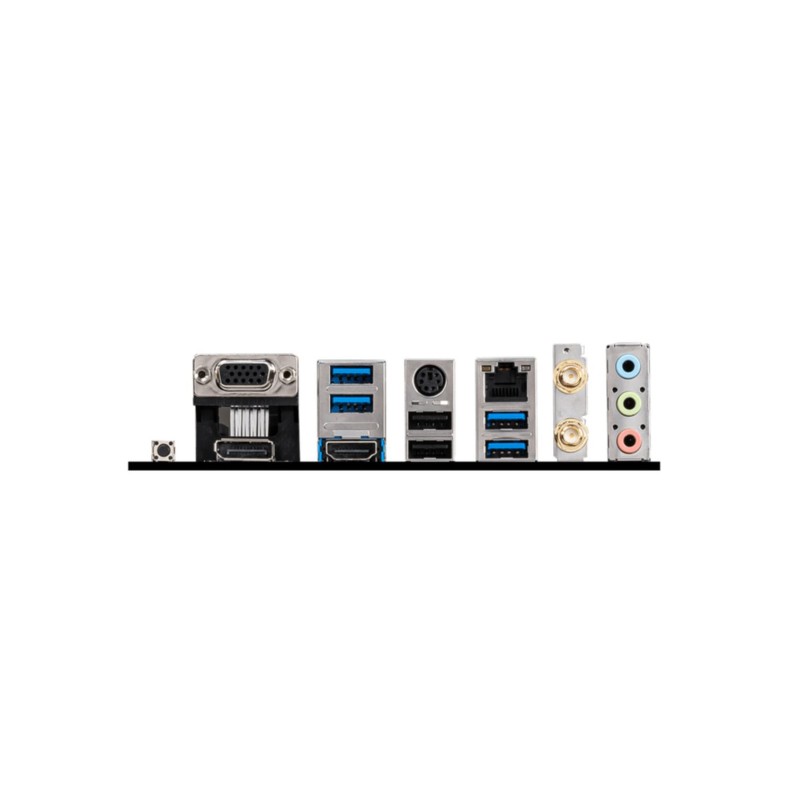

| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| WiFi-AP antenna jack | 2 |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek 8111HN |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac) |
| Bluetooth version | 4.2 |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Number of mounting holes | 8 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Harmonized System (HS) code | 84733020 |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 65 mm |
| Cables included | SATA |
| Weight | 1 kg |
