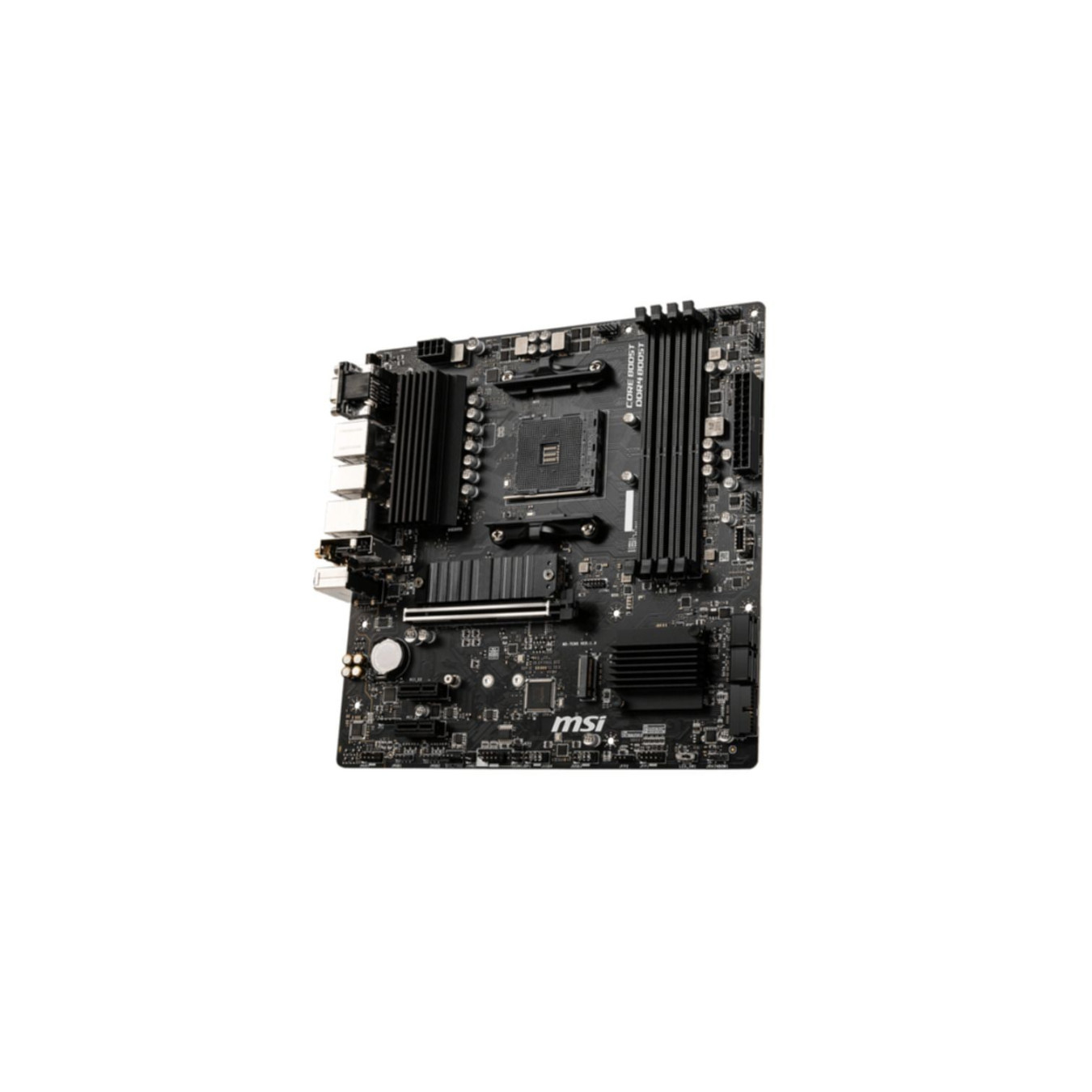

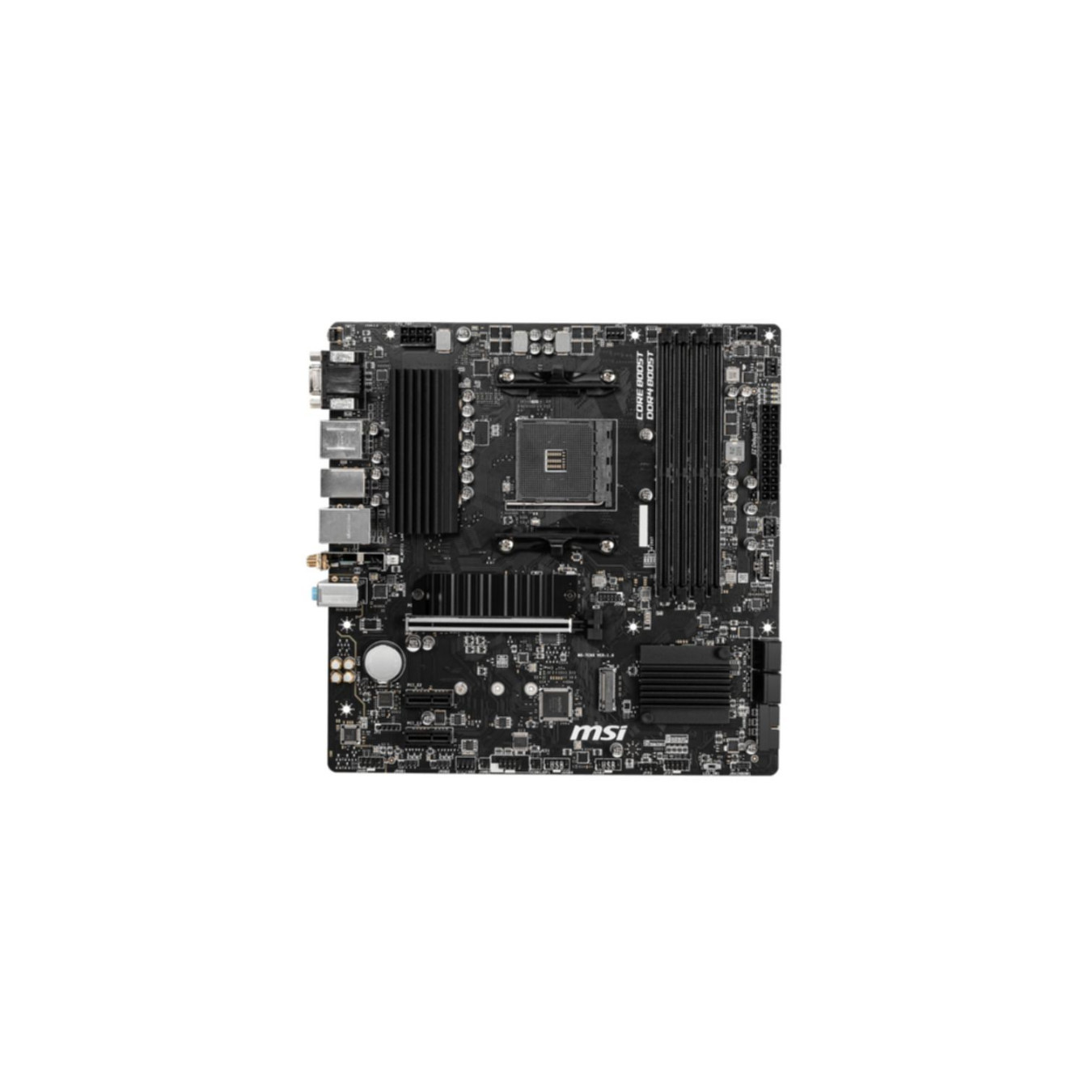

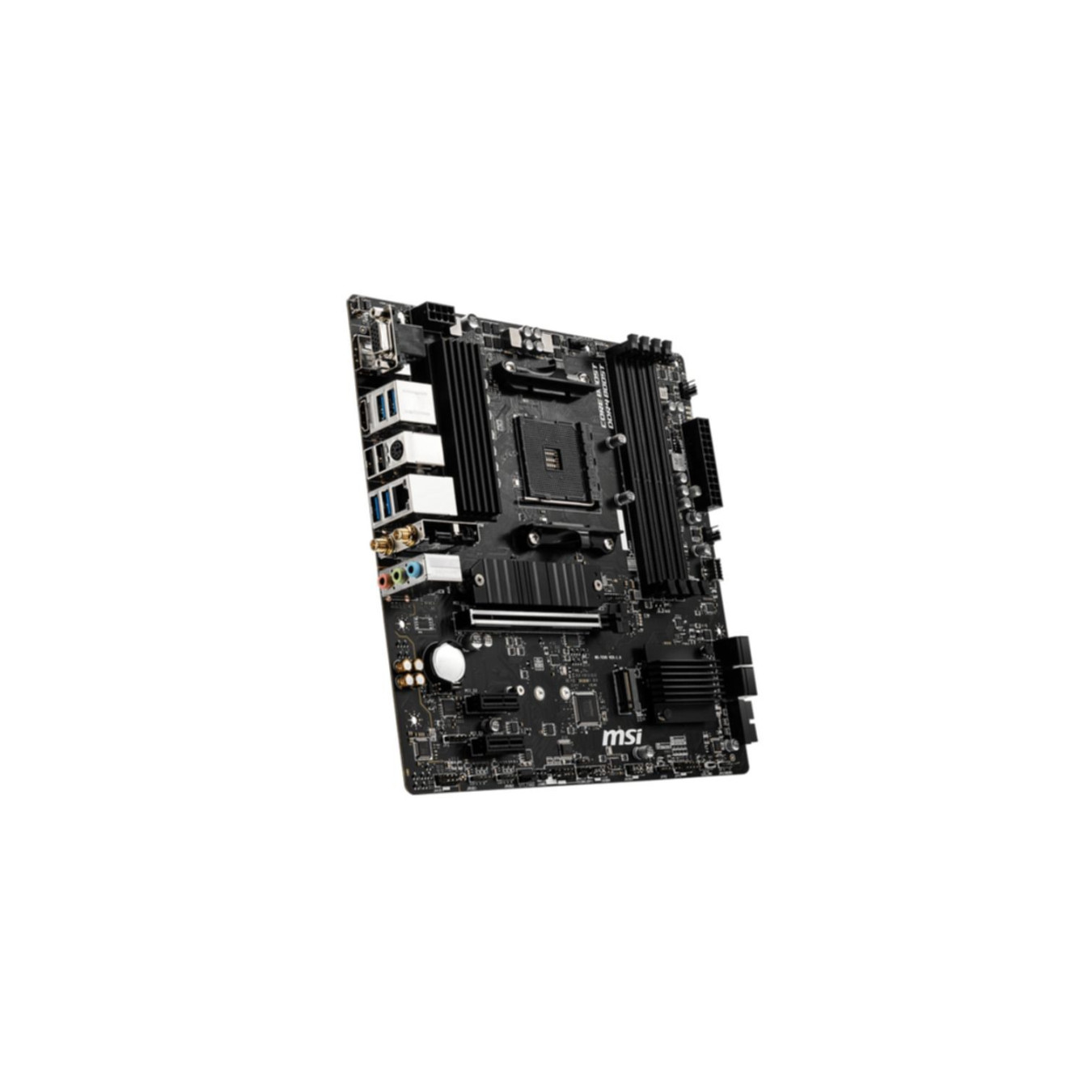

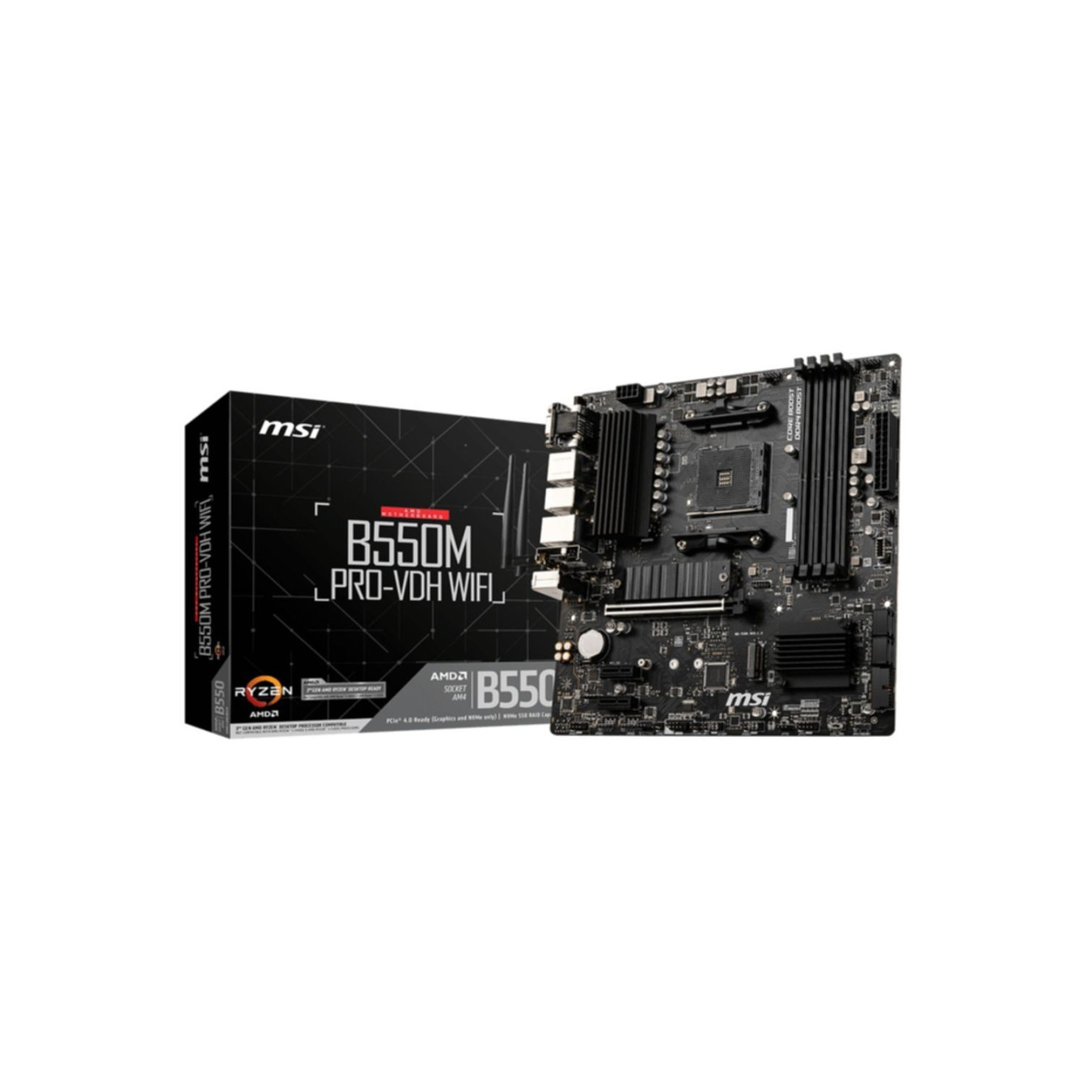

MSI B550M PRO-VDH WIFI - Micro-ATX AM4 DDR4 Motherboard, 128GB Max, Wi-Fi 6, PCIe 4.0, Gigabit LAN, 7.1 Audio, Black (Boxed)
Micro-ATX AMD B550 motherboard for AM4 socket. Supports Ryzen 5000/3000 Series & 4000G, DDR4 to 128GB (4400MHz OC), PCIe 4.0 x16, 2x M.2 w/ Shield Frozr, Wi-Fi 6, Bluetooth 4.2, 7.1 audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM4 |
|---|---|
| Motherboards - Chipset | AMD B550 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The MSI B550M PRO-VDH WIFI is a feature-packed Micro-ATX motherboard designed for AMD Ryzen processors on the AM4 socket. It supports 3rd Gen Ryzen 5000 & 3000 Series desktop CPUs, as well as Ryzen 4000 G-Series APUs (requires BIOS update for full compatibility). With dual-channel DDR4 memory support up to 128GB at speeds reaching 4400MHz (OC), it delivers excellent performance for gaming, content creation, and productivity.

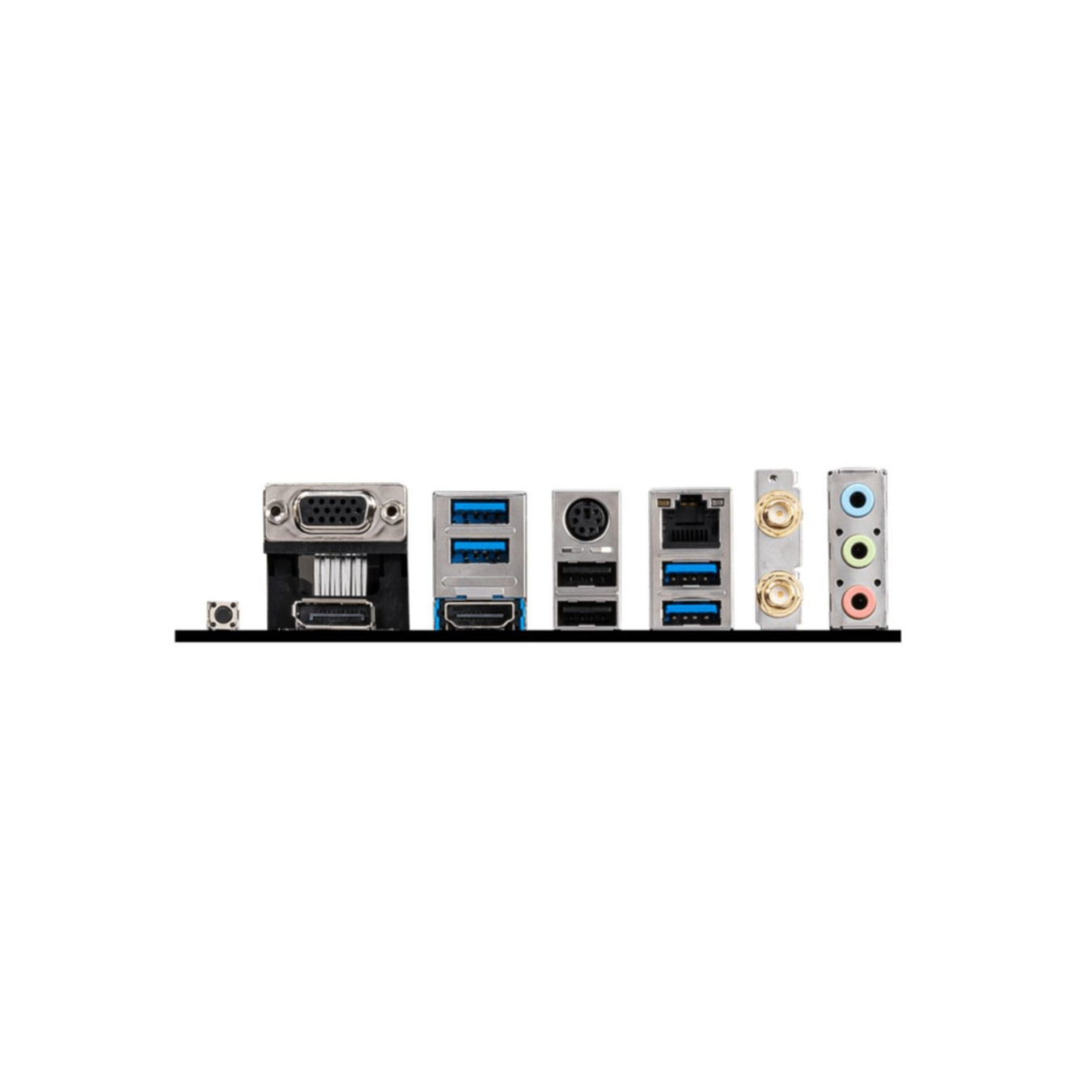

Key highlights include Lightning Gen4 PCIe 4.0 x16 slot for GPUs, dual M.2 slots with M.2 Shield Frozr cooling, 4x SATA III ports with RAID 0/1/10, and robust connectivity: Wi-Fi 6 (Intel AX200), Bluetooth 4.2, Gigabit Realtek LAN, multiple USB 3.2 Gen1 ports, HDMI/DP/VGA outputs. Premium features like Core Boost power design, Audio Boost with Realtek ALC892 7.1-channel audio, and Flash BIOS button ensure stability and ease of use.
- CPU Support: Ryzen 5000/3000 Series & 4000G (AM4)
- Memory: 4x DDR4 DIMM, 128GB max, up to 4400MHz OC
- Storage: 2x M.2 PCIe 4.0/3.0, 4x SATA III
- Wireless: Wi-Fi 6 + Bluetooth 4.2
- Expansion: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
- Audio/LAN: 7.1 Realtek ALC892, Gigabit Ethernet
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 5000, 3000 Series & 4000 G-Series |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | up to 4400 MHz (OC) |
| Motherboard chipset | AMD B550 |
| Motherboard form factor | micro ATX |
| Number of M.2 (M) slots | 2 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Bluetooth version | 4.2 |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek 8111HN |
| RAID levels | 0, 1, 10 |
| Product colour | Black |
| Width | 244 mm |
| Depth | 244 mm |
| Weight | 1 kg |
