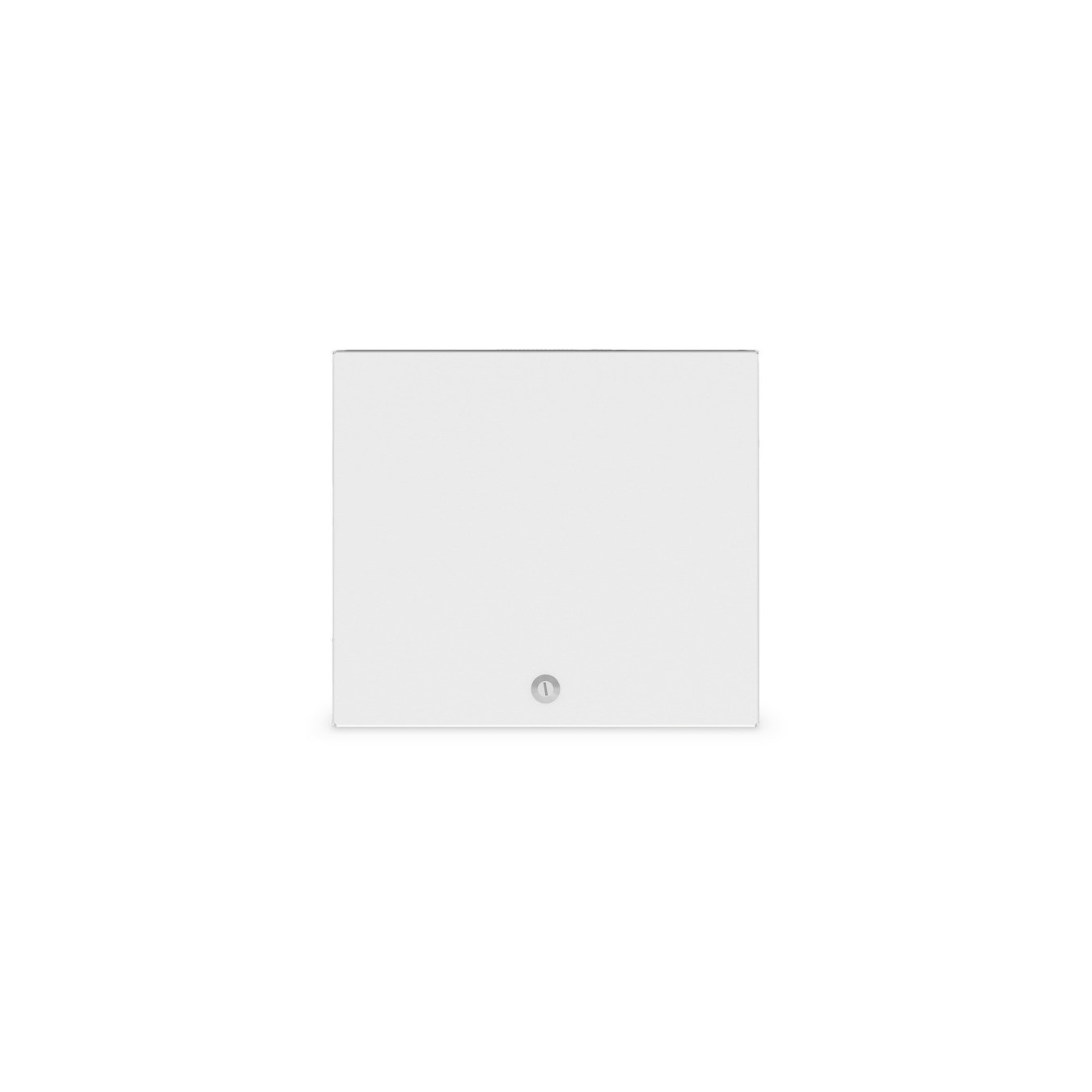

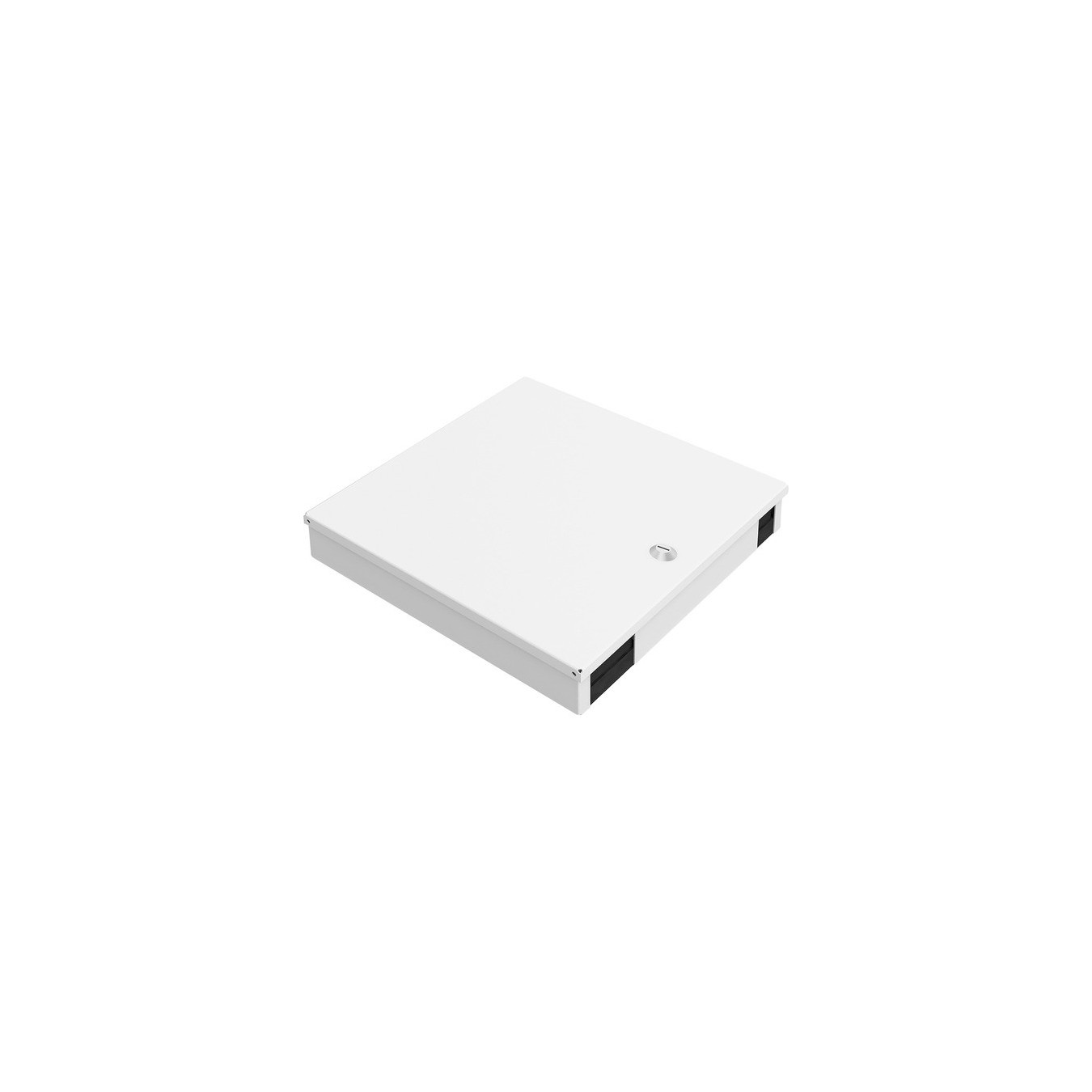

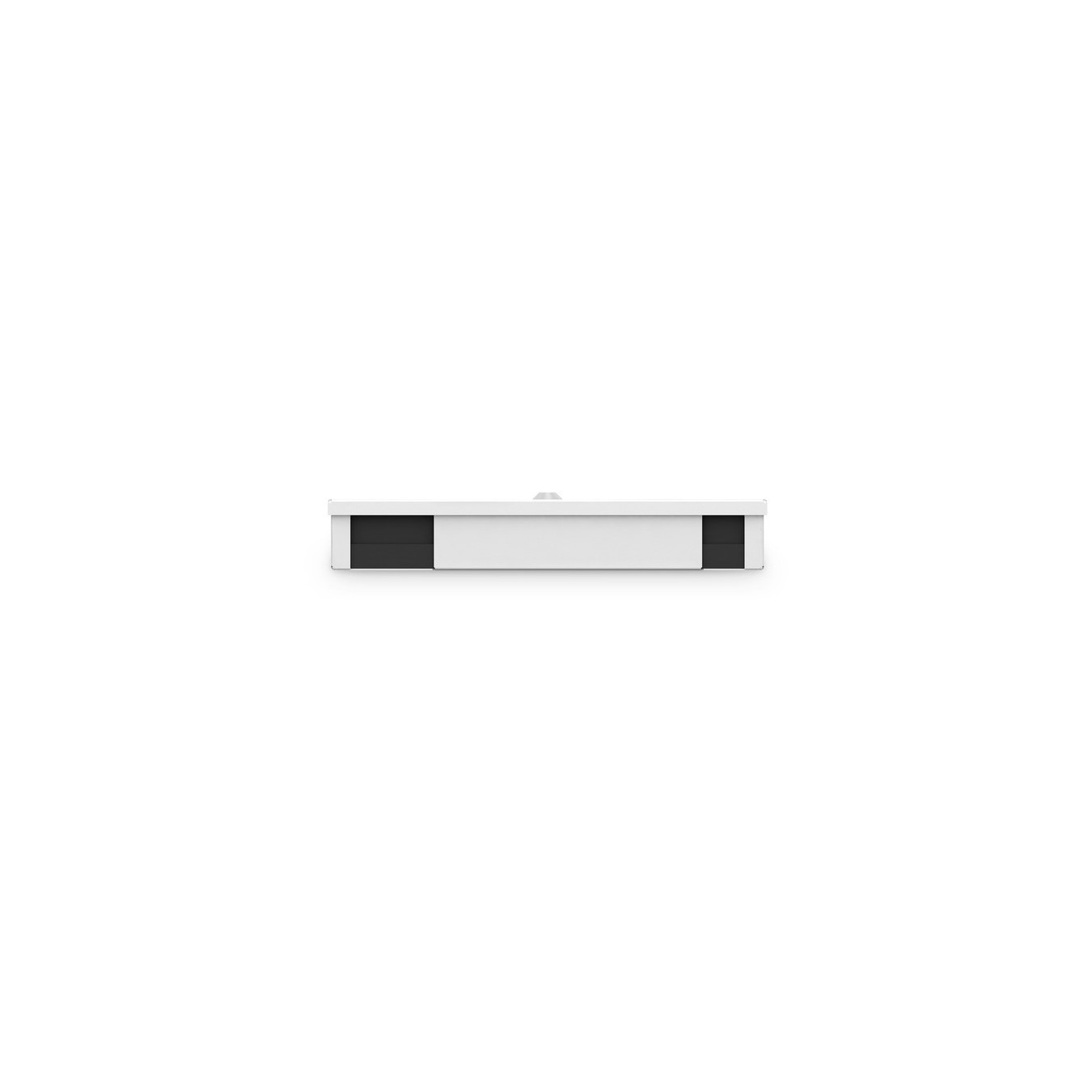

LWL Unibox - splice box for wall mounting, medium, housing
Fiber optic Unibox DN-96800M-2 by DIGITUS; robust, compact wall-mount splice box with separately available coupling brackets.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

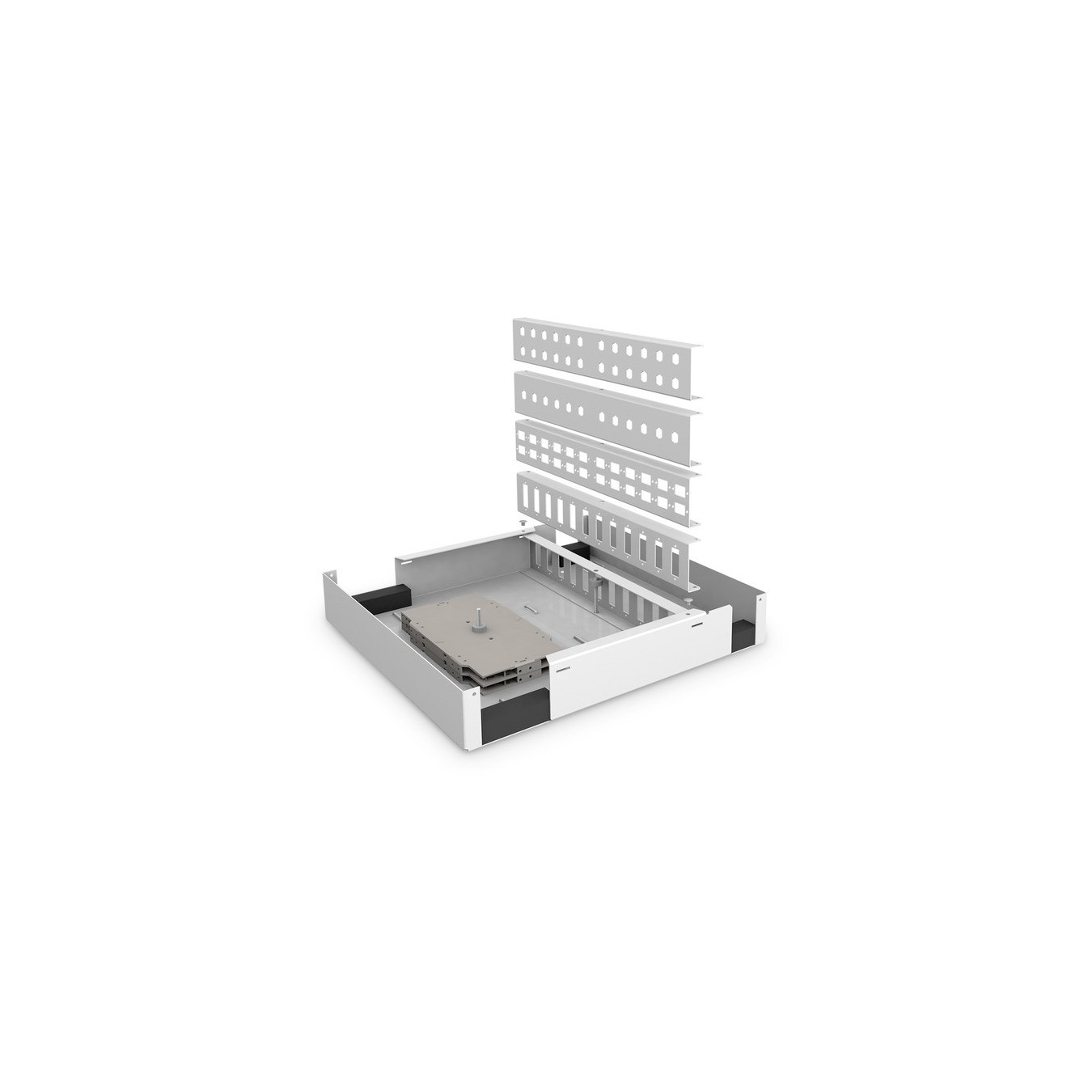

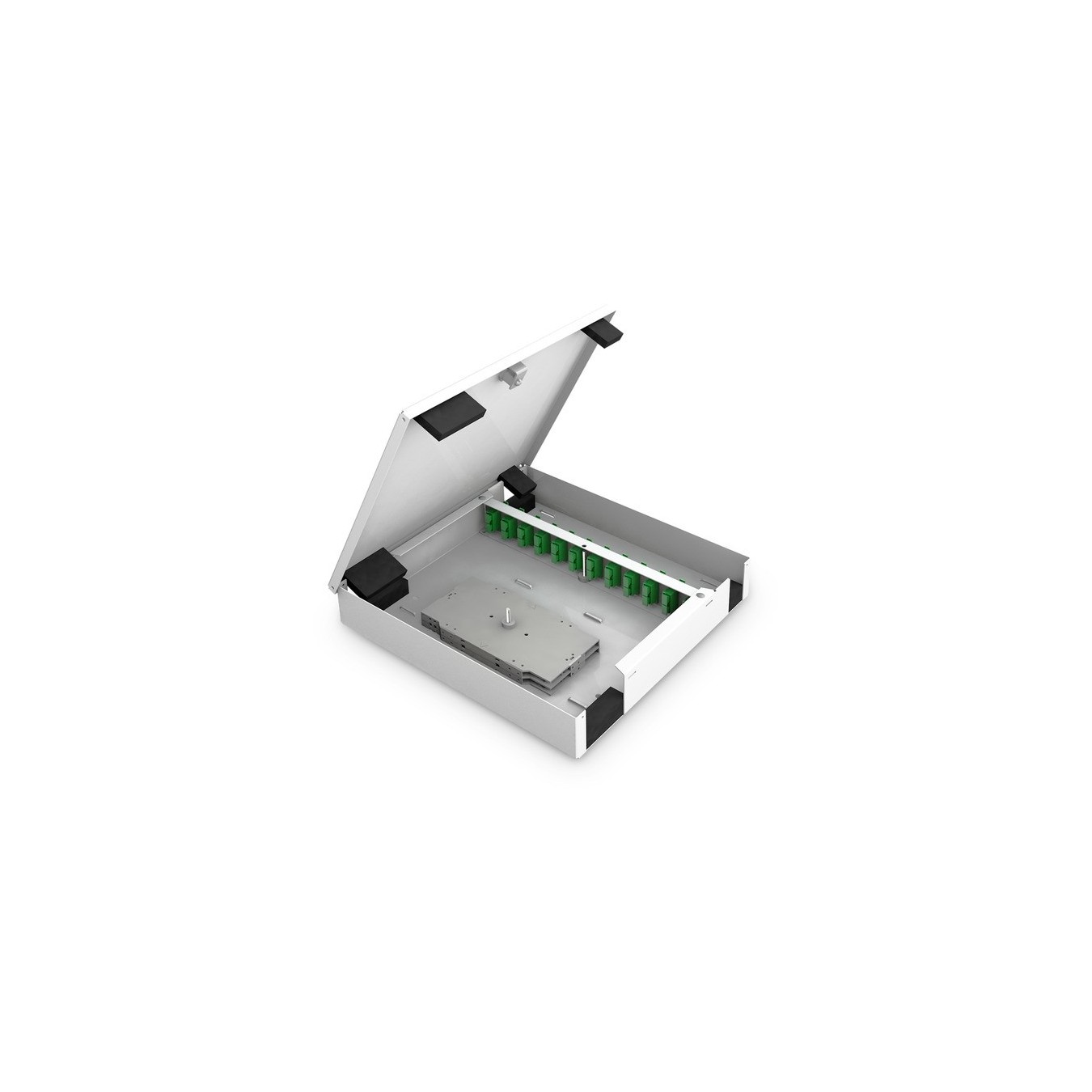

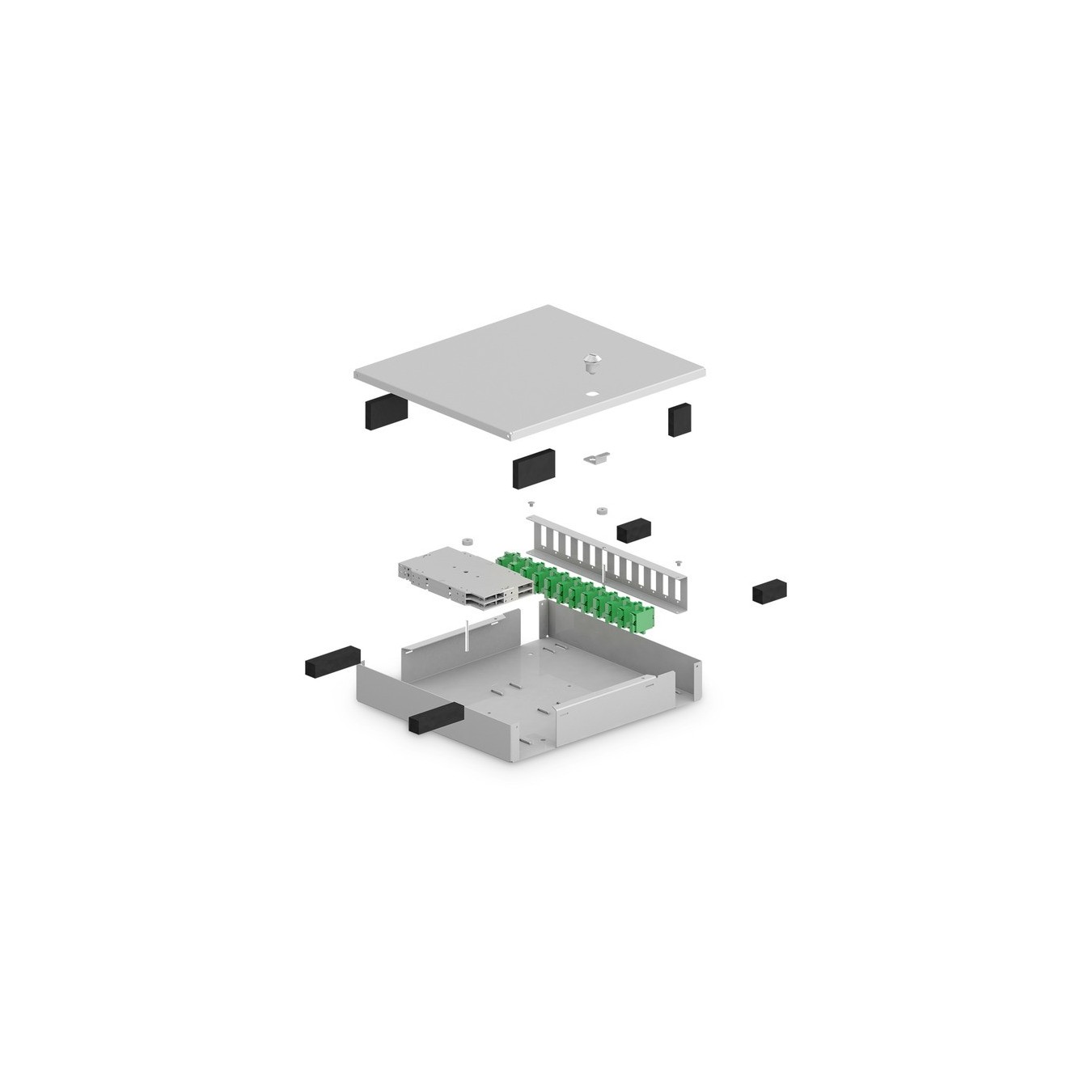

The fiber optic Unibox DN-96800M-2 from DIGITUS is a robust and compact splice box for wall mounting. With separately available coupling brackets, which can be installed in seconds, the box can be individually equipped with couplings, fiber pigtails and cables as required. It offers the option of holding up to four splice cassettes and an integrated holding device for cable ties. The cable entry or exit is equipped with foam rubber strips on the top and bottom. The LWL Unibox is made of robust cold-rolled sheet steel, is lockable and comes with two keys and mounting material. Areas of application include, for example, indoor telecommunications and data communication applications.
| Typ | Housing |
| Color | light gray |
| EAN | 4016032466130 |
| Manufacturer no. | DN-96800M-2 |
| Manufactured in | Türkiye |
| Purpose of use | For up to 48 fibers, to hold up to 4 splice cassettes |
| Area of application | Interiors |
| Montage | Surface mounting |
| Material | Robust cold-rolled sheet steel, powder-coated |
| IP protection class | IP20 |
| Feature | Lockable |

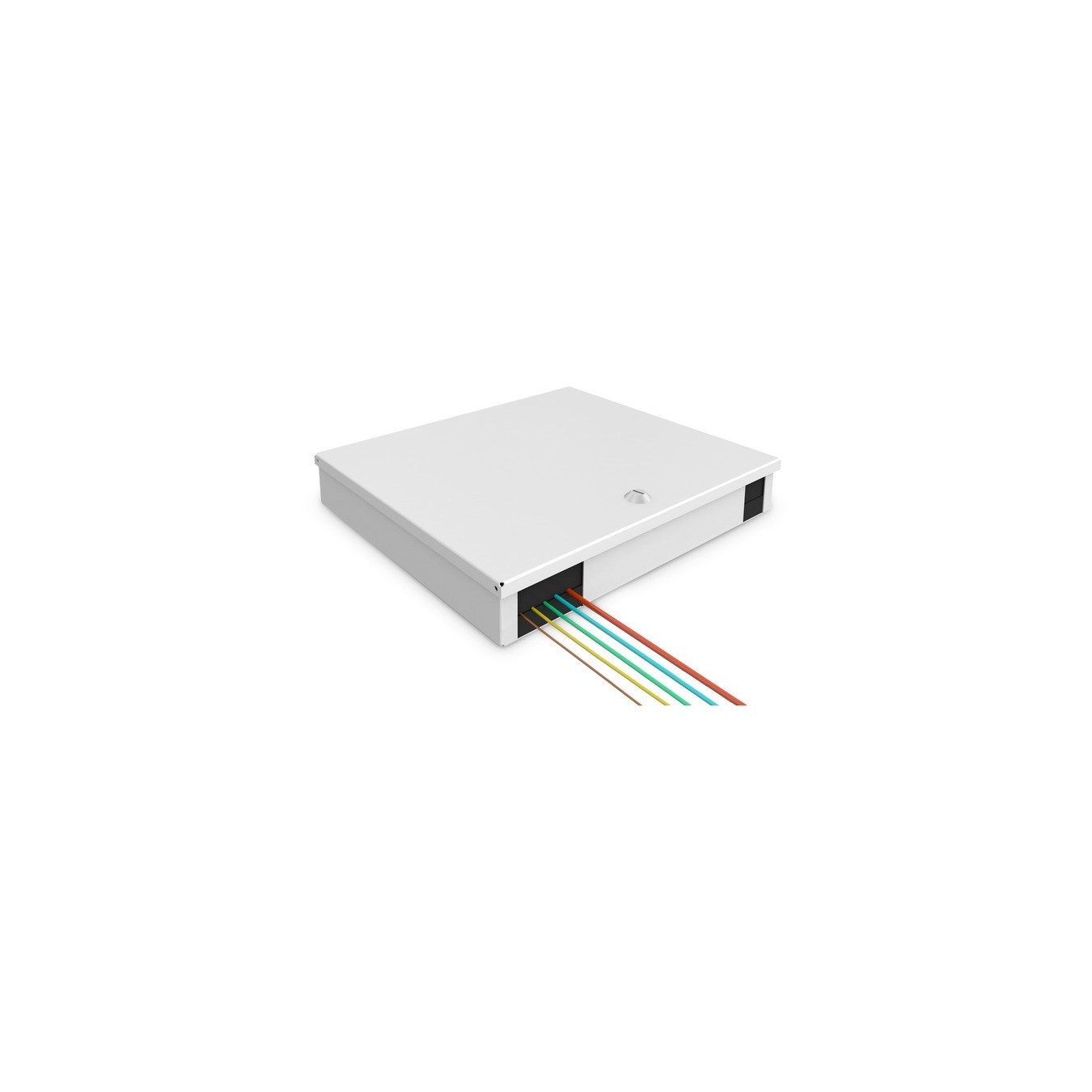

| More information | Cable entry or exit on top and bottom |
| Notice | Light gray, RAL 7035 |
| Accessories - available | 2x keys, mounting material (screws, dowels, washers, cable ties) |
| Dimensions | Width: 320mm x Height: 280mm x Depth: 54mm |
| Weight | 2 kg |
