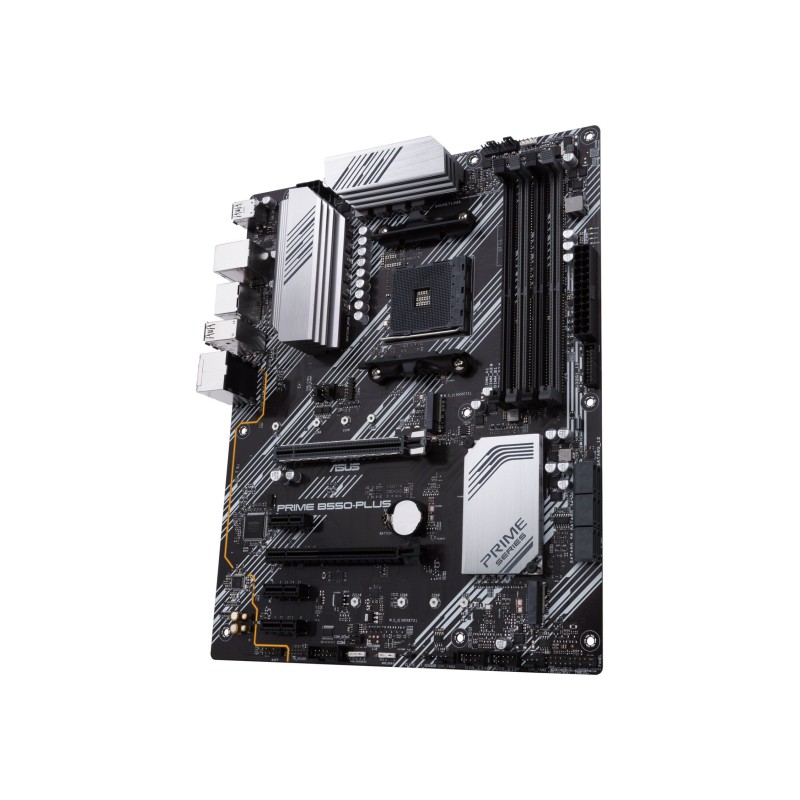

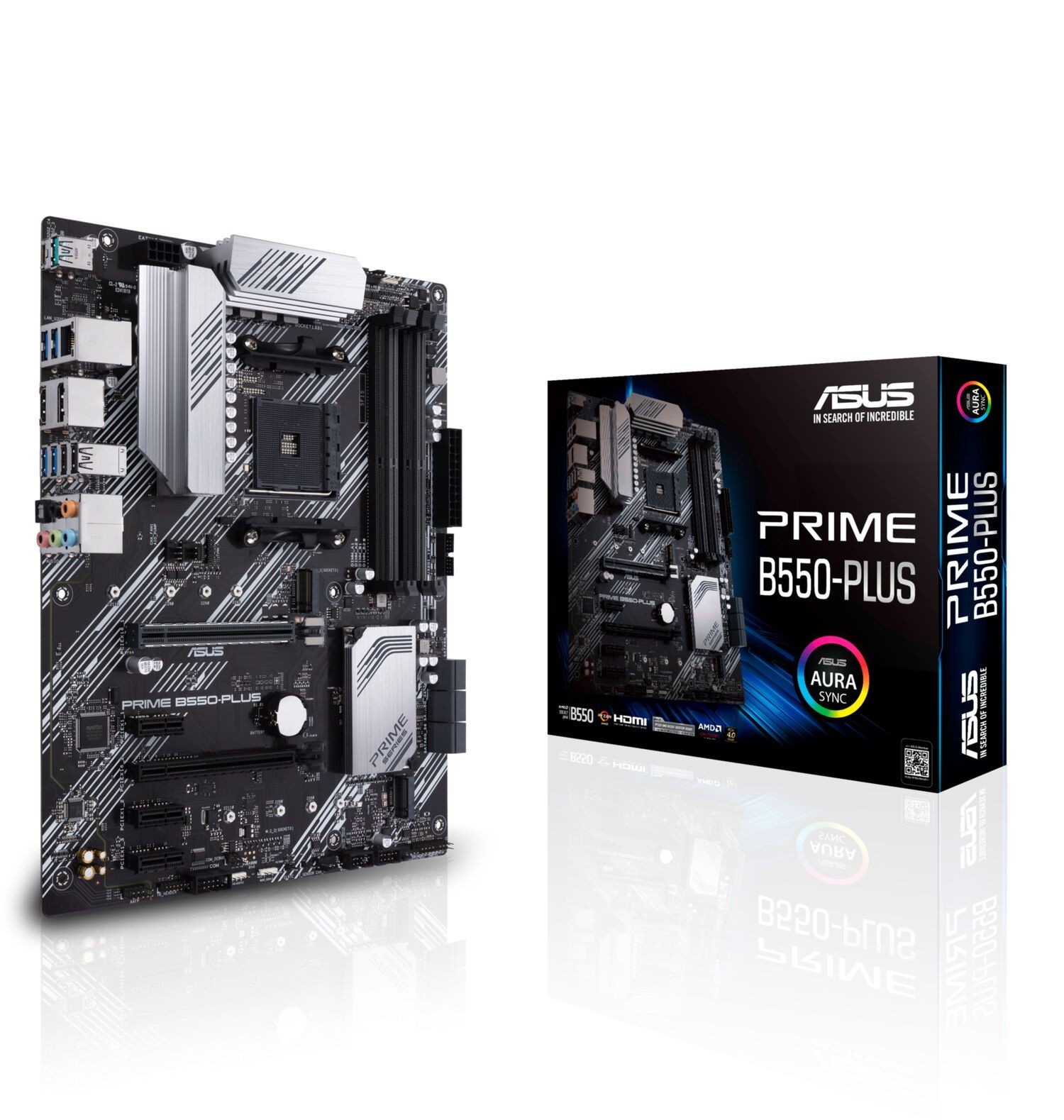

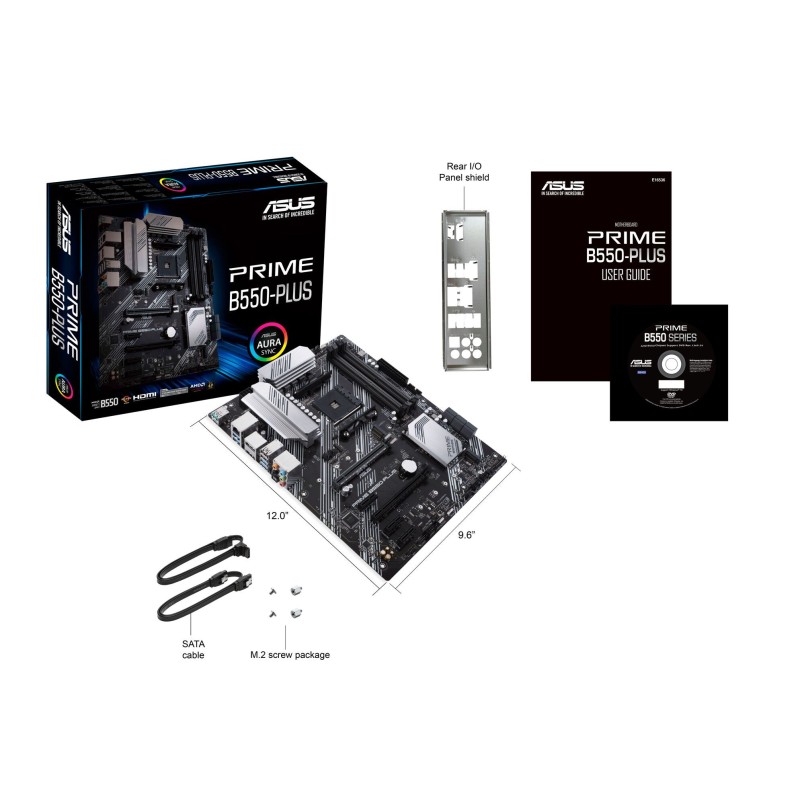

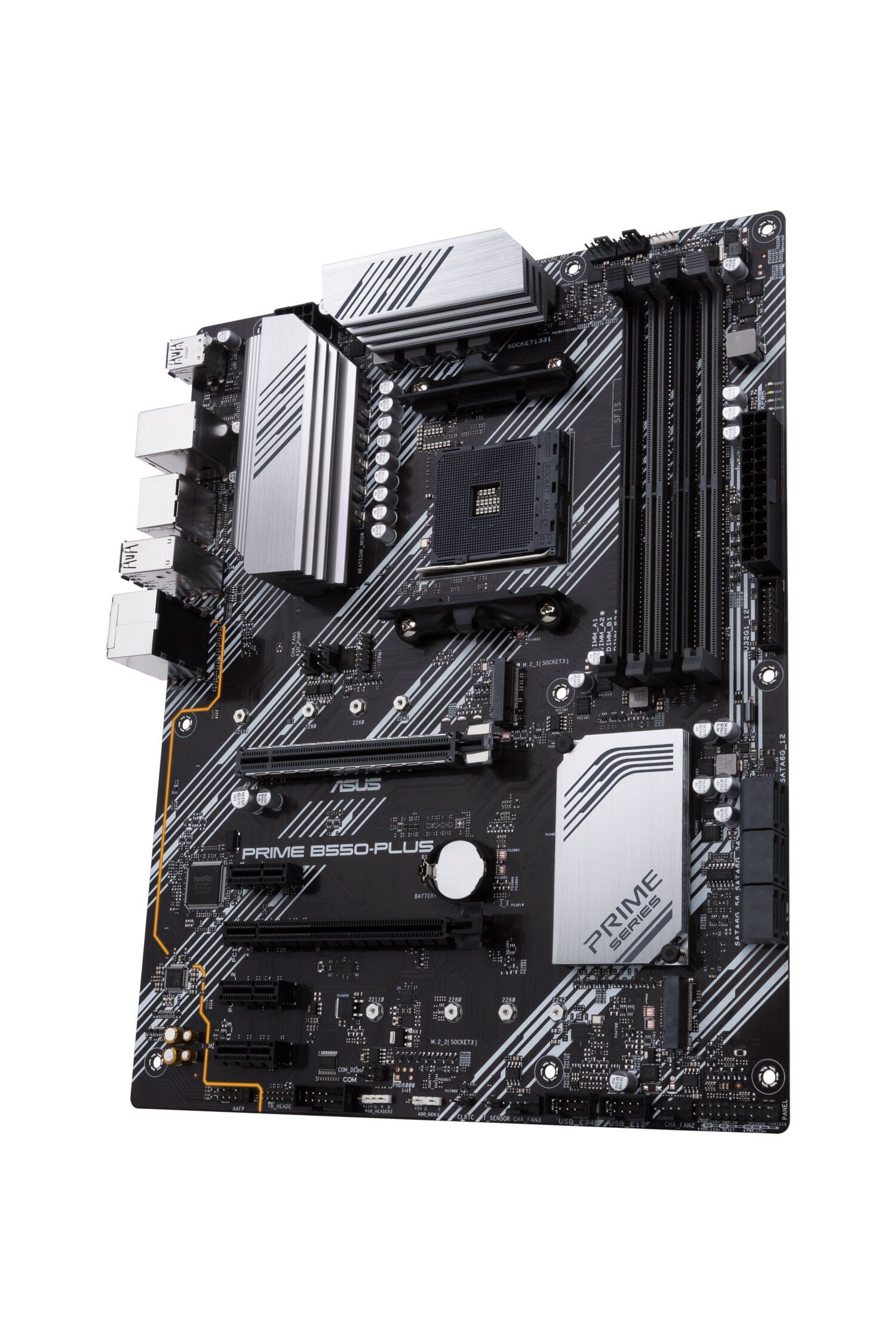

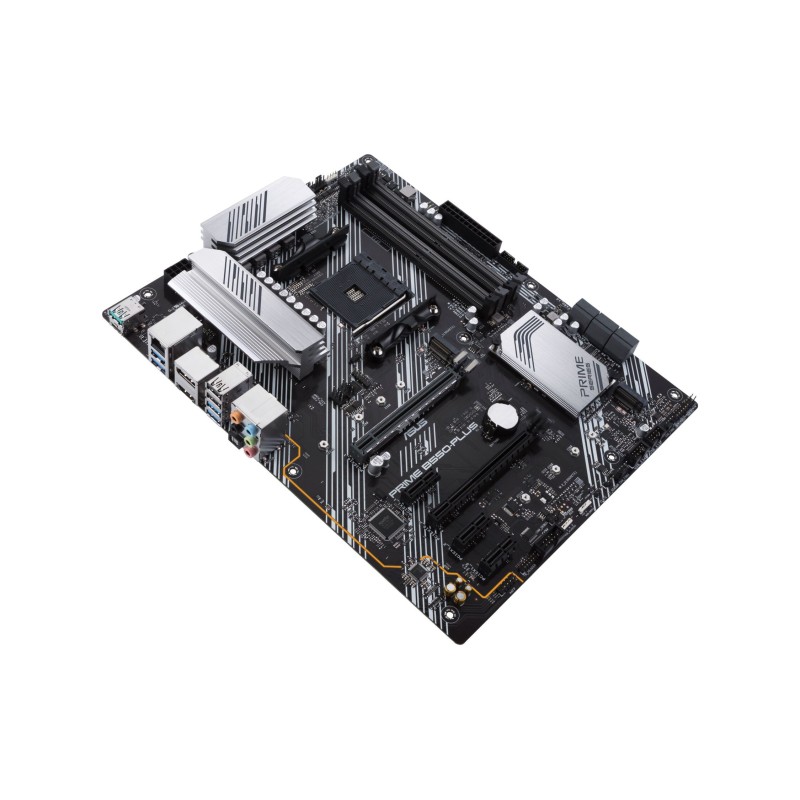

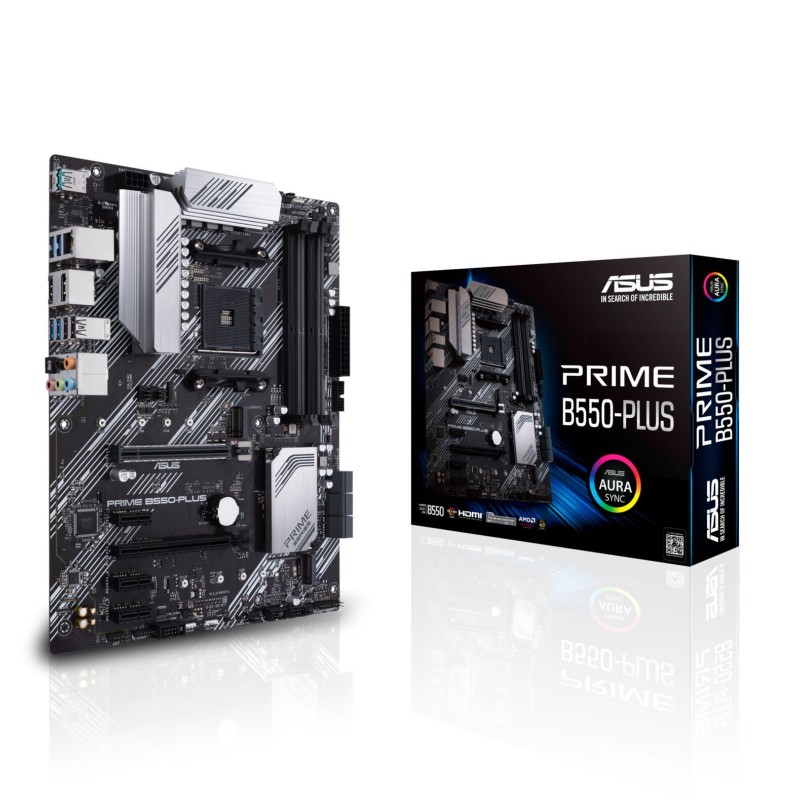

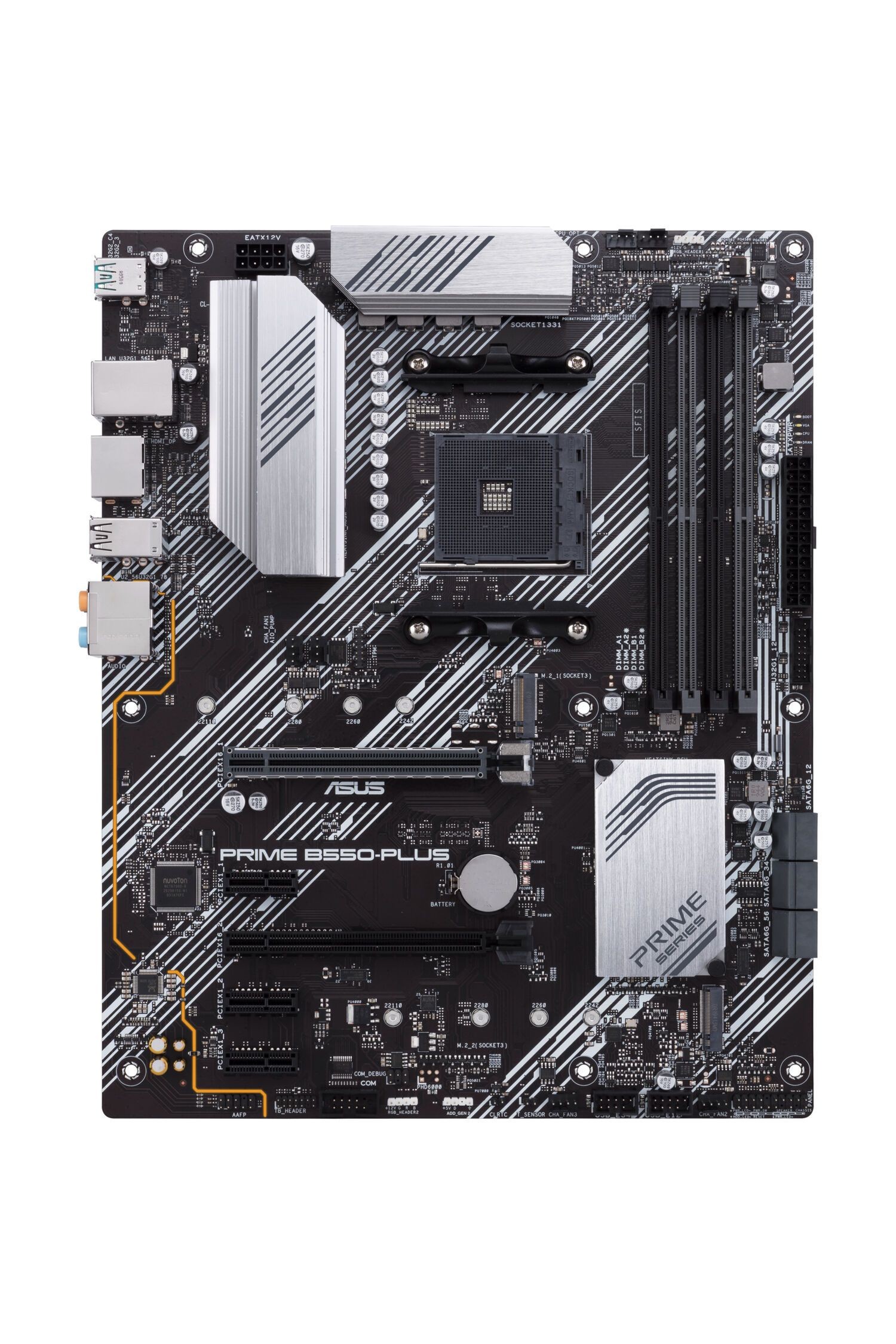

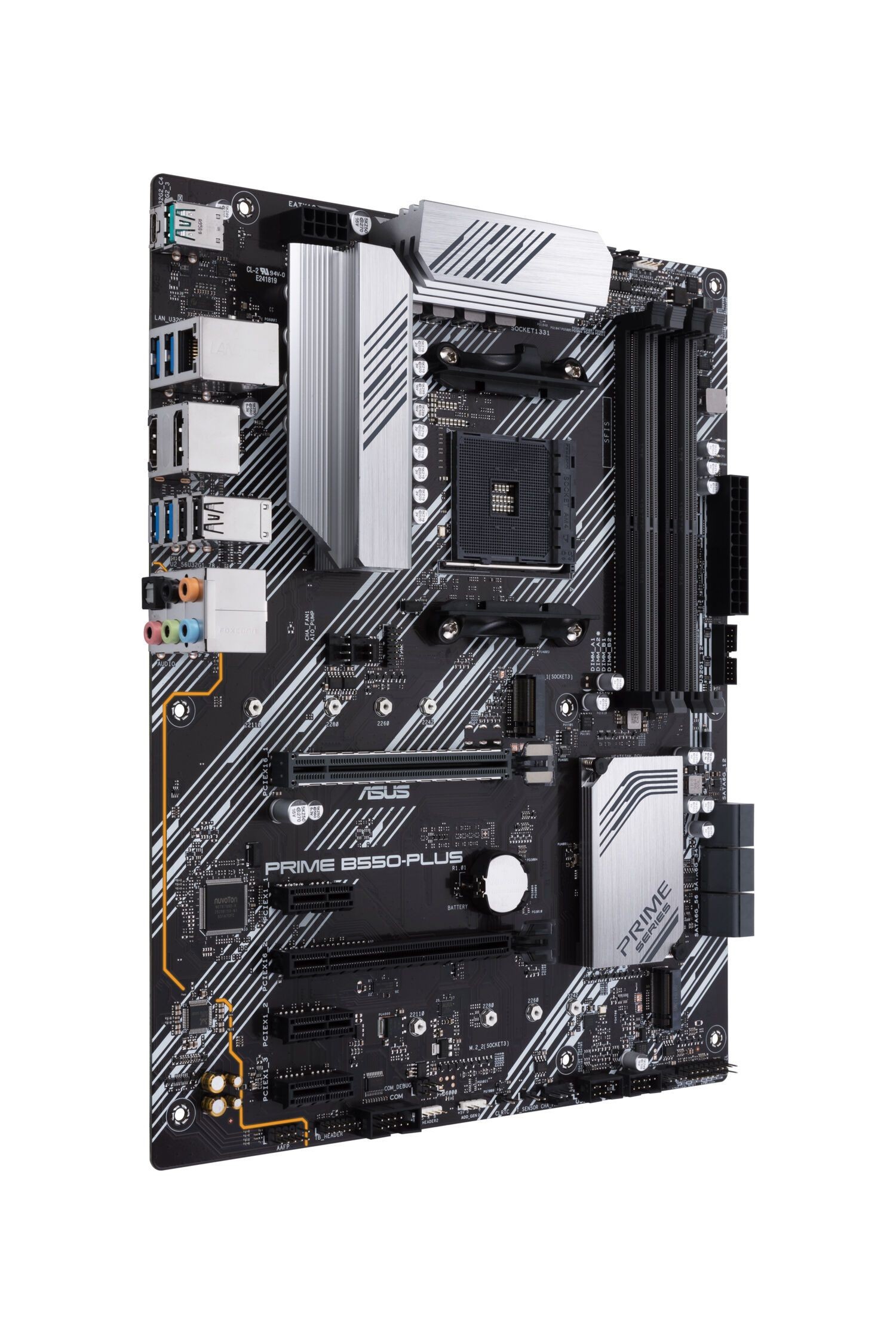

ASUS PRIME B550-PLUS - AM4 ATX Motherboard - B550, DDR4, 4x DIMM 128GB, 2x M.2, 6x SATA, Gigabit LAN (Black/Silver)
ASUS PRIME B550-PLUS ATX motherboard: AM4 socket, AMD B550 chipset, supports Ryzen 3000 series, DDR4 up to 128GB (4 DIMMs), 2x M.2, 6x SATA, Gigabit LAN, HDMI/DP.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | AM4 |
|---|---|
| Motherboards - Chipset | AMD B550 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 6 |
ASUS PRIME B550-PLUS. Processor manufacturer: AMD. Processor socket: Socket AM4. Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA. RAID levels: 0. 1. 10. Parallel processing technology support: 2-Way CrossFireX. Ethernet interface type: Gigabit Ethernet. LAN controller: Realtek RTL8111H
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Supported processor sockets | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133.2400.2666.2800.3000.3200.3333.3466.3600.3733.3866.4000.4133.4266.4400.4600 MHz |
| Maximum internal memory | 128 GB |
| Supported storage drive interfaces | M.2. SATA |
| Feature | Ethernet LAN |
| RAID levels | 0. 1. 10 |
| Parallel processing technology support | 2-Way CrossFireX |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |

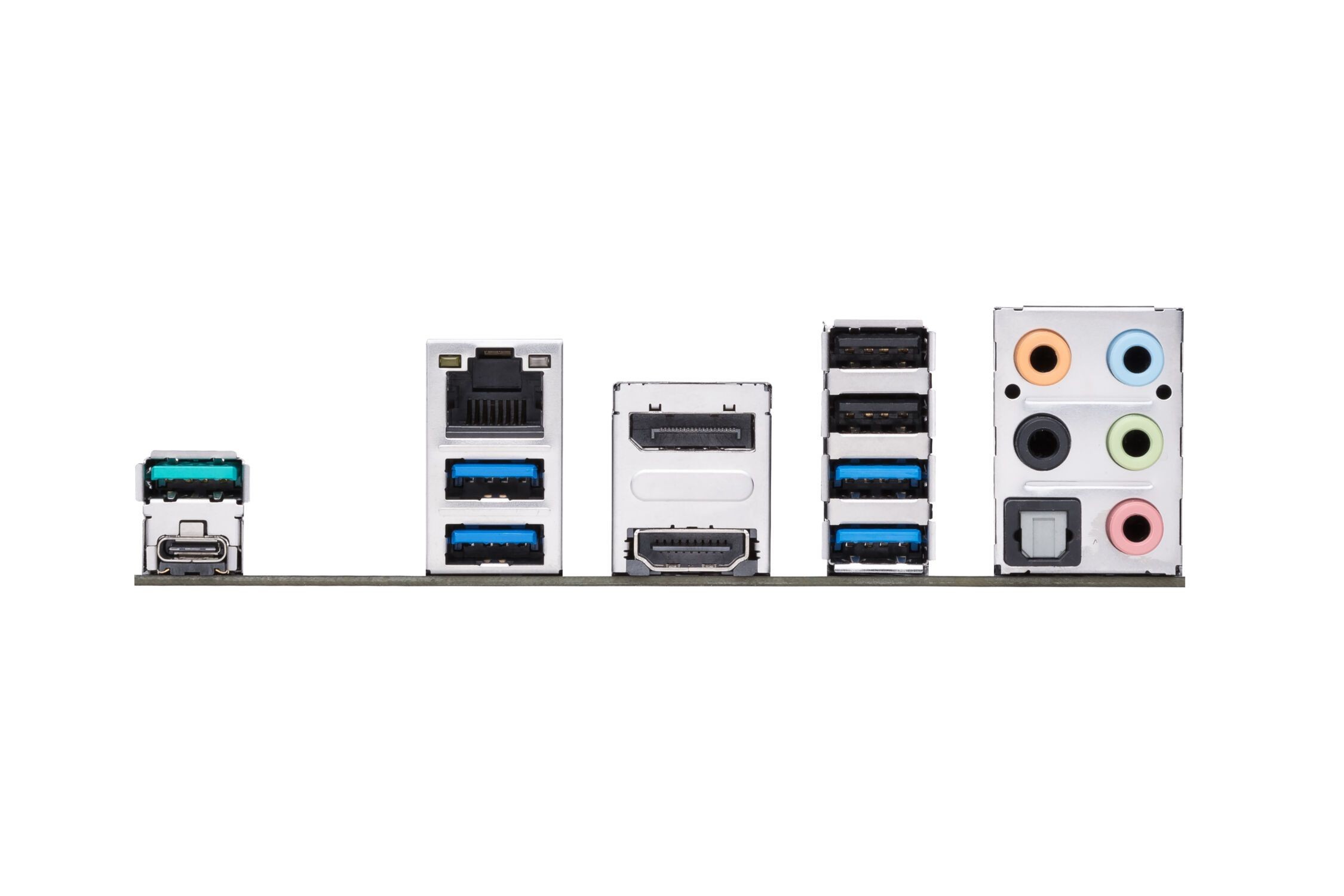

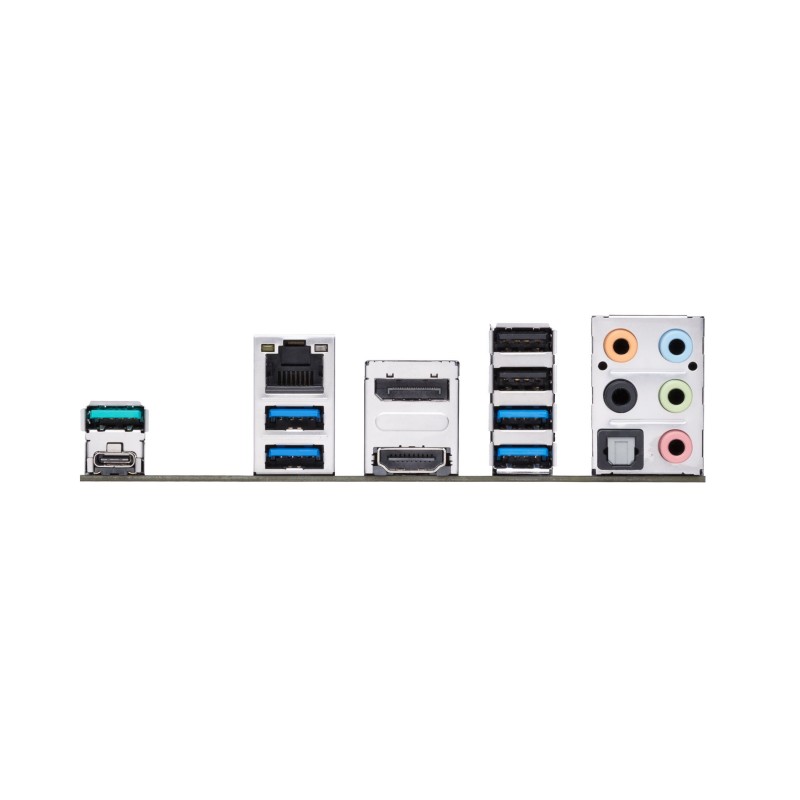

| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Motherboard chipset | AMD B550 |
| Audio output channels | 7.1 channels |
| Product colour | Black. Silver |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| PCI slots | 2 |
| Number of M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Harmonized System (HS) code | 84733020 |
| Height | 67 mm |
| Weight | 1 kg |
