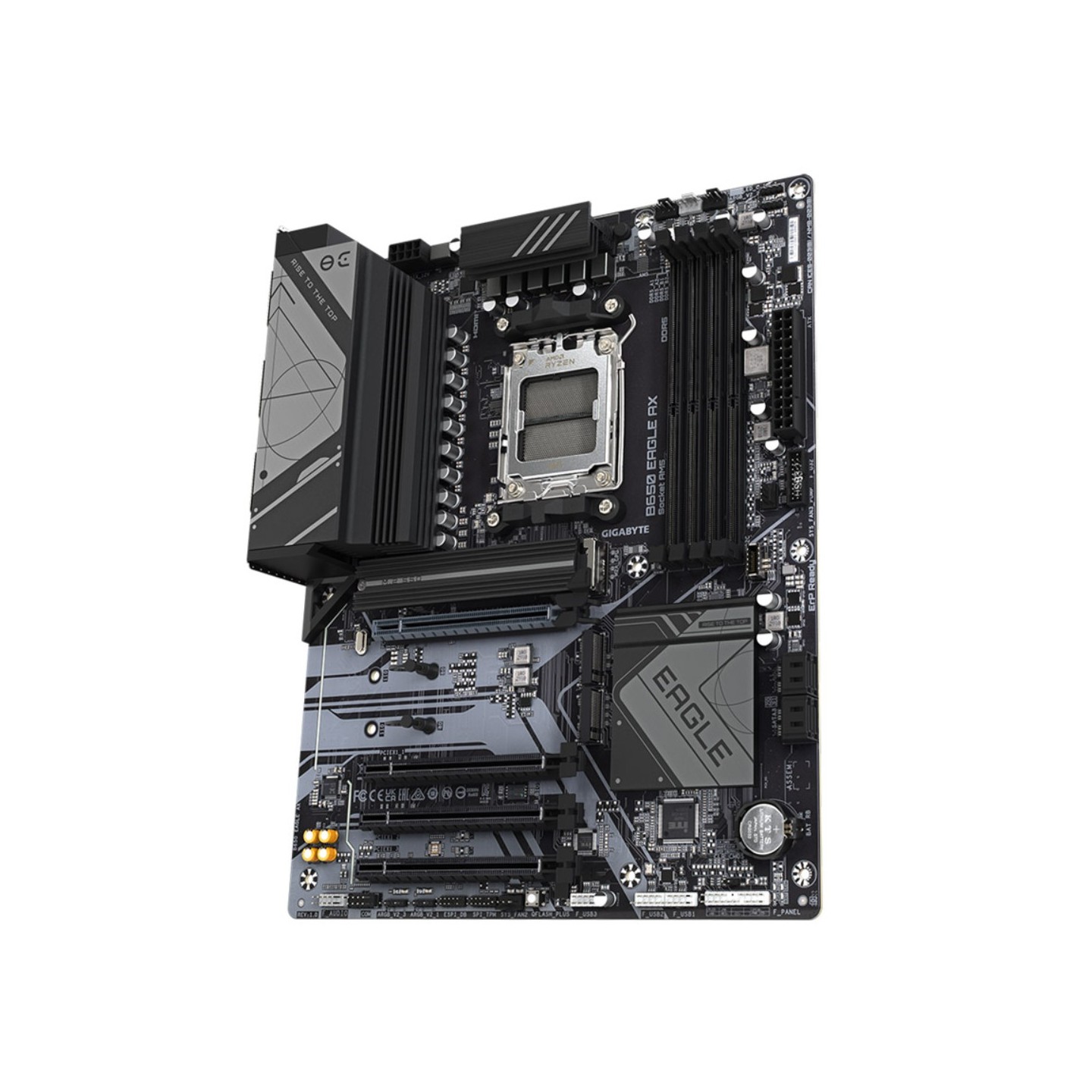

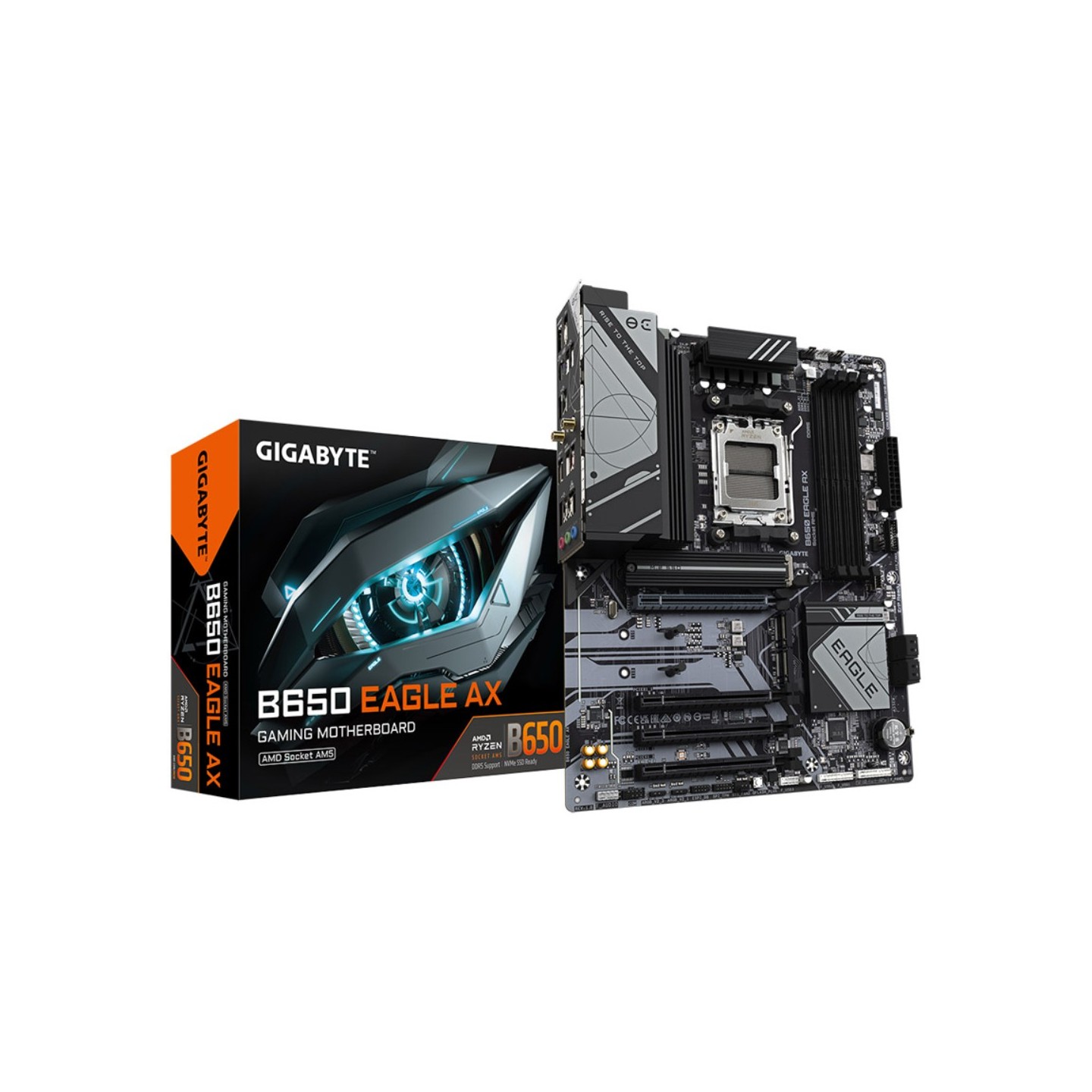

Gigabyte GA-B650 EAGLE AX - AM5 ATX Motherboard, DDR5, 4x DIMM (256GB), Wi-Fi 6E, 3x M.2, 4x SATA, Bluetooth 5.3 (Boxed)
AM5 ATX motherboard for Ryzen 7000/8000/9000. 12+2+2 VRM, DDR5 to 7600MHz (EXPO/XMP), 4x DIMM (256GB), 3x M.2 (1x PCIe 5.0), Wi-Fi 6E, BT 5.3, 4x SATA, Realtek 7.1 audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD B650 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The Gigabyte B650 EAGLE AX is a feature-packed ATX motherboard for AMD Socket AM5, supporting Ryzen 7000, 8000, and 9000 series processors. It delivers robust performance with a 12+2+2 phases digital VRM design, ensuring stable power for high-end CPUs even under overclocking. Dual-channel DDR5 memory supports up to 256GB across 4 DIMM slots with speeds up to 7600MHz (OC) via AMD EXPO and Intel XMP profiles.

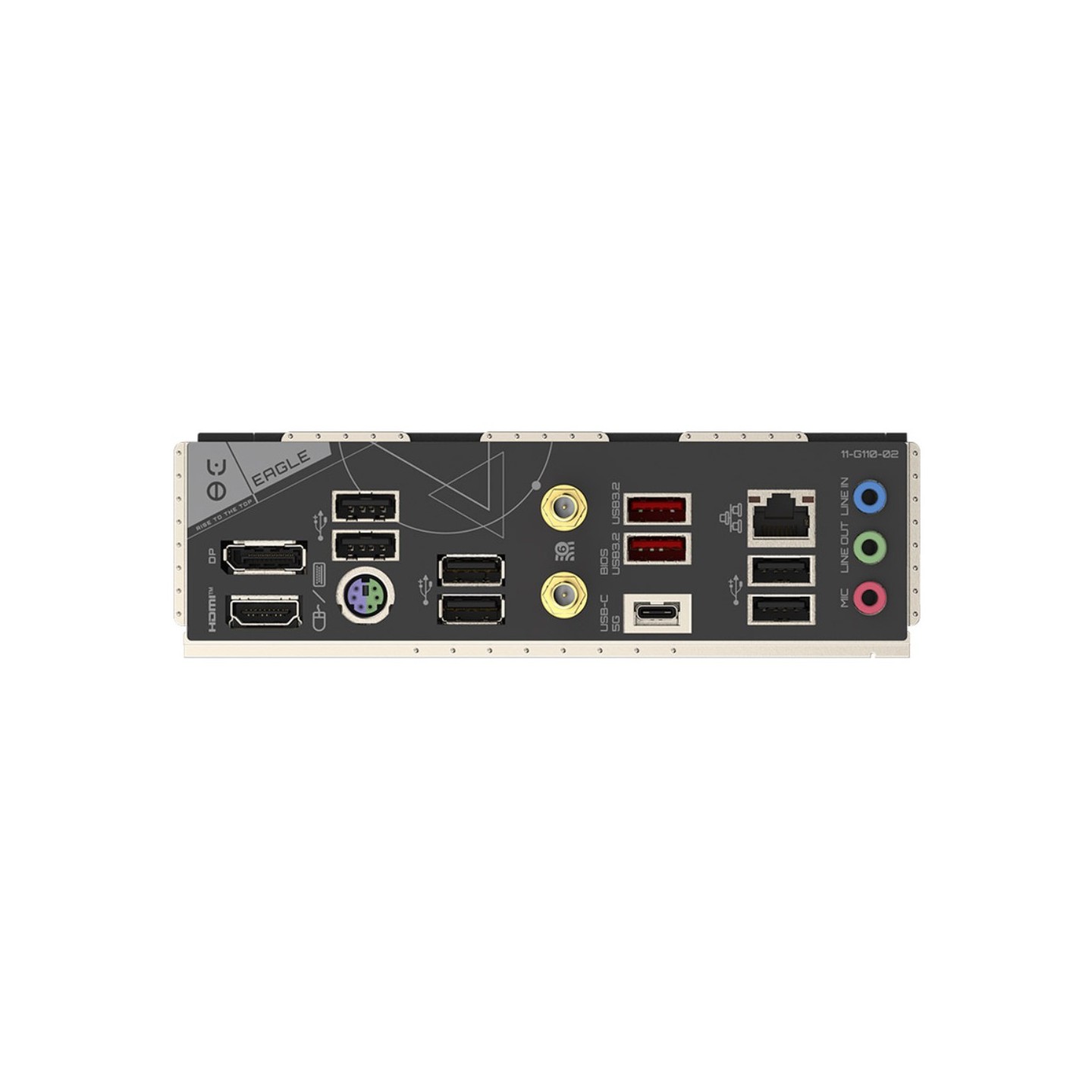

Storage options include 3x M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) for ultra-fast NVMe SSDs and 4x SATA III ports with RAID 0/1/10 support. Connectivity shines with Wi-Fi 6E (Realtek RTL8852CE), Bluetooth 5.3, Gigabit Ethernet (Realtek RTL8111H), HDMI 2.1, DisplayPort 1.4 (up to 4K@60Hz), and ample USB including 3.2 Gen2. Audio is handled by Realtek ALC897 7.1-channel codec. Smart Fan 6 offers 5x PWM/DC headers for optimal cooling.
- Key Features: Q-Flash Plus for BIOS updates without CPU/RAM, 4x RGB headers, PCIe 4.0 x16 GPU slot
- Build Quality: 6-layer PCB, enlarged MOSFET heatsinks, M.2 thermal guards
- OS Support: Windows 10/11 x64
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Motherboard chipset | AMD B650 |
| Motherboard form factor | ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 7600 MHz (OC) |
| Number of M.2 (M) slots | 3 |
| 1st M.2 highest PCI Express generation | 5.0 |
| Number of SATA III connectors | 4 |
| RAID levels | 0, 1, 10 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Ethernet interface type | Gigabit Ethernet |
| Audio output channels | 7.1 channels |
| VRM Phases | 12+2+2 Digital |
| Memory Profile Support | AMD EXPO, Intel XMP |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Width | 305 mm |
| Depth | 244 mm |
