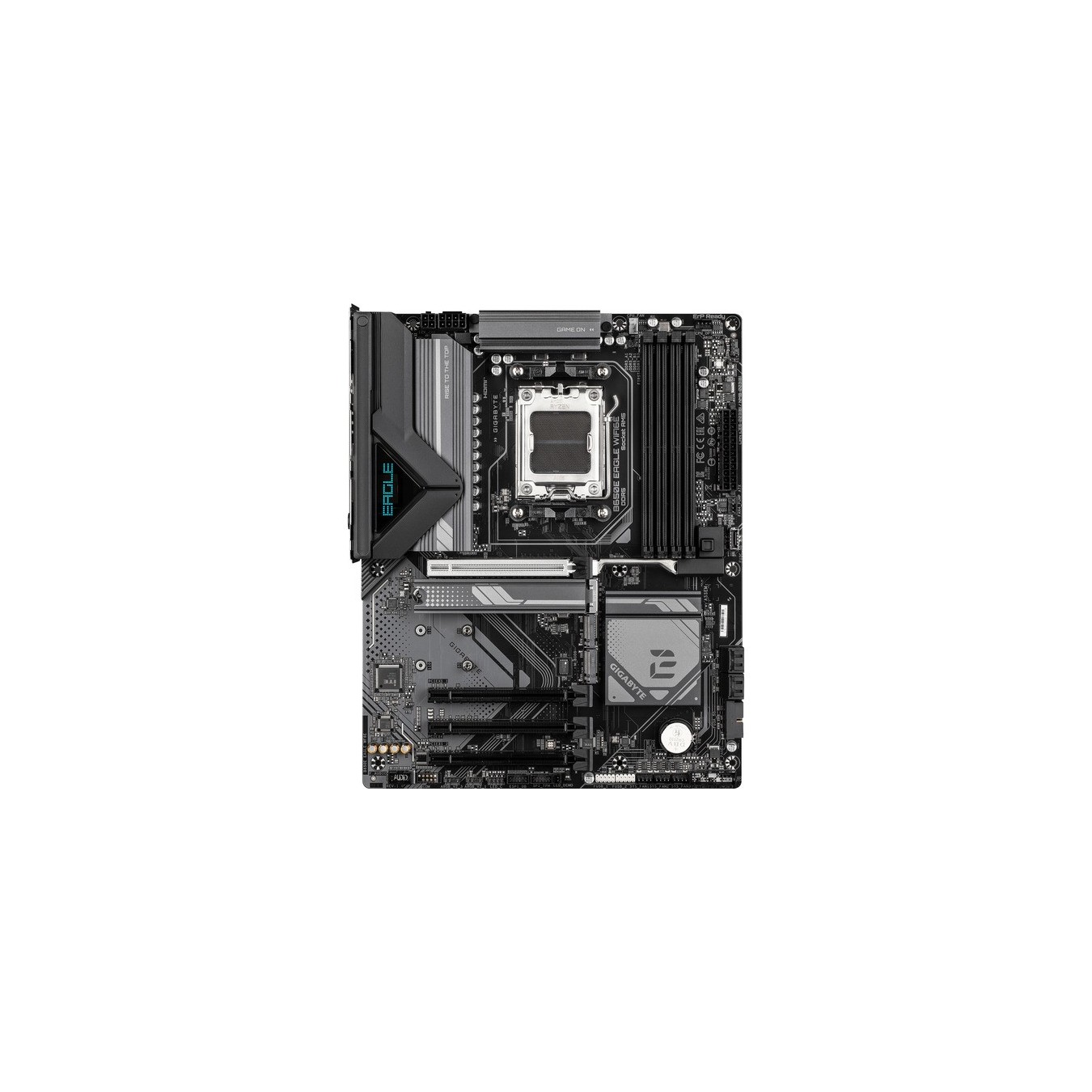

Mainboard - B650E EAGLE WIFI6E
GIGABYTE B650E EAGLE WIFI6E motherboard based on AMD B650 with AM5 socket; supports DDR5 up to 256 GB across 4 slots.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 4 |
|---|---|
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - SATA Ports | 4 |
The GIGABYTE B650E EAGLE WIFI6E is based on the AMD B650 chipset and supports AMD processors for Socket AM5. It has four DDR5 slots for up to 256 GB of memory. The GIGABYTE B650 EAGLE B650E EAGLE WIFI6E's additional features include a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot (x4 lanes). The GIGABYTE B650 EAGLE WIFI6E also has 8-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, three M.2 ports and a number of USB interfaces.
| Typ | Mainboard |
| EAN | 4719331877798 |
| Manufacturer no. | B650E EAGLE WF6E |
| base | AM5 |
| Max. supported CPUs | 1 |
| Operating system support | Windows 10 ready, Windows 11 ready |
| Processor - Supported Models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) |
| Chipset | AMD B650 |
| Slots - PCIe x16 | 4x (davon: 1x PCIe x16, 1x PCIe x4, 2x PCIe x1) |
| BIOS | 256 Mbit flash Use of licensed AMI UEFI BIOS |
| Form factor | ATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 8-Pin + 4-Pin) |
| Memory - maximum | 256 GB |
| Connections (external) - Mouse/Keyboard Combo (PS/2) | 1 |
| Connectors (internal) - SATA | 4 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 1 |
| SATA Controller | AMD B650 |
| directly usable RAID levels | 0, 1, 10, 5 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | 7.1 Realtek Audio CODEC |
| LAN | Realtek 2.5GbE LAN |
| More information | In order to support the latest processor cores, a BIOS update may be required. |
| Dimensions | Width: 244mm x Height: 305mm |
