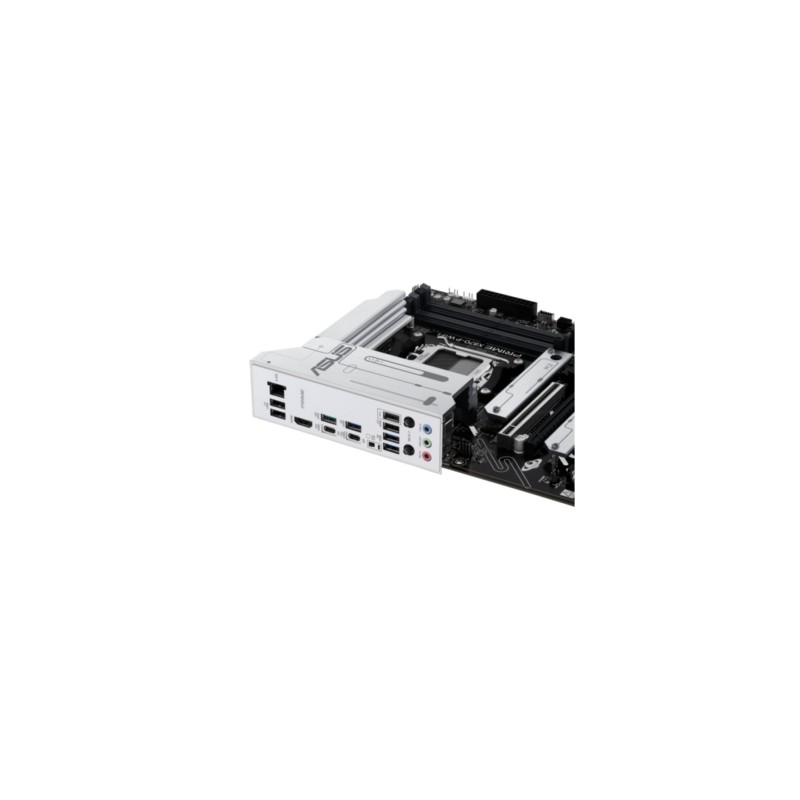

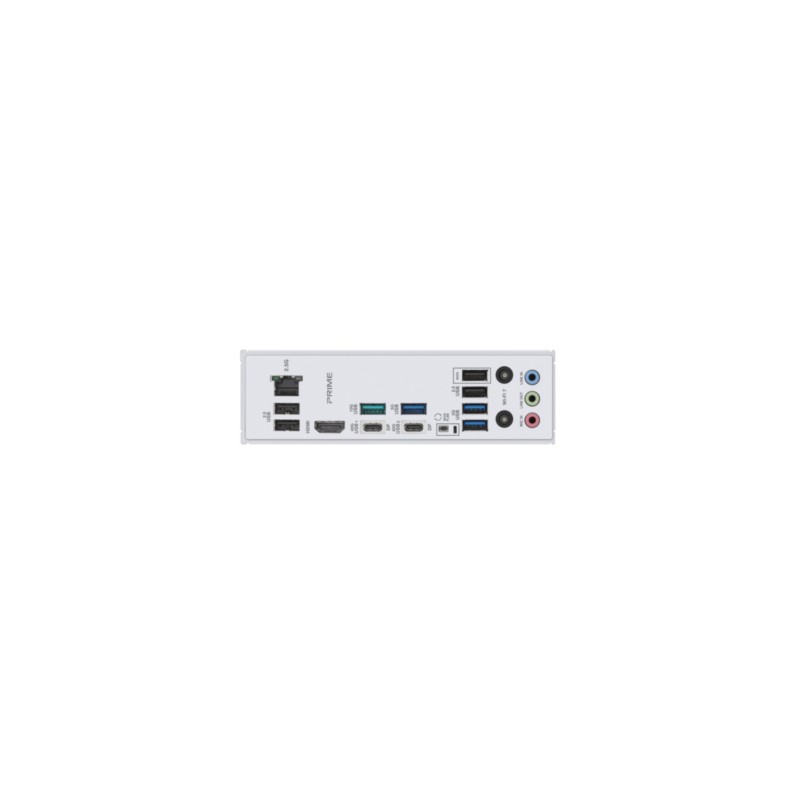

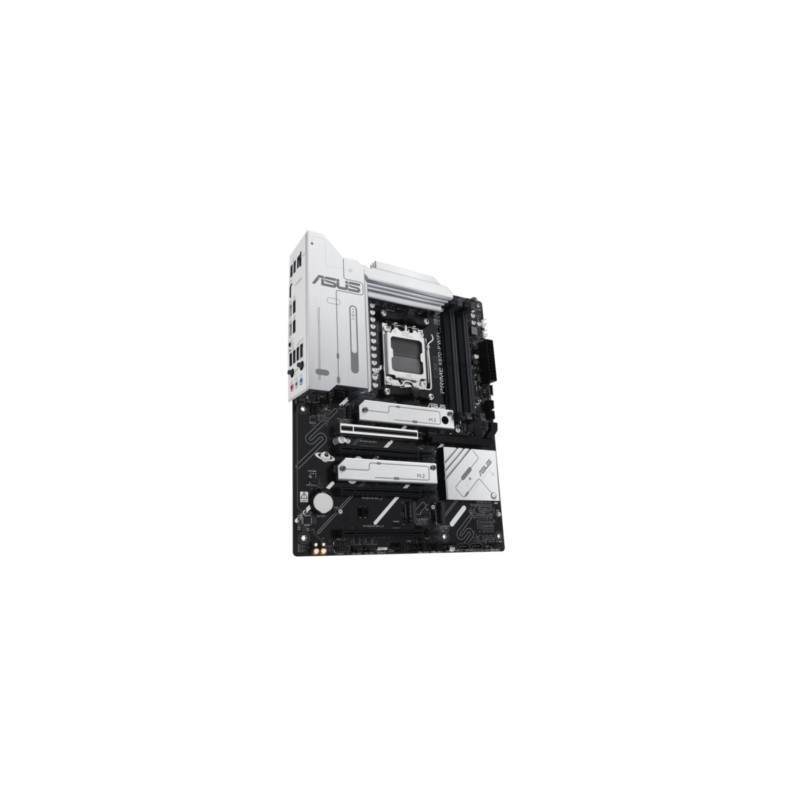

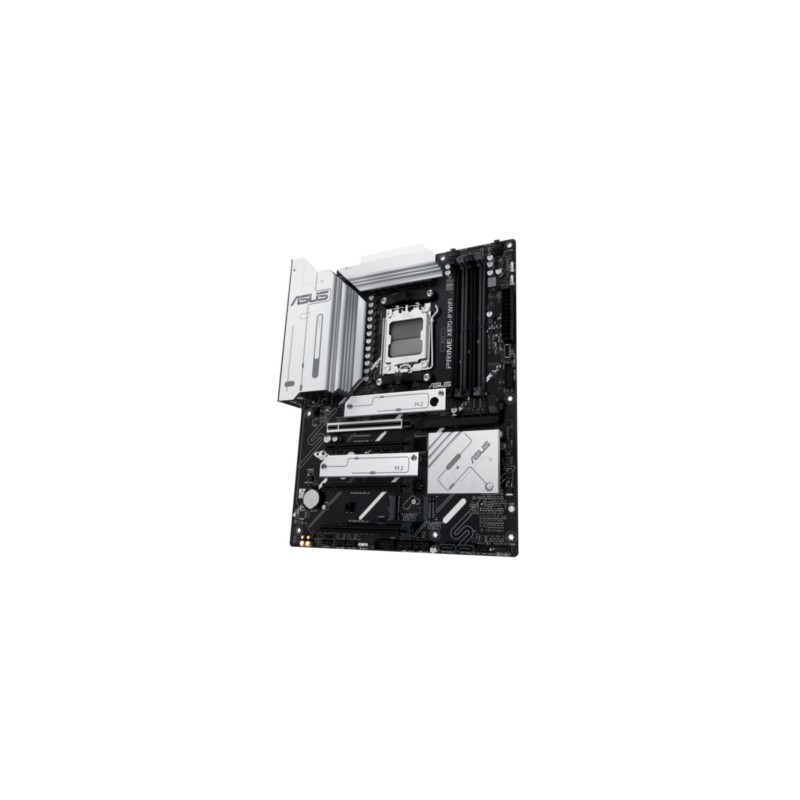

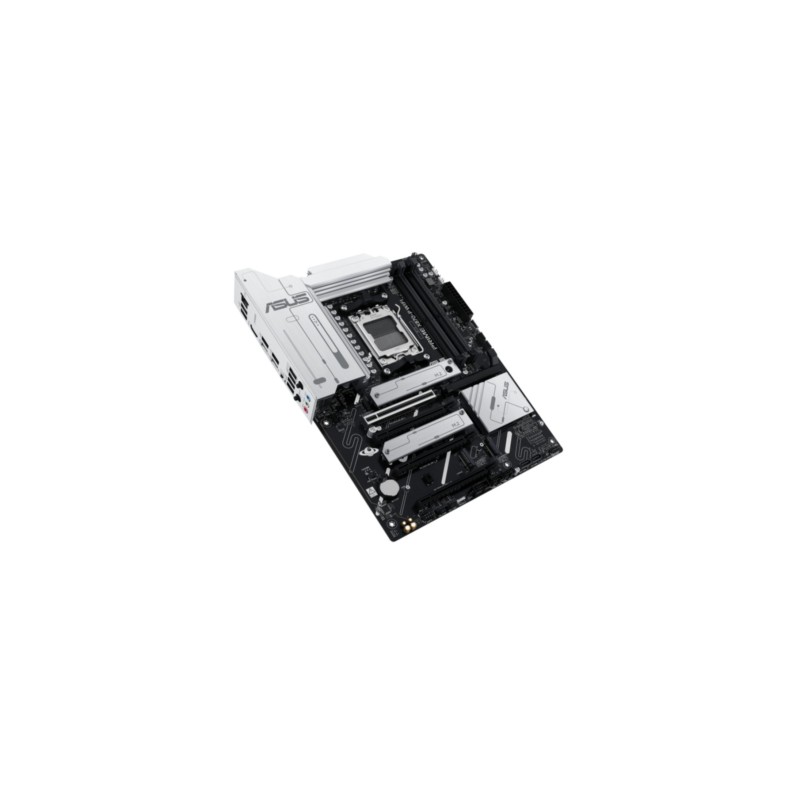

ASUS PRIME X870-P WIFI - AM5 ATX Motherboard - DDR5 up to 192GB, Wi‑Fi 7, 2.5Gb LAN, PCIe 5.0, HDMI 2.1
AM5 ATX motherboard with DDR5 support up to 192GB (4 DIMMs), PCIe 5.0, 4x M.2, 2x USB4 Gen2x2 Type-C, Wi‑Fi 7, Bluetooth 5.4, 2.5Gb Ethernet, HDMI 2.1.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | AM5 |
|---|---|
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 5.0 |
| Motherboards - M.2 Slots | 4 |
| Motherboards - SATA Ports | 2 |
| Motherboards - USB-C | Rear Type-C |
ASUS Prime X870-P WIFI. Processor manufacturer: AMD. Processor socket: Socket AM5. Compatible processor series: AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM. Maximum internal memory: 192 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 5. 10. DisplayPort version: 1.4a. Ethernet interface type: 2.5 Gigabit Ethernet. Top Wi-Fi standard: Wi-Fi 7 (802.11be). Wi-Fi standards: 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax). Wi-Fi 6E...
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 8000 MHz |
| Maximum internal memory | 192 GB |
| Feature | Back-to-BIOS button |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Number of HDDs supported | 2 |
| Number of storage drives supported | 6 |
| RAID levels | 0. 1. 5. 10 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax). Wi-Fi 6E (802.11ax). Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Motherboard chipset | AMD X870 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10. Windows 11 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.56 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 48 mm |
| Cables included | SATA |
| Weight | 1.56 kg |
