Delock 3.5-inch USB 3.1 Gen 1 Front Panel – 1x Type-C + 1x Type-A (Boxed)
Delock 3.5-inch USB 3.1 Gen 1 front panel with 1x USB Type-C and 1x USB Type-A port. Installs in 3.5-inch bay, connects to 19-pin USB 3.0 header. 5 Gbps data transfer.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | IO Port Expansion |
|---|---|
| Expansion Cards - Host Interface | USB (External) |
| Expansion Cards - Internal Connectivity | Internal USB Headers |
| Expansion Cards - Form Factor | External Desktop |
| Expansion Cards - External Connectivity | USB Type-A USB Type-C and Thunderbolt |

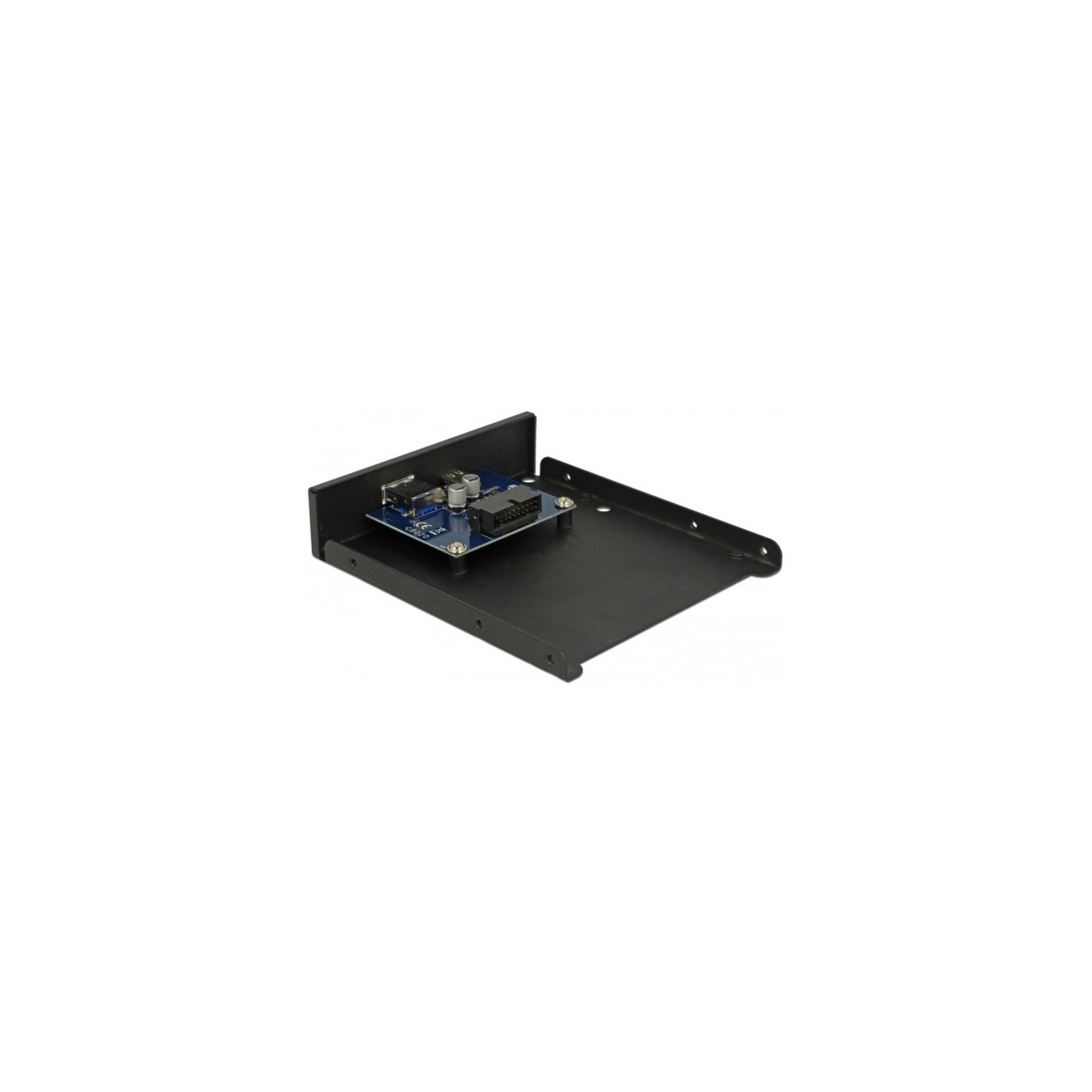

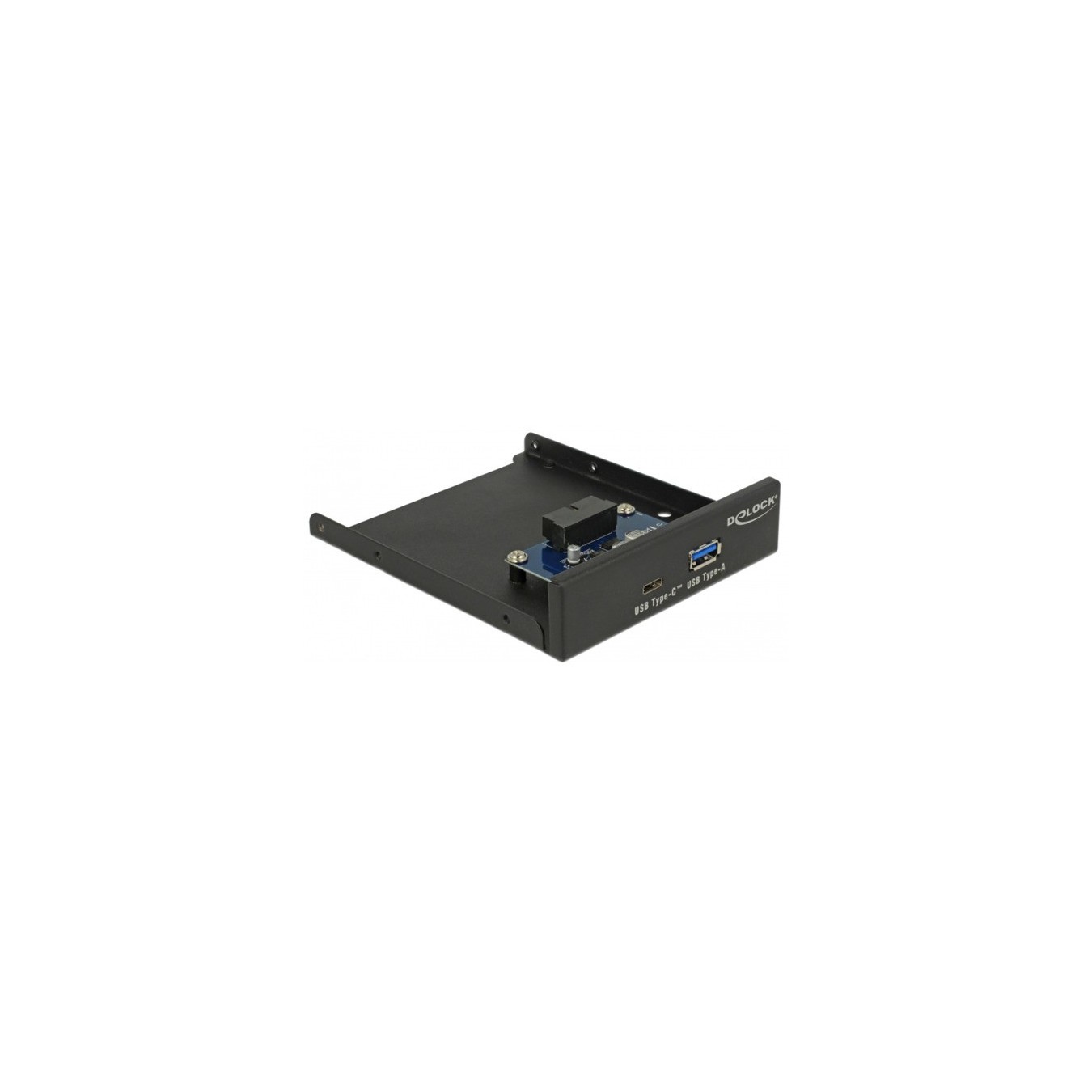

The Delock 3.5-inch USB 3.1 Gen 1 Front Panel expands your PC with high-speed external connectivity. Featuring one USB Type-C port and one USB Type-A port, both supporting SuperSpeed USB 3.1 Gen 1 (5 Gbps), this front panel mounts directly into any available 3.5-inch drive bay for convenient access to modern USB devices.
Installation is straightforward: the panel connects internally via a 19-pin USB 3.0 header cable (approximately 43 cm, included) and requires no additional power connectors. The compact form factor (95 mm W × 26 mm H × 102 mm D) fits standard PC chassis bays without modification. Both ports support hot-swapping and are backward compatible with USB 3.0, 2.0, and 1.1 devices.
Ideal for users needing additional front-panel USB connectivity for faster data transfers, device charging, or connecting modern peripherals with Type-C connectors.
- 1x USB 3.1 Gen 1 Type-C port (5 Gbps)
- 1x USB 3.1 Gen 1 Type-A port (5 Gbps)
- Fits standard 3.5-inch drive bay
- 19-pin USB 3.0 header connection

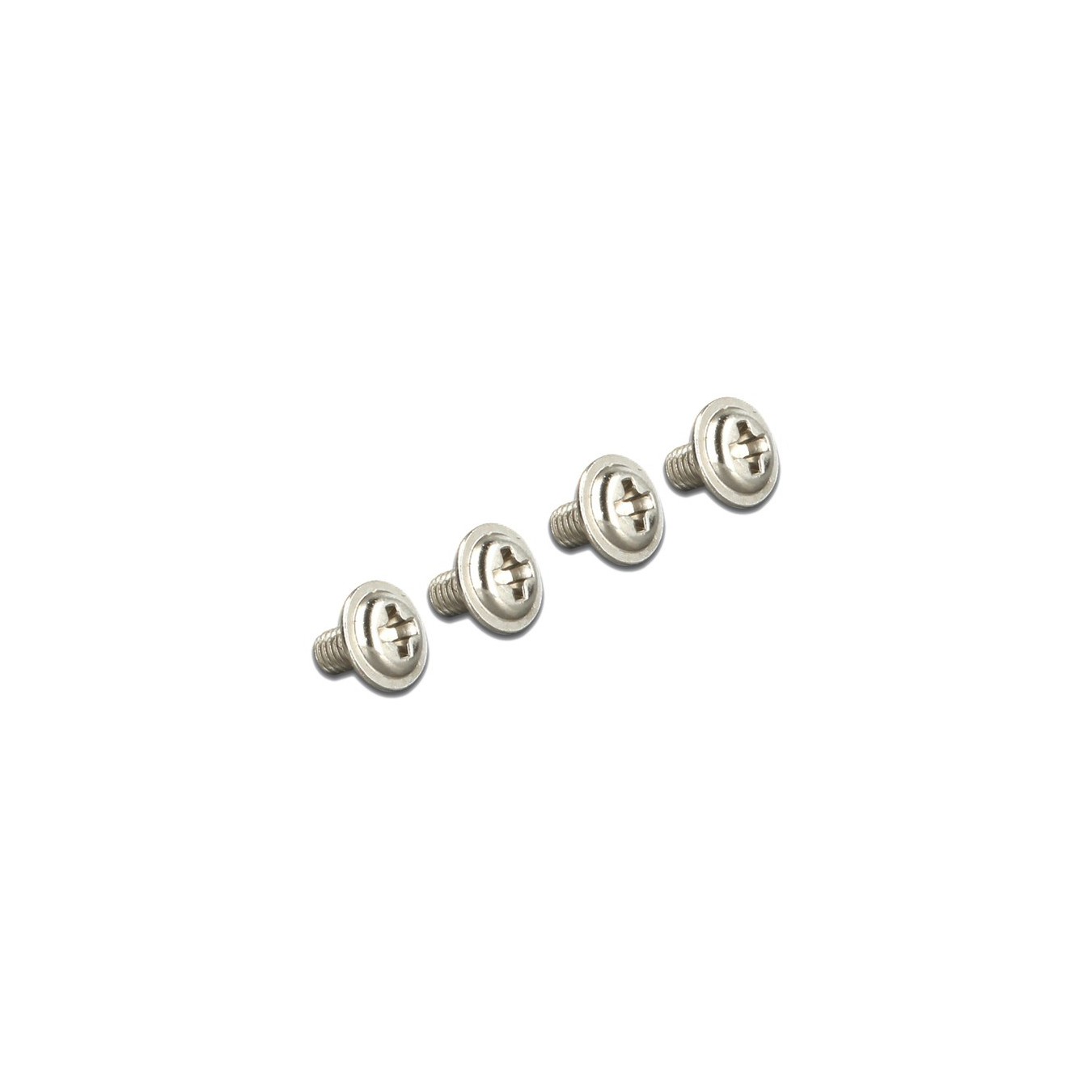

- Includes 43 cm extension cable and mounting screws
- Hot-swap capable and backward compatible
| Type | Front Panel Expansion |
| Form Factor | 3.5-inch Drive Bay |
| External Ports | 1x USB 3.1 Gen 1 Type-C, 1x USB 3.1 Gen 1 Type-A |
| Data Transfer Speed | 5 Gbps (USB 3.1 Gen 1) |
| Internal Connection | 19-pin USB 3.0 header |
| Power Delivery | Type-C: 5V/3A max; Type-A: 5V/900mA max |

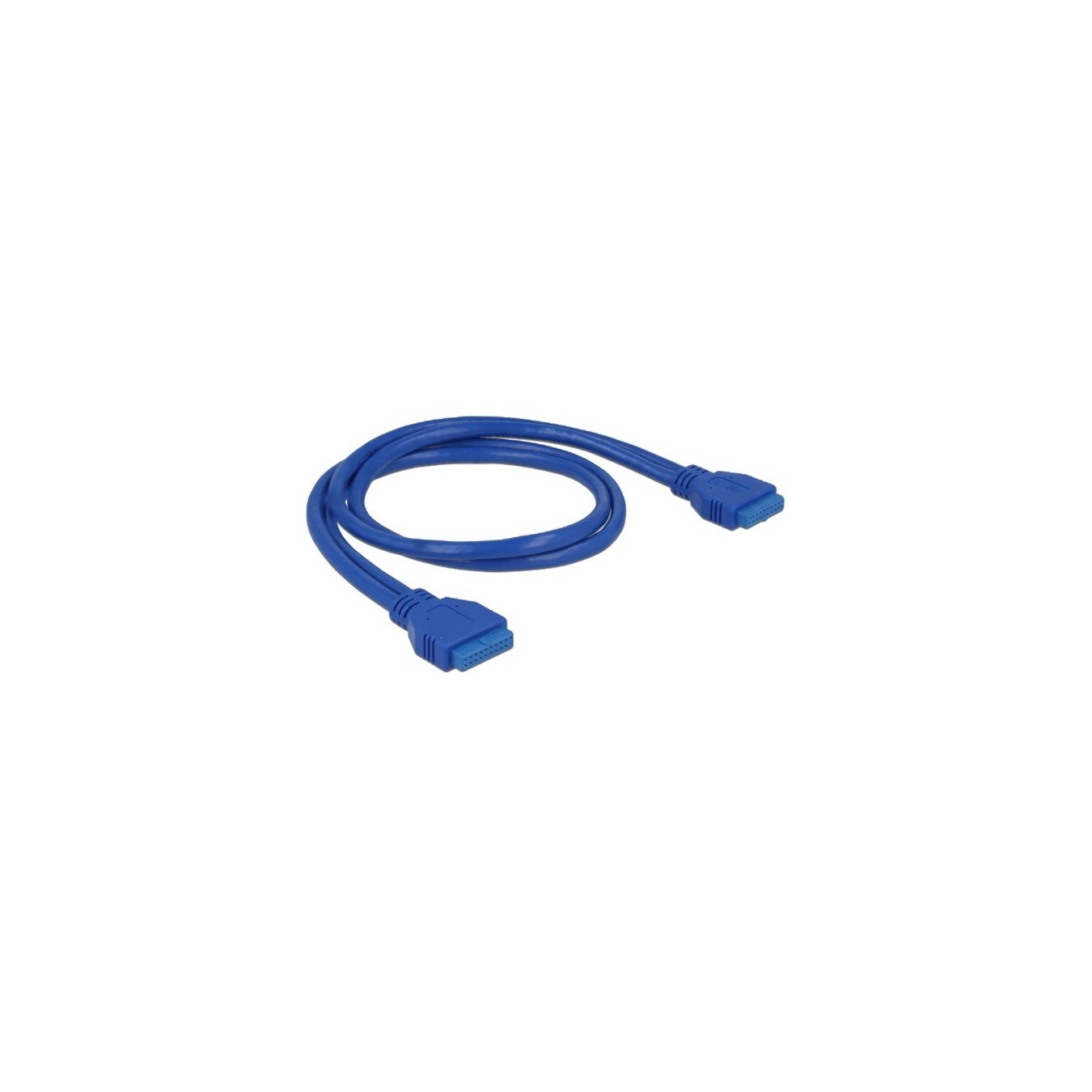

| Cable Included | 19-pin USB 3.0 header extension cable (approx. 43 cm) |
| Dimensions | 95 mm (W) × 26 mm (H) × 102 mm (D) |
| Weight | 240 g |
| Color | Black |
| Backward Compatibility | USB 3.0, USB 2.0, USB 1.1 |
| Hot-Swap Support | Yes |
| Manufacturer Part Number | 63962 |
| EAN | 4043619639625 |
