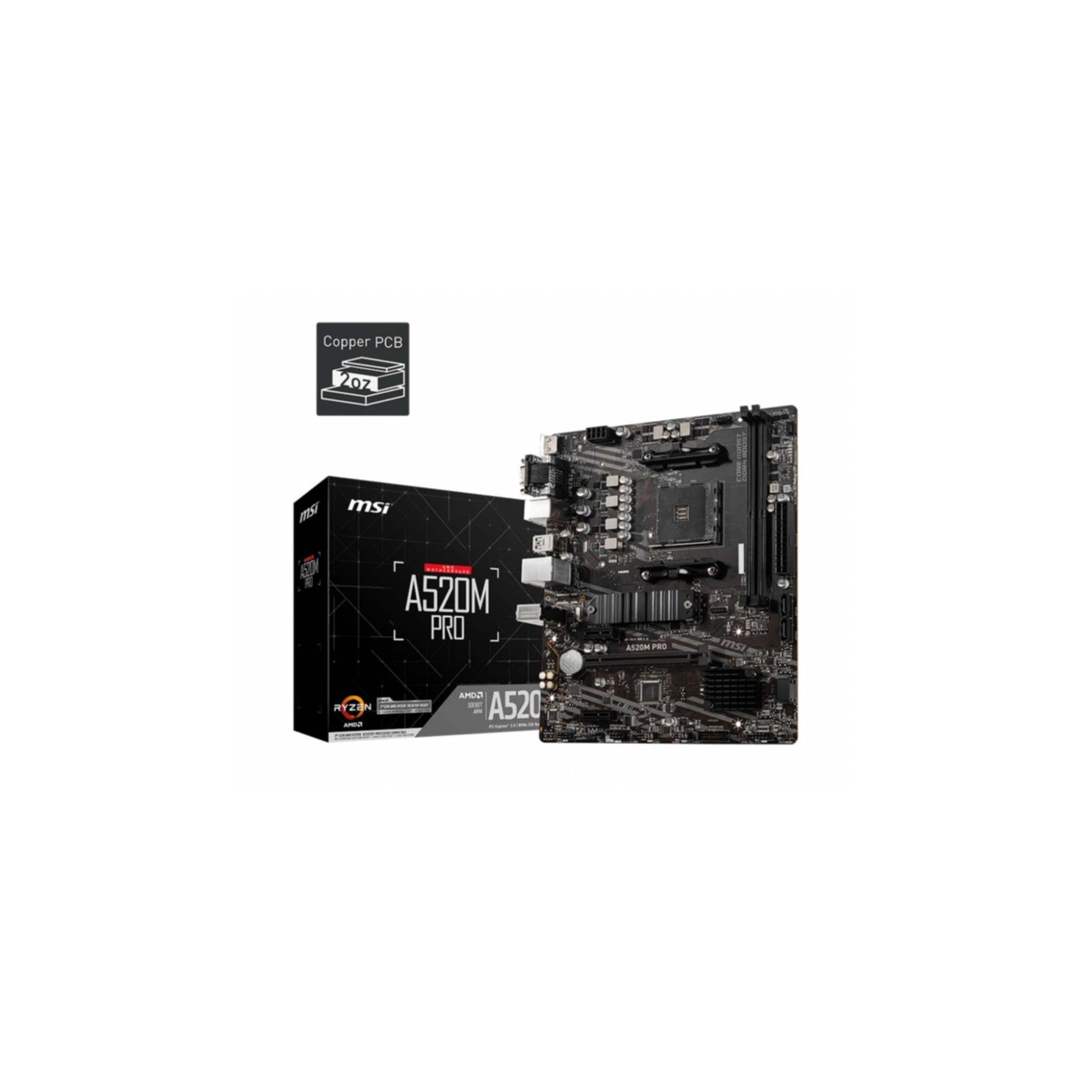

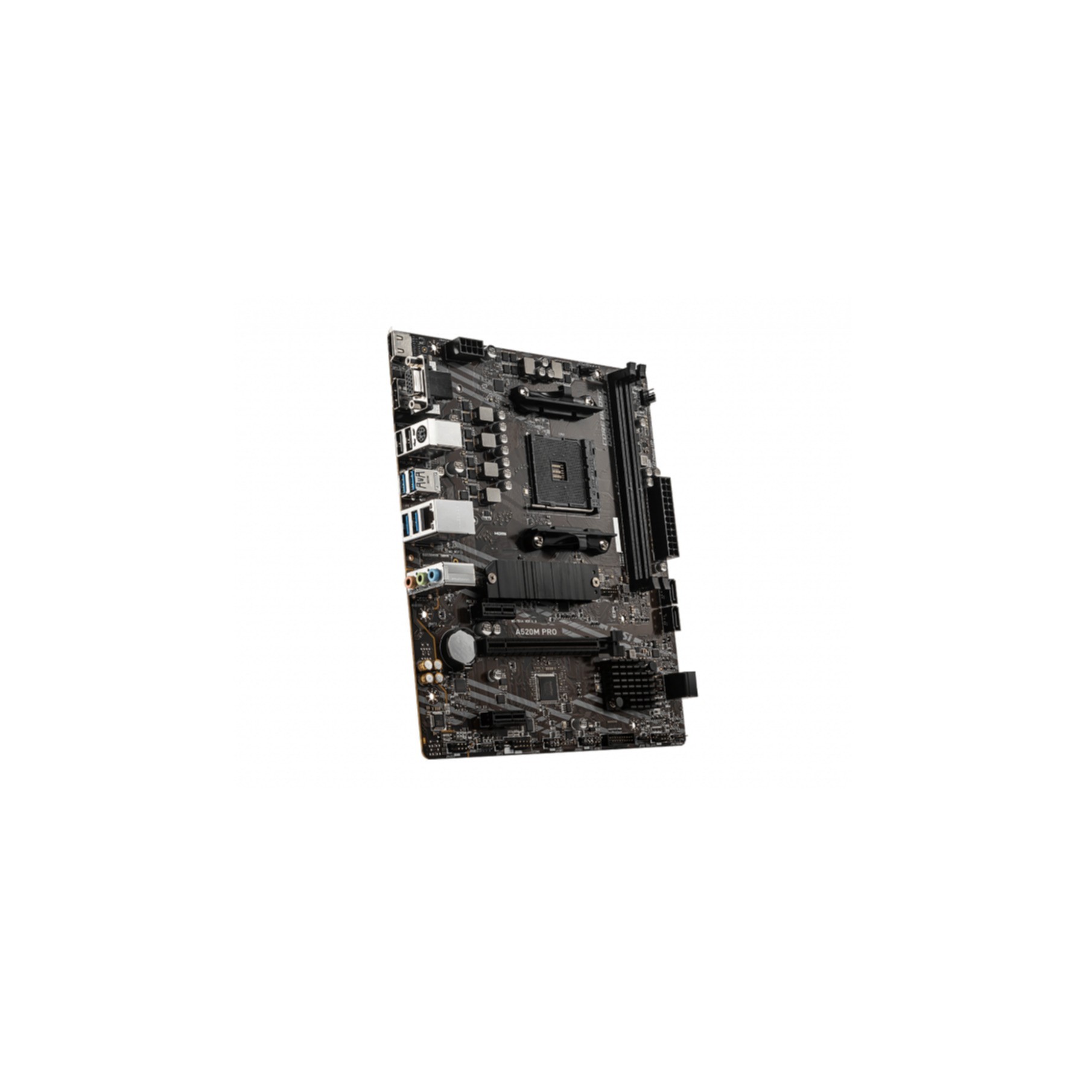

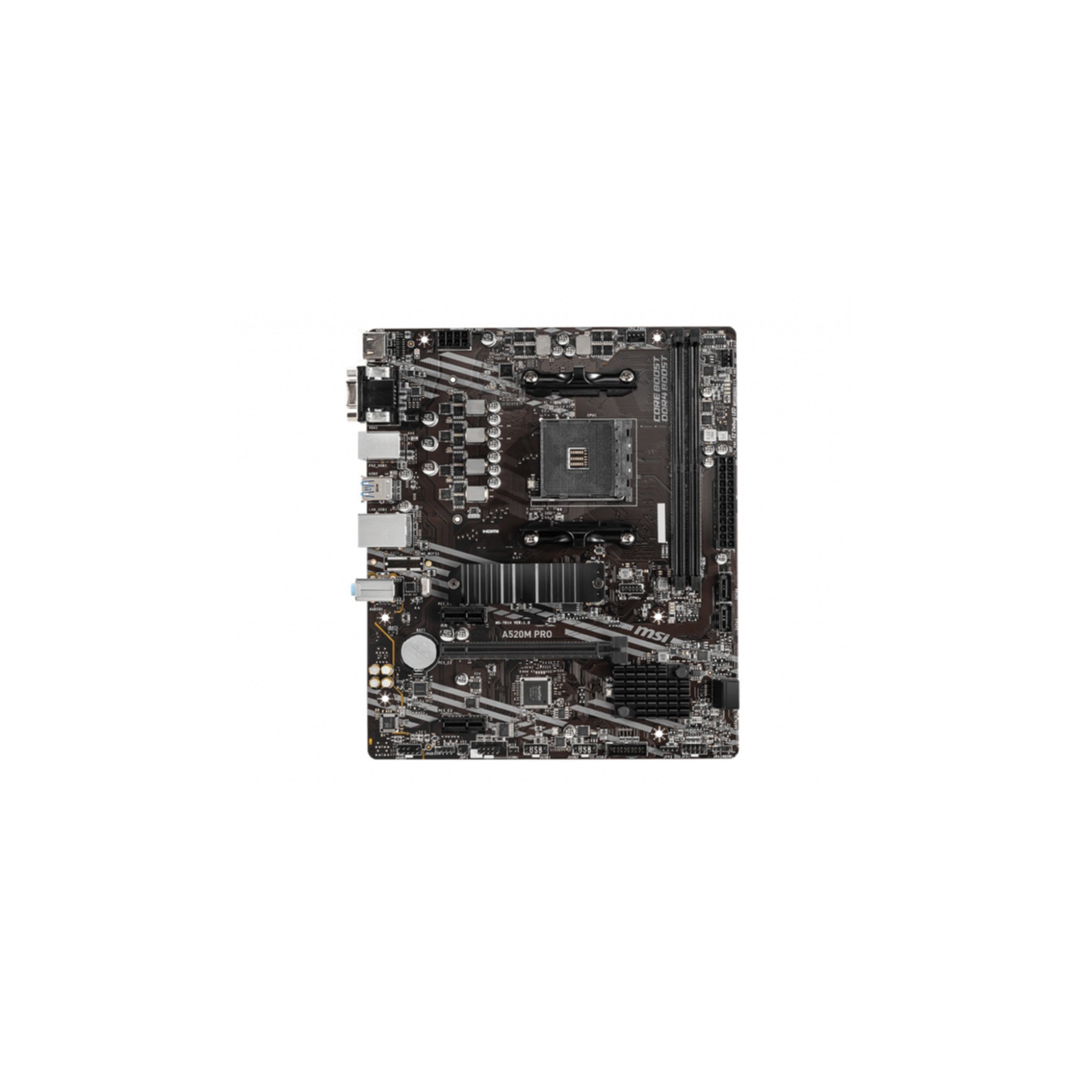

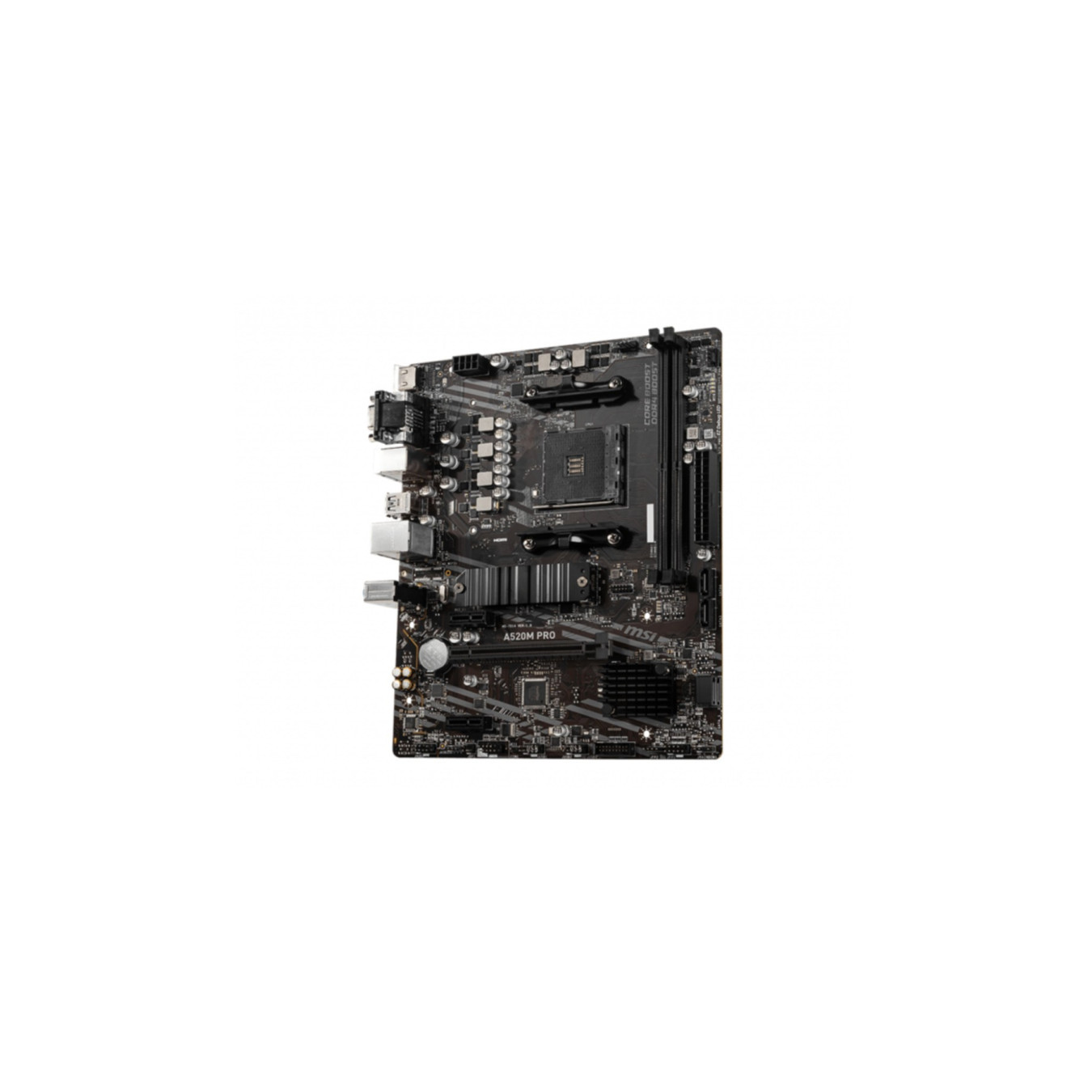

MSI A520M PRO - Micro-ATX AM4 Motherboard, AMD A520, DDR4, 64GB Max, M.2, SATA III
Micro-ATX AM4 motherboard with AMD A520 chipset. Supports Ryzen 3000 series, 2x DDR4 DIMM up to 64GB, 1x M.2, 4x SATA III, USB 3.2 Gen1, Gigabit LAN, 7.1 audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | AM4 |
|---|---|
| Motherboards - Chipset | AMD A520 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 3.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | None |
MSI A520M PRO. Processor manufacturer: AMD. Processor socket: Socket AM4. Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM. Maximum internal memory: 64 GB. Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0. SATA. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet. LAN controller: Realtek 8111H
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1866.2133.2400.2667.2800.2933.3000.3066.3200.3466.3600.3733.3866.4000.4133.4266.4400.4466 MHz |
| Maximum internal memory | 64 GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 3.0. SATA |
| RAID levels | 0. 1. 10 |
| Maximum resolution | 4096 x 2160 pixels |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Feature | Ethernet LAN |
| Number of chassis fan connectors | 1 |

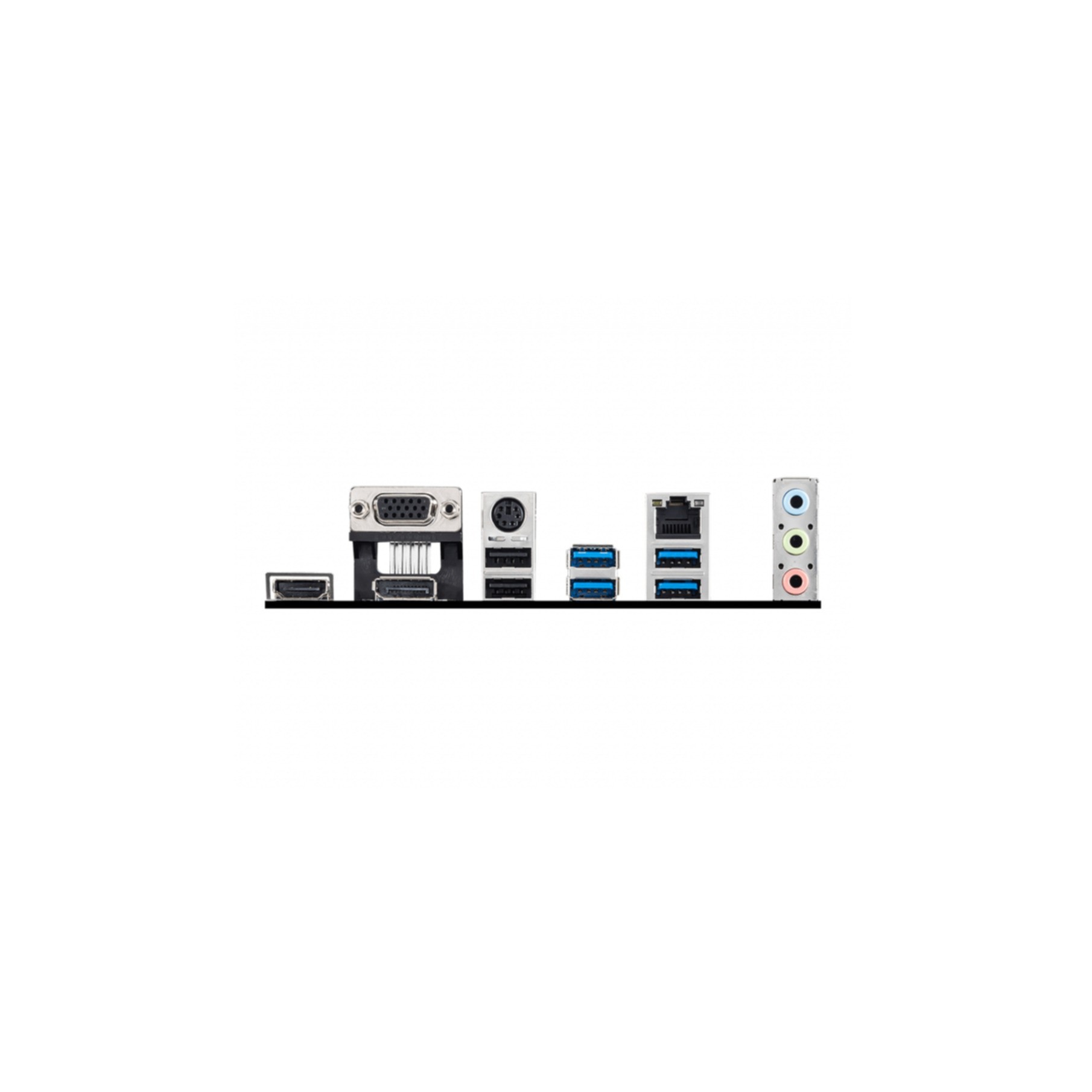

| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek 8111H |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Power source type | ATX |
| Number of mounting holes | 6 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| Harmonized System (HS) code | 84733020 |
| Width | 244 mm |
| Depth | 210 mm |
| Height | 65 mm |
| Weight | 698 g |
