MSI MAG X870 Tomahawk WiFi - AM5 ATX Motherboard, DDR5, PCIe 5.0, 4x M.2, WiFi 7 (Boxed)
AMD X870 ATX motherboard with DDR5 support up to 256GB, PCIe 5.0 x16, 4x M.2 slots, dual USB4 ports, WiFi 7, and comprehensive connectivity for high-performance AM5 builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD X870 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 4 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |

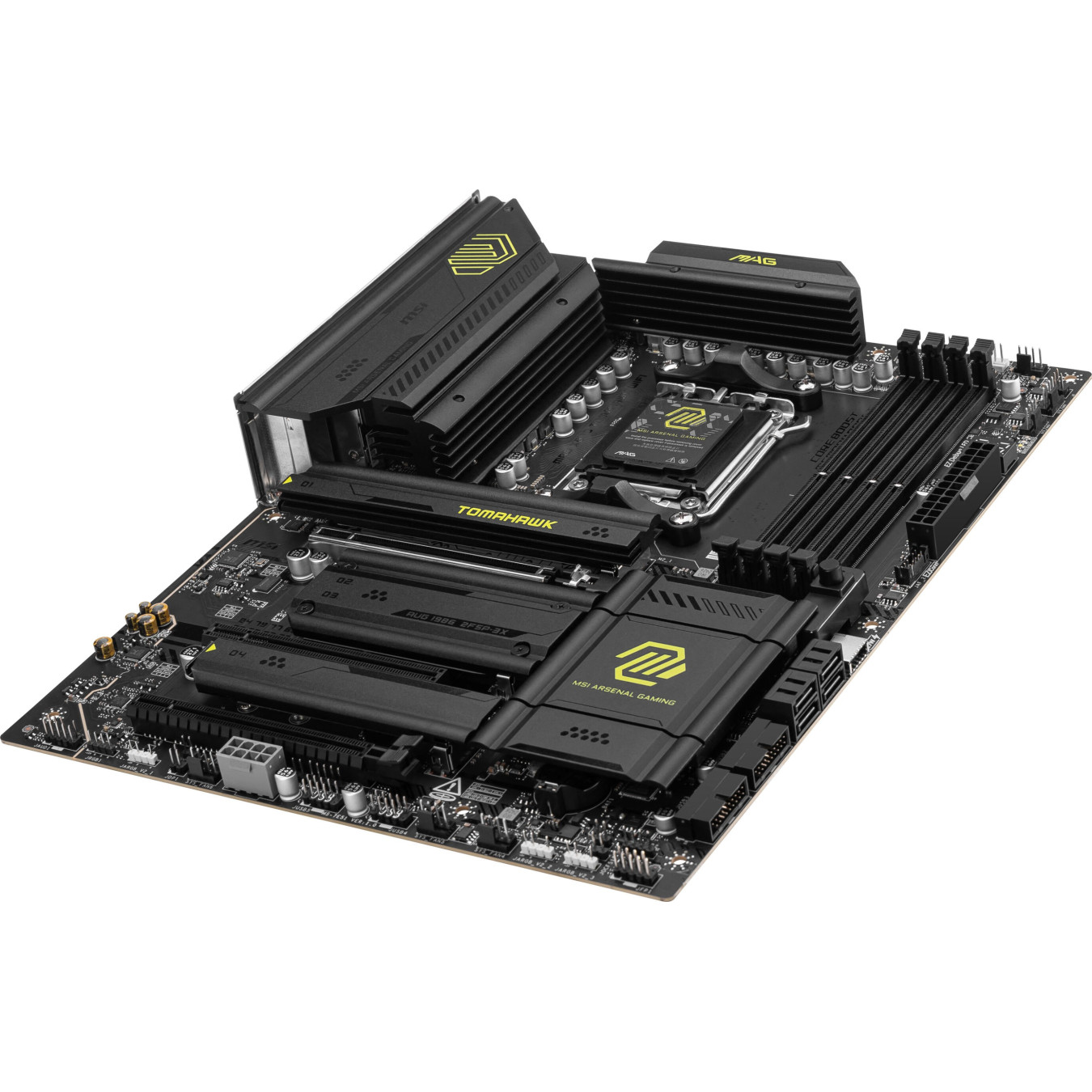

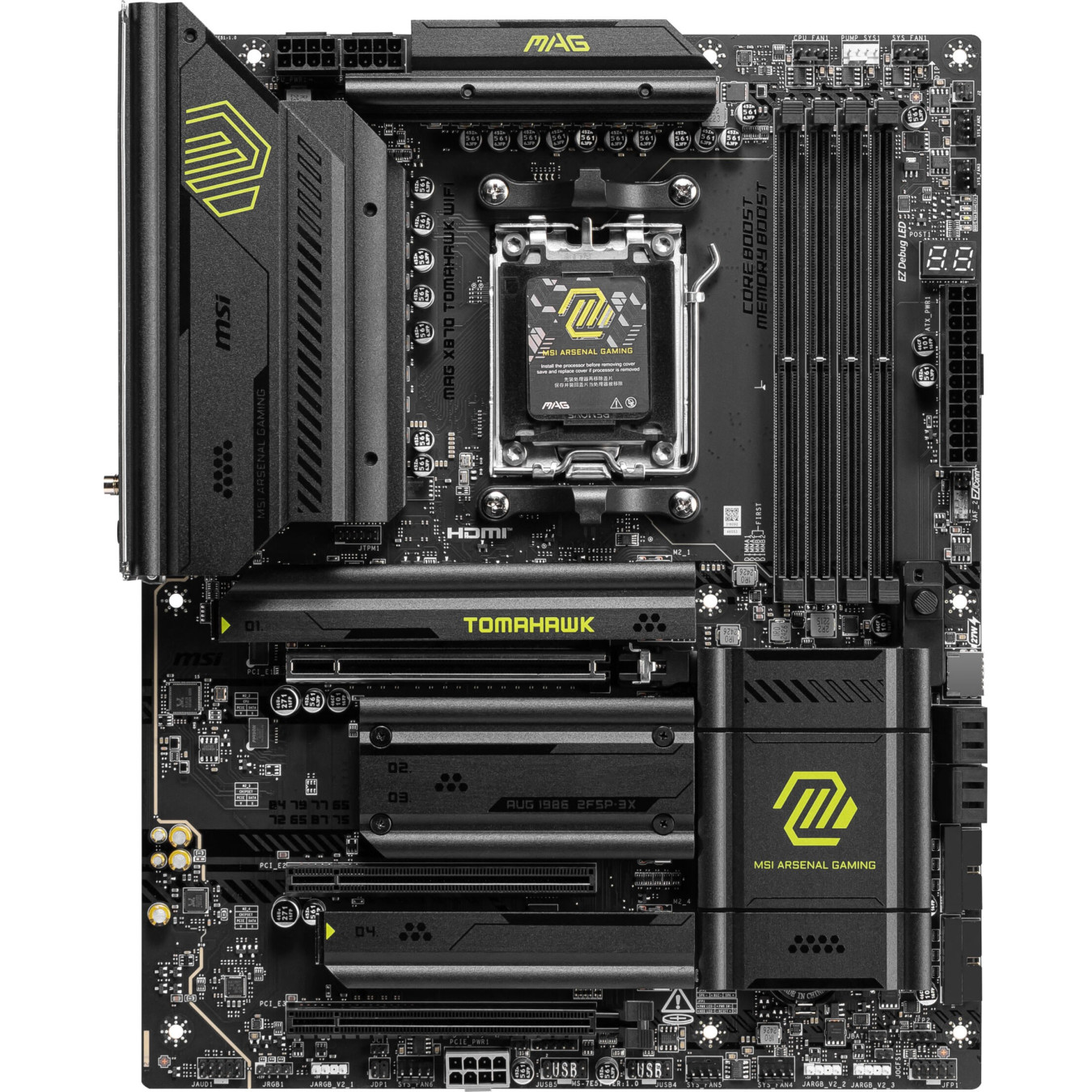

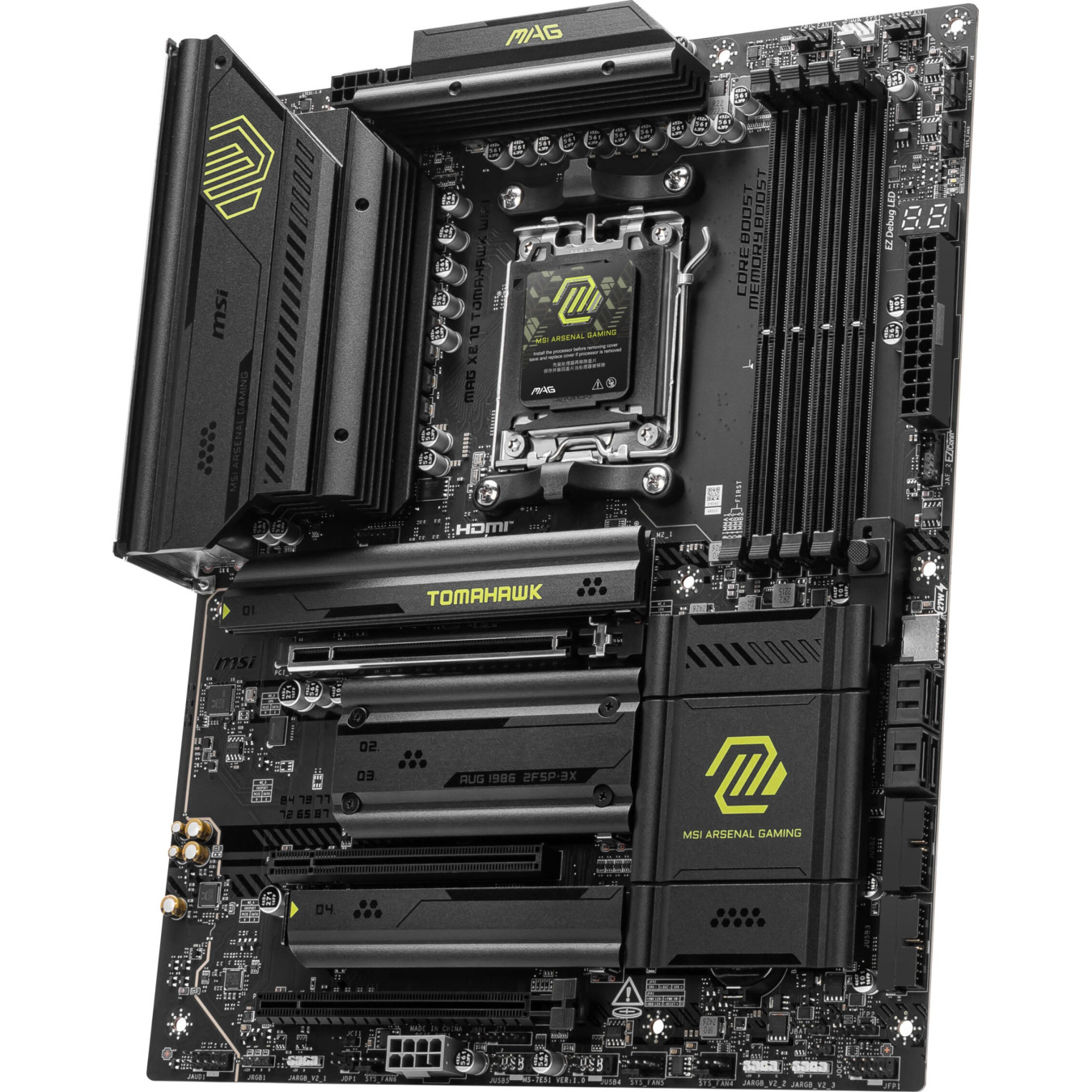

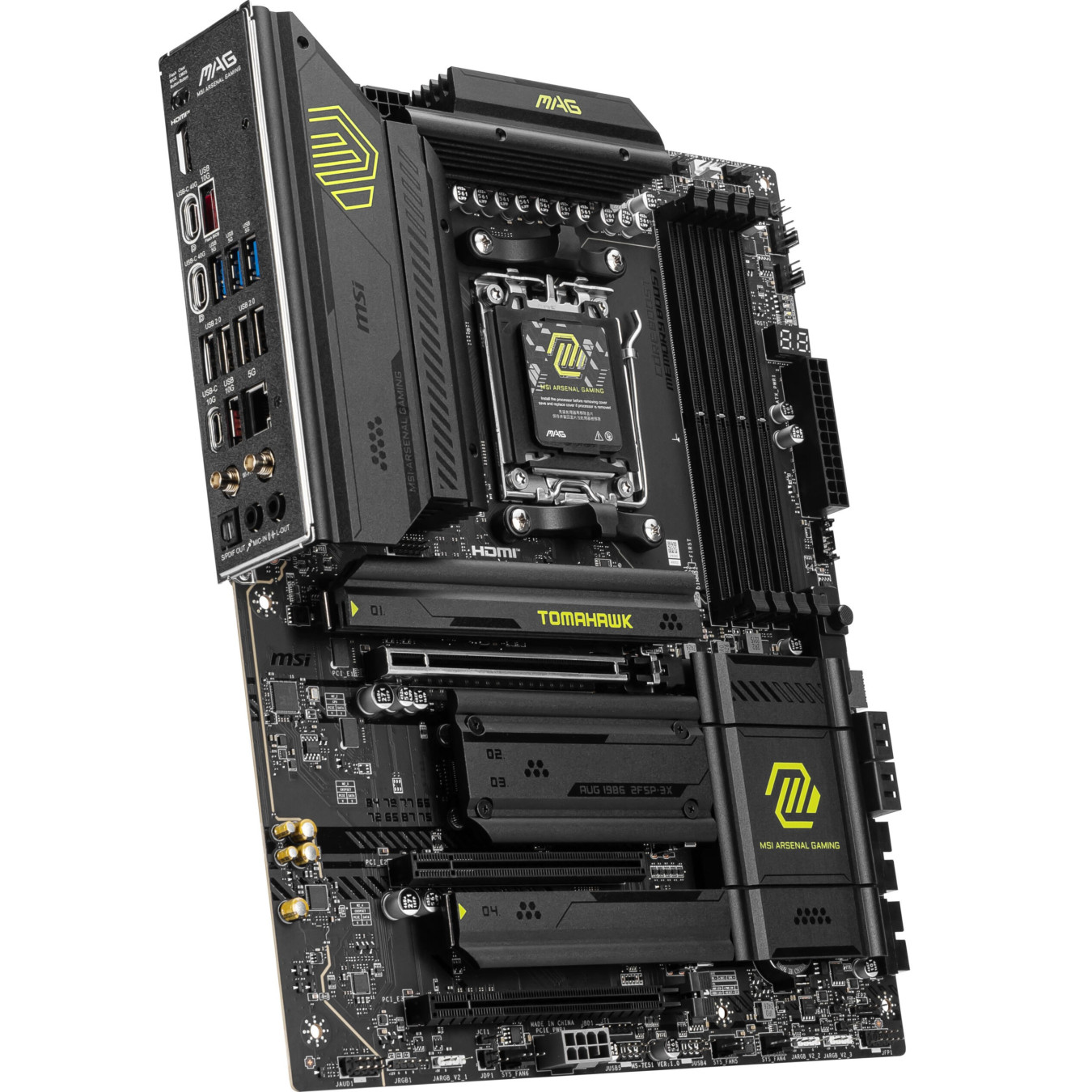

The MSI MAG X870 Tomahawk WiFi is a feature-rich ATX motherboard built on the AMD X870 chipset, designed for enthusiasts and gamers seeking next-generation performance and connectivity. This board supports AMD Ryzen 9000, 8000, and 7000 series processors via the Socket AM5 interface, delivering solid gaming and productivity performance with modern features including PCIe 5.0 support and dual USB4 connectivity.
Memory support extends to 256GB of DDR5 SDRAM across four DIMM slots, with overclocking frequencies up to 8400MT/s and EXPO profile support for one-click optimization. The motherboard features a robust 14+2+1 VRM design with 80A Smart Power Stages, ensuring stable power delivery for demanding workloads. Storage connectivity includes four M.2 slots with PCIe 5.0 support on the primary slot, three PCIe x16 expansion slots, and four SATA III ports for traditional drives.

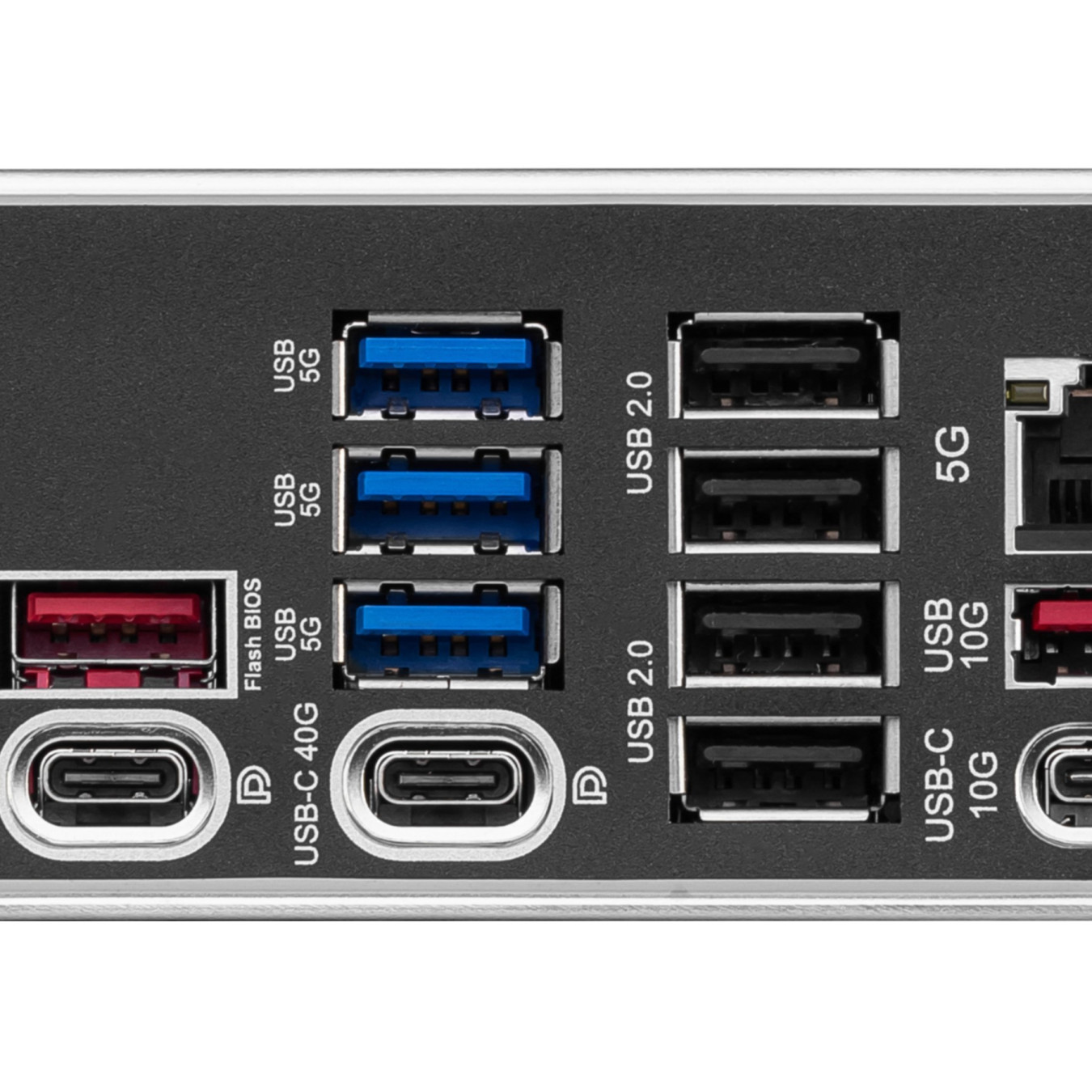

Connectivity is comprehensive with two 40Gbps USB4 ports (Thunderbolt 4 compatible), multiple USB 3.2 Gen 1 and Gen 2 ports, 5Gbps Ethernet, WiFi 7 (802.11be), and Bluetooth 5.4. The board includes a Realtek ALC4080 7.1-channel audio codec with dedicated circuit separation, HDMI 2.1 and DisplayPort outputs, and user-friendly features like EZ PCIe Release and EZ M.2 Shield Frozr II for easy component installation.
- AMD X870 chipset with Socket AM5 support for Ryzen 9000/8000/7000 series
- DDR5 memory support up to 256GB with EXPO overclocking profiles
- PCIe 5.0 x16 primary slot plus PCIe 4.0 and PCIe 3.0 expansion slots
- Four M.2 slots with PCIe 5.0 support on primary slot
- Dual USB4 40Gbps ports with Thunderbolt 4 compatibility
- WiFi 7 (802.11be) and Bluetooth 5.4 wireless connectivity
- 5Gbps Ethernet LAN with Realtek 8126 controller
- 14+2+1 VRM design with 80A Smart Power Stages for stable power delivery
| Processor Manufacturer | AMD |
| Processor Socket | Socket AM5 |
| Compatible Processor Series | AMD Ryzen 9000, 8000, 7000 series |
| Chipset | AMD X870 |
| Form Factor | ATX (244mm x 305mm) |
| Supported Memory Type | DDR5-SDRAM |
| Memory Slots | 4 DIMM slots |
| Memory Channels | Dual-channel |
| Maximum Memory Capacity | 256GB |
| Memory Speed Support | Up to 8400MT/s (OC) |
| Memory Profile Support | EXPO |
| VRM Design | 14+2+1 with 80A Smart Power Stages |
| M.2 Slots | 4 slots |
| Primary M.2 Interface | PCIe 5.0 x4 |
| PCIe Expansion Slots | 3 slots (1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x16) |
| SATA III Ports | 4 ports |
| USB 2.0 Headers | 4 connectors |
| USB 3.2 Gen 1 Type-A Ports | 6 ports |
| USB 3.2 Gen 1 Type-C Ports | 1 port (10Gbps) |
| USB 3.2 Gen 2 Type-A Ports | 2 ports |
| USB4 Ports | 2 ports (40Gbps, Thunderbolt 4 compatible) |
| Ethernet | 1x 5Gbps LAN (Realtek 8126) |
| Wireless Connectivity | WiFi 7 (802.11be), Bluetooth 5.4 |
| Audio | Realtek ALC4080 7.1-channel with dedicated circuit separation |
| Video Output | 1x HDMI 2.1, 2x DisplayPort |
| Power Connectors | 1x 24-pin ATX, 1x 8-pin EPS |
| PCB Layers | 8-layer server-grade copper |
| Cooling Solution | FROZR heatsink cooling system with EZ M.2 Shield Frozr II |
| PCIe Release Mechanism | EZ PCIe Release with physical button |
| Color | Black |
| Packaging | Retail boxed |
