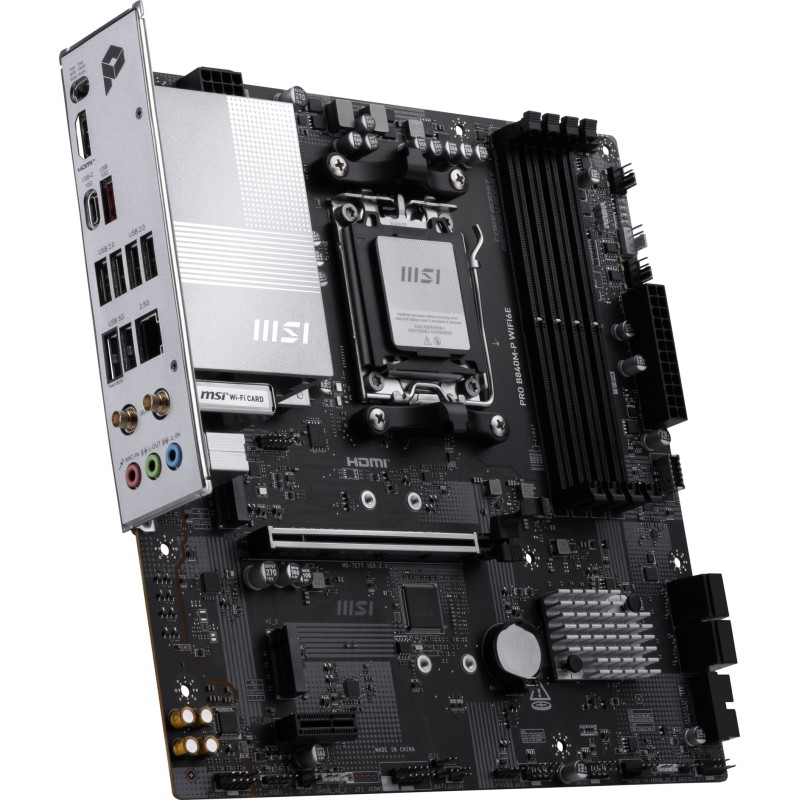

MSI B840M P Pro WIFI6E - AM5 Micro-ATX - DDR5 256GB (4x32GB), PCIe 4.0, WiFi 6E, 2.5Gb LAN, RGB, Black
AM5 micro-ATX motherboard for Ryzen 7000/8000/9000, DDR5 up to 256GB (4 DIMM), PCIe 4.0 x16, 2.5Gb LAN, WiFi 6E, HDMI/DP, USB-C rear, RGB lighting.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | AM5 |
|---|---|
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | Rear Type-C |
| unterstützte Prozessormodelle | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Sockel | Sockel AM5 |
| Chipsatz | AMD B840 |
| BIOS | 256 Mbit |
| Formfaktor | micro ATX |
| geeignet für freien Multiplikator | ja |
| Speicher max. | 256 GB |
| Memory slots | 4 |
| Speicher je Speicherplatz | 32GB |
| Storage type | DDR5-SDRAM |
| RAM Takt | 4800,5600,8000 MHz |
| Speicher Kanäle | Zweikanalig |
| Speichertyp | non-ECC;un-buffered |
| Controller in CPU | ja |

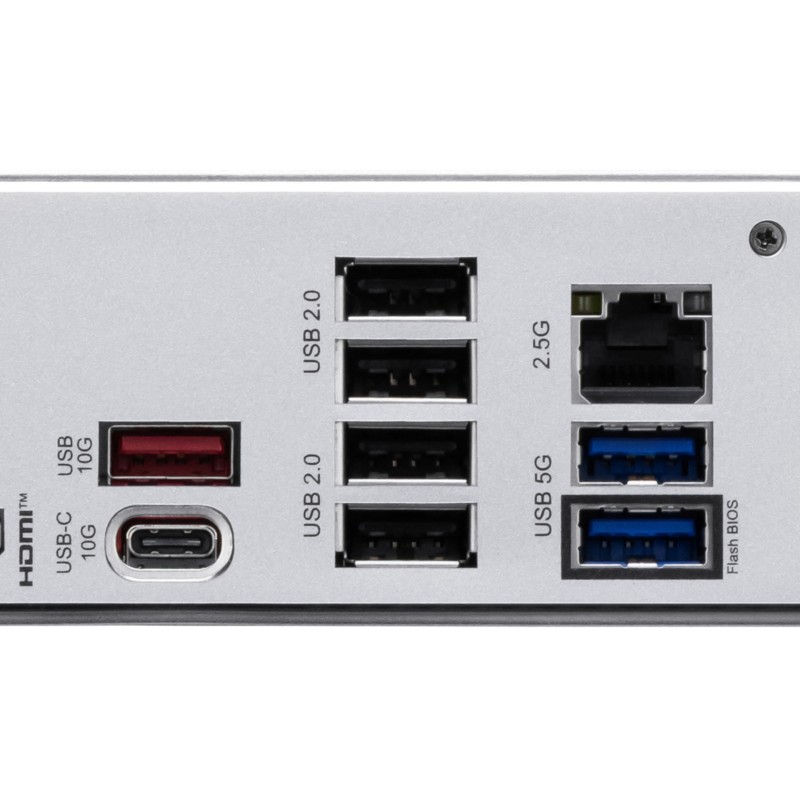

| LAN (RJ45) | 2.5 Gigabit Ethernet |
| PS/2 (Tastatur/Maus) | 1 |
| USB 3.1 | 0 |
| USB 3.0 | 2 |
| USB 2.0 | 4 |
| USB C | 1 |
| VGA | 0 |
| HDMI | 1 |
| DisplayPort | 1 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 4 |
| S/PDIF-Out (optisch) | 1 |
| PCIe 4.0 | 4 |
| PCIe 3.0 | 1x PCIe x16; 2xPCIe x1 |
| Mainbord Strom | 24pin |
| CPU Strom | 8pin |
| SATA 3 | 4 |
| M.2 | 2 |
| M.2 Länge max. | 110mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 4 |
| USB-Header USB 3.0 | 2 |
| USB-Header USB C | 1 |
| Lüfter 4-polig PWM | 5 |
| Sound-Chip | Realtek ALC897 |
| LAN | Realtek RTL8125D |
| Multi-GPU | ja |
| Multi-GPU Modus | Nicht unterstützt |
| RAID SATA | 0, 1, 10 |
| RAID M.2 | 0;1 |
| Beleuchtungsfarbe | RGB |
| Farbe | schwarz |
| Gewicht (g) | 1950 |
| Breite (cm) | 30.50 |
| Tiefe (cm) | 24.40 |
| Internal graphic | yes |
| verfügbare Slots | 6 |
