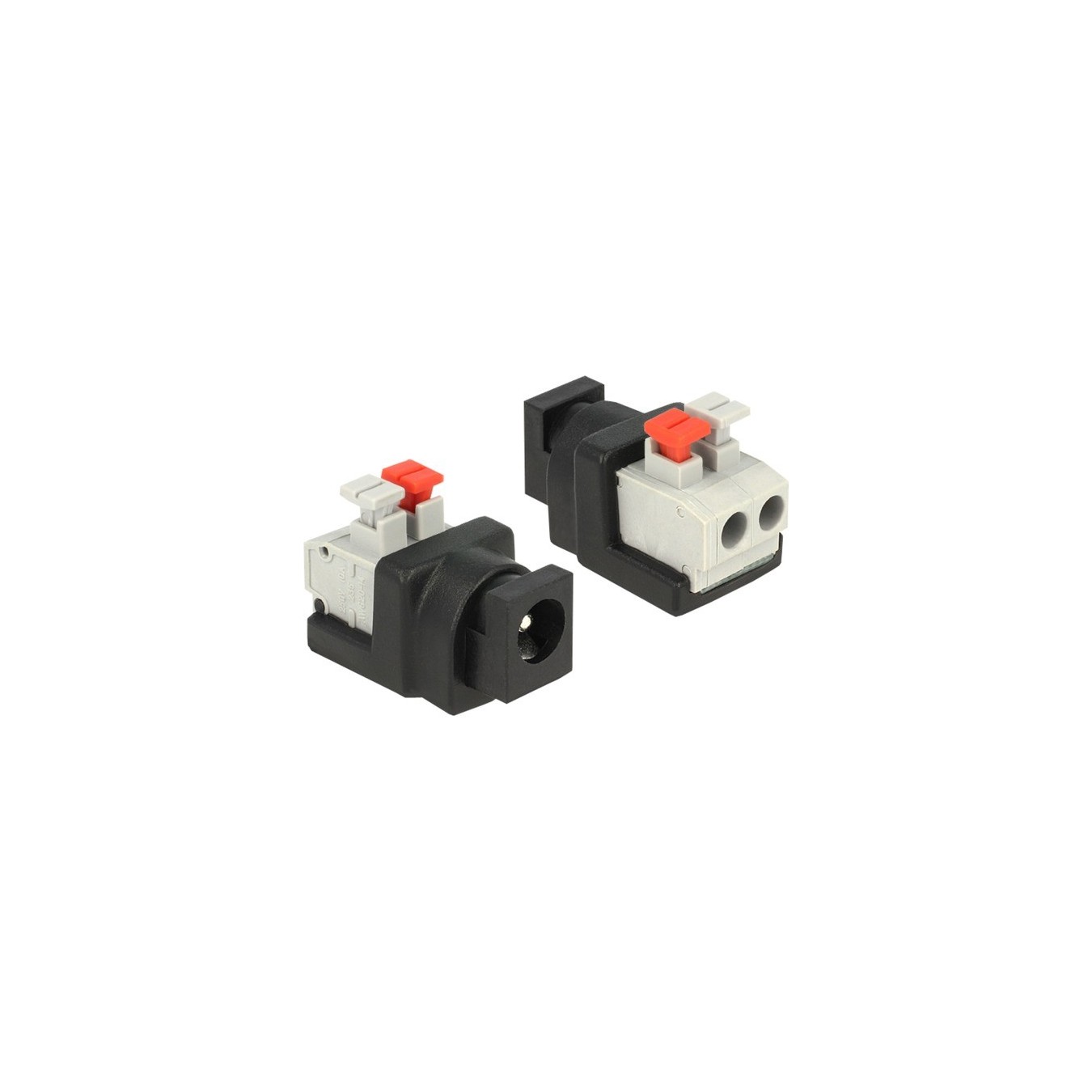

DC 5.5x2.1mm Socket to Terminal Block - 2Pin, Adapter
Delock screwless DC to 2-pin terminal block adapter; DC 2.1mm inner / 5.5mm outer socket to 2-pin terminal block; pitch 5.0 mm; approx 27x18x15 mm, 25 g.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Stranded wires with stripped ends can be connected to this screwless DC to terminal block adapter from Delock. This makes the adapter not only suitable for special industrial applications, but can also be used in hobby areas, such as railway model building. Devices with a suitable DC power connection can be connected to the adapter and supplied with power individually (depending on the requirements of the device).
| Typ | Adapter |
| Color | black/gray |
| EAN | 4043619655243 |
| Manufacturer no. | 65524 |
| Application example | Power connection adapter |
| Area | Power supply |
| Connection - from | 1x power supply (socket) |
| Characteristics | Adapter, extern, intern |
| More information | Connections: DC 2.1mm (inside) x 5.5mm (outside) socket > 2-pin terminal block screwless, pitch 5.0mm, dimensions (LxWxH): approx. 27 x 18 x 15mm |
| Weight | 25 Gramm |
