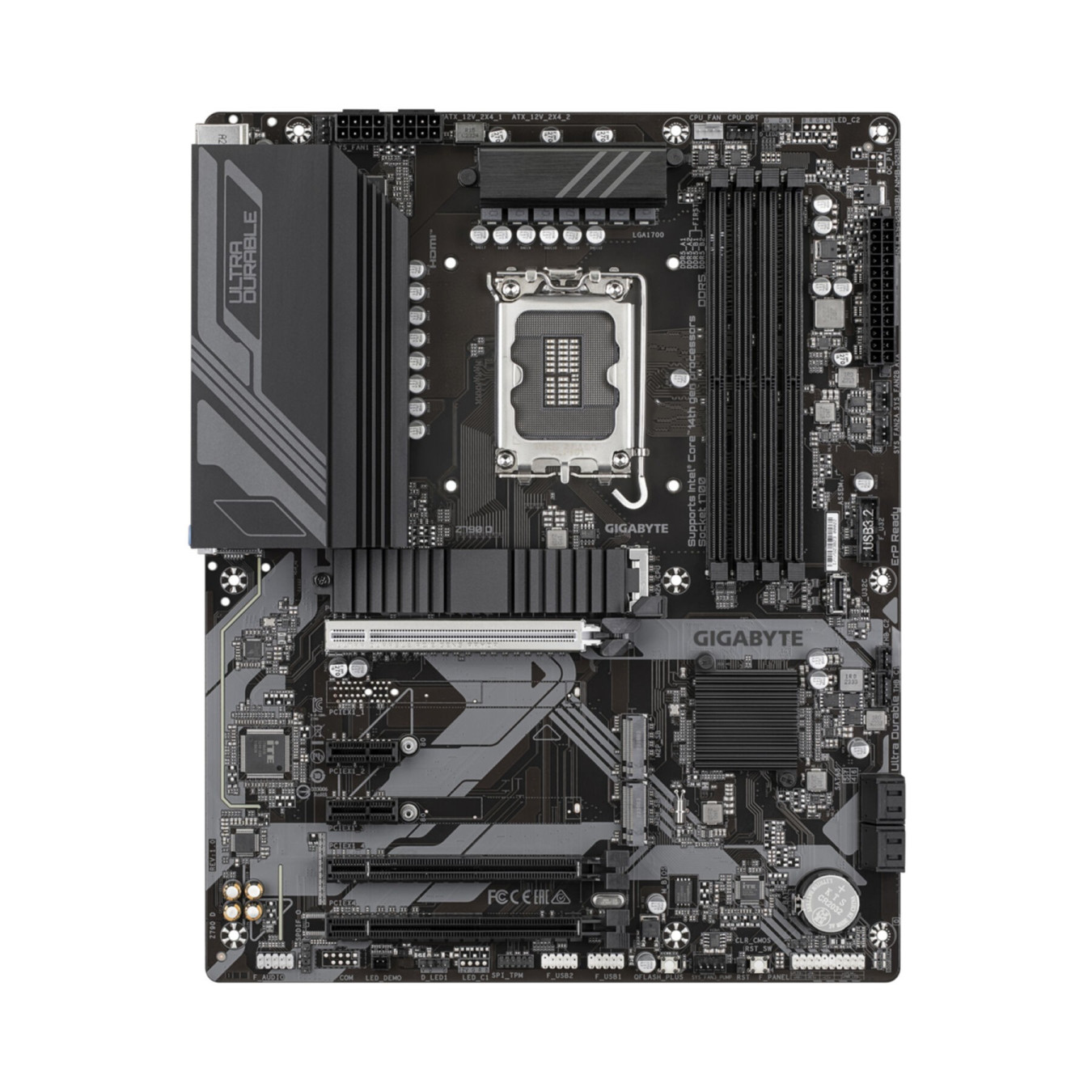

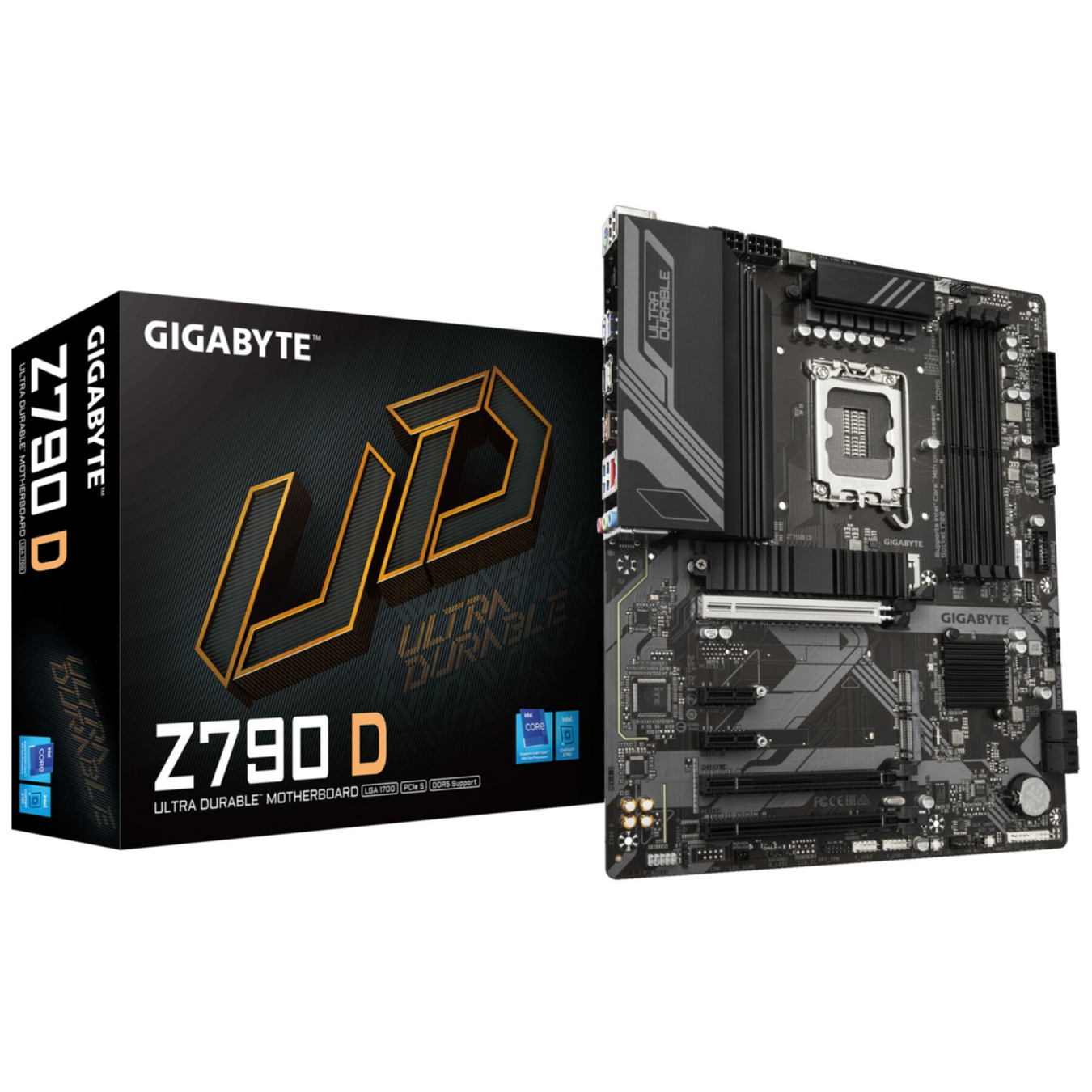

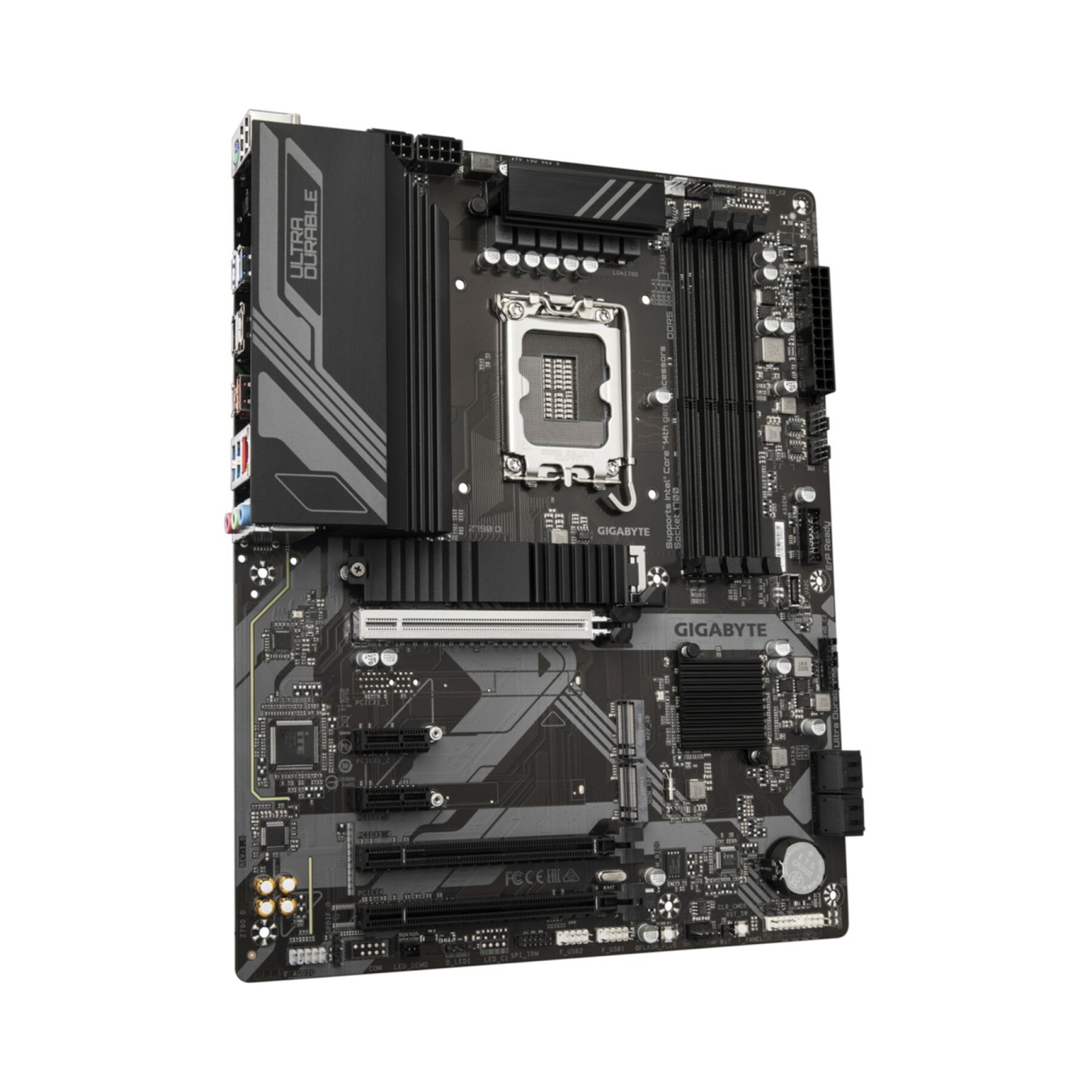

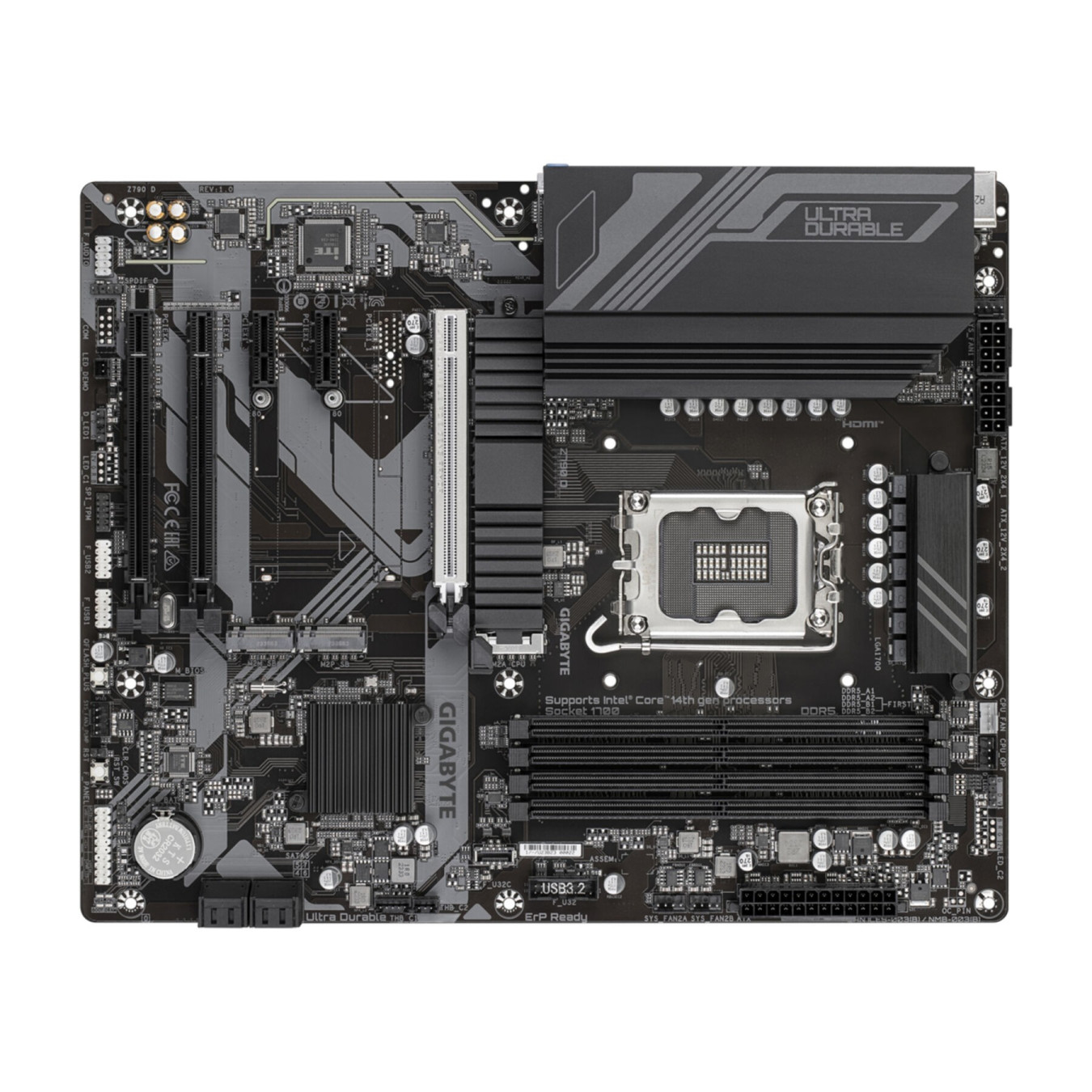

Gigabyte GA-Z790 D LGA1700 ATX Z790 DDR5 192GB Motherboard (Boxed)
ATX LGA1700 motherboard with Intel Z790 chipset & 12+1+1 VRM. Supports DDR5 up to 7600MHz OC (192GB max), PCIe 5.0 GPU, 3x PCIe4 M.2, 6x SATA, 2.5GbE LAN. Ideal for gaming & creators.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel Z790 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 6 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
The Gigabyte GA-Z790 D is a feature-packed ATX motherboard built on the Intel Z790 chipset, supporting LGA1700 processors from 12th to 14th Gen Intel Core. It delivers robust 12+1+1 phase digital VRM with 8+8 pin CPU power for stable overclocking and high performance in gaming, streaming, and content creation.
Key highlights include 4x DDR5 DIMM slots (up to 192GB, 7600+MHz OC via XMP), PCIe 5.0 x16 slot for next-gen GPUs, three PCIe 4.0 x4 M.2 slots, six SATA ports, 2.5GbE LAN, and USB 3.2 Gen2x2 Type-C. Enhanced BIOS with PerfDrive and Quick Access simplifies tuning.
- CPU: LGA1700 (12th/13th/14th Gen Intel Core)
- Memory: 4x DDR5, max 192GB, 7600+MHz OC
- Expansion: 1x PCIe 5.0 x16, 3x M.2 PCIe 4.0 x4
- Storage: 6x SATA 6Gb/s
- Networking: 2.5GbE LAN (no WiFi)

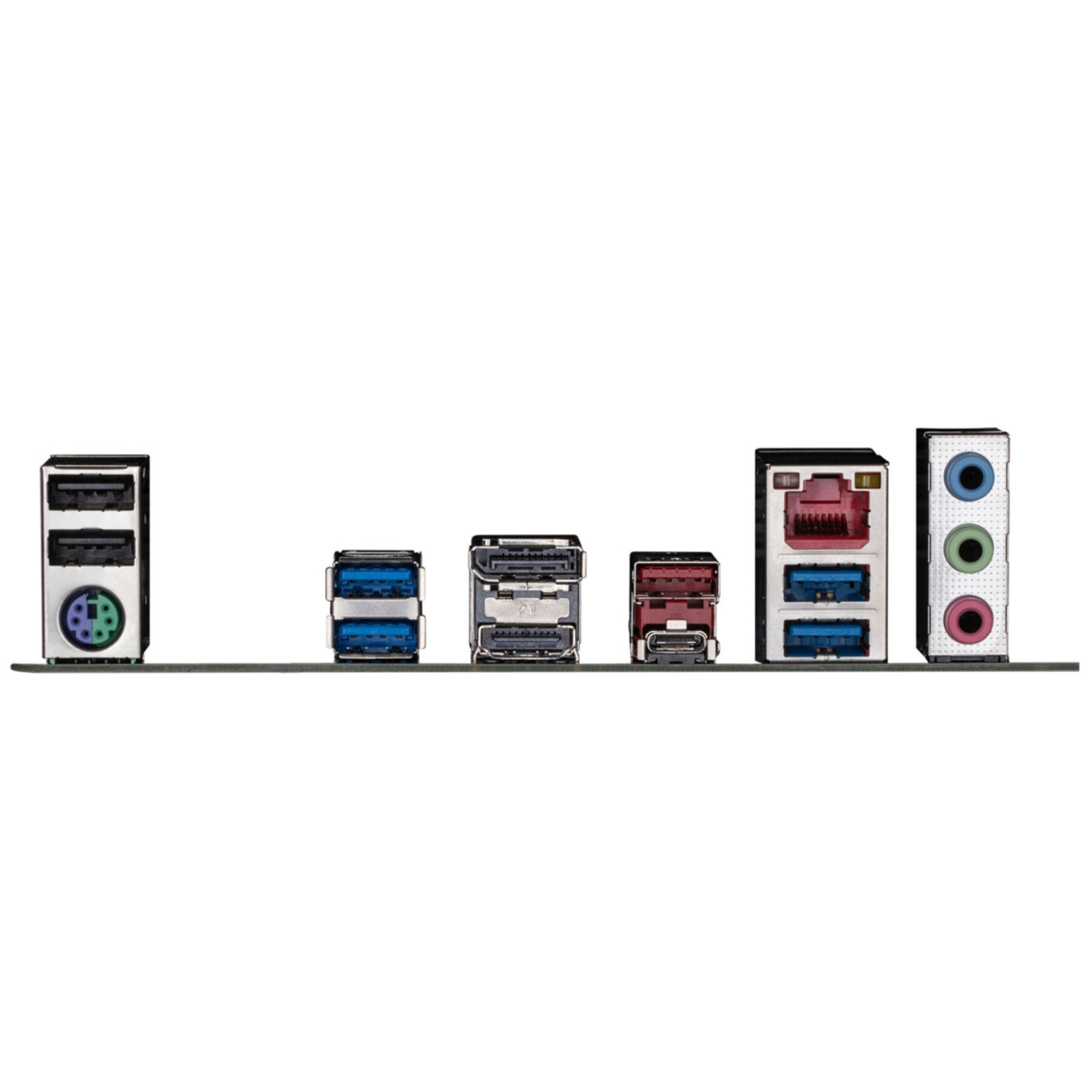

- USB: Rear USB-C 3.2 Gen2x2, front header
| Chipset | Intel Z790 |
| CPU Socket | LGA 1700 (12th/13th/14th Gen Intel Core) |
| Form Factor | ATX |
| Power Design | 12+1+1 Phases Digital VRM, 8+8 pin CPU power |
| Memory | 4x DDR5 DIMM, Dual Channel, up to 192GB, 7600MHz+ OC (XMP) |
| PCIe Slots | 1x PCIe 5.0 x16, additional PCIe 4.0/3.0 slots |
| M.2 Slots | 3x PCIe 4.0 x4 M.2 |
| SATA Ports | 6x SATA 6Gb/s |
| LAN | 2.5GbE LAN |
| USB Rear | USB 3.2 Gen2x2 Type-C, additional USB ports |
| USB Headers | Front Type-C header |
| Audio | Realtek 7.1-channel |
| BIOS Features | GIGABYTE UC BIOS, PerfDrive, Quick Access |
