Rack - 4U-47045 - server enclosure
The 4U-47045 is a versatile 4U rack/server enclosure with expansion options, suitable for 19" rack or stand-alone use.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Included Fans | 3 |
|---|

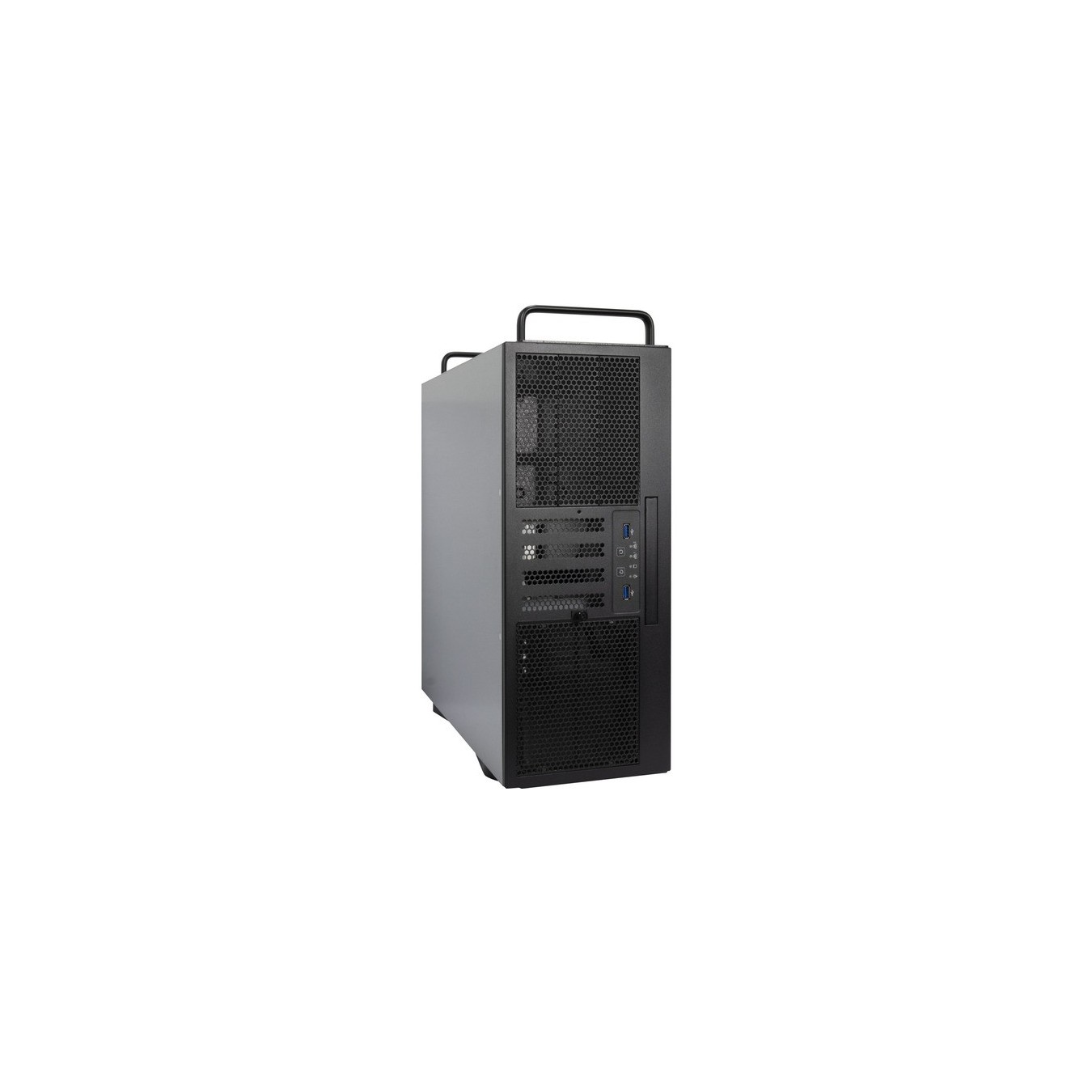

The 4U-47045 is a versatile 4U server case with many expansion options and suitable for use in a 19" rack or as a stand tower. The case is designed as standard for the installation of three 5.25" drives, one SLIM DVD drive, four 3.5" drives and two 2.5" drives. The number of drives can be expanded to up to six 5.25" and two 2.5" drives or eight 3.5" and two 2.5" drives by installing optionally available installation cages. To provide the necessary air flow, the housing can be equipped with two 80mm fans at the back, an 80mm fan in the 3.5" hard drive cage and a 120mm fan behind the front door. Adjustable graphics card holders ensure that graphics cards or other expansion cards are securely held. The optionally available TS-680 telescopic rails enable convenient installation and removal in a server cabinet, as well as work within the housing without having to take it out of the cabinet. Furthermore The housing can also be used as a stand housing with the optionally available expansion set "SF-47045" and equipped with feet and overhead transport handles.
| Typ | Rack, server enclosure |
| Color | schwarz |
| EAN | 4260455649759 |
| Manufacturer no. | 88887418 |
| Manufactured in | China |
| Design | Rack |
| Mainboard Formfaktor | E-ATX |
| Material | Stahl |
| Internal dimensions - plug-in card length | maximal 330 mm |
| Drive bays - 5.25 inches | external 3 pieces |
| Front connections | 2x USB-A 3.2 Gen 1 (5 Gbit/s) |
| front | 1 x 120 mm fan can be installed |
| back | 2 x 80 mm fans can be installed |
| Notes | Graphics card holder, installation space: 1 x Slim DVD, hard drive cage: 1 x 80 mm fan can be installed |
| Rear connection of the mainboard | No |
| More information | Modular drive cage system |
| Notice | Possibility of converting to a stand housing |
| Accessories - available | Screw assortment |
| Volume | 41 l |
| Dimensions | Width: 48 cm x Height: 17.5 cm x Depth/Length: 48.5 cm |
| Weight | 8,7 kg |
