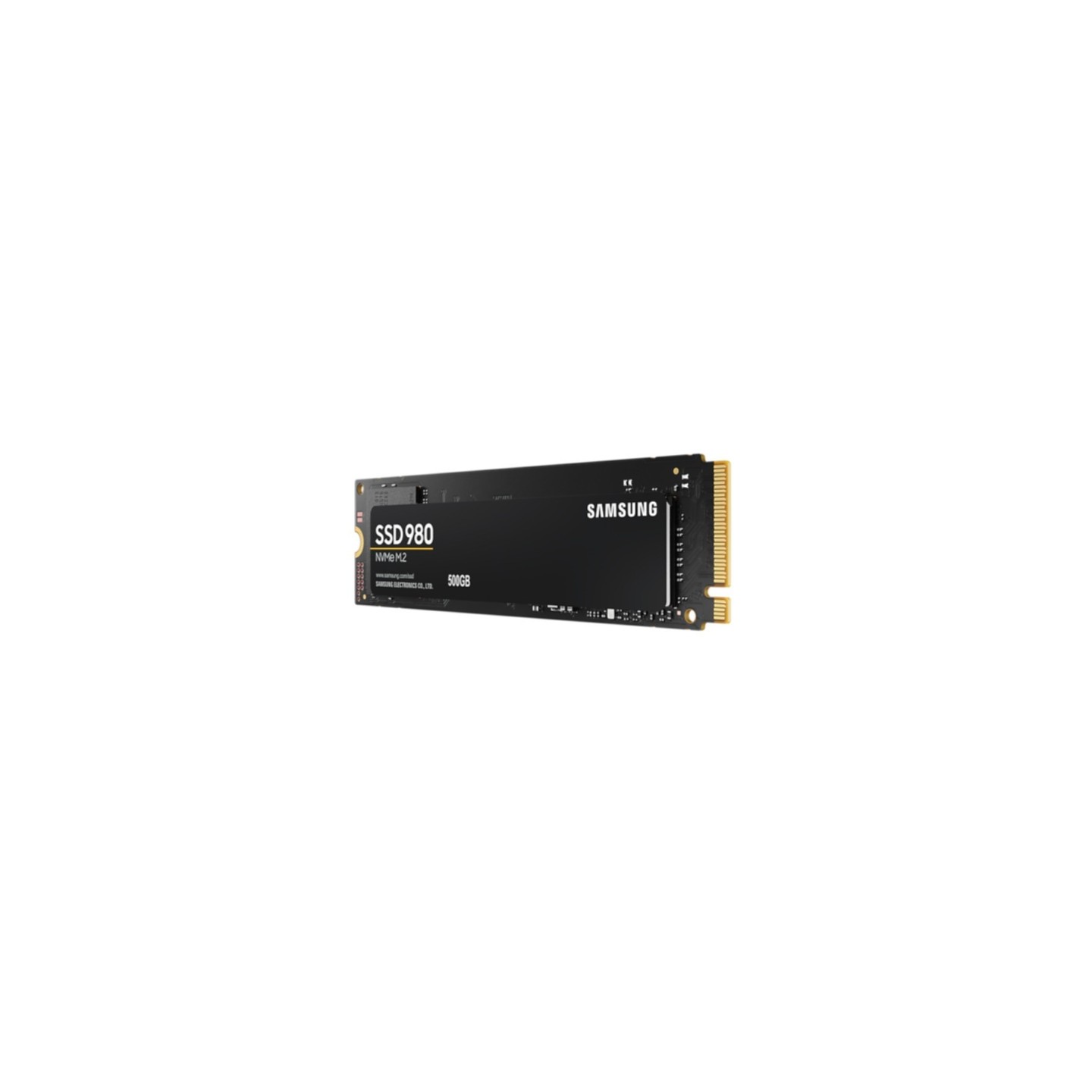

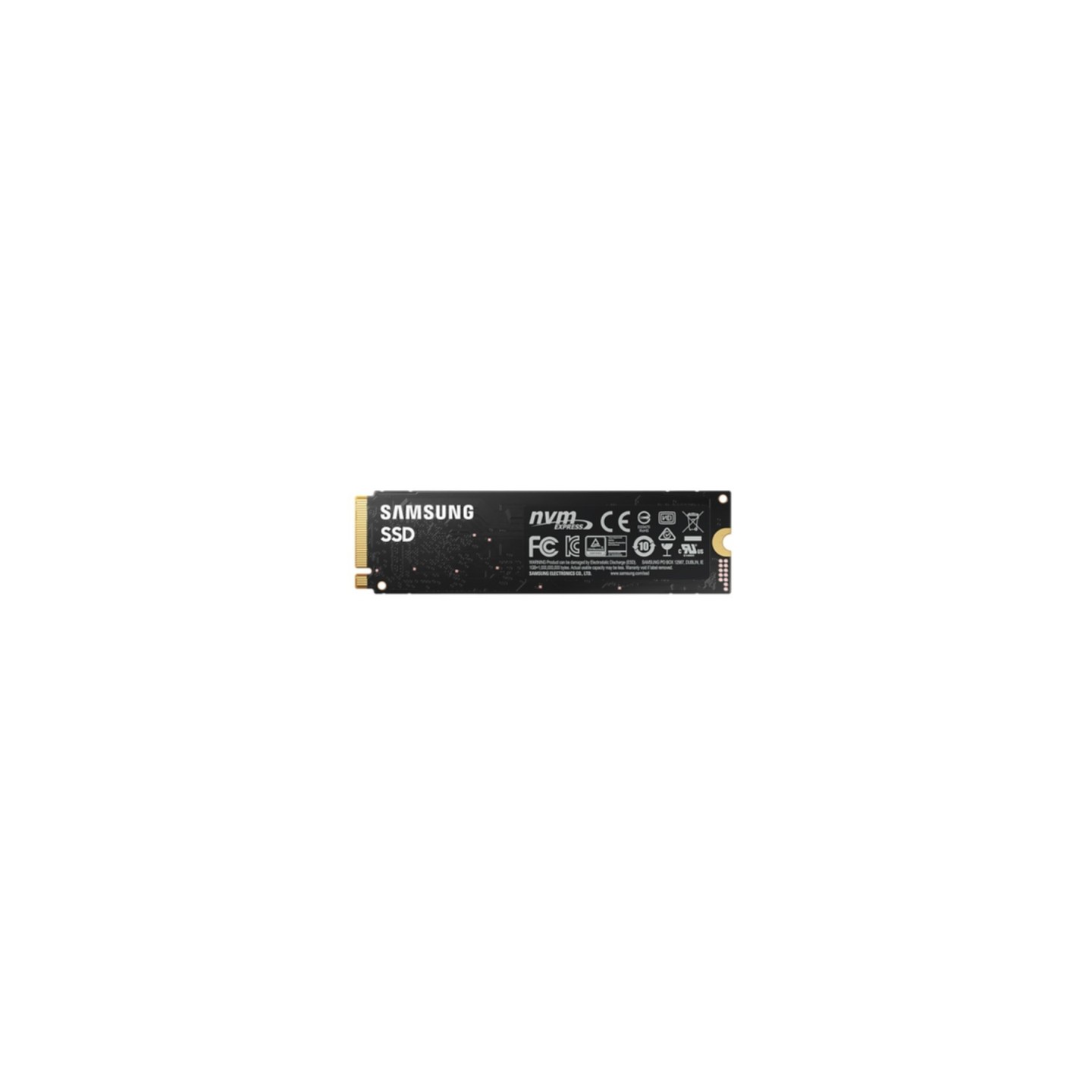

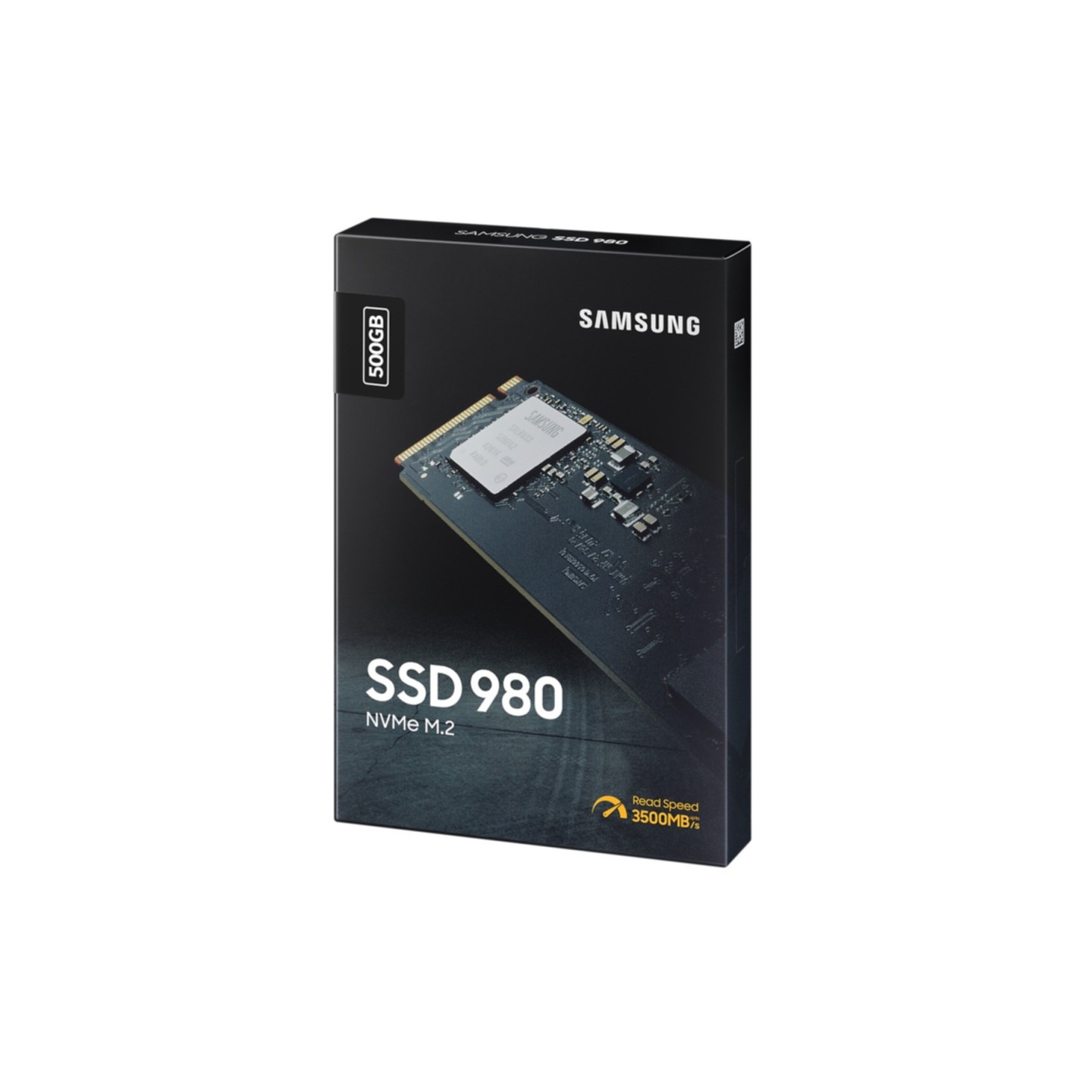

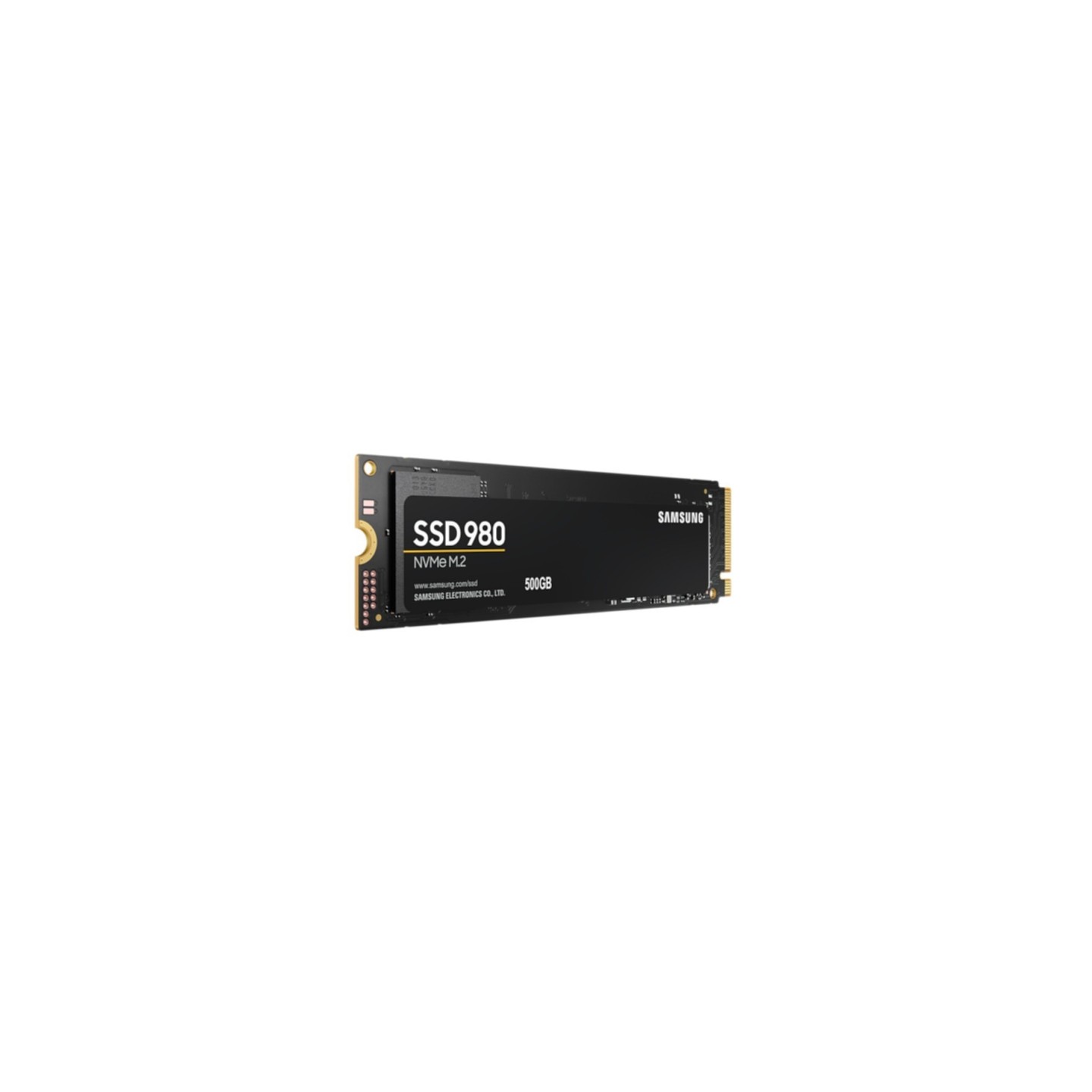

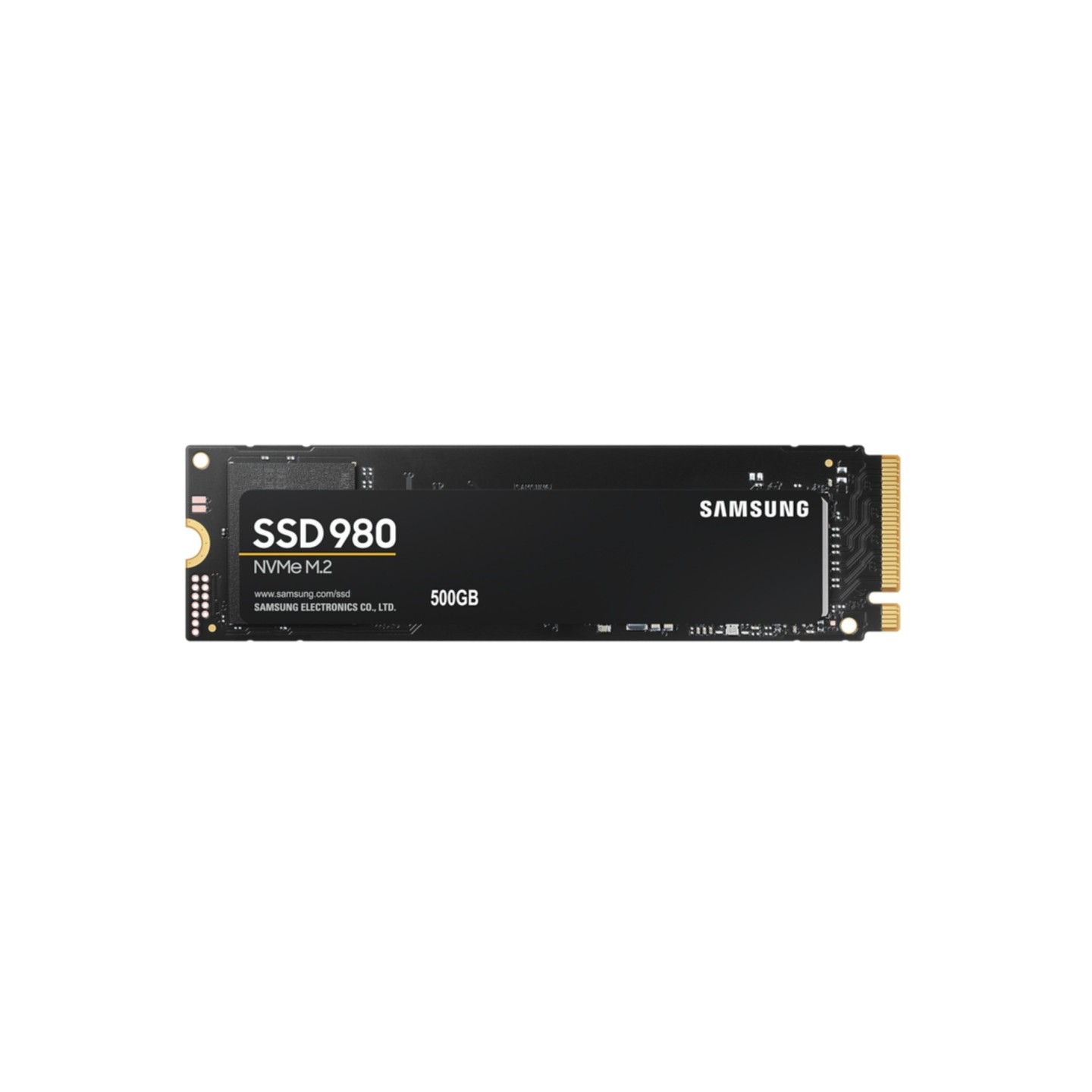

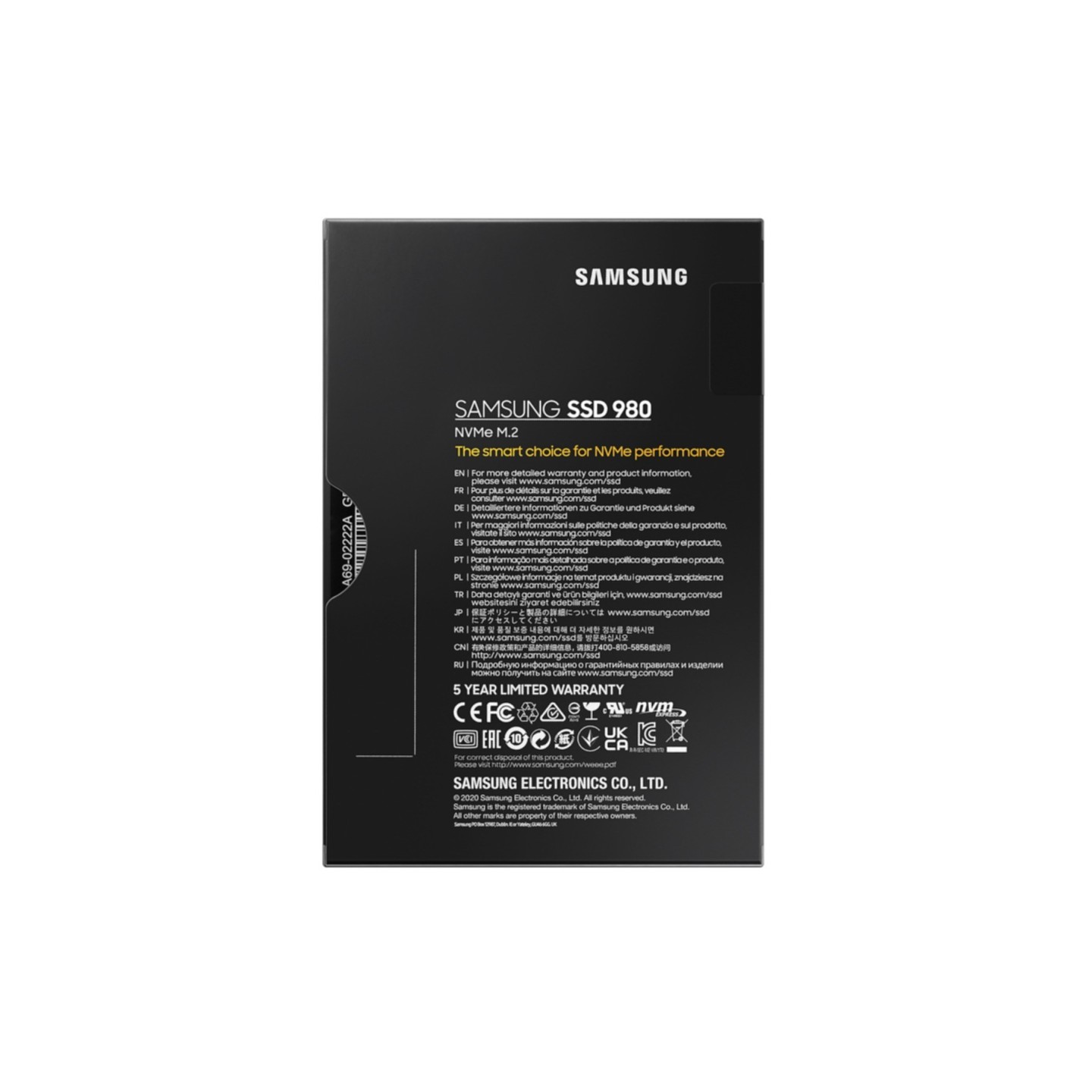

Samsung 980 500GB M.2 NVMe SSD - PCIe 3.0 x4 3100 MB/s - MZ-V8V500BW (Boxed)
Upgrade to blazing fast NVMe speed with the Samsung 980 500GB SSD. Utilizing PCIe 3.0 x4 and HMB technology, it delivers read speeds up to 3,100 MB/s and write speeds up to 2,600 MB/s, offering a massive performance boost over SATA SSDs for gaming and productivity.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 256GB - 512GB |
| Storage (SSD & HDD) - Sequential Read Speed (SSD) | 2001 to 3500 MB s |
| Storage (SSD & HDD) - DRAM Cache (SSD) | None (DRAM-less) |
| Storage (SSD & HDD) - Interface | PCIe 3.0 (Gen3) |
| Storage (SSD & HDD) - Heatsink (SSD) | Not Included |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
The Samsung 980 500GB M.2 NVMe SSD is designed to maximize the potential of the PCIe 3.0 interface for everyday computing, gaming, and heavy workflows. By leveraging Host Memory Buffer (HMB) technology, which links the drive directly to your system's DRAM, the 980 overcomes the limitations of traditional DRAM-less drives. This efficiency allows it to achieve impressive sequential read speeds of up to 3,100 MB/s and write speeds of up to 2,600 MB/s, making it over 6 times faster than standard SATA SSDs.
Built with Samsung's reliable V-NAND technology and an optimized in-house controller, the 980 ensures consistent performance and longevity. It features advanced thermal control solutions, including a nickel-coated controller and a heat spreader label, to deliver stable performance without overheating during extended use. Additionally, Samsung's Dynamic Thermal Guard technology automatically monitors and maintains optimal operating temperatures to prevent performance drops.
The drive is supported by the powerful Samsung Magician software, offering a suite of tools to monitor drive health, optimize performance, and protect valuable data. With a robust endurance rating of 300 TBW and a 5-year limited warranty, the Samsung 980 provides the reliability and speed essential for modern PC builds and laptop upgrades.
- High-Speed Interface: PCIe Gen 3.0 x4, NVMe 1.4 interface delivers sequential reads up to 3,100 MB/s.
- Intelligent TurboWrite: Accelerates write speeds and maintains long-term high performance with a larger variable buffer.
- HMB Technology: Host Memory Buffer feature links the drive to system RAM for enhanced efficiency without dedicated DRAM.
- Reliable Thermal Control: Equipped with a nickel-coated controller and heat spreader label for effective heat dissipation.
- Samsung Magician Support: Advanced software for drive health monitoring, firmware updates, and performance optimization.
| Capacity | 500 GB |
| Form Factor | M.2 (2280) |
| Interface | PCIe Gen 3.0 x4, NVMe 1.4 |
| Sequential Read Speed | Up to 3,100 MB/s |
| Sequential Write Speed | Up to 2,600 MB/s |
| Random Read (4KB, QD32) | Up to 400,000 IOPS |
| Random Write (4KB, QD32) | Up to 470,000 IOPS |
| NAND Flash | Samsung V-NAND 3-bit MLC |
| Controller | Samsung Pablo Controller |
| DRAM Cache | No (HMB supported) |
| Endurance (TBW) | 300 TBW |
| Mean Time Between Failures (MTBF) | 1,500,000 Hours |
| Encryption | AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 |
| Power Consumption (Average) | 4.3 W |
| Power Consumption (Maximum) | 5.9 W |
| Reliability (MTBF) | 1.5 Million Hours |
| Operating Temperature | 0 - 70 ℃ |
| Shock Resistance | 1,500 G & 0.5 ms (Half sine) |
