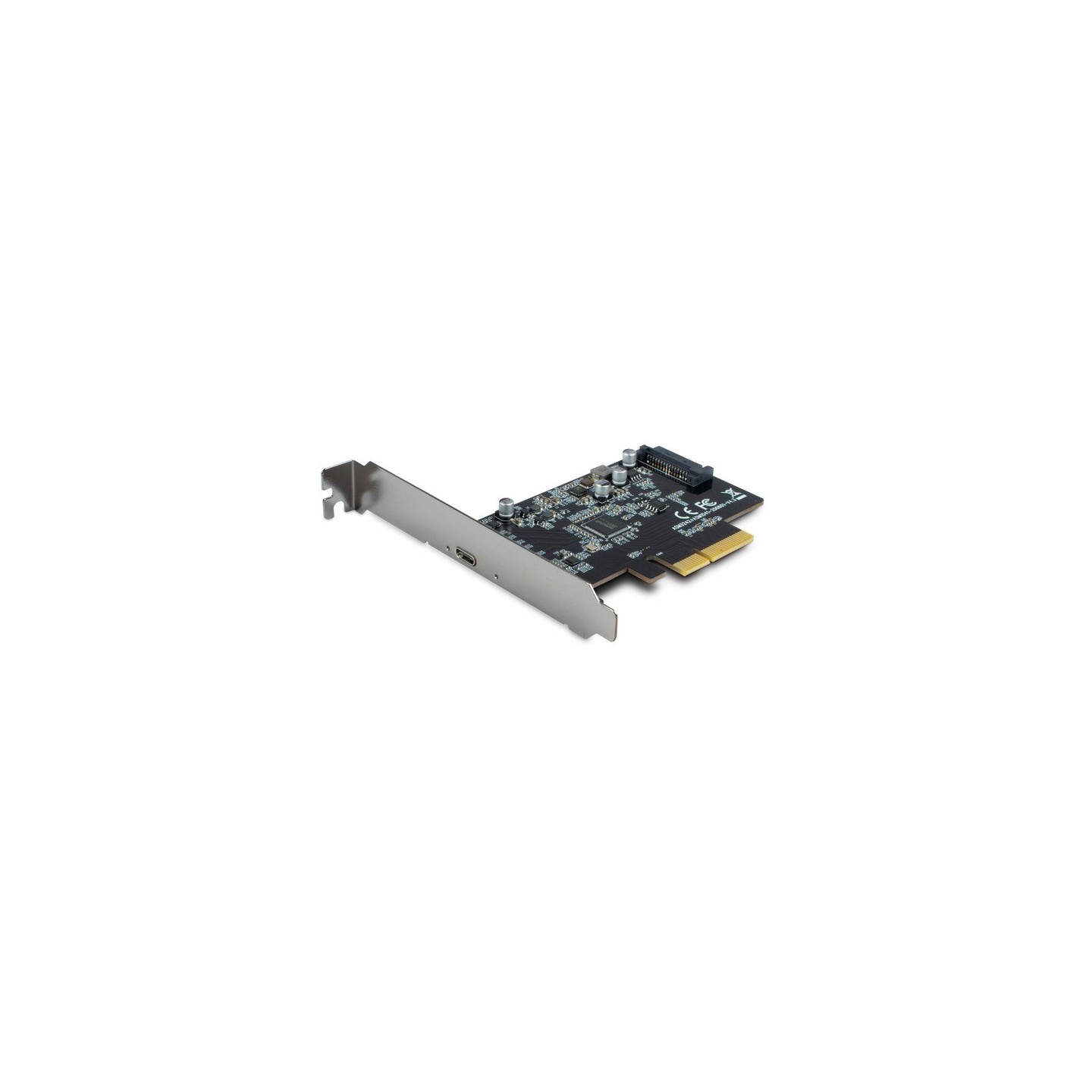

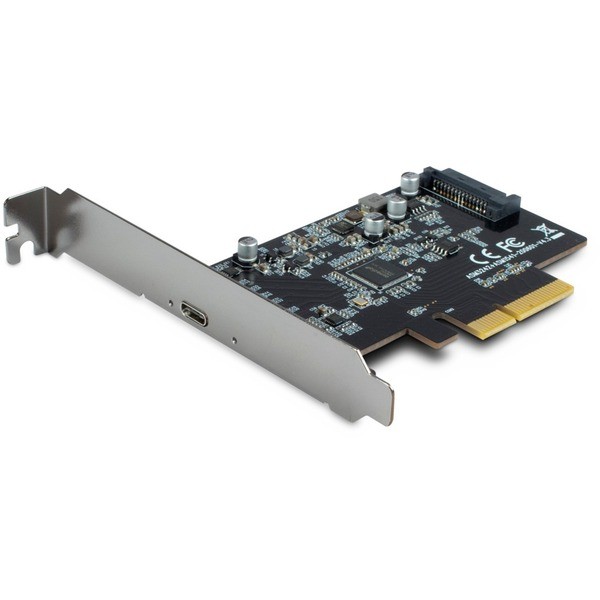

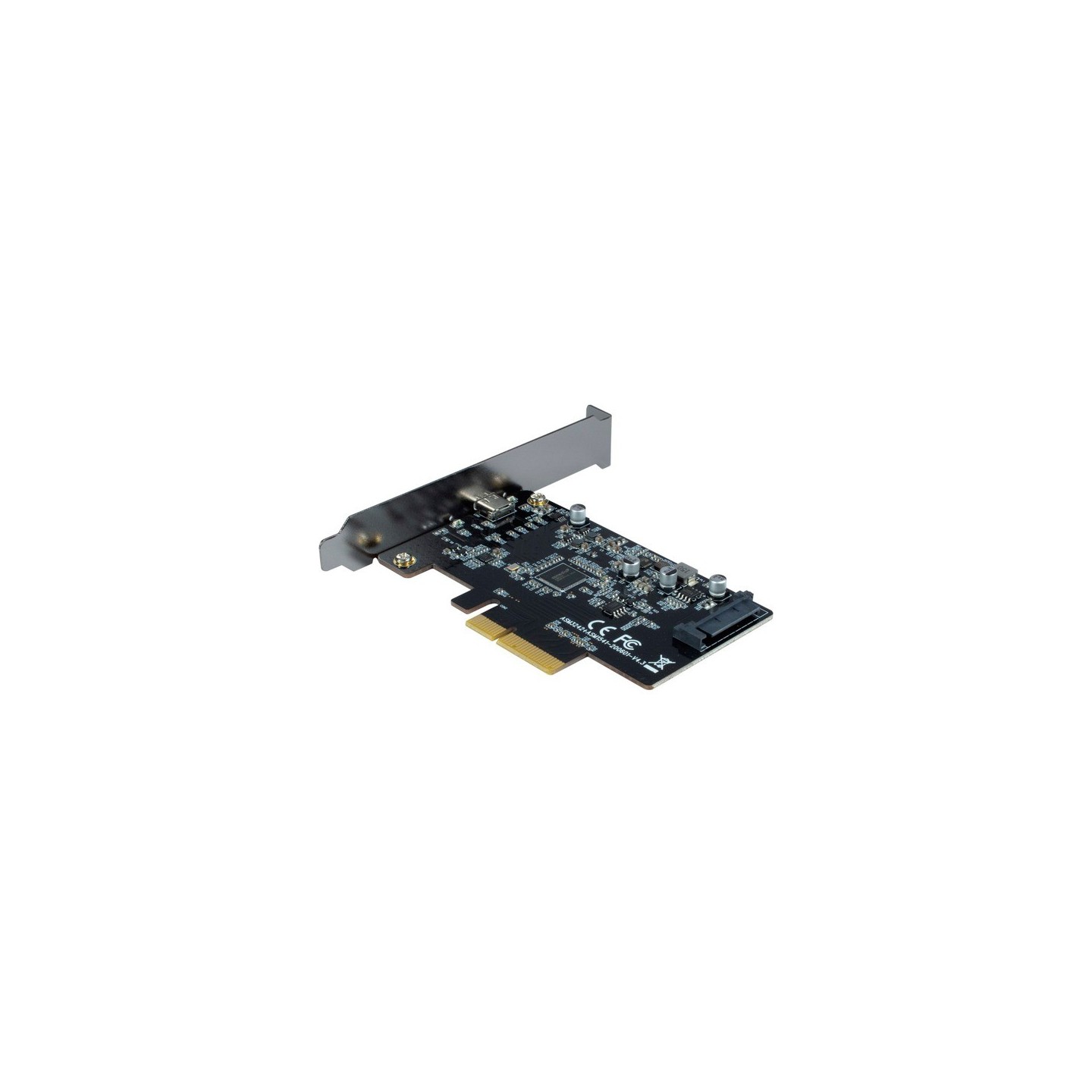

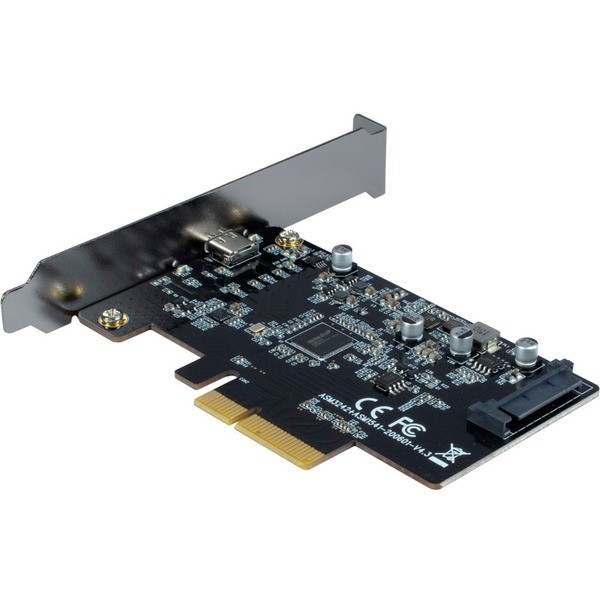

Inter-Tech ARGUS KC-008 USB 3.2 Gen 2x2 PCIe x4 Controller (Boxed)
PCIe x4 USB 3.2 Gen 2x2 controller with 20Gbit/s Type-C port. Requires SATA power. Supports Win10/11, Linux. Low-profile bracket incl. Dimensions:115x18x120mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | IO Port Expansion |
|---|---|
| Expansion Cards - Host Interface | PCIe x4 |
| Expansion Cards - Form Factor | Low Profile Half-Height Standard Profile Full-Height |
| Expansion Cards - External Connectivity | USB Type-C and Thunderbolt |
Upgrade your PC to USB 3.2 Gen 2x2 with the Inter-Tech ARGUS KC-008 controller. This PCIe x4 card delivers theoretical transfer rates up to 20 GBit/s via a single external USB Type-C port.
Installation is simple: plug into a free PCIe x4 slot and connect SATA 15-pin power from your PSU. Compatible with Windows 10/11 and Linux (kernel 5.3+). Includes low-profile bracket for compact builds.
Robust metal construction ensures reliability. Perfect for high-speed external storage or peripherals.
- 1x USB-C 3.2 Gen 2x2 external port
- PCIe x4 host interface
- 1x SATA power required
- Low-profile bracket & screws included
- Net weight: 45g | Package: 100g
| Type | USB-Controller |
| EAN | 4260455645591 |
| Manufacturer no. | 88885529 |
| Controller Art | USB 3.2 (20 Gbit/s) |
| slot | PCIe x4 |
| Protocol | USB 3.2 Gen 2x2 (20 Gbit/s), PCIe x4 |
| Data throughput | 20 GBit/s |
| Connections - external | 1x USB C |
| directly usable devices | 1 |
| Operating System - Supported | Linux from kernel 5.3, Windows 10, Windows 11 |
| Low Profile | optional |
| More information | 1x SATA power connector required. |
| Accessories - available | Additional low-profile slot bracket, screw set, operating instructions |
| Dimensions | Width: 115mm x Height: 18mm x Depth/Length: 120mm |
| Weight | 45 Gramm (net) |
| Package dimensions | Height: 25mm x Width: 125mm x Depth: 165mm |
| Weight (gross) | 100g |
| Warranty | 12 months |
