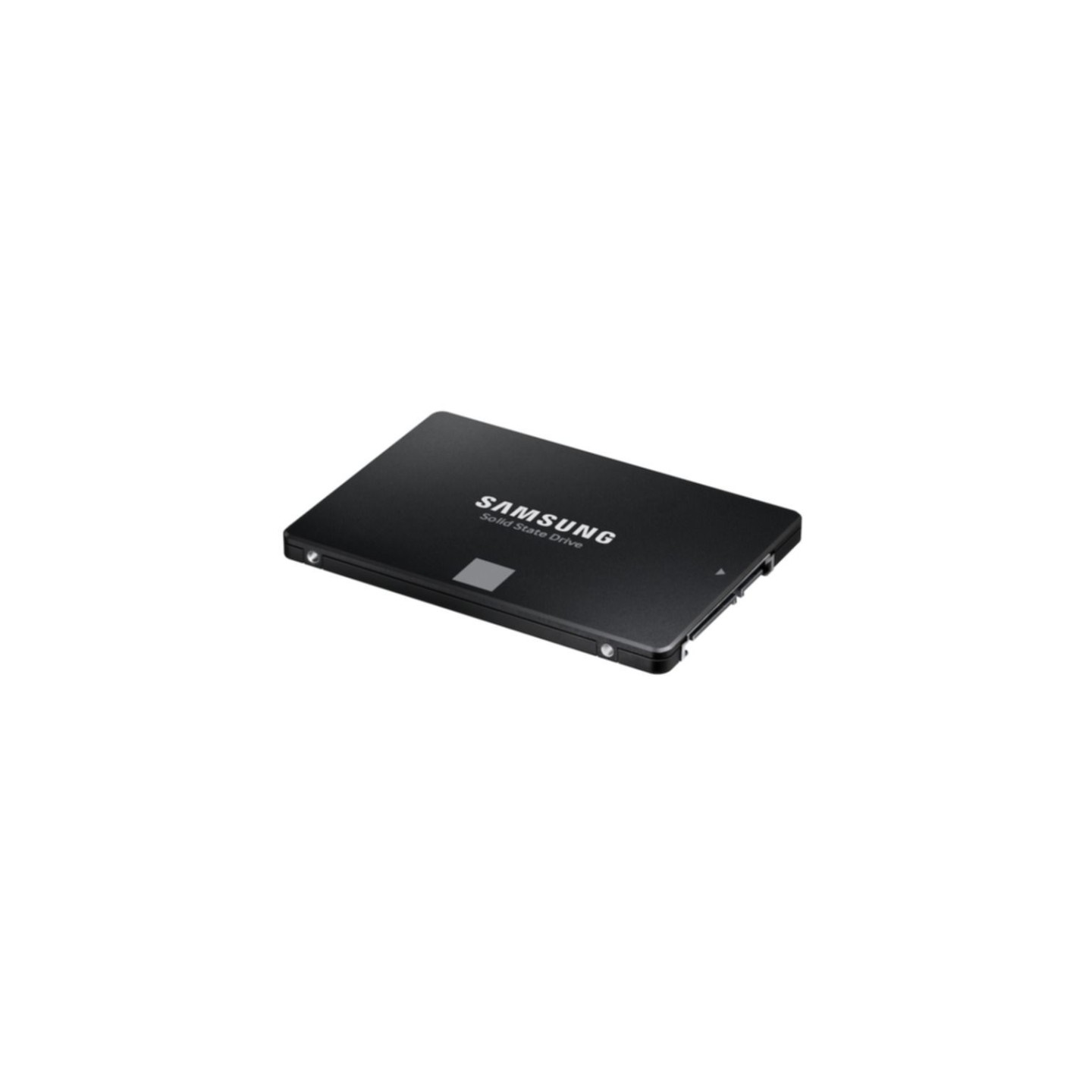

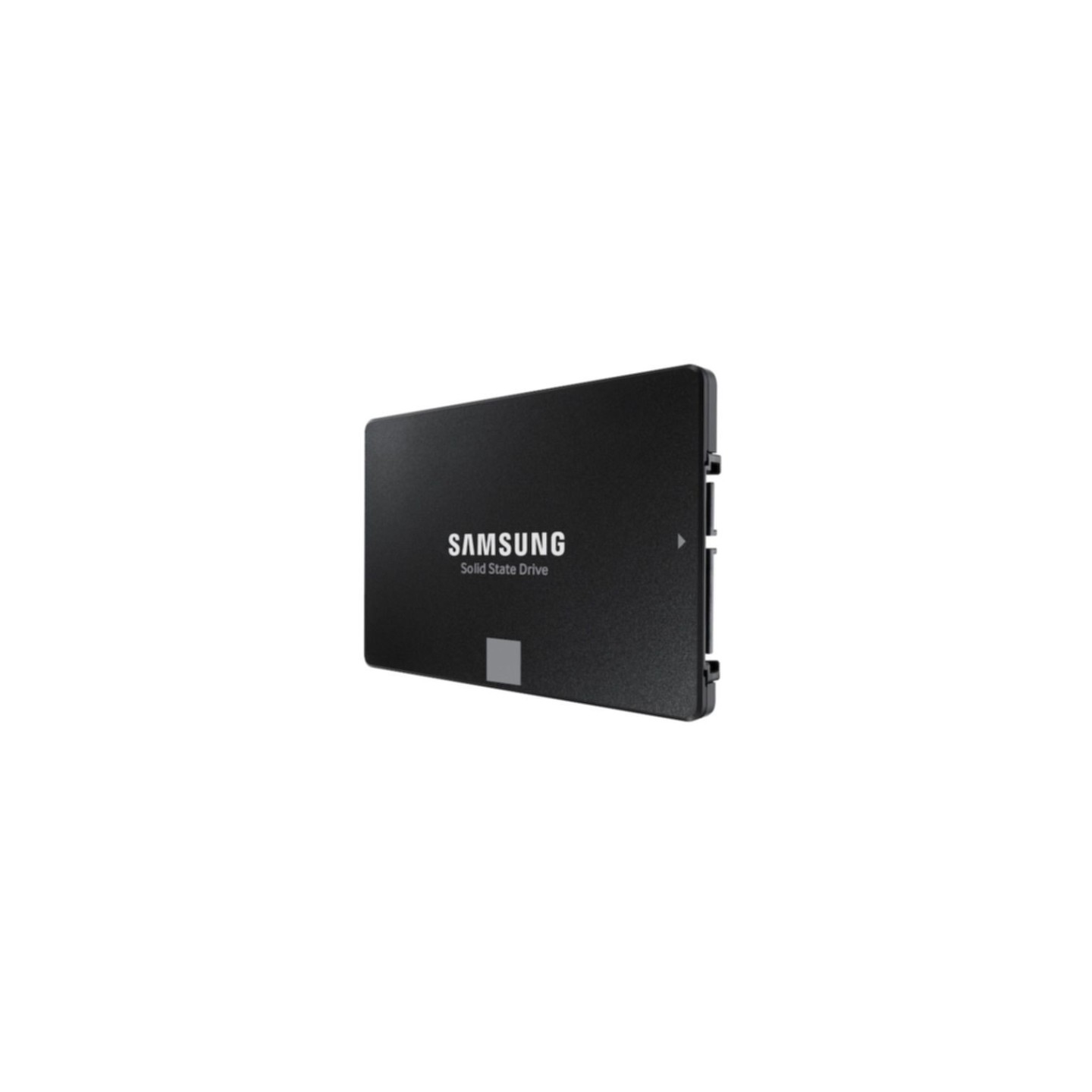

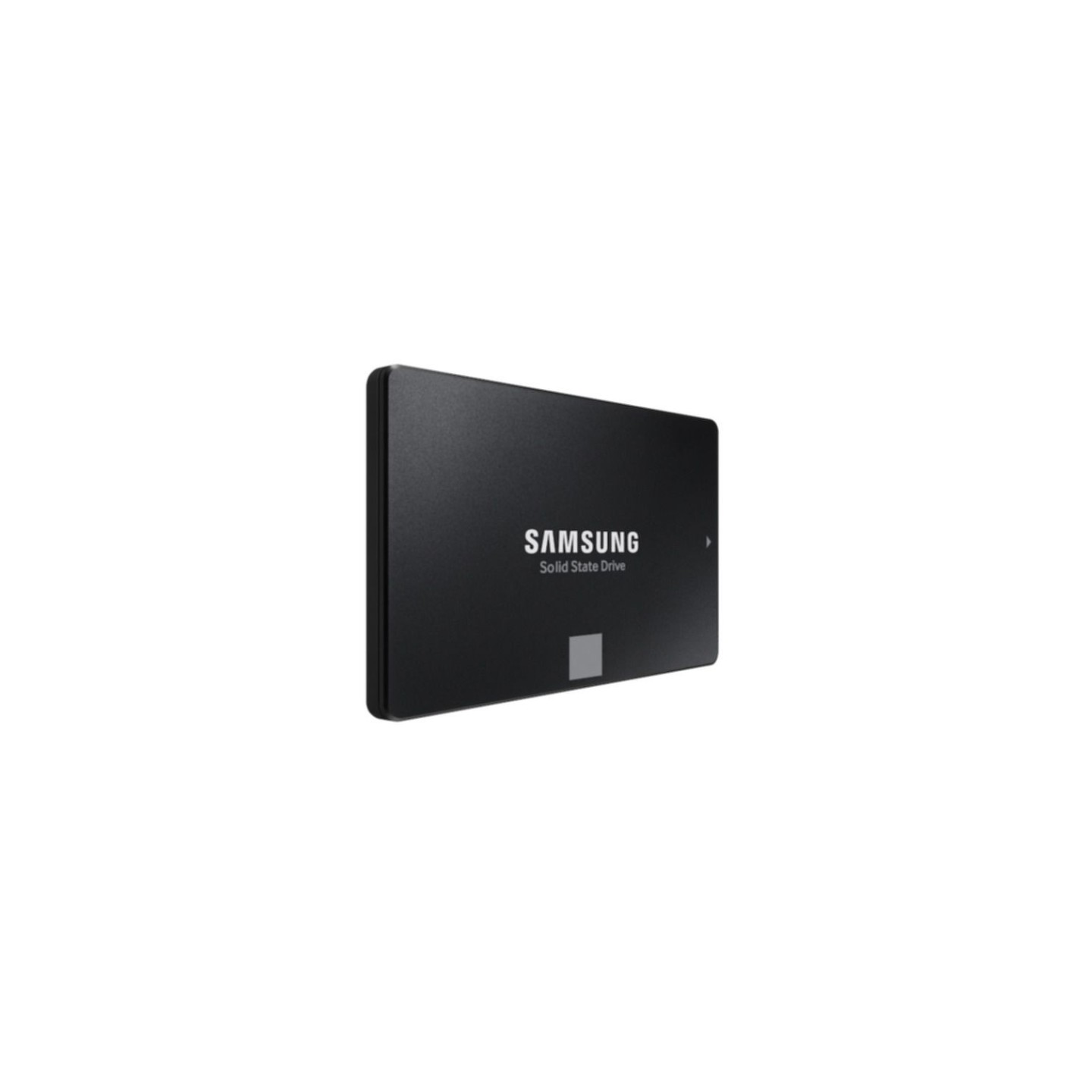

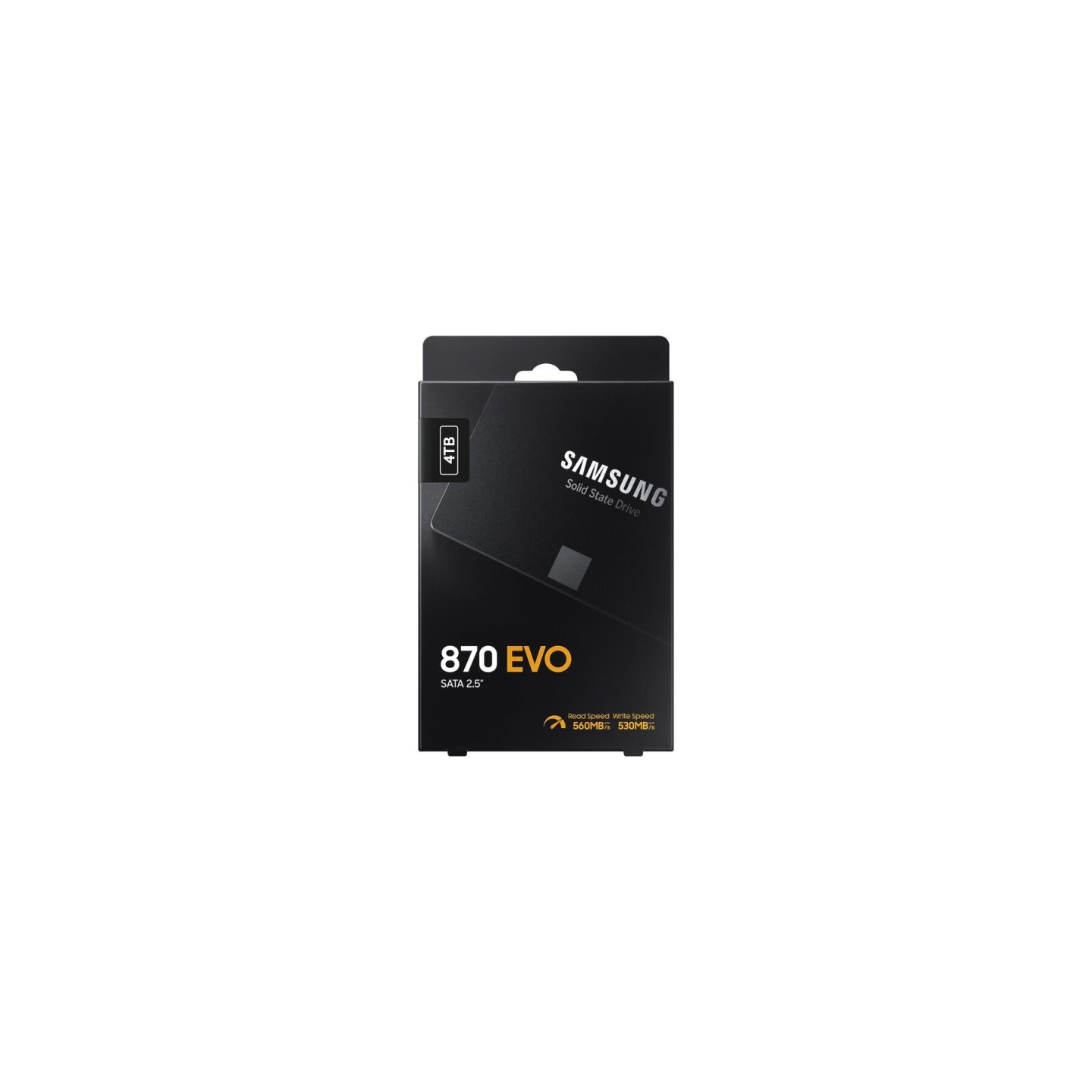

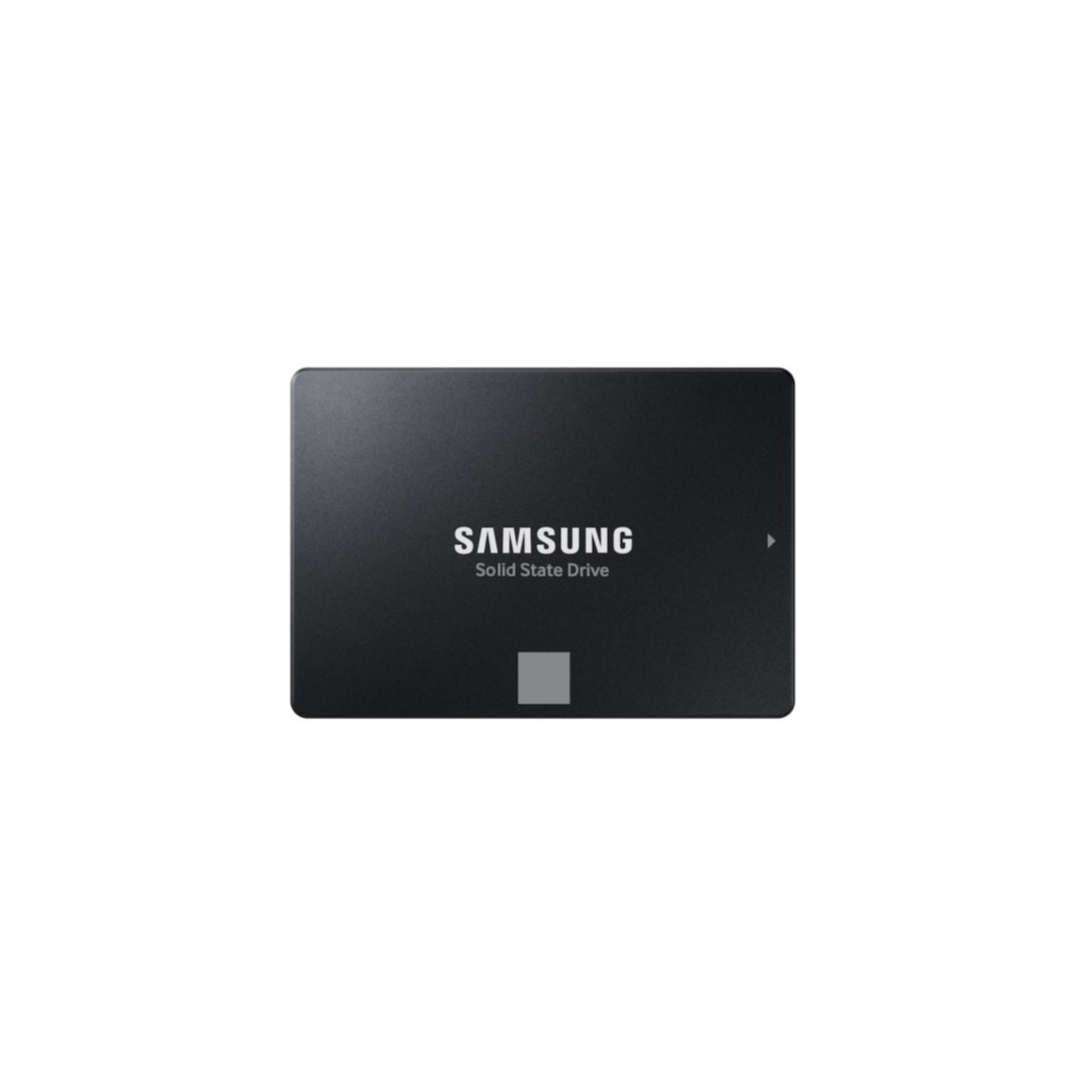

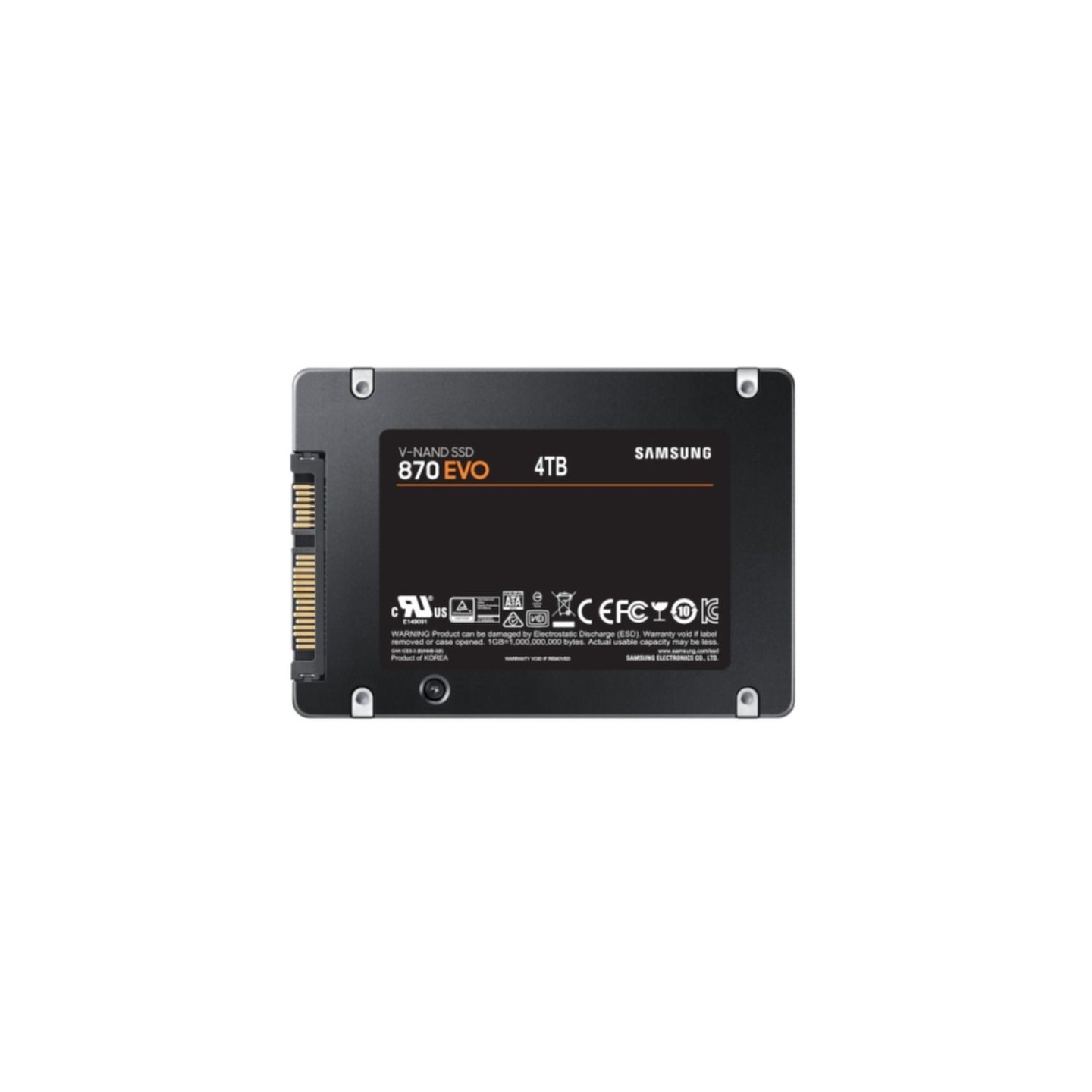

Samsung 870 EVO 4TB 2.5in SATA III SSD - MZ-77E4T0B (Boxed)
Samsung 870 EVO 4TB SATA III 2.5" SSD delivers up to 560/530 MB/s speeds with Intelligent TurboWrite, 6th Gen V-NAND TLC, 4GB DRAM cache, 2400 TBW endurance & 5-year warranty for reliable storage.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 4TB |
| Storage (SSD & HDD) - Sequential Read Speed (SSD) | Up to 550 MB s |
| Storage (SSD & HDD) - Interface | SATA III |
| Storage (SSD & HDD) - DRAM Cache (SSD) | Yes |
| Storage (SSD & HDD) - Heatsink (SSD) | Not Included |
| Storage (SSD & HDD) - Form Factor | 2.5 inch |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | Not Specified |
The Samsung 870 EVO 4TB is a high-performance 2.5-inch SATA III SSD designed for everyday computing, content creation, and professional workloads. Powered by Samsung's 6th Generation V-NAND 3-bit MLC (TLC) flash memory and MKX controller, it achieves sequential read/write speeds up to 560/530 MB/s. The Intelligent TurboWrite technology provides a large SLC cache (up to 78GB dynamic) for sustained performance, while 4GB LPDDR4 DRAM ensures efficient caching and random IOPS up to 98K/88K.
Built for reliability, this SSD offers exceptional endurance rated at 2,400 TBW (Terabytes Written) and an MTBF of 1.5 million hours. It supports advanced features like TRIM, S.M.A.R.T., AES 256-bit encryption, and TCG/Opal V2.0. Samsung Magician software enables drive health monitoring, performance optimization, and firmware updates (Windows only). Ideal for laptops, desktops, and upgrades from HDDs or older SSDs.
- SATA III 6Gb/s interface (backward compatible)
- Form factor: 2.5-inch (100 x 69.85 x 6.8 mm)
- Power: 30mW idle, up to 4.5W average
- 5-year limited warranty or TBW limit
- Shock resistance: 1500G
| Capacity | 4TB |
| Interface | SATA 6Gb/s (SATA III) |
| Form Factor | 2.5-inch |
| Dimensions (HxWxD) | 6.8 x 100 x 69.85 mm |
| Weight (bare) | 65g (max) |
| NAND Flash | Samsung V-NAND 6th Gen 3-bit MLC (TLC) |
| Controller | Samsung MKX |
| DRAM Cache | 4GB LPDDR4 |
| Sequential Read | Up to 560 MB/s |
| Sequential Write | Up to 530 MB/s |
| Random Read (QD32) | Up to 98,000 IOPS |
| Random Write (QD32) | Up to 88,000 IOPS |
| Endurance (TBW) | 2,400 TBW |
| MTBF | 1.5 million hours |
| Power Consumption (Idle) | 30 mW |
| Warranty | 5 years limited or TBW |
| Encryption | AES 256-bit, TCG/Opal v2.0 |
| Software | Samsung Magician |
