PCIe Card to 1x 10 Gigabit LAN NBASE-T RJ45, LAN Adapter
Delock PCIe LAN card offering up to 10 Gbps over Cat6/Cat6A copper cables using NBASE-T technology.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
This PCI Express card from Delock offers a network connection with a transfer rate of up to 10 Gbps over conventional Cat.6 or Cat.6A copper cables. Thanks to NBASE-T technology, additional speeds of 2.5 Gbps and 5 Gbps are possible. This allows higher transfer rates than 1 Gbps to be achieved when a 10 Gbps connection is not possible with the existing cable.
| Typ | LAN-Adapter |
| EAN | 4043619896547 |
| Manufacturer no. | 89654 |

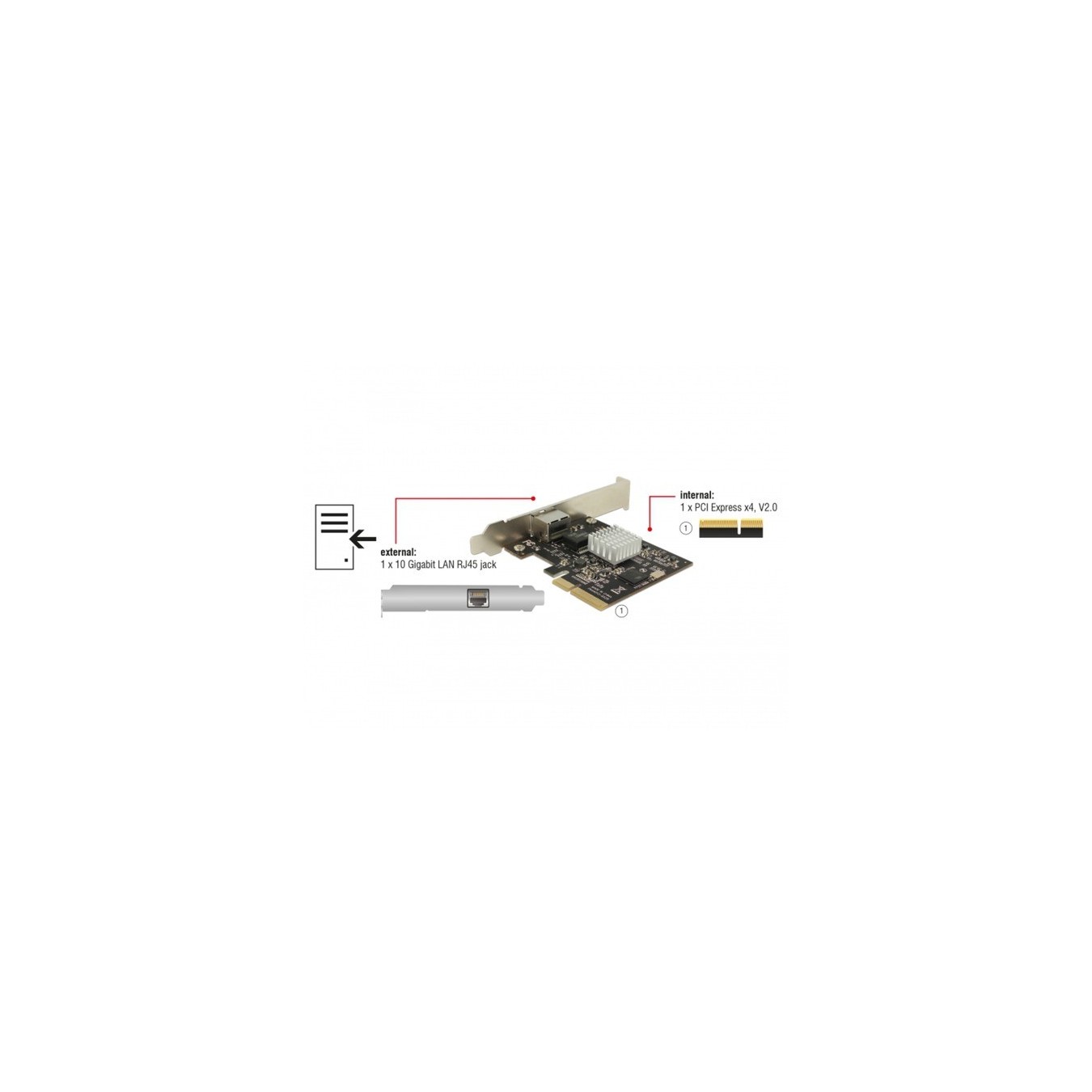

| slot | PCIe x4 Version 2.0 |
| Connectors - RJ-45 | 1 |
| Data transfer rates | LAN 10 GBit/s |
| Chipset | Tehuti TN4010 |
| Operating System - Supported | Linux, Windows 7, Windows 8, Windows 10, Windows Server 2012 |

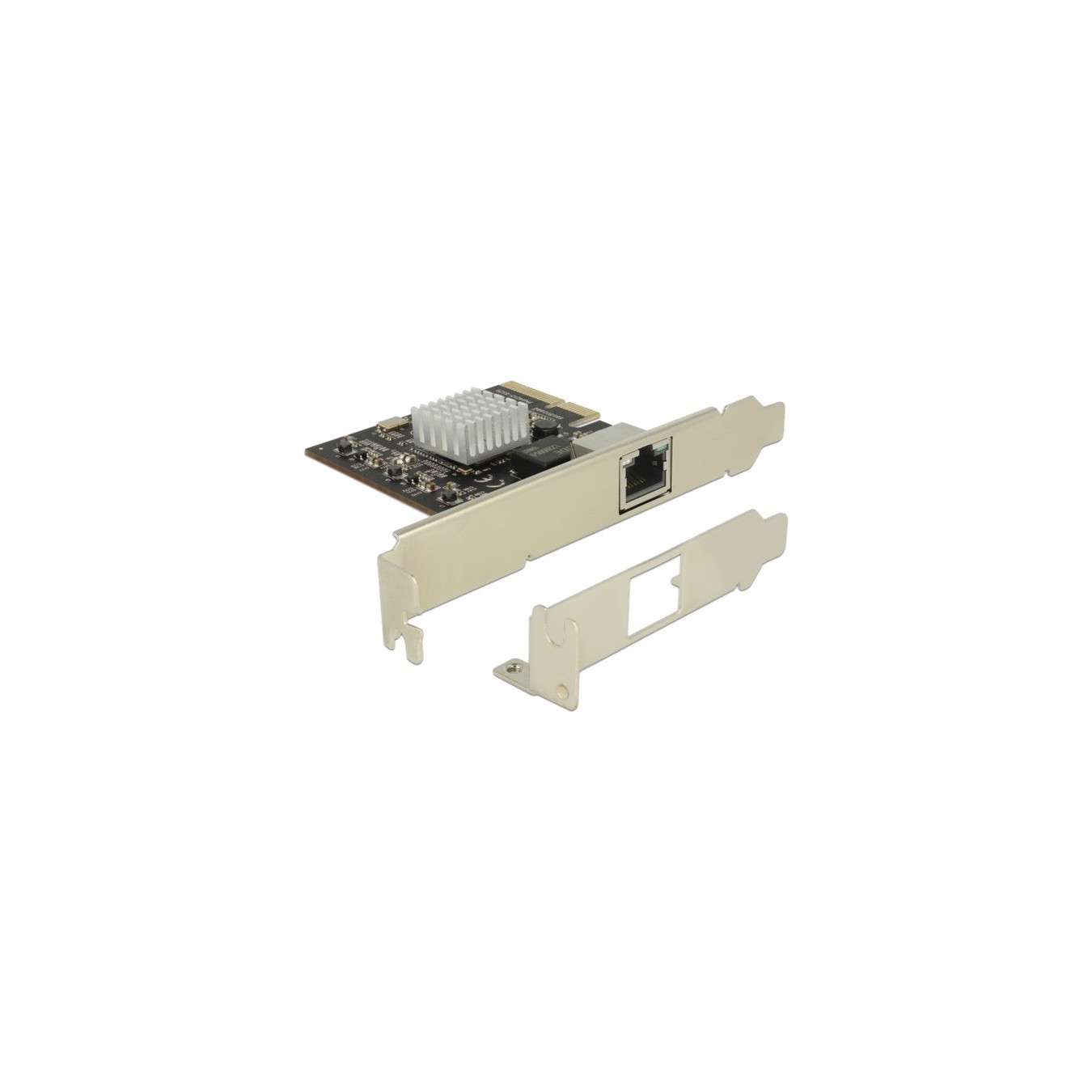

| Low Profile | optional |
| Feature | IEEE 802.3az (Energy Efficient Ethernet), 9k Jumbo Frames, IEEE 802.1Q Virtual LAN (VLAN), IEEE 802.3ad Link Aggregation |
| Accessories - available | Low profile bezel, driver CD, user manual |
| Weight | 150 Gramm |
