Gigabit Active 802.3at PoE Midspan, PoE Injector
DN-95132 indoor active PoE midspan injector delivering 52V DC at 0.58A to remote PDs via 2 pairs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

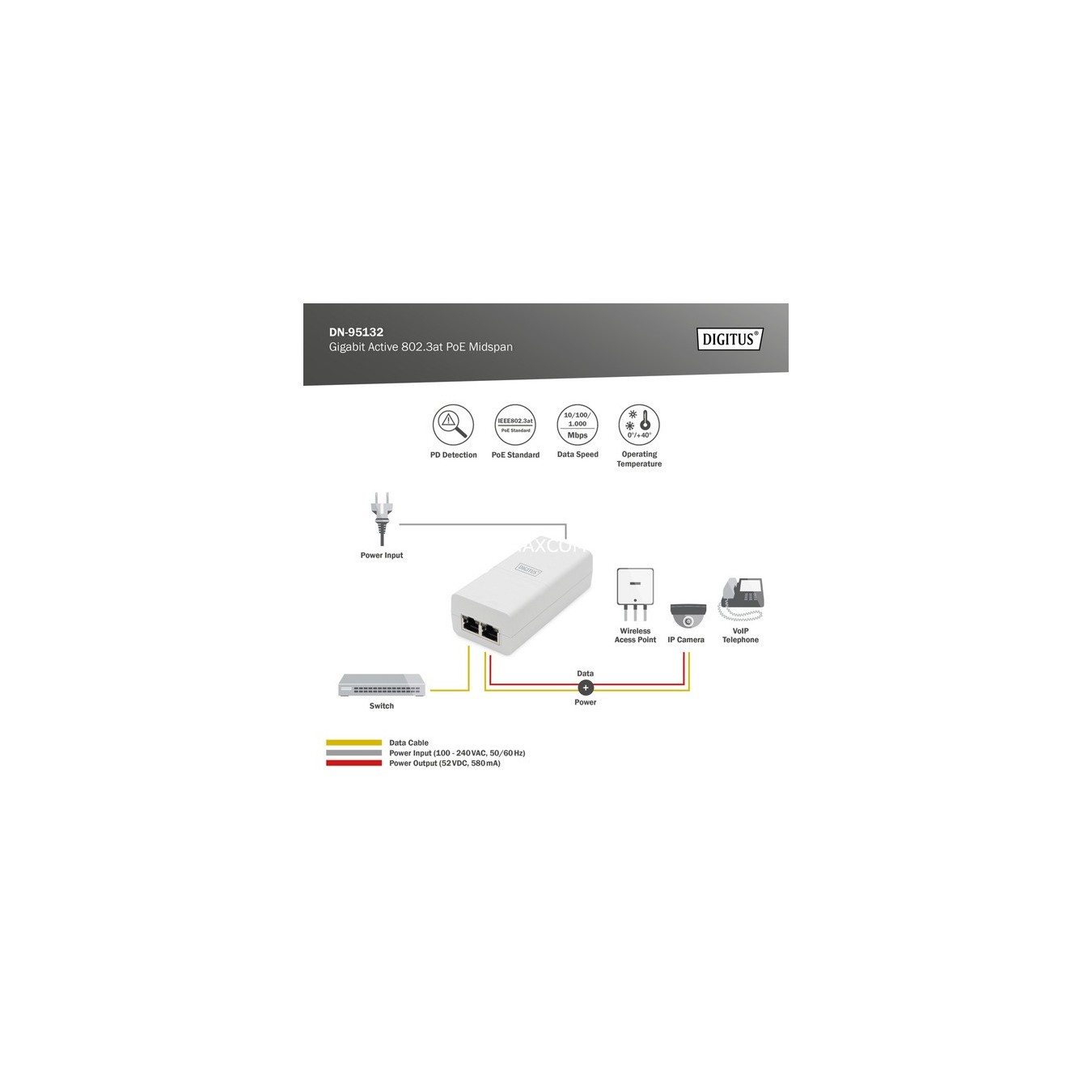

DN-95132 is an indoor active PoE midspan injector specifically designed for complex backhaul and network applications. It provides 52Vdc, 0.58A power for remote PDs via 2 pairs of output. It supports both 10/100 Base-T and Gigabit devices. It works for 30W PoE PDs, such as wireless APs, WiFi routers, network cameras, IP phones, microwave radio and other power Ethernet terminals. It fully complies with the IEEE802.3af/at PoE standard. Enclosed in an IP40 fire-retardant plastic housing. It works with a wide input voltage of 100-240 VAC, 50 or 60 Hz. It has a detection chip inside that detects and classifies PD before powering it. It will only supply power when a standards-compliant PD is detected.
| Typ | PoE-Injector |
| Color | white |
| EAN | 4016032485834 |
| Manufacturer no. | DN-95132 |
| Connections | 2x RJ-45 |
| Power supply - input voltage | 100-240 V |
| power source | Power outlet |
| Feature | Fully compliant with IEEE802.3af/at PoE standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet | Power Pins: 4/5(+), 7/8(-) | Data speed: 10/100/1000Mbit/s |

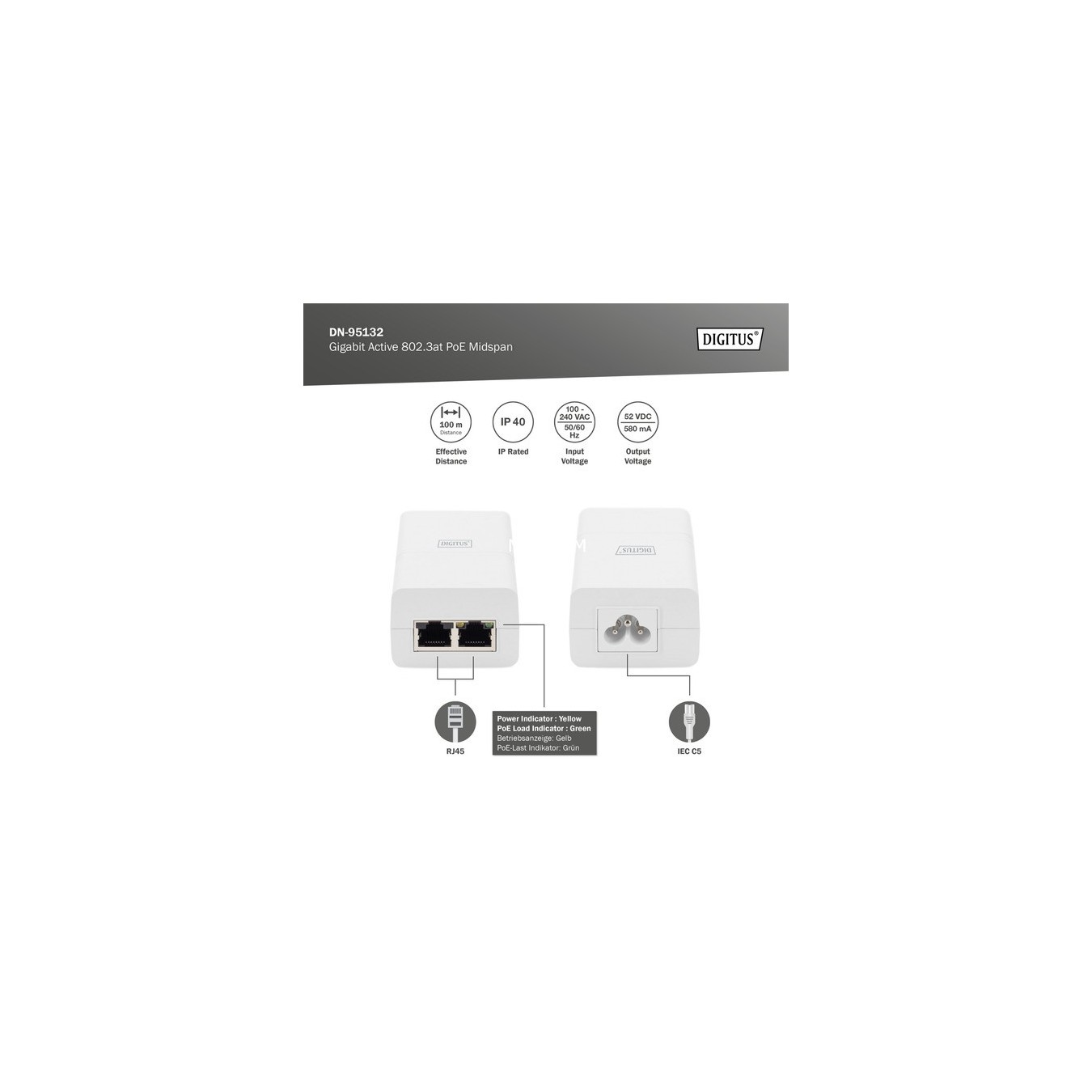

| More information | IP Rating: IP40 | Operating temperature: 0°C to 40°C | Humidity during operation: 20% to 80%, non-condensing | Humidity during operation: 20% to 80%, non-condensing | Power indicator: Yellow | PoE load indicator: Green |

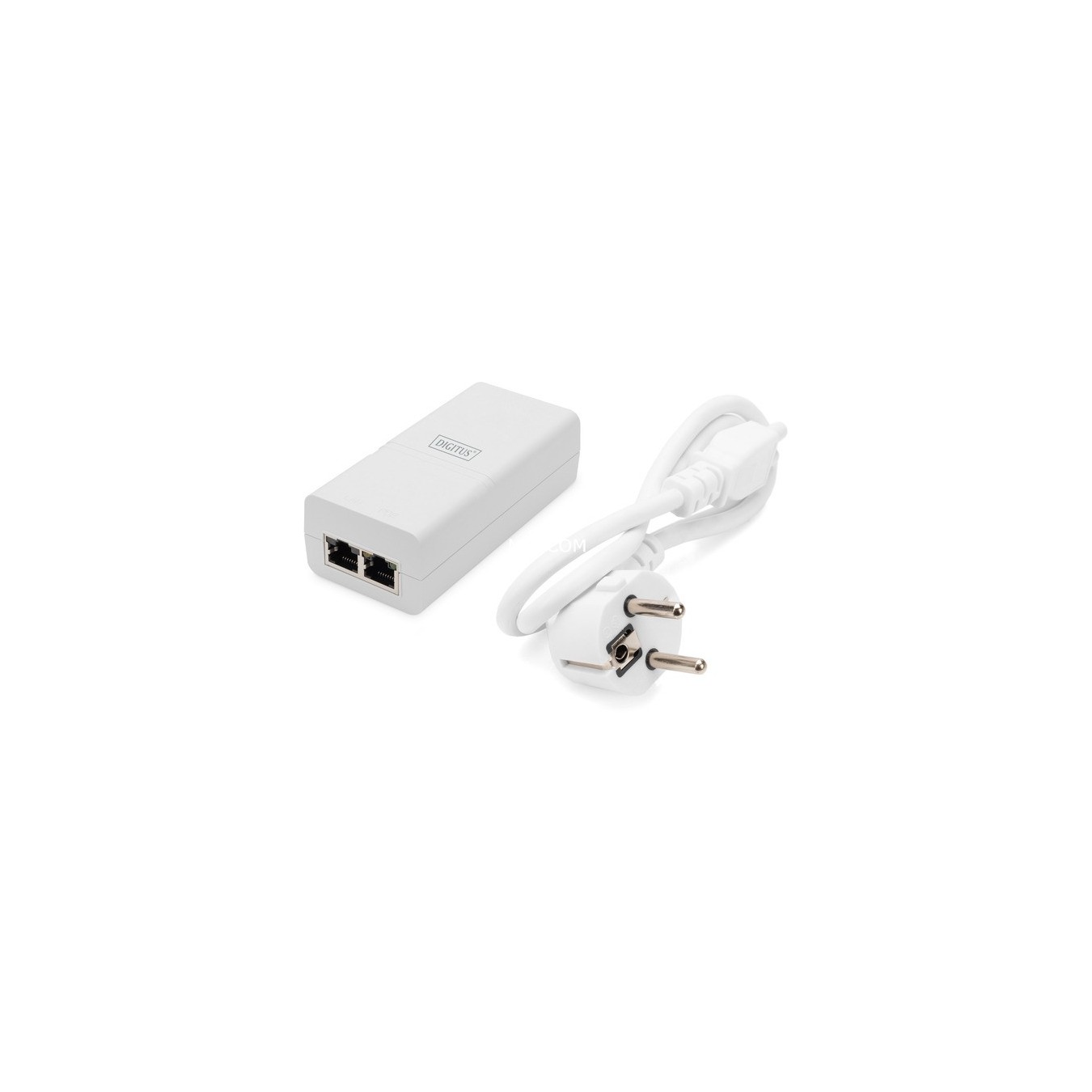

| Accessories - available | Power cord, manual |
| Dimensions | Width: 56mm x Height: 34mm x Depth/Length: 107.3mm |
| Weight | 147 Gramm |
