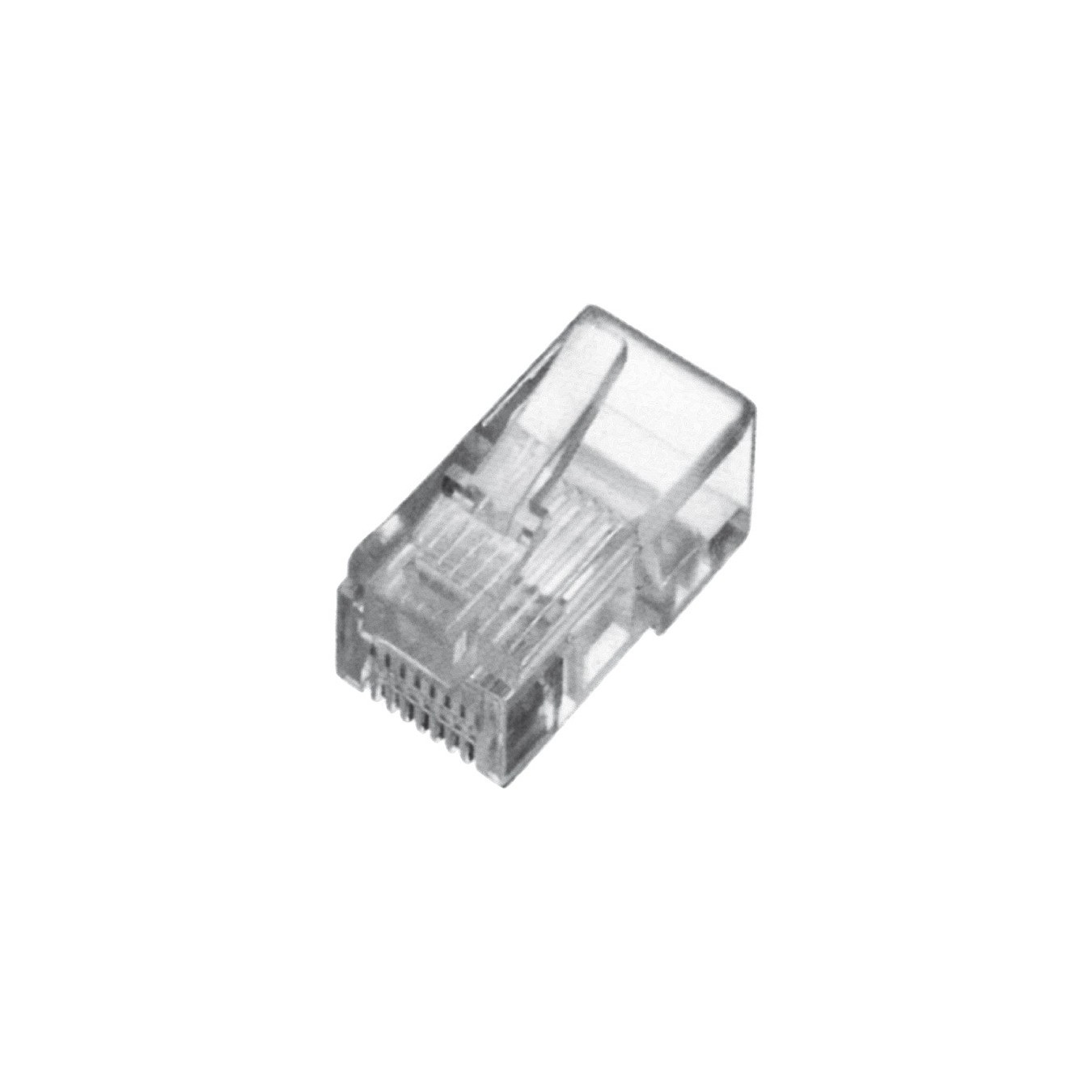

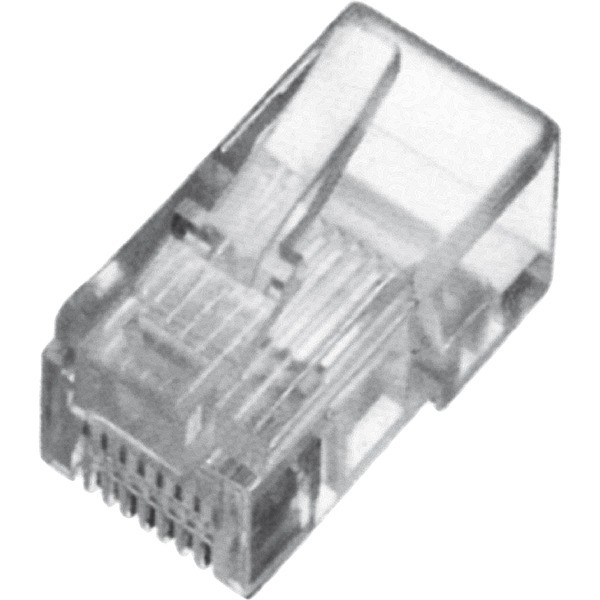

Modular connector for flat cables
DIGITUS modular plug for quick, easy self-assembly of patch cables.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The DIGITUS modular plug is suitable for quick and easy self-assembly for patch cable assembly.
| Typ | Plug |
| Color | transparent |
| EAN | 4016032065159 |
| Manufacturer no. | A-MO 8/8 SF |
| Area | network |
| taps | 1 |
| Feature | 1GBase-T | ISO/IEC 11801 3rd Ed., IN 50173-1, EIA/TIA 568-C | UL-value |
| More information | Socket mating cycle: > 750 according to ISO/IEC 11801, IEC 60603-7-5 | Plug housing material: polycarbonate, natural | Plug contact: phosphor bronze, nickel 0.6 μ gold-plated | Flammability: UL 94V-2 | Insertion force: ≤ 30 N | Operating temperature: -40 °C to +80 °C | Current carrying capacity: 1A -1.5A at 50°C |
| Dimensions | Width: 15mm x Height: 10mm x Depth/Length: 25mm |
