B650 AORUS ELITE AX ICE - Mainboard
GIGABYTE B650 AORUS ELITE AX ICE motherboard for AM5 with four DDR5 slots, up to 192 GB memory.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 4 |
|---|---|
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |

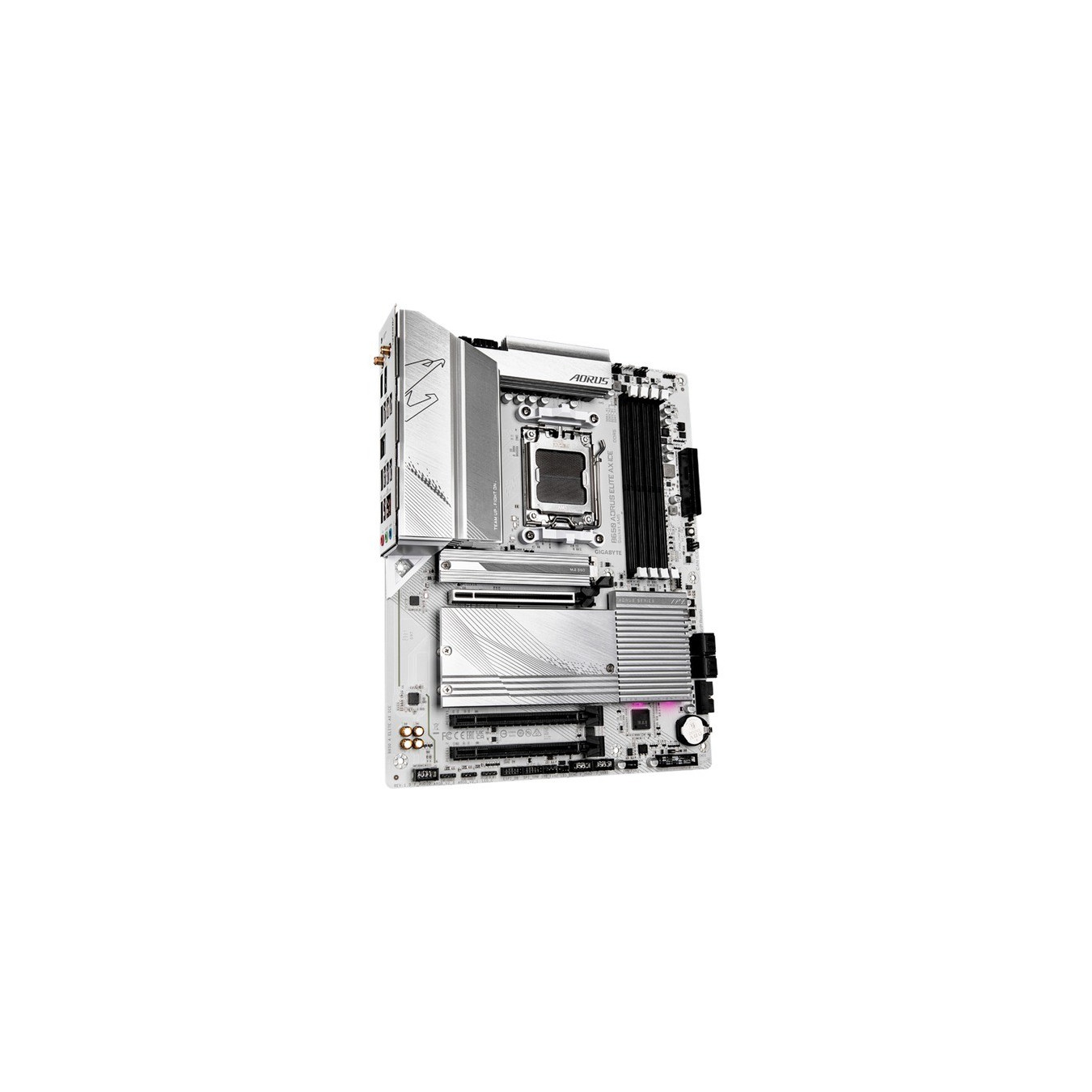

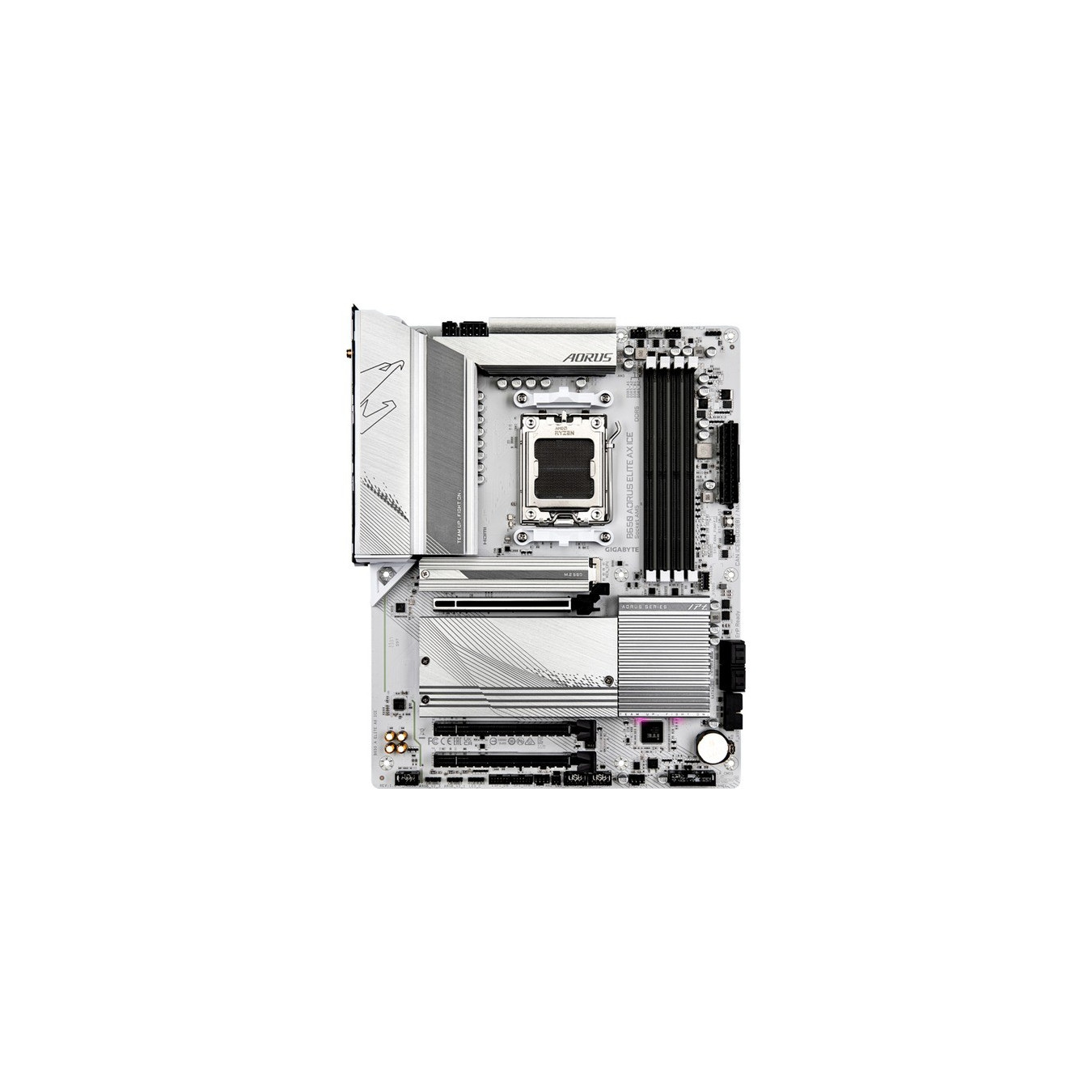

The GIGABYTE B650 AORUS ELITE AX ICE is based on the AMD B650 chipset and supports AMD processors for socket AM5. It has four DDR5 slots for up to 192 GB of memory. The GIGABYTE B650 AORUS ELITE AX ICE also features a PCIe 4.0 x16 slot and two PCIe 3.0 x16 slots. The GIGABYTE B650 AORUS ELITE AX ICE also has 8-channel sound, a 2.5 Gigabit LAN interface, WiFi 6E, Bluetooth, four SATA3 ports, three M.2 ports and a range of USB interfaces.
| Typ | Mainboard |
| Color | white |
| EAN | 4719331859374 |
| Manufacturer no. | B650 AORUS ELITE AX ICE |
| base | AM5 |
| Max. supported CPUs | 1 |
| Operating system support | Windows 10 ready, Windows 11 ready |
| Processor - Supported Models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) |
| Chipset | AMD B650 |
| Slots - PCIe x16 | 3x (davon: 1x PCIe x16, 2x PCIe x1) |
| BIOS | 256 Mbit flash AMI UEFI BIOS |
| Form factor | ATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 8-Pin + 4-Pin) |
| Memory - maximum | 192 GB |
| Ports (external) - USB-C 3.2 Gen 2x2 (20 Gbit/s) | 1 |
| Connectors (internal) - SATA | 4 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| RGB Standard | RGB Fusion |
| SATA Controller | AMD B650 |
| directly usable RAID levels | 0, 1, 10 |
| USB-Controller | AMD B650 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | Realtek® Audio |
| LAN | Realtek® 2.5GbE LAN chip |
| More information | The graphics interfaces of the mainboard can only be used when using a processor with an integrated graphics chip. |
