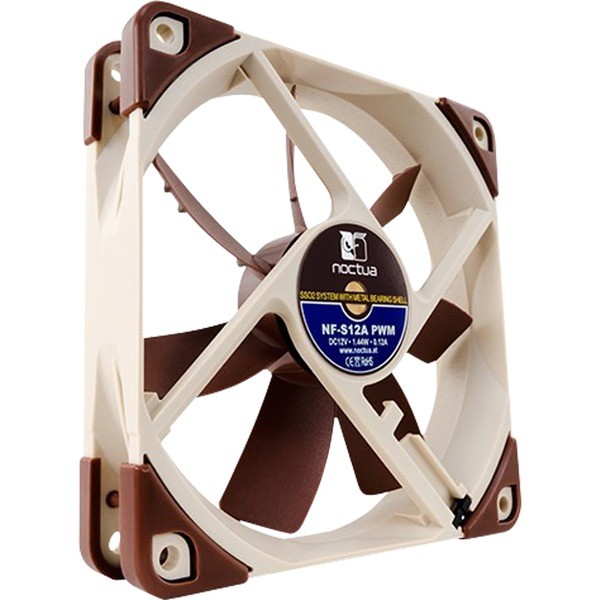

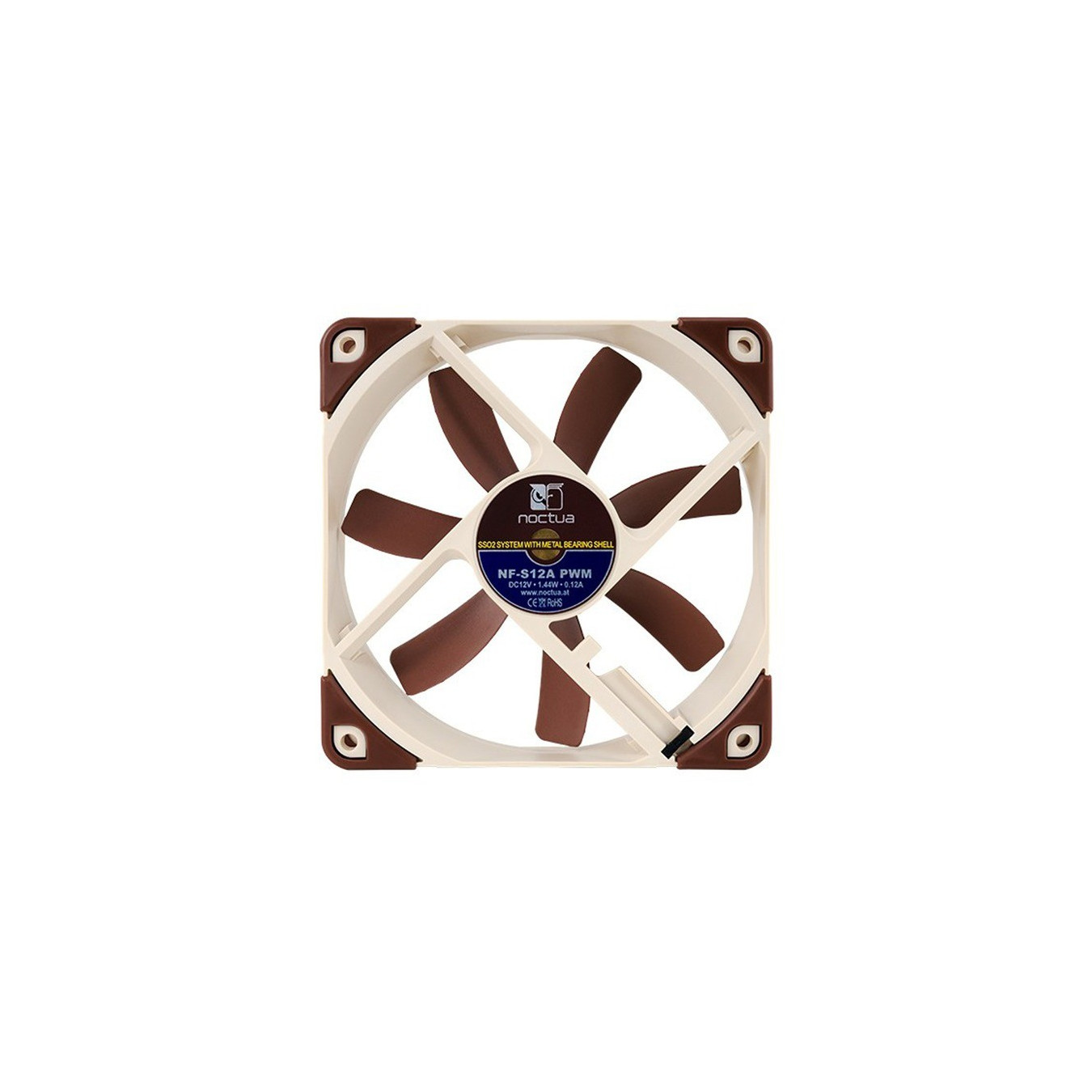

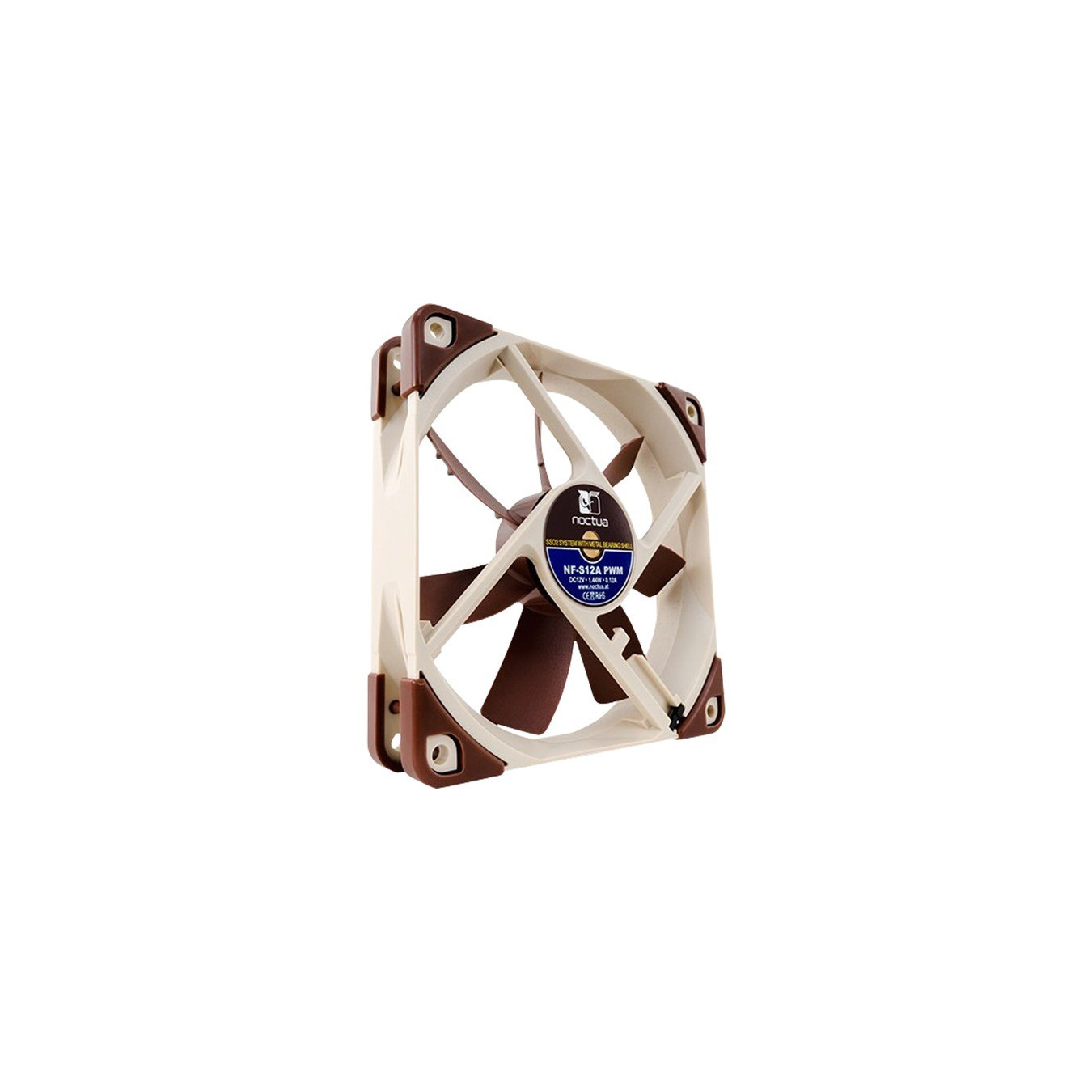

Case Fan - NF-S12A PWM - Case fan
Brown 120x120x25mm Noctua NF-S12A PWM case fan with 4-pin PWM, 12V, 1.44W; 300–1200 RPM; 83.2–107.5 m³/h; 0.73–1.19 mmH2O; includes L.N.A., Y-cable, 30 cm extension, vibration dampers and screws.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Fan Size | 120 mm |
|---|
The NF-S12A case fan marks the third generation of Noctua's classic S12 series, which has received more than 250 awards and recommendations in the international trade press. Thanks to the further developed blade geometry with anti-stall knobs and the new AAO frame (short for Advanced Acoustic Optimization), the NF-S12A achieves up to 8% higher efficiency (flow rate/noise development) compared to its renowned predecessor. The PWM version uses Noctua's specially designed NE-FD1 IC for fully automatic speed control via 4-pin connections and is supplied with a low-noise adapter, through which the maximum speed in PWM operation can be reduced from 1200 to 900rpm. Its excellent smoothness, SSO2 reference class bearing and Noctua's proven premium quality make the NF-S12A an excellent choice for noise-optimized case cooling.
| Typ | Case fan |
| Color | braun |
| EAN | 4716123314929 |
| Manufacturer no. | NF-S12A PWM |
| Art | Case fan |
| Fastening | screwed |
| volume | 10.7dB to 17.8dB |
| speed | 300 bis 1,200 U/min |
| Fan storage | SSO |
| Volume flow | 83,2 m³/h - 107,5 m³/h (49 cfm - 63,3 cfm) |
| Air pressure | From 0.73 mm/H2O to 1.19 mm/H2O |
| Power connection | 4-Pin-PWM |
| Voltage range | 12 Volt |
| Power consumption | 1,44 Watt |

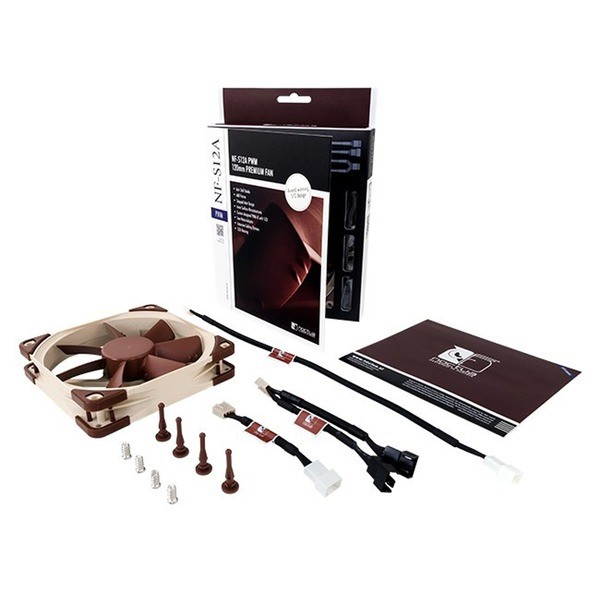

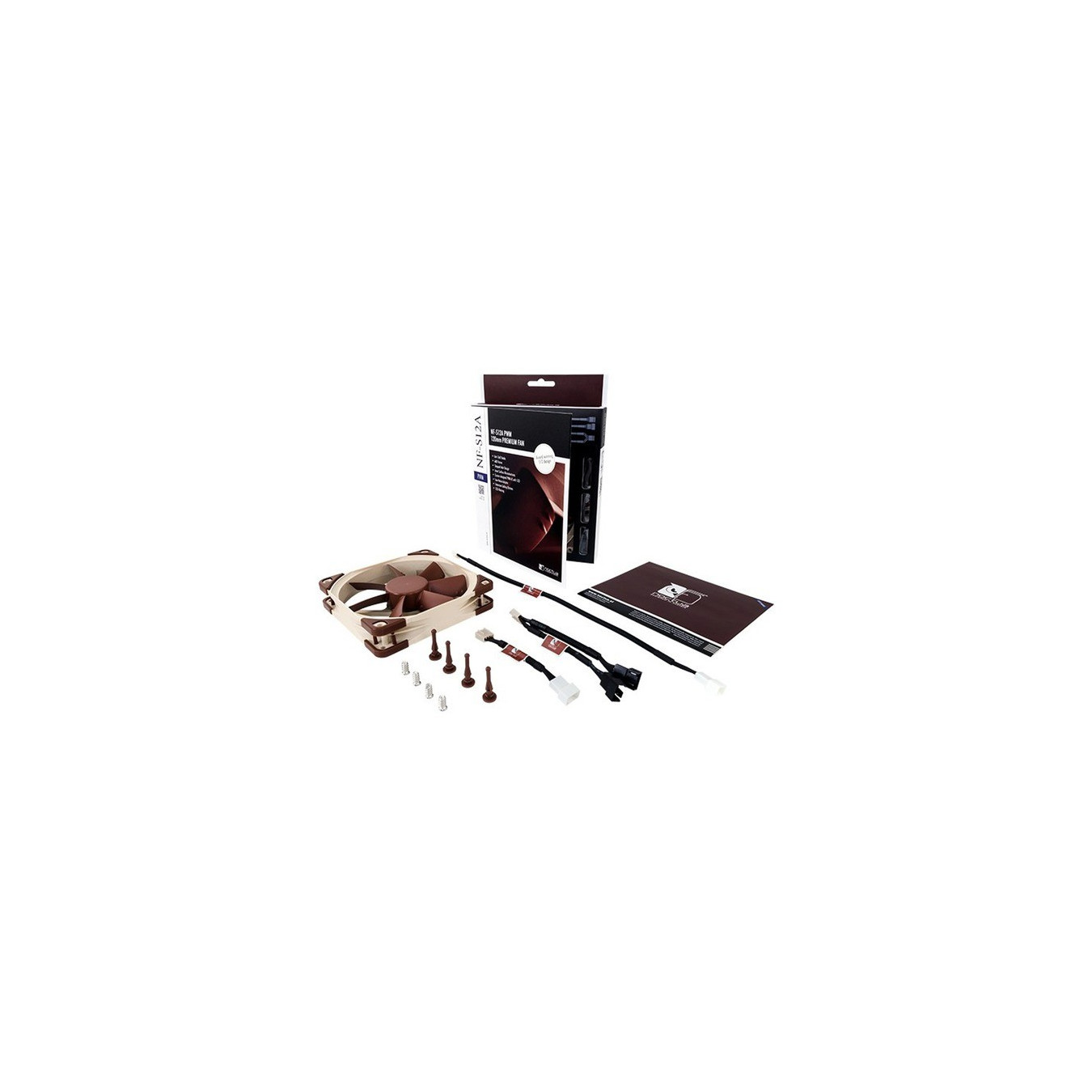

| Accessories - available | Low-noise adapter (L.N.A.), 4-pin Y-cable, 30 cm cable extension, 4x vibration compensators, 4x fan screws |
| Dimensions - Fan1 | Quantity: 1 piece, width: 120 mm, height: 120 mm, depth: 25 mm |
| Weight - Total | 300 Gramm |
