ASUS PRIME B760-Plus LGA1700 ATX DDR5 MB up to 192GB PCIe 5.0 HDMI 2.1 2.5Gb LAN (Boxed)
ATX LGA1700 Intel B760 motherboard supports DDR5 up to 192GB (4xDIMM), PCIe 5.0 x16, 3x PCIe 4.0 M.2 w/heatsinks, 4x SATA, HDMI 2.1+DP 1.4+VGA, Realtek 2.5Gb LAN, rear USB-C 3.2 Gen2x2, Aura Sync RGB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | None |

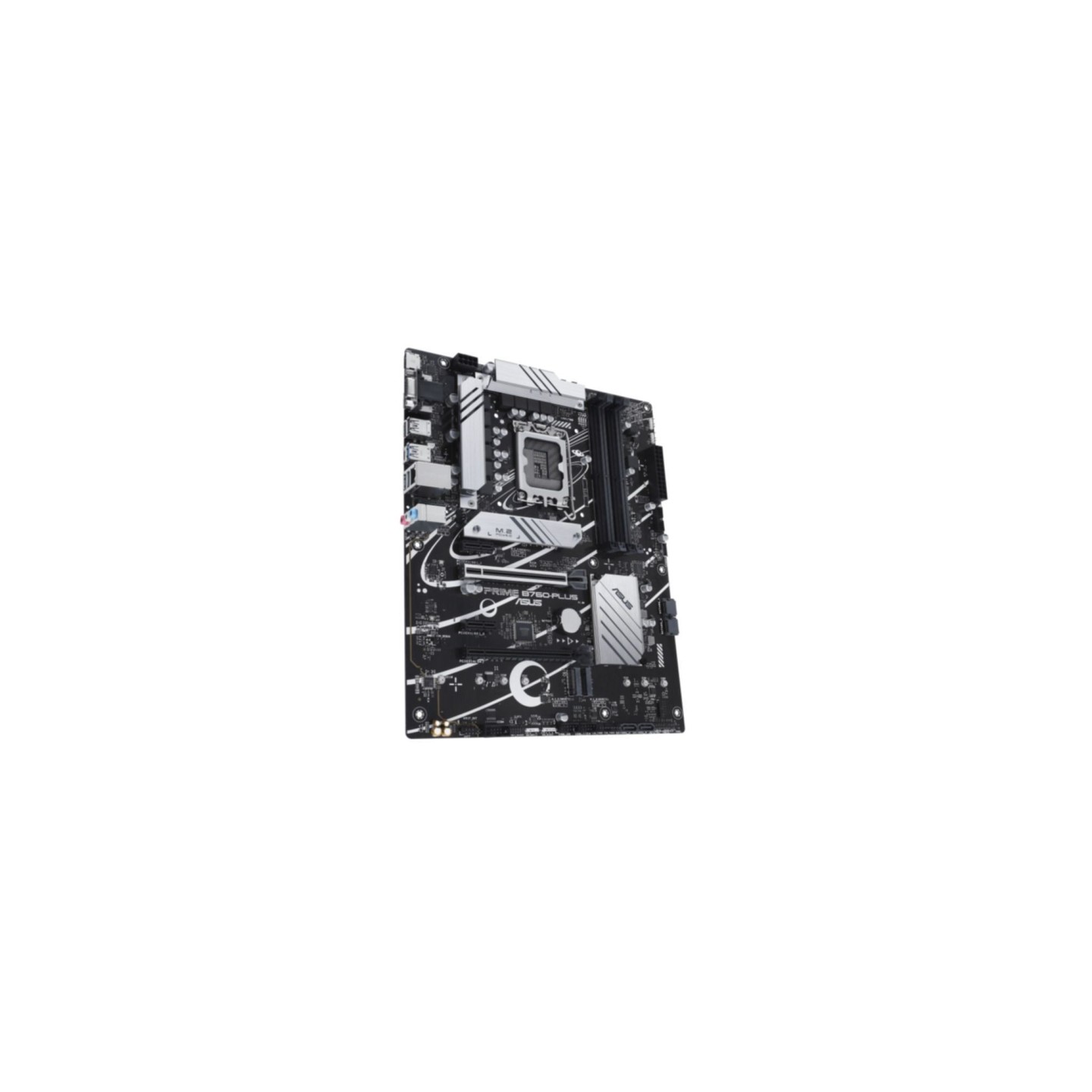

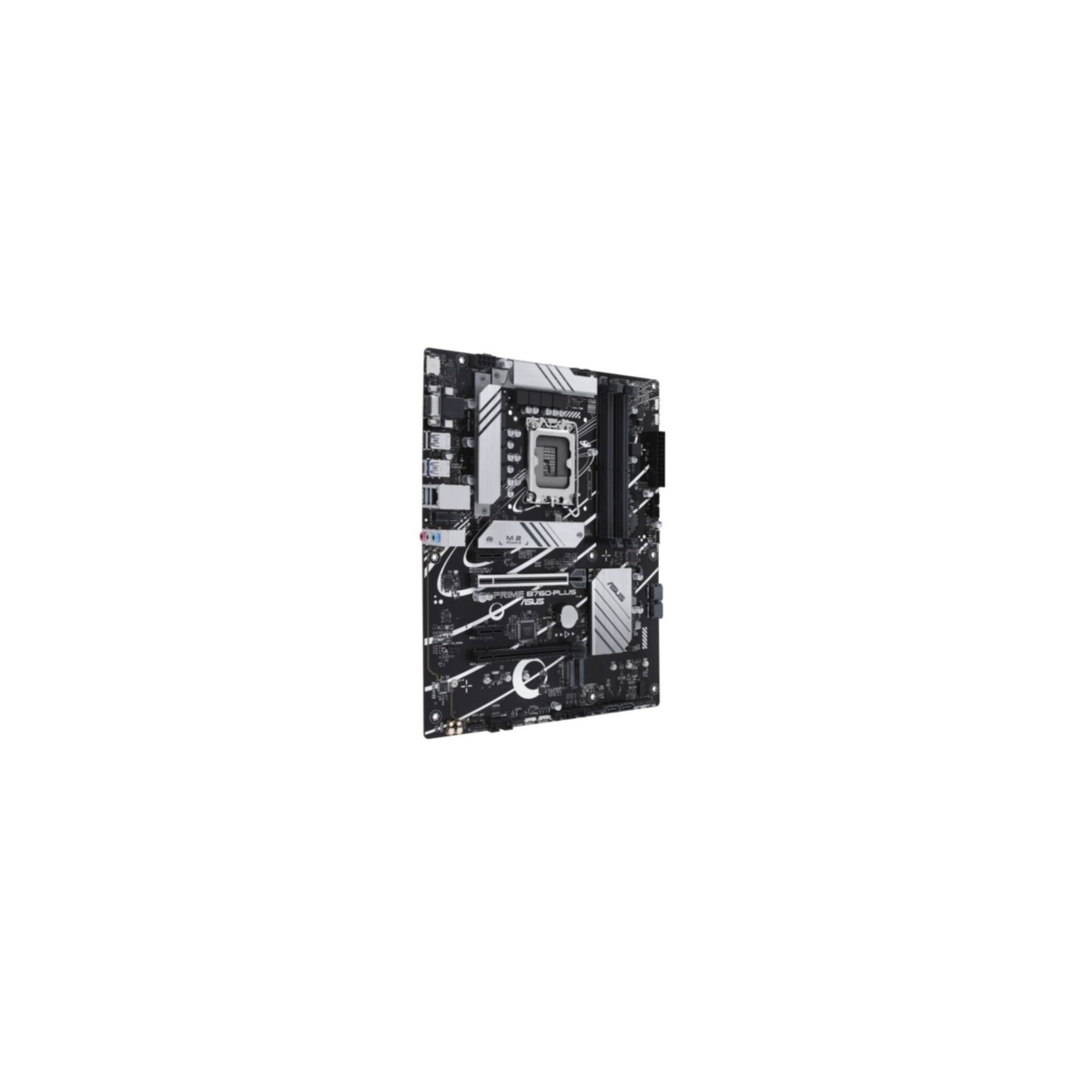

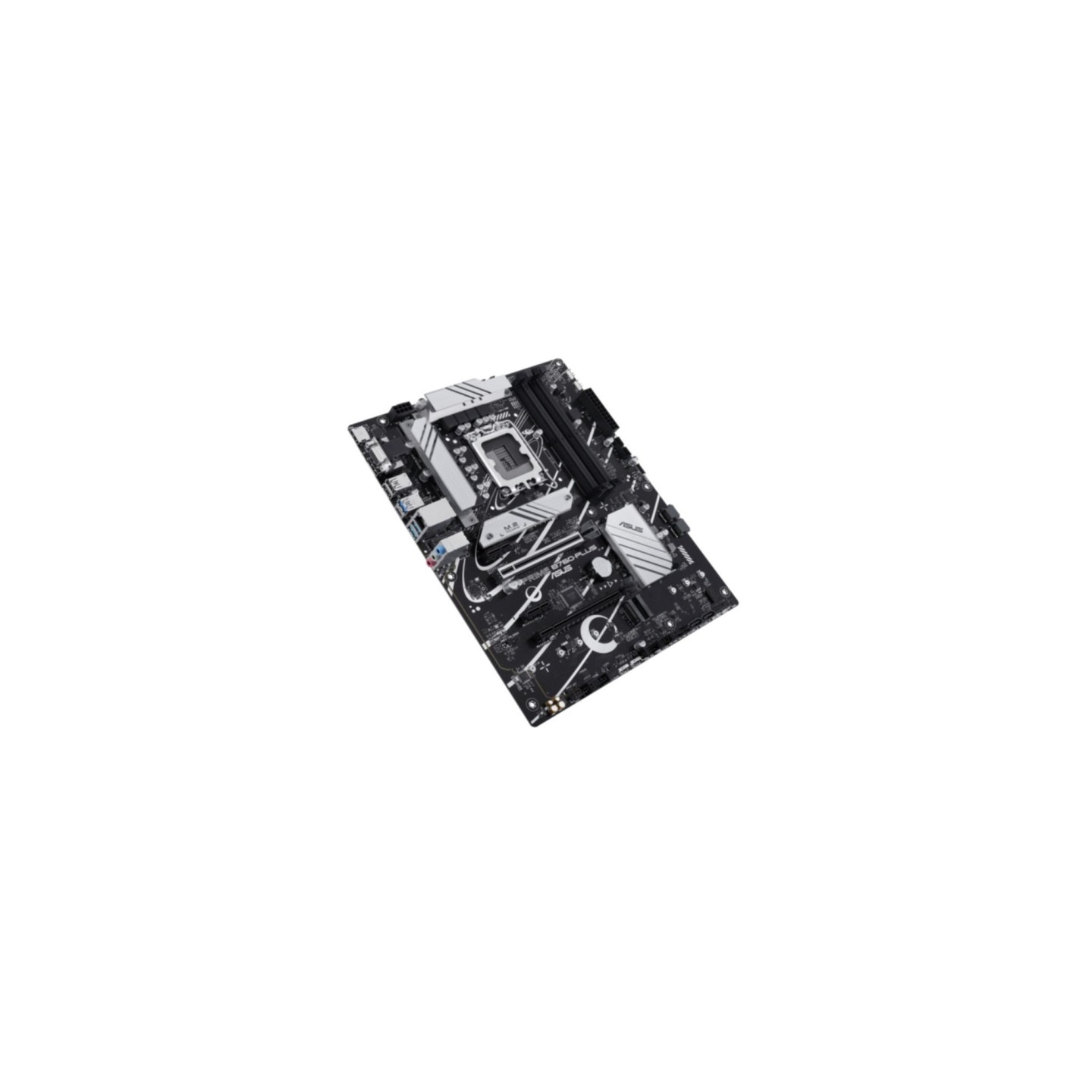

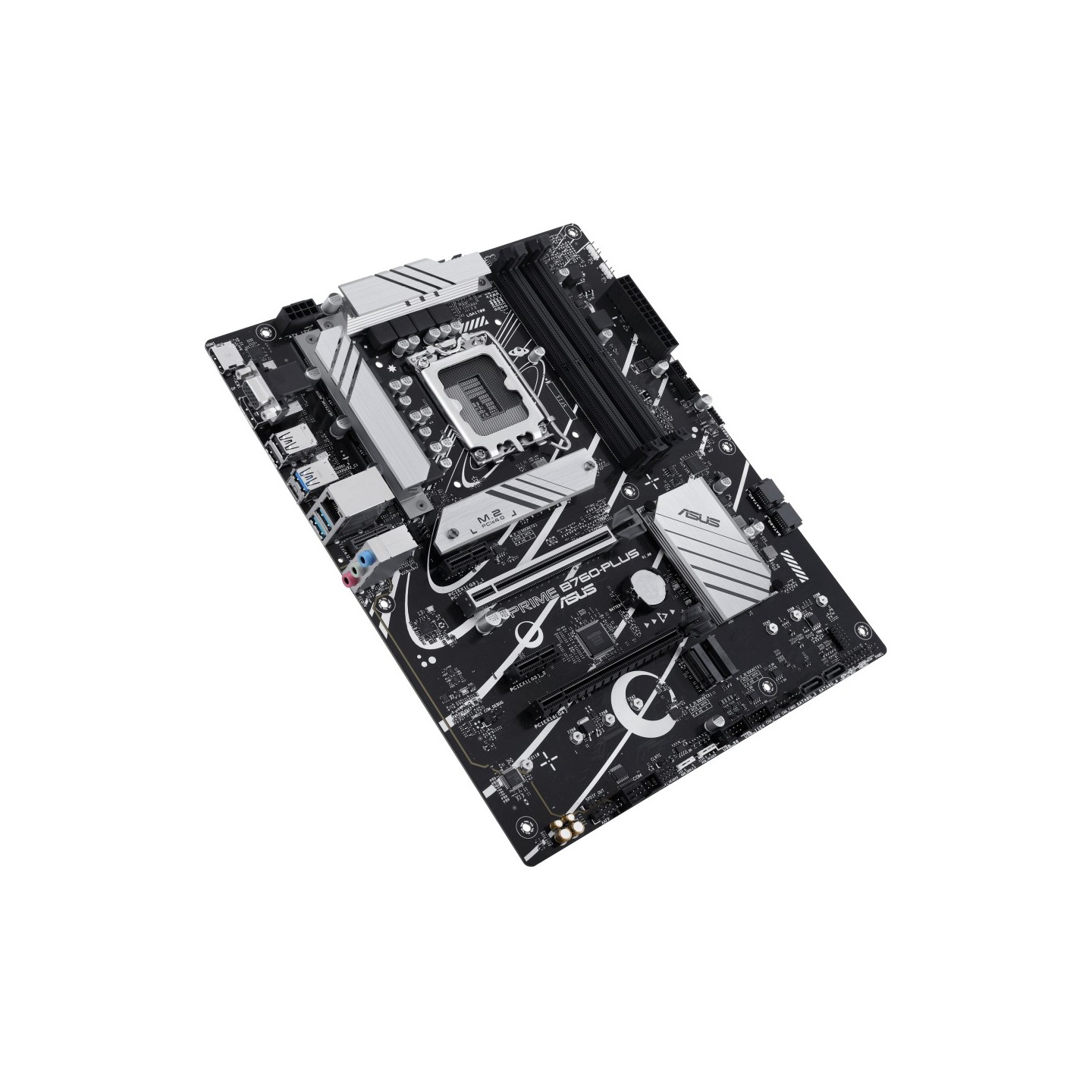

The ASUS PRIME B760-PLUS is a feature-rich ATX motherboard designed for 12th/13th/14th Gen Intel Core processors using the LGA 1700 socket and B760 chipset. It delivers excellent performance for gaming, content creation, and productivity with support for DDR5 memory up to 192GB across 4 DIMM slots, enhanced by ASUS OptiMem for stability.

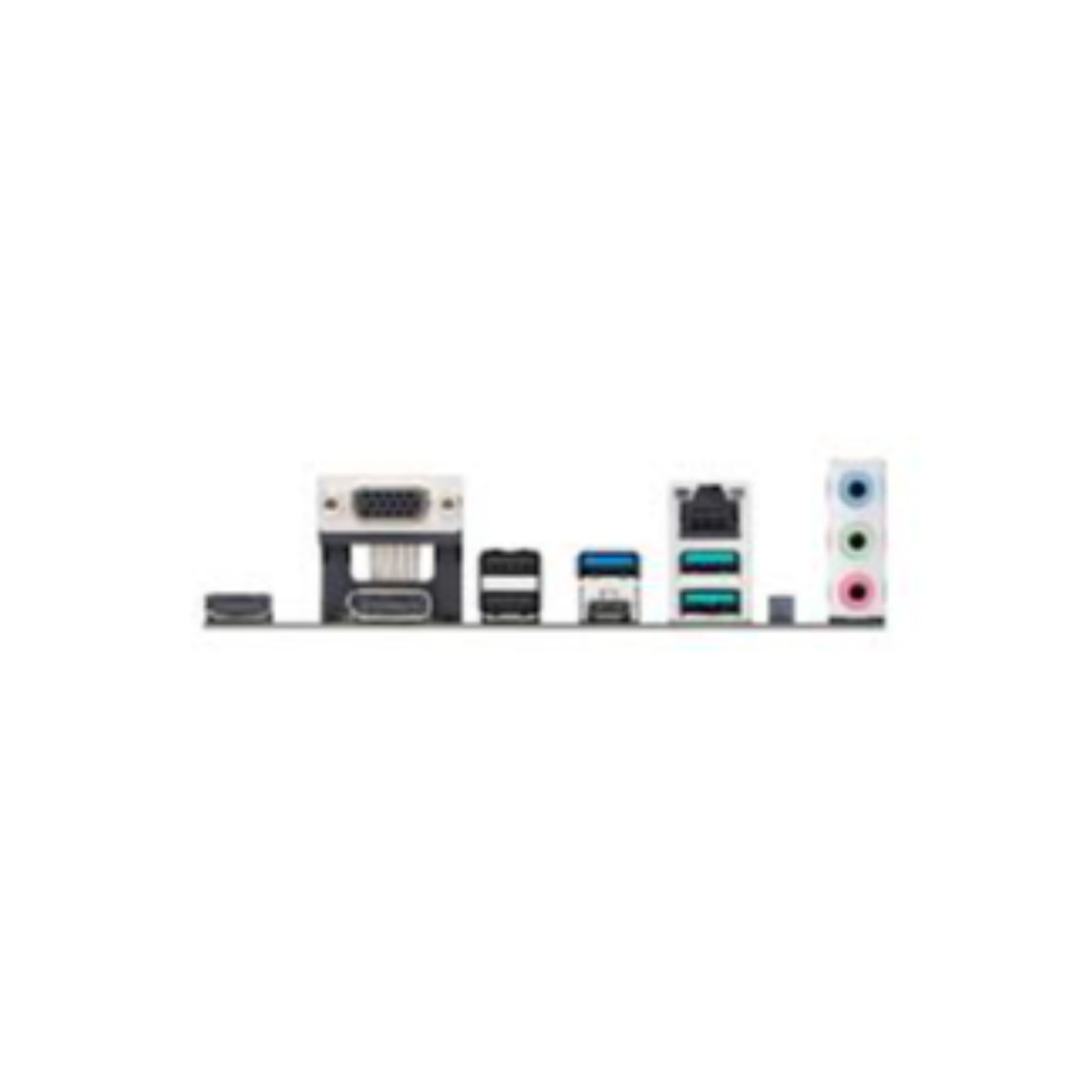

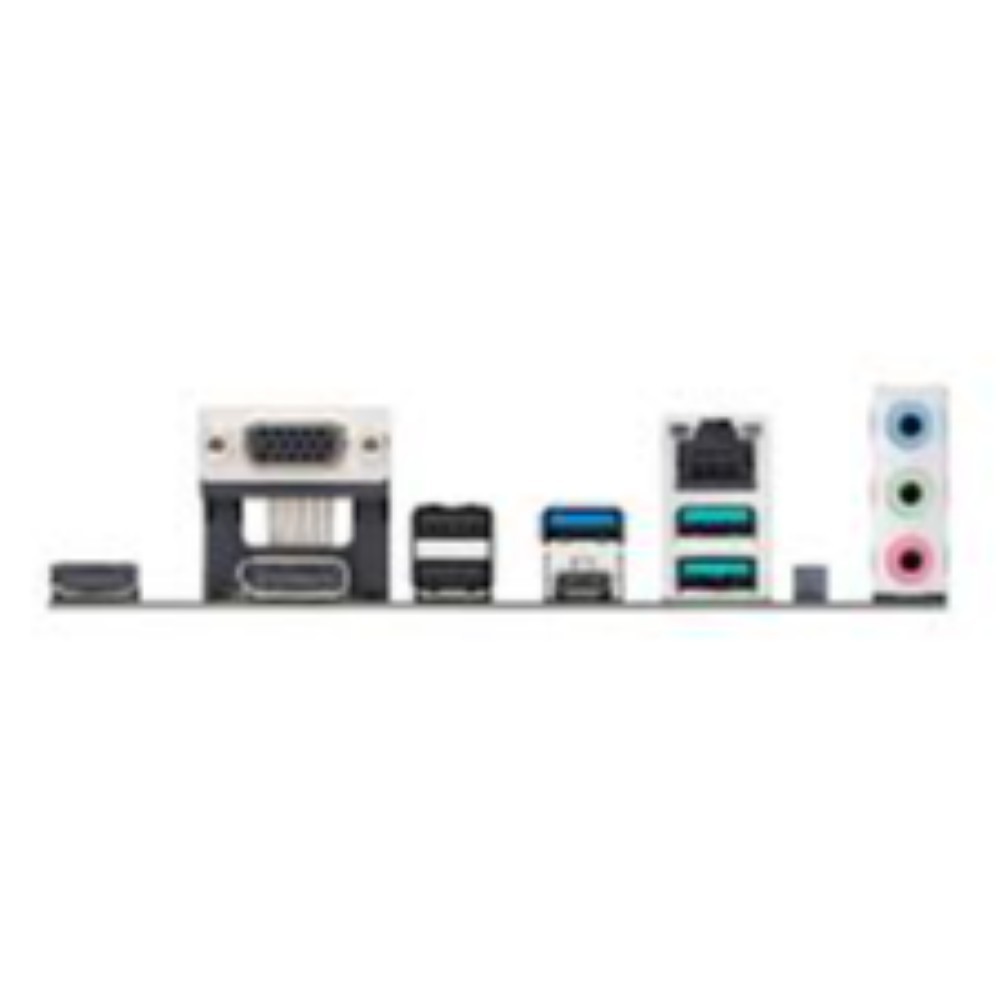

Key connectivity includes a PCIe 5.0 x16 slot for future-proof GPUs, three PCIe 4.0 M.2 slots with heatsinks for fast NVMe SSDs, four SATA 6Gbps ports with RAID 0/1/5/10 support, Realtek 2.5Gb Ethernet, and comprehensive USB including rear 3.2 Gen 2x2 Type-C and front Type-C header. Video outputs feature HDMI 2.1, DisplayPort 1.4, and VGA. Comprehensive cooling with VRM/M.2/PCH heatsinks and hybrid fan headers ensures reliability.
- CPU: LGA 1700 (Intel Core i9/i7/i5/i3/Celeron/Pentium Gold)
- Memory: 4x DDR5 DIMM, Dual-channel, up to 7200+ MHz (OC)
- Storage: 3x M.2 PCIe 4.0, 4x SATA III
- Expansion: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe 3.0 x1
- Network: 2.5 Gigabit Ethernet (Realtek)
- Audio: 7.1-channel HD audio
- RGB: Aura Sync ARGB + RGB headers
- No WiFi/Bluetooth (add via expansion)
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC compatibility | Non-ECC |
| Supported memory clock speeds | 4800.5000.5200.5400.5600.5800.6000.6200.6400.6600.6800.7000.7200 MHz |
| Maximum internal memory | 192 GB |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | ATX |
| Number of M.2 (M) slots | 3 |
| Number of SATA III connectors | 4 |
| RAID levels | 0. 1. 5. 10 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Front USB 3.2 Gen 1 Type-C header | Yes |
| Thunderbolt headers | 1 |
| Aura Sync RGB | Yes (ARGB Gen2 + RGB headers) |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Cooling type | Passive (VRM/M.2/PCH heatsinks) |
| Package width | 328 mm |
| Package depth | 266 mm |
| Package height | 53 mm |
| Package weight | 1.2 kg |
| Width | 305 mm |
| Depth | 244 mm |
