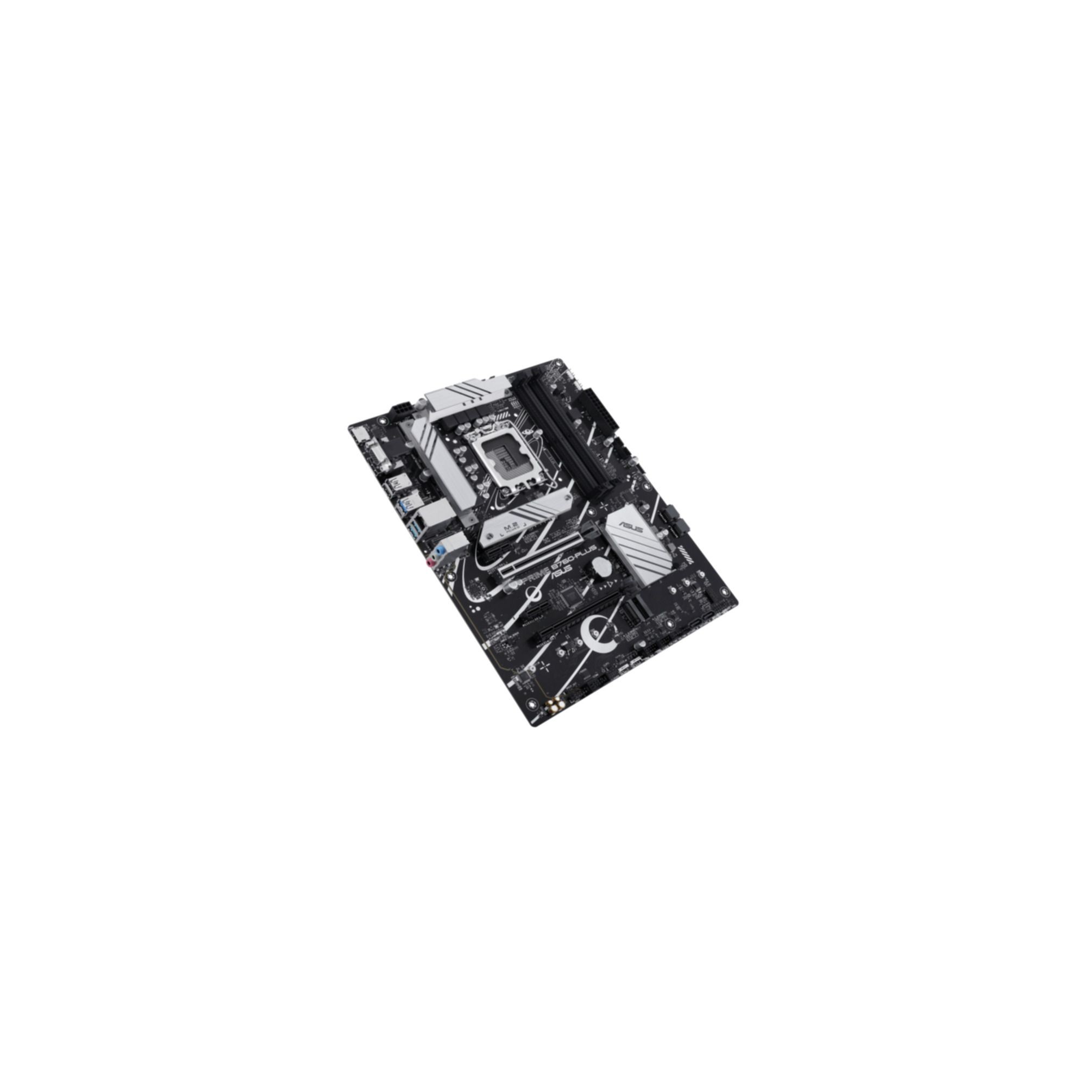

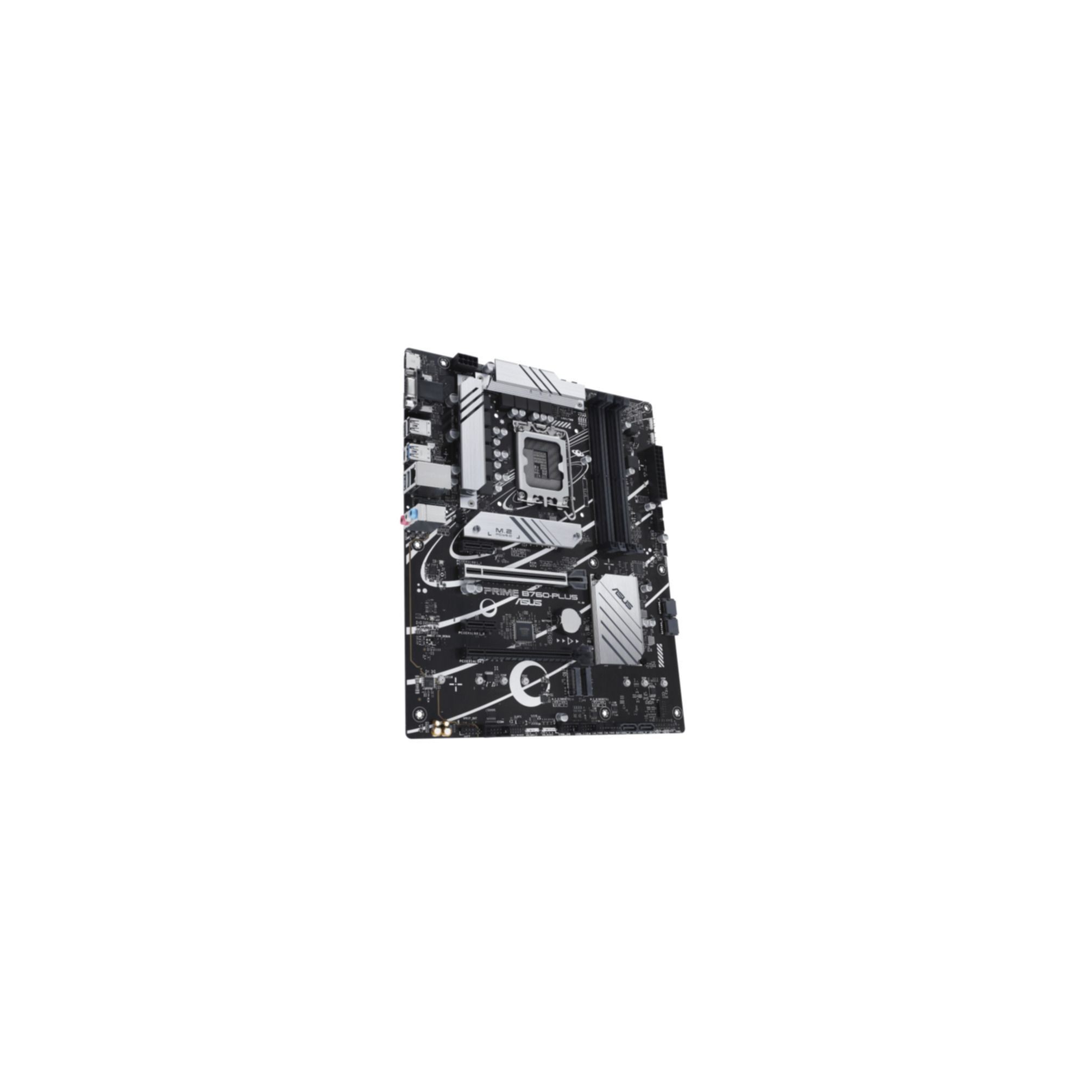

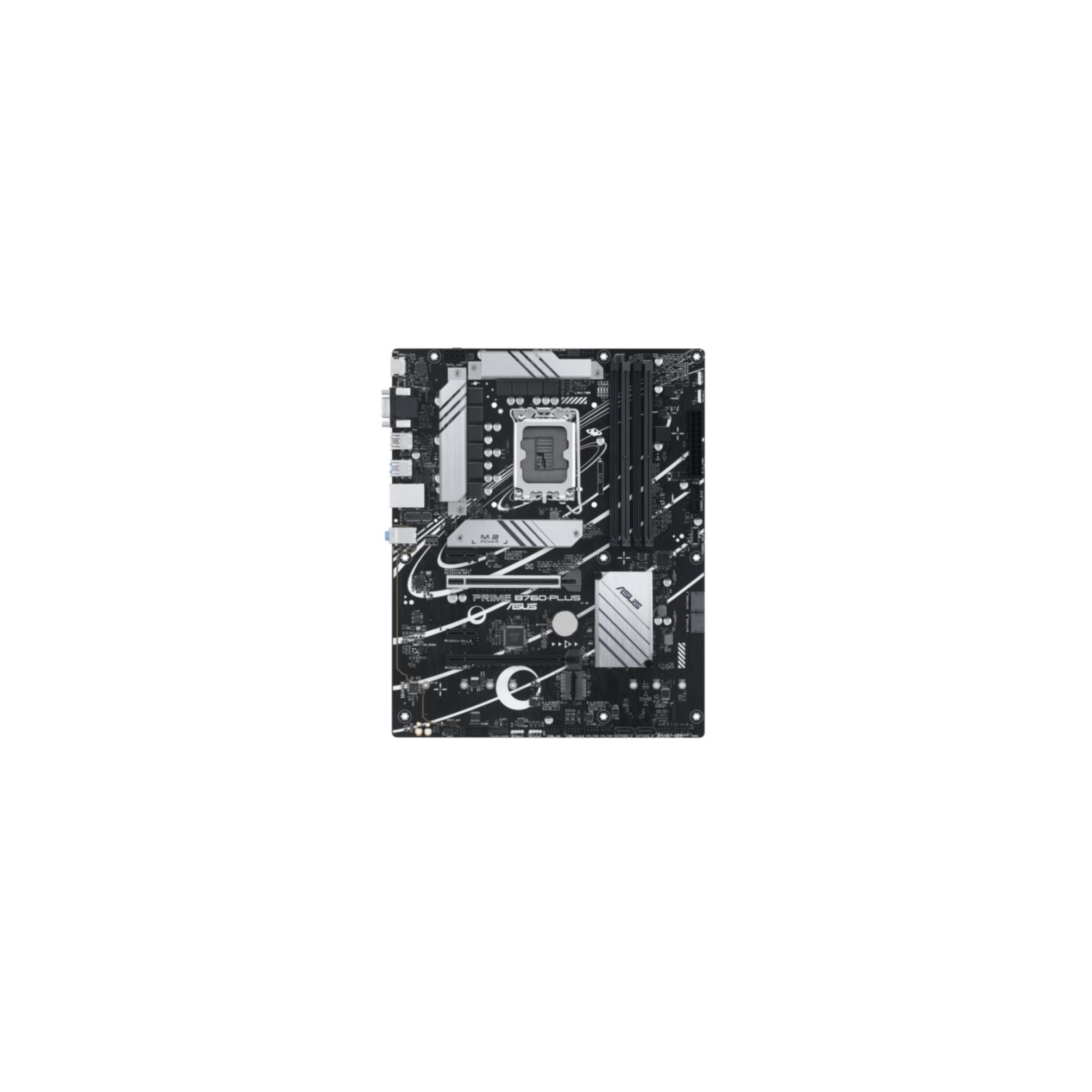

ASUS PRIME B760-Plus - LGA1700 ATX DDR5 Motherboard, Up to 192GB, PCIe 5.0, HDMI 2.1, 2.5Gb LAN
ATX LGA1700 motherboard (Intel B760) with DDR5 support up to 192GB (4 DIMM), PCIe 5.0, 3x M.2, 4x SATA, HDMI 2.1, DisplayPort 1.4, 2.5Gb Ethernet, rear USB-C
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | LGA1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 5.0 |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | Rear Type-C |
ASUS PRIME B760-PLUS. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9..... Supported memory types: DDR5-SDRAM. Maximum internal memory: 192 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 5. 10. Ethernet interface type: 2.5 Gigabit Ethernet. Fast Ethernet. Gigabit Ethernet. Component for: PC. Motherboard form factor: ATX. Motherboard chipset family: Intel
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800.5000.5200.5400.5600.5800.6000.6200.6400.6600.6800.7000.7200 MHz |
| Maximum internal memory | 192 GB |
| Feature | Ethernet LAN |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID levels | 0. 1. 5. 10 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |

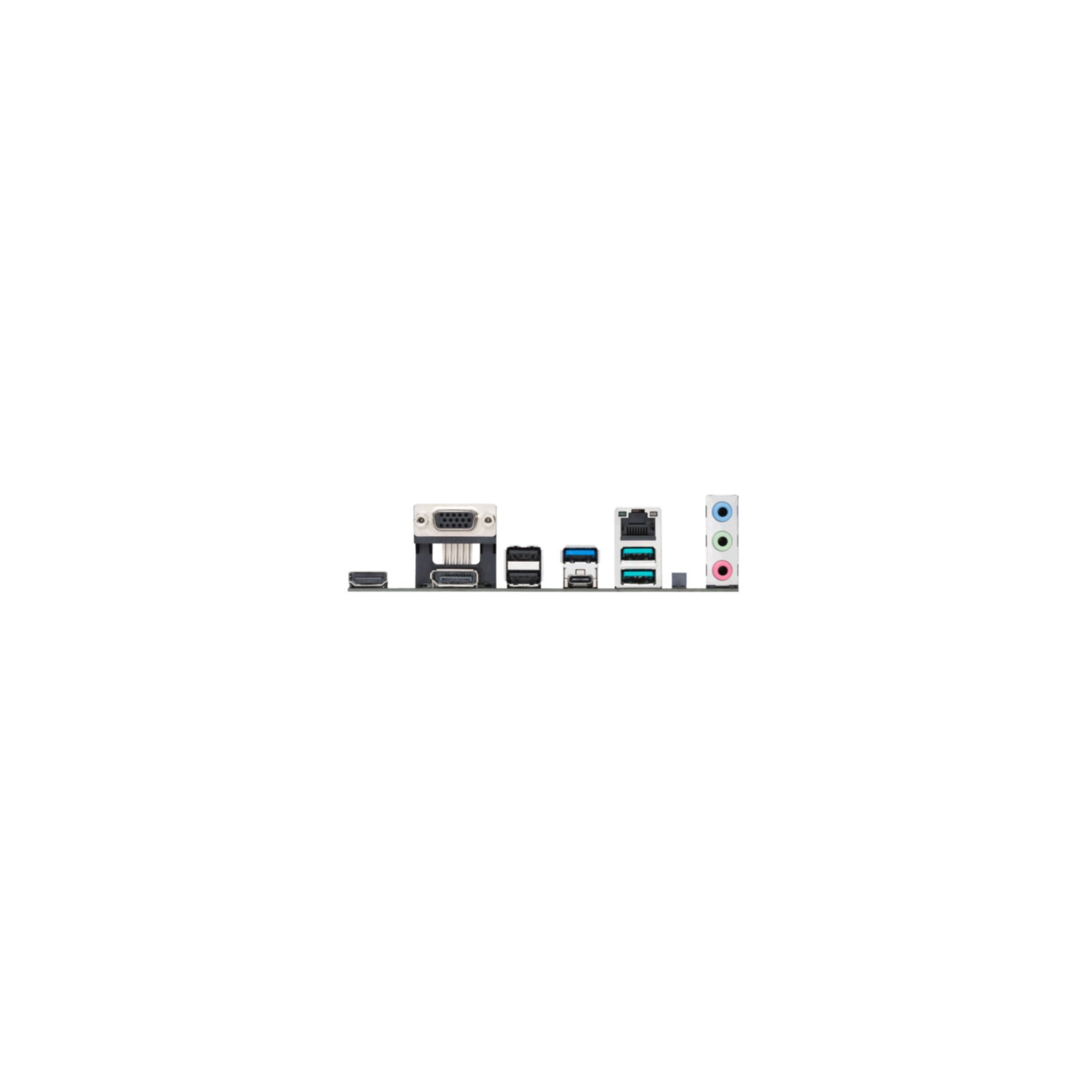

| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet. Fast Ethernet. Gigabit Ethernet |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64. Windows 11 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Package width | 328 mm |
| Package depth | 266 mm |
| Package height | 53 mm |
| Package weight | 1.2 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 36 mm |
| Cables included | SATA |
| Weight | 760 g |
