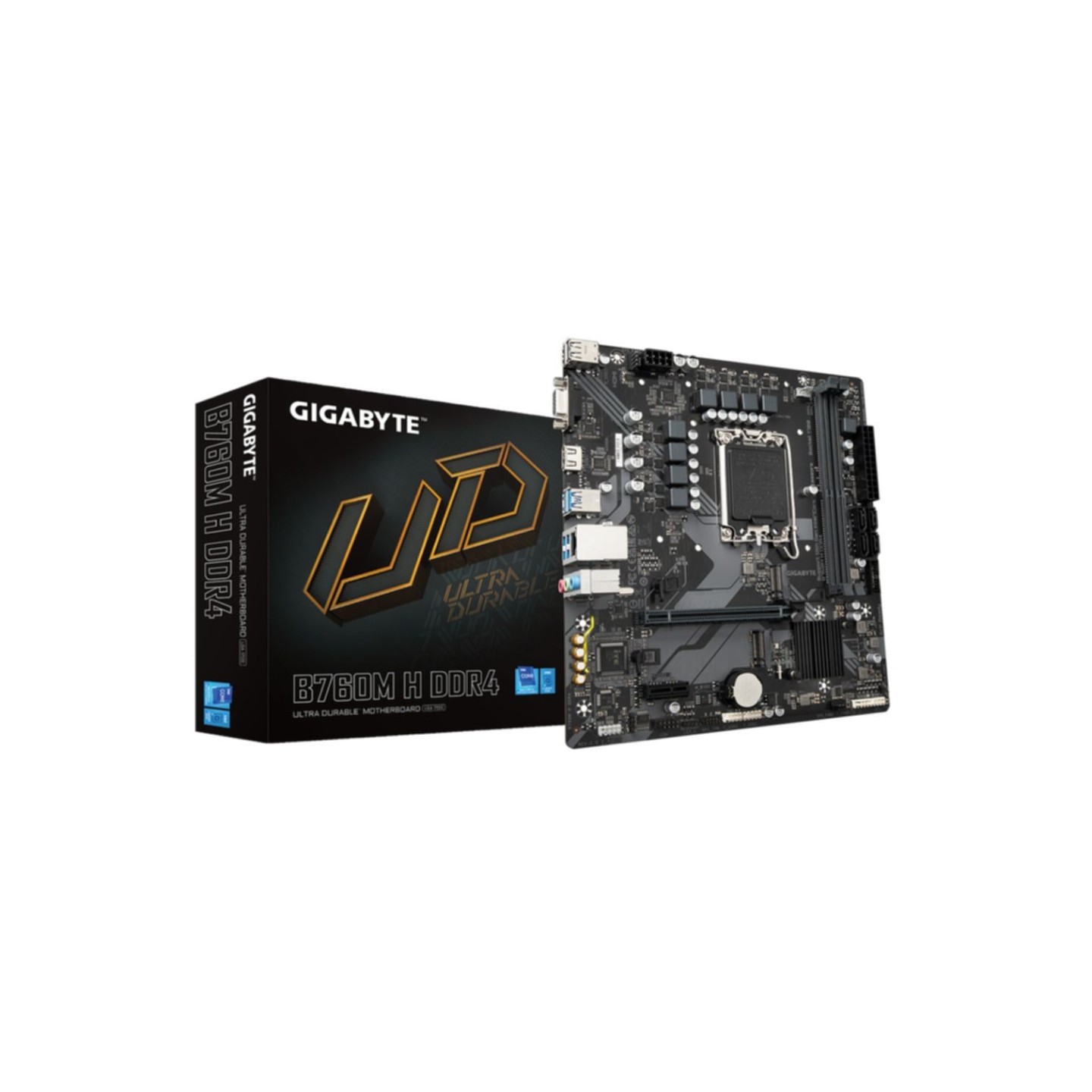

GIGABYTE B760M H DDR4 LGA1700 Micro-ATX Motherboard - Intel B760 64GB DDR4 PCIe 4.0 (Boxed)
Micro-ATX LGA1700 Intel B760 motherboard supports 12th-14th Gen Core CPUs, 64GB DDR4-3200 (XMP), PCIe 4.0 x16, 2x PCIe 4.0 M.2, 4x SATA, GbE LAN, 4x USB 3.2 Gen1. 6+1+1 VRM.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |

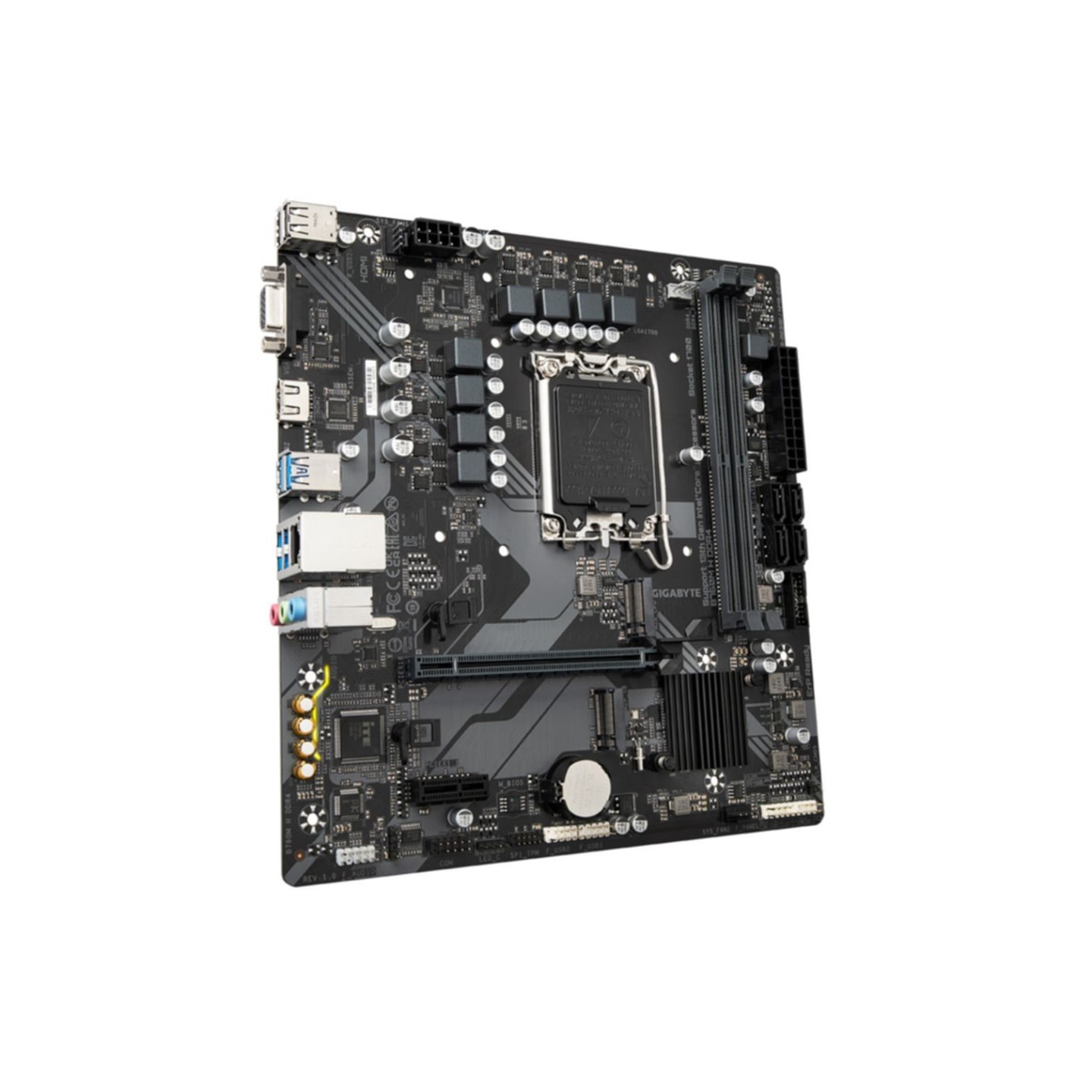

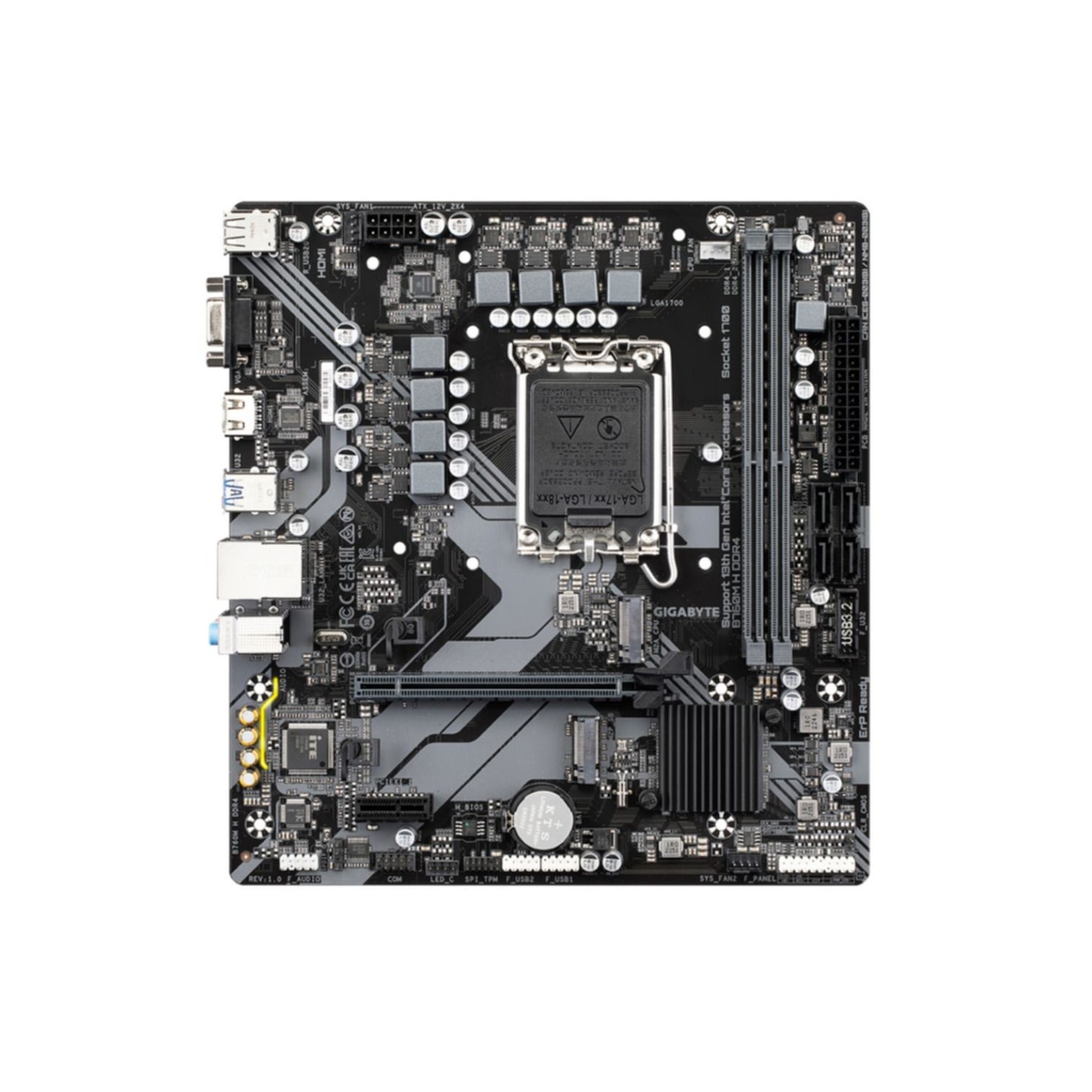

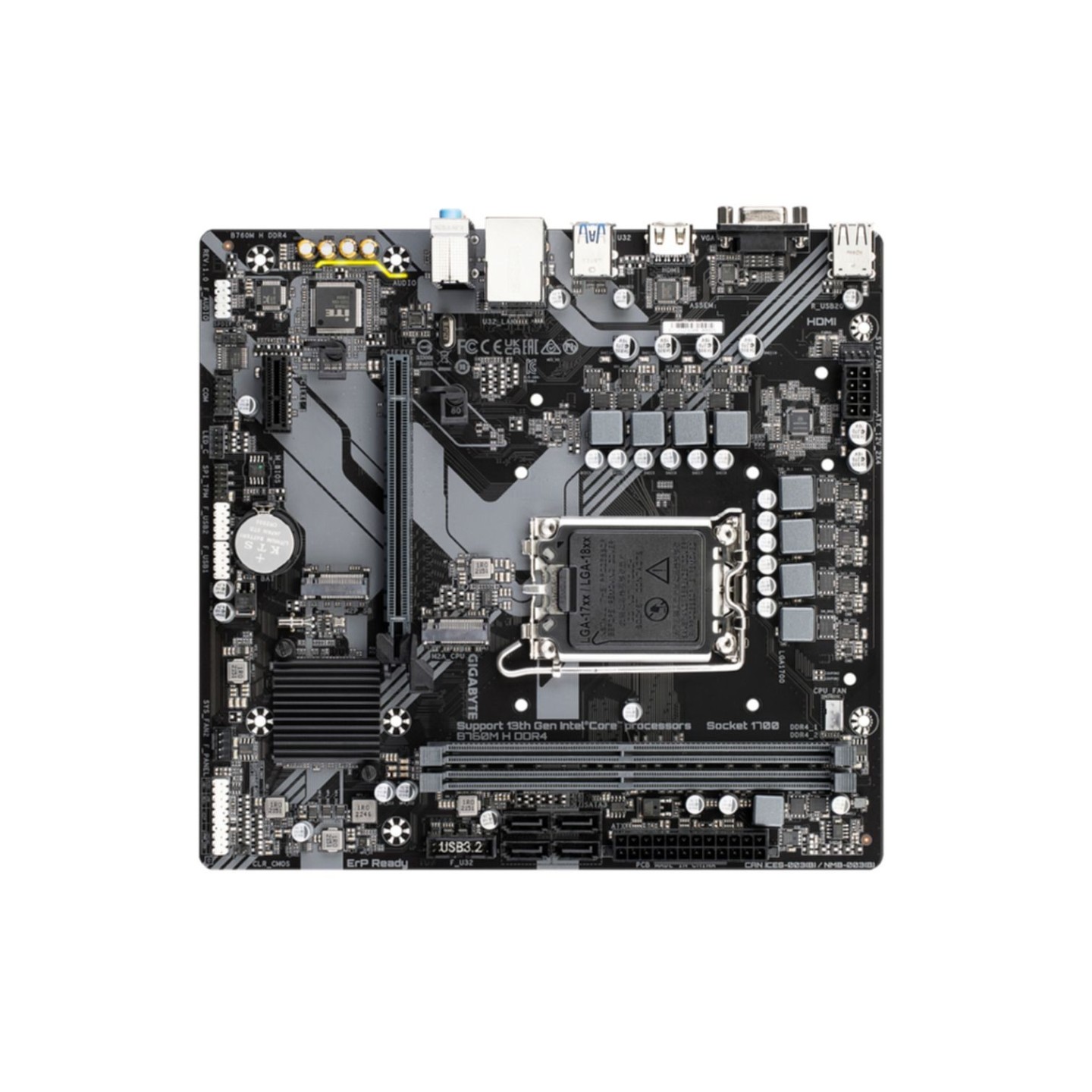

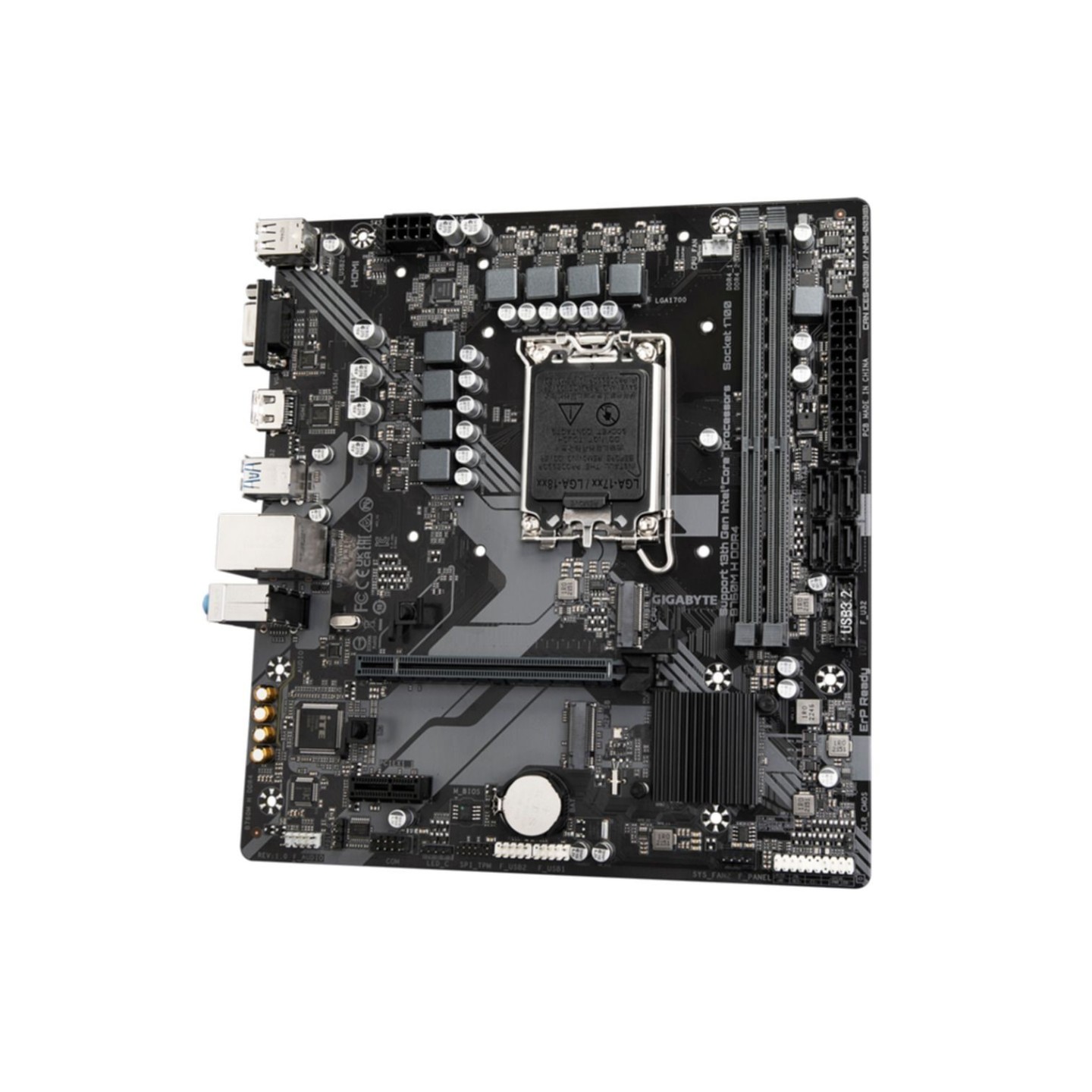

The GIGABYTE B760M H DDR4 is a reliable Micro-ATX motherboard based on the Intel B760 chipset, designed for LGA1700 socket processors including Intel Core 12th, 13th, and 14th generations. It features a robust 6+1+1 phases hybrid digital VRM solution for stable power delivery, making it suitable for everyday computing, office builds, and light gaming.

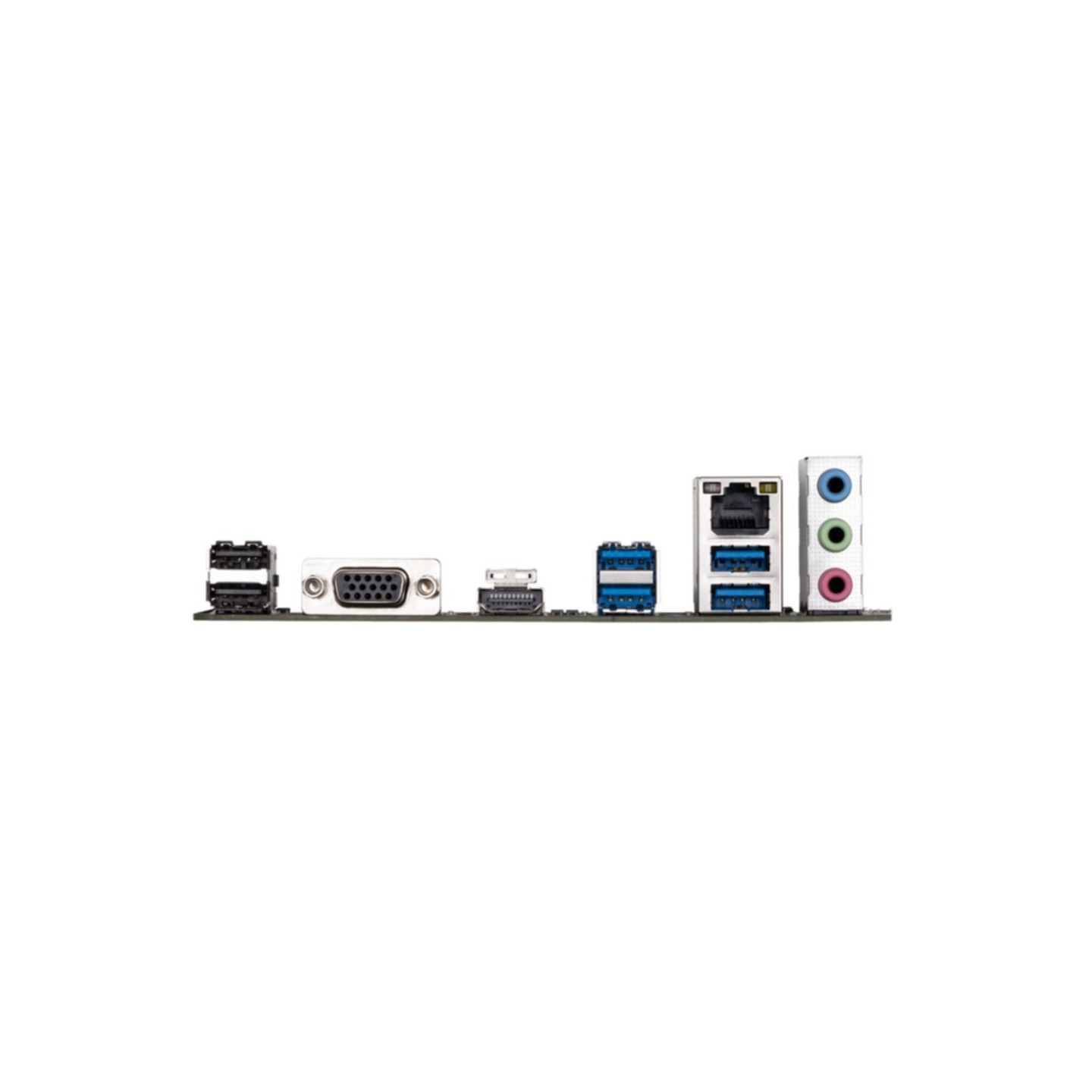

Memory support includes dual-channel DDR4 up to 64GB (2x DIMM slots, max 32GB per slot) with speeds up to 3200MHz and XMP overclocking capability. Storage options are versatile with 2x PCIe 4.0 M.2 slots and 4x SATA III ports (RAID 0/1/5/10). Expansion includes 1x PCIe 4.0 x16 slot (for GPU or NVMe) and 1x PCIe 3.0 x1 slot. Rear I/O offers VGA, HDMI 1.4, DisplayPort 1.4, 4x USB 3.2 Gen1, 2x USB 2.0, Gigabit Ethernet, and 7.1-channel Realtek ALC897 audio.
- CPU: Intel Core 12th/13th/14th Gen (LGA1700)
- Memory: 2x DDR4, 64GB max, 3200MHz+ (XMP)
- Storage: 2x M.2 PCIe 4.0, 4x SATA III
- VRM: 6+1+1 phases digital
- LAN: Realtek 1GbE
- Form Factor: Micro ATX (23.0 x 21.5 cm)
| CPU Socket | LGA 1700 |
| Chipset | Intel B760 |
| Form Factor | Micro ATX (23.0 x 21.5 cm) |
| Supported CPUs | Intel Core 12th/13th/14th Gen |
| Memory Type | DDR4-SDRAM |
| Memory Slots | 2 x DIMM |
| Max Memory | 64 GB (32 GB single DIMM) |
| Memory Speed | Up to 3200 MHz (XMP support) |
| M.2 Slots | 2 x PCIe 4.0 x4 |
| SATA Ports | 4 x SATA III |
| PCIe Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| VRM | 6+1+1 Phases Hybrid Digital |
| LAN | Realtek GbE (1 Gbps) |
| Audio | Realtek ALC897 7.1-channel |
| Rear USB | 4 x USB 3.2 Gen1, 2 x USB 2.0 |
| Video Outputs | VGA, HDMI 1.4, DisplayPort 1.4 |
| RAID Levels | 0, 1, 5, 10 |
| OS Support | Windows 10/11 64-bit |
| BIOS | UEFI AMI |
