DisplayPort Splitter - 1.2 to 2x DisplayPort 4K
Delock 87691 DisplayPort splitter receives a DP signal from a PC or notebook and splits it to two displays.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

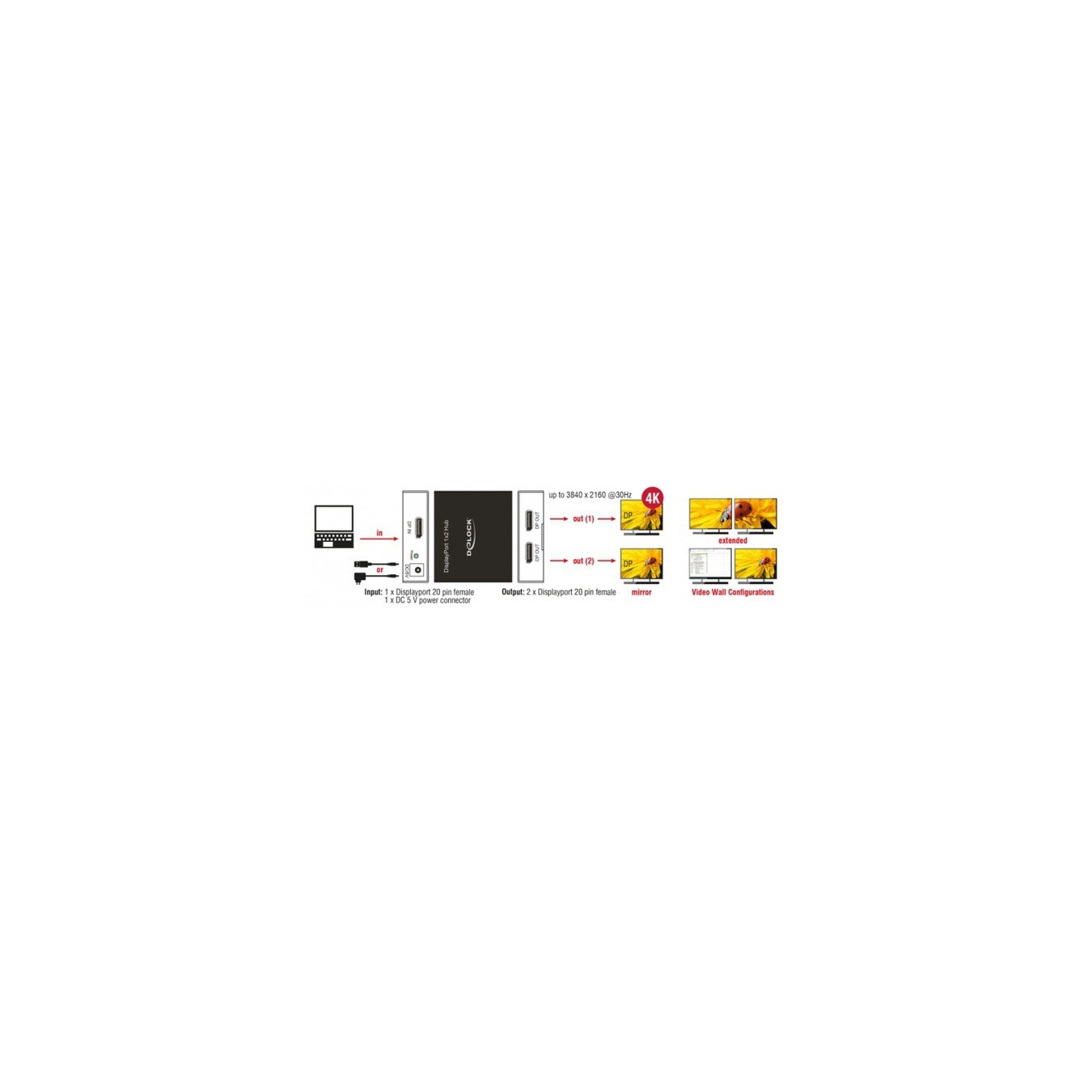

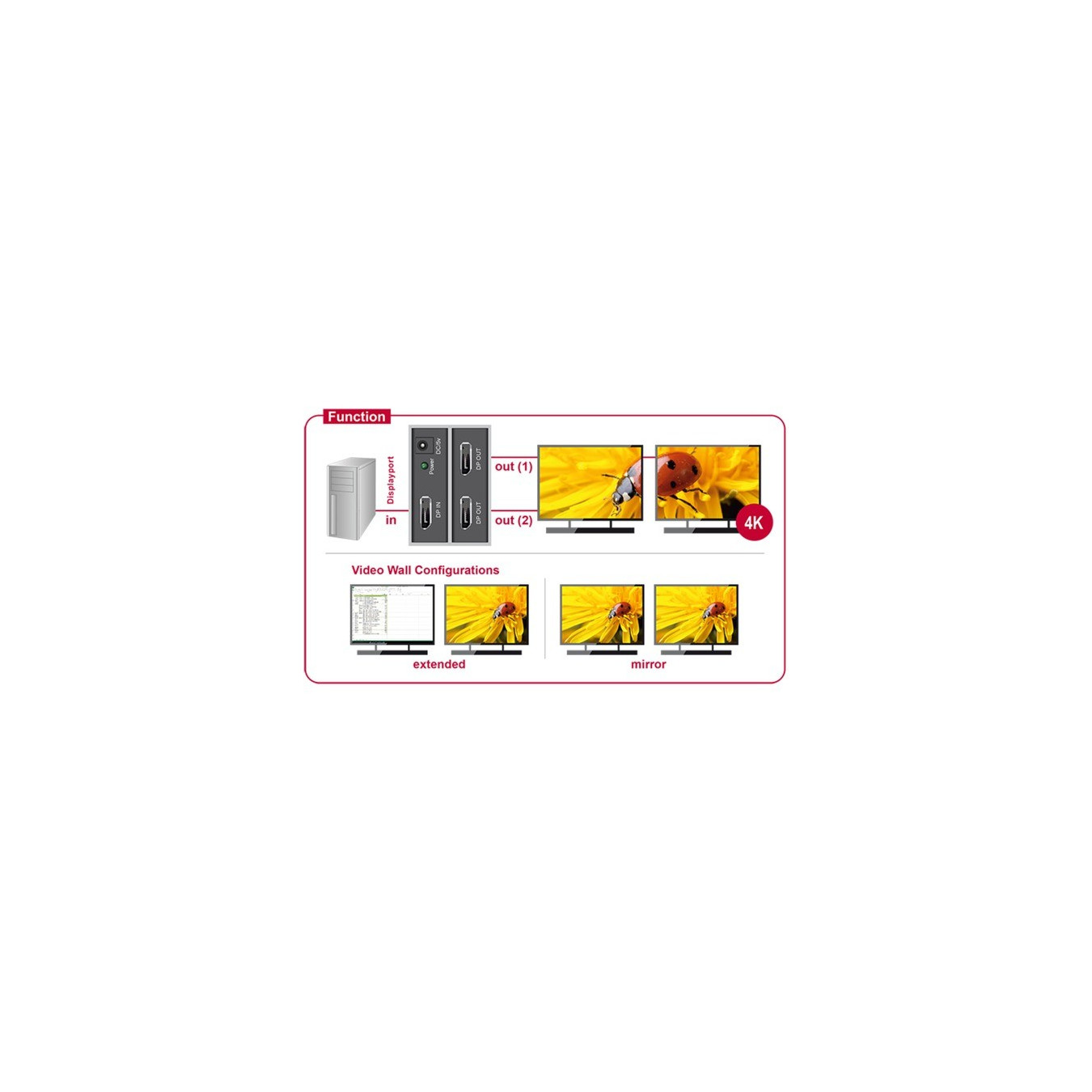

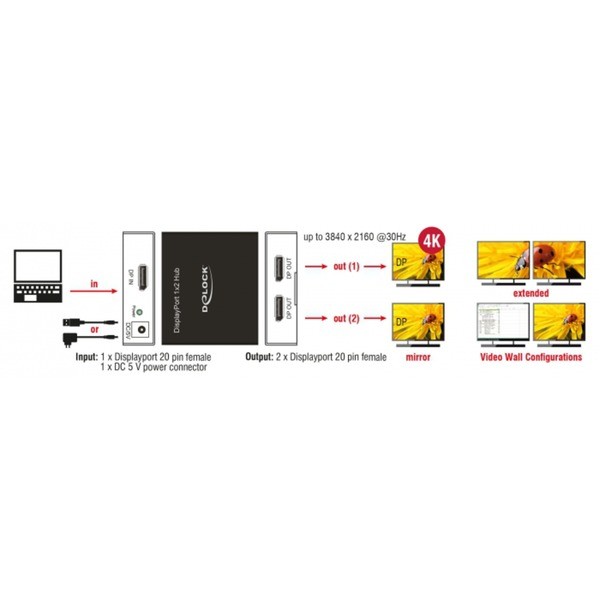

The splitter 87691 from Delock receives a DisplayPort signal from a PC or notebook and splits it between two connected screens. This means that two DisplayPort monitors can be operated on one DisplayPort connection. The two outputs are dual mode capable (DP++), so HDMI or DVI monitors can also be connected with appropriate adapters. The splitter is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort 1.2. When Mac OS is used, the same image is output (mirrored) on both ports, it is not possible to use both ports independently.
| Typ | DisplayPort Splitter |
| Color | schwarz |
| EAN | 4043619876914 |
| Manufacturer no. | 87691 |
| Manufactured in | China |
| Application example | For connecting 2 monitors to a DisplayPort socket |
| Area | Audio / Video |
| Connection - from | 1x DisplayPort (socket) |
| Video classification | Displayport 1.2a |
| taps | 3 |
| Characteristics | Adapter, extern |
| Feature | Active converter, single / multi-stream transport hub (SST / MST), transmission of audio and video signals, metal housing |
| More information | Chipset STDP4320, Features: Mirroring or Extending (Windows only), Max. Resolution: DisplayPort 1.1 or 1.2 Single Stream Transport (SST) up to 1,920 x 1,080 @ 60Hz (mirroring), DisplayPort 1.2 Multi-Stream Transport (MST): up to 2,560 x 1,440 @ 60Hz or 3,840 x 2,160 @ 30Hz (mirroring or expanding), depending on the system and connected hardware. DisplayPort output supports Dual Mode DP++, supports Eyefinity / Single Large Surface (SLS), audio input formats 7.1 channel with a sampling rate up to 192 kHz |

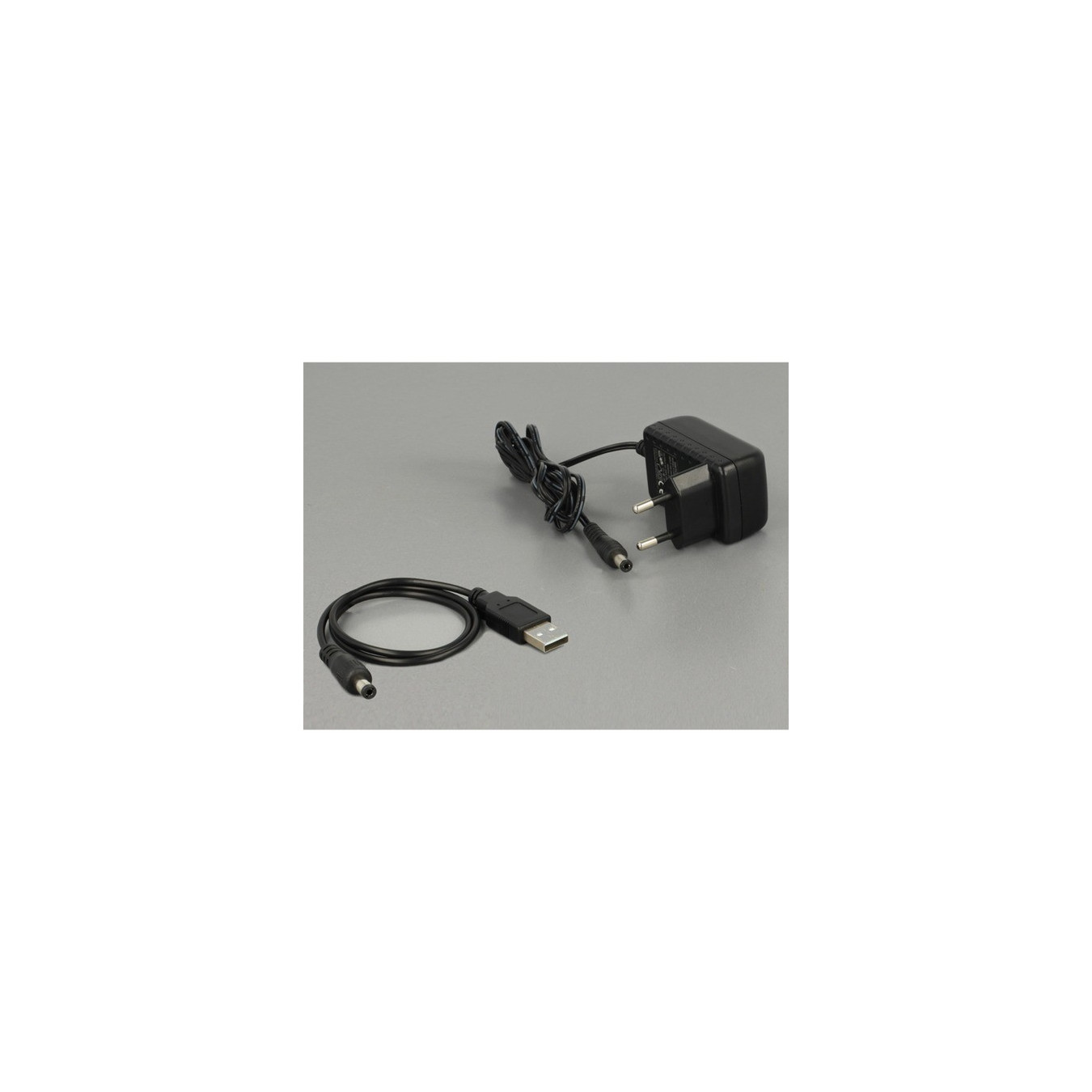

| Accessories - available | External power supply, operating instructions, USB power cable (length approx. 0.5m) |
| Dimensions | Width: 71mm x Height: 21mm x Depth/Length: 61mm |
