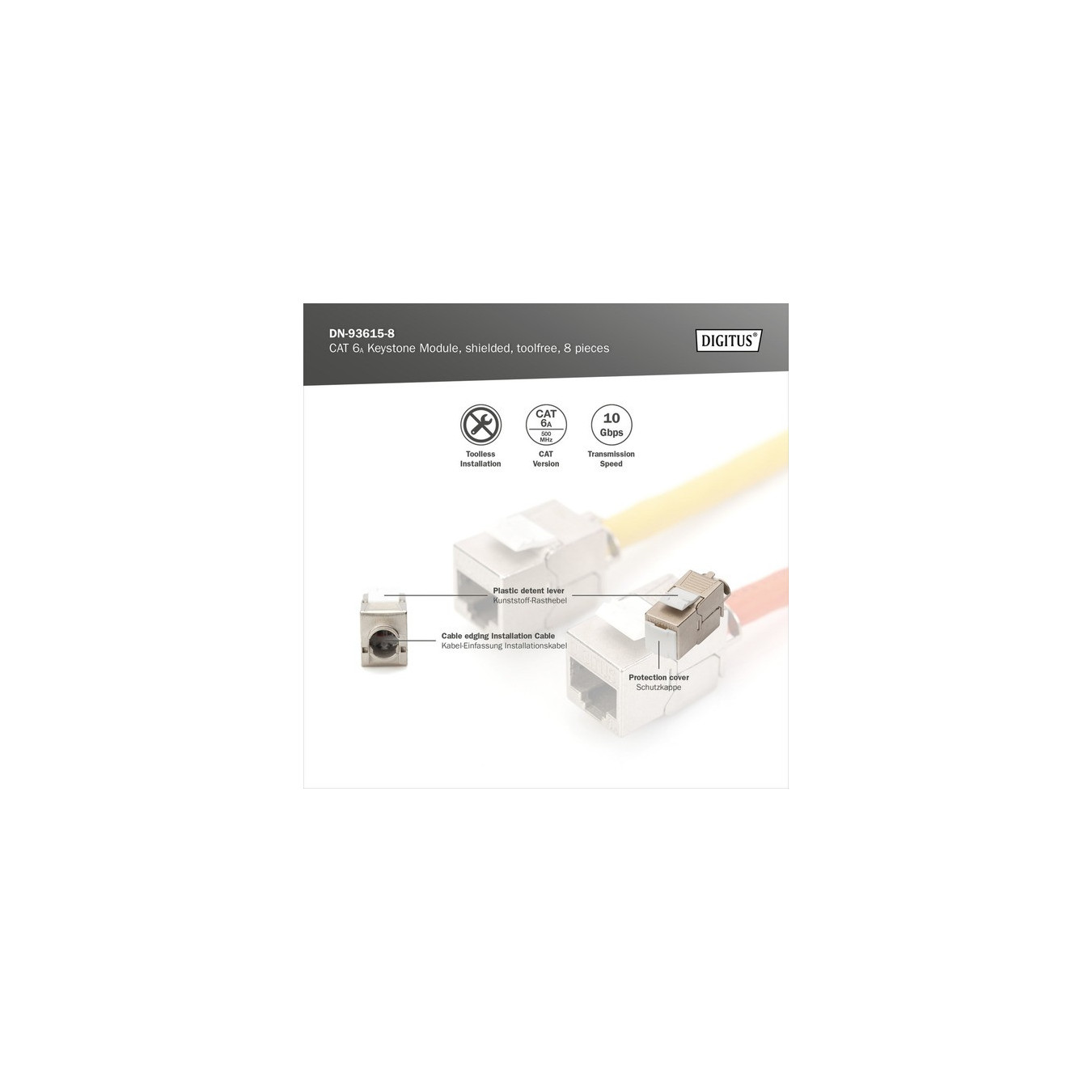

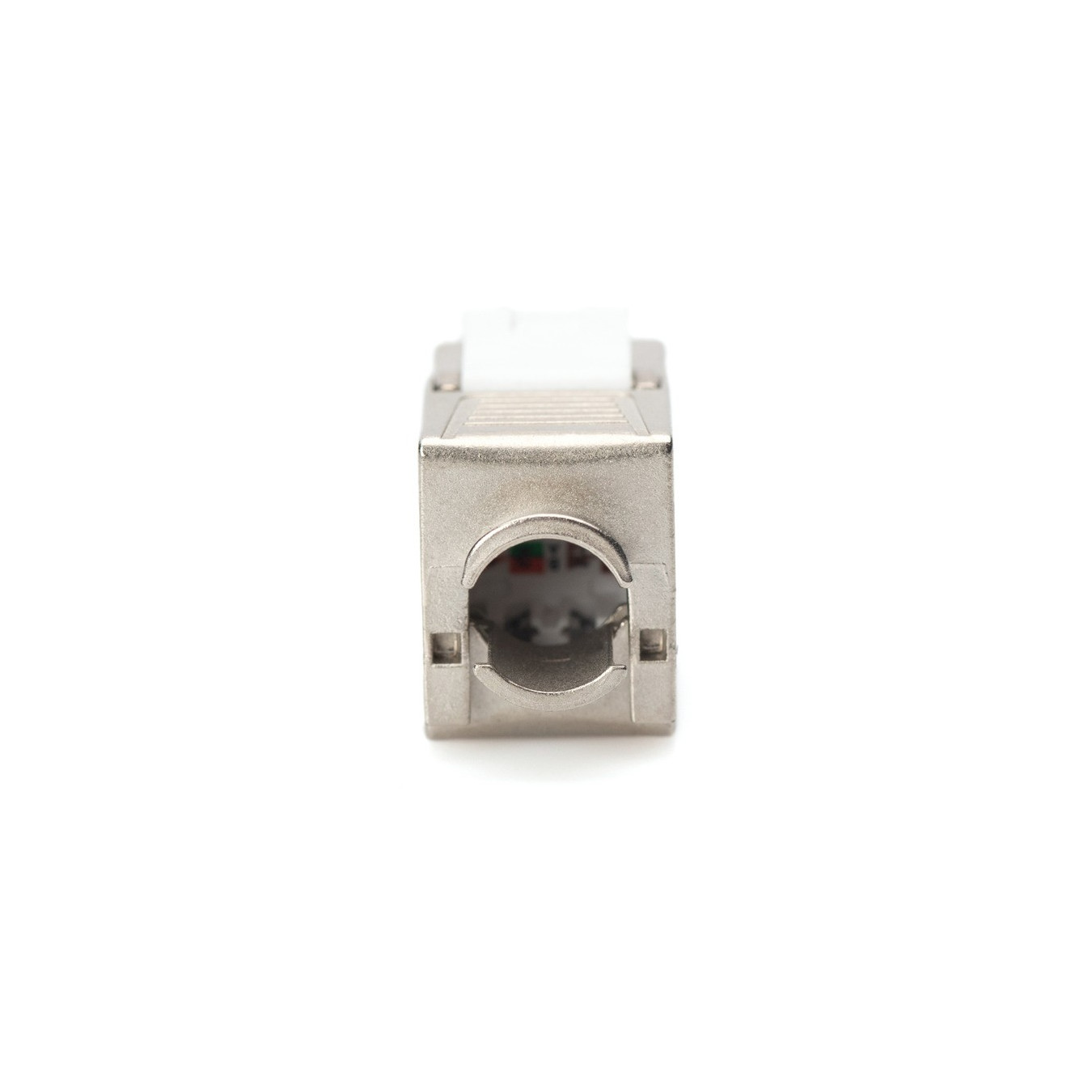

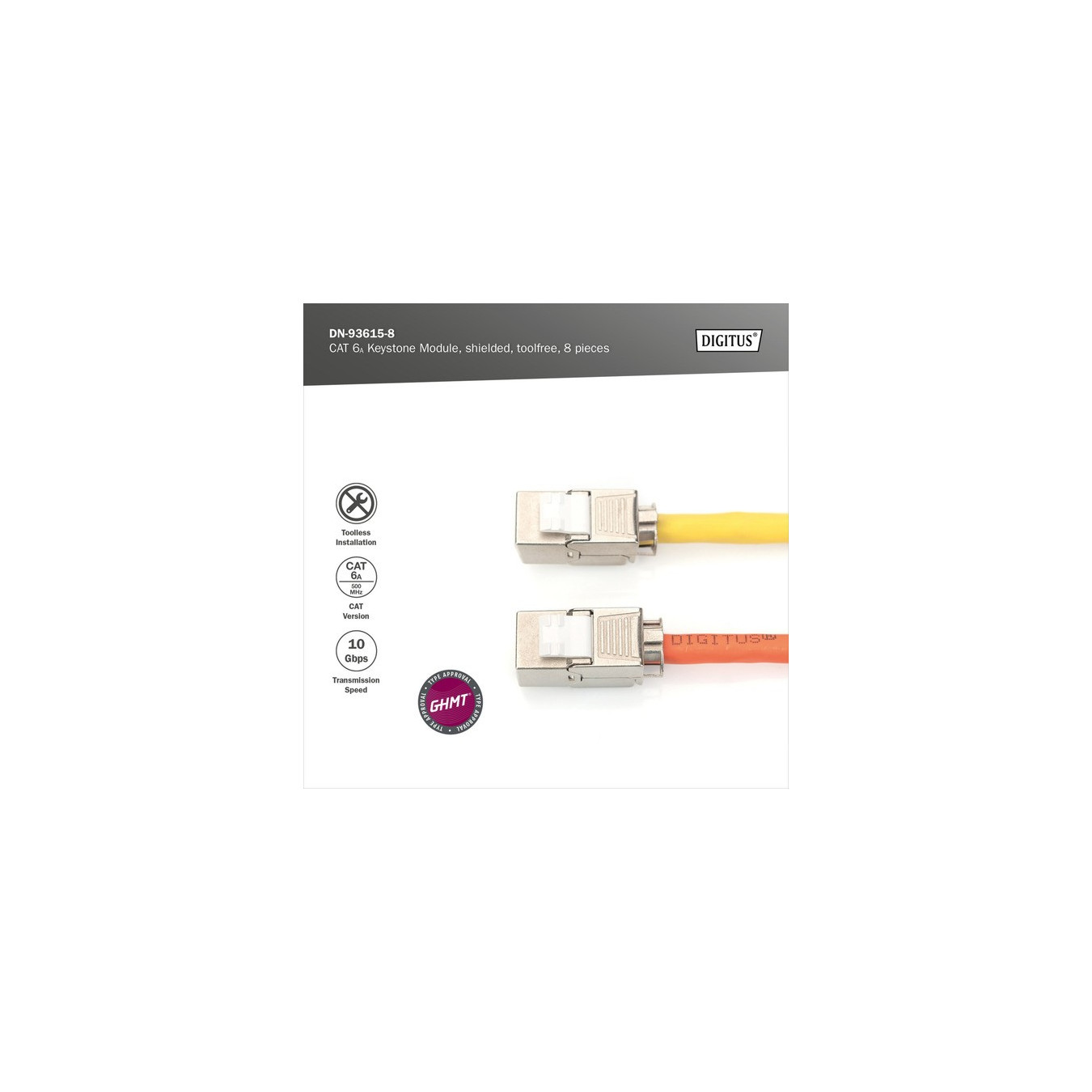

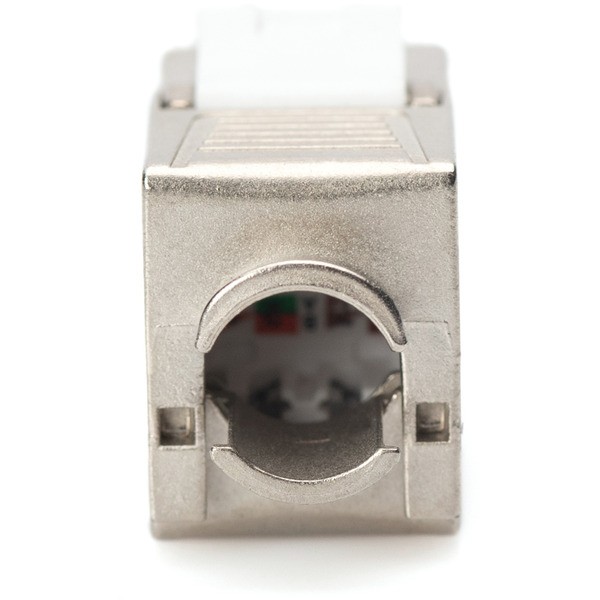

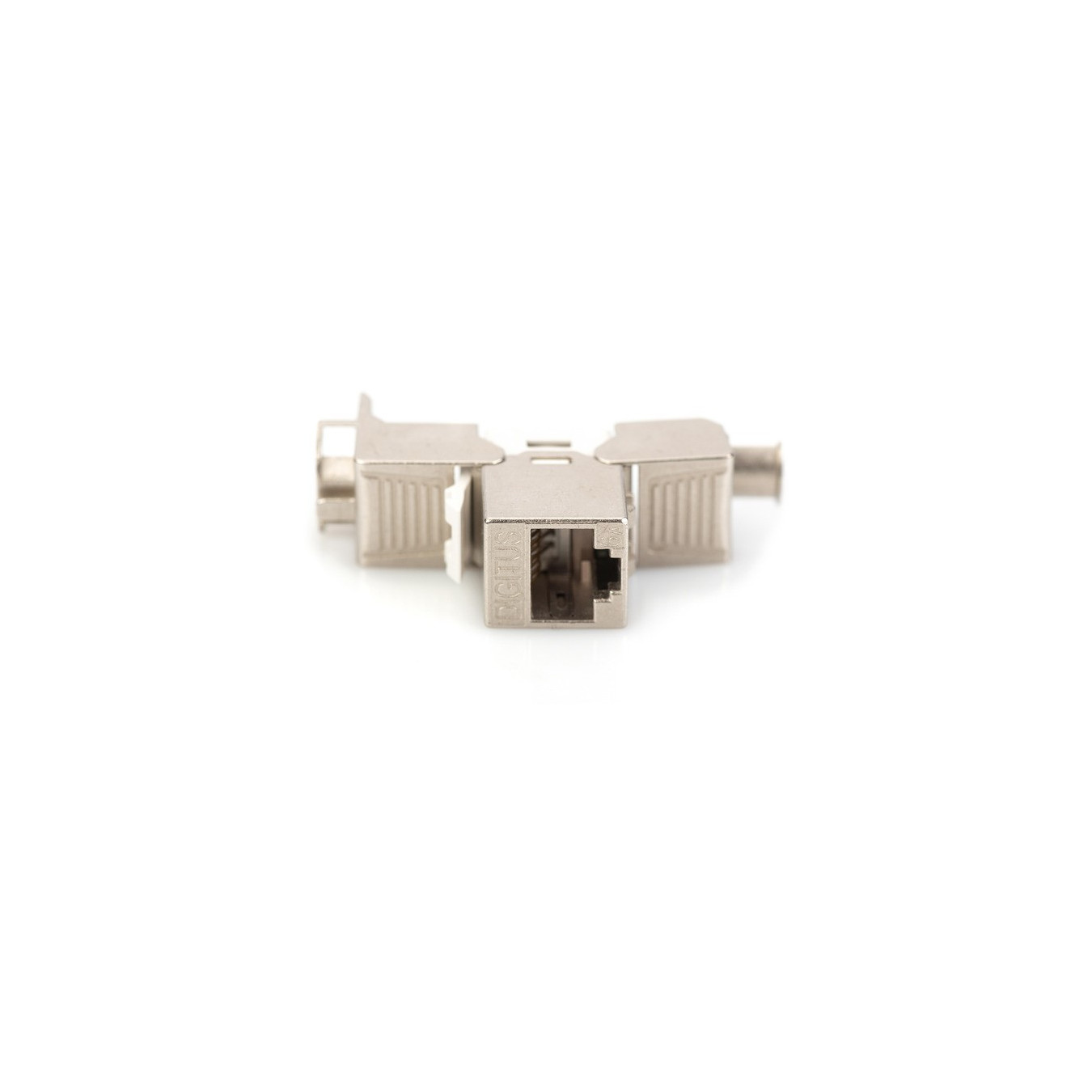

CAT 6A Keystone module shielded tool-free 8 pieces - keystone module

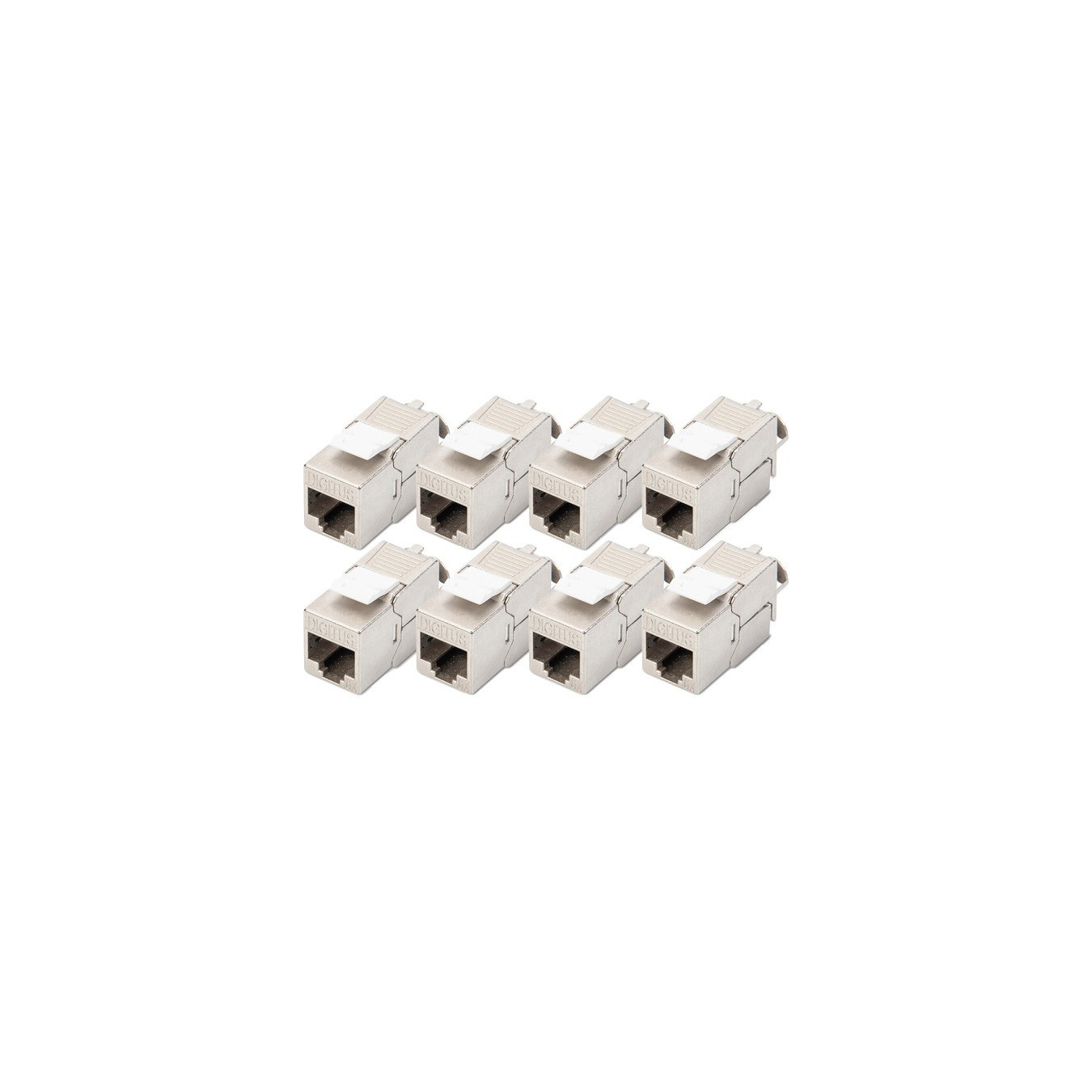

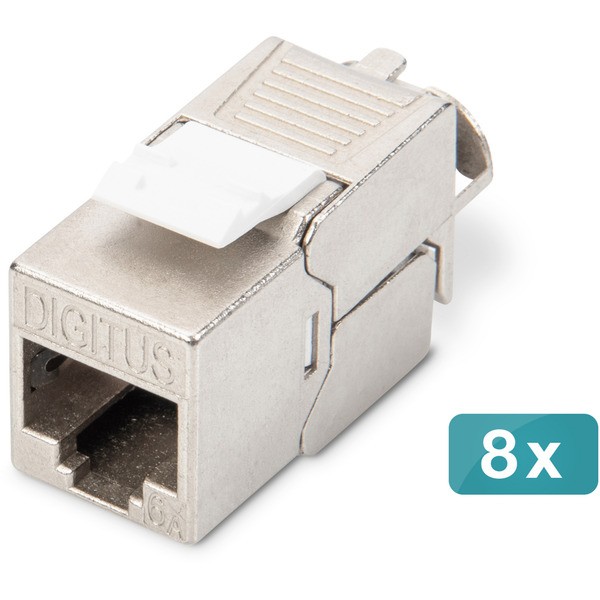

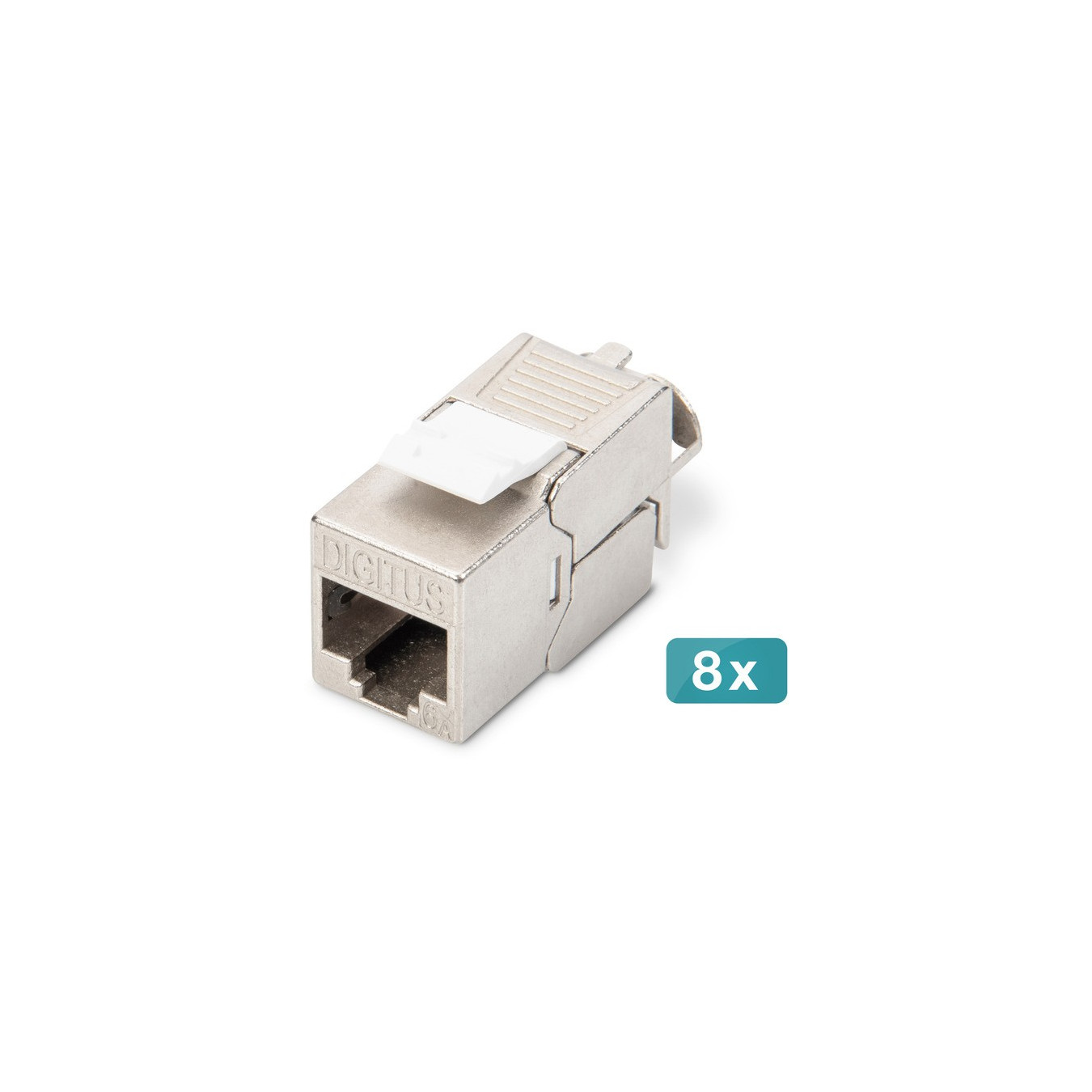

Shielded CAT 6A Keystone module set, 8 pieces, tool-free installation for network panels.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Ethernet Cables - AWG | 26 AWG |
|---|---|
| Ethernet Cables - PoE Compatible | Yes |

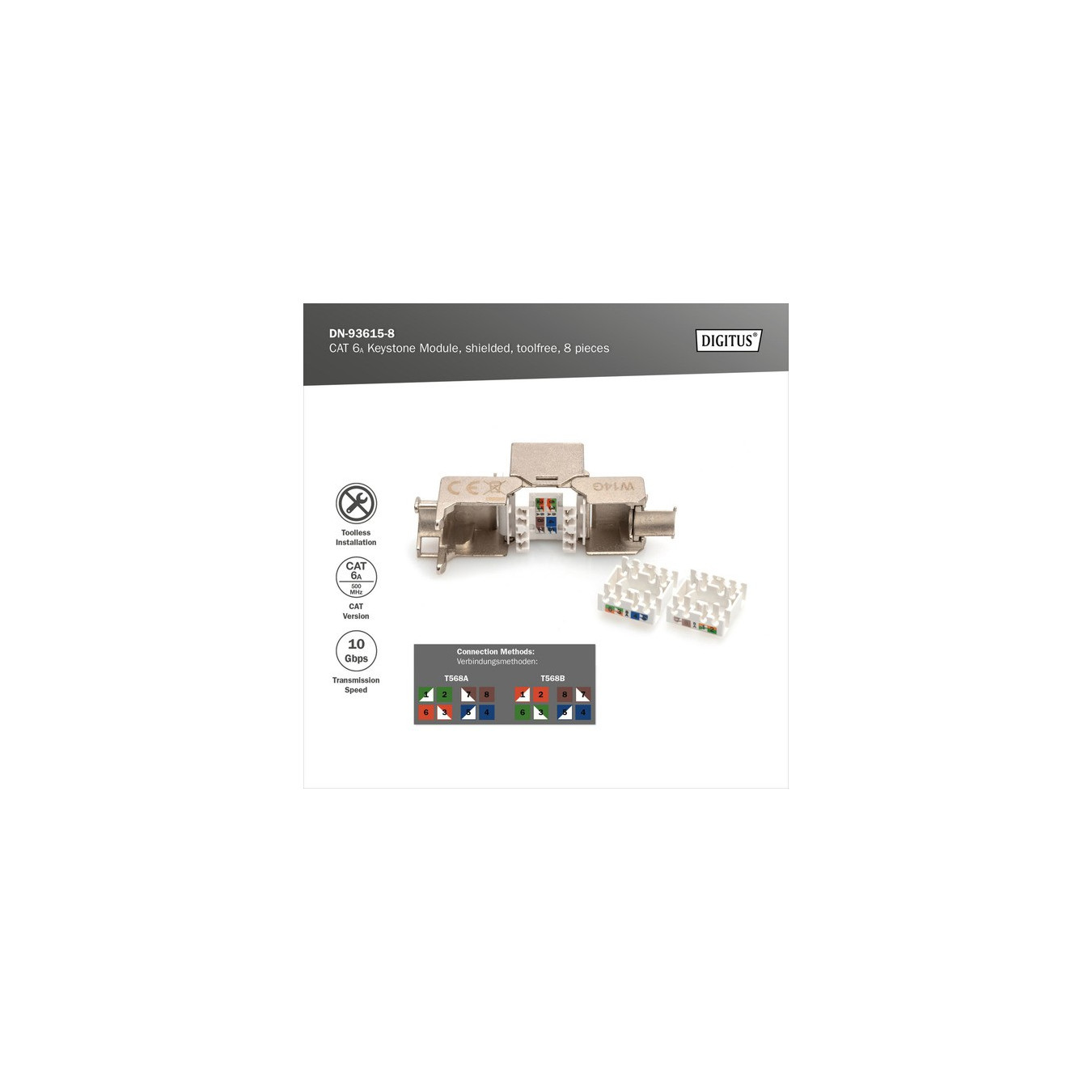

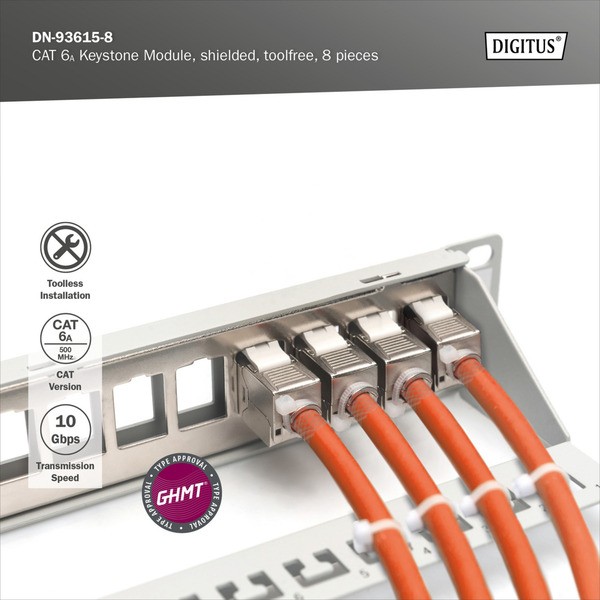

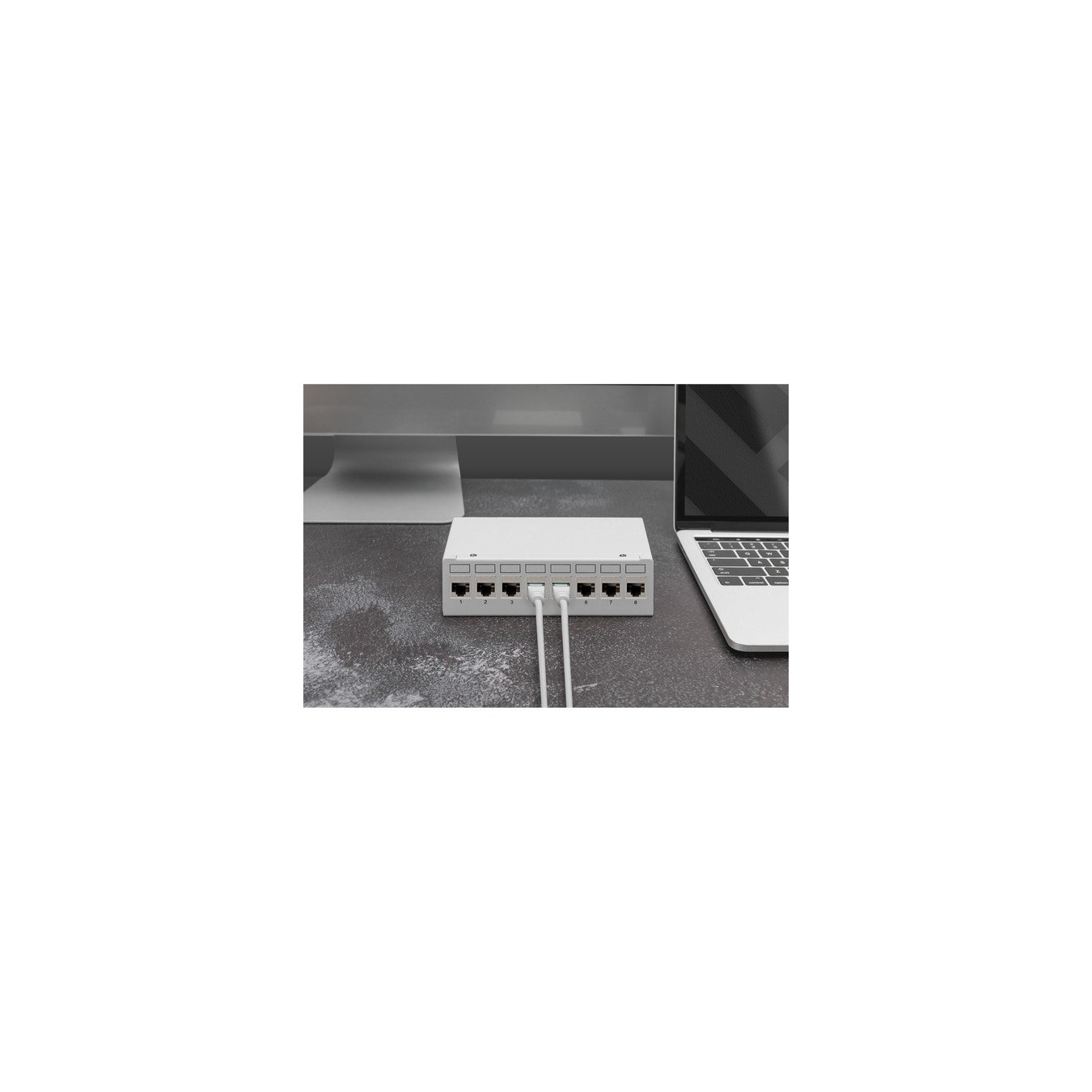

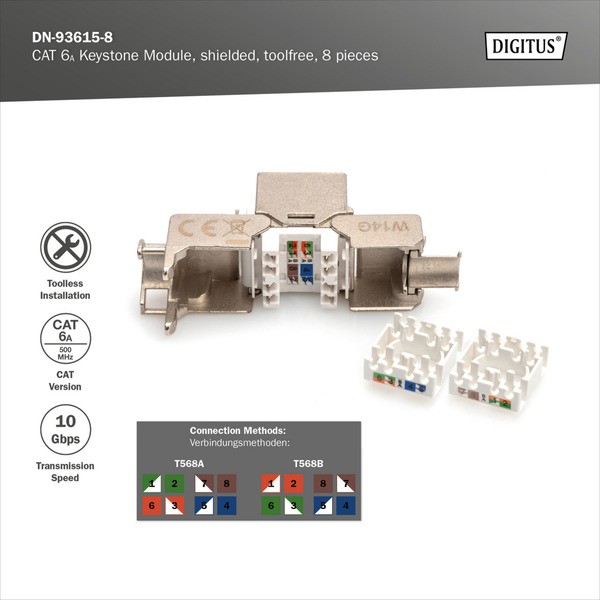

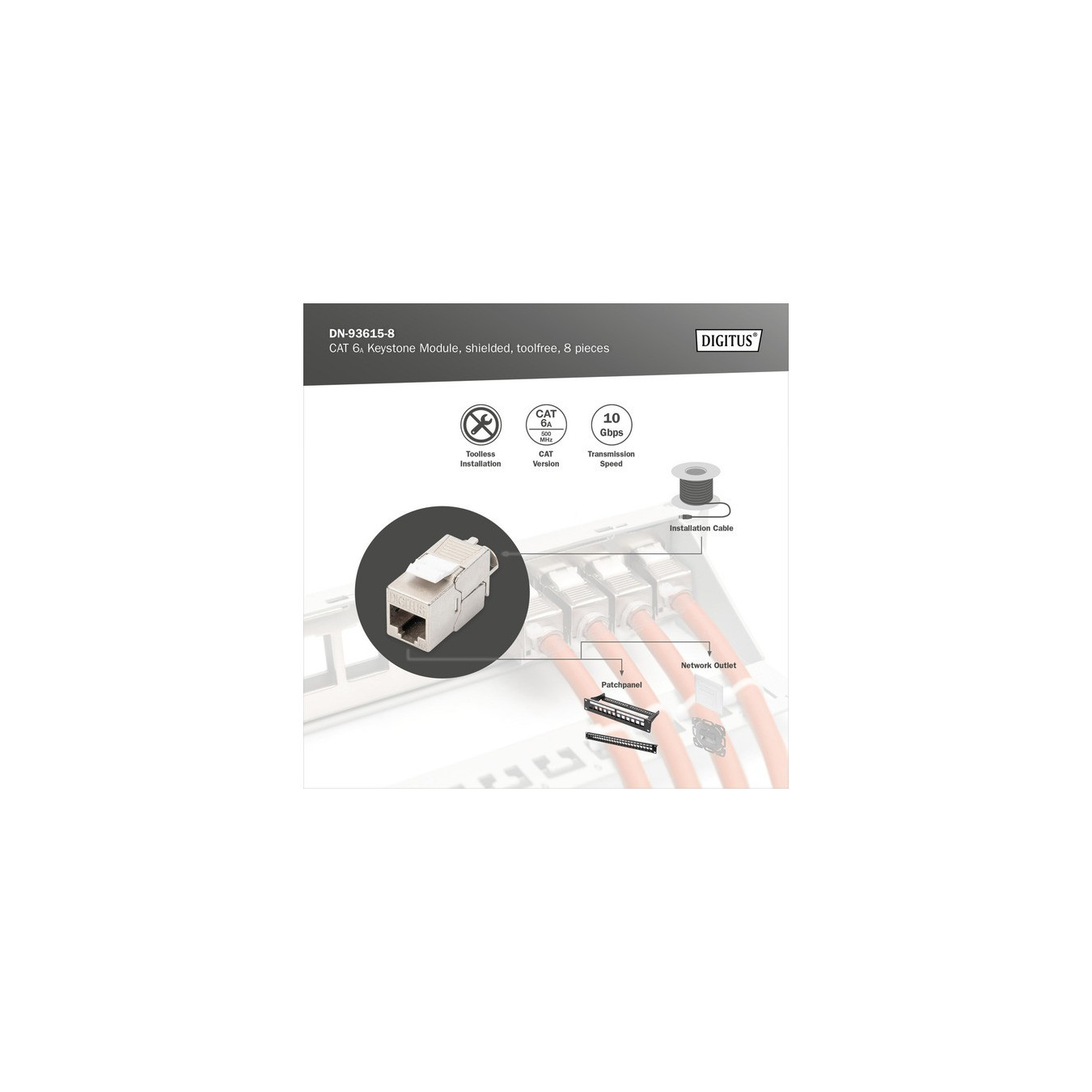

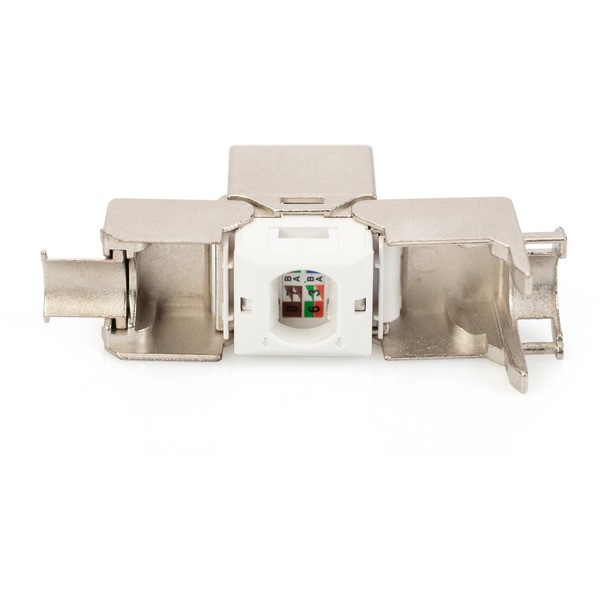

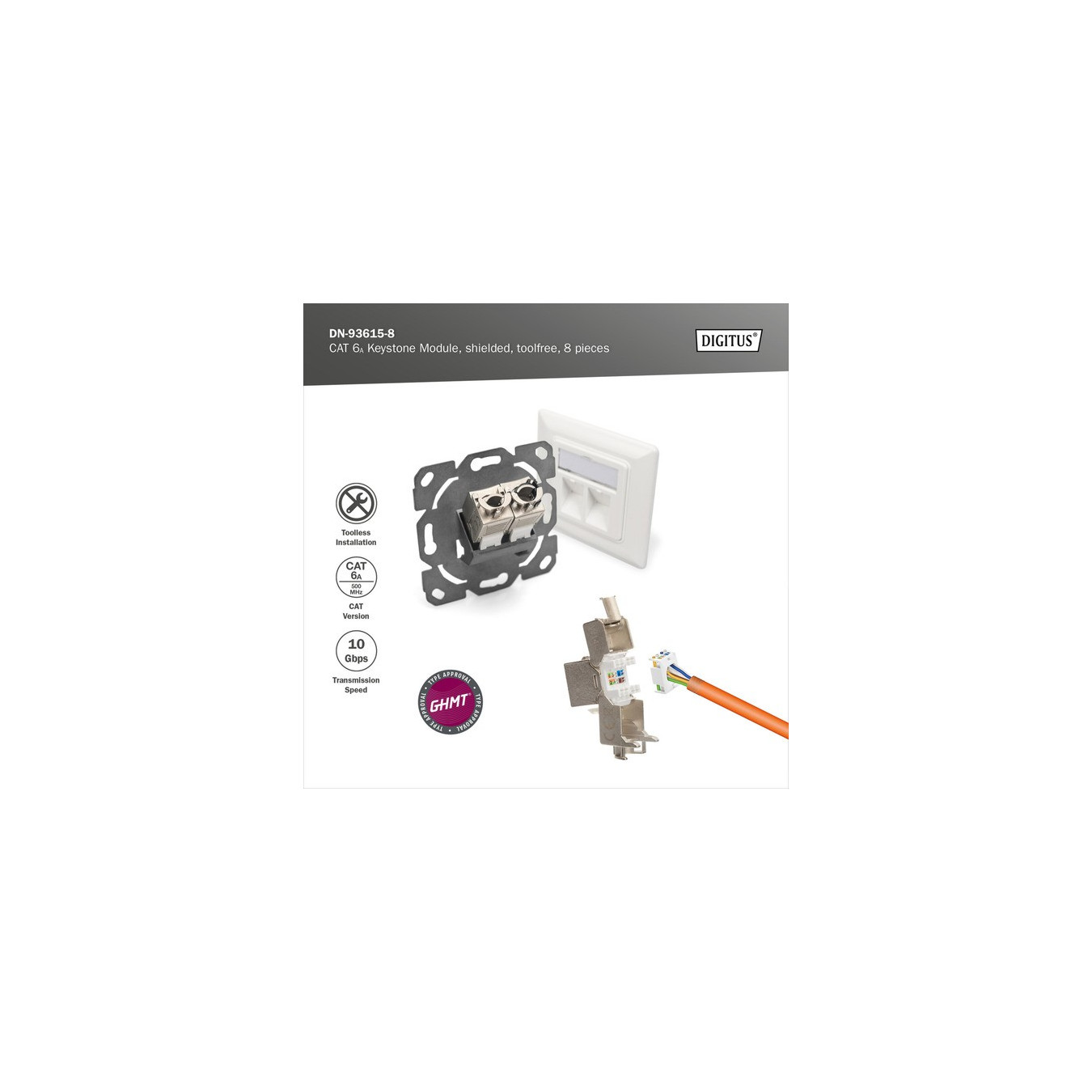

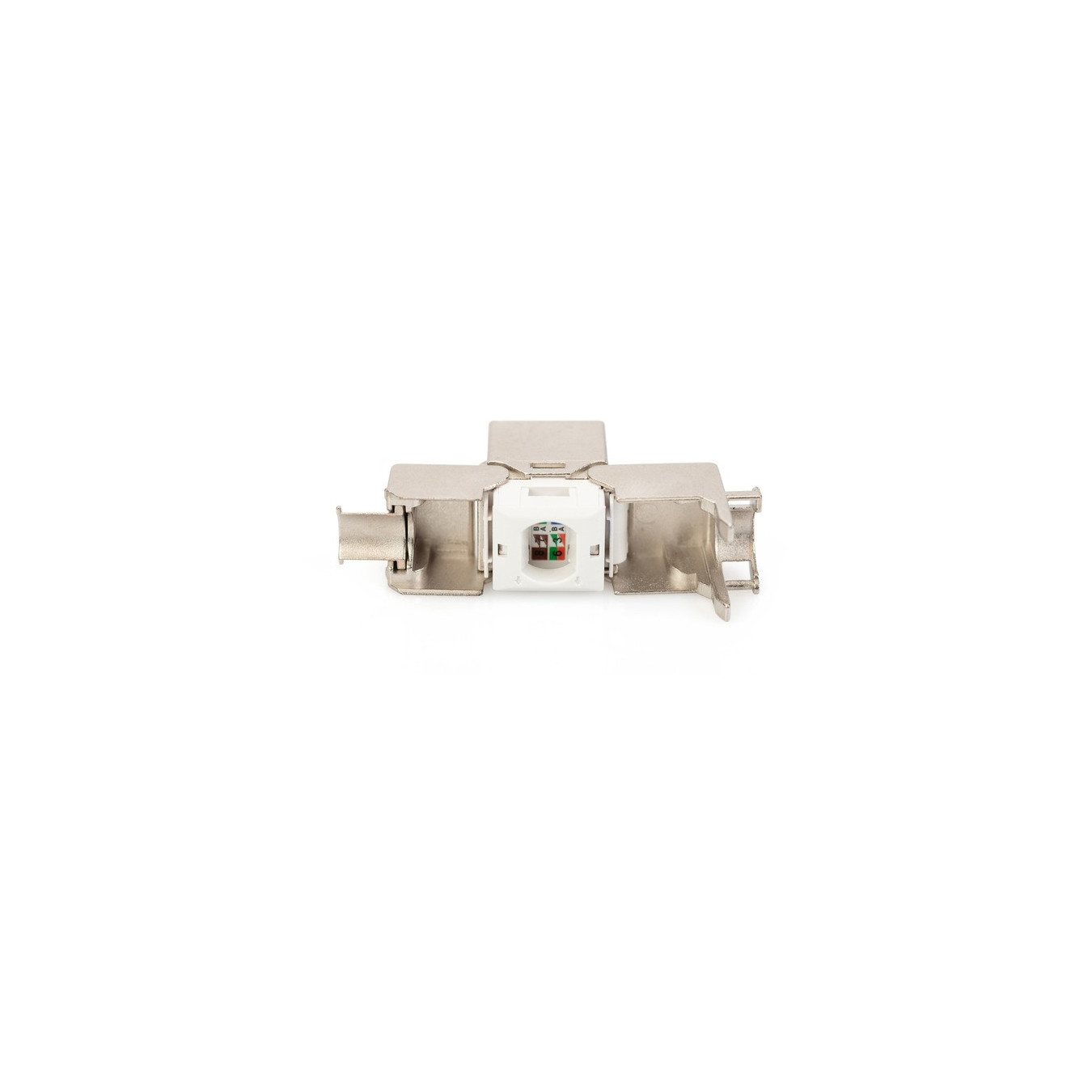

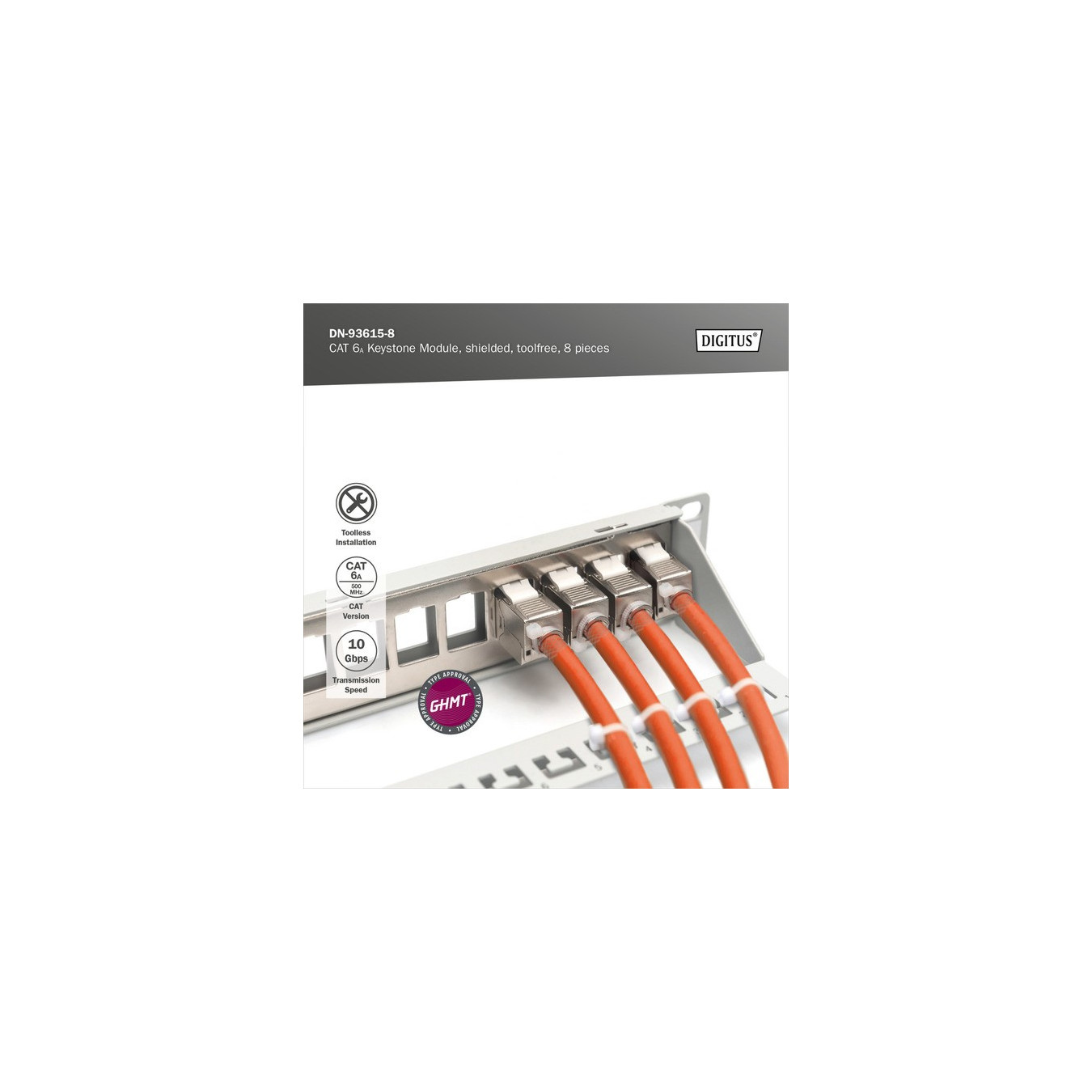

The shielded CAT 6A Keystone module set DN-93615 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The compact design allows series installation in a 483 mm (19") 1U panel. Tool-free installation is carried out via LSA strips, color-coded according to EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.
| Typ | Keystone-Modul |
| EAN | 4016032490579 |
| Manufacturer no. | DN-93615-8 |
| Form | Keystone-Modul |
| Number | 8 pieces |
| Area | network |
| Connection - from | 1x RJ-45 (socket) |
| Cable cross section | 26 AWG |
| Category - Cable | Cat.6a |

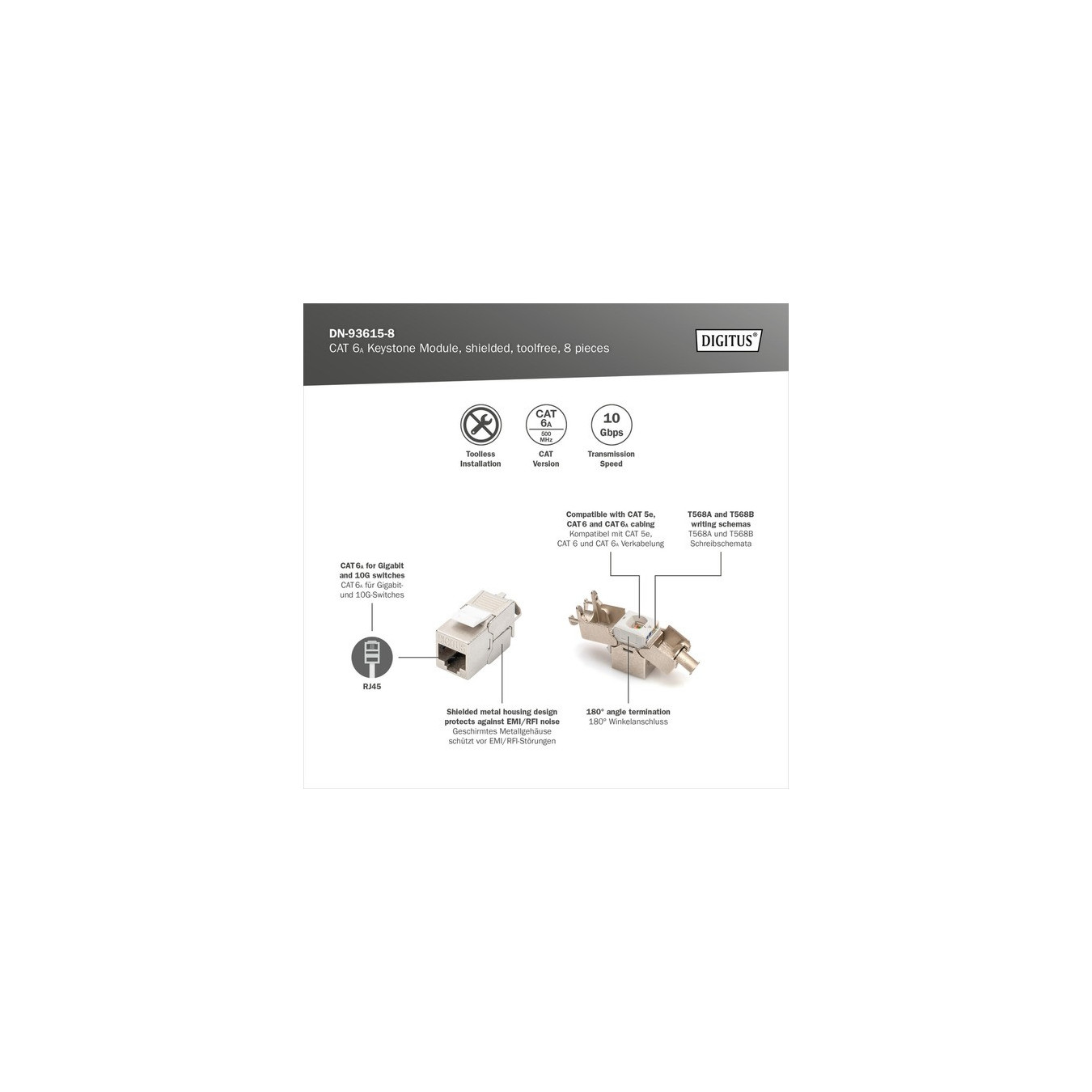

| Feature | 360° shield contact | CAT 6A with LSA insulation displacement terminals | Dust protection cap for RJ45 socket | Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link) | ISO/IEC 11801 3rd Edition, EN 50173-1 | Intelligent Cable Manager (Resealable) | RJ45 socket, 8P8C | Cable installation via insulation displacement terminals, color coded according to EIA/TIA 568 A & B | Strain relief and cable fixation using cable ties |
| More information | Suitable for field assembly (tool-free assembly) | Designable - suitable for distribution panel and junction box assembly | Copper conductor diameter: AWG (26/7 – 22/1), stranded and solid wire | Holding force: 7.7 kg between socket and plug | Operating temperature: -20°C up to +70°C (ISO/IEC 11801, ANSI/TIA 568 C.2) | Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51) | Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground) |
| Dimensions | Width: 14.5mm x Height: 21mm x Depth/Length: 34.5mm |
