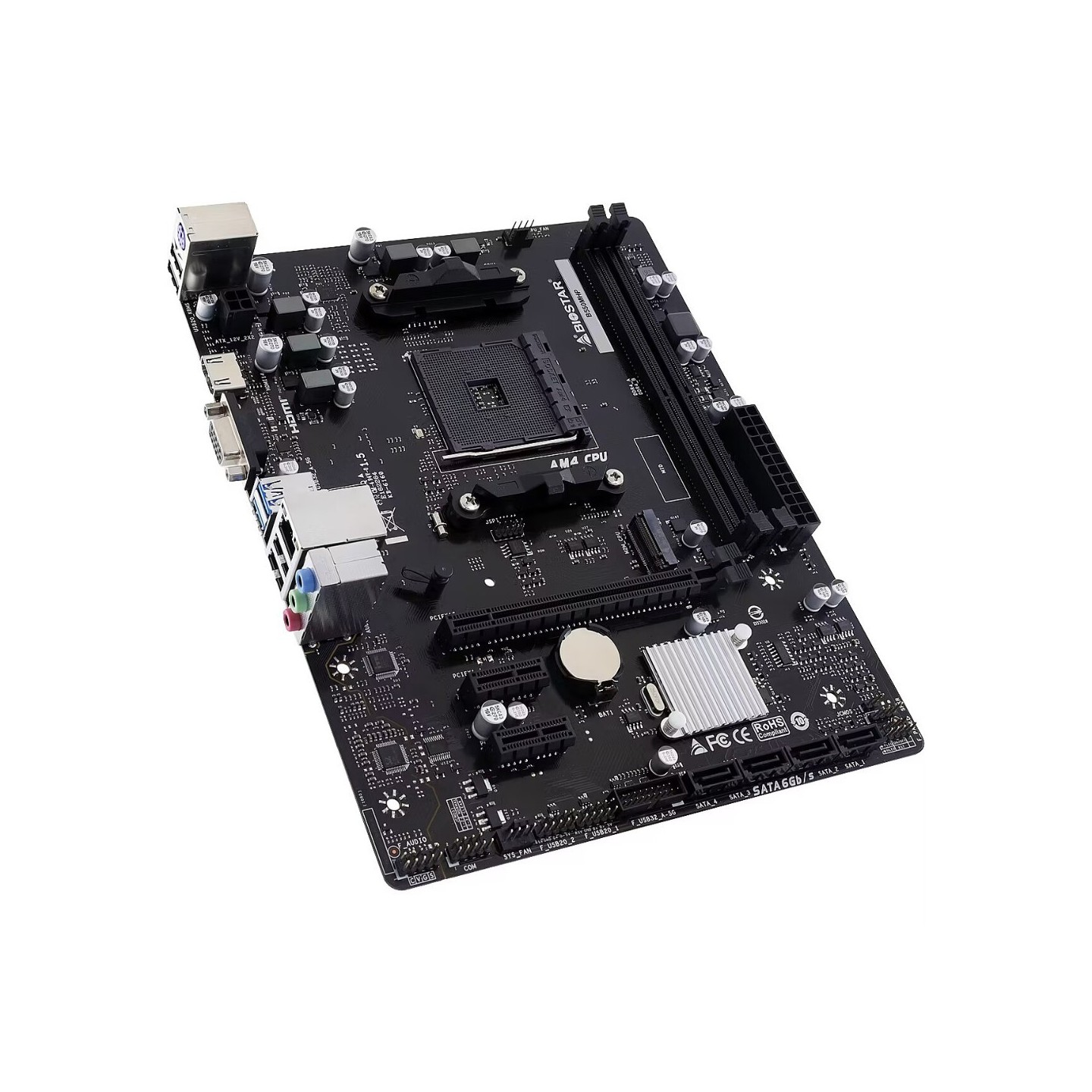

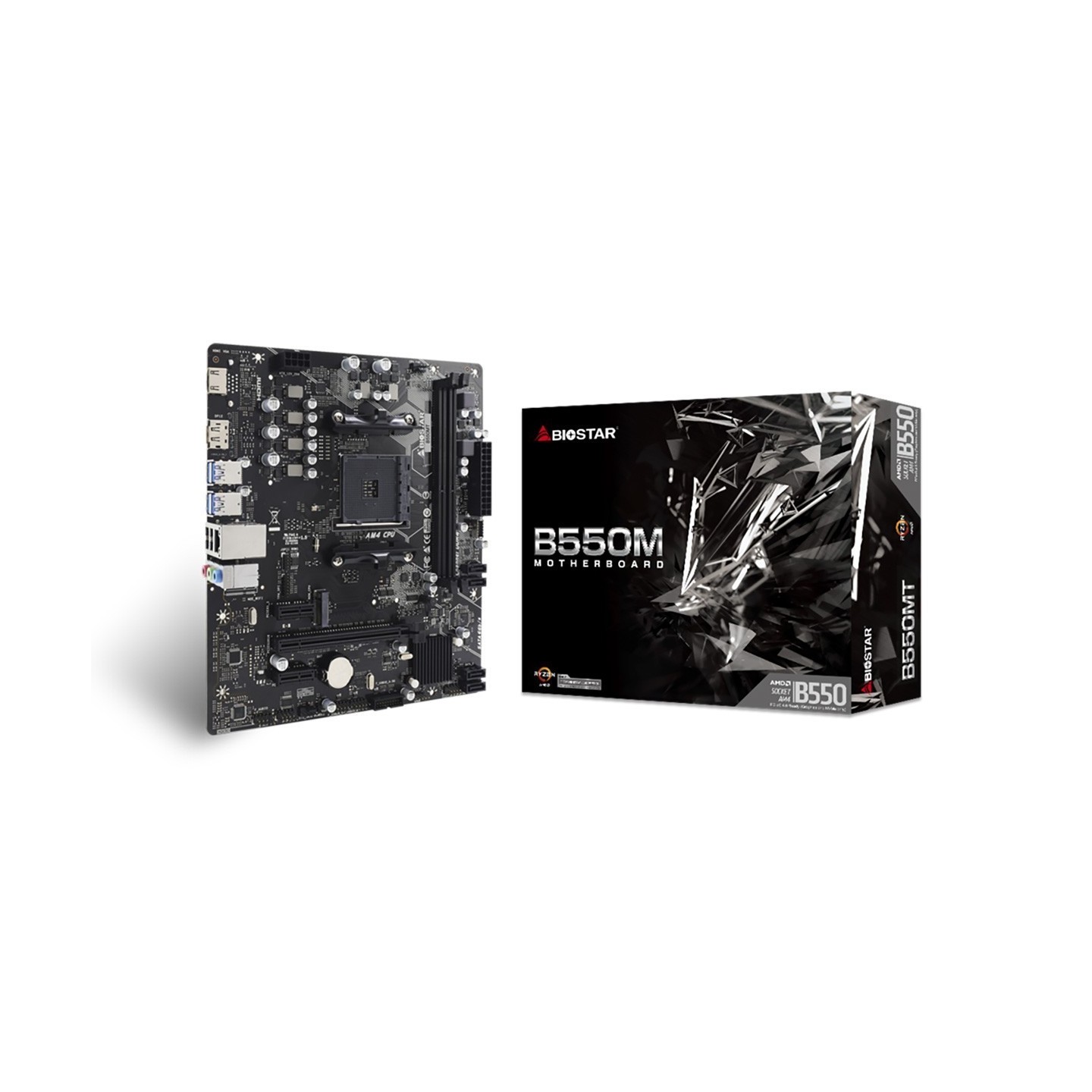

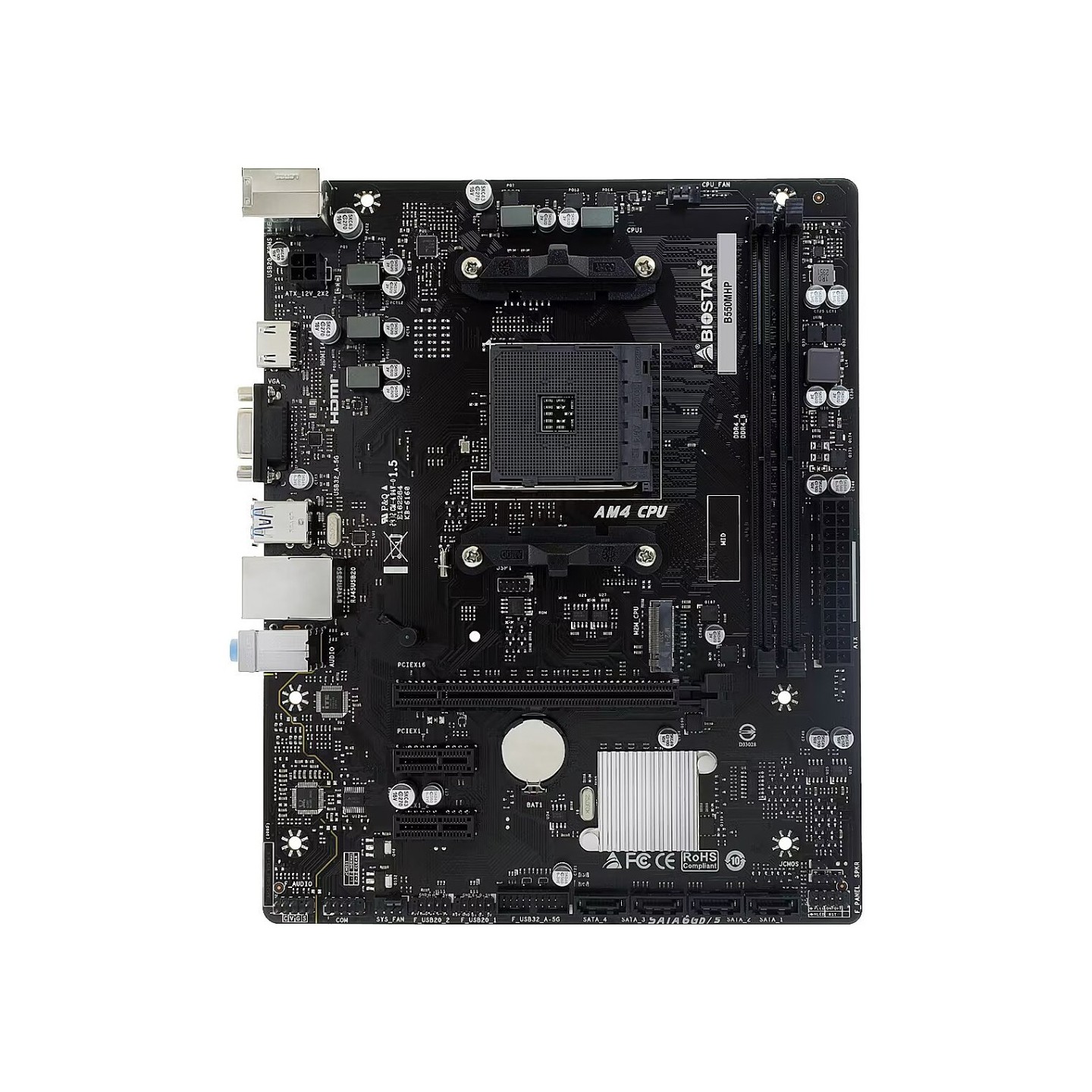

Biostar B550MHP - Micro-ATX AM4 Motherboard - B550 Chipset, DDR4 64GB Max (2x DIMM), PCIe 4.0 - Black (Boxed)
Biostar B550MHP is a micro-ATX AM4 motherboard with AMD B550 chipset. Supports Ryzen 3000/4000/5000 series, 2x DDR4 up to 64GB, PCIe 4.0 M.2, 4x SATA III, Realtek Gigabit LAN, 7.1 ALC897 audio, HDMI/VGA.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM4 |
|---|---|
| Motherboards - Chipset | AMD B550 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 2 8 (HEDT) |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
The Biostar B550MHP is a budget-friendly micro-ATX motherboard designed for AMD AM4 socket processors, including Ryzen 3000, 4000, and 5000 series. Featuring the AMD B550 chipset, it delivers solid performance for everyday computing, light gaming, and productivity tasks with support for PCIe 4.0 on the primary x16 slot and M.2 NVMe SSDs.
It offers 2x DDR4 DIMM slots supporting up to 64GB at speeds up to 4400+MHz (OC), 4x SATA III ports with RAID 0/1/10, Realtek RTL8111H Gigabit Ethernet, and Realtek ALC897 7.1-channel HD audio. Rear I/O includes 2x USB 3.2 Gen1 Type-A, 4x USB 2.0, HDMI, VGA, PS/2, and audio jacks. Onboard features include Clear CMOS button and basic fan headers for reliable operation.
- Socket: AM4 (Ryzen 3000/4000/5000)
- Memory: 2x DDR4, max 64GB
- Storage: 1x M.2 PCIe 4.0, 4x SATA III
- Video: HDMI 4K, VGA
- No WiFi, RGB, or USB-C
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| LAN controller | Realtek RTL8111H |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Number of SATA III connectors | 4 |
| PCIe Version | PCIe 4.0 (x16 slot and M.2) |
| Memory Speed (OC) | Up to 4400+ MHz |
| Compatible operating systems | Windows 10/11 (64-bit) |
| Product colour | Black |
| M.2 Slots | 1 (PCIe 4.0) |
| Wireless Connectivity | None |
