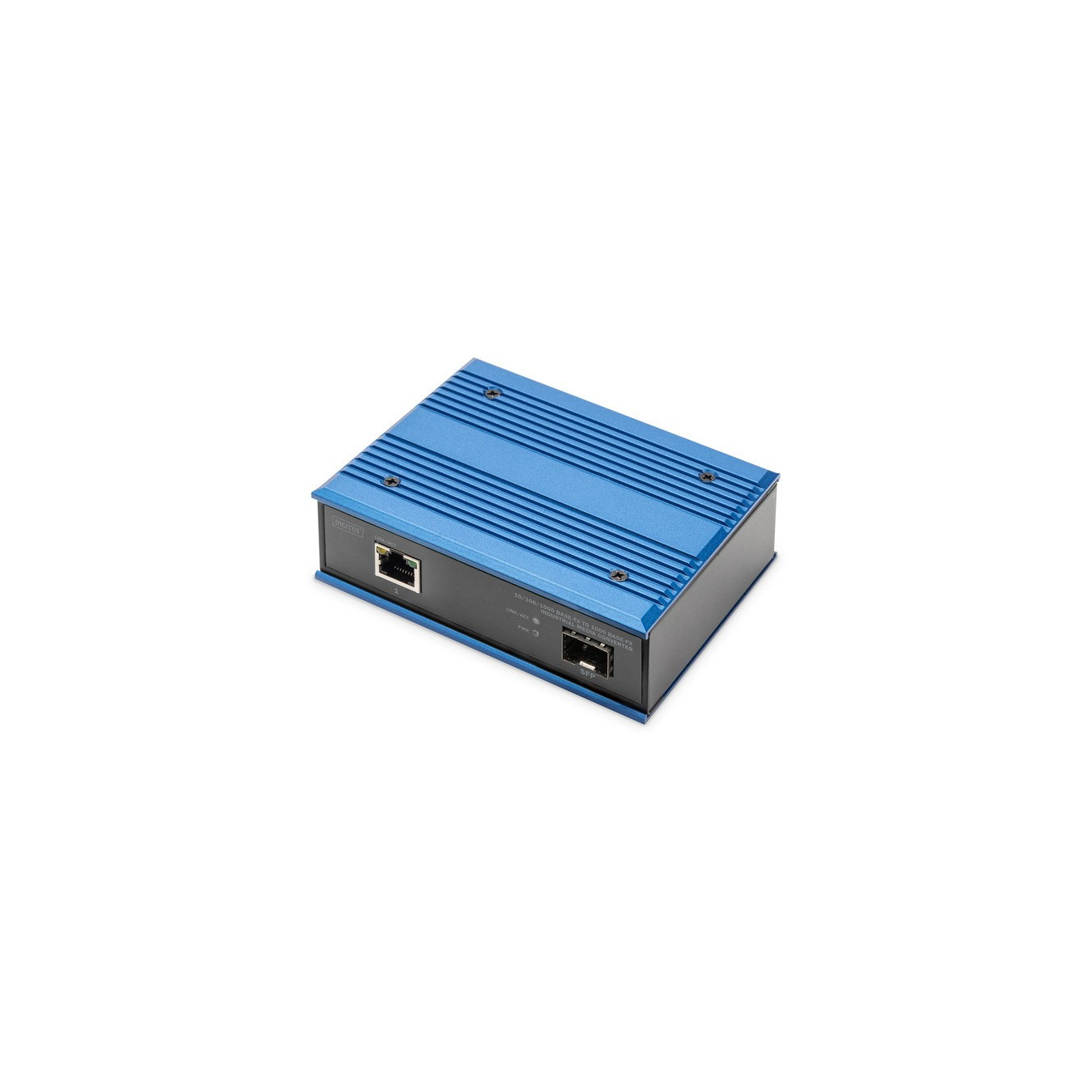

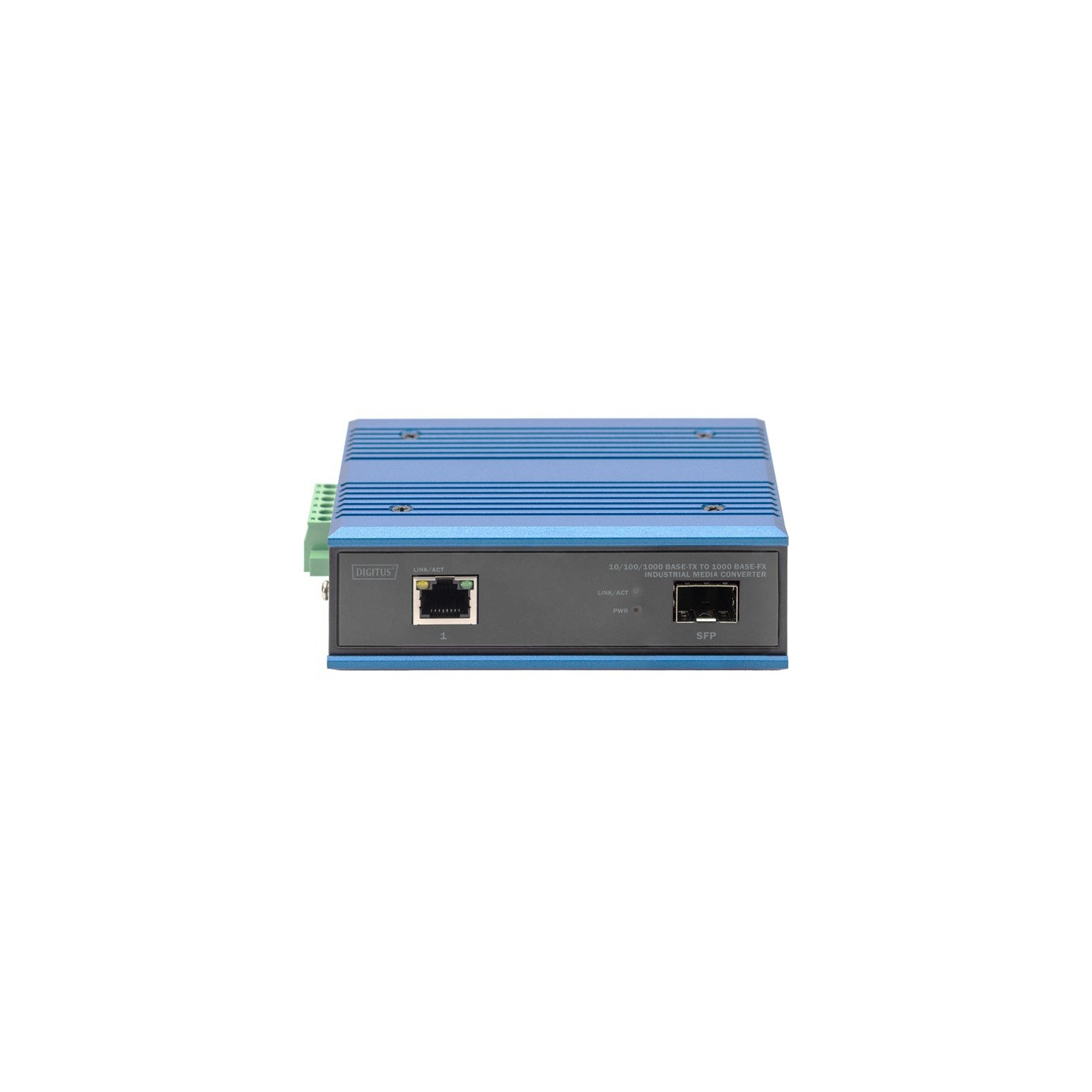

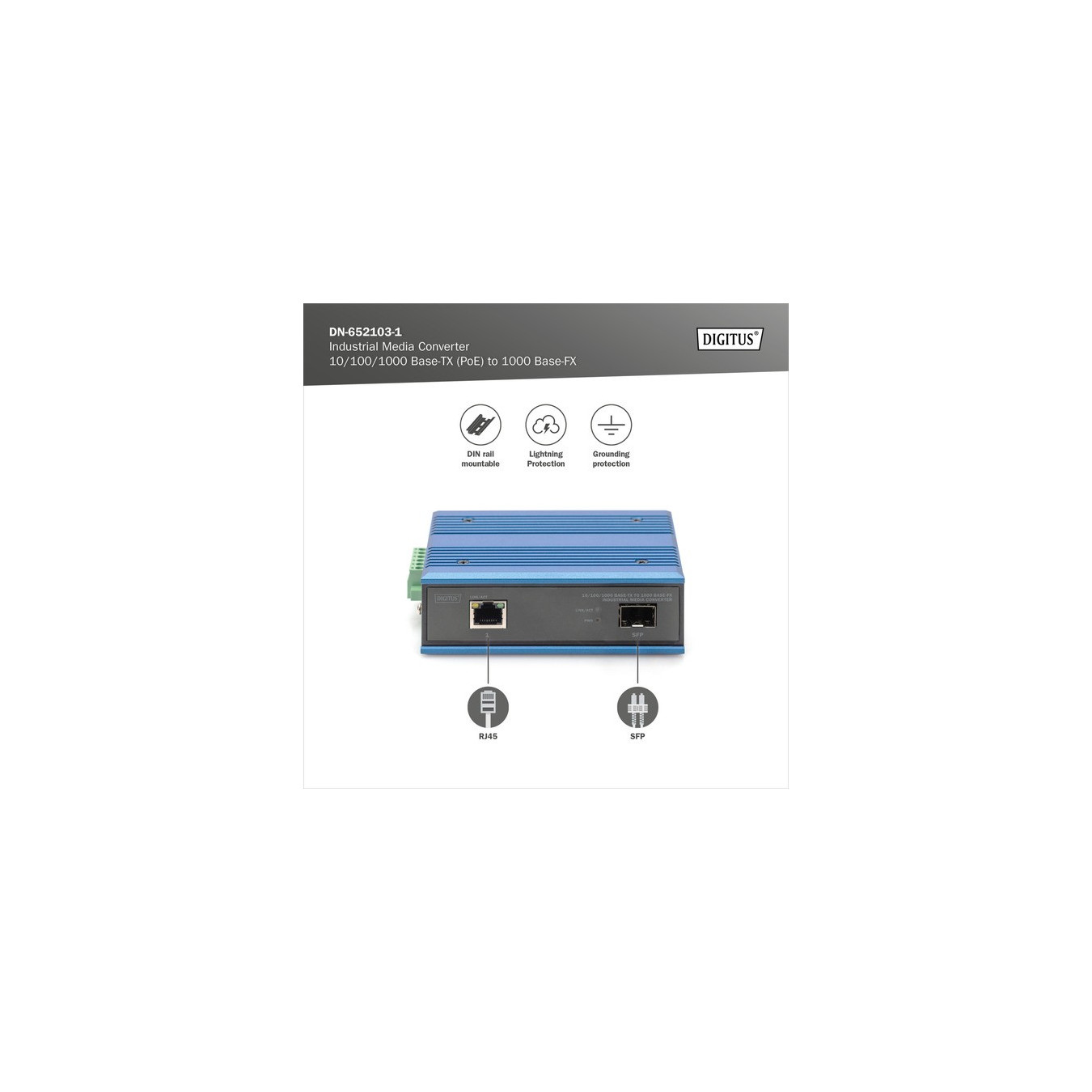

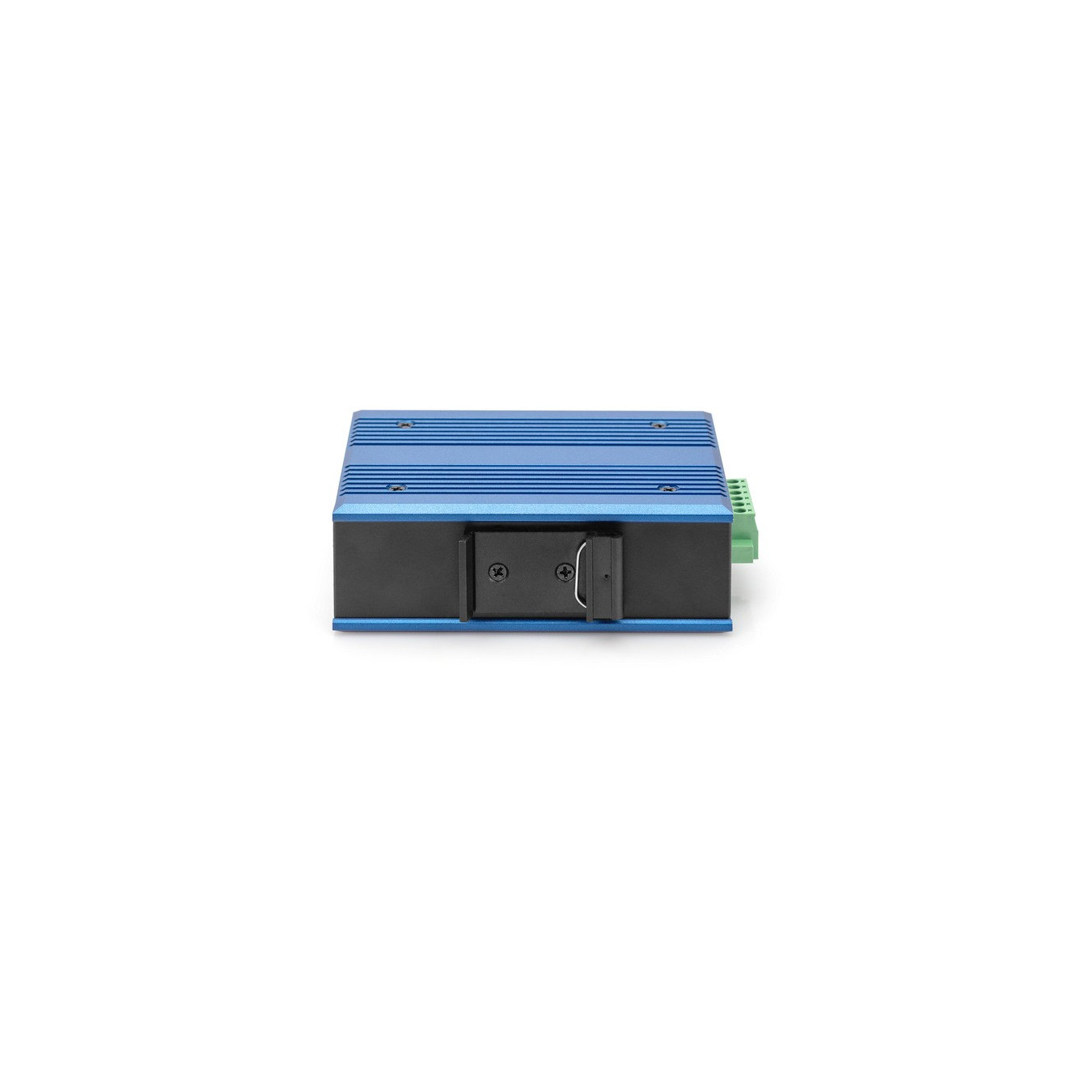

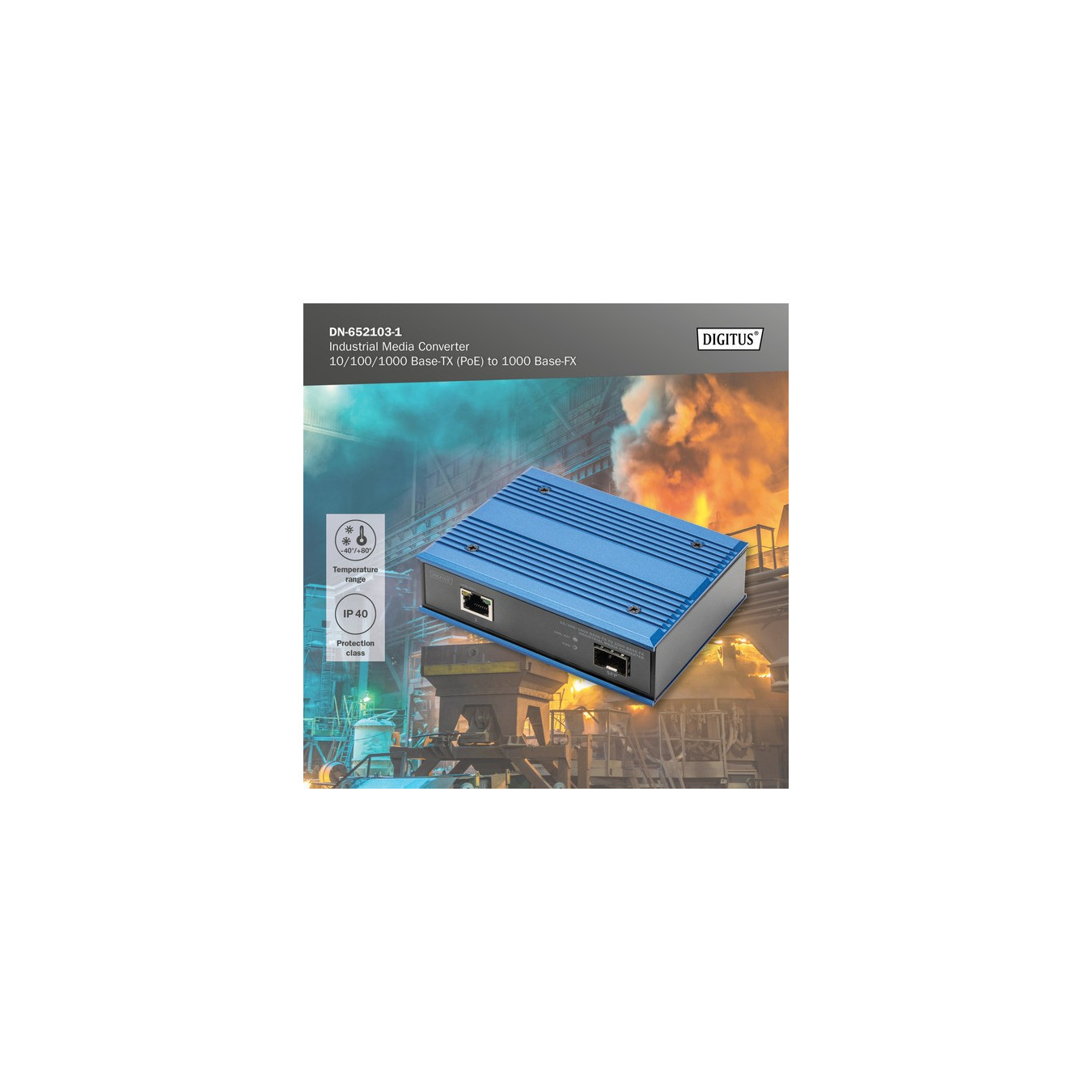

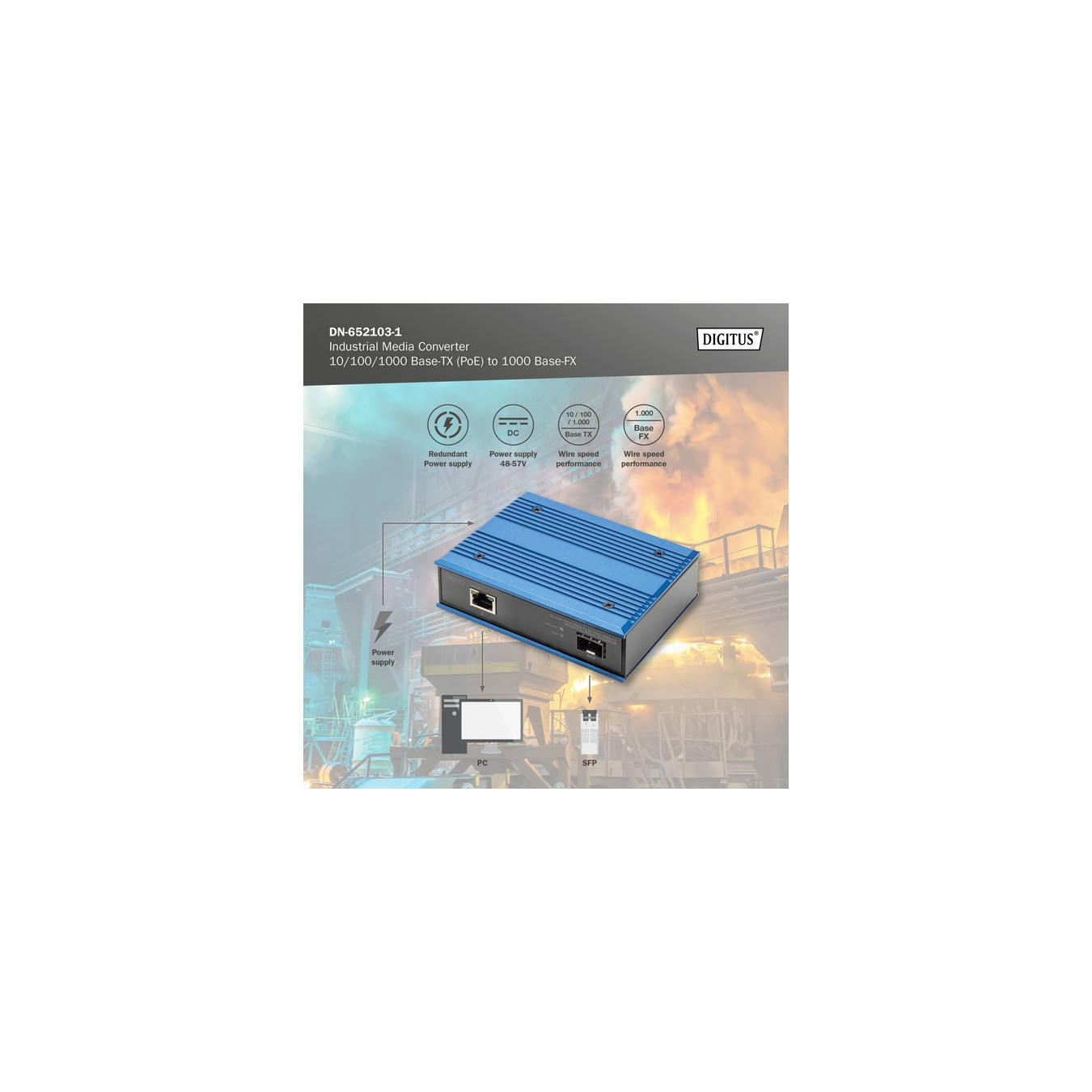

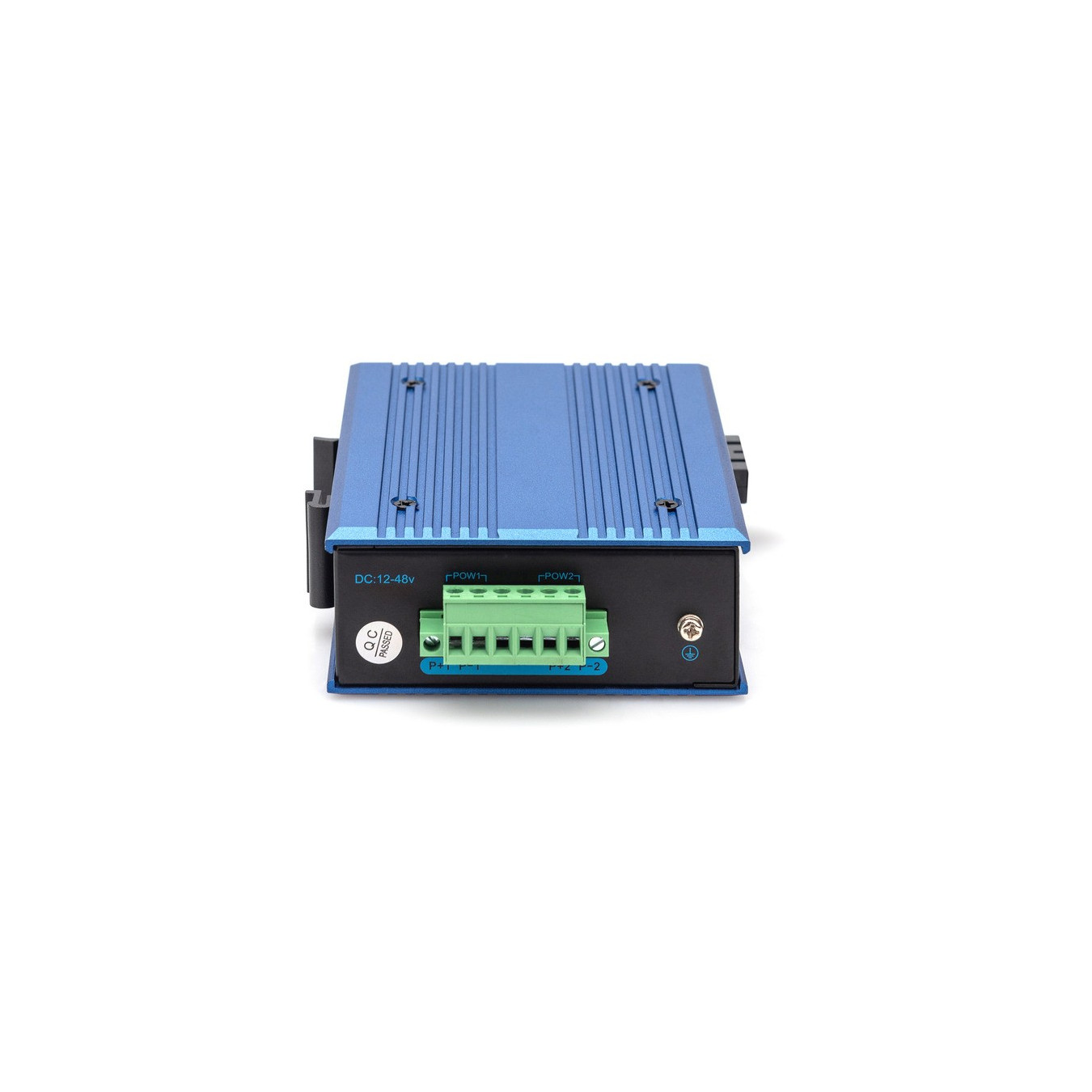

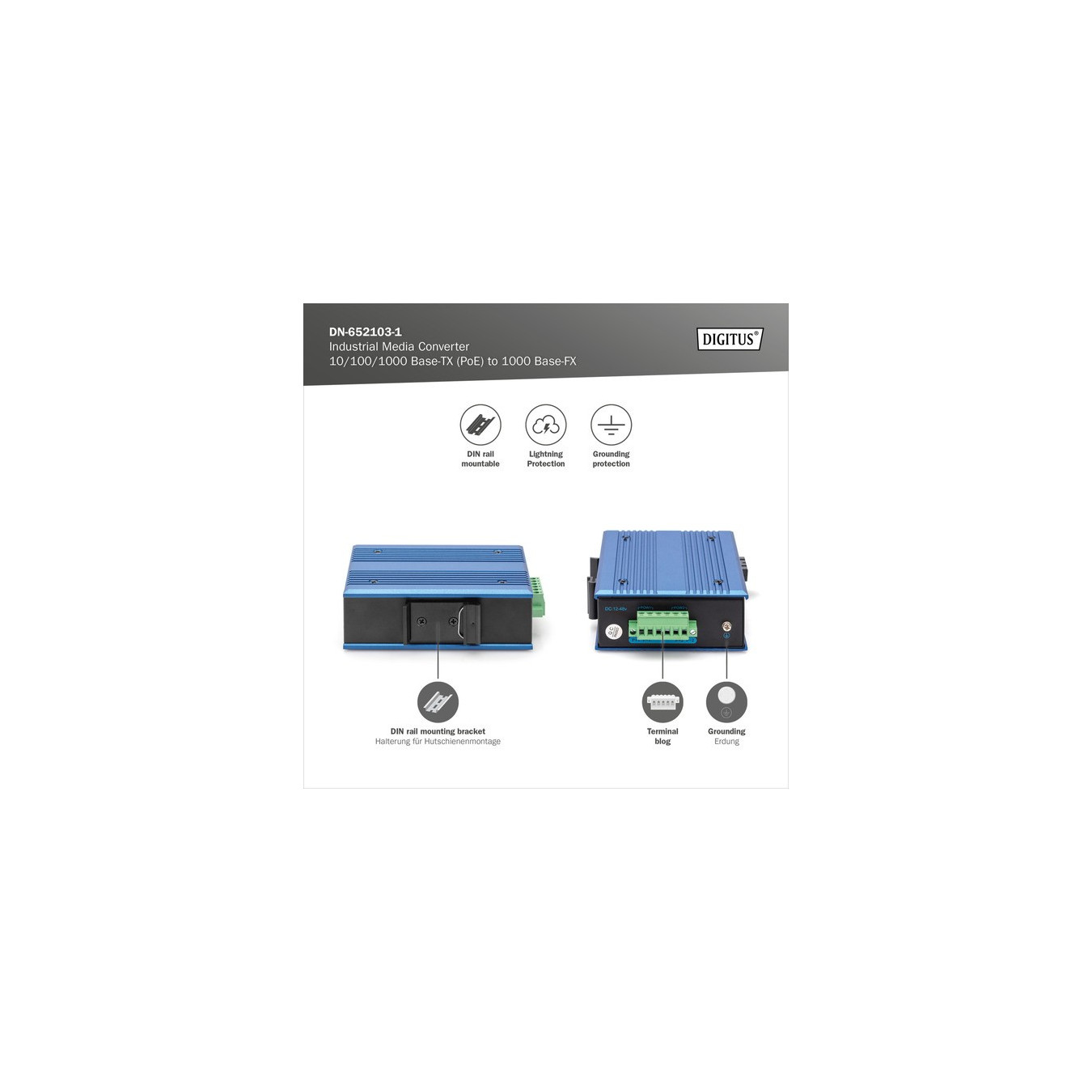

10 100 1000 Base-TX to 1000 Base-FX Industrial Media Converter - 10 100 1000 Base-TX to 1000 Base-FX
Digitus DN-652103-1 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter extends distance over fiber optic with stable performance.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Digitus DN-652103-1 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter, extends the communication distance with stable performance over fiber optic cable. The Digitus DN-652103-1 series is specially equipped with durable components and a robust housing to work reliably in electrically harsh and climatically demanding environments. The industrial-grade media converter provides a high level of immunity to electromagnetic interference and strong power surges typically found on factory floors or sidewalk traffic control closets. Operating in the temperature range of -40℃ to 80℃ allows the Digitus DN-652103-1 series to be used in almost any difficult environment. Digitus DN-652103-1 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter Series efficiently converts data between 10/100/1000 Base-TX and 1000 Base-FX network. The Digitus DN-652103-1 series offers the flexibility for all types of 10/100/1000 Mbps Ethernet media on RJ-45 ports and highly stable fiber performance. The Digitus DN-652103-1 series is housed in a compact IP40 housing that can be mounted on either a DIN rail or in a panel for efficient use of cabinet space. It offers an integrated power supply with a wide voltage range for worldwide operation. It also offers dual-redundant, reversible 12V DC to 48V DC power inputs for high availability applications that require dual or backup power inputs.
| Typ | Media converter |
| EAN | 4016032488200 |
| Manufacturer no. | DN-652103-1 |
| Connection - from | 1x RJ-45 (socket) |
| Feature | Supports full duplex or half duplex mode, with auto-negotiation capability | Support for network connections with automatic cross detection | Internal storage and forwarding mechanism, supports a wide range of protocols | In accordance with industrial operating standards, the average trouble-free work is more than 300,000 hours |
| More information | Interface: 1 port 10/100/1000 Base-Tx RJ-45 with auto-negotiation and auto-MDI/MDI-X function, 1-port 1000 Base-Fx interface SFP connection, multi-mode up to 2km, single-mode up to 20km/40km/60km/80km |
| Accessories - available | User manual |
| Dimensions | Width: 128mm x Height: 34mm x Depth/Length: 86mm |
| Weight | 460 Gramm |
