Fiber optic crimp splice protection - with Telekom approval TS0338 96, cable routing

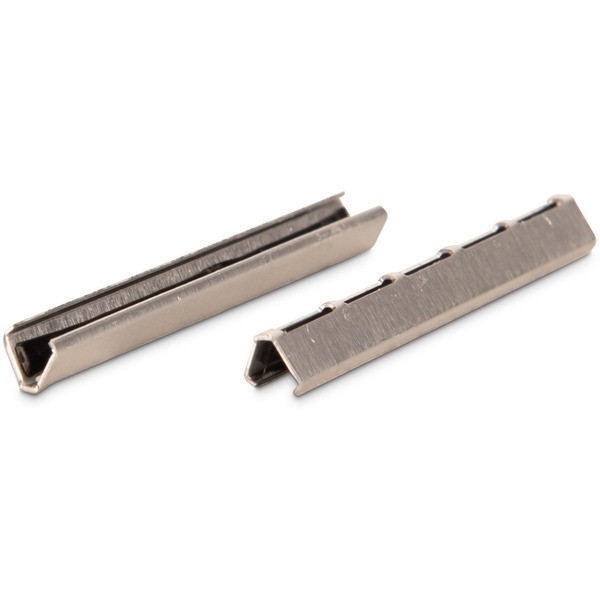

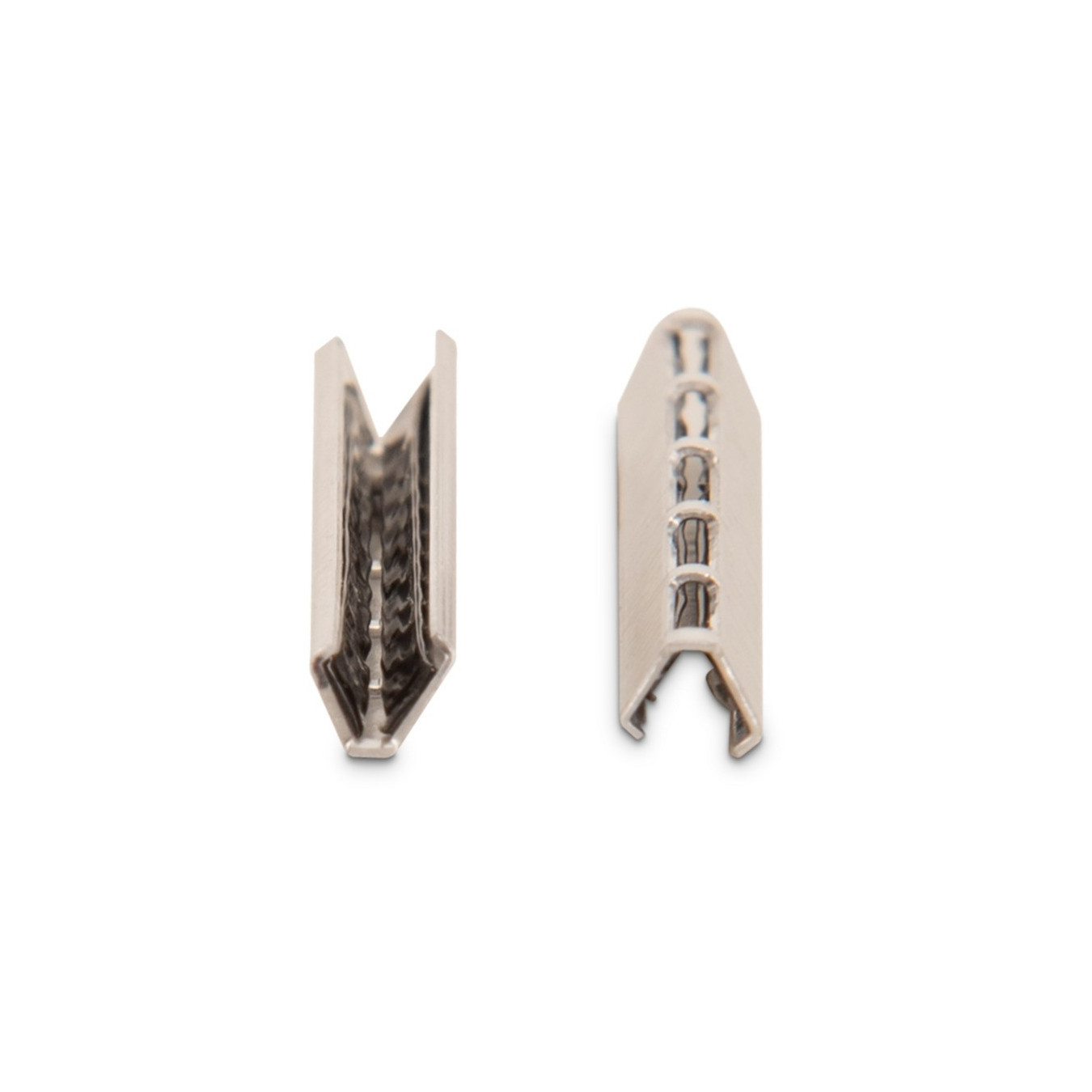

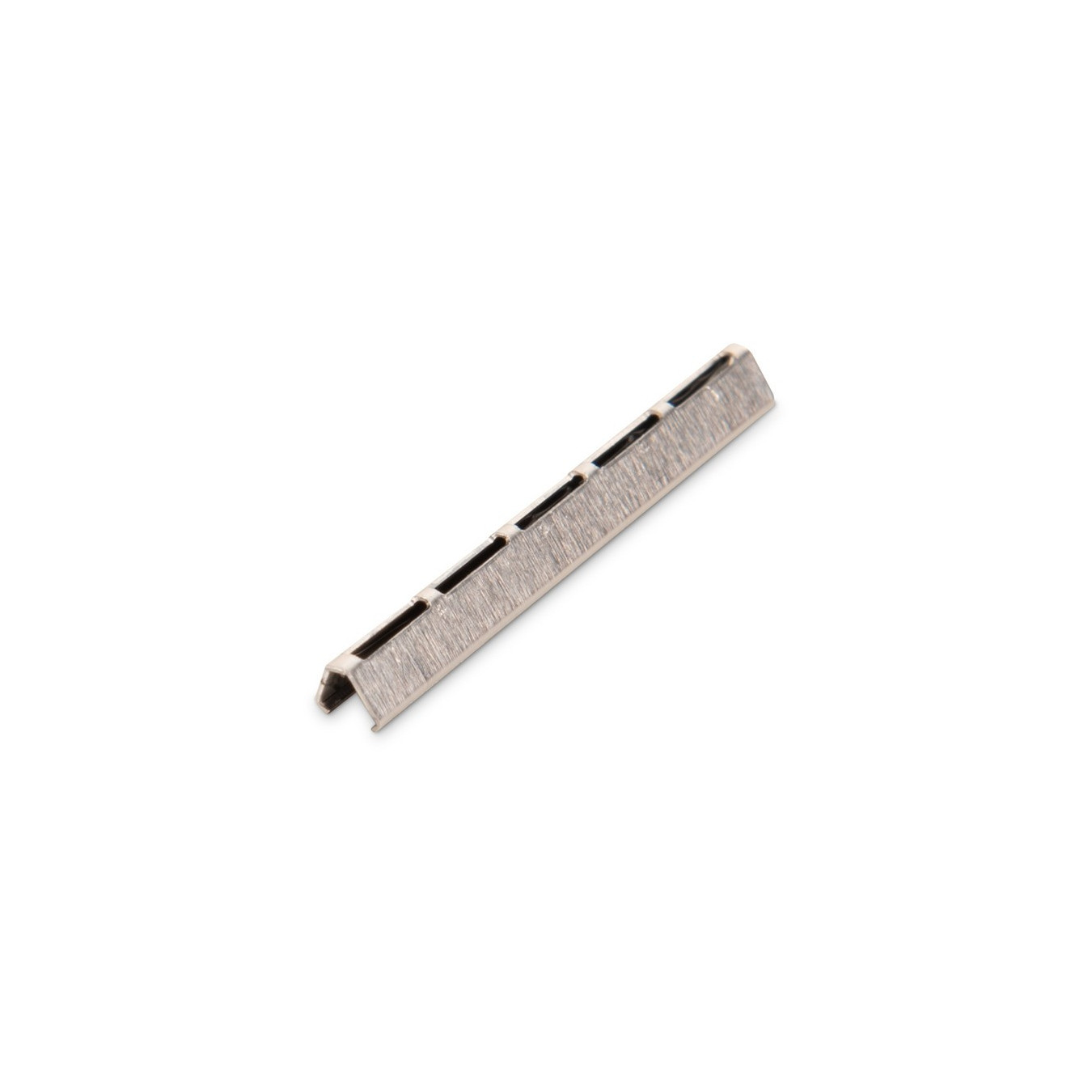

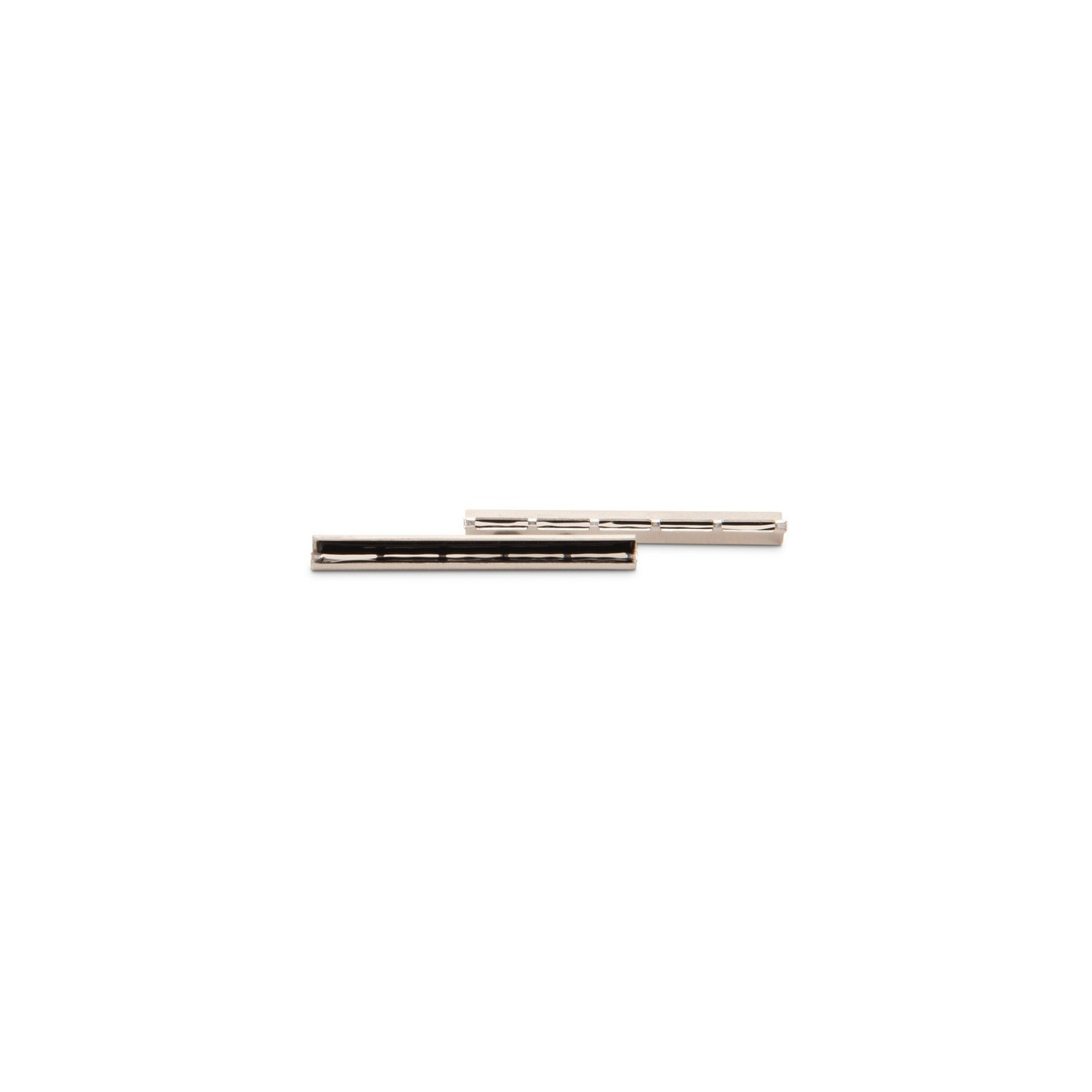

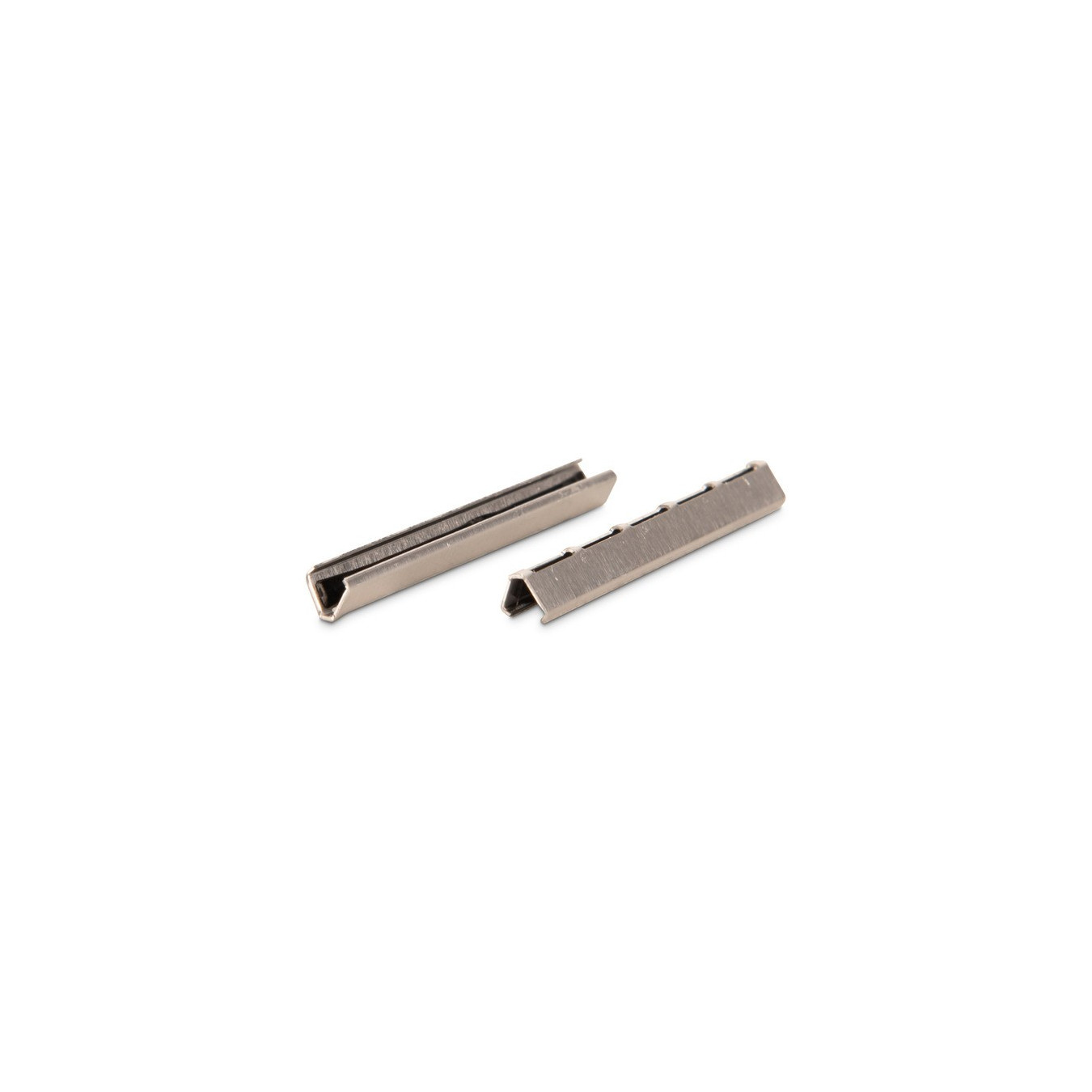

DN-CSP-015 fiber optic crimp splice protector with a mechanical clamp; 15 pieces; protects splices in distribution/control cabinets.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

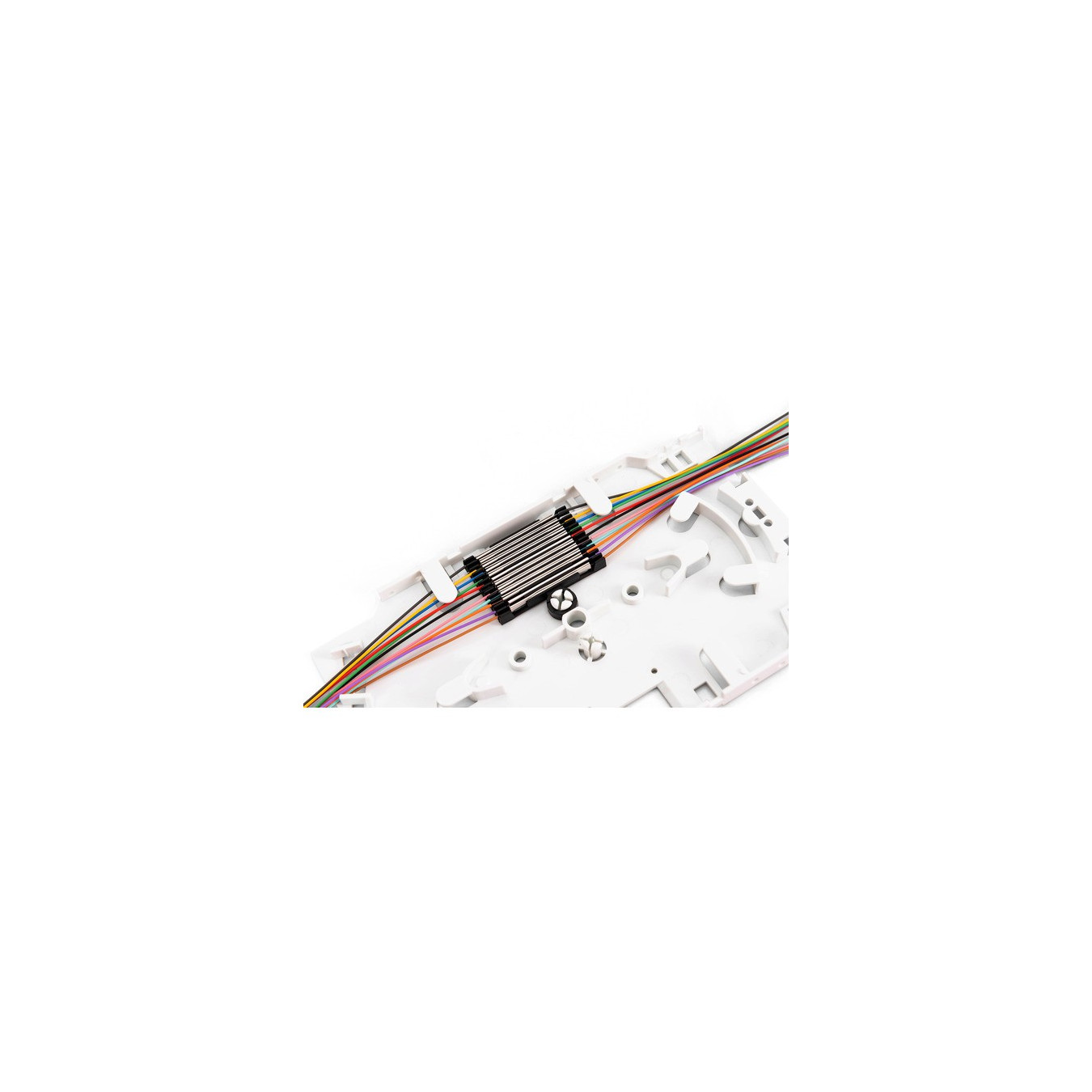

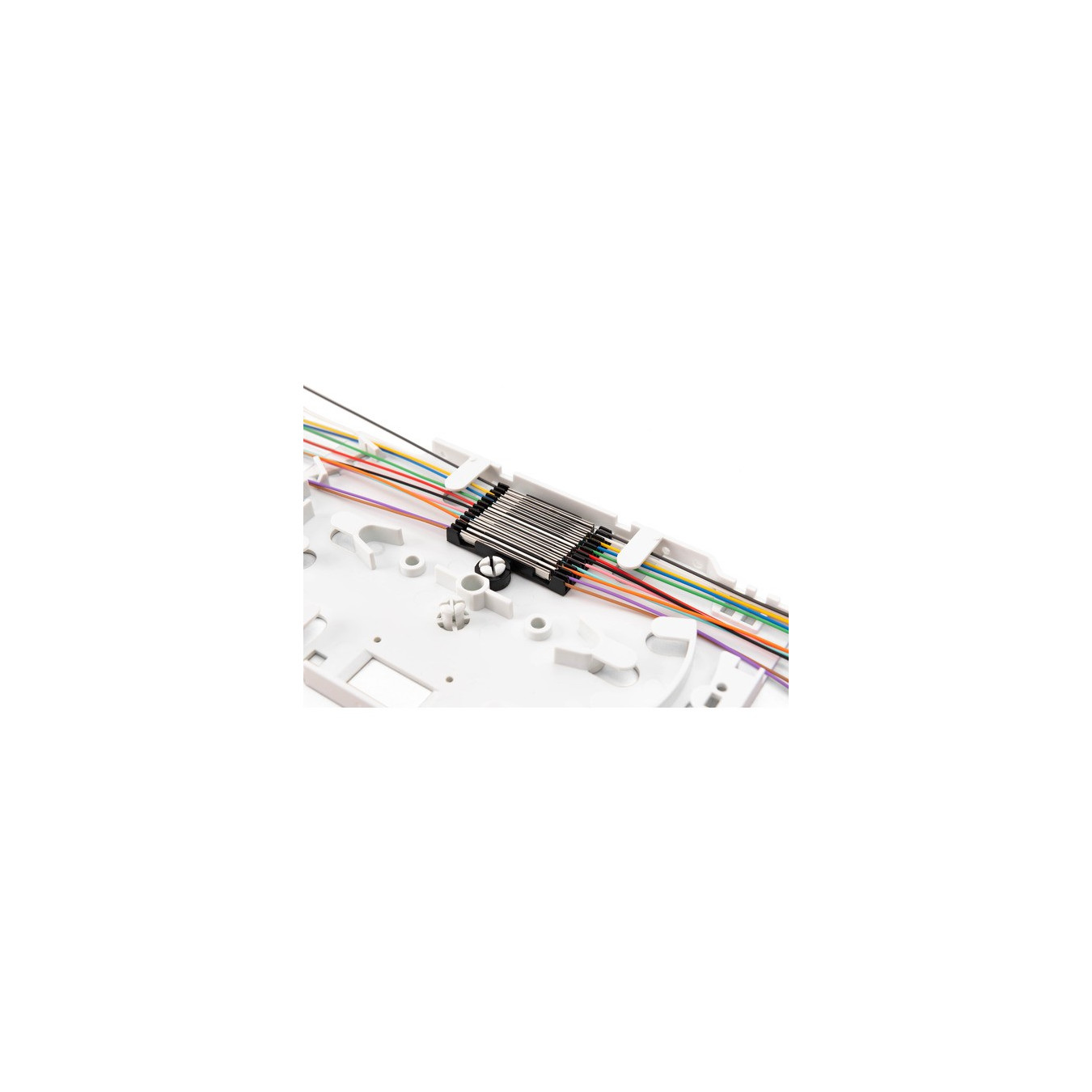

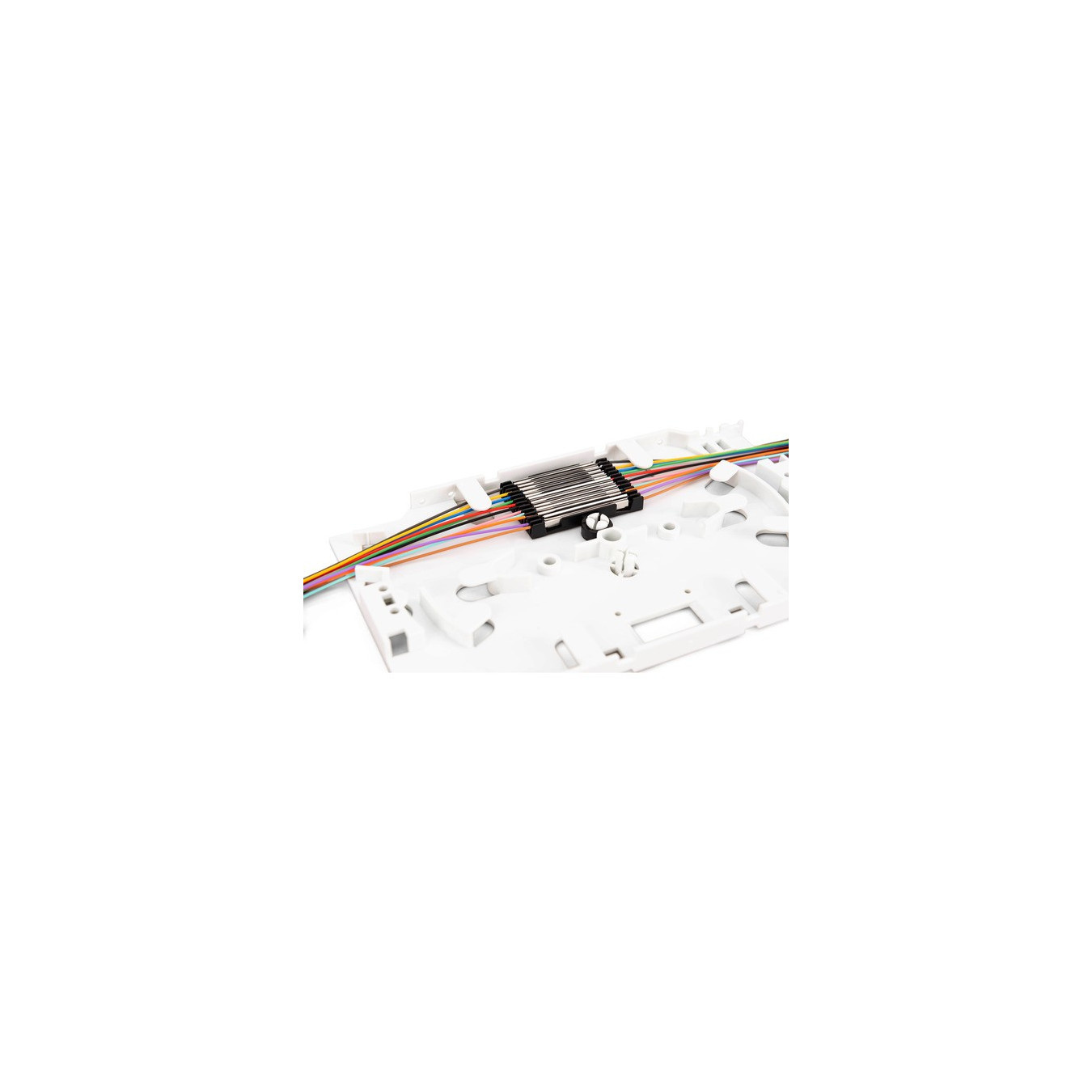

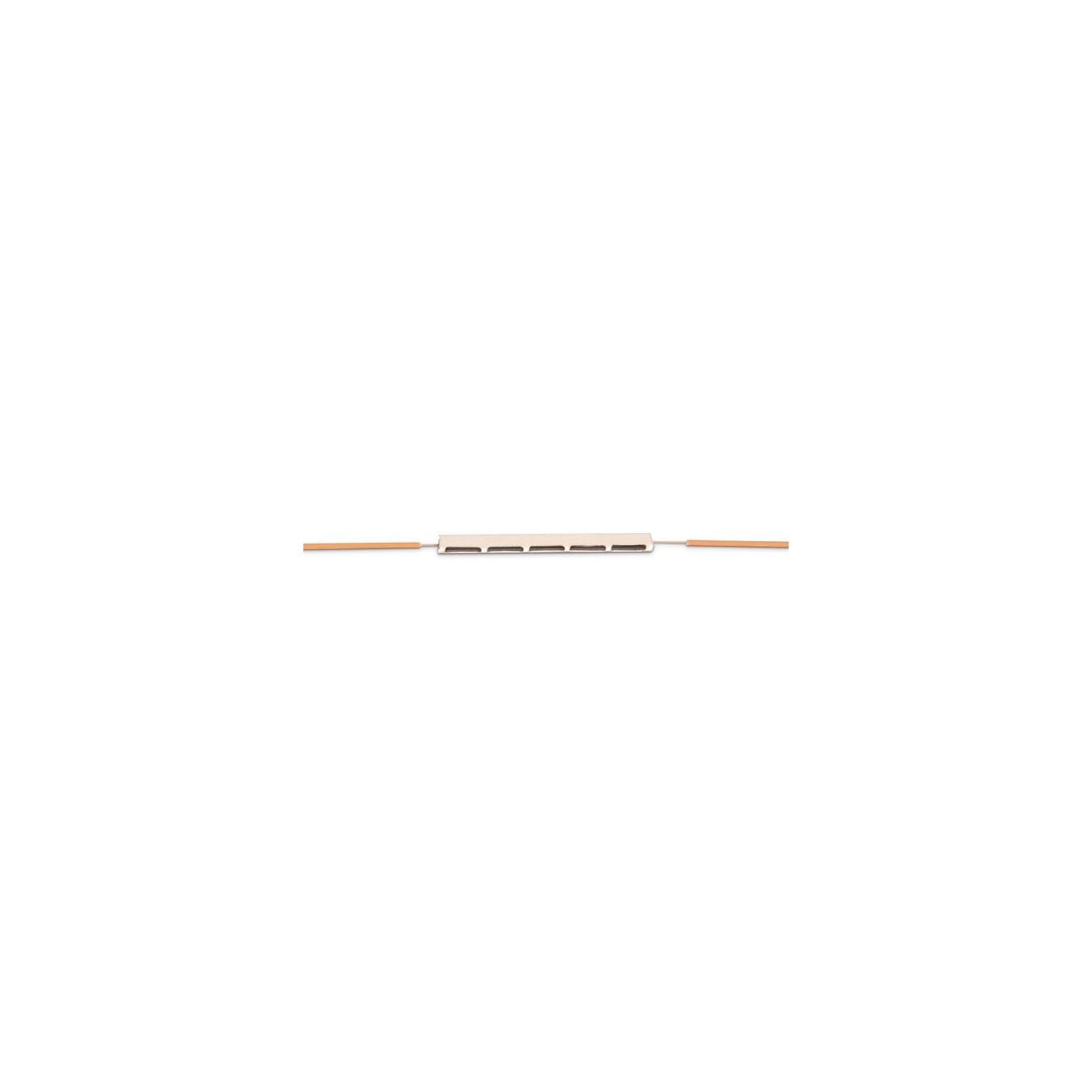

The fiber optic crimp splice protector DN-CSP-015 from DIGITUS offers a safe way to reliably protect optical fibers after splicing. The fixation is purely mechanical through a precise crimping process. Thanks to its compact design, the crimp splice protector is perfect for splice cassettes and distributors with limited space. The 900µm secondary coating of the fiber is firmly fixed, meaning that the sensitive splice point is permanently protected against tension, vibrations and micro-movements. The easy handling makes the crimp splice protection the ideal solution for installations in the field, e.g. B. in building cabling, in FTTH installations or data centers. They are used to protect fiber splices in 19" distribution panels, floor-standing and wall enclosures as well as in fiber optic splice closures. Thanks to their excellent climatic and thermal properties, they are suitable for use in both closed and open environments. The protection therefore ensures long-term resistance to crushing, pulling and puncture.
| Typ | Cable routing |
| Color | silber |
| EAN | 4016032504955 |
| Manufacturer no. | DN-CSP-015 |
| Manufactured in | China |
| Purpose of use | Protection of fiber optic crimp splices |
| Area of application | Distribution cabinet / control cabinet |

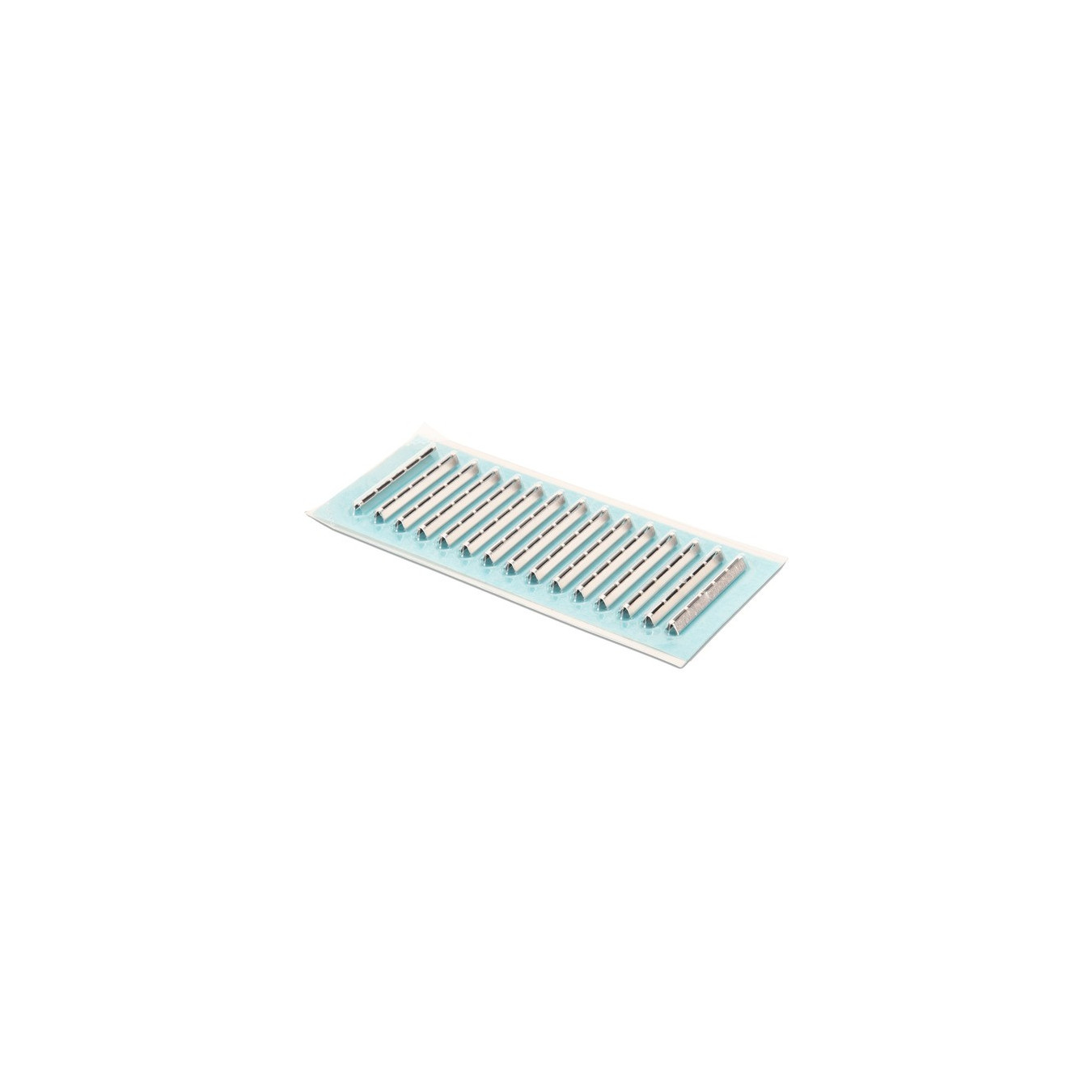

| Number of pieces | 15 pieces |
| Material | Metal |
| container | Map |
| Feature | Mechanical clamp closure, can be snapped into place or inserted into standard splice cassettes |
| More information | Compliant with TS 0388/96, opening angle of the protector before crimping θ=52° |
| Dimensions | Width: 1.2mm x Height: 3.3mm x Depth/Length: 30mm |
