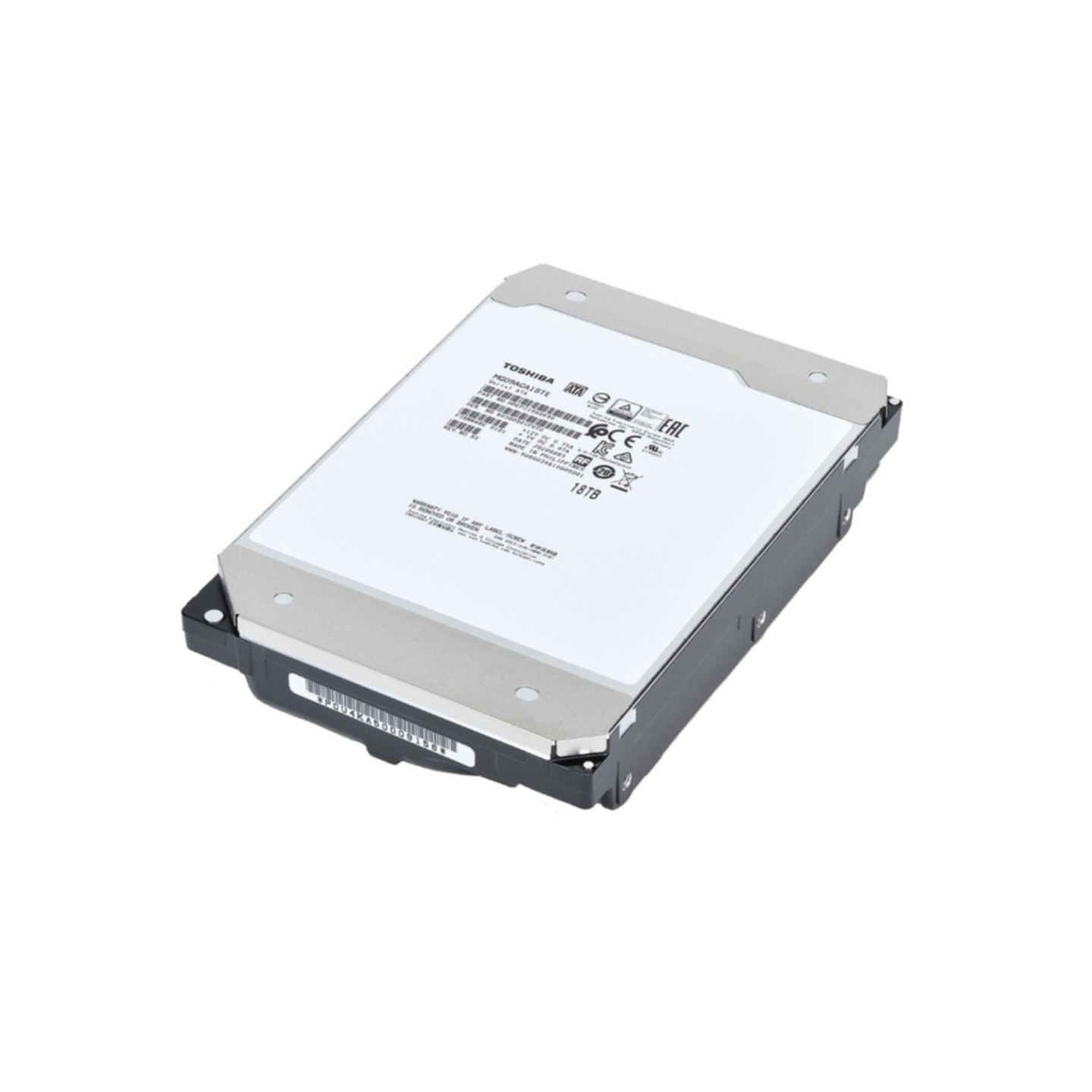

Toshiba MG09ACA18TE 18TB 3.5in SATA III 7200RPM Helium FC-MAMR Enterprise HDD (Bare)
Toshiba MG09ACA18TE 18TB 3.5in enterprise HDD with SATA III 6Gb/s, 7200RPM, helium-sealed 9-disk CMR using FC-MAMR tech. Ideal for data centers, cloud storage with 512MB cache and 550TB/yr workload rating.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal HDD |
|---|---|
| Storage (SSD & HDD) - Capacity | 18TB |
| Storage (SSD & HDD) - RPM (HDD) | 7200 RPM |
| Storage (SSD & HDD) - Interface | SATA III |
| Storage (SSD & HDD) - Cache (HDD) | 512MB |
| Storage (SSD & HDD) - Form Factor | 3.5 inch |
The Toshiba MG09ACA18TE is a high-capacity 18TB enterprise hard drive designed for demanding cloud-scale storage, data centers, and business-critical servers. Featuring Toshiba's innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology and a 9-disk helium-sealed design, it achieves 2TB per disk density with Conventional Magnetic Recording (CMR) for maximum compatibility and reliability.
With 7200 RPM spindle speed, SATA III 6Gb/s interface, and 512MB cache, this 3.5-inch drive delivers sustained transfer rates up to 268 MB/s. The helium-sealed enclosure reduces power consumption and operational noise while enhancing storage density. It supports a 550TB/year workload rating, making it perfect for cloud infrastructure, data protection, and compliance archives.
- 18TB capacity with FC-MAMR technology
- Helium-sealed 9-disk design for efficiency
- SATA 6Gb/s, 7200 RPM, 512MB cache
- Enterprise reliability: 550TB/yr workload
- Standard 3.5-inch form factor (26.1mm height)
| Capacity | 18TB |
| Interface | SATA 6Gb/s |
| Form Factor | 3.5-inch |
| Spindle Speed | 7200 RPM |
| Buffer Size | 512 MiB |
| Recording Technology | CMR with FC-MAMR |
| Helium Sealed | Yes (9-disk) |
| Max Sustained Transfer Rate | 268 MiB/s (Typ.) |
| Workload Rating | 550 TB/year |
| Height | 26.1 mm (Max.) |
| Width | 101.85 mm (Max.) |
| Length | 147.0 mm (Max.) |
| Weight | 720 g (Max.) |
| Sector Size | 512e |
