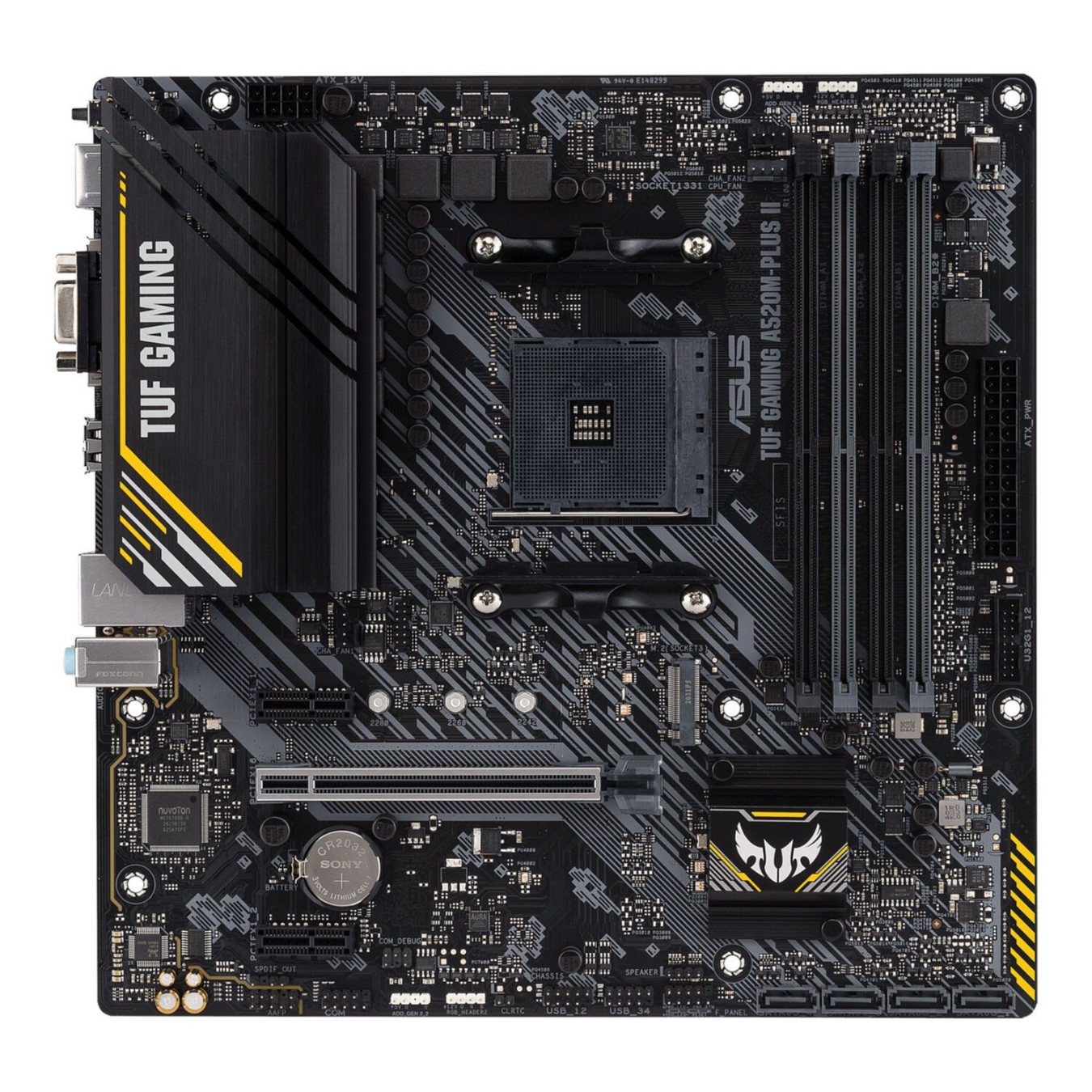

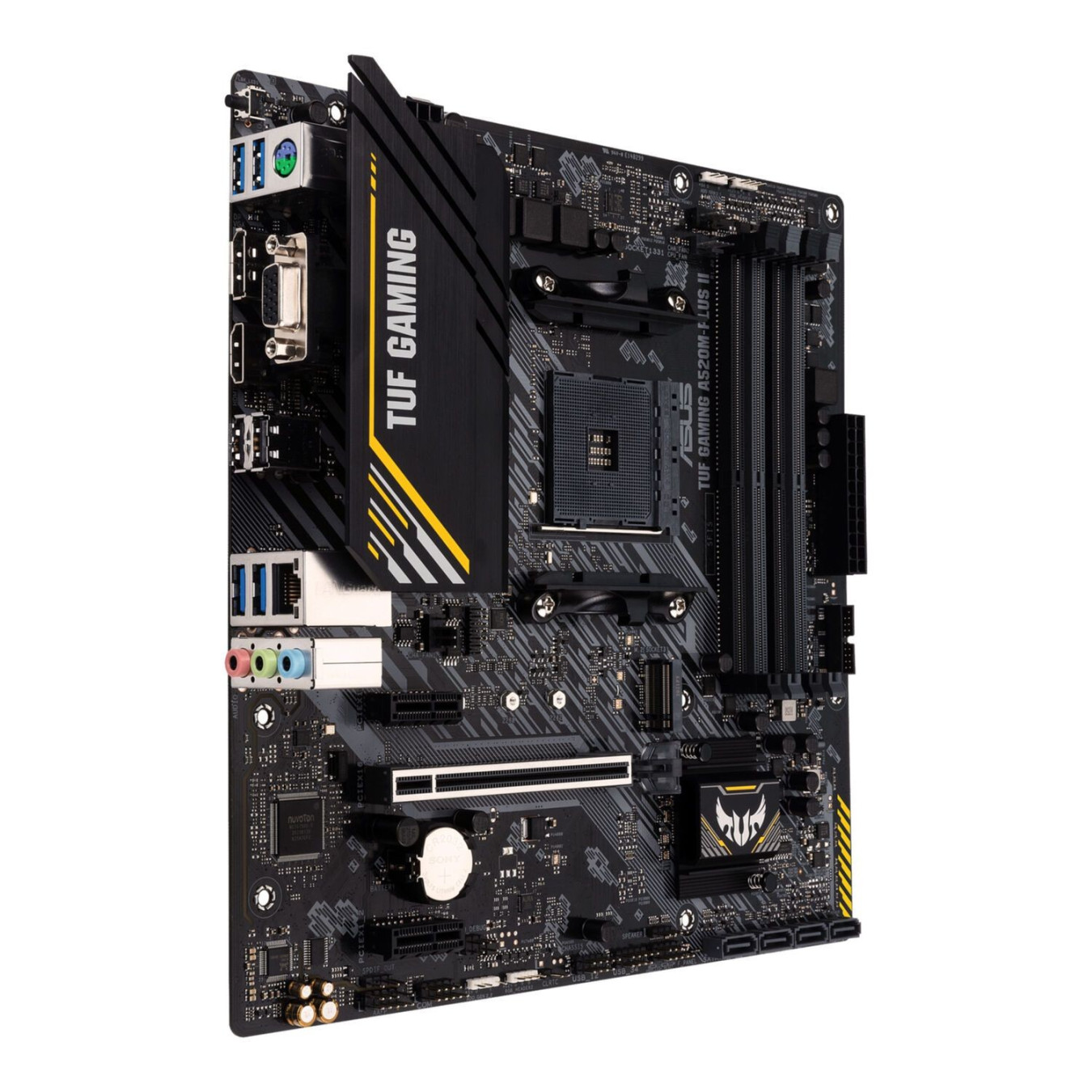

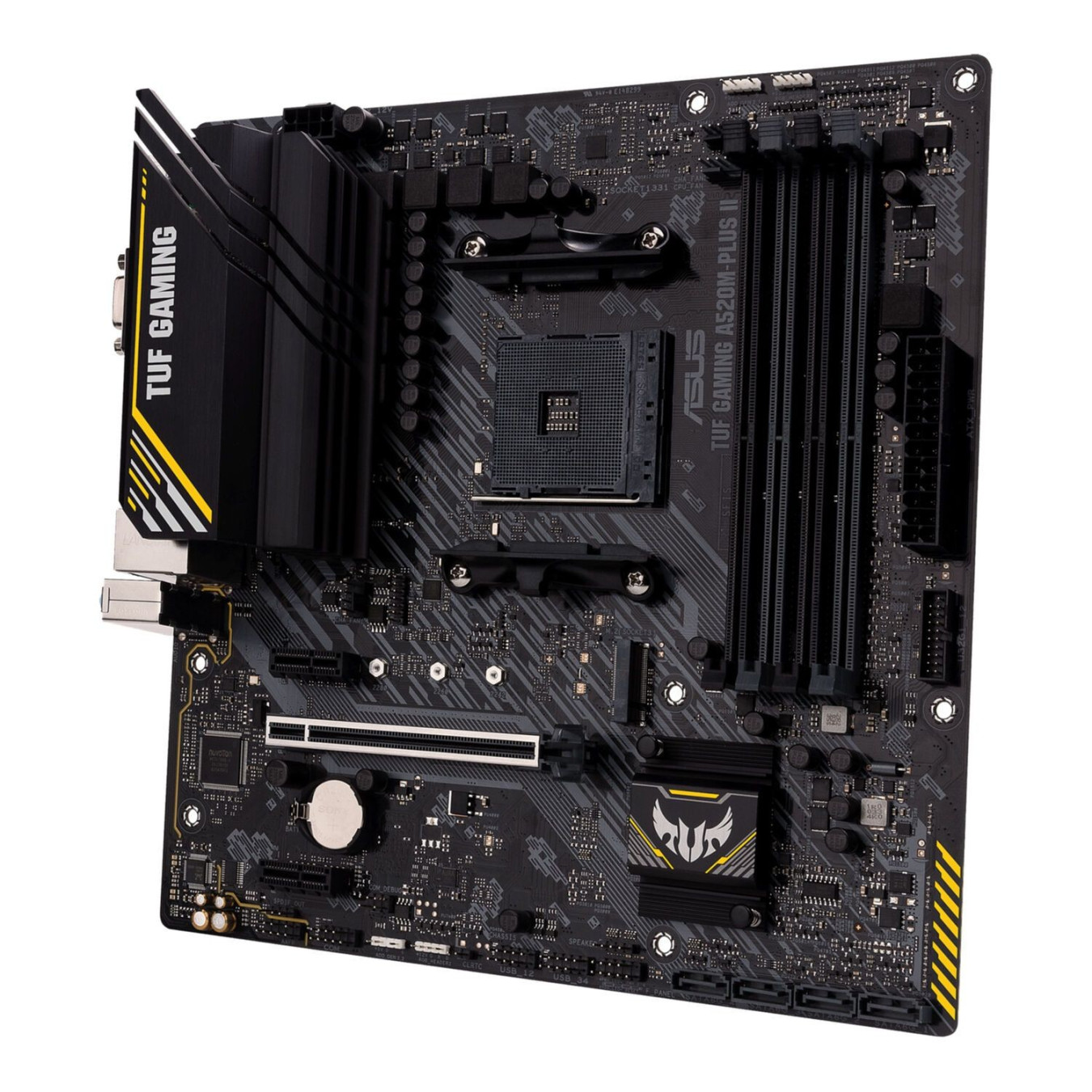

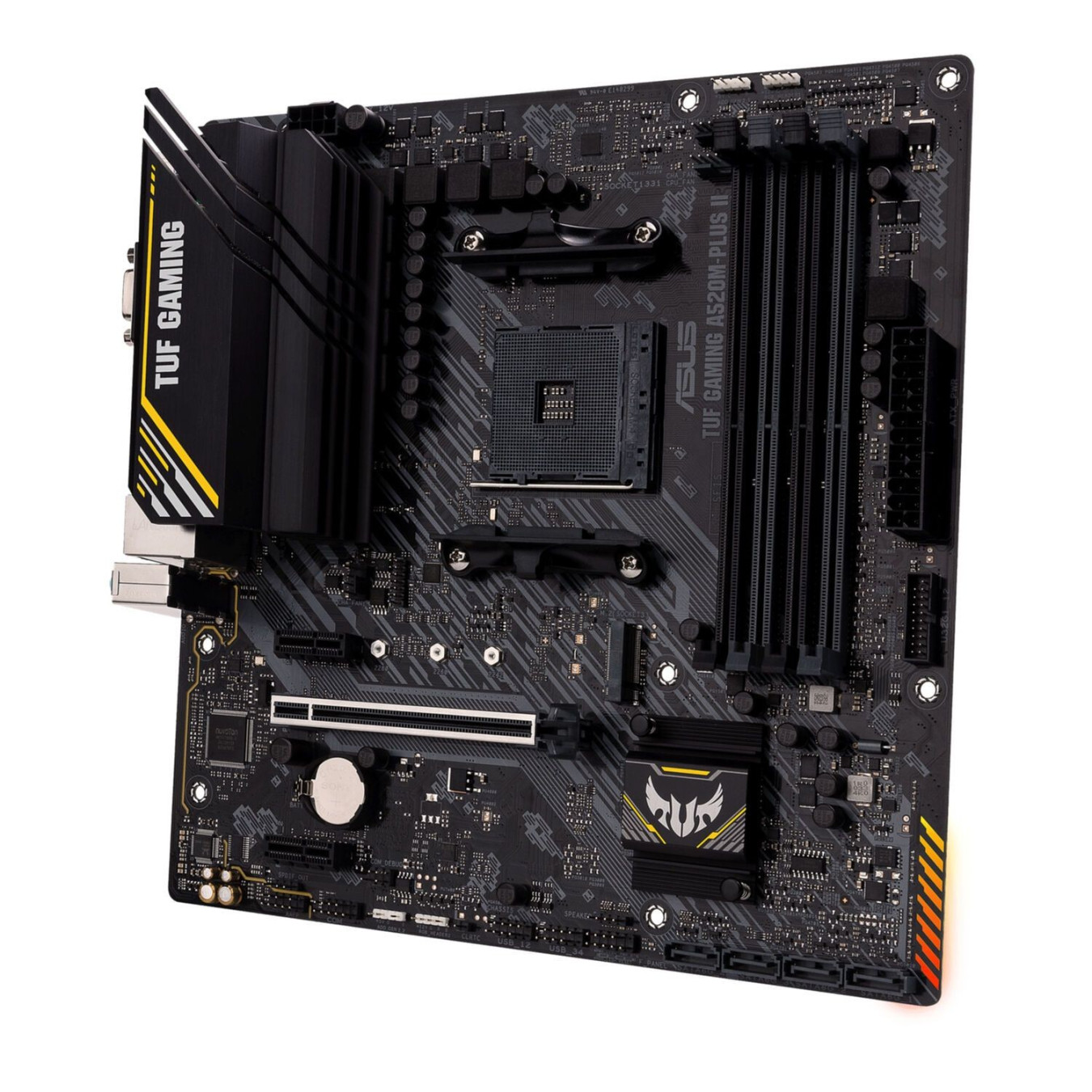

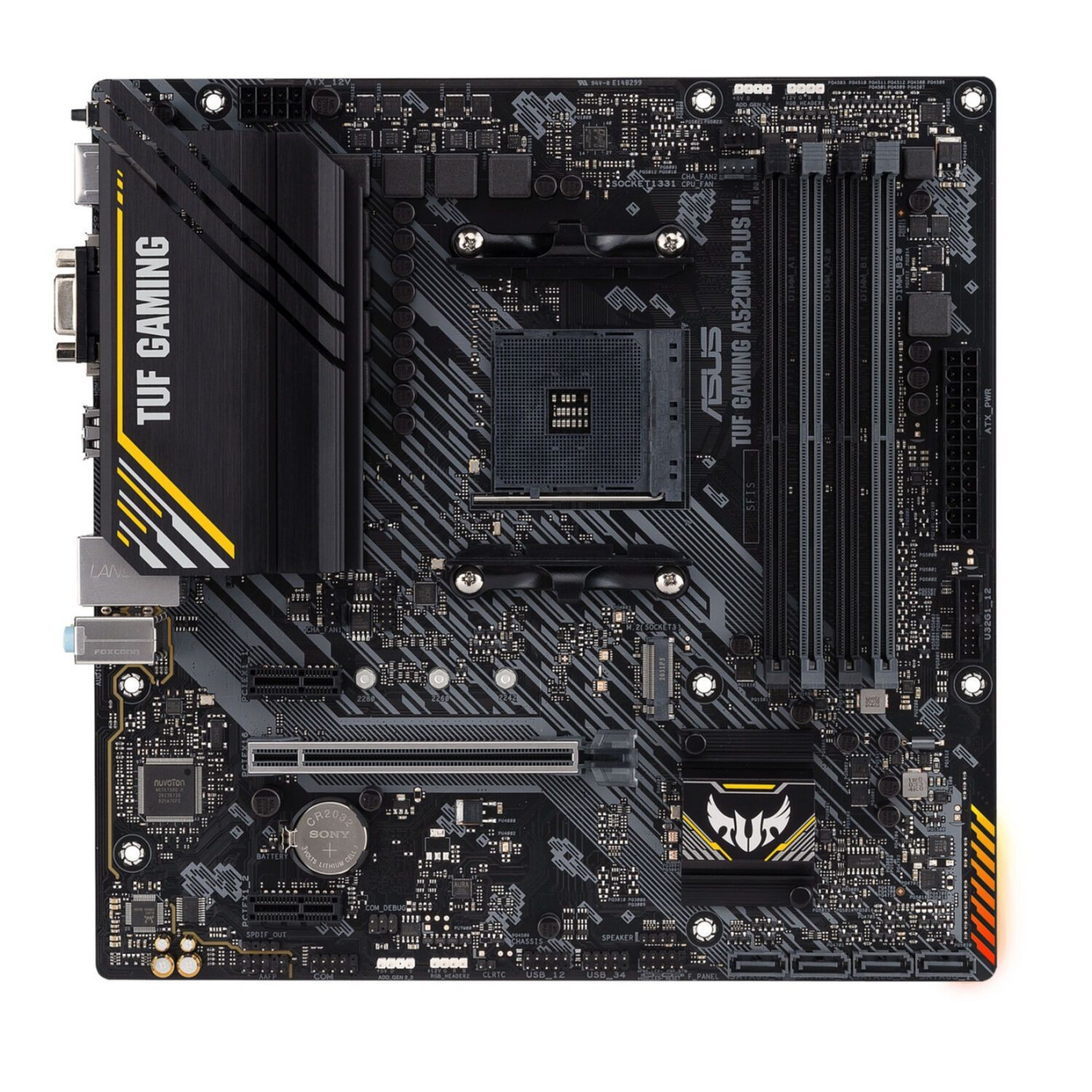

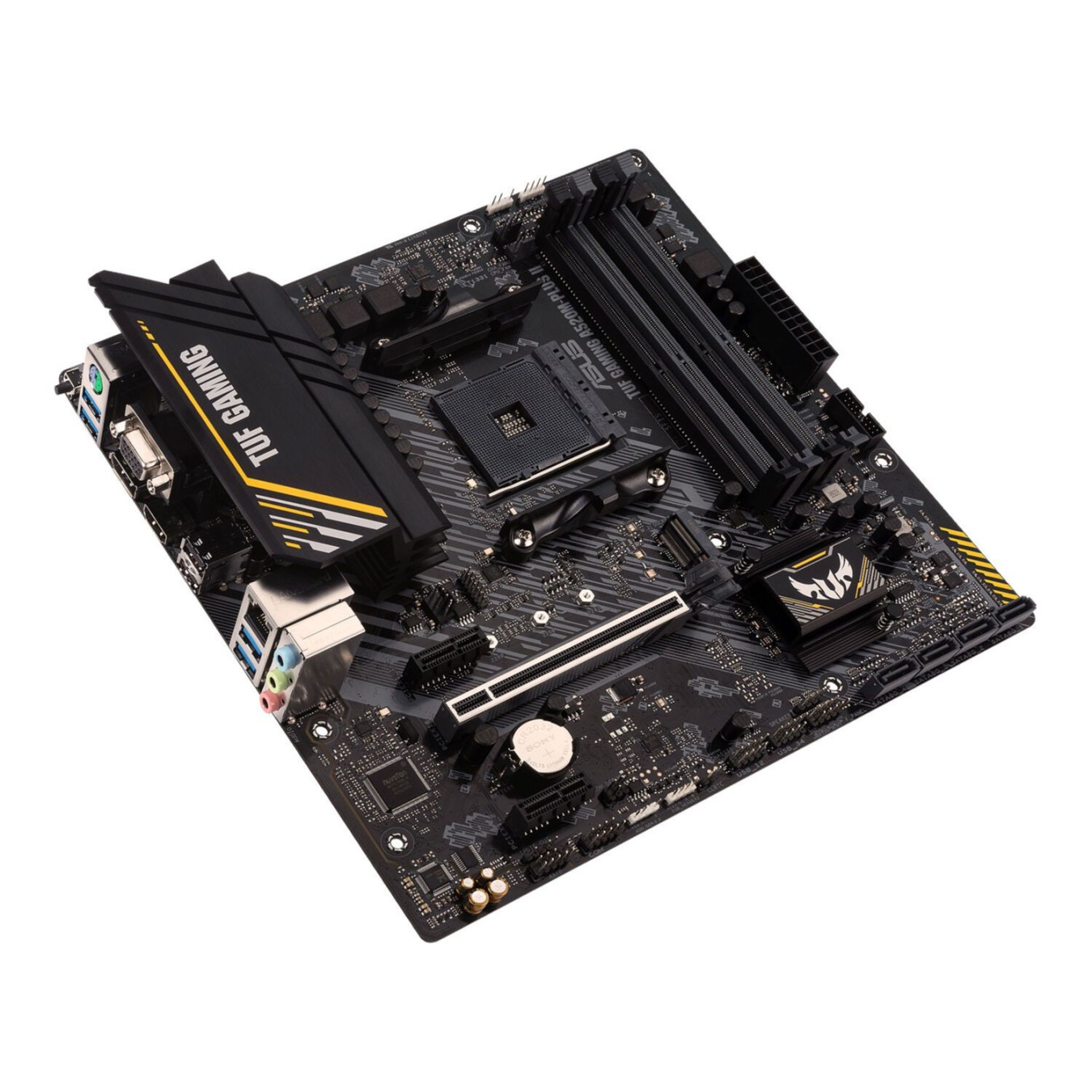

ASUS TUF GAMING A520M-PLUS II AM4 Micro-ATX Motherboard A520 DDR4 (Boxed)
ASUS TUF GAMING A520M-PLUS II: AMD A520 mATX motherboard for Ryzen 3000/4000G/5000 Series. 4x DDR4 up to 128GB (4866MHz OC), PCIe 3.0 x16, 1x M.2 (32Gbps), 4x SATA, HDMI 2.1, Realtek 1Gb LAN. Durable TUF components.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM4 |
|---|---|
| Motherboards - Chipset | AMD A520 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 3.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
The ASUS TUF GAMING A520M-PLUS II is a robust micro-ATX motherboard built on the AMD A520 chipset, designed for Ryzen 3000 Series, 4000 G-Series, and 5000 Series desktop processors via the AM4 socket. It delivers reliable performance for gaming and productivity with military-grade TUF components, enhanced power delivery, and comprehensive cooling including VRM and PCH heatsinks.
Key features include 4x DDR4 DIMM slots supporting up to 128GB at speeds to 4866MHz (OC) in dual-channel mode with ECC compatibility (CPU-dependent). Storage options feature 1x M.2 slot (PCIe 3.0 x4 & SATA, up to 2280) at 32Gbps speeds plus 4x SATA 6Gb/s ports with RAID 0/1/10. Expansion includes 1x PCIe 3.0 x16 and 2x PCIe 3.0 x1 slots. Rear I/O offers HDMI 2.1 (4K@60Hz), DisplayPort 1.2, D-Sub, 4x USB 3.2 Gen 1, 2x USB 2.0, Gigabit Ethernet with TUF LANGuard, and 7.1-channel audio via Realtek ALC897/ALC887.
- ✅ AMD AM4 socket: Ryzen 5000/4000G/3000 Series
- ✅ DDR4 128GB max, 4866MHz+ OC, ECC support
- ✅ 1x M.2 PCIe 3.0 x4 (32Gbps), 4x SATA RAID
- ✅ PCIe 3.0 x16 graphics slot
- ✅ HDMI 2.1, DP 1.2, VGA; Realtek Gb LAN
- ✅ No WiFi/BT, no RGB headers
- ✅ mATX 24.4 x 24.4 cm
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 G-Series, AMD Ryzen 5000 Series |
| Motherboard chipset | AMD A520 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800,4866(OC) MHz |
| ECC сompatibility | ECC |
| Number of M.2 (M) slots | 1 |
| Number of SATA III connectors | 4 |
| RAID levels | 0, 1, 10 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Audio chip | Realtek ALC897 / Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Width | 244 mm |
| Depth | 244 mm |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Windows operating systems supported | Windows 10 x64 |
