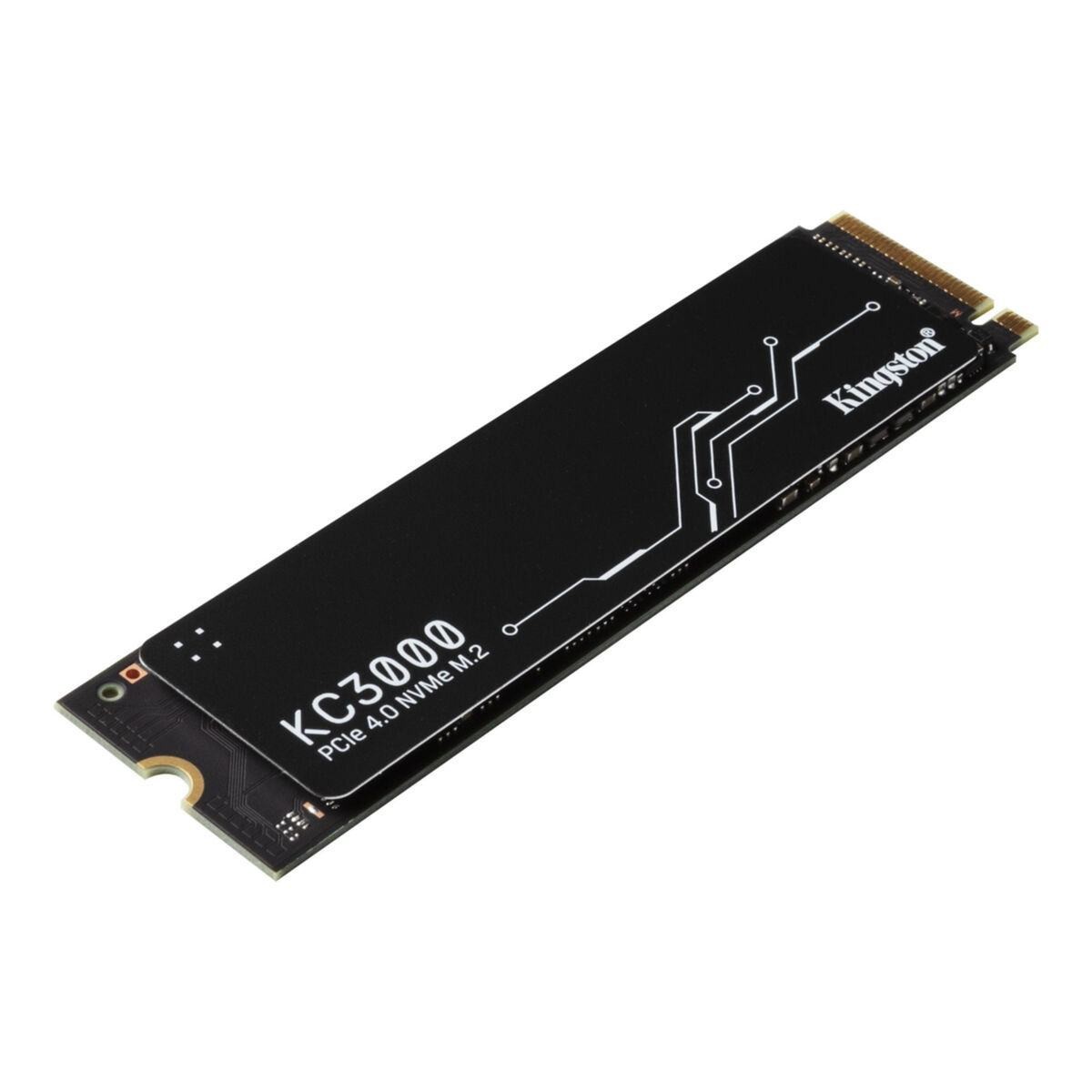

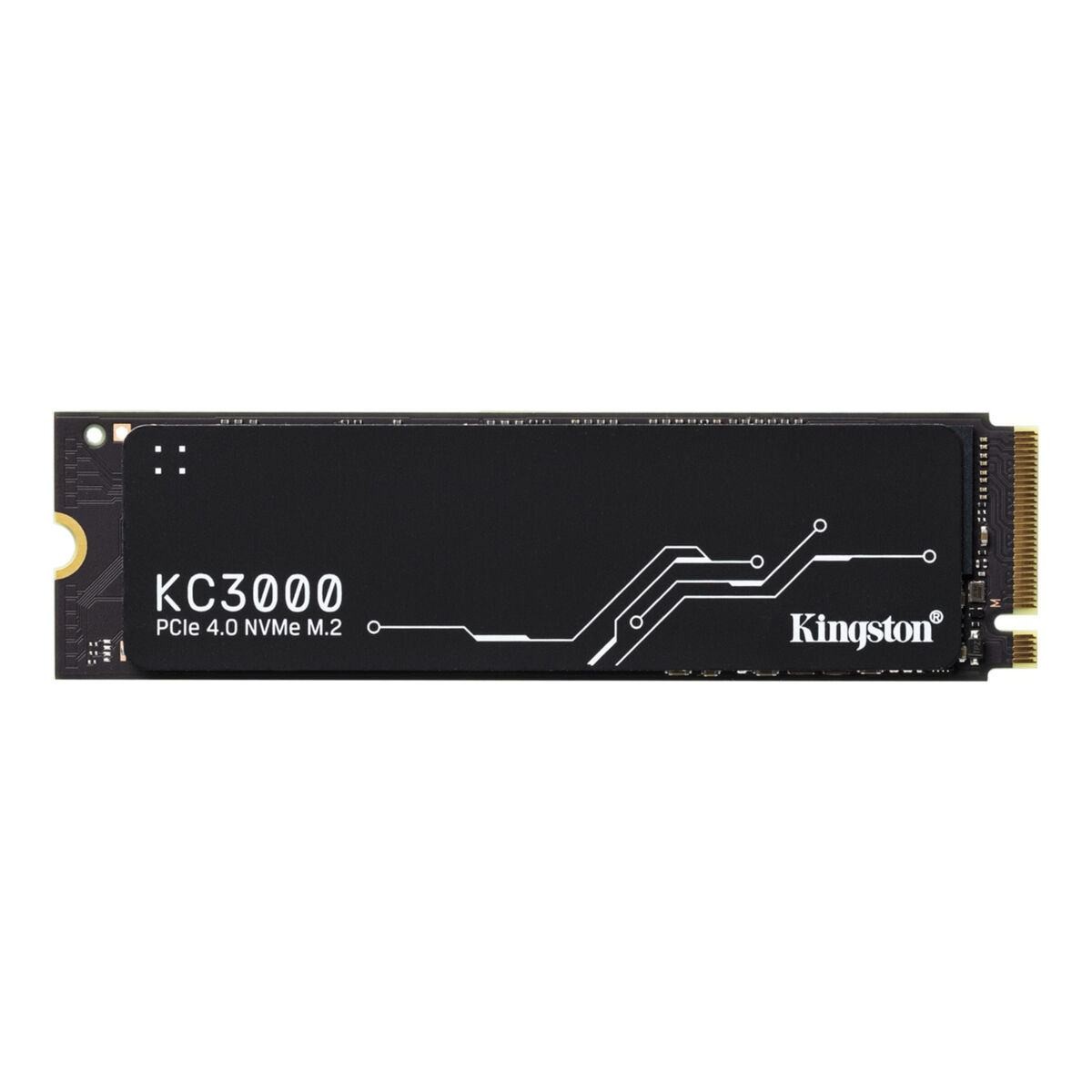

Kingston KC3000 SSD - SKC3000S - 512GB M.2 2280 PCIe Gen4 NVMe, Up to 7,000 MB/s Read, 3D TLC
512GB Kingston KC3000 M.2 2280 NVMe SSD — PCIe Gen4 x4, 3D TLC NAND, up to 7,000 MB/s read and 3,900 MB/s write. High-performance storage for PCs and laptops.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Storage (SSD & HDD) - Type | SSD |
|---|---|
| Storage (SSD & HDD) - Interface | NVMe PCIe Gen4 x4 |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Version (SSD) | Gen4 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
| Storage (SSD & HDD) - NAND Type (SSD) | 3D TLC |
| Storage (SSD & HDD) - Sequential Read (Up to) | 7000 MB/s |
| Storage (SSD & HDD) - Heatsink (SSD) | Included |
Kingston KC3000 PCIe 4.0 NVMe M.2 SSD delivers next-level performance using the latest Gen 4x4 NVMe controller and 3D TLC NAND. Upgrade the storage and reliability of your system to keep up with demanding workloads and experience better performance with software applications such as 3D rendering and 4K+ content creation. With formidable speeds up to 7,000MB/s* read/write, it ensures improved workflow in high-performance desktop and laptop PCs making it ideal for power users who require the fastest speeds on the market.
The compact M.2 2280 design fits seamlessly into motherboards and gives greater flexibility where high-power users appreciate responsiveness and superior loading times.
Full capacities available from 512GB–4096GB** to meet your data storage requirements.
PCIe 4.0 NVMe technology
Master intensive applications with speeds of up to 7,000/7,000MB/s* read/write.
Store more
Upgrade and manage storage with full capacities of up to 4096GB**.
Greater flexibility
Compact M.2 design fits easily into small-form-factor (SFF) systems, desktops and laptop PCs.
Low-profile graphene aluminium heat spreader
Exceptional thermal dissipation keeps your drive cool with maximum performance.
| SSD capacity | 512 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Memory type | 3D TLC |
| Component for | PC/Laptop |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 7000 MB/s |
| Write speed | 3900 MB/s |
| Random read (4KB) | 450000 IOPS |
| Random write (4KB) | 900000 IOPS |
| Controller type | Phison E18 |
| Mean time between failures (MTBF) | 1800000 h |
| TBW rating | 400 |
| Power consumption (read) | 2.7 W |
| Power consumption (write) | 4.1 W |
| Power consumption (average) | 0.34 W |
| Power consumption (idle) | 0.005 W |
| Width | 80 mm |
| Depth | 22 mm |
| Height | 2.21 mm |
| Weight | 7 g |
| Package width | 129.5 mm |
| Package depth | 8.38 mm |
| Package height | 184.2 mm |
| Package weight | 31.33 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Cooling type | Heatsink |
| Country of origin | China, Taiwan |
| Master (outer) case width | 135.9 mm |
| Master (outer) case length | 203.2 mm |
| Harmonized System (HS) code | 84717070 |
| Master (outer) case height | 69.8 mm |
| Master (outer) case gross weight | 391.29 g |
| Products per master (outer) case | 10 pc(s) |
