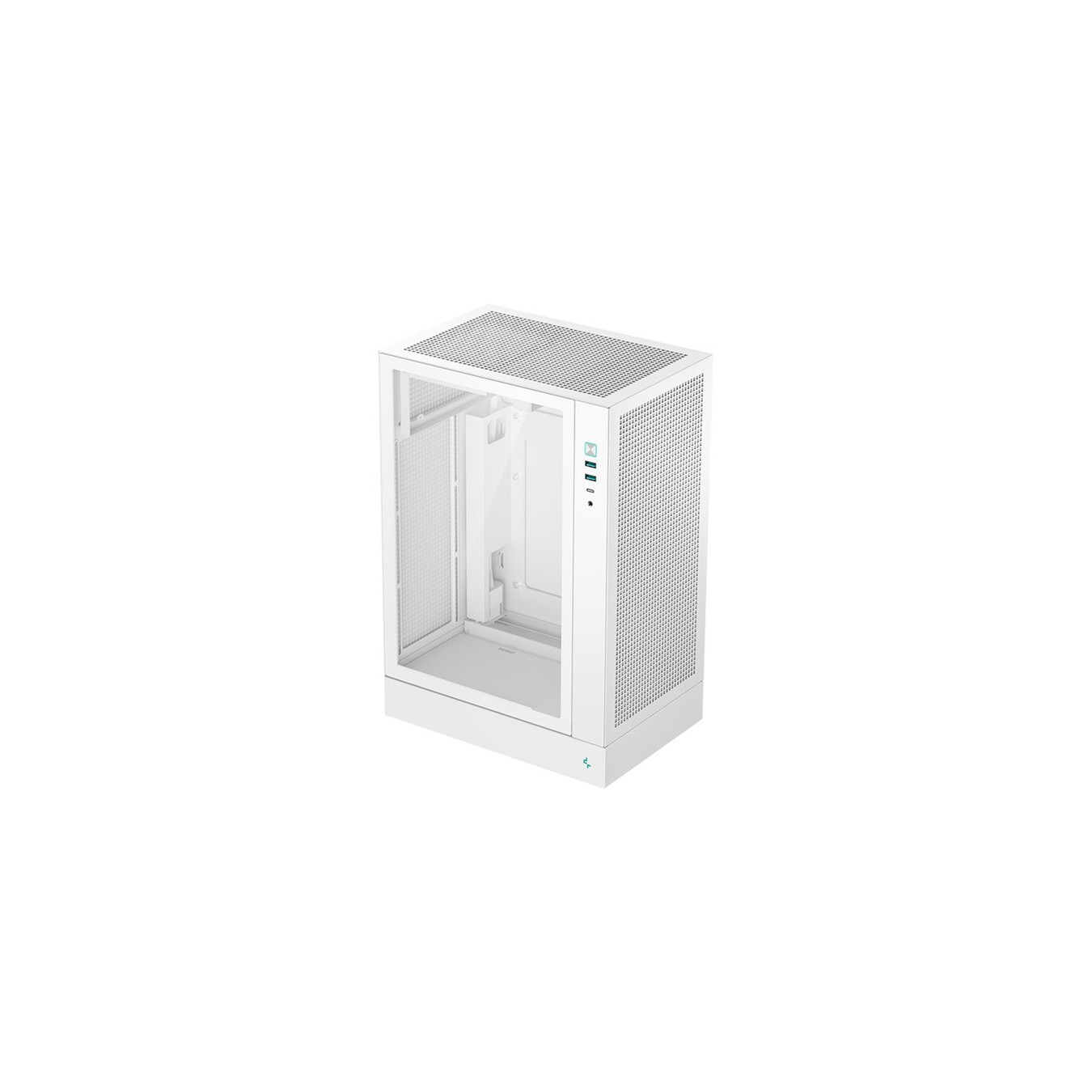

Deepcool CH170 PLUS WH Vertical Micro-ATX Case (Boxed)
The CH170 PLUS WH is a vertical Micro-ATX mid-tower case with high-airflow mesh panels, tempered glass side, GPU support up to 342mm vertical, 240mm radiator compatibility, and flexible ATX/SFX PSU options in a compact 24L design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 240 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Combo Jack USB A USB C Gen2 |
| PC Cases - GPU Orientation | Vertical Supported |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 331–360 mm |
| PC Cases - Color | White |
| PC Cases - CPU Cooler Clearance | 151-165 mm |

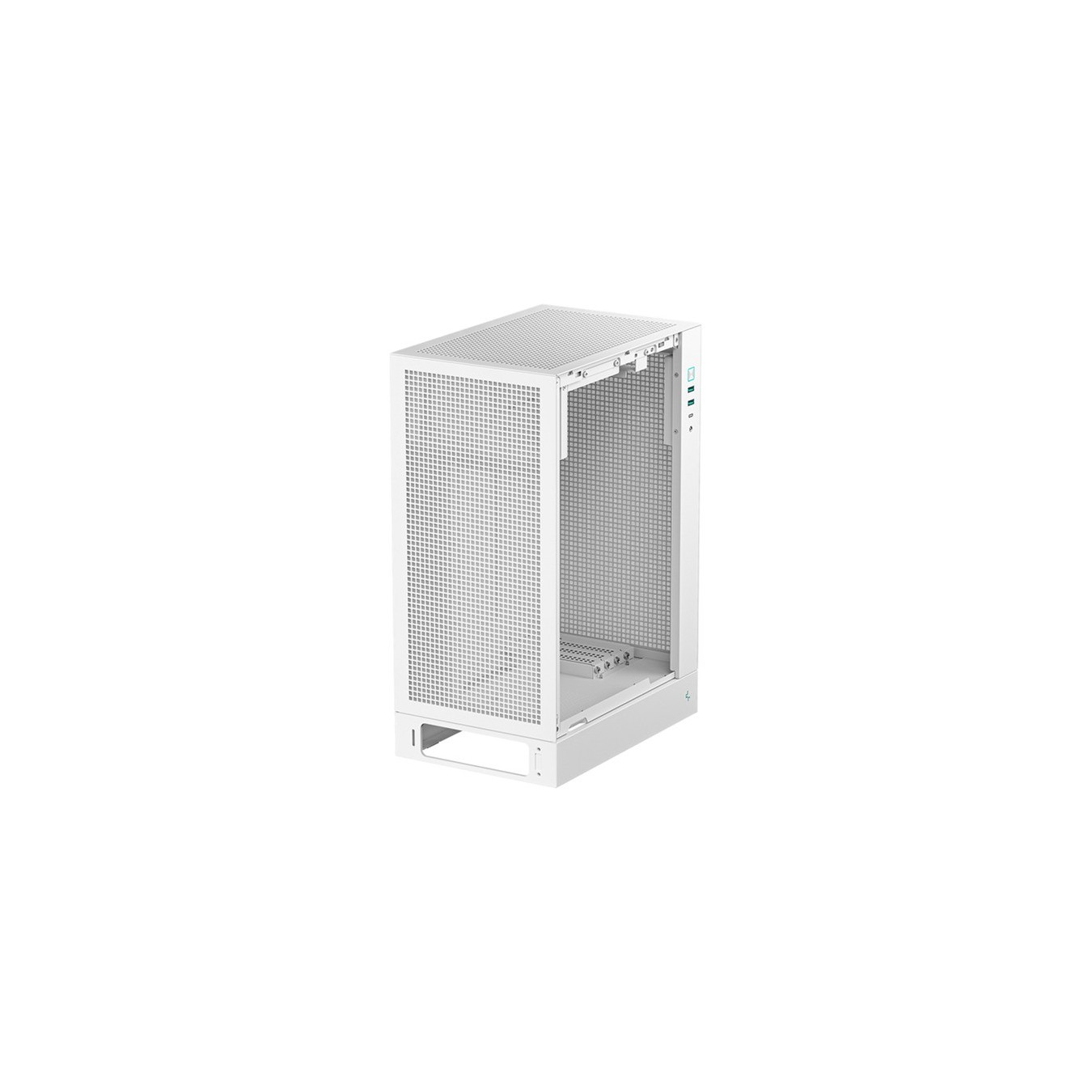

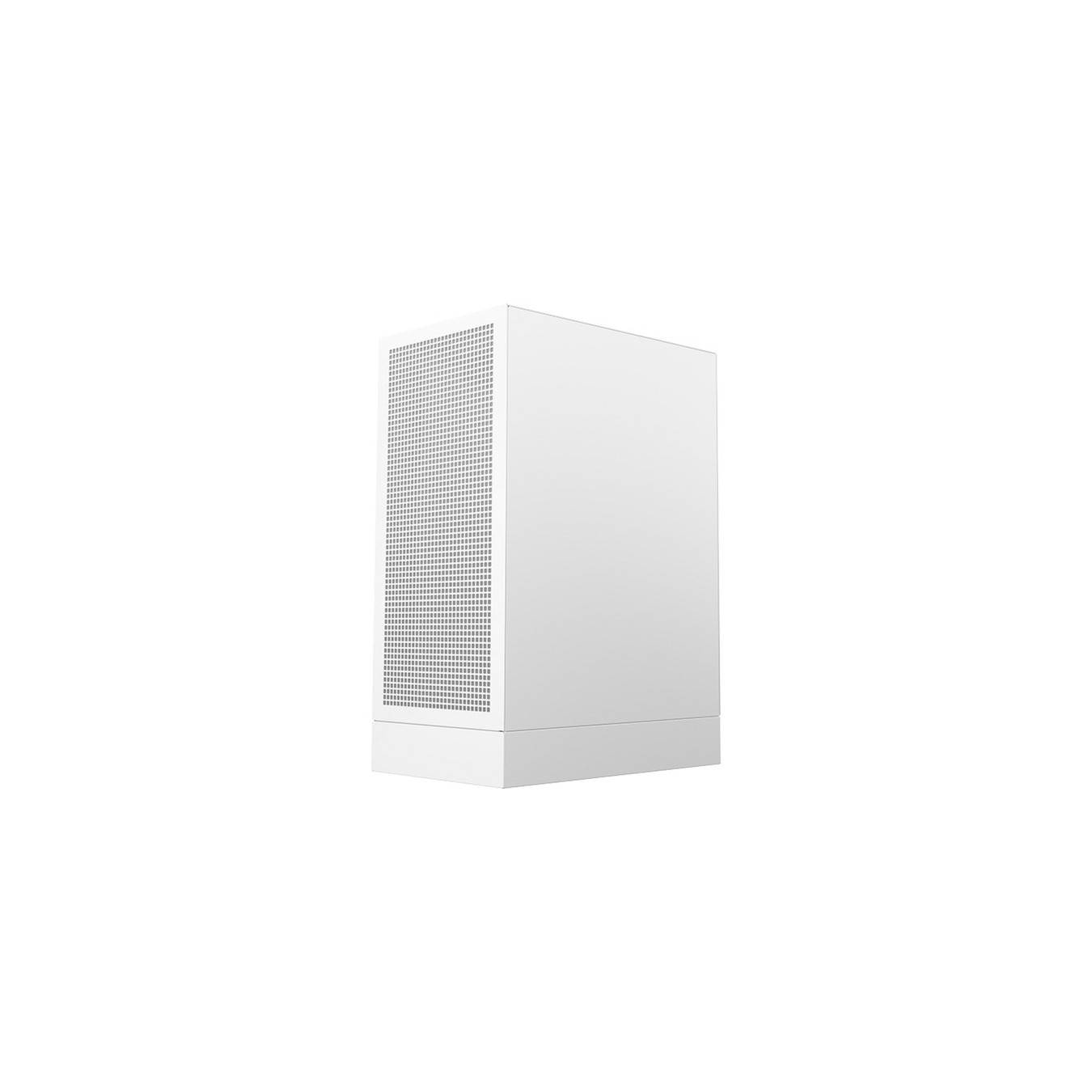

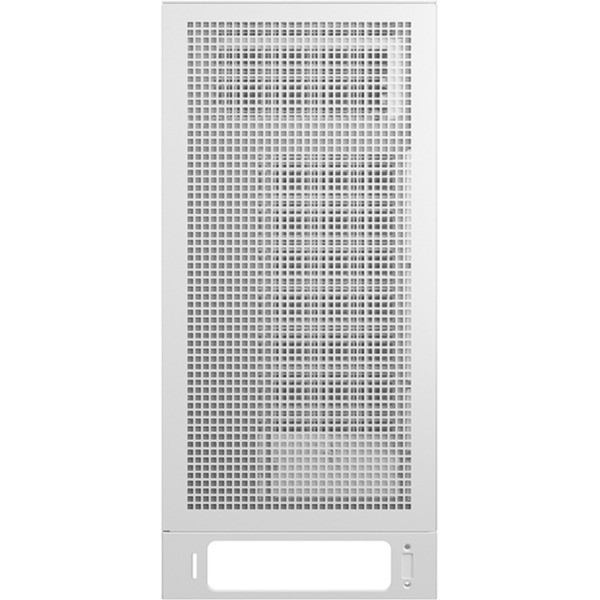

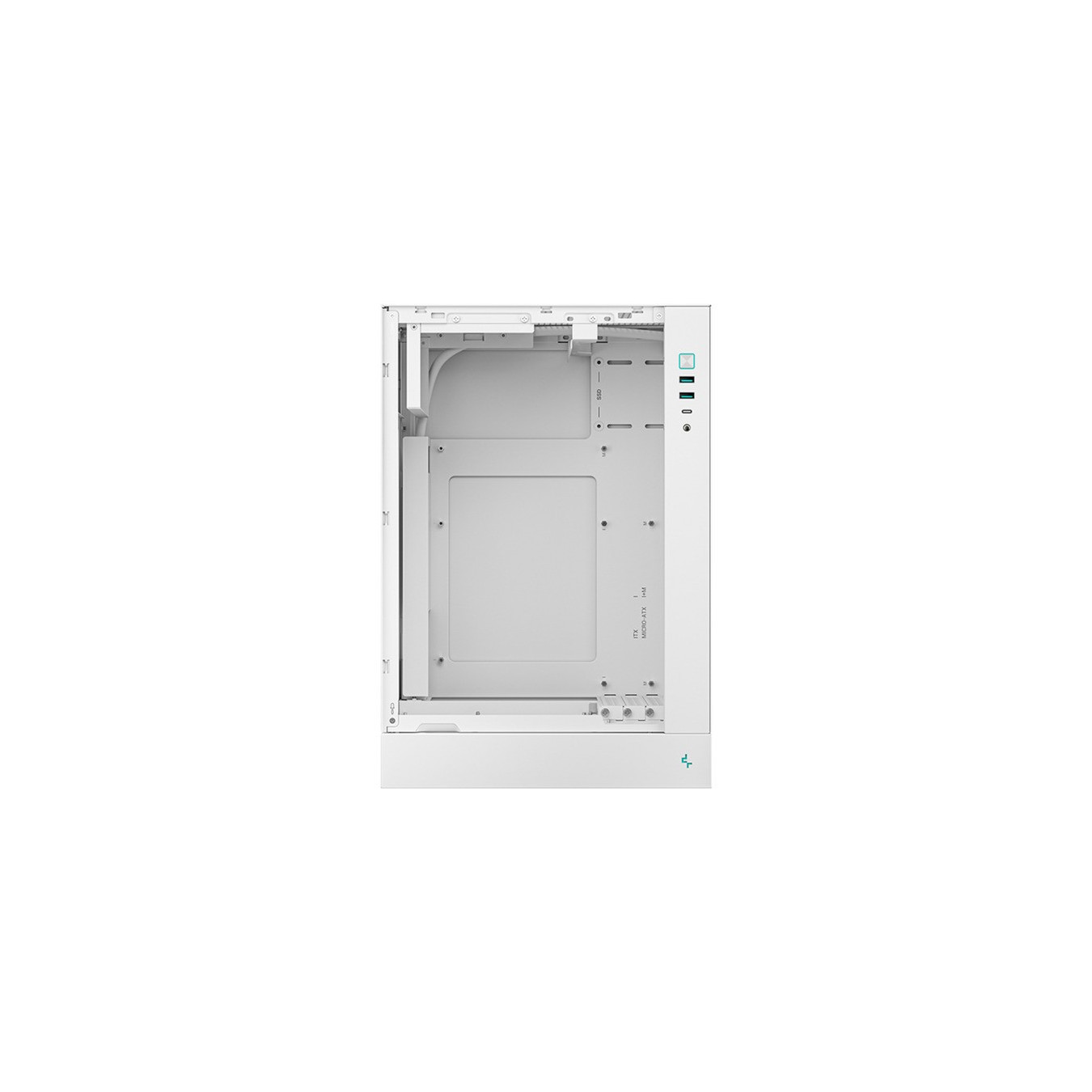

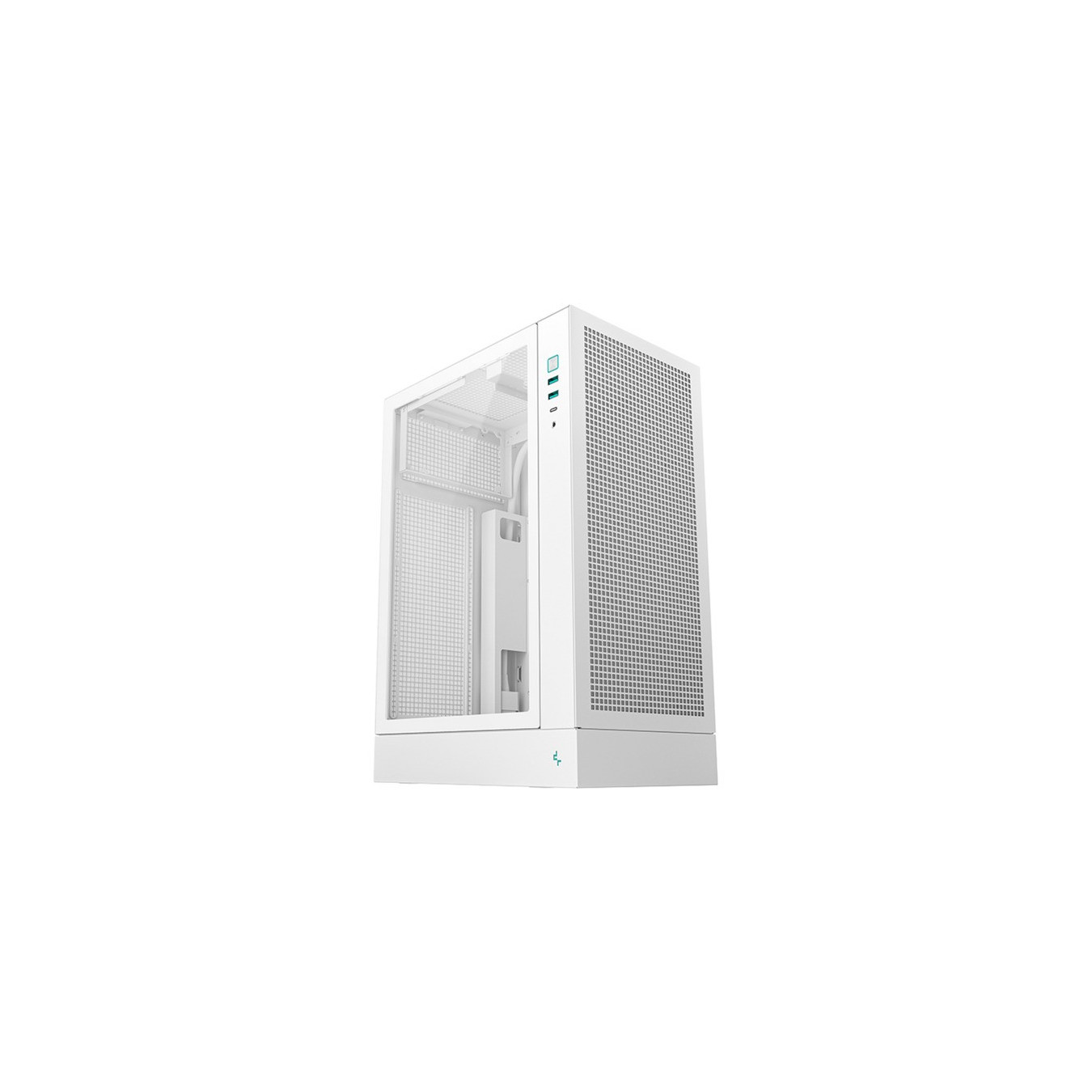

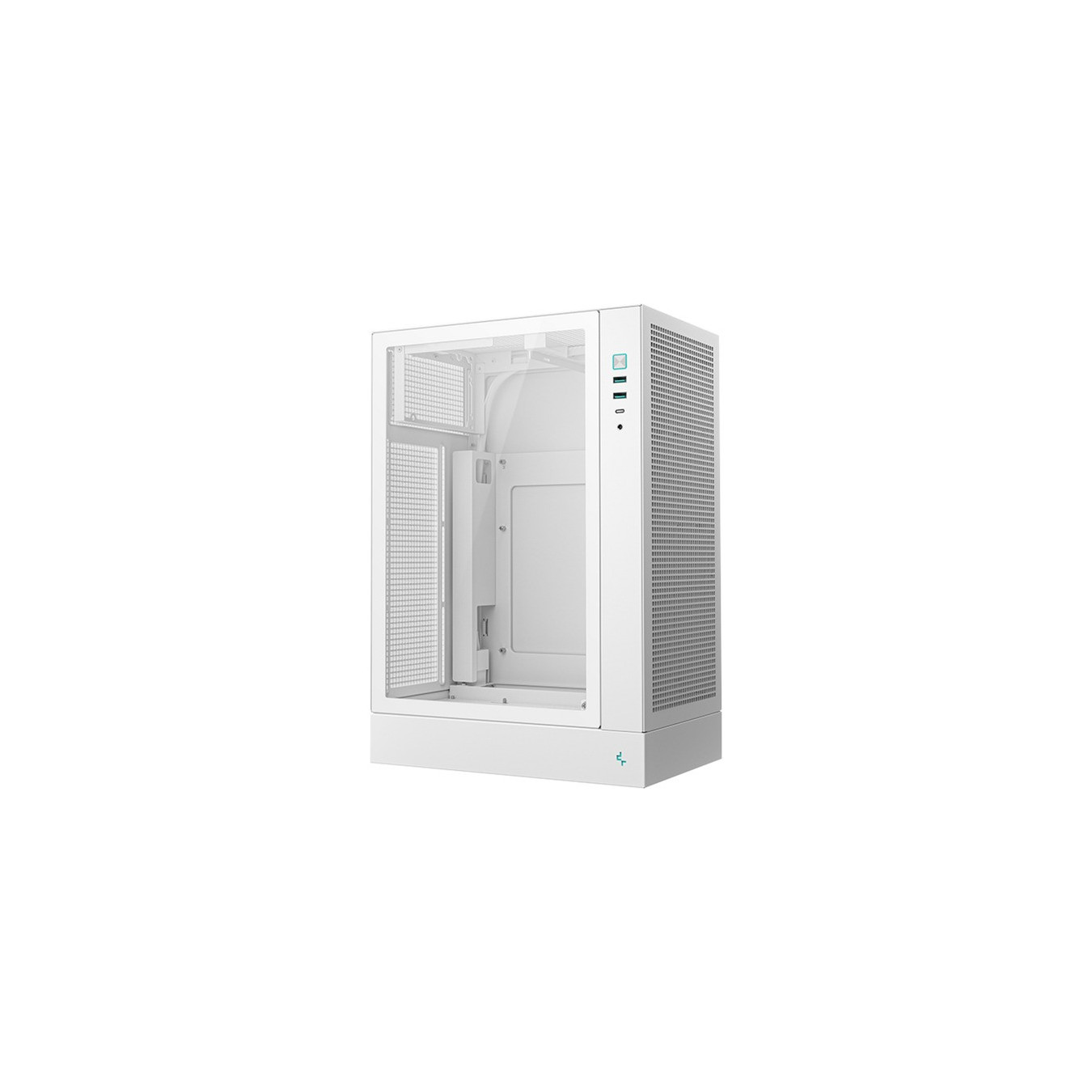

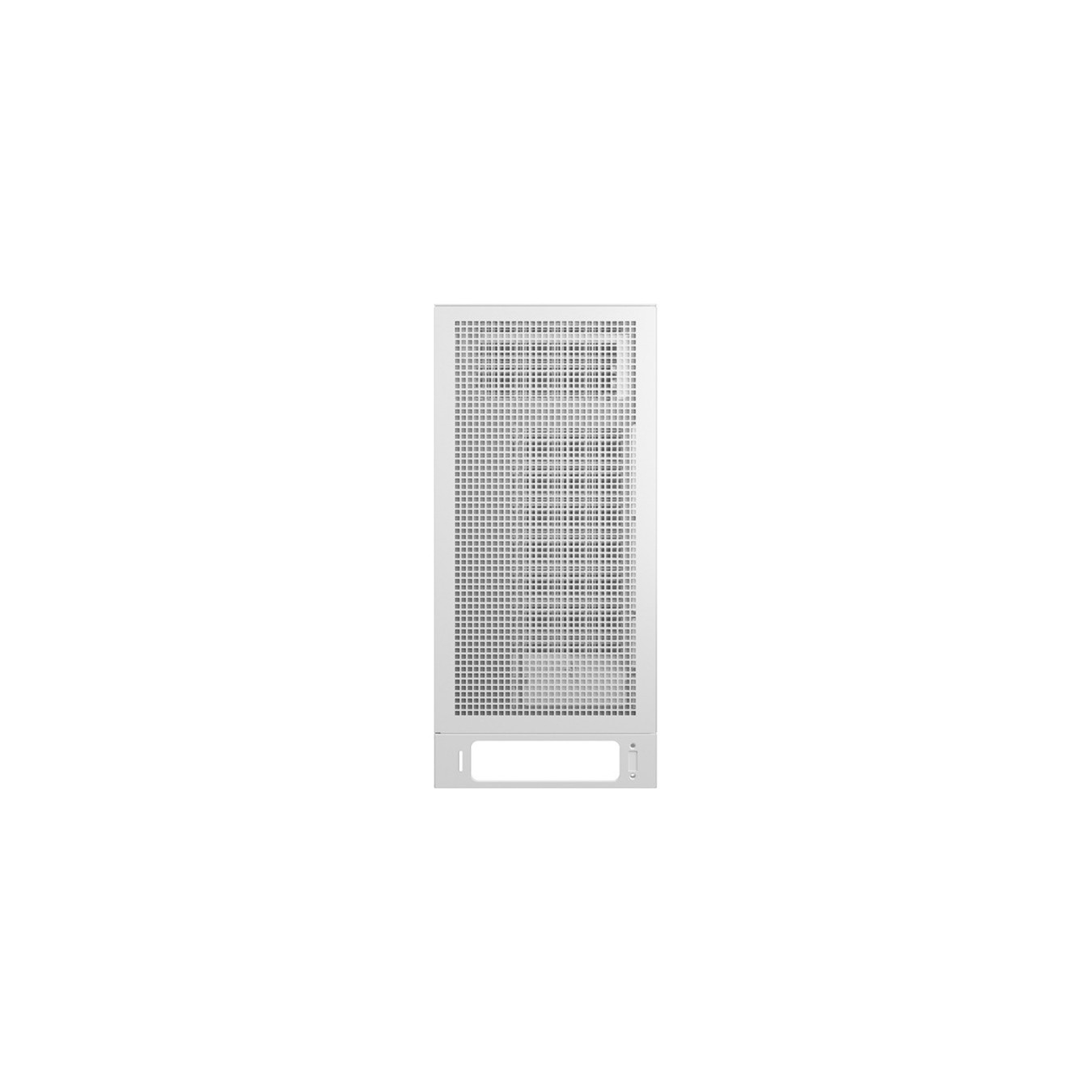

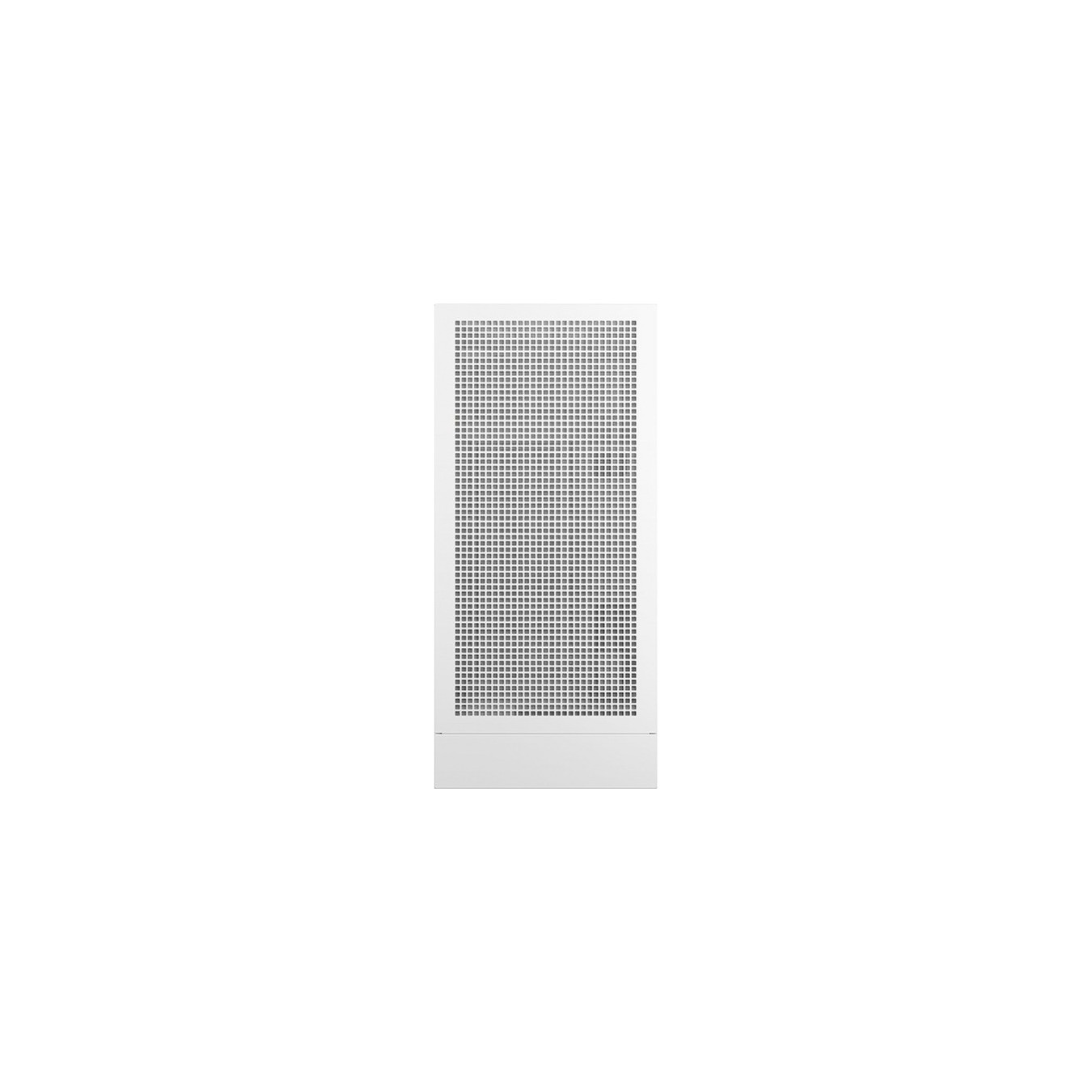

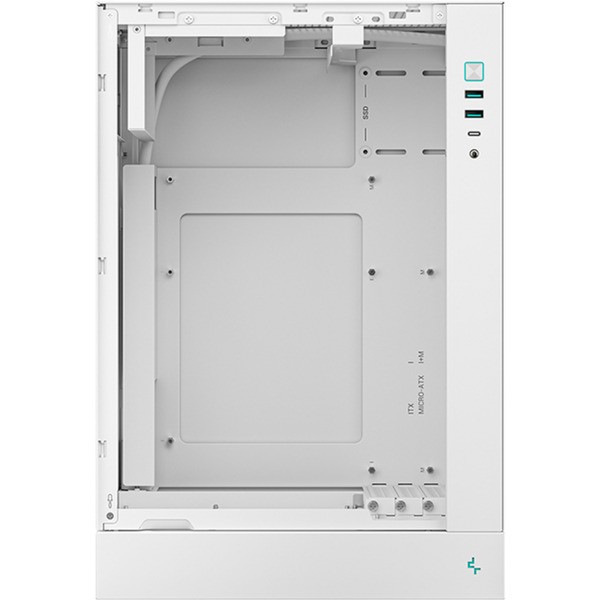

The Deepcool CH170 PLUS WH is a compact vertical mid-tower case designed for Micro-ATX and Mini-ITX builds, offering excellent airflow through mesh panels on front, top, bottom, and side. It features a tempered glass panel to showcase your components while supporting GPUs up to 342mm long (328mm with top fan), 138mm wide, and 75mm thick in vertical orientation directly into the motherboard.
This case provides flexible cooling with support for a 240mm side radiator or up to four 120mm fans (side:2x120mm, top:1x120/140mm, bottom:1x120mm). It accommodates air coolers up to 164mm high and all PSU types (ATX/SFX/SFX-L) up to 140mm. Front I/O includes 2x USB 3.0, 1x USB-C Gen2, and audio combo jack. Dust filters on four sides ensure easy maintenance.
- Motherboard: Micro-ATX / Mini-ITX
- Max GPU Length: 342mm (vertical)
- Cooling: 240mm radiator, 4x 120mm fans max
- PSU: ATX/SFX up to 140mm
- Dimensions: 19.5 x 42.45 x 29 cm (4.4kg)
| Type | Tower case |
| Color | white |
| EAN | 6933412765370 |
| Manufacturer no. | R-CH170-WHNGM0-G |
| Design | Midi-Tower |
| Mainboard Formfaktor | Micro-ATX / Mini-ITX |
| Material | ABS + SPCC + tempered glass |
| Mesh-Front | Yes |
| Internal dimensions - plug-in card length | maximal 342 mm |
| Drive bays - 3.5 inches | internally 1 piece |
| Slots - Full-Size | 4 pieces |
| Front connections | 1x Audio combo, 2x USB-A 3.2 Gen 1, 1x USB-C 3.2 Gen 2 |
| Notes | Dust filter: Top, front, bottom & back. Fans: Top 1x120/140mm (SFX), side 2x120mm, bottom 1x120mm |
| Water cooling possible | Yes (240mm side) |
| Rear connection of the mainboard | No |
| Volume | 24 l |
| Dimensions | Width: 19.5 cm x Height: 42.45 cm x Depth/Length: 29 cm |
| Weight | 4.4 kg |
