ASUS PRIME Z790M-PLUS LGA1700 Micro-ATX Intel Z790 DDR5 192GB Motherboard (Boxed)
ASUS PRIME Z790M-PLUS micro-ATX LGA1700 motherboard w/ Intel Z790 chipset. Supports DDR5 to 192GB (4xDIMM), PCIe 5.0, 3x M.2, 4x SATA, 10+1 DrMOS, Thunderbolt header, USB 3.2 Gen2x2-C. Ideal for 12th/13th/14th Gen Intel.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel Z790 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |

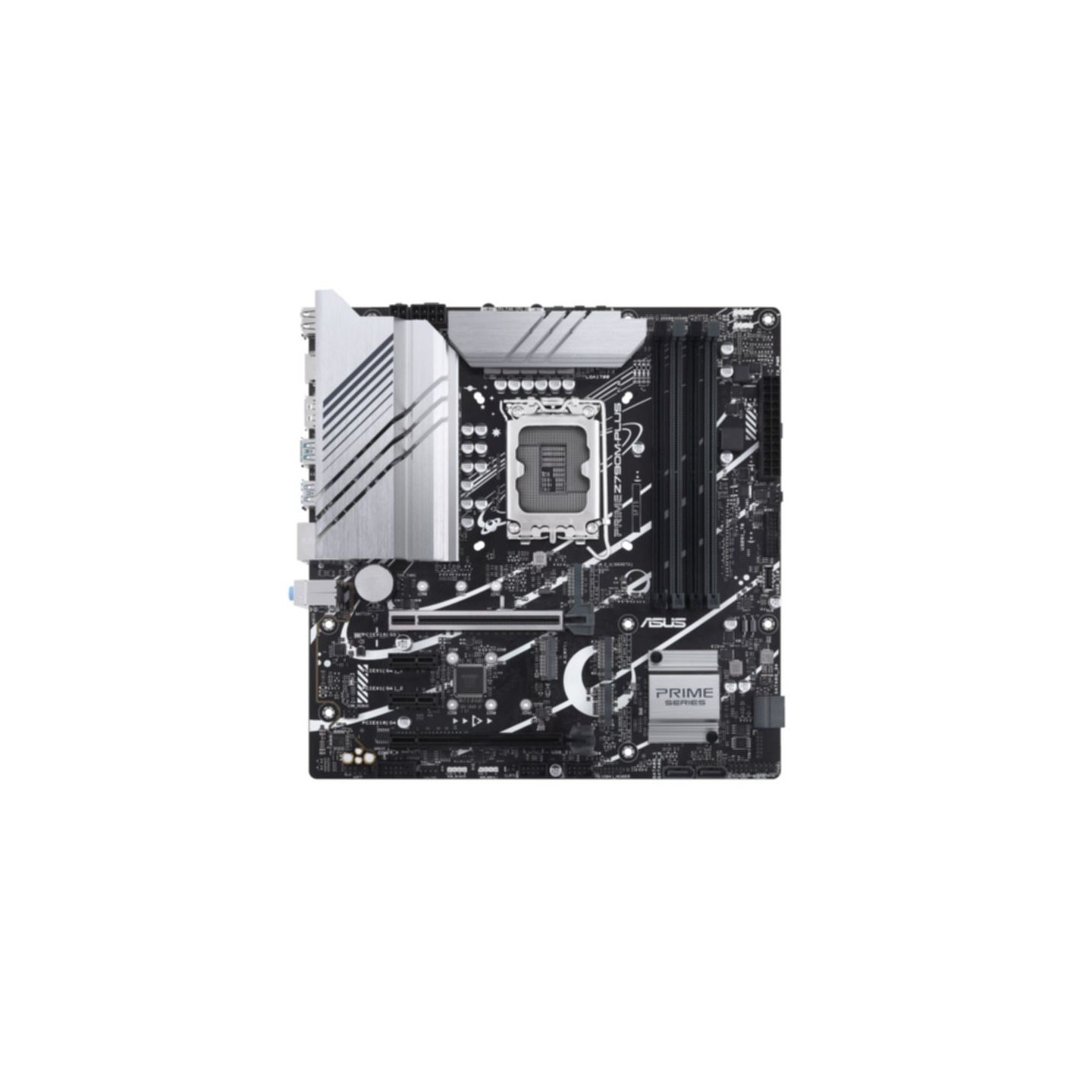

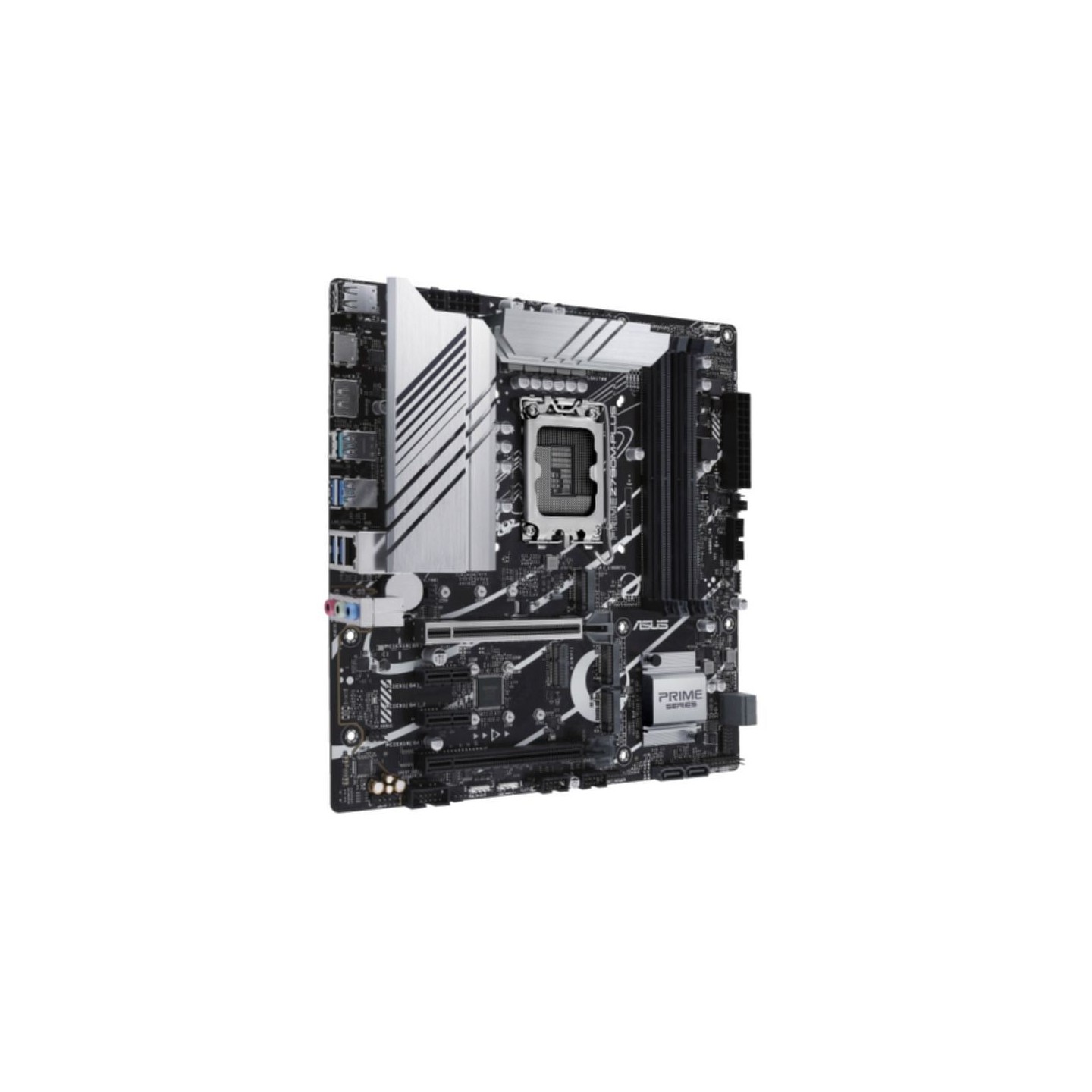

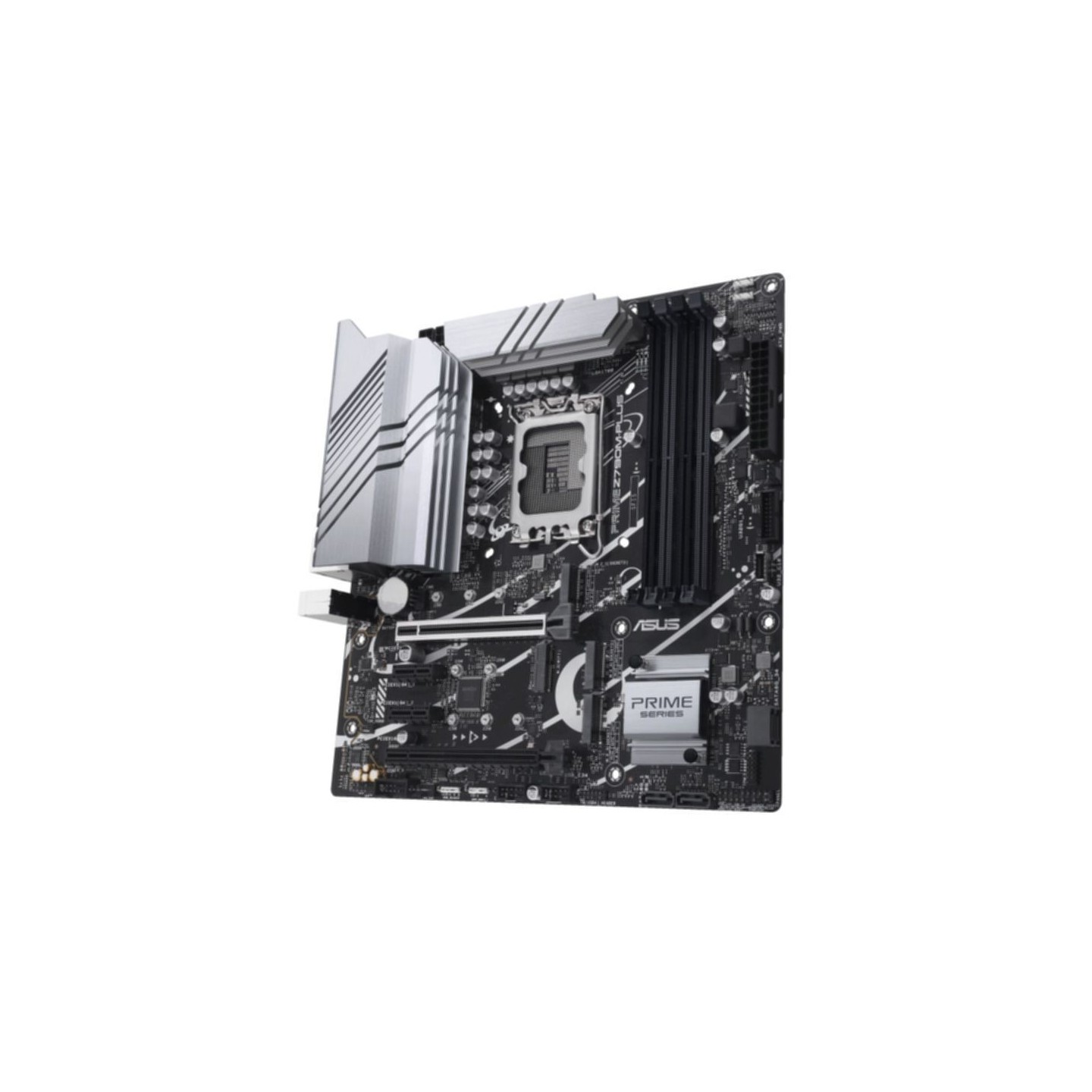

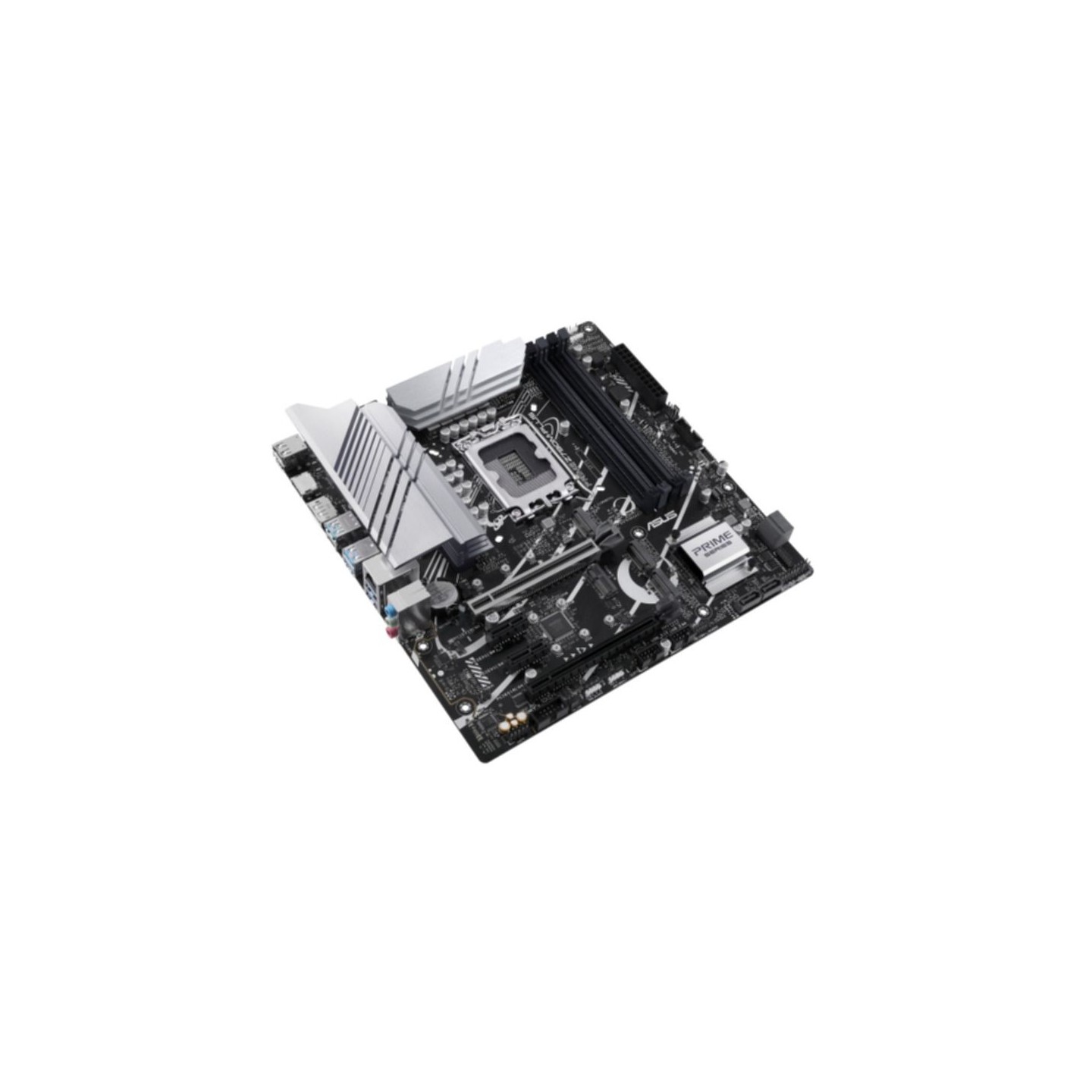

The ASUS PRIME Z790M-PLUS is a feature-packed micro-ATX motherboard designed for Intel 12th, 13th, and 14th Gen Core processors using the LGA 1700 socket. Built on the Intel Z790 chipset, it delivers robust performance for gaming, content creation, and productivity builds. Key highlights include support for DDR5 memory up to 192GB across 4 DIMM slots with ASUS OptiMem II for enhanced overclocking stability.
Comprehensive connectivity features 3x M.2 slots (PCIe 4.0/5.0), 4x SATA III ports with RAID 0/1/5/10 support, PCIe 5.0 x16 slot for next-gen GPUs, and extensive USB including rear USB 3.2 Gen 2x2 Type-C and front USB 3.2 Gen 1 Type-C header. The 10+1 DrMOS power design with large VRM heatsink ensures stable power delivery even under heavy loads. Additional features include 2.5Gb Ethernet, Realtek 7.1 audio, HDMI 2.0/DP 1.4, and Thunderbolt (USB4) header support.
- ✅ Intel LGA1700 socket (12th/13th/14th Gen Core i9/i7/i5/i3/Celeron/Pentium)
- ✅ DDR5 up to 192GB (7200+MHz OC), dual-channel, non-ECC
- ✅ 3x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s
- ✅ PCIe 5.0 x16 + PCIe 4.0 x16/x1 slots

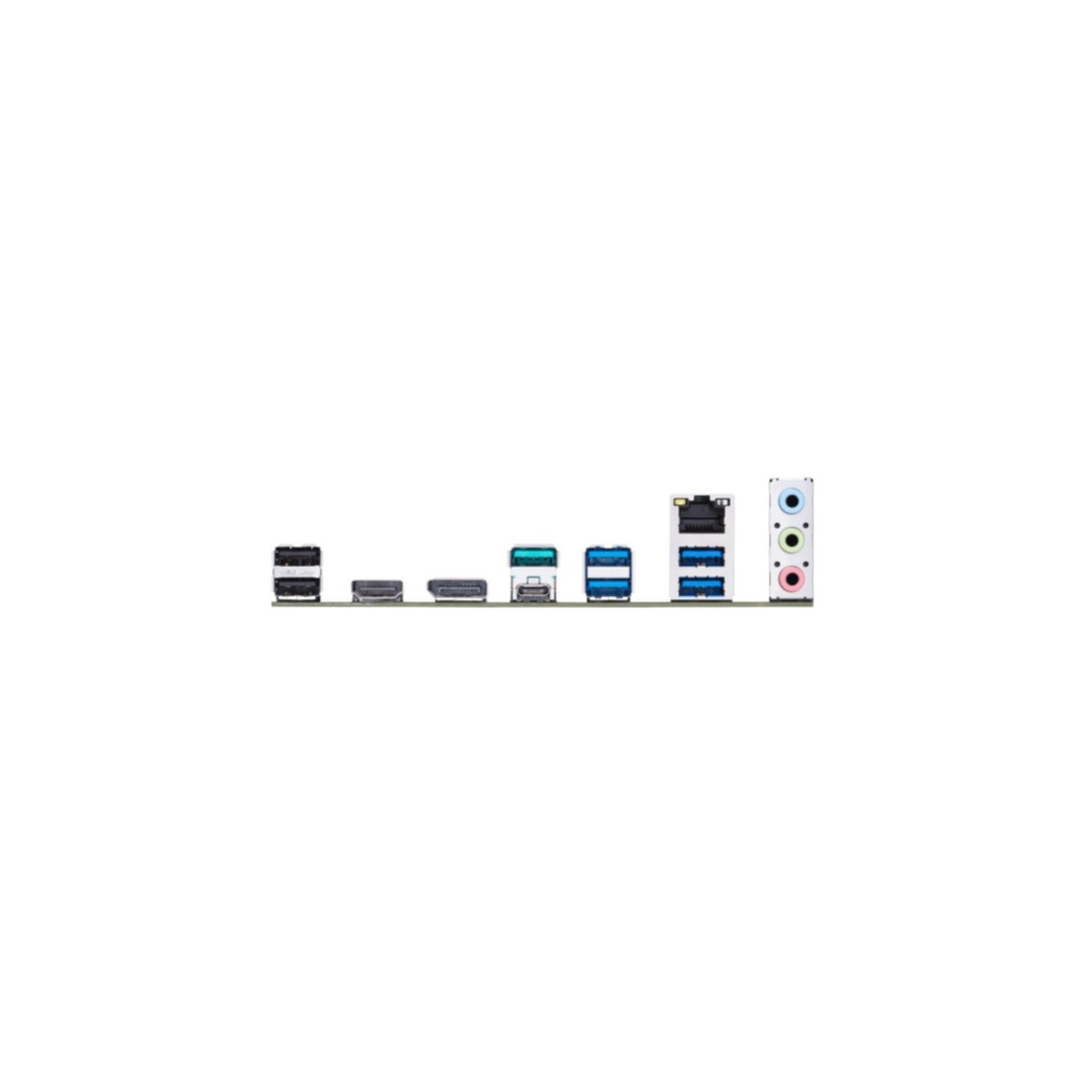

- ✅ Rear I/O: 1x USB-C 3.2 Gen2x2, 1x USB-A 3.2 Gen2, DP 1.4, HDMI 2.0, 2.5Gb LAN
- ✅ Comprehensive cooling: VRM/PCH heatsinks, hybrid fan headers
- ✅ UEFI BIOS with QVL memory support up to 7200MHz+
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Motherboard chipset | Intel Z790 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 192 GB |
| Supported memory clock speeds | 4800-7200+(OC) MHz |
| Number of M.2 (M) slots | 3 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 (front header) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Audio output channels | 7.1 channels |
| BIOS memory size | 256 Mbit |
| Width | 244 mm |
| Depth | 244 mm |
| Power stages | 10+1 DrMOS |
