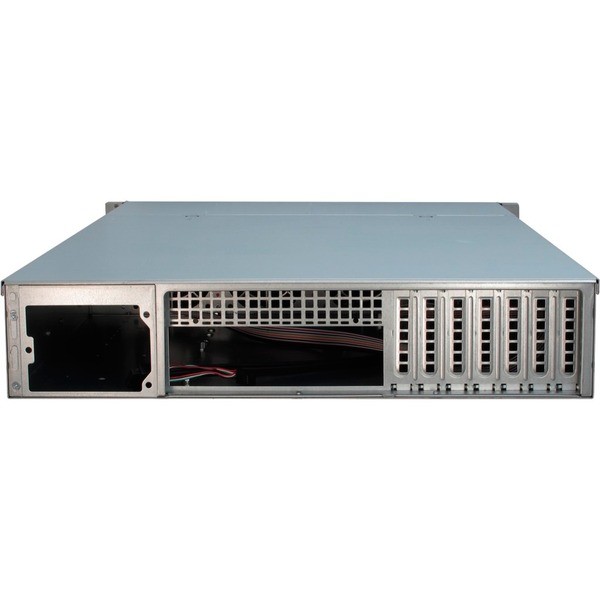

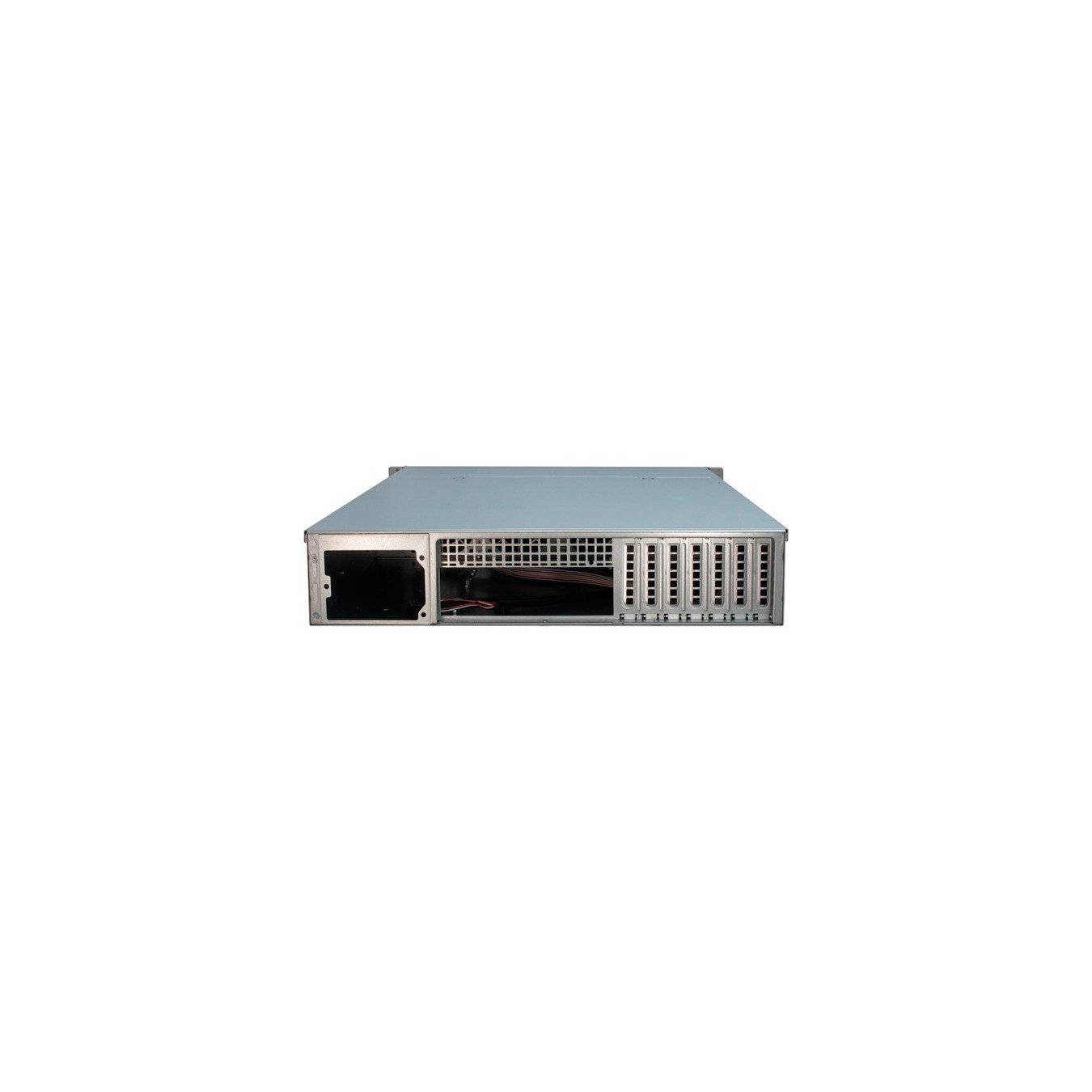

2U-2412, Rack, Server Enclosure
The 2U 2412 is the perfect rack for a small and cost-effective storage system. Through the excellent material quality, combined with excellent workmanship, Inter-Tech has created t...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

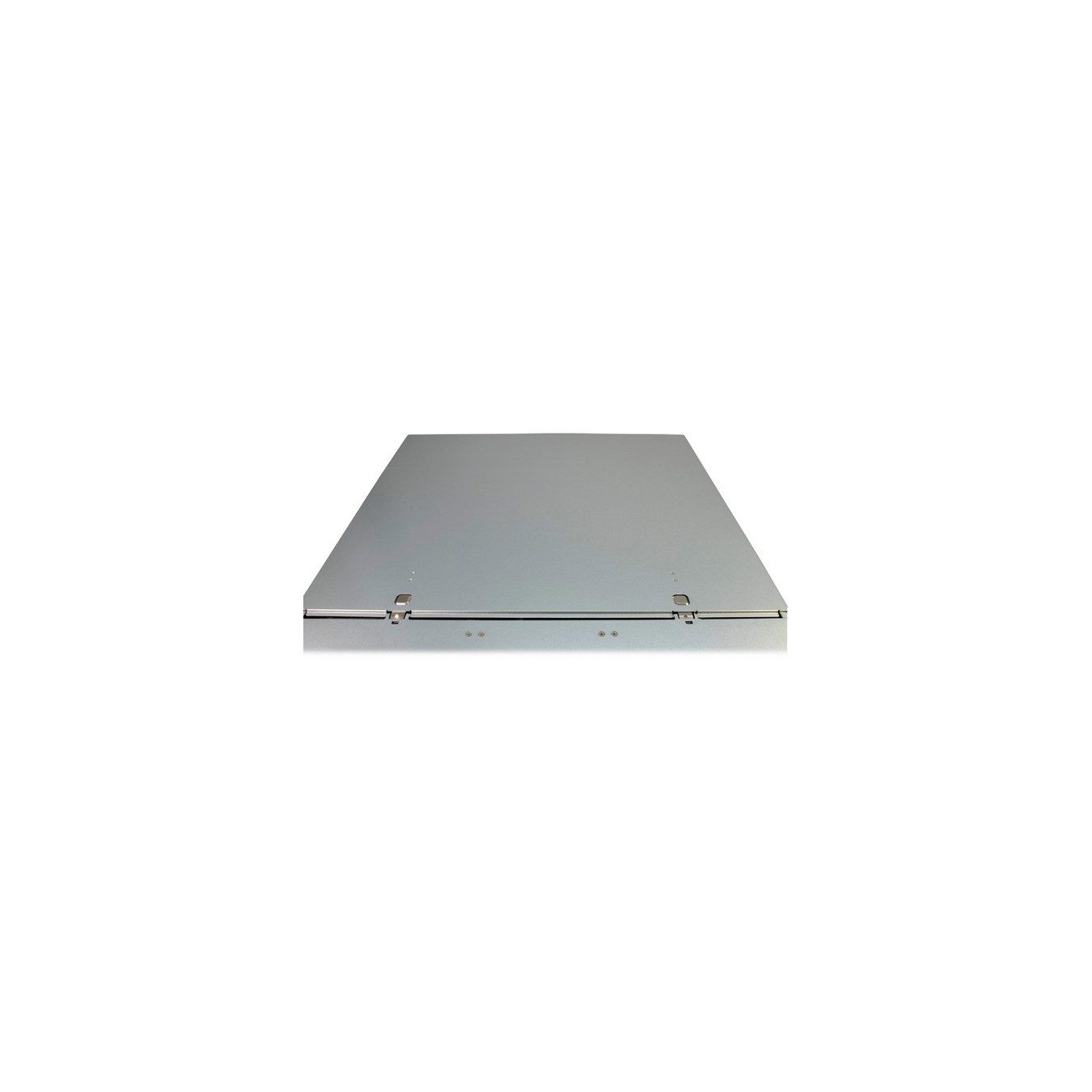

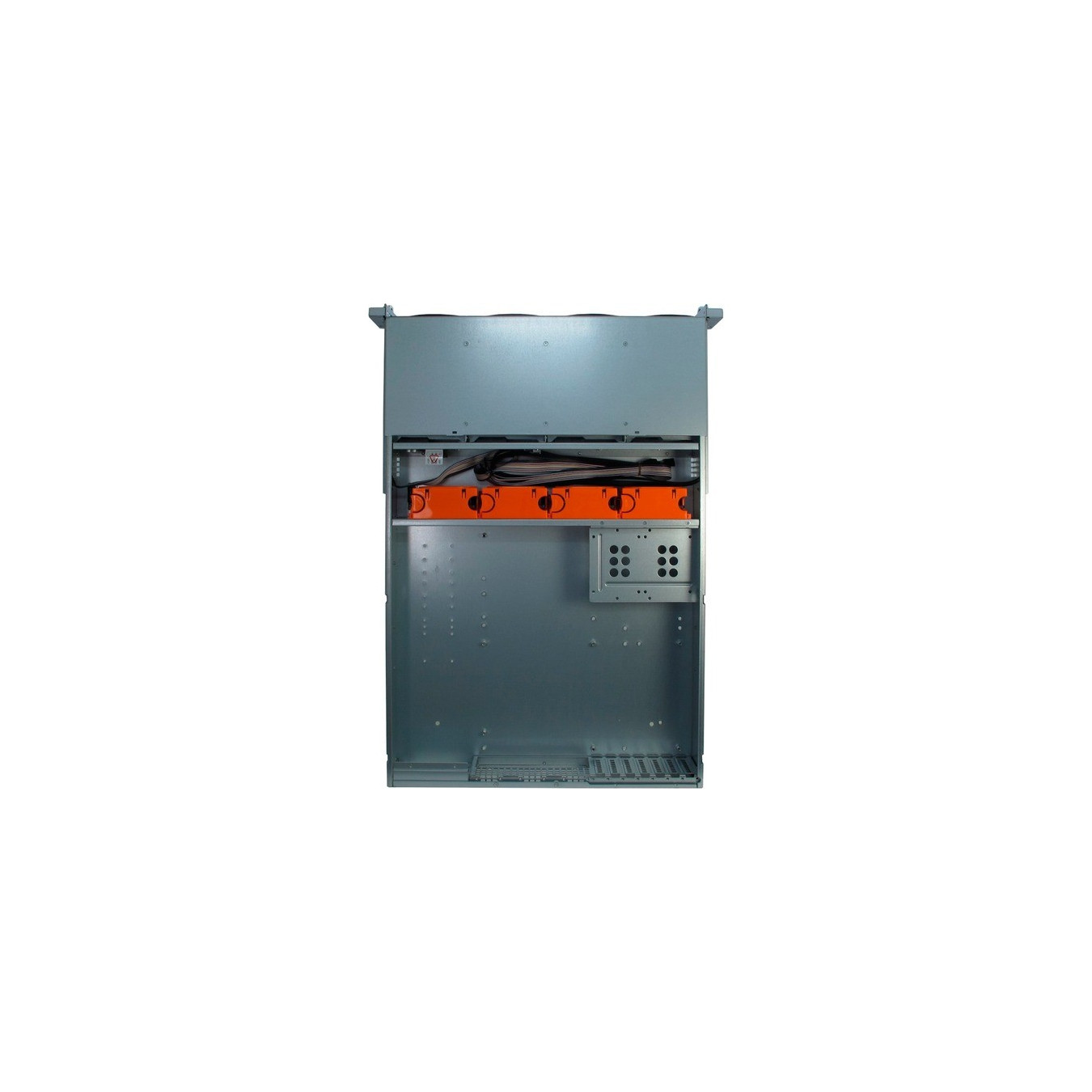

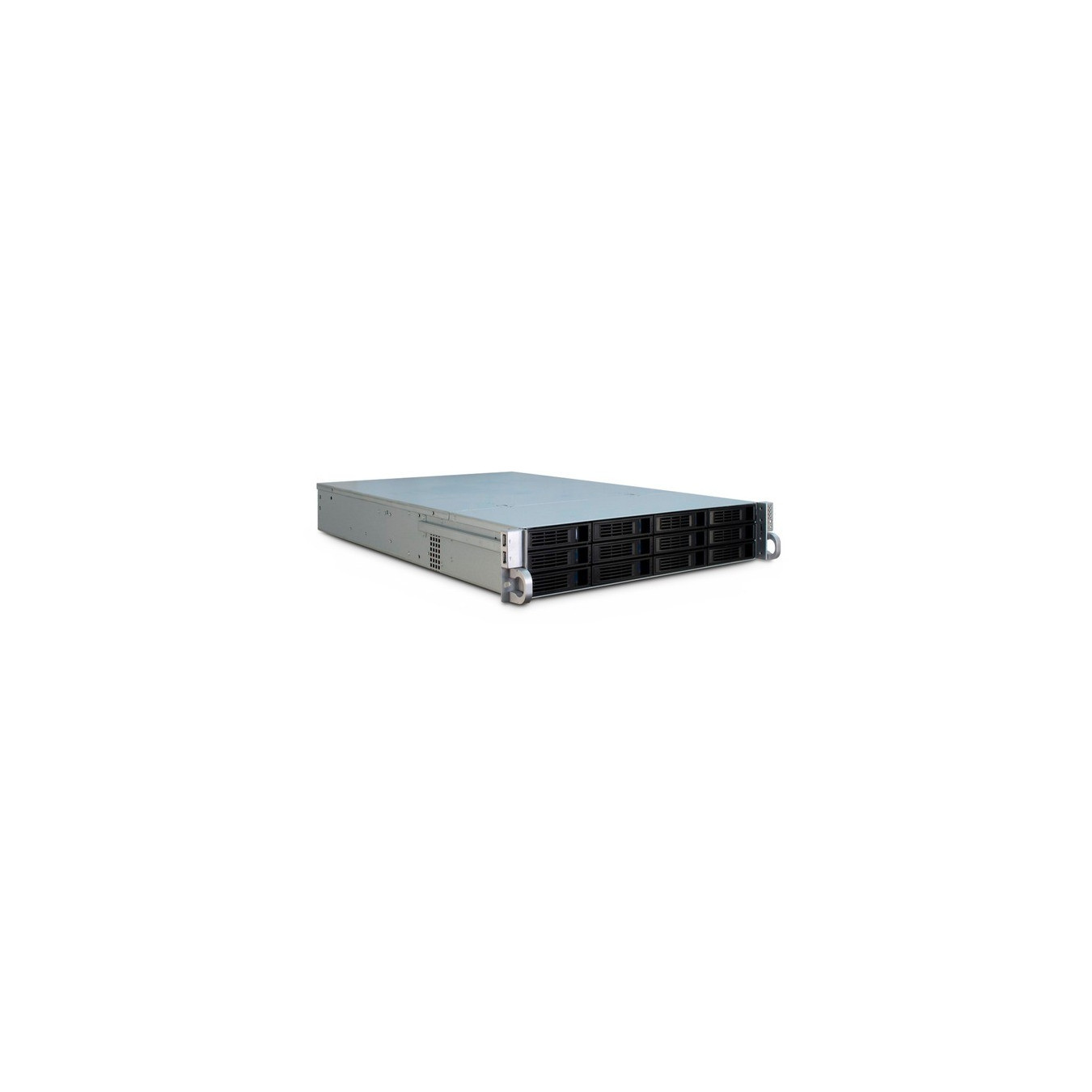

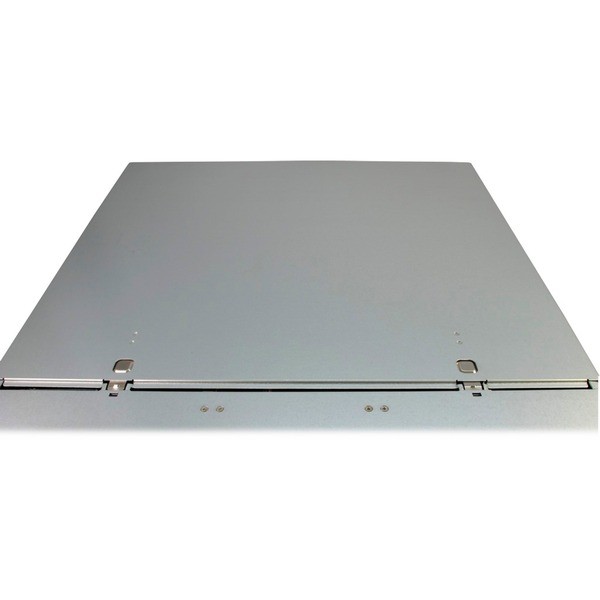

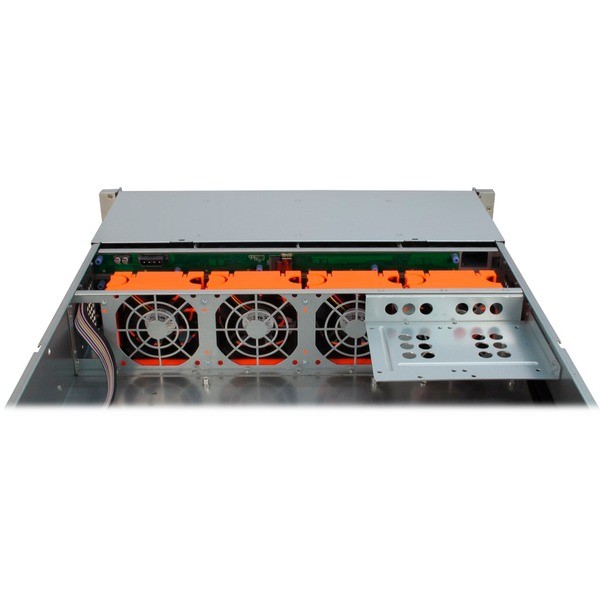

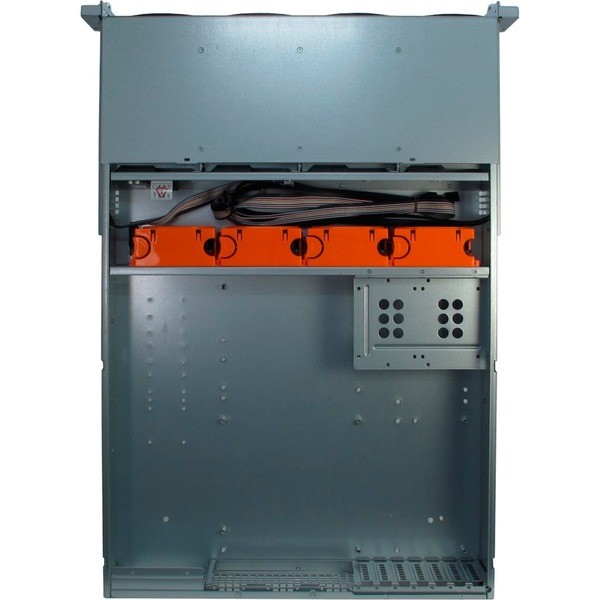

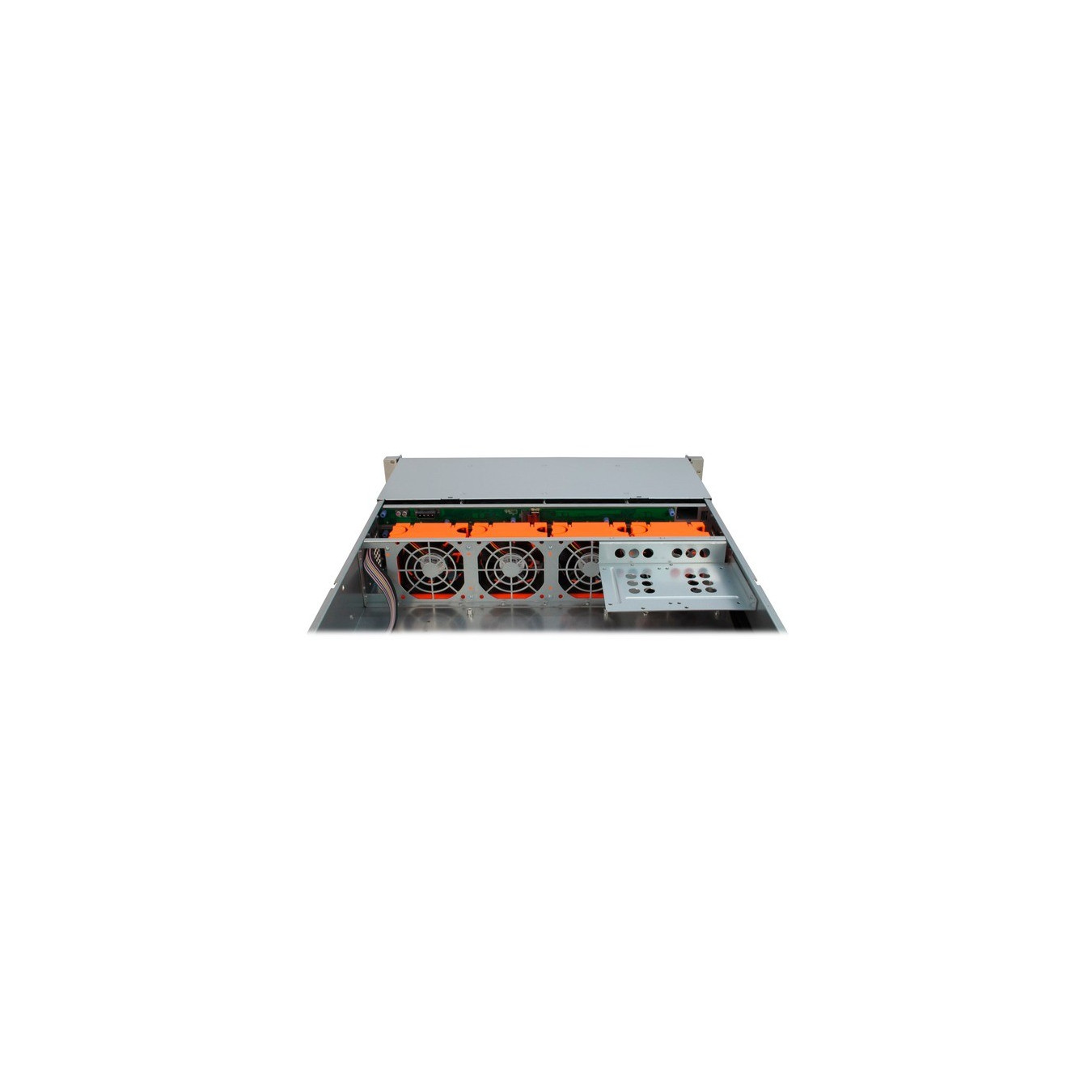

The 2U 2412 is the perfect rack for a small and cost-effective storage system. Through the excellent material quality, combined with excellent workmanship, Inter-Tech has created the basis for an extremely variable housing. The 2U 2412 offers the option of installing a maximum of twelve 2.5" or 3.5" hot swaps, as well as a maximum of two 2.5" or one 3.5" hard drives. The 2U 2412 is equipped with four standard built-in 80 mm fans, which are located internally directly behind the drive mounts and thus reliably ensure optimal cooling. Additional extras such as the reusable and perforated slot brackets, USB-A 3.2 ports and the housing cover with snap-in closure complete this excellent overall package.
| Typ | Rack, server enclosure |
| Color | schwarz |
| EAN | 4260133126398 |
| Manufacturer no. | 88887118 |
| Design | Rack |
| Mainboard Formfaktor | E-ATX |
| Material | 1.0-1.2mm steel |
| Internal dimensions - height units | 2 HE |
| Drive bays - 3.5 inches | internally 1 piece |
| Front connections | 2x USB-A 3.2 Gen 1 (5 Gbit/s) |
| front | Power switch, reset button, LED: power, hard drive activity, 3x network activity, alarm, temperature alarm |

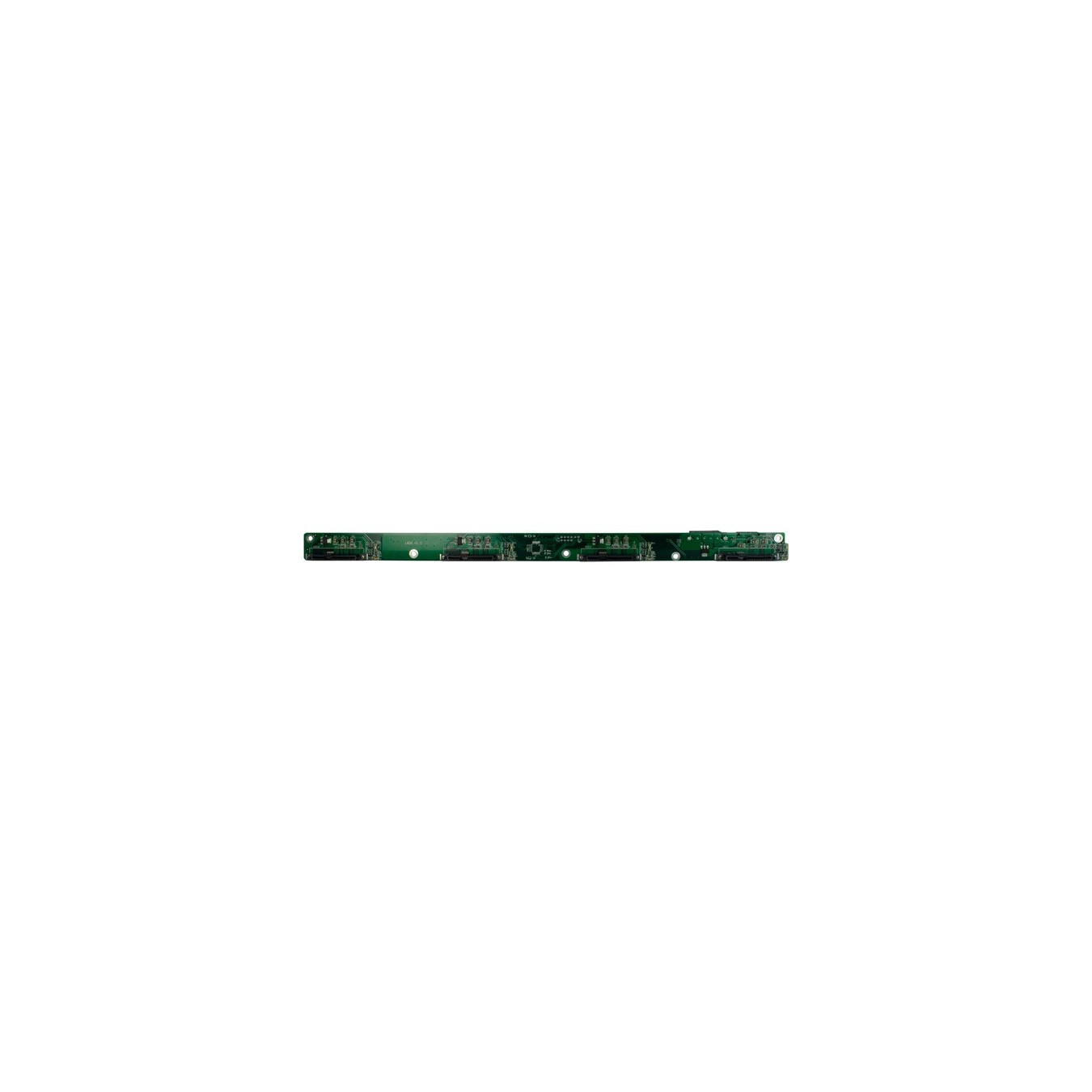

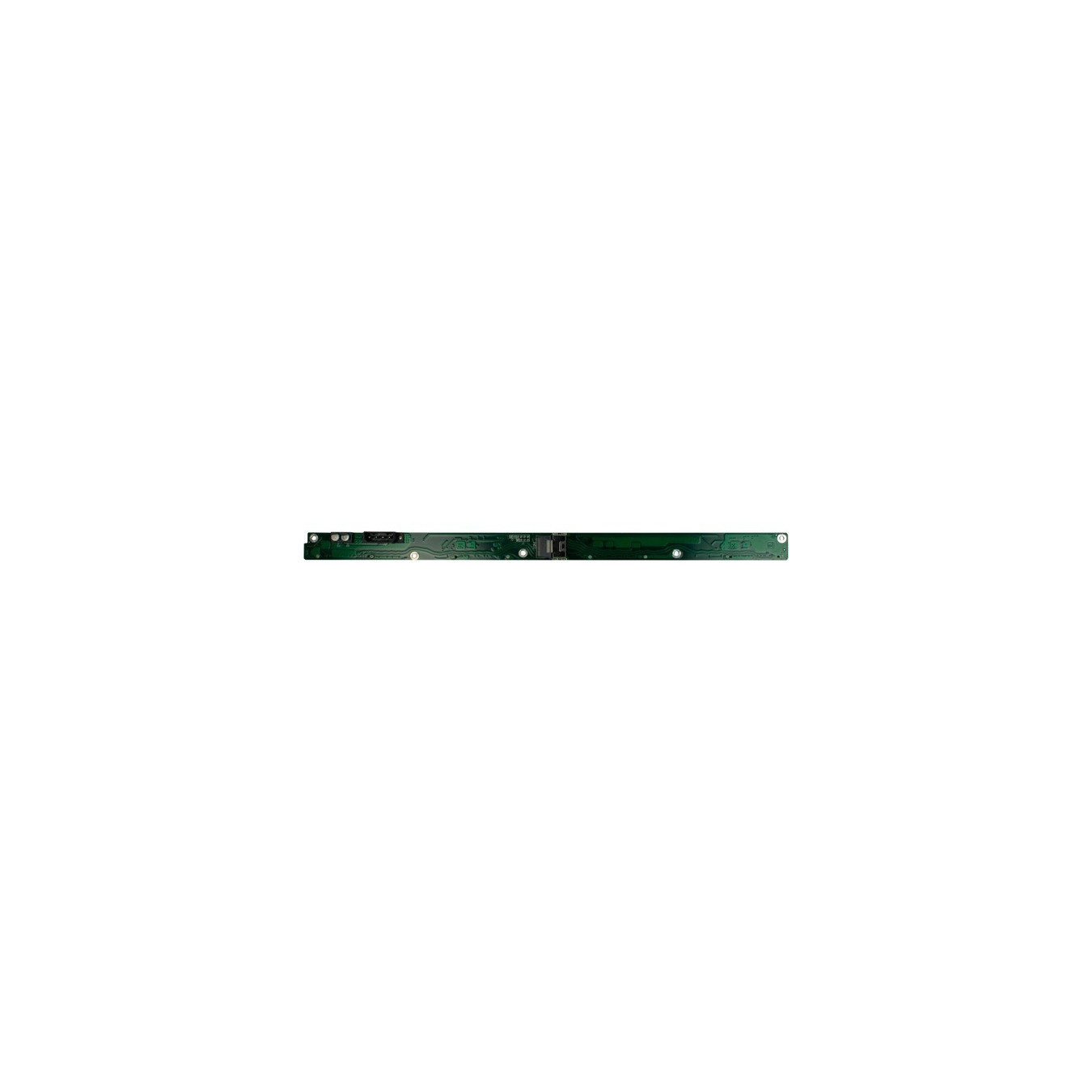

| Notes | 4x 80 mm fans available, S-ATA/SAS backplane + SFF-8087 (max. 12Gbit/s), reusable low profile slot brackets, USB 3.0 internally as standardized block connectors, cover with snap-in closure |
| Rear connection of the mainboard | No |
| More information | Maximum motherboard size: 305 mm x 345 mm (12" x 13.5") |
| Notice | The backplanes supplied are only suitable for operation on an S-ATA controller. For operation with a SAS controller with SFF-8087 connection, an appropriate number of optional SFF-8087 to 4x S-ATA, 1.0 m cables are required. |
| Accessories - available | Assortment of screws, mounting bracket for 2U power supply, assembly tool |
| Volume | 29 l |
| Dimensions | Width: 481mm x Height: 89mm x Depth/Length: 680mm |
| Weight | 10,5 kg |
