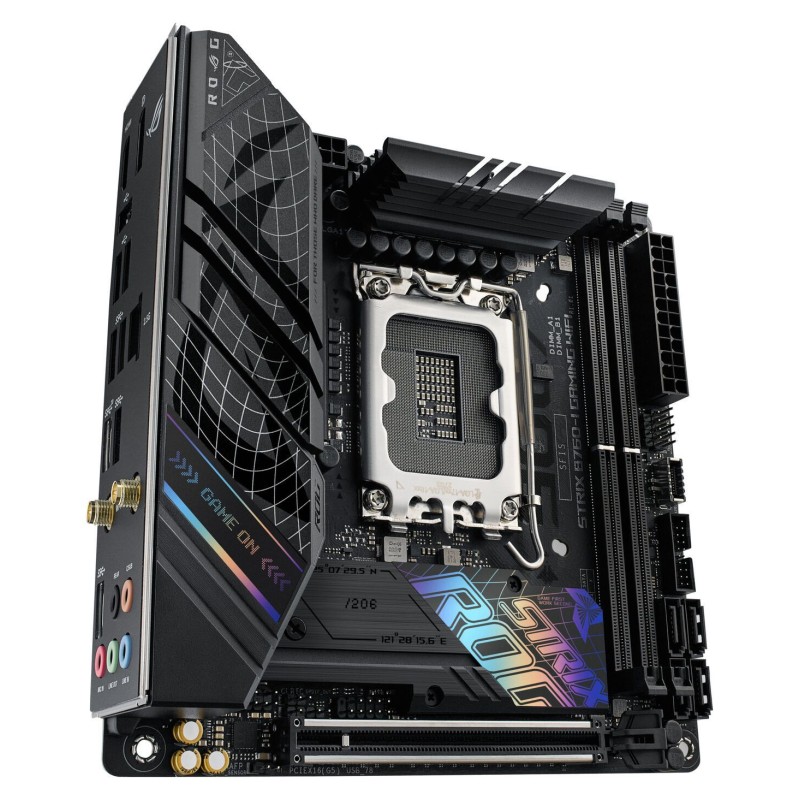

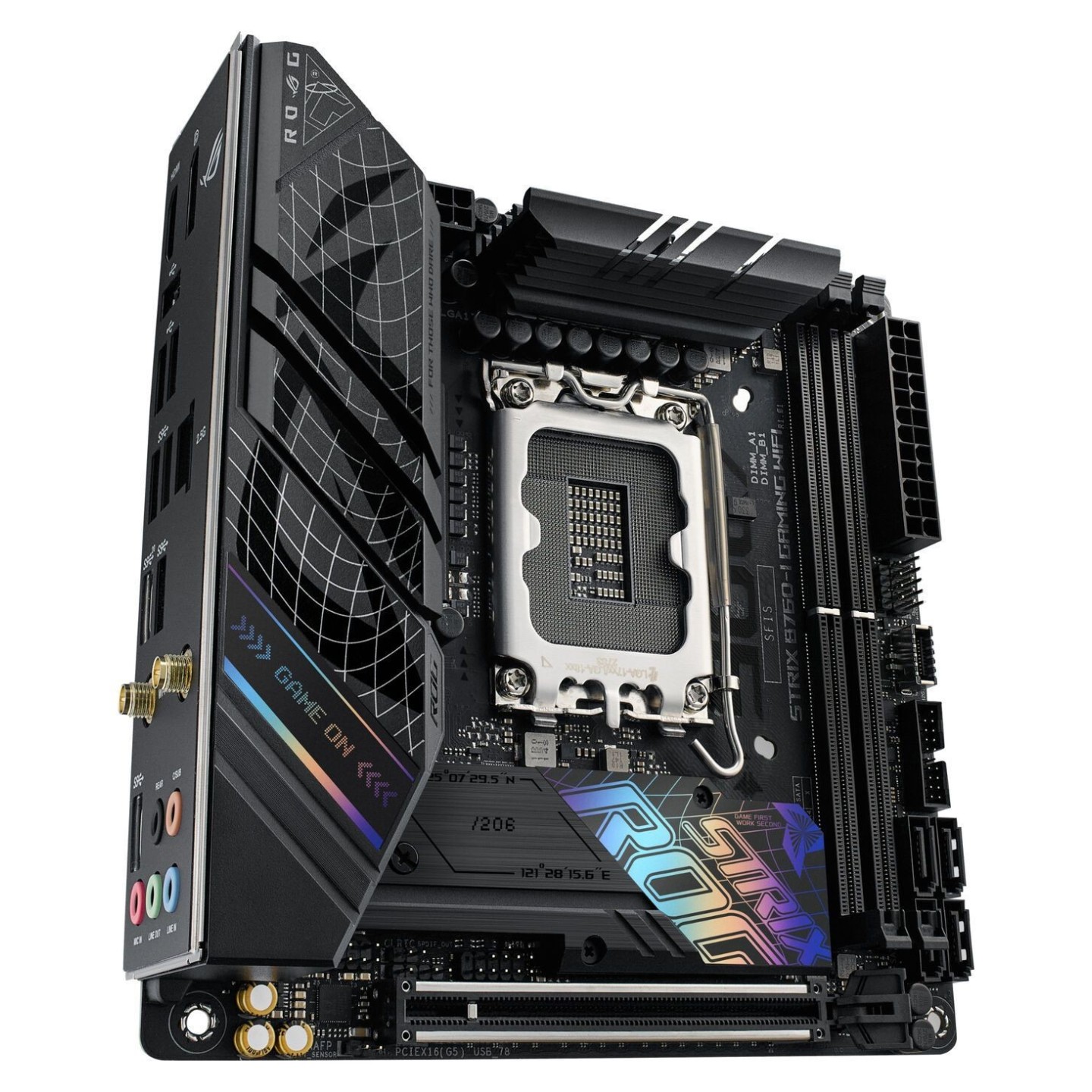

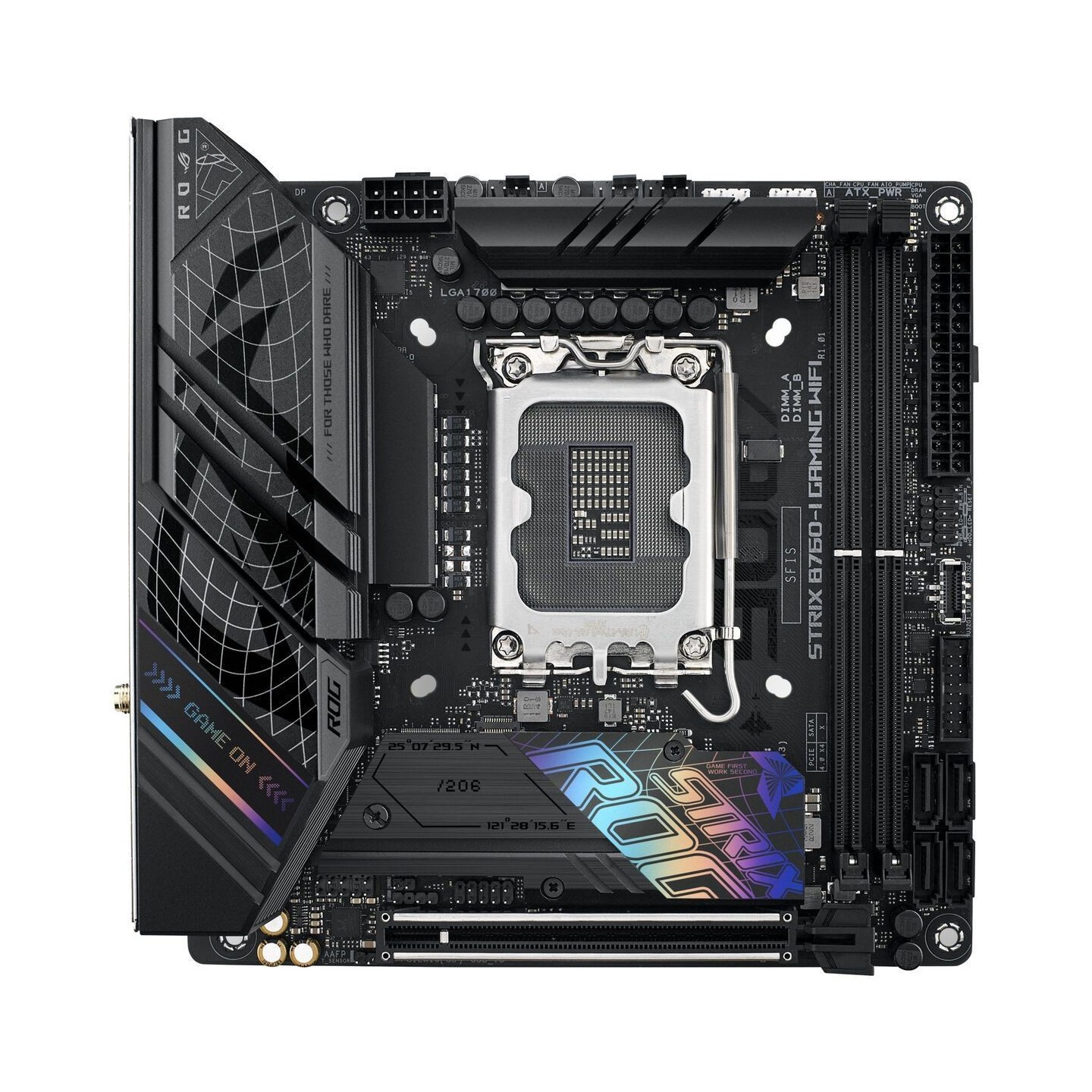

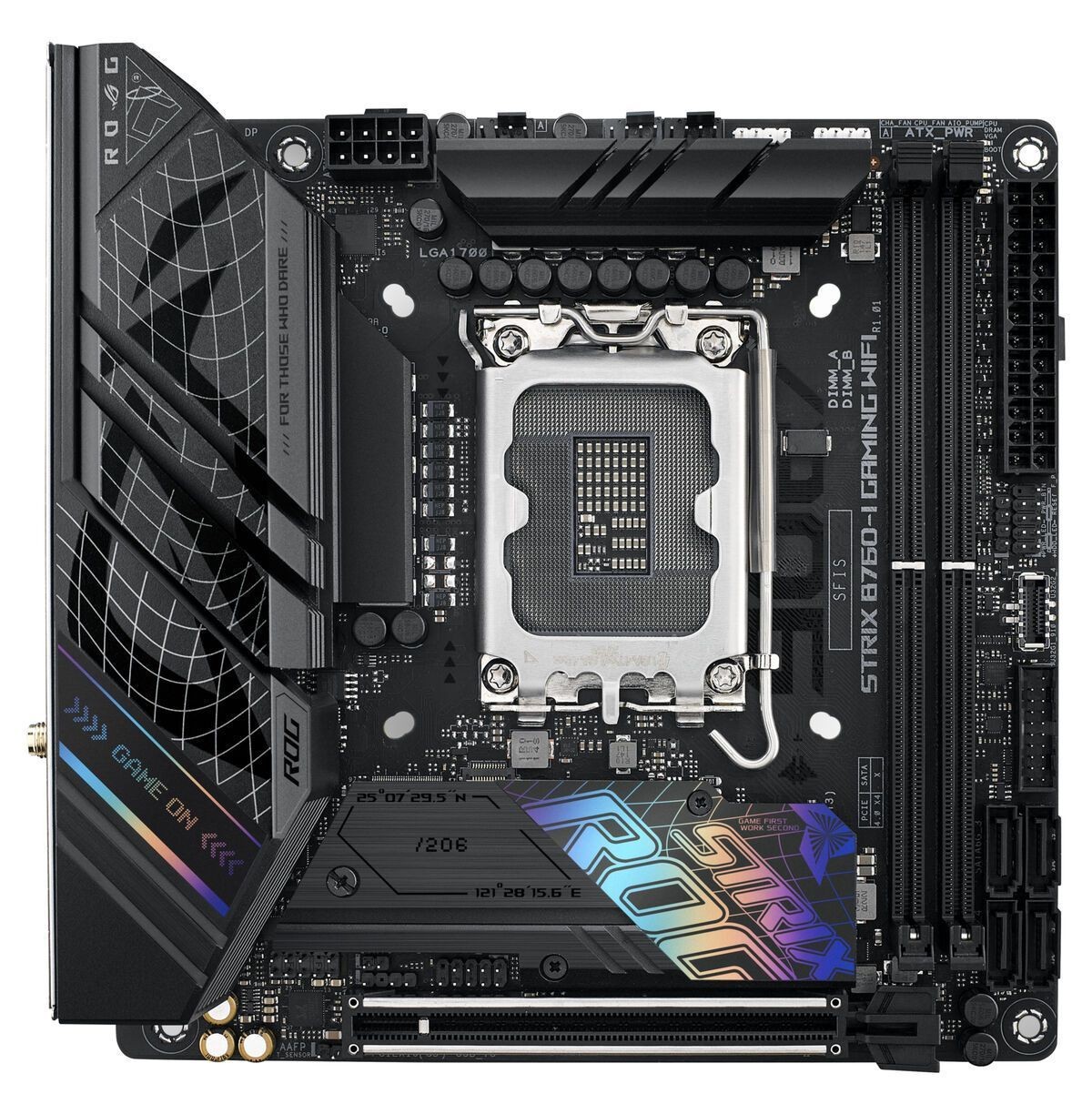

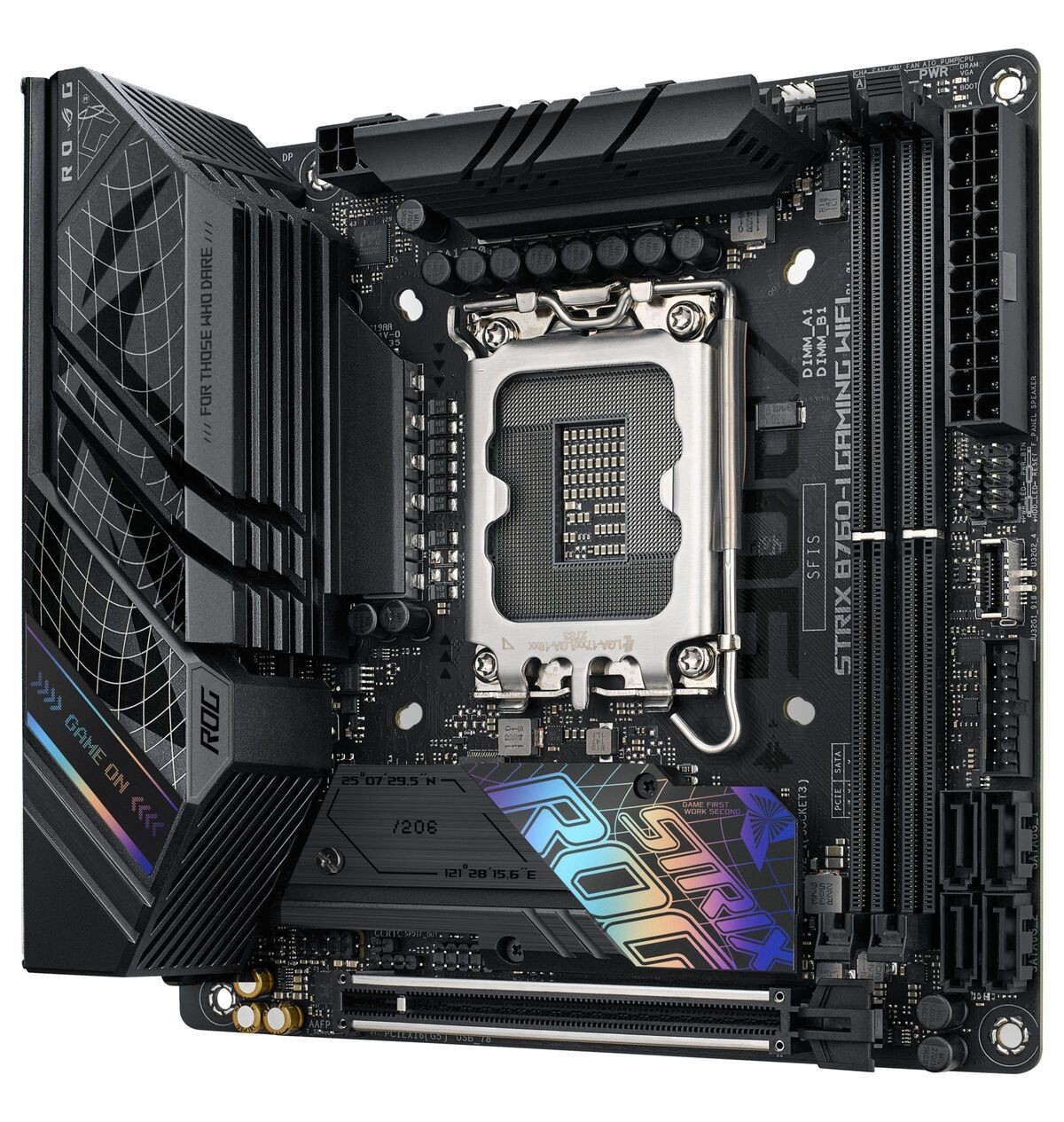

ASUS ROG Strix B760-I Gaming WiFi - Mini-ITX LGA1700 DDR5 (up to 96GB), 2x M.2, PCIe 5.0, 2.5Gb LAN, Wi-Fi 6E (Black)
Mini-ITX ASUS ROG Strix B760-I Gaming WiFi: LGA1700 socket for Intel 12th/13th/14th Gen Core CPUs, DDR5 dual-channel up to 96GB (7600+ MHz OC), 2x M.2 (PCIe 5.0/4.0), PCIe 5.0 x16, 4x SATA III, 2.5Gb Ethernet (Intel I226-V), Wi-Fi 6E, Bluetooth 5.3, SupremeFX audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | Mini-ITX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |

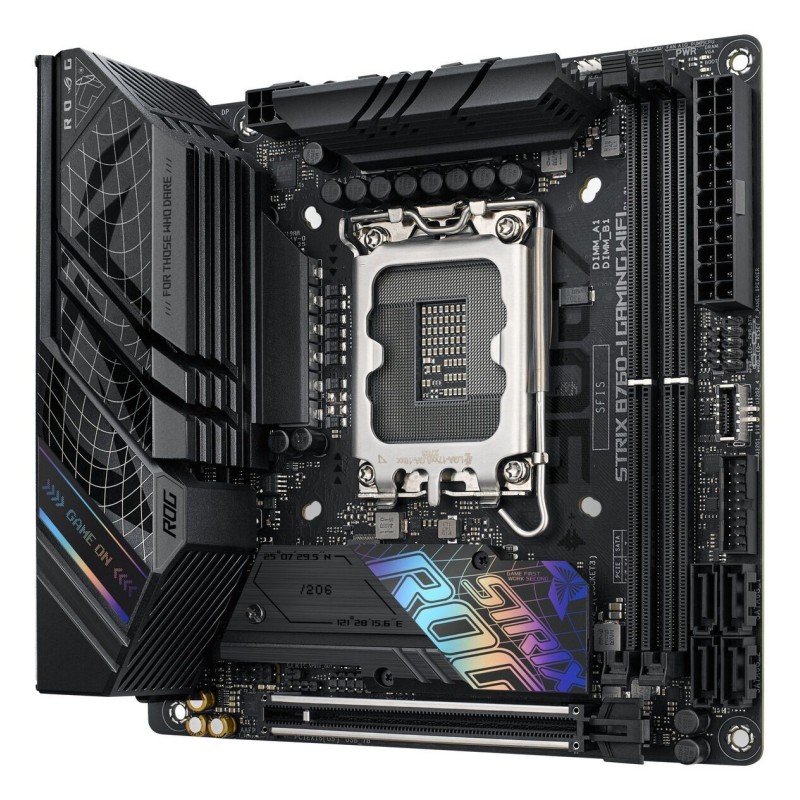

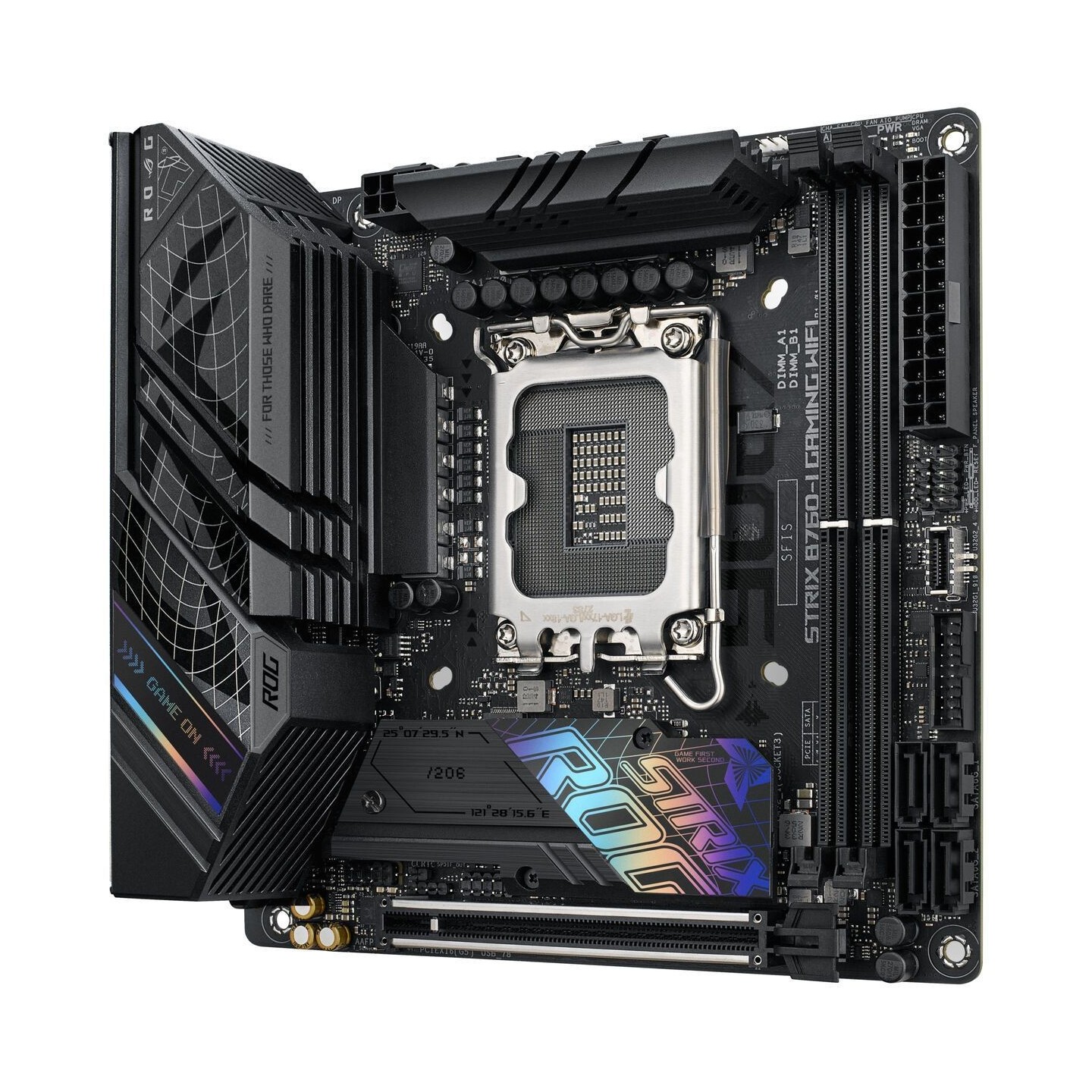

The ASUS ROG Strix B760-I Gaming WiFi is a premium Mini-ITX motherboard designed for compact, high-performance gaming PCs. Built around the Intel B760 chipset and LGA 1700 socket, it supports Intel Core 12th, 13th, and 14th Gen processors (including i9, i7, i5, i3, Pentium Gold, and Celeron). It features two DDR5 DIMM slots supporting up to 96GB of RAM at speeds up to 7600 MHz (OC) with XMP profiles for easy overclocking. Storage options include two M.2 slots (one PCIe 5.0 x4, one PCIe 4.0 x4) and four SATA III ports with RAID 0/1/5/10 support.

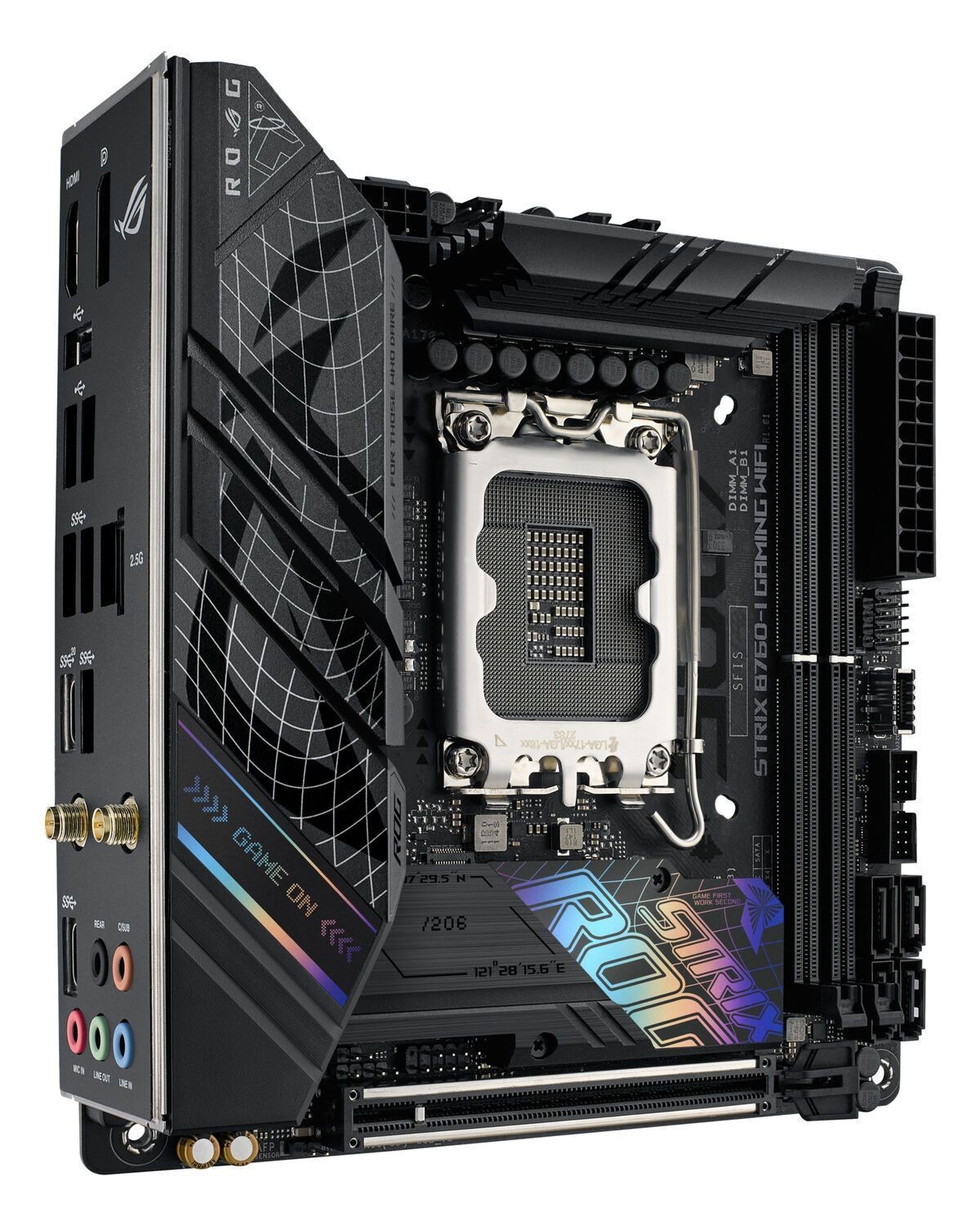

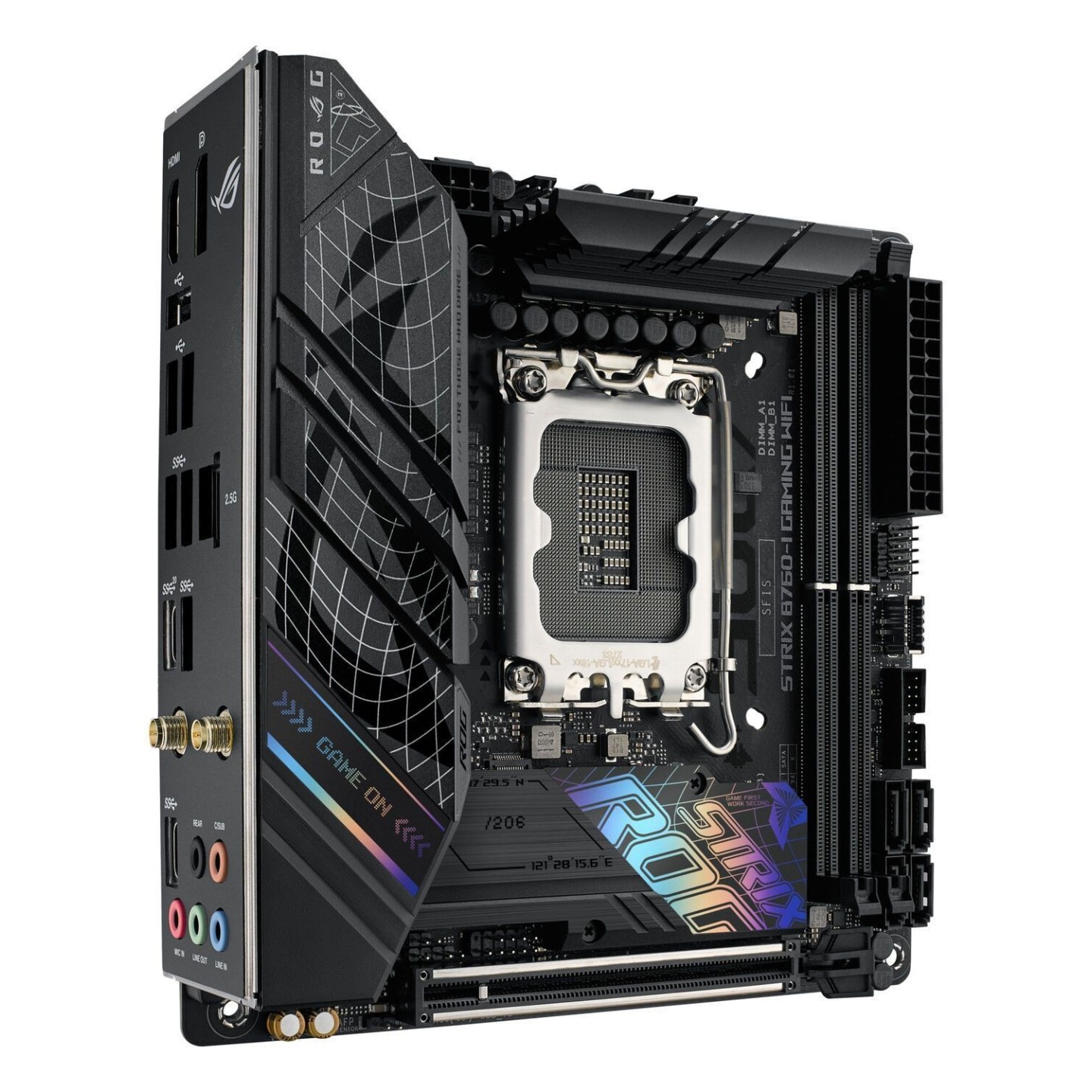

Connectivity is robust for its small form factor: rear I/O includes 2.5 Gigabit Ethernet (Intel I226-V), Wi-Fi 6E (802.11ax with 6GHz band), Bluetooth 5.3, multiple USB ports (including USB 3.2 Gen 2x2 Type-C at 20Gbps), HDMI 2.1, and DisplayPort 1.4 for 4K@60Hz output. Audio is handled by SupremeFX S1220A with 7.1-channel support and Realtek ALC1220P codec. The 13-phase VRM design ensures stable power delivery, with excellent cooling via large heatsinks for VRM, M.2, and chipset. It also offers RGB headers (ARGB and RGB), one chassis fan header, and UEFI BIOS with Q-Code diagnostics.

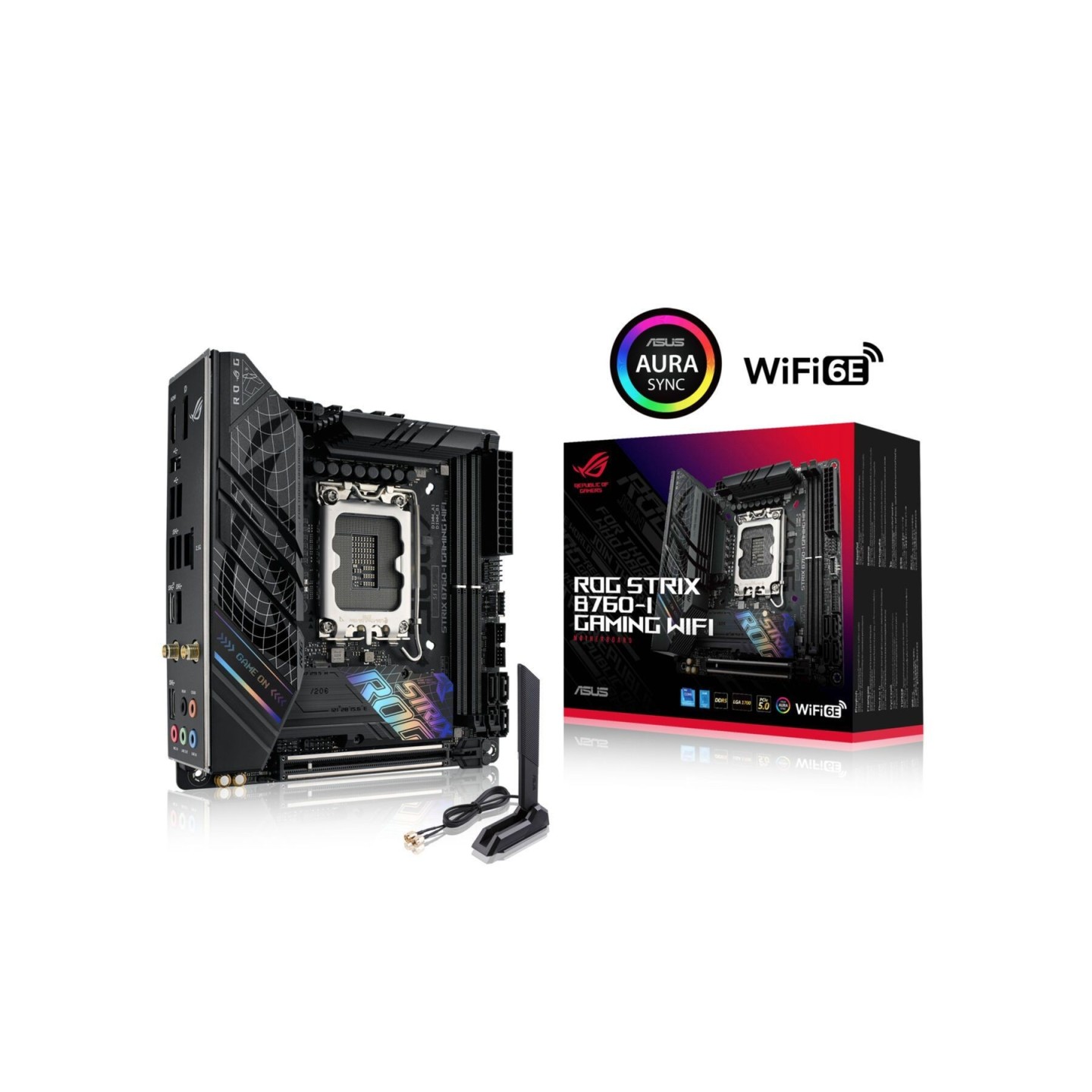

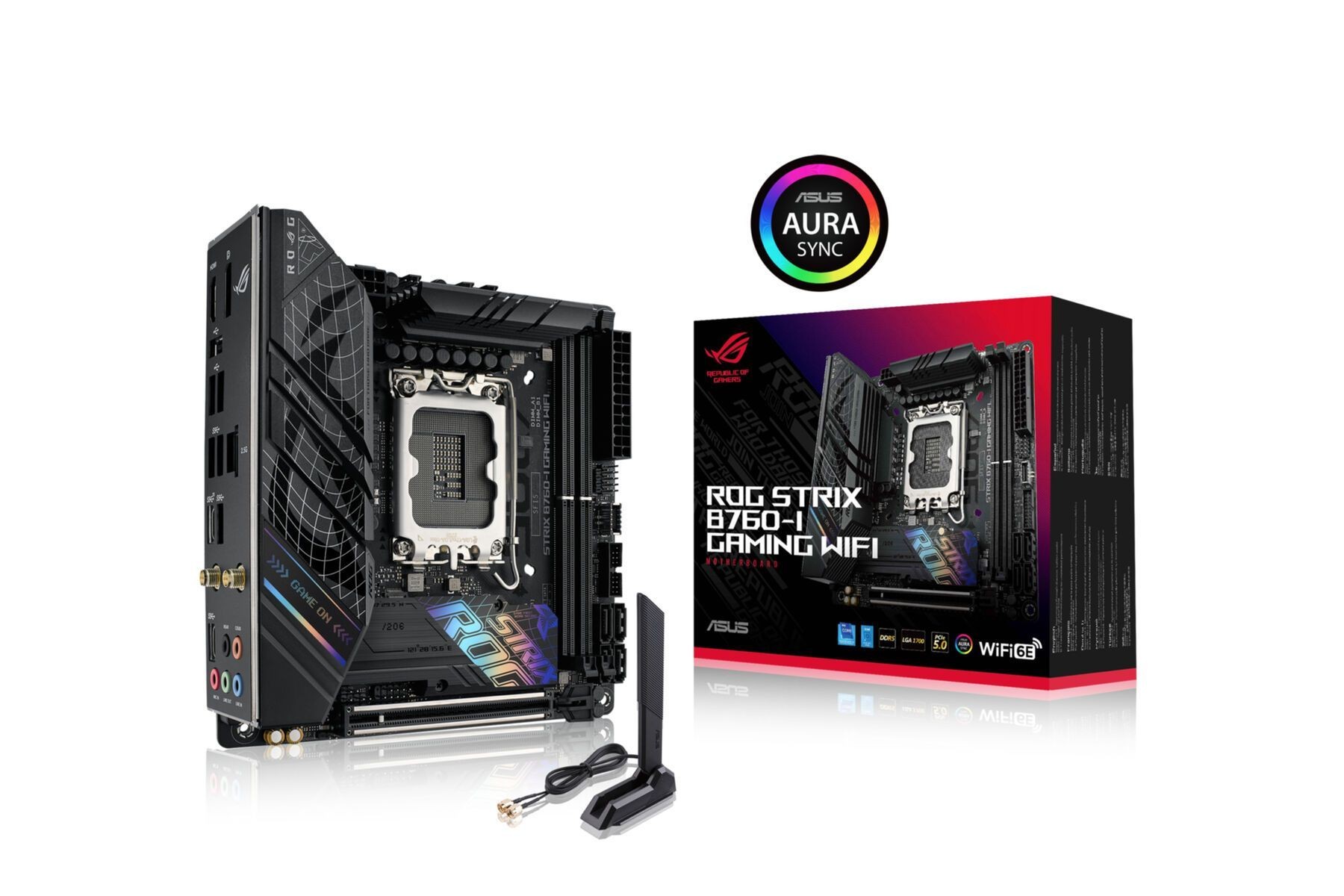

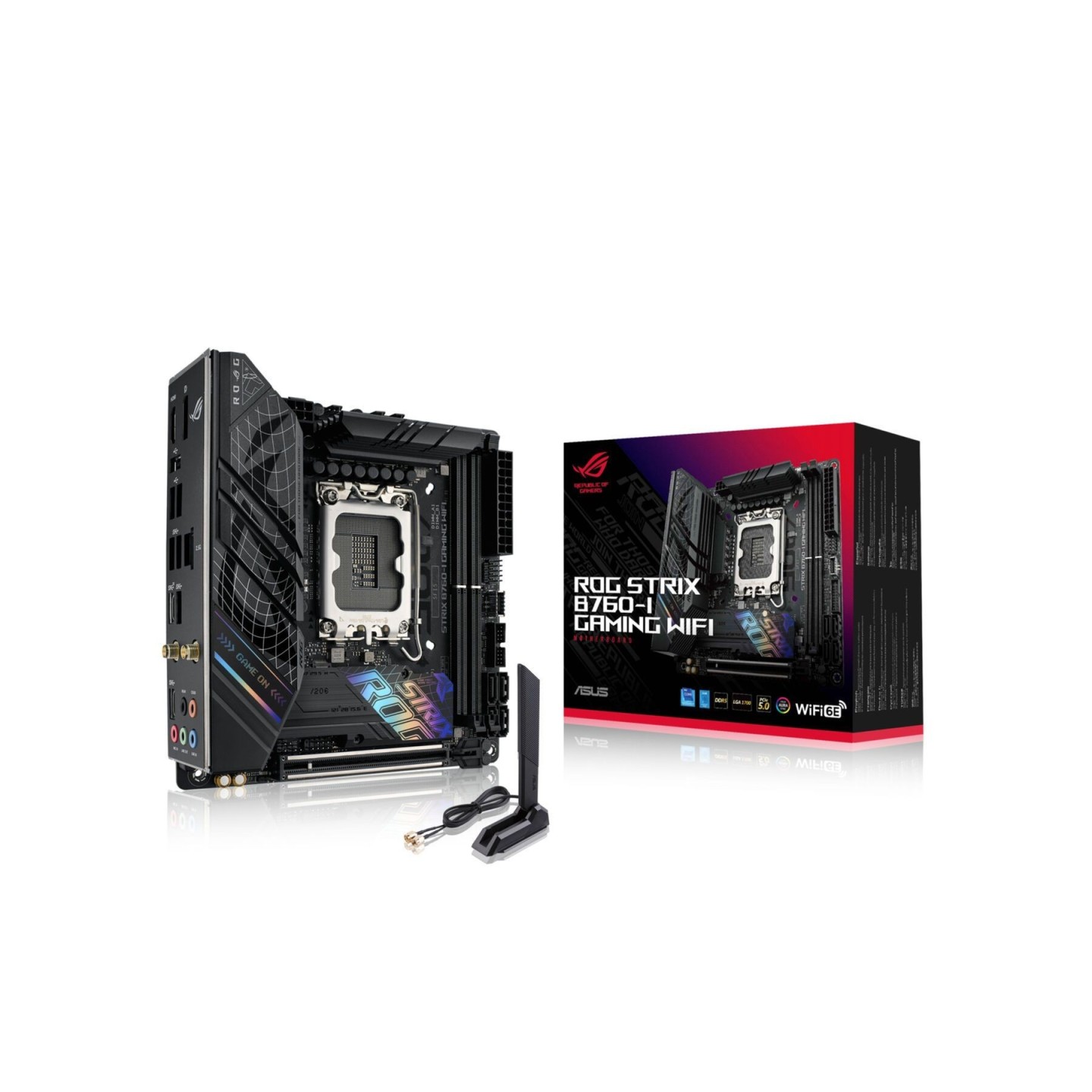

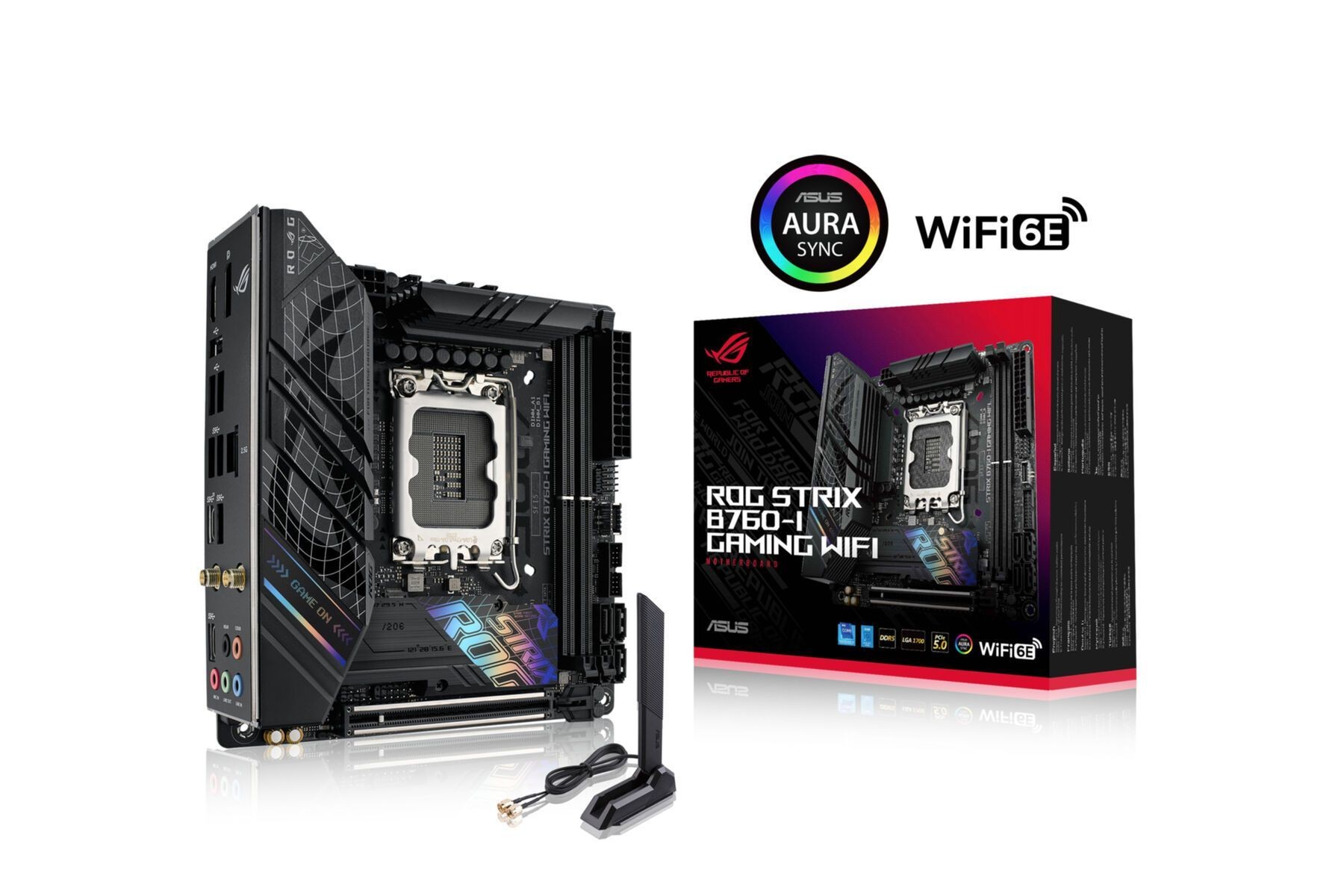

Ideal for SFF builds, this board combines ROG aesthetics (holographic logo, black PCB) with top-tier features like PCIe 5.0 slot for future-proof GPUs. Boxed with SATA cables, user guide, WiFi antennas, and I/O shield.
- Socket: LGA 1700 (Intel 12th-14th Gen)
- Memory: 2x DDR5 up to 96GB, 7600+ MHz (OC)
- Storage: 2x M.2, 4x SATA III
- Expansion: 1x PCIe 5.0 x16
- Networking: 2.5Gb LAN, Wi-Fi 6E, BT 5.3
- Audio: SupremeFX 7.1-channel
- Form Factor: Mini-ITX (17x17 cm)
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium® Gold |
| Maximum internal memory | 96 GB |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz (OC) |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | mini ITX |
| Number of SATA III connectors | 4 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Audio chip | SupremeFX S1220A |
| Audio output channels | 7.1 channels |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| RAID levels | 0, 1, 5, 10 |
| Width | 170 mm |
| Depth | 170 mm |
| Package width | 226 mm |
| Package depth | 94 mm |
| Package height | 185 mm |
| Package weight | 1.28 kg |
