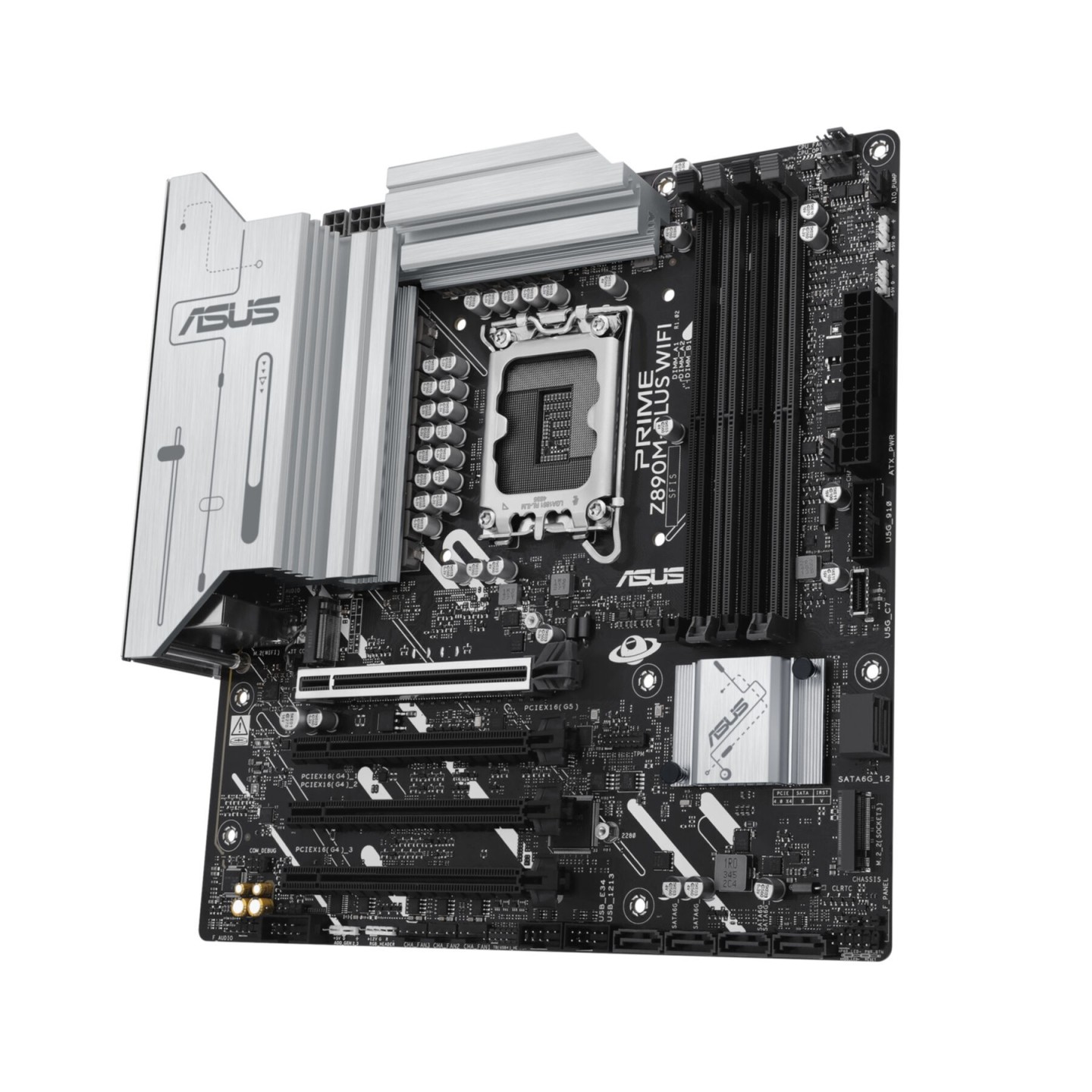

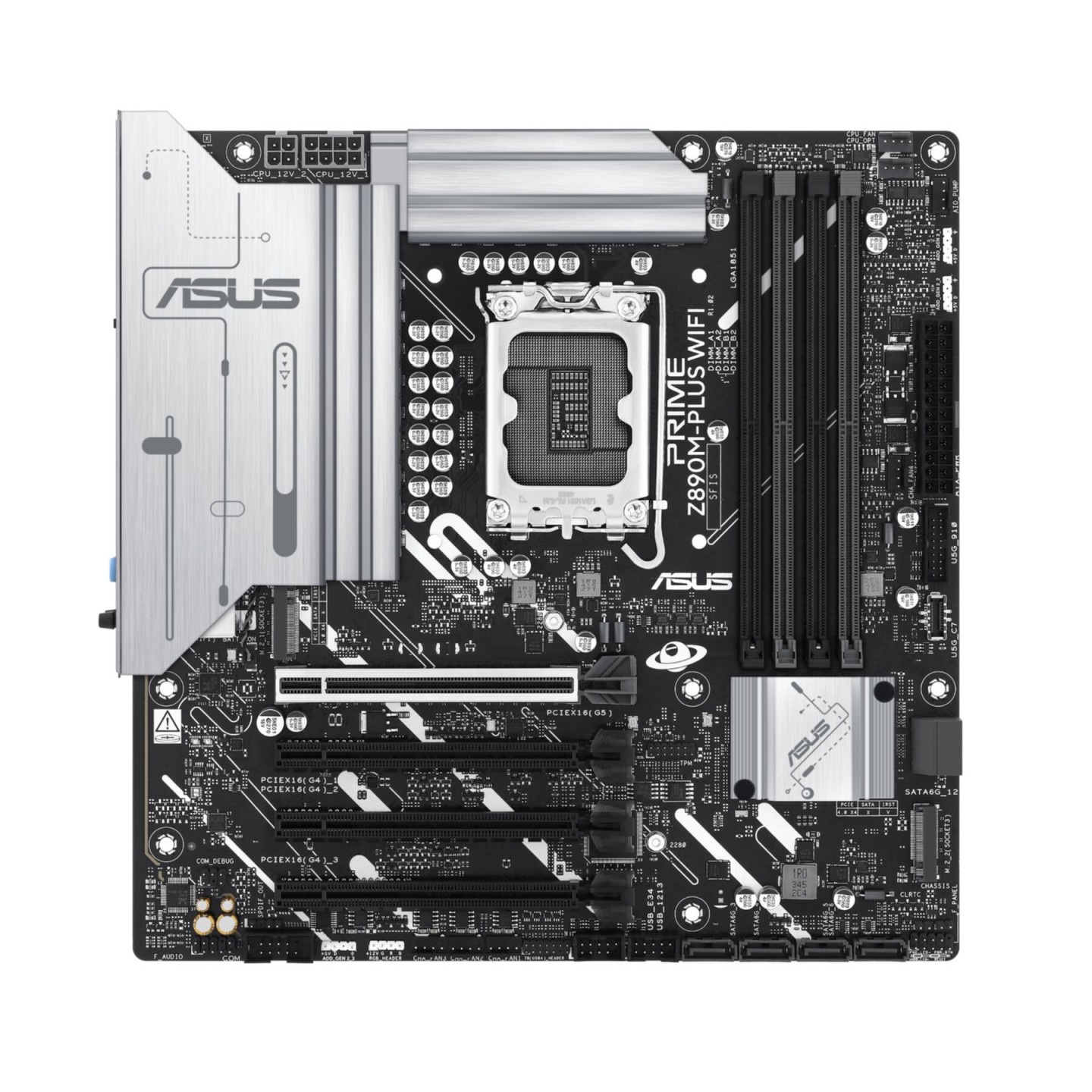

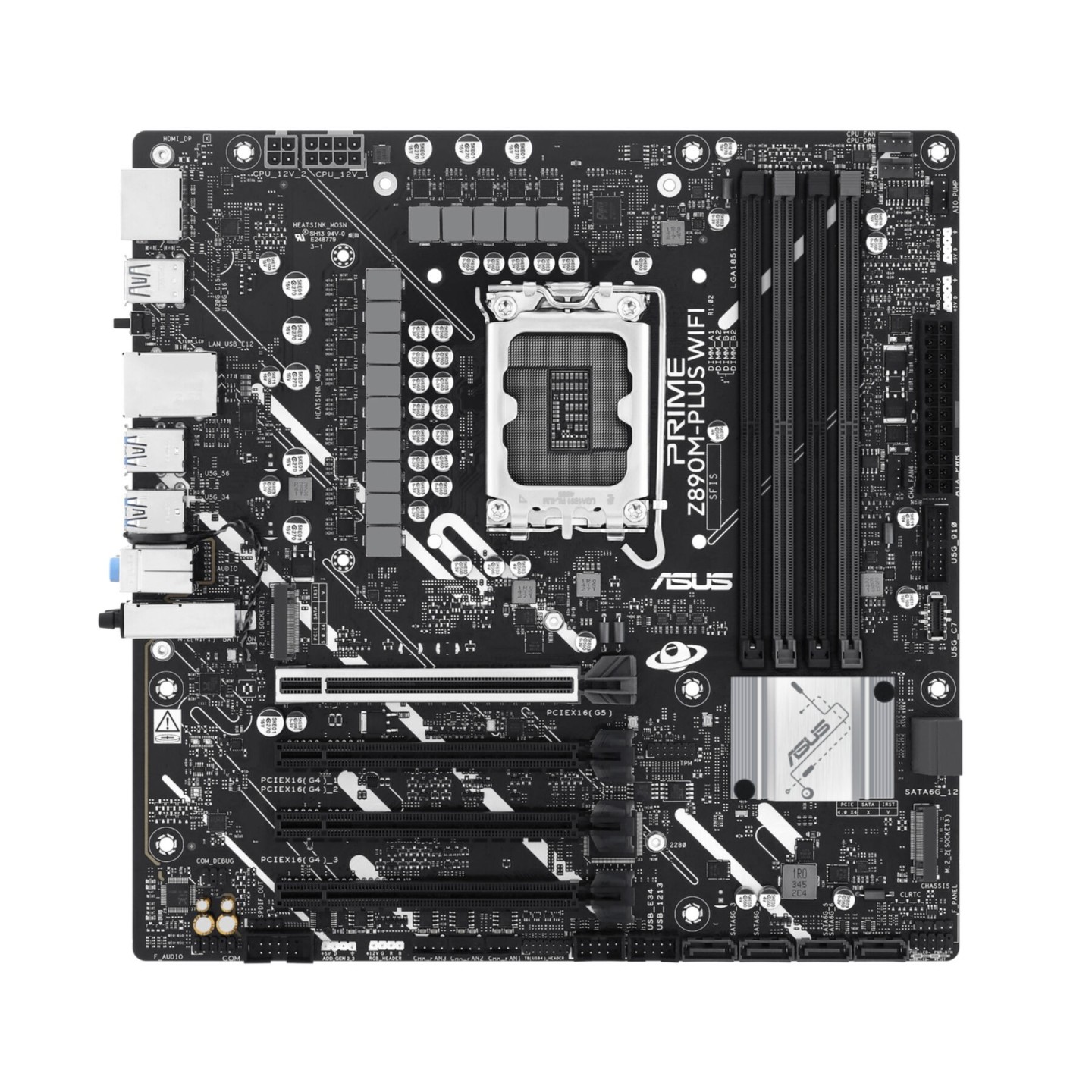

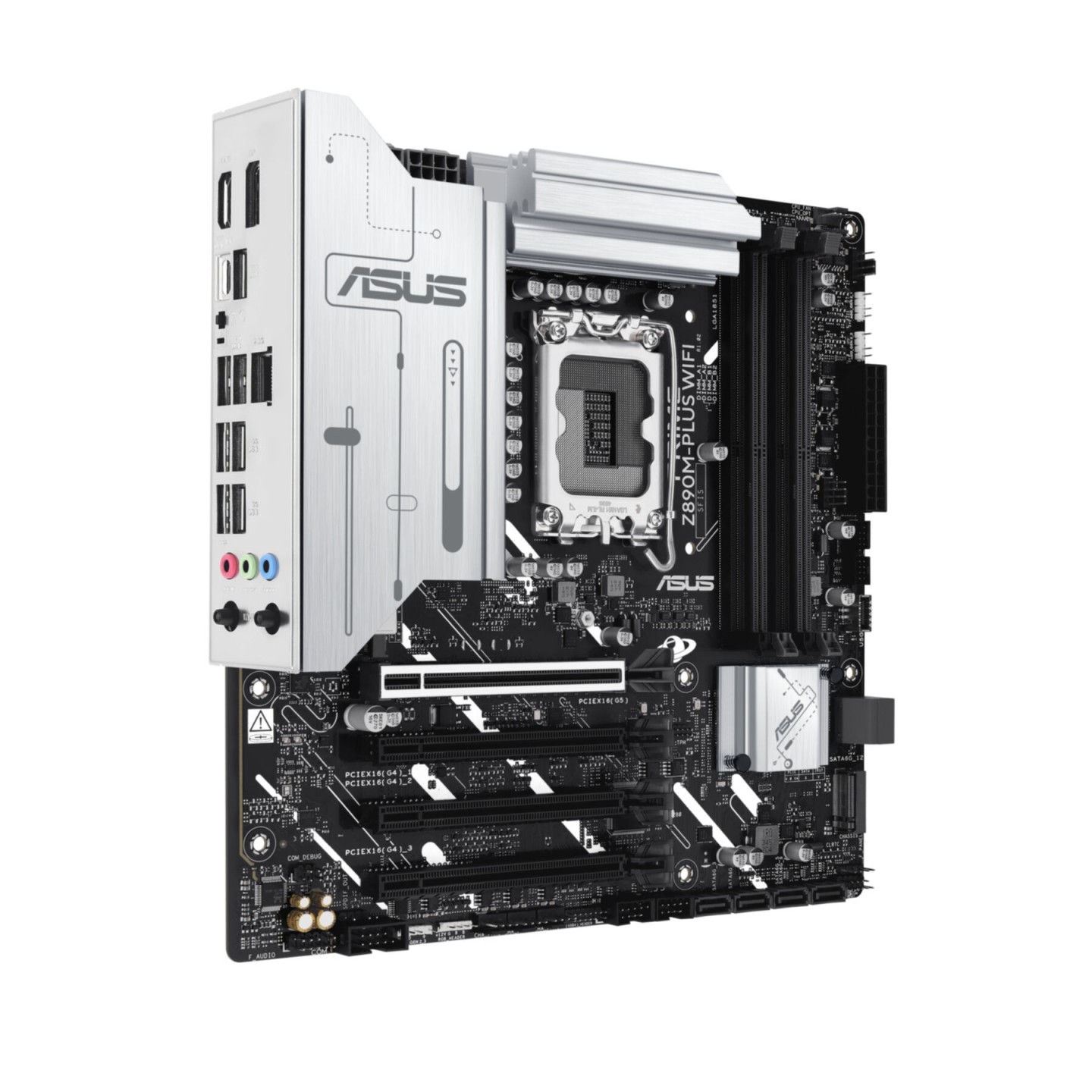

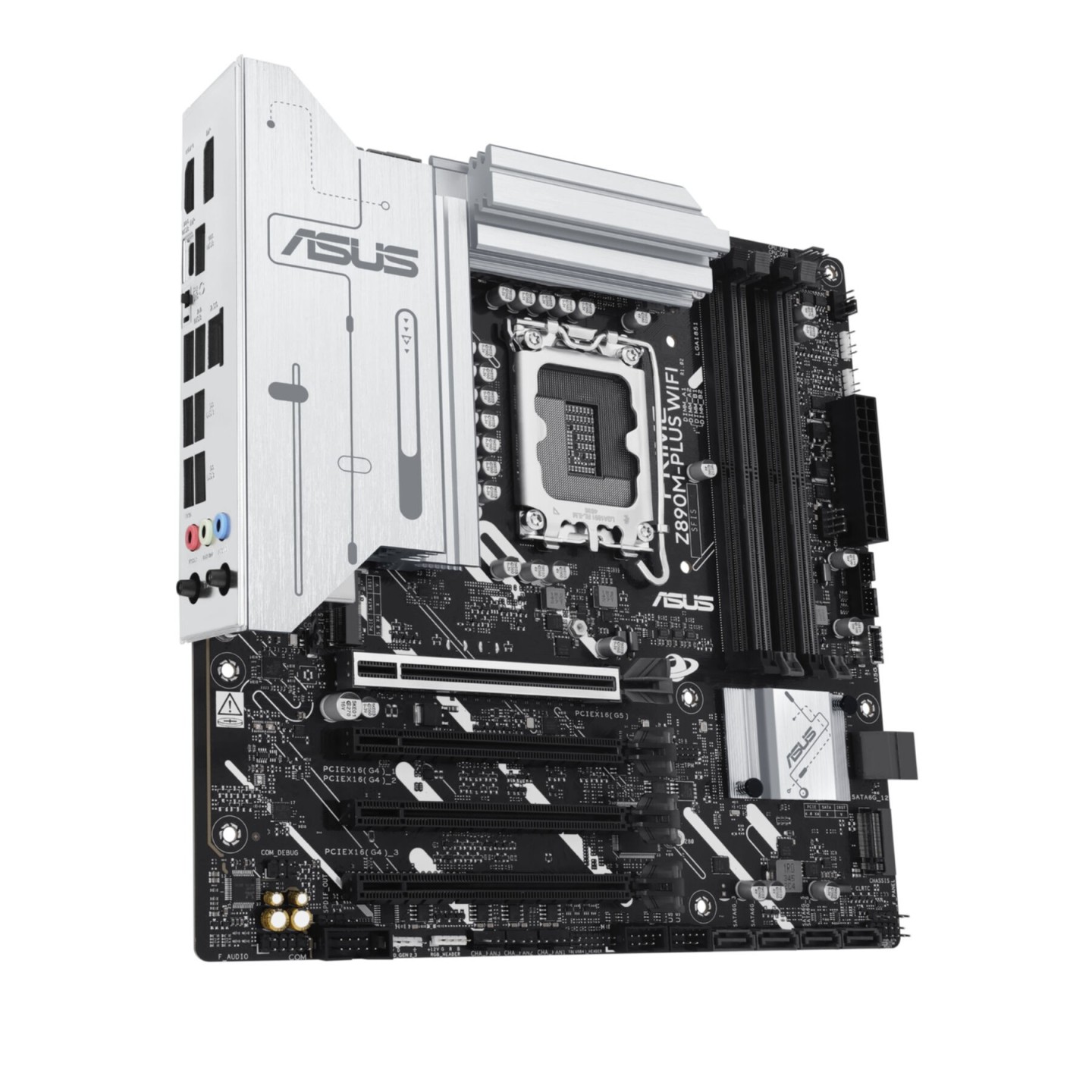

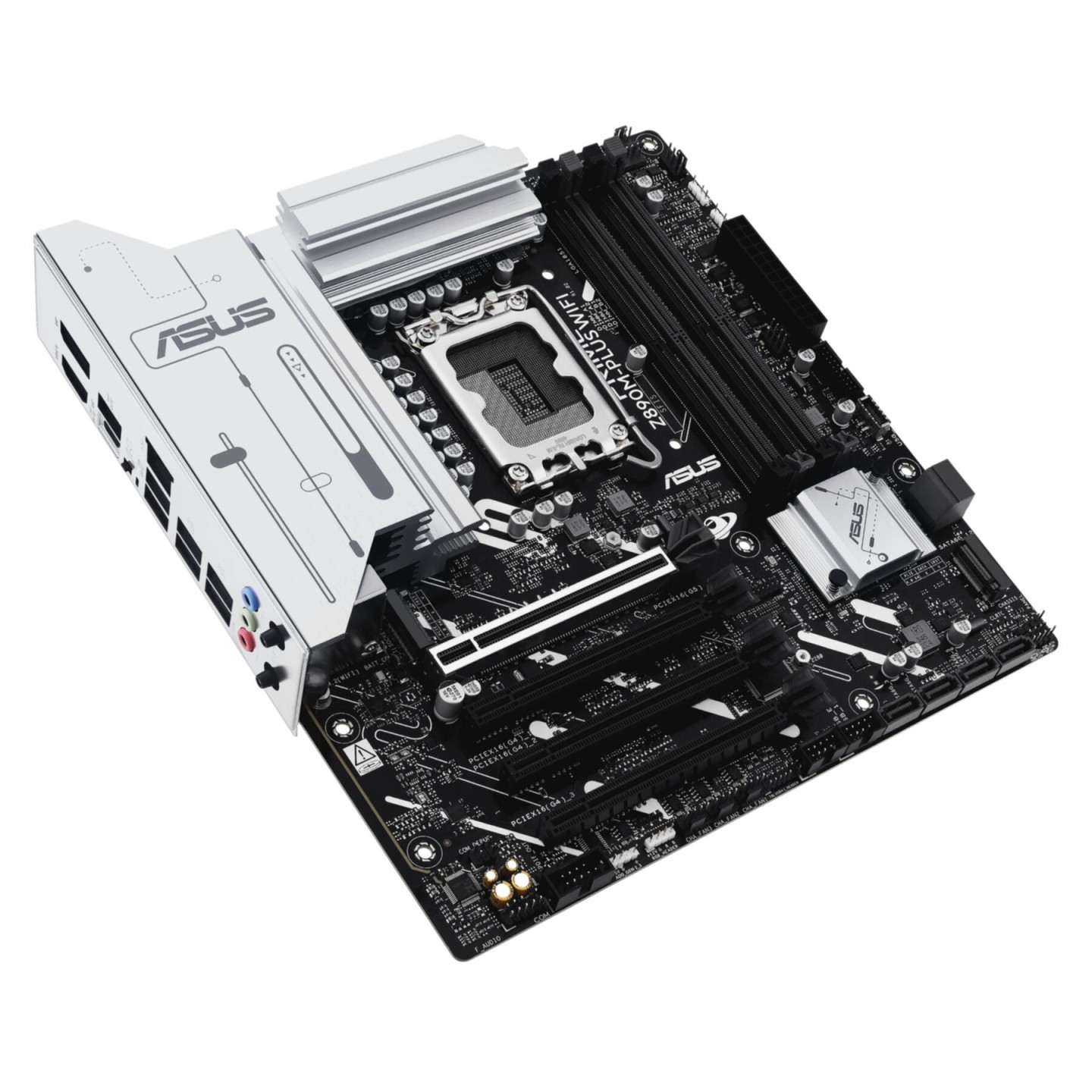

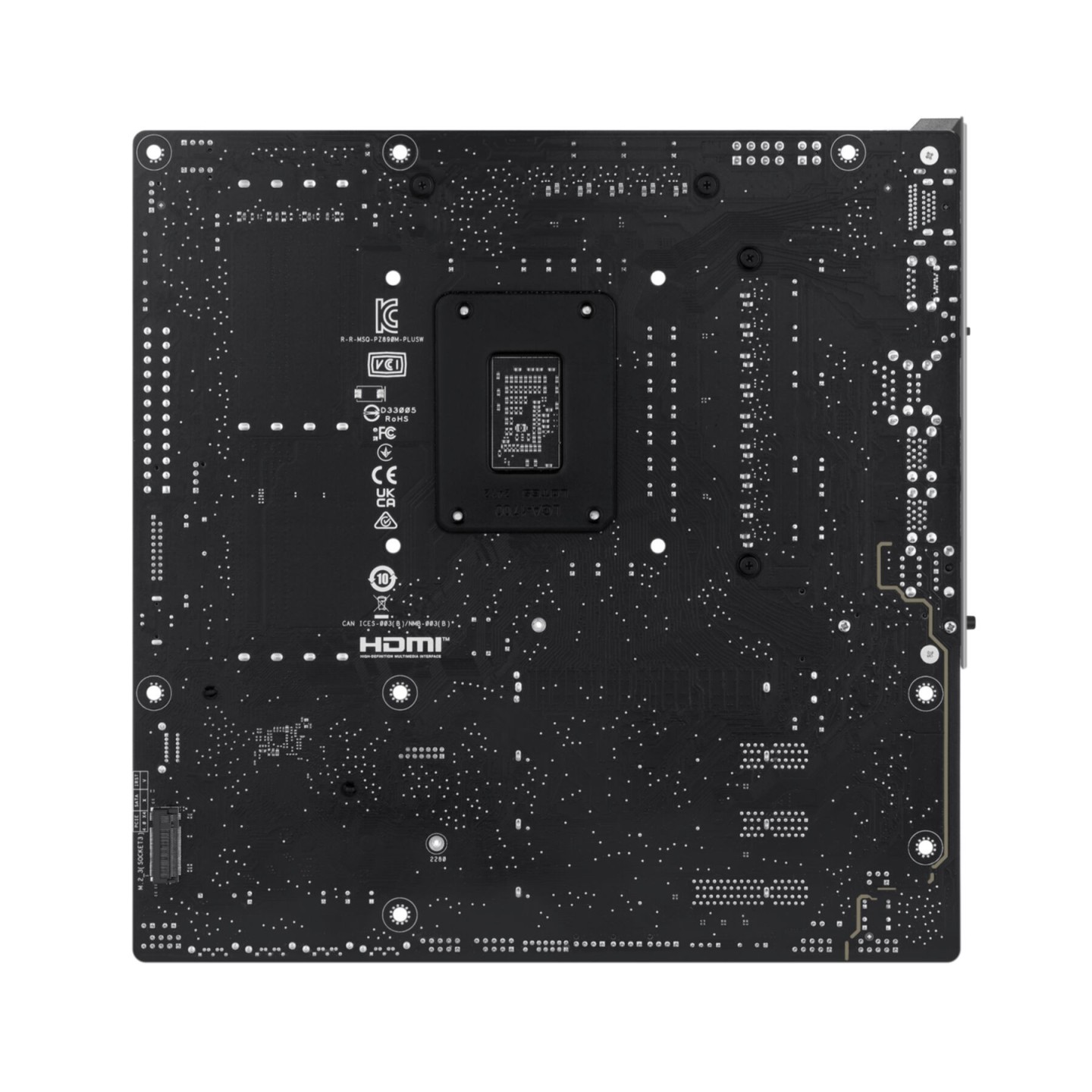

ASUS PRIME Z890M-PLUS WIFI - Z890 LGA1851 DDR5 up to 192GB Micro-ATX Wi-Fi 7 Bluetooth 5.4 2.5Gb LAN PCIe 5.0 (Boxed)
Micro-ATX ASUS PRIME Z890M-PLUS WIFI for Intel Core Ultra Series 2 (LGA1851), Z890 chipset. 4x DDR5 up to 192GB, WiFi 7, BT 5.4, 2.5GbE, 3x M.2 (1x PCIe5), 6x SATA, PCIe5 x16.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1851 |
|---|---|
| Motherboards - Chipset | Intel Z890 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Two-Tone |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 6 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The ASUS PRIME Z890M-PLUS WIFI is a feature-packed micro-ATX motherboard designed for Intel Core Ultra Series 2 processors on the LGA1851 socket with the Z890 chipset. It delivers robust performance for gaming, content creation, and AI workloads with support for DDR5 memory up to 192GB across 4 DIMM slots (dual-channel, up to 8666+MT/s OC via XMP/AEMP III), PCIe 5.0 x16 slot, and three M.2 slots including one PCIe 5.0 for ultra-fast NVMe storage.
Connectivity is top-tier with Wi-Fi 7 (2x2, 160MHz, up to 2.9Gbps), Bluetooth 5.4, Realtek 2.5Gb Ethernet with LANGuard, and comprehensive USB including rear USB 20Gbps Type-C (DP Alt), USB 10Gbps Type-A, plus multiple 5Gbps/2.0 ports. It features a 14+1+1 80A DrMOS power design for stability under high loads, Realtek 7.1 audio, Thunderbolt header, and ASUS 5X Protection III. Includes 2x SATA cables, WiFi antenna.
- CPU: LGA1851 Intel Core Ultra (Series 2)
- Memory: 4x DDR5, 192GB max, XMP/AEMP
- Storage: 3x M.2, 6x SATA 6Gb/s, RAID 0/1/5/10
- Networking: WiFi 7, BT 5.4, 2.5Gb LAN
- Video: 1x HDMI, 1x DisplayPort
- Form Factor: Micro-ATX (244 x 244 mm)
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Motherboard chipset | Intel Z890 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 192 GB |
| ECC compatibility | Non-ECC |
| Memory speed (OC) | up to 8666+ MT/s |
| Memory profiles | XMP, AEMP III |
| Number of M.2 (M) slots | 3 |
| Supported storage drive interfaces | M.2, SATA III |
| Number of SATA III connectors | 6 |
| RAID levels | 0, 1, 5, 10 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 (20Gbps rear) |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 (10Gbps rear) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 (5Gbps rear) |
| USB 2.0 ports quantity | 2 (rear) |
| USB 2.0 connectors | 2 (headers, 4 ports) |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 (headers) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Audio output channels | 7.1 channels |
| Product colour | Aluminium, Black |
| Width | 244 mm |
| Depth | 244 mm |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Power stages | 10(80A)+1(80A)+2(80A)+1(80A) DrMOS |
| Cables included | SATA |
| Accessories | 2x SATA cables, WiFi Q-Antenna |
| Windows operating systems supported | Windows 11 |
