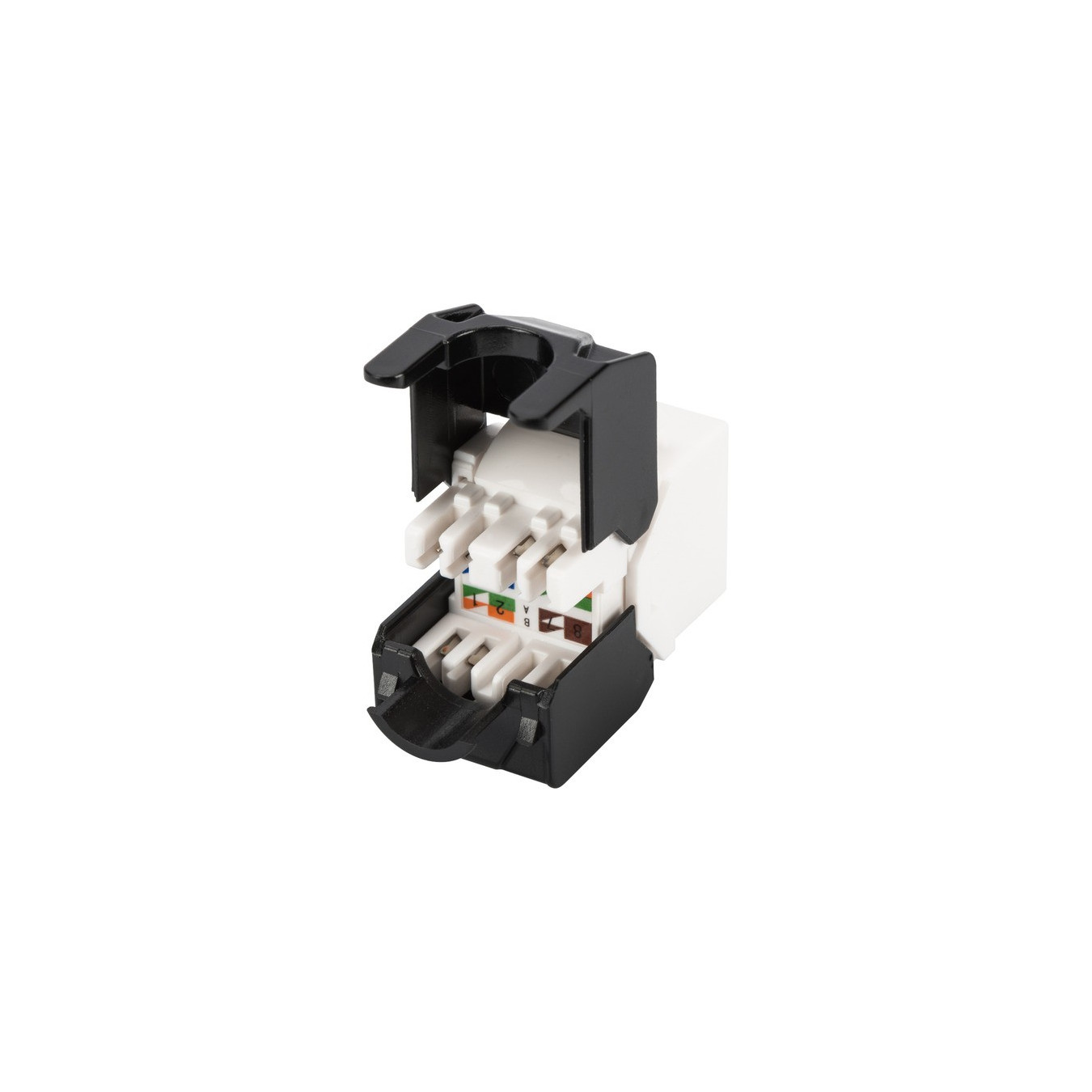

Cat.6 RJ-45 Keystone-Modul DN-93603
The Digitus Cat.6 Keystone Module DN-93603 enables quick and easy installation without special tools. Its compact design allows a series installation of 24 pieces in 483mm (19") 1U...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

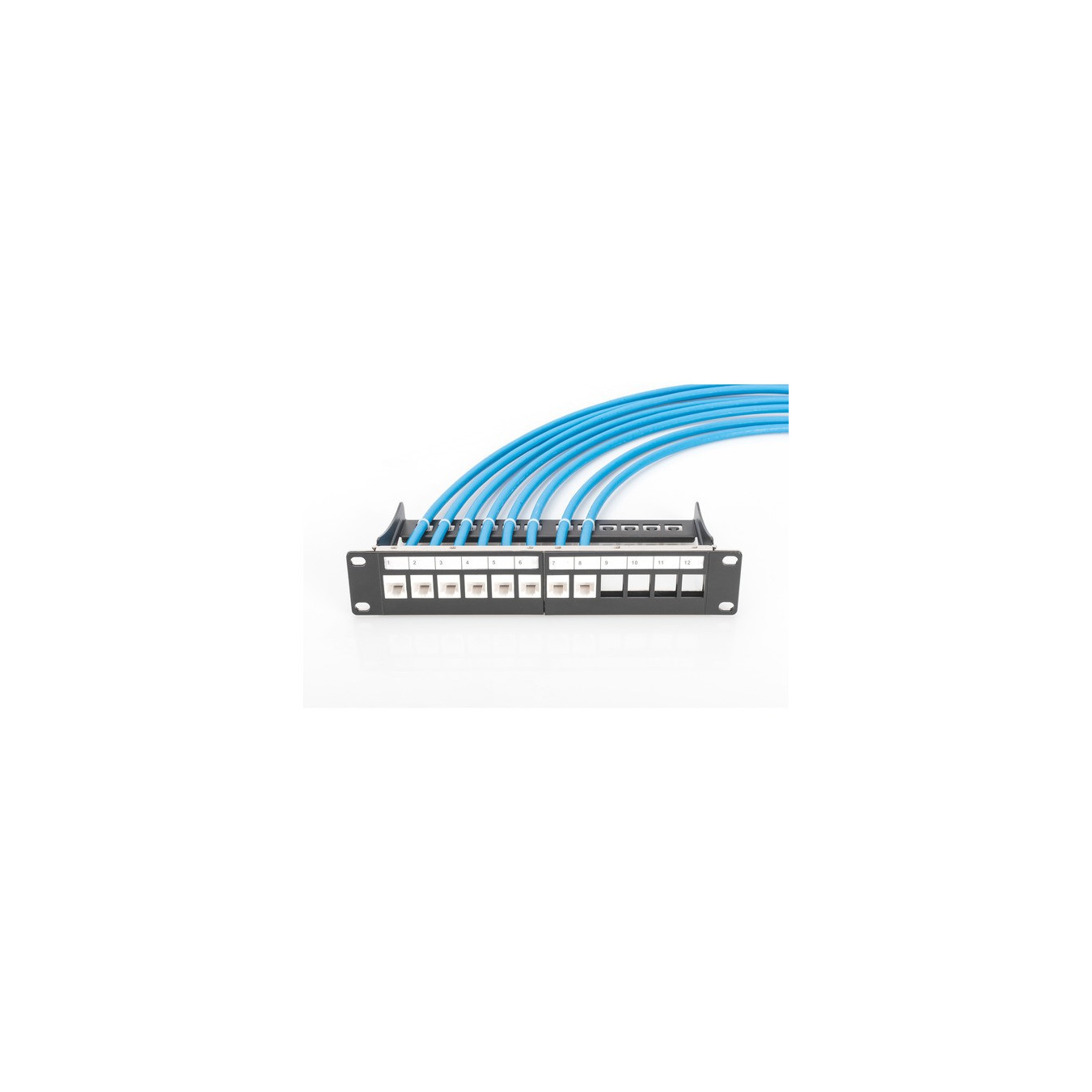

The Digitus Cat.6 Keystone Module DN-93603 enables quick and easy installation without special tools. Its compact design allows a series installation of 24 pieces in 483mm (19") 1U panels.
| Typ | Keystone-Modul |
| EAN | 4016032259398 |
| Manufacturer no. | DN-93603 |
| Manufactured in | China |
| Form | Keystone-Modul |
| Number | 8 pieces |
| Application example | Suitable for 483mm (19") cabinet mounting |
| Area | network |
| Connection - from | 1x RJ-45 (socket) |
| Category - Plugs | Cat.6 |
| Characteristics | Adapter |
| Feature | Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B, cable fixation using quick snaps |
| More information | Up to 250 MHz, 1GBase-T, LSA insulation displacement terminal: Krone LSA+, UL 94V-2, tensile load 7.7 kg between socket and plug, wire intake 22-26 AWG solid and stranded conductors, insulation resistance > 500 MOhm, contact resistance < 20 MilliOhm |
