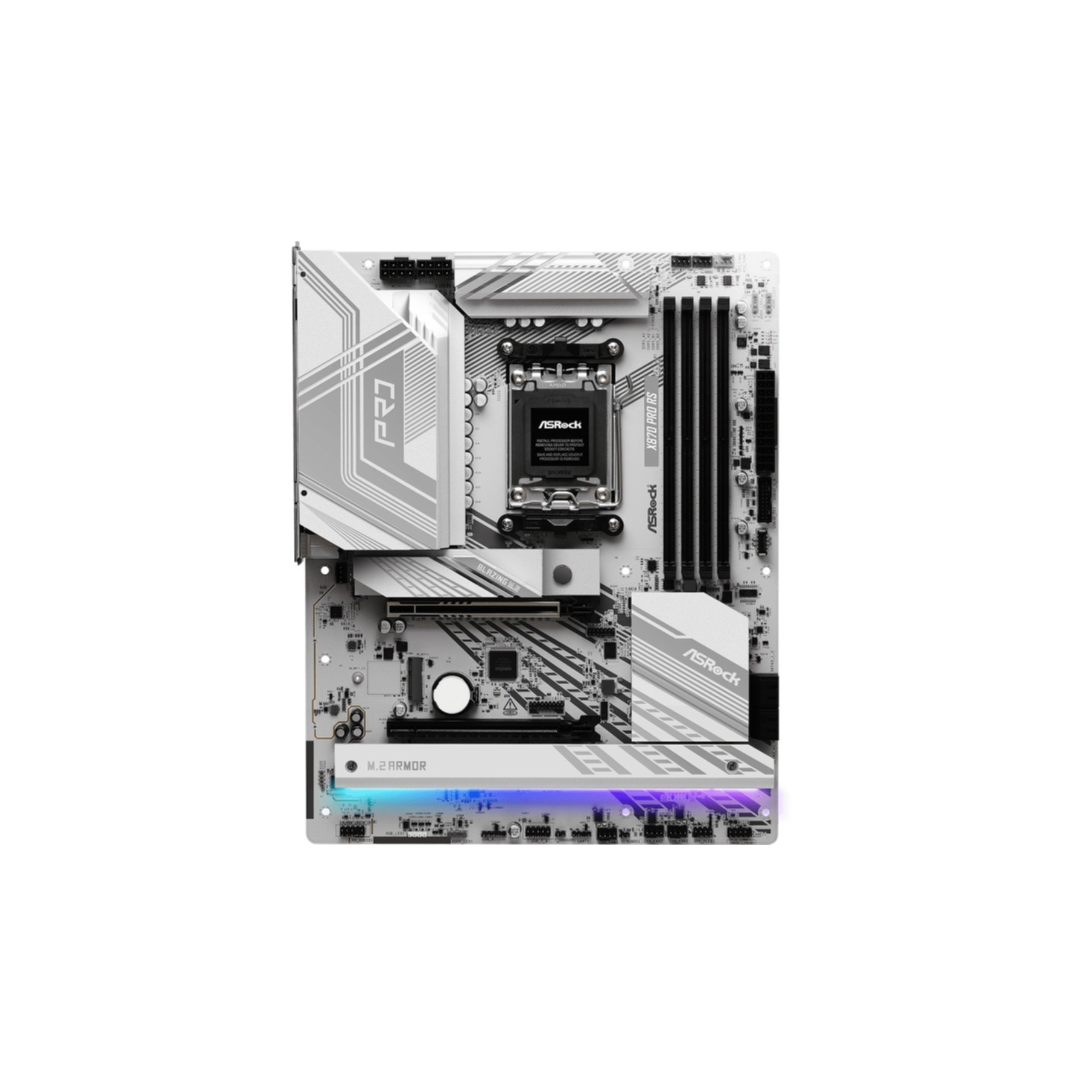

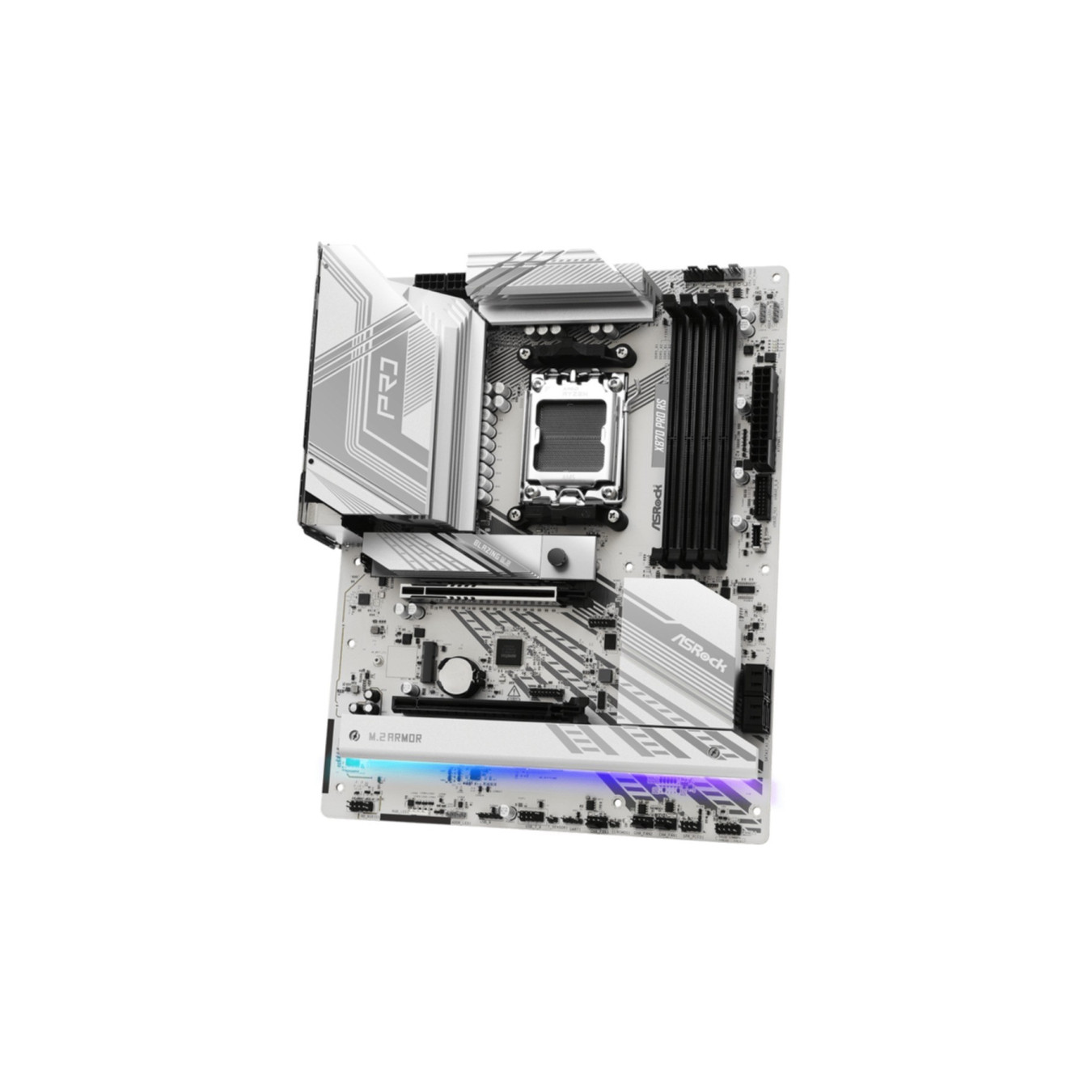

ASRock X870 Pro RS - AM5 ATX Motherboard - DDR5, 4x DIMM, 256GB Max, PCIe 5.0, White
AM5 ATX motherboard (AMD X870) with DDR5 support up to 256GB (4 DIMM), PCIe 5.0 x16, 3× M.2, 4× SATA III, USB4 Type-C, 2.5Gb LAN, HDMI 2.1.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | AM5 |
|---|---|
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 5.0 |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | Rear Type-C |
Asrock X870 PRO RS. Processor manufacturer: AMD. Processor socket: Socket AM5. Compatible processor series: AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM. Maximum internal memory: 256 GB. Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0. PCI Express 4.0. PCI Express 5.0. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 10. Parallel processing technology support: CrossFire. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet. LAN controller: Dragon RTL8125BG
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 8000 MHz |
| Maximum internal memory | 256 GB |
| Feature | Ethernet LAN |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 3.0. PCI Express 4.0. PCI Express 5.0. SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID levels | 0. 1. 10 |
| Parallel processing technology support | CrossFire |
| Maximum resolution | 7680 x 4320 pixels |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 1 |
| Number of temperature sensor headers | 1 |
| Number of RGB LED pin headers | 5 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Digital audio optical out | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Motherboard chipset | AMD X870 |
| Audio chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| Product colour | White |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| Certification | FCC. CEErP/EuP ready (ErP/EuP ready power supply is required) |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 3.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Width | 305 mm |
| Depth | 244 mm |
| Number of M.2 (E) slots | 1 |
