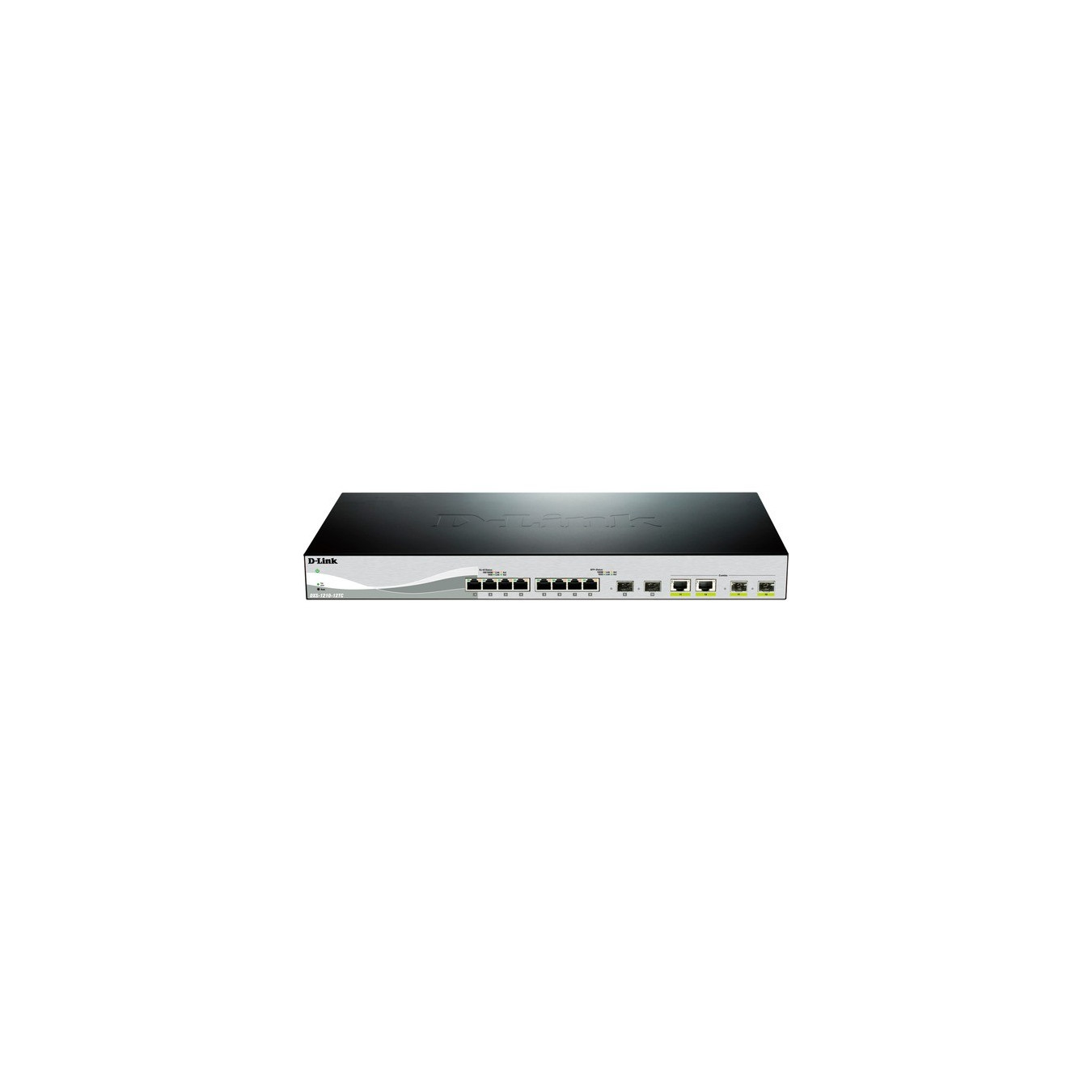

DXS-1210-12TC E, Switch
10 Gigabit switches were once reserved exclusively for large companies. Now the D-Link DXS-1210 Series 10-Gigabit Ethernet Smart Managed Switches make the benefits of high-performa...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
10 Gigabit switches were once reserved exclusively for large companies. Now the D-Link DXS-1210 Series 10-Gigabit Ethernet Smart Managed Switches make the benefits of high-performance, low-latency 10G Ethernet affordable for businesses of all sizes. The DXS-1210 switches are a cost-effective solution that can meet a variety of networking needs in businesses of all sizes. With support for 10GBASE-T / SFP+ combo ports, they provide flexibility across the entire network, making network integration easier. High performance and low latency meet the demands of virtualization, cloud services and server-to-server applications - perfect for small to medium-sized businesses.
| Typ | Switch |
| EAN | 0790069467653 |
| Manufacturer no. | DXS-1210-12TC/E |
| Design | Desktop |
| Connections - Network | RJ-45 10x (of which: 8x 100/1000/10000) |
| Routing & Switching - Layer | Layer 2 Switching |
| LEDs | Activity, LAN-Link LEDs: 12x |
| Power supply | Power consumption operation: 91 W |
| Feature | IEEE 802.3u 100BASE-TX Fast Ethernet; IEEE 802.3ab 1000BASE-T Gigabit Ethernet; IEEE 802.3az compatible; IEEE 802.3an 10GBASE-T 10-Gigabit over copper; IEEE 802.3ae 10-Gigabit over fiber; IEEE 802.3z 1000BASE-X; Auto MDI/MDIX support for 1000/10GBASE-T; MAC address table Up to 16K entries; Static MAC addresses 1K; IGMP snooping; IGMP v1/v2/v3 snooping; supports 384 IGMP groups; supports at least 128 static multicast addresses; IGMP snooping per VLAN; supports host-based fast leave; MLD Snooping; MLD v1/v2 snooping; supports 384 groups; supports 128 static multicast addresses; supports host-based fast leave; LLDP; LLDP-MED; Spanning Tree Protocol; 802.1D STP; 802.1w RSTP; 802.1s MSTP; flow control; 802.3x Flow Control; HOL Blocking Prevention; port mirroring; one-to-one; many-to-one; supports mirroring for Tx/Rx/both; 802.3ad Link Aggregation:; Maximum 8 groups/8 ports per group; Jumbo Frame: up to 9KB; loopback detection; ERPS (Ethernet Ring Protection Switching) 1; |
| More information | Quality of Service (QoS): CoS based on; 802.1p priority queues; DSCP; ToS; IPv6 traffic class; TCP/UDP port; VLAN ID; MAC address; Ether Type; IP address; protocol type; IPv6 flow label; 802.1p priority queues; 8 queues per port; queue handling; Strictly; Weighted Round Robin (WRR); Deficit Round Robin (DRR); Weighted Deficit Round Robin (WDRR); bandwidth control; Port-based (Ingress/Egress, min. granularity 64 Kbit/s); iSCSI awareness; L3 functions: IP interface; Supports 16 IPv4/v6 interfaces; ARP 768 static ARP entries; Default route; IPv6 Neighbor Discovery (ND); static routing; Max. 32 IPv4 entries; Max. 32 IPv6 entries; |
| Dimensions | Width: 440mm x Height: 44mm x Depth/Length: 210mm |
| Weight | 3,2 kg |
