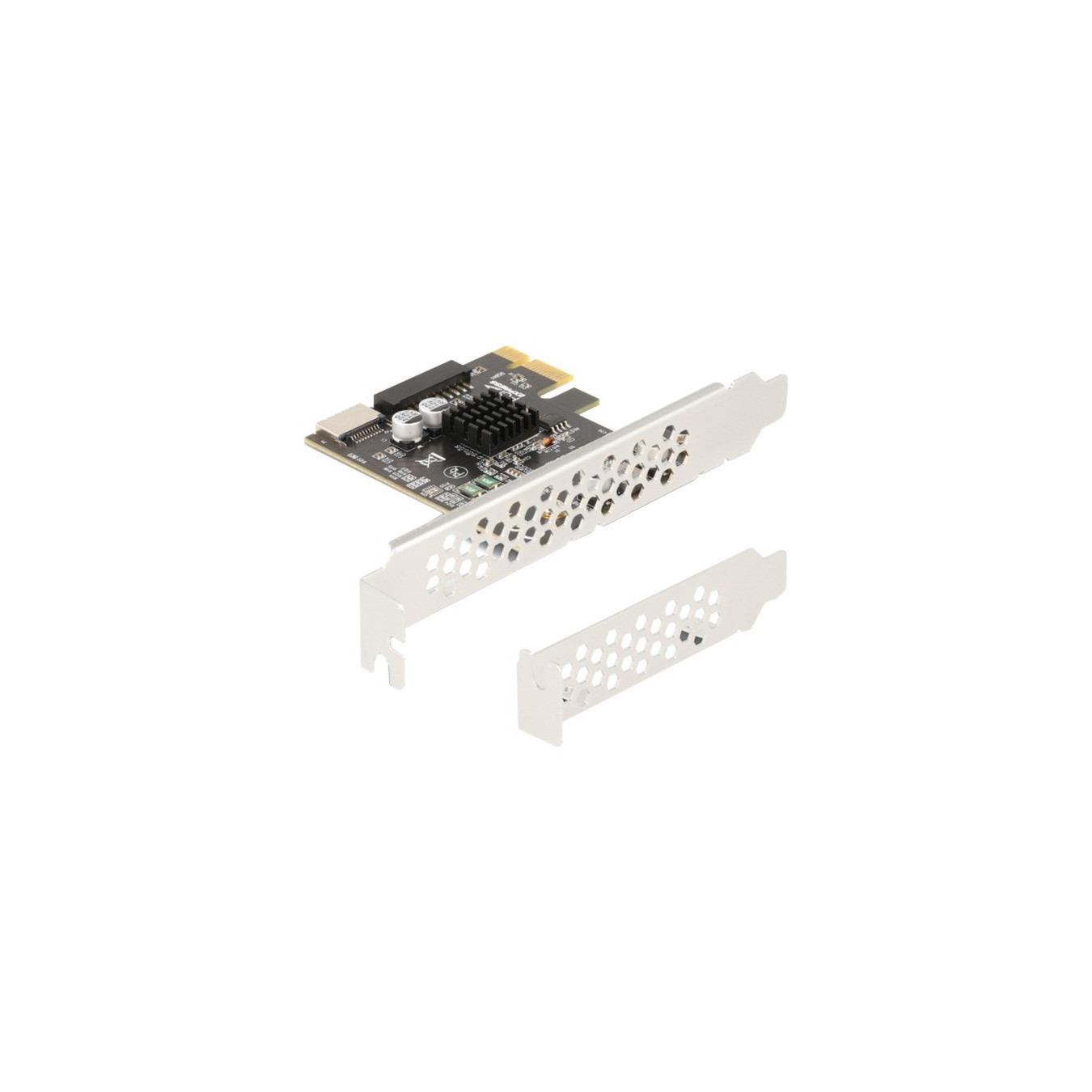

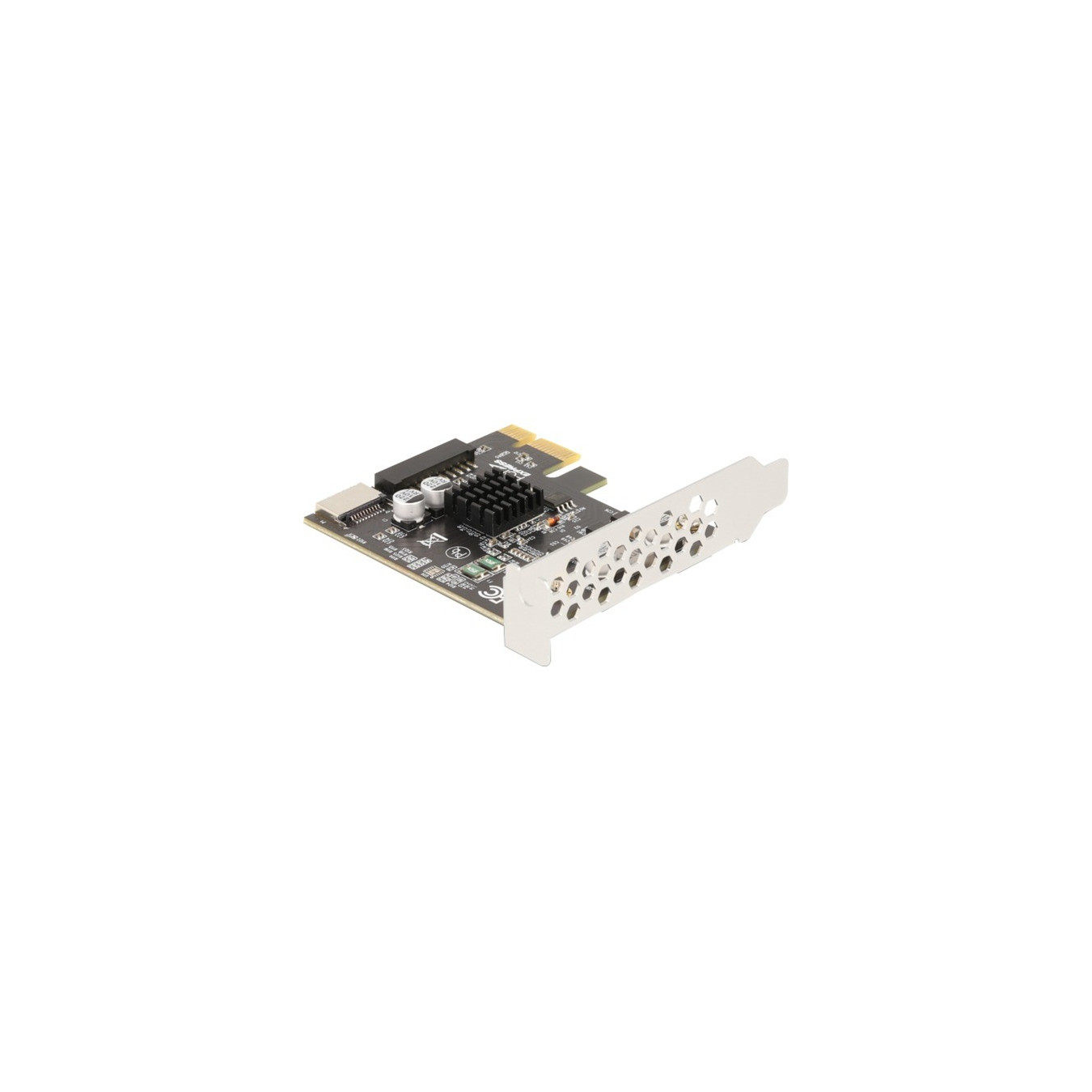

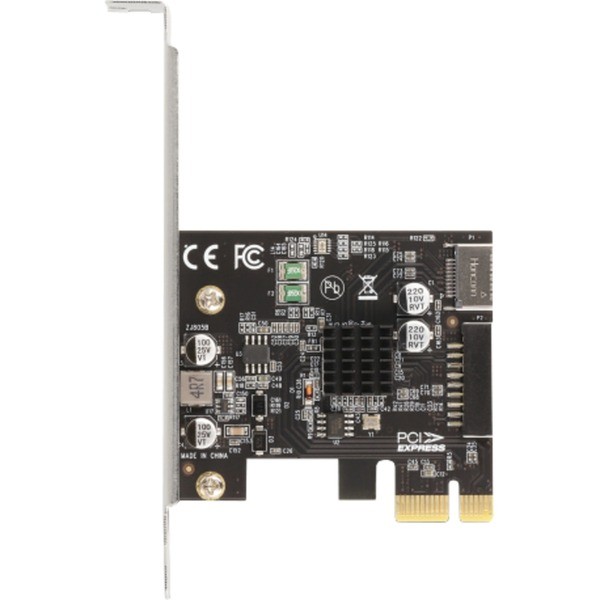

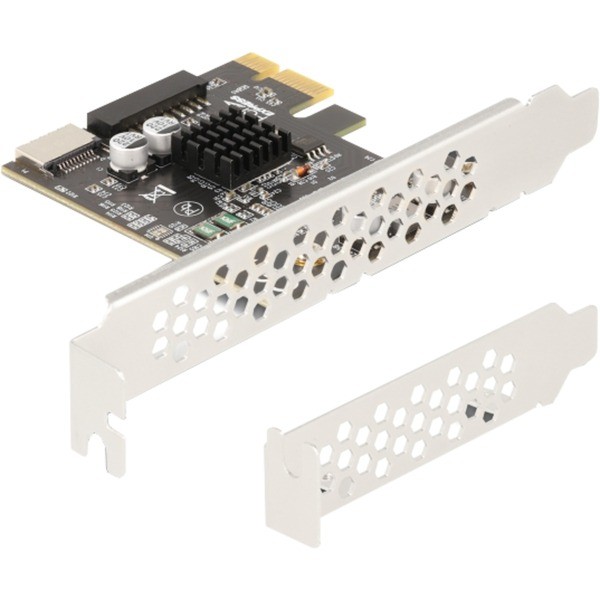

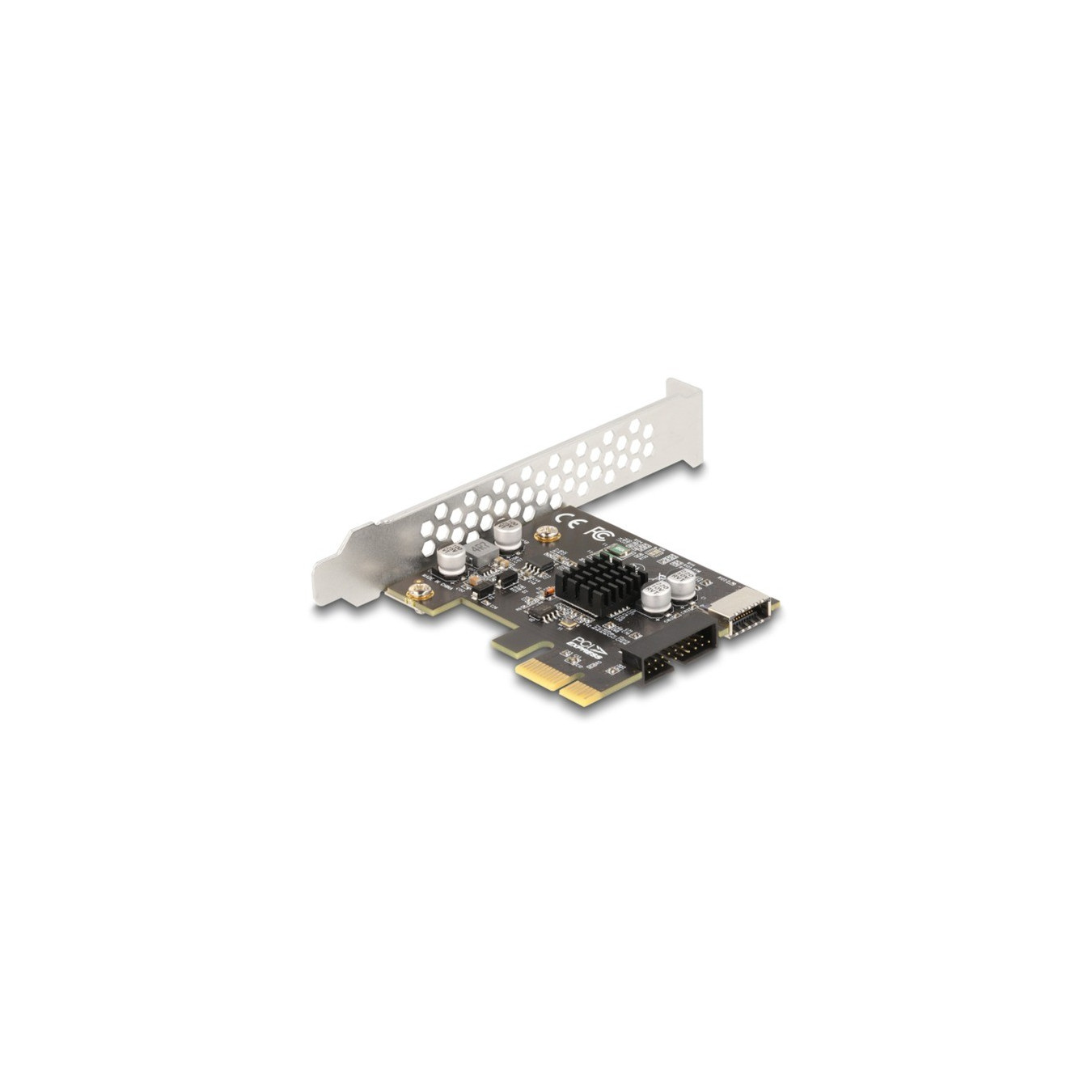

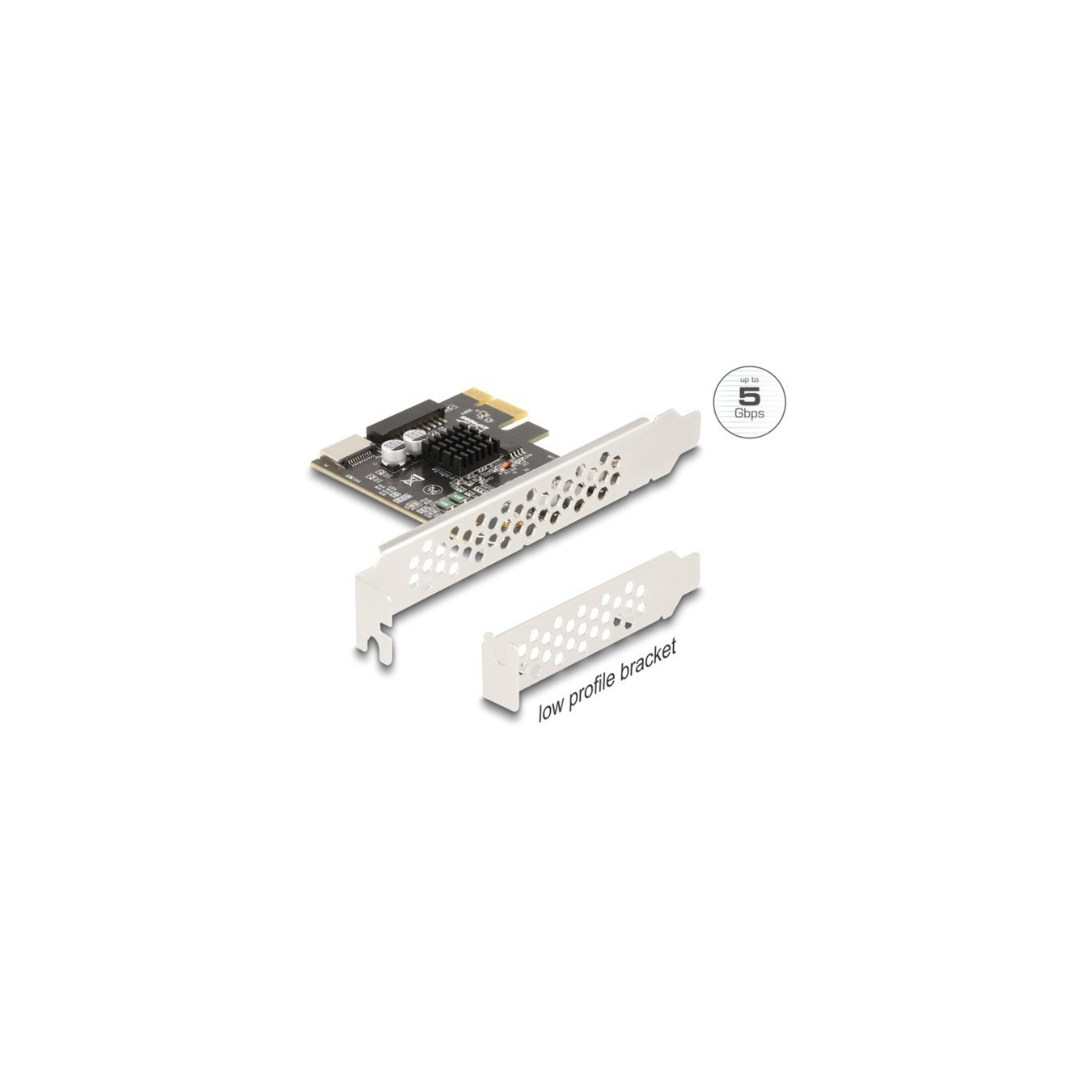

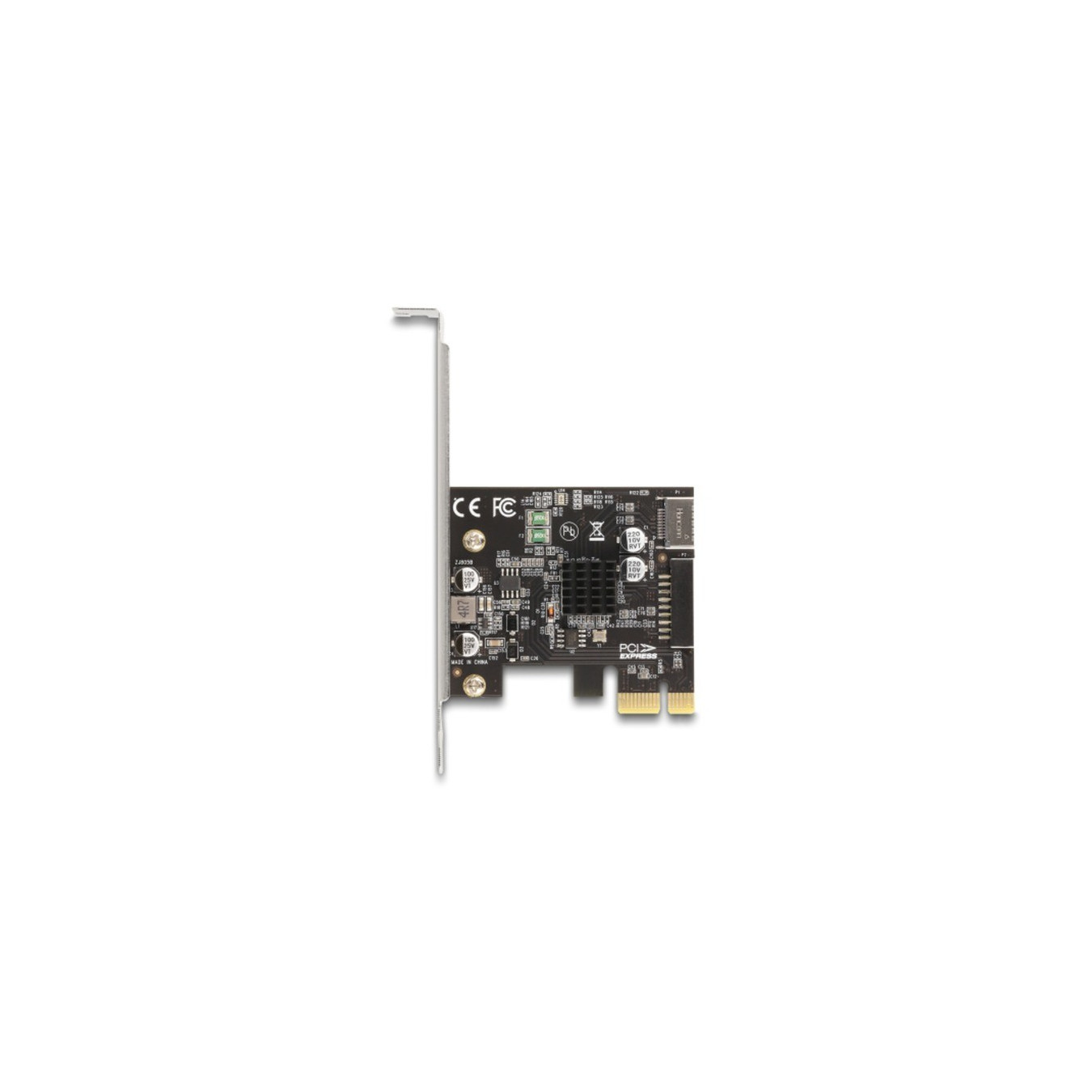

PCI Express x1 to 1in. USB 5 Gbps Typ-E Key A, 90344, USB-Controller
The PCI Express card from Delock expands the PC with an internal USB 5 Gbps Type-E Key A socket and an internal 19-pin USB header plug. Various cables can be connected to the card ...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The PCI Express card from Delock expands the PC with an internal USB 5 Gbps Type-E Key A socket and an internal 19-pin USB header plug. Various cables can be connected to the card to provide either a USB Type-C™ or a USB Type-A port.
| Typ | USB-Controller |
| EAN | 4043619903443 |
| Manufacturer no. | 90344 |
| Controller Art | USB 3.2 (5 Gbit/s) |
| slot | PCIe x1 Version 3.0 |
| Chip | VIA VL805 |
| Connections - internal | 2x USB-Header |
| Operating System - Supported | Linux, Windows 10, Windows 11 |
| Feature | Data transfer rate up to 5 Gbps, eXtensible Host Controller Interface (xHCI) specification 1.1, compatible with USB Attached SCSI Protocol (UASP) revision 1.0, bootable |
| More information | 1 x USB 5 Gbps Type-E Key A socket, 1 x 19 pin USB 5 Gbps header plug, power supply via the PCI Express interface: The card does not require any additional power supply. Power is supplied exclusively via the PCI Express interface. |
| Accessories - available | Low profile bezel, instruction manual |
